Model |

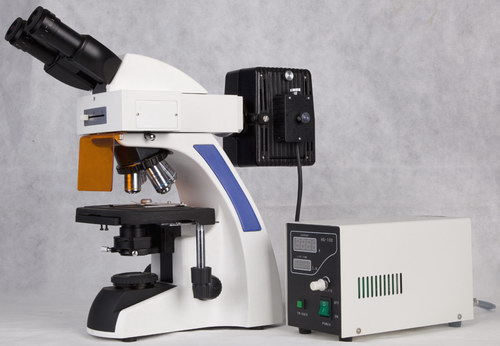

SRDF2000 |
|
Eyepiece |
Wide field WF10X/22mm |
|
Objective |
Infinity plan achromatic Objective PL 4X/0.10 |
|
Infinity plan achromatic Objective PL 10X/0.25 |
|
Infinity plan achromatic Objective PL 40X/0.65 (Spring) |
|
Infinity plan achromatic Objective PL 100X/1.25 (Spring,
oil) |
|
Eyepiece tube |
Binocular (Inclination of 30°),
Or Trinocular
(can be optional with CCD or COMS
camera) |
|
Focus system |
Coaxial coarse/fine focus, with tension adjustable and up
stop minimum division of fine focusing: 2um. |
|
Nosepiece |
Quadruple backward Nosepiece |
|
Stage |
Double layer mechanical (Size: 216*150mm, Move range:
75mm*55mm) |
|
Abbe condenser |
N.A.1.25 Abbe Condenser |
|
Light source |
3W LED illumination, adjustable brightness |
|
Reflected fluorescence system |
Mercury lamp house 100W/DC |
|
Power supply unit: AC: 110V or 220V |
|
Fluorescence filter system B exciton wavelength: 450-490mm |
|
Fluorescence filter system G exciton wavelength: 495-555mm |
