Digital AC/DC Clamp Meter



(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)



SRT Series

SRA311/SRA316/SRA318 1000A AC AC Clamp Meter

Basic
Functions

Range

Best Accuracy

SRA311

SRA316

SRA318

DC Voltage

400mV/4V/40V/400V/1000V
4V/40V/400V/1000V

±(0.7%+1)

±(0.8%+5)

±(0.8%+5)

AC Voltage

4V/40V/400V/700V
4V/40V/400V/700V

±(0.8%+5)

±(1.2%+5)

±(1.2%+5)

DC Current

400A/1000A

(±3%+3)

±(3%+8)

±(3%+8)

AC Current

400A/1000A

(±3%+3)

±(2.5%+8)

±(2.5%+8)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1.2%+1)

±(1%+5)

±(1%+5)

Frequency

9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/199.9kHz
40Hz/400Hz/4kHz/40kHz/100kHz

±(2%+5)

±(0.1%+1)

±(0.1%+1)

Frequency
From Clamp

40Hz/400Hz

±(0.1%+1)

±(0.1%+1)

±(0.1%+1)

Capacitance

4nF/40nF/400nF/4μF/40μF

±(4%+10)





Temperature

-40°C~750°C

±(1%+3)









SRT203

SRT203 Digital Clamp Multimeters

SPECIFICATIONS
Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/600V ±(0.8%+1)
AC Voltage 4V/40V/400V/600V ±(1%+5)
DC Current 40A/400A ±(2%+3)
AC Current 40A/400A ±(2.5%+5)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(1%+2)
Frequency 10Hz~1MHz ±(0.1%+3)
Duty Cycle 0.1%~99.9% Yes
Special Functions
Auto Ranging         Yes
Diode         Yes
Continuity Buzzer         Yes
Relative Mode         Yes
Data Hold         Yes
Sleep Mode         Yes
Low Battery Display         Yes
Input Impedance for DC Voltage Measurement ≥10MΩ Yes
Max. Display         3999
GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 36 x 18mm
Product Colour Red and Grey
Product Net Weight 200g
Product Size 210 x 76 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 535 x 490 x 330mm (0.087 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg

SRT204



SRT204 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1%+5)

DC Current

40A/400A

±(2%+3)

AC Current

40A/400A

±(2.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Frequency

10Hz~1MHz

±(0.1%+3)

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Auto Ranging



Yes

True RMS



Yes

Diode



Yes

Continuity Buzzer



Yes

Relative Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Input Impedance for DC Voltage Measurement

≥10MΩ

Yes

Max. Display



3999

GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 36 x 18mm
Product Colour Red and Grey
Product Net Weight 200g
Product Size 210 x 76 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 535 x 490 x 330mm (0.087 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg

SRT204A



SRT204A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1%+5)

DC Current

40A/600A

±(2.5%+5)

AC Current

40A/600A

±(2.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Capacitance

4nF/40nF/400nF/4µF/40µF/100µF

±(4%+3)

Frequency

10Hz~10MHz

±(0.5%+3)

Temperature (°C)

-40°C ~ 1000°C

±(2.5%+3)

Special Functions





Auto Ranging



Yes

Jaw Capacity

28mm

Yes

Diode



Yes

Auto Power Off



Yes

Continuity Buzzer



Yes

Low Battery Display



Yes

Data Hold



Yes

MAX Mode



Yes

Setup



Yes

Input Impedance for DC Voltage Measurement

≥10MΩ

Yes

Max. Display



3999

GENERAL CHARACTERISTICS
Power 9V Battery (6F22)
LCD Size 36 x 18mm
Product Colour Red and Grey
Product Net Weight 260g
Product Size 208 x 76 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40pcs
Standard Carton Measurement 535 x 490 x 330mm (0.087 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg

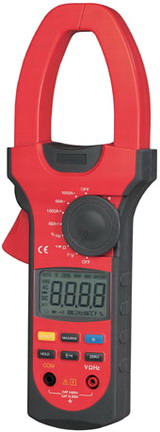

SRT207



SRT207 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

6.6V/66V/600V

±(0.8%+1)

AC Voltage

6.6V/66V/600V

±(1.2%+5)

DC Current

66A/1000A

±(1.5%+8)

AC Current

66A/1000A

±(2%+8)

Resistance

660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ/66MΩ

±(1%+2)

Temperature

-40°C~1000°C (-40°F~1832°F)



Frequency

660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz

±(0.1%+3)

Duty Cycle

0.1% ~ 99.9%

Yes

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

Yes

Surge Current

AC Current

Yes

Max/Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10MΩ

Yes

Max. Display

6666

Yes



GENERAL CHARACTERISTICS

Power

9V Alkaline Battery (1604A or 6LF22)

LCD Size

47 x 30mm

Product Color

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Alkaline Battery, English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Carton Gross Weight

5pcs

Standard Carton Gross Weight

480 x 372 x 315mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT207A



SRT207A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

6.6V/66V/600V

±(0.8%+1)

AC Voltage

6.6V/66V/600V

±(1.2%+5)

DC Current

66A/1000A

±(1.5%+8)

AC Current

66A/1000A

±(2%+8)

Resistance

660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ/66MΩ

±(1%+2)

Temperature

-40°C~1000°C (-40°F~1832°F)



Frequency

660Hz/6.6kHz/66kHz/660kHz/6.6MHz/66MHz

±(0.1%+3)

Duty Cycle

0.1% ~ 99.9%

Yes

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

No

Surge Current

AC Current

Yes

Max/Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10MΩ

Yes

Max. Display

6666

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

47 x 30mm

Product Colour

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Battery, English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5 pcs

Standard Carton Measurement

480 x 372 x 315mm (0.056CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT208



SRT208 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

6.6V/66V/600V

±(0.8%+1)

AC Voltage

6.6V/66V/600V

±(1.2%+5)

DC Current

66A/1000A

±(1.5%+8)

AC Current

66A/1000A

±(2%+8)

Resistance

660Ω/6.6kΩ/66kΩ/660kΩ/
6.6MΩ/66MΩ

±(1%+2)

Temperature

-40°C~1000°C
-40°F~1832°F

±(1%+3)
±(1%+4)

Frequency

660Hz/6.6kHz/66kHz/660kHz/
6.6MHz/66MHz

±(0.1%+3)

Duty Cycle

0.1% ~ 99.9%

Yes

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

Yes

Surge Current

AC Current

Yes

Max/Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10MΩ

Yes

Max. Display

6666

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery (1604A or 6LF22)

LCD Size

47 x 30mm

Product Color

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Alkaline Battery, English Manual, Point Contact Temperature Probe, Tool Box

Standard Individual Packing

Gift Box

Standard Carton Gross Weight

5pcs

Standard Carton Gross Weight

480 x 372 x 315mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT208A



SRT208A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/1000V

±(0.8%+1)

AC Voltage

400mV/4V/40V/400V/750V

±(1.2%+3)

DC Current

40A/400A/1000A

±(1.5%+5)

AC Current

40A/400A/1000A

±(2%+2)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Temperature (°C)

-40°C ~ 1000°C

±(2.5%+3)

Capacitance

4nF/40nF/400nF/4µF/40µF/100µF

±(4%+3)

Frequency

10Hz/100Hz/1kHz/10kHz/1MHz/10MHz

±(0.1%+3)

Duty Cycle

0.1% ~ 99,9%

Yes

Special Functions



Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC

No

Frequency Measurement by Conductor



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

≥10MΩ

Yes

Max. Conductor Diameter

55mm

Yes

Max. Display

4000

Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

47 x 30mm

Product Colour

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Battery,English Manual, Tool Box, Point Contact Temperature Probe

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5 pcs

Standard Carton Measurement

480 x 372 x 315mm (0.056CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

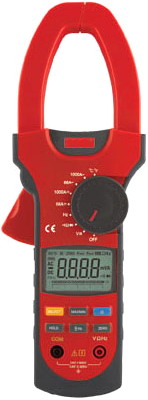

SRT209

SRT209 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

400mV/4V/40V/400V/600V

±(1.2%+5)

DC Current

40A/1000A

±(1.5%+8)

AC Current

40A/1000A

±(2%+8)

Resistance

400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ

±(1%+2)

Temperature

-40°C~1000°C
-40°F~1832°F

±(1%+3)
±(1%+4)

Frequency

4kHz/40kHz/400kHz/4MHz/40MHz

±(0.1%+3)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

Yes

Surge Current

AC Current

Yes

Peak Max / Peak Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10MW

Yes

Max. Display

4000

Yes

Analogue Bar Graph



Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery (1604A or 6LF22)

LCD Size

47 x 30mm

Product Color

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Alkaline Battery, English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Carton Gross Weight

5pcs

Standard Carton Gross Weight

480 x 372 x 315mm (0.056 CBM Per Standard Carton)

Standard Carton Gross Weight

11kg

SRT209A



SRT209A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

400mV/4V/40V/400V/600V

±(1.2%+5)

DC Current

40A/1000A

±(1.5%+8)

AC Current

40A/1000A

±(2%+8)

Resistance

400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ

±(1%+2)

Temperature

-40°C~1000°C
-40°F~1832°F

±(1%+3)
±(1%+4)

Frequency

4kHz/40kHz/400kHz/4MHz/40MHz

±(0.1%+3)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

True RMS

AC Voltage

Yes

Surge Current

AC Current

Yes

Peak Max / Peak Min Mode



Yes

Data Hold



Yes

Sleep Mode



Yes

Display Backlight



Yes

Full Icon Display



Yes

Low Battery Display



Yes

Input Impedance for AC Voltage Measurement

Around 10MW

Yes

Max. Display

4000

Yes

Analogue Bar Graph



Yes

GENERAL CHARACTERISTICS

Power

9V Alkaline Battery

LCD Size

47 x 30mm

Product Colour

Red and Grey

Product Net Weight

533g

Product Size

286 x 105 x 45mm

Standard Accessories

Test Lead, Battery, English Manual, Tool Box

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5pcs

Standard Carton Measurement

480 x 372 x 315mm (0.056CBM Per Standard Carton)

Standard Carton Gross Weight

11kg





SRT210A Mini Clamp Meter

SRT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size. It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC .It has the design of full range of overload protection ,along with the unique exterior design, which makes it a more remarkable new practical electric testing instrument. SRT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil, defense, power, foundry, circuit of power equipment inspection, and maintenance and repairs.
SRT210A (Main features)
1. Ultra-portable tools for electricians;
2. 200A AC current measurement with 1mA resolution;
3. Display backlight.

Specifications

Range

Best Accuracy

AC Current (A)

2A/20A/200A

±(2.5%+5)

Features

Display Count



2000

Auto Range



Yes

Jaw Capacity



17mm

Data Hold



Yes

LCD Backlight



Yes

Auto Power Off

Around 15 Minutes

Yes

Low Battery Indication

≤2.5V

Yes

Input Protection



Yes

General Characteristic

Power

AAA 1.5V × 2

LCD Size

39.3mm × 26.5 mm

Product Color

Red and Grey

Product Net Weight

160g

Product Size

155mm × 60mm × 33.5mm

Standard Accessories

Batteries

Standard Individual Packing

Box, English Manual

Standard Quantity Per Carton

40PCs

Standard Carton Measurement

345mm×245mm×300mm (0.025CBM Per Standard Carton)

Standard Carton Gross Weight

9.5 Kg





SRT210B Mini Clamp Meter

SRT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size. It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC .It has the design of full range of overload protection ,along with the unique exterior design, which makes it a more remarkable new practical electric testing instrument. SRT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil, defense, power, foundry, circuit of power equipment inspection, and maintenance and repairs.
SRT210B (Main features)
1. Ultra-portable tools for electricians
2. 200A AC current measurement with 1mA resolution
3. True RMS response for AC current
4. Non-contact voltage detection with LED indication
5. Display backlight
6. Data HOLD, MAX, MIN, MAX-MIN, and REL model

Specifications

Range

Best Accuracy

AC Current (A)

2A/20A/200A

±(2.5%+5)

Features

Display Count



2000

Auto Range



Yes

Jaw Capacity



17mm

True RMS



Yes

NCV



Yes

Data Hold



Yes

Relative Mode



Yes

LCD Backlight



Yes

Auto Power Off

Around 15 Minutes

Yes

Low Battery Indication

≤2.5V

Yes

Input Protection



Yes

General Characteristic

Power

AAA 1.5V × 2

LCD Size

39.3mm × 26.5 mm

Product Color

Red and Grey

Product Net Weight

60g

Product Size

155mm × 60mm × 33.5mm

Standard Accessories

Batteries

Standard Individual Packing

BOX, English Manual

Standard Quantity Per Carton

40PCs

Standard Carton Measurement

345mm×245mm×300mm (0.025CBM Per Standard Carton)

Standard Carton Gross Weight

9.5Kg





SRT210D Mini Clamp Meter

SRT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size. It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC .It has the design of full range of overload protection ,along with the unique exterior design, which makes it a more remarkable new practical electric testing instrument. SRT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil, defense, power, foundry, circuit of power equipment inspection, and maintenance and repairs.

Specifications

Range

Best Accuracy

AC Current (A)

20A/200A

±(2.5%+8)

DC Current (A)

20A/200A

±(2%+3)

AC Voltage (V)

2V/20V200V/600V

±(1%+3)

DC Voltage (V)

200mV/2V/20V200V/600V

±(0.7%+3)

Resistance (Ω)

200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ

±(1%+2)

Frequency (Hz)

10Hz/100Hz/1kHz/10kHZ/60kHz

±(0.1%+4)

Capacitance (F)

2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF

±(4%+5)

Temperature (°C)

 -40°C~1000°C

±(1%+3)

Temperature (°F)

 -40°F~1832°F

±(1.5%+5)

Features

Display Count



2000

Auto Range



Yes

Jaw Capacity



17mm

True RMS



Yes

Diode

Around 3.0V

Yes

NCV



Yes

Data Hold



Yes

Zero Mode



Yes

LCD Backlight



Yes

Auto Power Off

Around 15 Minutes

Yes

Continuity Buzzer



Yes

Low Battery Indication

≤2.5V

Yes

Input Protection



Yes

Input Impedance for DCV

≥10MΩ

Yes

General Characteristic

Power

AAA 1.5V × 2

LCD Size

39.3mm × 26.5 mm

Product Color

Red and Grey

Product Net Weight

 170g

Product Size

175mm × 60mm × 33.5mm

Standard Accessories

Batteries, Test Lead, Point Contact Temperature Probe

Standard Individual Packing

Box, Carrying bag, English Manual

Standard Quantity Per Carton

40PCs

Standard Carton Measurement

385mm×345mm×305mm  (0.041 CBM Per Standard Carton)

Standard Carton Gross Weight

11Kg





SRT210E Mini Clamp Meter

SRT210 series Mini Clamp is provided with the features of high reliability, security, auto range , and small-size. It can test the small current signal precisely; the chip itself has VFC start-up model, and there is a Specific filter circuit inside, which can filter the high frequency interference signal and ensure the accuracy of the measurement. It can be applied in the situation such as variable frequency voltage and current with VFC .It has the design of full range of overload protection ,along with the unique exterior design, which makes it a more remarkable new practical electric testing instrument. SRT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, smelting, telecommunications, manufacturing, oil, defense, power, foundry, circuit of power equipment inspection, and maintenance and repairs.
SRT210E (Main features)
1. Ultra-portable tools for advance electricians
2. 100A AC and DC current measurement with 1mA resolution
3. True RMS response for AC current
4. V.F.C function for measuring signal at variable frequency
5. 600V AC and DC voltage measurement
6. Resistance, diode, continuity and capacitance functions
7. Non-contact voltage detection with LED indication
8. Display backlight
9. Data HOLD, MAX, MIN, MAX-MIN, and ZERO model

Specifications

Range

Best Accuracy

AC Current (A)

2A/20A/100A

±(2.5%+5)

DC Current (A)

2A/20A/100A

±(2%+3)

AC Voltage (V)

2V/20V200V/600V

±(1%+3)

DC Voltage (V)

200mV/2V/20V200V/600V

±(0.7%+3)

Resistance (Ω)

200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ

±(1%+2)

Capacitance (F)

2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF

±(4%+5)

Features

Display Count



2000

Auto Range



Yes

Jaw Capacity



17mm

True RMS



Yes

Diode

Around 3.0V

Yes

V.F.C.



Yes

NCV



Yes

Data Hold



Yes

Zero Mode



Yes

LCD Backlight



Yes

Auto Power Off

Around 15 Minutes

Yes

Continuity Buzzer



Yes

Low Battery Indication

≤2.5V

Yes

Input Protection



Yes

Input Impedance for DCV

≥10MΩ

Yes

General Characteristic

Power

AAA 1.5V × 2

LCD Size

39.3mm × 26.5 mm

Product Color

Red and Grey

Product Net Weight

 170g

Product Size

175mm × 60mm × 33.5mm

Standard Accessories

Batteries, Test Lead

Standard Individual Packing

Box, Carrying bag, English Manual

Standard Quantity Per Carton

40PCs

Standard Carton Measurement

385mm×345mm×305mm  (0.041 CBM Per Standard Carton)

Standard Carton Gross Weight

11Kg













Environment Characteristics:
◊ Operating temperature: 0°C to 40°C(32F to 104F)
◊ Storage temperature: -10°C to 50°C(14F to 122F)

General Characteristics:
◊ Power: 1.5v(AAA) * 3
◊ Product color: Yellow & Black
◊ Jaw Max Diameter: 26mm
◊ MAX. diameter for conductor: 42mm
◊ Product size : 225*86*33mm
◊ Product Net Weight: 340g
◊ Standard Accessories: Test Leads, battery, User Manual, Gift Box
◊ Standard Individual Packing: Gift Box
◊ Standard Quantity per Carton: 20pcs
◊ Standard Carton Meas: 48*34*24cm
◊ Standard Carton Gross Weight: 14.0kg

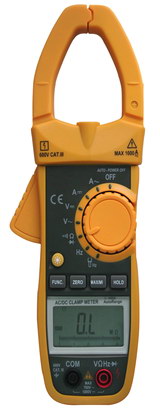

SRH336 AC&DC Ditigal Clamp Meter True RMS

(Equivalent to FLUKE365 AC&DC Ditigal Clamp Multimeters)
Specifications:
◊ Conform to the IEC1010-1 & IEC1010-1-032 standard
◊ Double insulation (protection class 600V CAT III and pollution degree 2)
◊ Secondary injection molding case
◊ SMT application (Surface Mounted Technology)
◊ with CE certificate

Special Functions:
◊ Continuity test
◊ Diode test
◊ Auto/Manual range
True RMS for AC voltage and current
◊ Auto zero key for DCA
◊ Data hold function , MAX/MIN function
◊ Backlight function, Clamp lighting
◊ Auto power off : after 30min
◊ Display: 3999 counts and 42 segments bar graph

Technical Specifications:

Measurement Function

Range

Resolution

Accuracy

DC Voltage

4V

1mV

±(0.8% rdg +5Lsd)

40V

10mV

400V

0.1V

600V

1V

1000V

1V

±(1% rdg+2Lsd)

AC Voltage

4V

1mV

±(1.2% rdg+5Lsd)

40V

10mV

400V

0.1V

600V

1V

700V

1V

DC Current

400A

0.1A

±(3.0% rdg+5Lsd)

600A

1A

1000A

1A

AC Current

400A

0.1A

±(2.5%rdg+5Lsd)

600A

1A

1000A

1A

±(3%rdg+5Lsd)

Resistance

400Ω

0.1Ω

±(1% rdg+5Lsd)

4kΩ

40kΩ

10Ω

400kΩ

0.1kΩ

4MΩ

1kΩ

40MΩ

10kΩ

±(2%rdg+5Lsd)

Frequency

40Hz

1Hz

±(0.1% rdg+1Lsd)

400Hz

1Hz

4kHz

10Hz

40kHz

100Hz

100kHz

100Hz

Frequency (for Clamp)

40Hz

0.01Hz

±(0.1% rdg+1Lsd)

400Hz

0.1Hz





This model is out of production, please click here for replaced model SRT870C.





Product name: XHST6910A 3 3/4 DIGITAL AC/DC CLAMP MULTIMETER

1. Function
•AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency ,Diode Continuity Test
• Display: 3 3/4 digit LCD with a max. reading of 3999
• AC/DC Current to1000A
• DC Voltage to 1000V/ AC Voltage to 750V
• Clamp opening size: 1.89" (48mm)
• Data Hold to freeze the displayed value
• Back light
• Auto Power Off
• Safety:According to EN61010-1 protection class II overvoltage category(CAT III 600V) pollution degreen 2.
• Power supply: 9V Zinc-carbon battery
SPECIFICATIONS:
DC Current:40A,1000A
AC Current:40A,1000A
AC Voltage: 400mV , 4V , 40V , 400V ,750V
DC Voltage: 400mV, 4V, 40V, 400V, 1000V
Resistance(Ω): 400Ω, 4KΩ, 40KΩ, 400KΩ, 4MΩ, 40MΩ
Capacitance: 40nF, 400nF, 4uF, 40uF, 100uF
Frequency: 10Hz, 100Hz, 1000Hz, 10KHz, 100KHz, 1000KHz, 10MHz
*Certificate: CE Approval

2. Packing
Each item in Color Box
Dimension:   225(H)×90(W)×45(D)mm
Ctn size:       530×310×400
Q'TY / Ctn:     30pcs
Gw/Nw:        19/18KG





Product name: DT6203 3 3/4 DIGITAL AC/DC CLAMP MULTIMETER (super thin)

1. Function
•AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency ,Diode Continuity Test, Temperature
• Display: 3 3/4 digit LCD with a max. reading of 3999
• AC/DC Current to1000A
• DC Voltage to 600V/ AC Voltage to 600V
• Clamp opening size(double open jaw):1.61" (41mm)
• Temperature: -20°C~800°C
• Data Hold to freeze the displayed value
• Back light
• Auto Power Off
• Safety:According to EN61010-1 protection class II overvoltage category(CAT III 600V) pollution degreen 2.
• Power supply: 9V Zinc-carbon battery
SPECIFICATIONS:
AC Current:40A,1000A
AC Voltage: 400mV , 4V , 40V , 400V ,600V
DC Voltage: 400mV, 4V, 40V, 400V,600V
Resistance(Ω): 400Ω, 4KΩ, 40KΩ, 400KΩ, 4MΩ, 40MΩ
Capacitance: 40nF, 400nF, 4uF, 40uF, 100uF
Frequency: 10Hz, 100Hz, 1000Hz, 10KHz, 100KHz, 1000KHz, 10MHz
*Certificate: CE Approval

2. Packing
Each item in Color Box
Dimension: 179(H)×73(W)×26(D)mm
Ctn size: 478×318×315
Q'TY / Ctn:100pcs
Gw/Nw:   14.5/13.5KG
Minimum Q'ty: 40pcs



DT3266B 3 1/2 DIGITAL AC/DC CLAMP METER


 Function  Range  Accuracy
 DC voltage  400m-4-40-400-600V  ±1.0%
 AC voltage  400m-4-40-400-600V  ±1.2%
 DCA  40m-400mA  ±1.5%
 ACA  40m-400mA  ±1.5%
 CAP  40n-100nF  ±4.5%
 OHM  400-4K-40K-400K-4M-40MΩ  ±1.0%
 ACA(CLAMP)  400-600A  ±2.0%
 Frequency  10Hz~10MHz  ±0.5%
 Frequency(CLAMP)  10Hz~10KHz  ±1.0%
 Power supply  (AAA) 1.5V×2
 Max display  3999
 Data hold  YES
 Weight  160g
 Dimension  160L×55W×22Hmm
 Accessories  operation manual, test leads



DT3266D 3 1/2 DIGITAL AC/DC CLAMP METER





 Function  Range  Accuracy
 DC voltage  200-600V  ±1.0%
 AC voltage  600V  ±1.2%
 OHM  2000Ω  ±1.0%
 ACA  200 A  ±2.0%
 DCA  200 A  ±2.0%
 Power supply  (AAA) 1.5V×2
 Max display  1999
 Data hold  YES
 Live wire detect  YES
 Phase sequence test  YES
 Audible continuity  YES
 Diode test  YES
 Weight  160g
 Dimension  160L×55W×22Hmm
 Accessories  operation manual, test leads



 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
