Moisture Meter

( digital Moisture Meter, Moisture Tester, electromagnetic inductive moisture meter, moisture detector, grain Moisture Meter, grain Moisture tester, portable grain Moisture Meter, wood Moisture Meter, timber Moisture Meter, timber water meter, soil Moisture Meter, seed Moisture Meter, temperature Moisture Meter, paper Moisture Meter, tea Moisture Meter )

multifunctional moisture meter      grain moisture meter      wood/paper moisture meter      soil moisture meter      skin moisture meter      meat&food moisture meter      infrared moisture meter

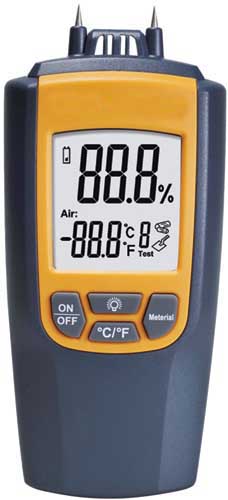

SR8040 Multifunctional Moisture Meter

Key Features:
SR8040 designed to measure material moisture with manual and automatic range selection.
It can quickly measure different 7 material (Hard wood, Soft wood, Cement mortar, Lime mortar, Bricks) for moisture with resolution:0.1%, 0.2% accuracy, in the meanwhile, it display the temperature for º C, º F.
LCD backlight function make you reading easily even in the darkness. It is ideal for DIY, building and engineering project.

The Moisture meter has been designed to measure the material moisture, air temperature. Commonly used to measure the moisture contents in wood and building materials, and the air temperature.

SPECIFICATIONS:

The meter has been designed according to CE directive: 2004/108/EC

Parameters: % material moisture contents, temperatureº C, º F

Accuracy: Conductivity measurement: %2

Temperature: 1º C

Resolution: 0.1% , 0.1º C, 0.1º F

Measurement range: 0.0%~95.7%, -10 ~ +50º C

Digital display: 3 digits

Measurement selection:

Material 1: 8.9~95.7%

(Hard wood such as Beech, Spruce, Larch, Birch, Cherry, Walnut and so on.)

Material 2: 7.1~80.0%

(Soft wood such as Oak, Pine, Maple, Ash-tree, Douglas fir, Meranti and so on.)

Material 3: 1.0~2.5% (Cement or Concrete plane, Plaster produce.)

Material 4: 0.0~3.3% (Anhydrite plane)

Material 5: 0.7~3.8% (Cement mortar)

Material 6: 0.5~7.4% (Lime mortar)

Material7: 0.0~23.4% (Bricks)

Accessories include:
Free 1.5V x3AAA batteries
Free protect cover
Free protective carrying case
Free Wrist Strap/String
User's Manual

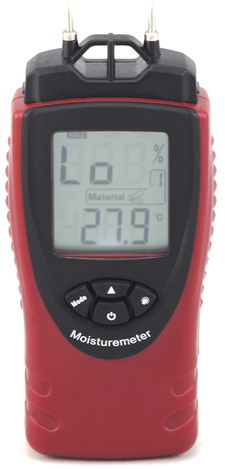

SR6040 Multifunctional Moisture Meter


Specification:
Parameters: % material moisture contents. Temperature º C. º F
Range: 0.0%-95.7% , -10º C - 50º C
Accuracy: +/-2%. +/-1º C
Resolution: 0.1%. 0.1º C . 0.1º F
Digital Display: 3 digits


Measurement Selection:
Material 1 : 9.0-54.8% (Hard wood such as Beech ,Spruce , Larch. Birch , Cherry , Walnut)
Material 2 : 7.3-47.9% (Soft wood such as Oak , Pine , Maple, Ash-tree Douglas Fir, Meranti)
Material 3: 1.0-22.1% (Cement or Concrete plane , Plaster produce )
Material 4 : 0.0-11% (Anhydrite plane)
Material 5: 0.7-8.5% (Cement mortar)
Material 6 : 0.5-9.8% (Lime mortar)
Material 7 : 0.0-16.4% (Bricks)

Auto off: 10 minutes without operation
Operating Temperature: -10-60º C (-4-140º F)
power supply: 1.5V*3 AAA Battery
Size: 121*55*28mm
Weight: 105g

MM318 Non-Invasive Inductive Moisture Meter

Features:

1. LCD display readings
2. Lock readings
3. Auto calibration
4. Low battery indicator
5. LCD display readings
6. Lock readings
7. Auto calibration
8. Low battery indicator
9. Detect Moisture of 4 different materials (drywall, masonry, softwood, hardwood)
10. Alarm if reading is out of range
11. LED bar indicates moisture content
12. Auto power off in 2 minutes inactive
Specification:

Product Name

Non-Invasive Inductive Moisture Meter

Model

MM318

Measurement Range

0%~53%, Softwood

0%~35%, Hardwood

Moisture readings of drywall and masonry are relative values

Measurement Precision

4% (Softwood, Hardwood)

Maximum Sense Depth

3/4 inch (20mm)

Power Source

9V Battery

Auto Power Off

2 minutes inactive

Backlit

Yes

LED Moisture Content Indicator

Yes

Working Temperature

0~40C

Storage Temperature

-10~50C

Storage Humidity

5%~95%RH

Weight

About 152g (w/o battery)

Dimension

1707530mm

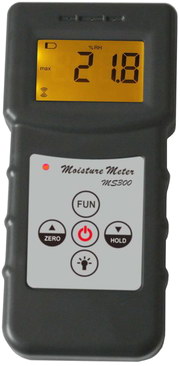

MM300 Inductive Moisture Meter

Inductive moisture meter MM300 is used for measuring moisture content of wood, Timber, paper, Bamboo, Carton , concrete, metope, and other materials. It applicable of woodwork, paper making, flakeboard, furniture ,building, timber traders and other relevant industry.

Features:

1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.

1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.

1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.

1.4.The moisture meter operates by electrical resistance and has automatic temperature compensation.

1.5.Manual off at any time .Auto power off after 5 minutes from last operation.

1.6 Data hlold function.Low battery alert.

Specification

Display:4 digital LCD

Measuring range :0-70%

Temperature:0-60C

Humidity:5%-90%RH

Resolusion:0.1

Accuracy: 0.5%n

Power supply:

4x1.5 AAA size (UM-4) battery

Dimensions:140mm60mm22mm

Weight:119g (not including batteries)

Guarantee:1 year

Material Species: 10 kinds

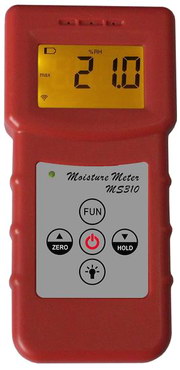

MM310 Inductive Moisture Meter

Inductive moisture meter MM310 is used for measuring moisture content of wood, Timber, paper, Bamboo, Carton , concrete, metope, and other materials. It applicable of woodwork, paper making, flakeboard, furniture ,building, timber traders and other relevant industry.

Features:

1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.

1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.

1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.

1.4.The moisture meter operates by electrical resistance and has automatic temperature compensation.

1.5.Manual off at any time .Auto power off after 5 minutes from last operation.

1.6 Data hlold function.Low battery alert.

Specification

Display:4 digital LCD

Measuring range :0-99%

Temperature:0-60C

Humidity:5%-90%RH

Resolusion:0.1

Accuracy: 0.5%n

Power supply:

4x1.5 AAA size (UM-4) battery

Dimensions:140mm60mm22mm

Weight:119g (not including batteries)

Guarantee:1 year

Material Species:20 kinds

Packing: 18PCS/CTN, CTN SIZE: 43.5*28*65CM,

G.W: 13.5KGS, Volume weight: 16KGS

MM7200 Pin Moisture Meter

Pin moisture meter MM7200  is used for measuring moisture content of wood ,Timber, paper, Bamboo, Carton, concrete, floor and other materials. It applicable of woodwork,paper making , flakeboard, furniture ,building, timber traders and other relevant industry.

Features:

  Compact,portable ,easy to use.

  Digital display with backlight.

  Manual power off & Auto power off.

Measuring range: 0-80%

Resolution: 0.1

Display: LCD display

Accuracy: (0.5%n+0.1)

Power supply: 4x1.5V AAA (UM-4) battery

Battery indicator: low battery indicator

Material code: 3 kinds

Probe length: 8cm (including handle), pin length: 1.5cm

Packing: 2PCS/CTN, CTN SIZE: 50*22*15CM, G.W: 1.5KGS, Volume weight: 3.3KGS;1PCS/CTN, CTN SIZE: 25*21*7CM

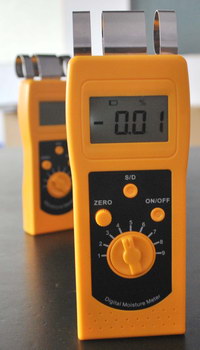

MM200 Concrete Moisture Meter

MM200 Concrete water testing instrument adopted the high frequency principle based on the introduction of the most advanced technology from foreign country. In other words, there is a fixed frequency inside the equipment. Once the moisture of the detected objects carried, the frequency through the sensor will be different. The deference between the frequencies will be displayed in figure after the conversion by current-frequency converter.
Features:
Its integrative design convenient to carry outside for testing.
Digital display with back light gives exact and clearly reading although you stay at the somber conditions.
It is small in size, light in weight ,easy to carry out for fieldwork if needed.
Manual off at any time.
Specification:
Display:4 digital LCD
Measuring range: 0-2%/ 0-90%
Measuring condition: Temperature: 0-60C; Humidity:5%-90%RH
Resolution: 0.1 or 0.01
Accuracy: 0.5%n
Power supply: 9V battery (6F22)
Dimensions: 160mm60mm25mm
Weight: 203g (not including batteries)

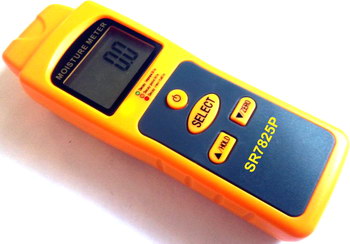

MODEL: SR7825P

Product Names: Multifunctional needle moisture meter

Measuring mode: Needle type

Way of calibration: automatic calibration at startup

Measurable materials: About 150 non-conducting materials, such as wood, fibre, construction material, etc. (choose the code based on the material)

Monitor: 5-digit 14mm LCD screen and 1-digit color-coding LED to display the data and the value of moisture

Measuring range: 0-70%

Accuracy: (0.5%+1)

Resolution: 0.1

Operating conditions: Temperature: 0-50C    Humidity: <90%

Power supply: 4x 1.5v AAA (UM-4) battery

Size of handle: 1655833mm

Weight: 110g(without battery)

Features:

*Technology of micro-computer ensures precision;

*Auto temperature compensation lowers the influence of temperature drift on precision;

*Large-sized LCD screen with backlight illumination and unambiguous reading;

*Backlight turned on and off smoothly to save power;

*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;

*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.

Application: Broad application on fibre-based materials, such as buildings, building materials, metal, paper, finished products, traditional Chinese medicine, tobacco, cotton, textile and soil.

Code

Material

CD00

Standard Type

Lowland fir, Dipterocarpus zeylanicus, Dipterocarp, Gurjun, Eucalyptus, Eucalyptus maculate, Eucalyptus microcorys, Eucalyptus diversicolor, Pterygota Schott, Brown sterculia nobilis, Trunk yellow Sterculia, Lodgepole pine, Pinus sylvestris, Pinus contorta, Twisted pine, Scotch pine, European redwood, American red rubber tree, Spotted rubber tree, European ash tree, White birch, Balsa tree, Boxwood, Africa Cypress, Cypress, Maple, Rosewood (ebony, padauk, etc.), Sandalwood, Australian rosewood, Kapur, American walnut, Sugar maple, Big-leaf maple, Quercus robur, Bamboo and its products.

CD01

Eucalyptus crebra, Eucalyptus saligna, araucaria angustifolia, Araucaria bidwillii, North America Sequoia, Merbau, New Zealand white pine, Douglas fir, Maritime Pine, Southern rubber tree, California redwood, American ash trees, Western mahogany, Light brown Queensland maple, New Guinea walnut, New Zealand white pine, Silk wood, Red shorea, South Indian shorea

CD02

Jarrah, Australian eucalyptus, African Grevillea, Australia Grevillea, Nigerian Movingui, European walnut, Queensland walnut, Oak, Erythrophloeum fordii, White wood, European beech, Grevillea robusta,  Thuja plicata, North American tamarack, European tamarack, Japanese tamarack, Matai, European pinus nigra, Corsican pinus nigra, Pinus palustris, Pinus ponderosa, Red cedar, Yellow pine, American pitch pine, Caribbean Pine, Ovalcone pine, Monterey pine, European spruce, European yew, Silver fir, Spruce, Western hemlock, Tsuga heterophylla, Chinese yew, Ocotea rodioei, Endiandra, Chestnut tree.

CD03

New Zealand Kauri, New Zealand fir, Pyinkado, Turkey oak, Africa chinaberry, Quercus cerris, American Elm, English elm, Kwango Ulmus elongata, White elm, Afzelia, Lemon, Podocarpus, Totara.

CD04

Acer pseudoplatinus, Pecan, Cassipourea elliotii, Sycamore, West American larch, Western larch, Padauk, African Padouk, Teak, Cordia, Hickory, American light Cordia.

CD05

Afromosia, Persimmon tree, Pterocarpus indicus, Basswood, Coachwood, Ramin, Amboyna.

CD06

Brazilian poon, Guarea, White guarea.

CD07

Abies procera, Queensland Kauri, African mahogany, African walnut, Betula pendula, Croton, European cherry, Cherry, Shellbark, Black guarea, European white birch, Cedar, Capparis acutifolia

Cd08

Paper, Chipboard ect

Cd09

Building, wall and concrete

Features:
*Technology of micro-computer ensures precision;
*Auto temperature compensation lowers the influence of temperature drift on precision;
*Large-sized LCD screen with backlight illumination and unambiguous reading;
*Backlight turned on and off smoothly to save power;
*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;
*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.
Application: Broad application on fibre-based materials, such as buildings, building materials, metal, paper, finished products, traditional Chinese medicine, tobacco, cotton, textile and soil.

MODEL: SR7825S
Product Names: Multifunctional inductive moisture meter
Measuring mode: Induction type
Way of calibration: automatic calibration at startup
Measurable materials: About 150 non-conducting materials, such as wood, fibre, construction material, etc. (choose the code based on the material)
Induction depth: 50mm
Monitor: 5-digit 14mm LCD screen and 1-digit color-coding LED to display the data and the value of moisture
Measuring range: 0-70%
Accuracy : (0.5%+1)
Resolution: 0.1
Operating conditions: Temperature: 0-50C Humidity: < 90%
Power supply: 4x 1.5v AAA (UM-4) battery
Size of handle: 1655833mm
Weight: 110g(without battery)

MODEL: SR7825PS

Product Names: Multifunctional inductive/needle moisture meter

Measuring mode: Induction type/Needle type

Way of calibration: automatic calibration at startup

Measurable materials: About 150 non-conducting materials, such as wood, fibre, construction material, etc. (choose the code based on the material)

Induction depth: 50mm

Monitor: 5-digit 14mm LCD screen and 1-digit color-coding LED to display the data and the value of moisture

Measuring range: 0-70%

Accuracy: (0.5%+1)

Resolution: 0.1

Operating conditions: Temperature: 0-50C    Humidity: < 90%

Power supply: 4x 1.5v AAA (UM-4) battery

Size of handle: Host: 1655833mm; handle: 2164227mm

Weight Host: 110g (without battery); handle: 110g

Features:

*Technology of micro-computer ensures precision;

*Auto temperature compensation lowers the influence of temperature drift on precision;

*Large-sized LCD screen with backlight illumination and unambiguous reading;

*Backlight turned on and off smoothly to save power;

*Prompt for lower voltage; machine turned off when there is no operation after 5 minutes;

*Good appearance and high-quality electronic parts; shell made of durable ABS plastics.

Application: Broad application on fibre-based materials, such as buildings, building materials, metal, paper, finished products, traditional Chinese medicine, tobacco, cotton, textile and soil.

Table 1: Materials and Their Corresponding Codes (Probe-Based Measuring)

Code

Material

CD00

Standard Type

Lowland fir, Dipterocarpus zeylanicus, Dipterocarp, Gurjun, Eucalyptus, Eucalyptus maculate, Eucalyptus microcorys, Eucalyptus diversicolor, Pterygota Schott, Brown sterculia nobilis, Trunk yellow Sterculia, Lodgepole pine, Pinus sylvestris, Pinus contorta, Twisted pine, Scotch pine, European redwood, American red rubber tree, Spotted rubber tree, European ash tree, White birch, Balsa tree, Boxwood, Africa Cypress, Cypress, Maple, Rosewood (ebony, padauk, etc.), Sandalwood, Australian rosewood, Kapur, American walnut, Sugar maple, Big-leaf maple, Quercus robur, Bamboo and its products.

CD01

Eucalyptus crebra, Eucalyptus saligna, araucaria angustifolia, Araucaria bidwillii, North America Sequoia, Merbau, New Zealand white pine, Douglas fir, Maritime Pine, Southern rubber tree, California redwood, American ash trees, Western mahogany, Light brown Queensland maple, New Guinea walnut, New Zealand white pine, Silk wood, Red shorea, South Indian shorea

CD02

Jarrah, Australian eucalyptus, African Grevillea, Australia Grevillea, Nigerian Movingui, European walnut, Queensland walnut, Oak, Erythrophloeum fordii, White wood, European beech, Grevillea robusta,  Thuja plicata, North American tamarack, European tamarack, Japanese tamarack, Matai, European pinus nigra, Corsican pinus nigra, Pinus palustris, Pinus ponderosa, Red cedar, Yellow pine, American pitch pine, Caribbean Pine, Ovalcone pine, Monterey pine, European spruce, European yew, Silver fir, Spruce, Western hemlock, Tsuga heterophylla, Chinese yew, Ocotea rodioei, Endiandra, Chestnut tree.

CD03

New Zealand Kauri, New Zealand fir, Pyinkado, Turkey oak, Africa chinaberry, Quercus cerris, American Elm, English elm, Kwango Ulmus elongata, White elm, Afzelia, Lemon, Podocarpus, Totara.

CD04

Acer pseudoplatinus, Pecan, Cassipourea elliotii, Sycamore, West American larch, Western larch, Padauk, African Padouk, Teak, Cordia, Hickory, American light Cordia.

CD05

Afromosia, Persimmon tree, Pterocarpus indicus, Basswood, Coachwood, Ramin, Amboyna.

CD06

Brazilian poon, Guarea, White guarea.

CD07

Abies procera, Queensland Kauri, African mahogany, African walnut, Betula pendula, Croton, European cherry, Cherry, Shellbark, Black guarea, European white birch, Cedar, Capparis acutifolia

Cd08

Paper, Chipboard ect

Cd09

Building, wall and concrete

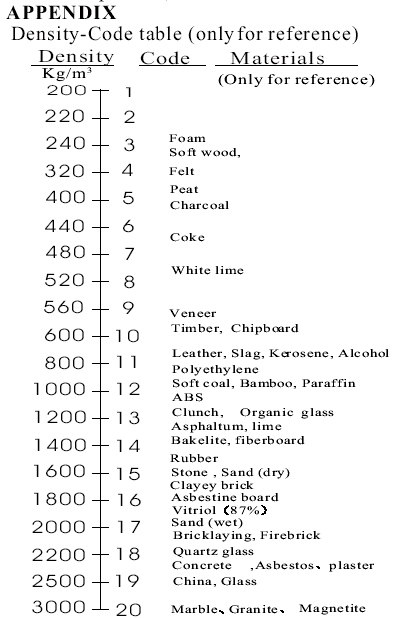

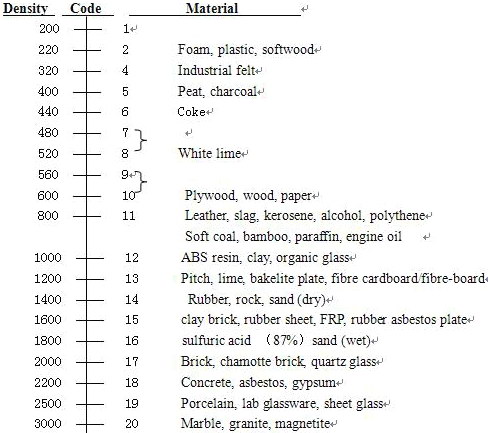

Table 2: Densities and Their Corresponding Codes (Sensor-Based Measuring)

For the factors of uncertainty, this Table is used only for reference.

Standard Accessories:

 1. Main Unit

 2. Carrying Case

 3. Operation Manual

Optional accessories:

 1. Moisture Standard 18 %

 2. USB data cable with software
 3. Bluetooth data out put with software

SR6825P Moisture Meter (Pin type)

Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.

* Measure the moisture of sample by testing the conductivity between two pin probes.
* Two presentations, digital display and color  coded LED indication.
* Use USB data output connect with PC.

* Provide Bluetooth ™ data output choice.

 Meaning

  Pin Type

  Specifications

  Wood Up to 150 Species

  Measuring Range

  0~80 %

  Accuracy

  0.5%n+0.5

  Resolution

  0.1

  Display

  4 Digits, 10 mm LCD, With Color Coded LED Indicator

  LED Indicator

  Green LED represents a safe, air-dry state

  Yellow LED represents a borderline state

  Red LED represents a damp state

  Calibration

  Automatic

  Battery Indicator

  Low Battery Indicator

  Data Output

  USB, Bluetooth

  Operating Conditions

  Temperature: 0~50 %C,      Humidity: < 90 %RH

  Power Supply

  4 x 1.5 AAA Size (UM-4) Battery

  Dimensions

  165 x 62 x 26 mm

  Weight

  119 g (Not Including Batteries)

Standard Accessories:

 1. Main Unit

 2. Carrying Case

 3. Operation Manual

Optional accessories:

 1. USB data cable with software
 2. Bluetooth data out put with software

SR6825S Moisture Meter (Search type)

Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.

* Adopt search type non-invasive measuring method.
* Two presentations, digital display and color coded LED indication.
* Use USB data output to connect with PC.

* Provide Bluetooth ™ data output choice.

Meaning

  Search Type

  Specifications

  Wood, Chiboard, Leather, Slag, Kerosene, Alcohol, Polyethylene, Soft coal, Bamboo, Paraffin,etc.

  Measuring Range

  0~70 %

  Accuracy

  0.5%n+0.5

  Resolution

  0.1

  Display

  4 Digits, 10 mm LCD, With Color Coded LED Indicator

  LED Indicator

  Green LED represents a safe, air-dry state

  Yellow LED represents a borderline state

  Red LED represents a damp state

  Calibration

  Automatic

  Battery Indicator

  Low Battery Indicator

  Data Output

  USB, Bluetooth

  Operating Conditions

  Temperature: 0~50 %C, Humidity: < 90 %RH

  Power Supply

  4 x 1.5 AAA Size (UM-4) Battery

  Dimensions

  165 x 62 x 26 mm

  Weight

  119 g (Not Including Batteries)

Standard Accessories:

 1. Main Unit

 2. Carrying Case

 3. Operation Manual

 4. Measuring Pin (P25)

Optional accessories:

 1. Moisture Standard 18 %

 2. USB data cable with software
 3. Bluetooth data out put with software

SR6825PS Moisture Meter (Pin & Search type)

Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.

* Two measuring principles: Pin type & Search type

* Two presentations, digital display and color  coded LED indication.

* Use USB data output data output to connect with PC.

* Provide Bluetooth ™ data output choice.

 Meaning

  Pin & Search Type

  Specifications

  Wood Up to 150 Species, Chiboard, Leather, Slag, Kerosene, Alcohol, Polyethylene, Soft coal, etc.

  Measuring Range

  Pin Type: 0~80 %

  Search Type: 0~70 %

  Accuracy

  0.5%n+0.5

  Resolution

  0.1

  Display

  4 Digits, 10 mm LCD, With Color Coded LED Indicator

  LED Indicator

  Green LED represents a safe, air-dry state

  Yellow LED represents a borderline state

  Red LED represents a damp state

  Calibration

  Automatic

  Battery Indicator

  Low Battery Indicator

  Data Output

  USB, Bluetooth

  Operating Conditions

  Temperature: 0~50 %C, Humidity: < 90 %RH

  Power Supply

  4 x 1.5 AAA Size (UM-4) Battery

  Dimensions

  Main Unit

  165 x 62 x 26 mm

  Measuring Pin

  71 x 65 x 22 mm

  Weight

  119 g (Not Including Batteries)

SR6828P Moisture Meter (Pin type)

Applications:

Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.

Features:
* Measure the moisture of sample by testing the conductivity between two pin probes.
* Two presentations, digital display and color coded LED indication.
* With storage and statistical functions.
* Use "USB data output" to connect with PC.
* Provide "Bluetooth™ data output" choice.
Specifications:

Meaning

Pin Type

Specifications

Wood Over 150 Species

Measuring Range

0~80 %

Accuracy

(0.5%n+0.5)

Resolution

0.1

Display

4 Digits, 10 mm LCD, With Color Coded LED Indicator

LED Indicator

Green LED represents a safe, air-dry state

Yellow LED represents a borderline state

Red LED represents a damp state

Calibration

Automatic

Battery Indicator

Low Battery Indicator

Data Output

USB, Bluetooth

Operating Conditions

Temperature: 0~50 %C, Humidity: < 90 %RH

Power Supply

4*1.5 AAA Size (UM-4) Battery

Dimensions

Main Unit

150*65*30 mm

Measuring Pin

192*44*44 mm

Weight

324g (Not Including Batteries)

Standard Accessories:
1. Main Unit
2. Carrying Case
3. Operation Manual
4. Measuring Pin (P28)
Optional accessories:
1. Moisture Standard 18 %
2. USB data cable with software
3. Bluetooth data out put with software

Pin Type Code for SR6828P

Code

Material

Cd00

Abies grandis, Acer macrophyllum, Maple, Acer saccharum, Pine(scots ), yellow Pine, Dalbergia latifolia, Dipterocarpus zeylanicus, Eucalyptus microcorys, Fraxinus excelsior, Cupressus spp, Pinus contorta,Pterygota bequaertii, Quercus robur, Pinus sylvestris, Balsa, Boxwood (maracaibo), red Gum(American), Gum spotted, Gurjun, Birch, Cypress (African) Karri, Oak(European), Oak(Japanese),black Poplar,Redwood (Baltic European), Rosewood(Indian),Pine(lodgepole),Tallowwood,Walnut (American), Kapur

Cd01

Araucaria bidwilli, Eucalyptus crebra, Eucalyptus saligna,Flindersia bray-leyana, Fraxinus Americana, Intsia bijuga, Podocarpus dacrydioides, Seq-uoia sempervirens, Pinus pinaster,Gum(southern),Mahogany(west Indian ), Douglas fir, Maple (queensland), red (light or dark) Meranti, white Mera-nti, Redwood(Californian), Walnut (new guinea), white Pine (new Zealand), Araucaria angustifolia

Cd02

Distemonanthus benthamianus, Jarrah, Endiandra palmerstonii, Erythro-phleum spp, Abies alba, Fagus sylvatica, Grevillea robusta, Juglans regia, Larix deciduas, Larix occidentalis, Podocarpus spicatus, Picea abies, Pin-us caribaea, Pinus nigra, Pinus palustris, Pinus ponderosa, Pinus radiata, Taxus baccata,Thuja plicata,Tsuga heterophylla,red Cedar(western), Che-stnut, Greenheart, Hemlock (western), Larch (European), Larch (Japanese ),Queensland walnut, red Seraya, Spruce,Silky oak(African),Silky oak(Aus-tralian), Pine (Corsican), Pine, radiata, Walnut(European), Walnut (queen-sland), Whitewood, Yew, Pine(ponderosa), Stringybark, Oak (tasmanese)

Cd03

Khaya senegalensis, Podocarpus totara, Quercus cerris, Ulmus American,Ulmus procera, Ulmus thomasii, Afzelia, Kauri( new Zealand), Lime, Elm(English), white Elm, Matai, Oak( Turkey), Pyinkado

Cd04

Acer pseudoplatanus, Carya glabra, Sycamore, Cassipourea elliotii, Dipte-rocarpus (keruing), Teak, Cordia alliodore, Larix occidentalis, Pterocarpus soyauxii, Hickory Padauk( African)

Cd05

Afrormosia elata, Diospyros virginiana, Gonystylus macrophyllum, Ptero-carpus indicus, Afrormosia, Amboyna, Basswood, Coachwood, Persimmon

Cd06

  Calophyllum brasiliense, Guarea cedrata, white Guarea

Cd07

Abies procera,Agathis robusta,Betula pendula,Croton megalocarpus, Pru-nus avium, Agba, Birch( European), Cedar( west lndian), black Guarea, Kauri (queensland), Walnut( African), Cherry (european), Utile

Cd08

Chipboard, Paper

Cd09

 Building, Wall, Concrete

SR6828CIG Multi Functional Cigarette Moisture Meter

Applications
The Multi Functional Cigarette Moisture Meter is dedicated to the cigarette moisture testing, quickly and accurately measures the moisture of cigarette by testing the conductivity between two pin probes, as a professional instrument for cigarette moisture measurements.

Features:
* Pin Type Cigarette Moisture Meter with boot automatic calibration function.
* Measure the moisture of cigarette by testing the conductivity between two pin probes.
* The selection of different measuring codes makes measurement results more accurate. there is a standard code cd00, also 4 kinds of code cd01, cd02, cd03, cd04, for t he user s self calibration according to the specific measured cigarette, in order to improve the accuracy of measurement .
* Digital display gives exact reading with no guessing or errors while a color coded light ( LED) indicates the moisture condition of the material. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably.
* Dedicated to the cigarette moisture testing. Sensor pins are suitable for cigarettes of different size without a djustments of the pin distance, convenient for the users.
* Can store 120 sets of data, realize of statistic function by testing the average, maximum and minimum value.

Specifications:

  Meaning

  Pin Type

  Measuring Range

  0~80 %

  Accuracy

  0.5%n+0.2

  Resolution

  0.1

  Display

  4 Digits, 10 mm LCD, With Color Coded LED Indicator

  LED Indicator

  Green LED represents a safe, air-dry state

  Yellow LED represents a borderline state

  Red LED represents a damp state

  Calibration

  Automatic

  Battery Indicator

  Low Battery Indicator

  Data Output

  USB, Bluetooth

  Operating Conditions

  Temperature: 0~50 %C, Humidity: < 90 %RH

  Power Supply

  4 x 1.5 AAA Size (UM-4) Battery

  Dimensions

  Main Unit: 140 x 73 x 35 mm

  Measuring Pin: 180 x 44 x 44 mm

  Weight

  220 g (Not Including Batteries)

 Standard delivery

  1. Main Unit

  2. Measuring Pin

  3. Carrying Case

  4. Operation Manual

 Optional accessories

  1. USB data cable with software

  2. Bluetooth data output with software

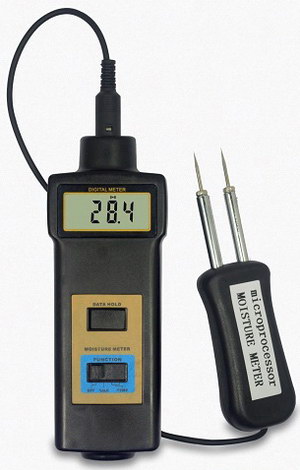

SR6806 Moisture Meter (Pin type)

Applications:

Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.

Features:

* Used the exclusive MICRO-COMPUTER LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
* Wide measuring range & high resolution.
* Digital display gives exact reading with no guessing or errors.
* Compact, lightweight, and easy operation.
* Can be applicable of wood fibre materials, wooden articles, Chinese traditional medicine, tobacco, cotton and papers etc.
* The use of durable, long lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.

Specifications:

Meaning

Pin Type

Measuring Range

  Moisture: 0~50%  Temperature: -10~60 C

Accuracy

  Moisture: (0.5%n+1) Temperature: 0.8 C

Resolution

  0.1

Display

  4 Digits, 10 mm LCD

Calibration

  Automatic

Battery Indicator

  Low Battery Indicator

Operating Conditions

  Temperature: 0~50 %C, Humidity: < 85 %RH

Power Supply

  4*1.5 AA Size (UM-3) Battery

Dimensions

  Unit: 182*68*38 mm

  Sensor: 170*44*25 mm

Weight

  334g (Not Including Batteries)

Standard Accessories:
1. Main Unit
2. Carrying Case(B02)
3. Operation Manual
4. Separate Probe
Optional Accessories:
Moisture standard 18%

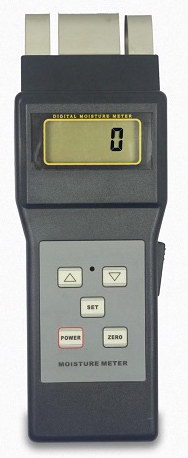

SR6812 Moisture Meter (Search type)

Applications:

Applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton paper, building, soil and other fibre materials.

Specifications:

Operating Principle

Electromagnetic induction

Measuring Range

0~80 %

Accuracy

(0.5%n+0.5)

Resolution

0.1

Display

4 Digits, 10 mm LCD

Calibration

Automatic

Battery Indicator

Low Battery Indicator

Penetration Depth

up to 50 mm

Induction Value

Specified

Operating Conditions

Temperature: 0~50 %C, Humidity: < 90 %RH

Power Supply

4*1.5 AAA Size (UM-4) Battery

Dimensions

220*77*43 mm

Weight

260g (Including Batteries)

Standard Accessories:
1. Main Unit
2. Carrying Case
3. Operation Manual

Special Noting: 1, All above SR68xx Series is applicable of wood fiber materials, wooden articles, Chinese traditional medicine, tobacco, cotton, paper, building, soil and other fibre materials and other materials which are not electric conducting.

Special Noting: 2, SR6825P can be used to test dry agriculture items (not including dry seefood) such as copra, gambier, and can be used to test straw, silage/feedstuff, when it is equipped with long probe as SR6825G (Seperate Probe P25G Size: 368*44*25mm), order model number is SR6825P+(probe P25G).

SR6825P, SR6825PS can be equiped with long probe P25G, order model number is SR6825P+(probe P25G), SR6825PS+(probe P25G).

Special Noting: 3,  SR6825S can be used to test plastic resin, Tea, cheese. It is suggested to use SR6825S to test chemical items.

As buildings are most made of hard materials such as concrete, hard wood floor, we suggest to use search type moisture meter as SR6825S, SR6812 to test. However, SR6825S is the best choise, because SR6825S searching sensor is plain, can touch more area and then give more accurate testing. We don't suggest to use pin type to as SR6825P, SR6806 to test, because the hard materials are not good for pin to go into.

For building/concrete tesing, SR6825S can test up to 80% moisture, but generally the moisture of building/concrete won't be so high.

Special Noting: 4, SR6806's probe pin length is 3cm, SR6825P, SR6825PS is 1cm.

Special Noting: 5, Species List for SR6825P, SR6825S, SR6825PS

Code

Materials

Cd00

Abies grandis, Acer macrophyllum, Maple, Acer saccharum, Pine(scots), yellow Pine, Dalbergia latifolia, Dipterocarpus zeylanicus,  Eucalyptus microcorys, Fraxinus excelsior, Cupressus spp, Pinus contorta, Pterygota bequaertii, Quercus robur, Pinus sylvestris, Balsa,  Boxwood (maracaibo), red Gum(American), Gum spotted, Gurjun, Birch, Cypress(African) Karri, Oak(European), Oak(Japanese), black Poplar, Redwood(Baltic European), Rosewood (Indian), Pine(lodgepole), Tallowwood, Walnut (American), Kapur

Cd01

Araucaria bidwilli, Eucalyptus crebra, Eucalyptus saligna, Flindersia brayleyana, Fraxinus Americana, Intsia bijuga, Podocarpus dacrydioides, Sequoia sempervirens, Pinus pinaster, Gum(southern), Mahogany (west Indian), Douglas fir, Maple (queensland), red (light or dark) Meranti, white Meranti, Redwood(Californian), Walnut (new guinea), white Pine (new Zealand), Araucaria angustifolia

Cd02

Distemonanthus benthamianus, Jarrah, Endiandra palmerstonii, Erythrophleum spp, Abies alba, Fagus sylvatica, Grevillea robusta, Juglans regia, Larix deciduas, Larix occidentalis, Podocarpus spicatus, Picea abies, Pinus caribaea, Pinus nigra, Pinus palustris, Pinus ponderosa, Pinus radiata, Taxus baccata, Thuja plicata, Tsuga heterophylla, red Cedar (western),  Chestnut, Greenheart, Hemlock (western), Larch ( European), Larch (Japanese), Queensland walnut, red Seraya, Spruce, Silky oak( African), Silky oak( Australian), Pine (Corsican), Pine, radiata, Walnut(European), Walnut (queensland), Whitewood, Yew, Pine(ponderosa), Stringybark, Oak (tasmanese)

Cd03

Khaya senegalensis, Podocarpus totara, Quercus cerris, Ulmus American, Ulmus procera, Ulmus thomasii, Afzelia, Kauri( new Zealand), Lime, Elm( English), white Elm, Matai, Oak( Turkey), Pyinkado

Cd04

Acer pseudoplatanus, Carya glabra, Sycamore,  Cassipourea elliotii, Dipterocarpus(keruing), Teak, Cordia alliodore, Larix occidentalis, Pterocarpus soyauxii, Hickory, Padauk( African)

Cd05

Afrormosia elata, Diospyros virginiana, Gonystylus macrophyllum, Pterocarpus indicus, Afrormosia, Amboyna, Basswood, Coachwood, Persimmon

Cd06

Calophyllum brasiliense, Guarea cedrata, white Guarea

Cd07

Abies procera, Agathis robusta, Betula pendula, Croton megalocarpus, Prunus avium, Agba, Birch( European), Cedar( west lndian), black Guarea, Kauri (queensland), Walnut( African), Cherry (european), Utile

Cd08

Chipboard, Paper

Cd09

Building, Wall, Concrete

Special Noting: 5, Density code table for SR6825S, SR6825PS

Model: SR6825S

Model: SR6825PS

Special Noting: 6, all above moisture meters CAN NOT test the moisture of the items which are electric conducting.

Special Noting: 7, SR6825P, S, PS is more professional and accurate and can test more materials than SR6812, SR6806, so it is more expensive.

SR6825F Foam Moisture Meter / Sponge Moisture Meter

Description:
* Be a powerful and versatile instrument for measuring and diagnosing dampness in foam through testing the capacitance, the foam moisture can be obtained.
* Digital display gives exact reading with guessing or errors while a color coded light(LED) indicates the moisture condition of the Cotton. This combined presentation of moisture measurement helps the user to map the extent of problems and monitor changes in condition precisely and reliably.
* Specially used to test cotton moisture in the process of allotment, acquisition, storage and machining.
* Can communicate with PC computer for statistics and printing by the optional cable and software for USB interface.
* Power off automatically, save electricity.
Specification
Display: 4 digits, 10mm LCD
With color coded LED indication
Green LED represents a safe, air-dry state.
Yellow LED represents a borderline State.
Red LED represents a damp state.
Measurement Range: 0~200%
Accuracy: (0.5%n +0.5)
Resolution: 0.1
Penetration depth: up to 50mm
PC interface:
USB, Bluetooth
Power supply: 4x1.5 AAA size (UM-4) battery
Power off : 2 modes
Manual off at any time
Auto power off after 5 minutes from last
key operation
Operating conditions:
Temperature: 0-50
ºC

Humidity : below 90% RH
Dimensions:
165x62x26mm or 6.5x2.4x1.0 inch
Weight: 119g (not including batteries
)

Packing: 20PCS/CTN, CTN SIZE: 43.5*27*56.5CM, N.W/G.W: 16/17KGS

Optional: cable and software for USB interface

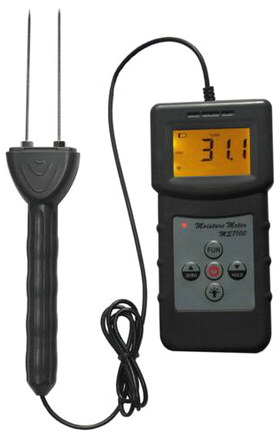

MM7100C Cotton Lint Moisture Meter
The Cotton Moisture Meter is a valuable testing instrument during the cotton collection, processing and when buying or selling cotton. The newly designed MM7100C utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content of cotton, seed-cotton and lint quickly and accurately.
Specification:
Display: 4 digital LCD
Measuring range: 7%-40%
Temperature: 0-60C
Humidity: 5%-90%
Resolusion: 0.1
Accuracy: 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size (UM-4) battery
Dimensions:
Main Unit: 140mm60mm22mm
Probe: 72mm40mm20mm
Pin: 80mm
Weight: 195g (not including batteries)
Guarantee: 1 year

MM100C Cotton Moisture Meter

The Cotton Moisture Meter is a

valuable testing instrument

during the cotton collection,

processing and when buying or

selling cotton. The newly

designed MM100C utilizes the

relationship between moisture

content and electrical resistance to effectively

measure the moisture content

of cotton, seed-cotton and lint

quickly and accurately.

Specification

Display:4 digital LCD
Measuring range :7%-40%
Temperature:0-60
ºC
Humidity:5%-90%
Resolusion:0.1
Accuracy: 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size (UM-4) battery
Dimensions:
460mm75mm35mm
Weight:203g (not including batteries)
Guarantee:1 year

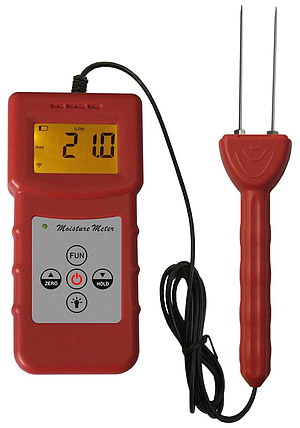

MM320 Tobacco Moisture Meter

Specification
Display:4 digital LCD
Measuring range: 8%-40%
Temperature:0-60
ºC
Humidity:5%-90%
Resolution:0.1
Accuracy: 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size (UM-4) battery

Standard packing: suitcase

20PCS/CTN, CTN SIZE: 51*34*42CM, G.W: 15.5KGS
Weight:185g (not including batteries)

Remark: CE, ROHS
Guarantee:1 year

MM100T Tobacco Moisture Meter

Description:

The Tobacco Moisture Meter isa valuable testing instrument during the Tobacco collection, processing and when buying or selling. The newly designed.

MM100T utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content

of tobacco quickly and accurately.

Specification
Display:4 digital LCD
Measuring range :8%-40%
Temperature:0-60
ºC
Humidity:5%-90%
Resolution:0.1
Accuracy: 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size (UM-4) battery
Dimensions:
460mm75mm35mm
Weight:203g (not including batteries)
Guarantee:1 year

MM100 Mulfunctional Moisture Meter

Description:

The Moisture Meter MM100 is a high-tech testing instrument in our company. The newly designed moisture meter with extensive probes suits to many materials moisture content testing, just as Bran, hay, straw, oat, textile fiber and other fiber materials.
The moisture meter MM100 utilizes the relationship between moisture content and electrical resistance to effectively measure the moisture content quickly and accurately.
Compact, portable, easy to use.
Digital display with backlight.
Manual power off & Auto power off.
Specification

Display: 4 digital LCD

Measuring range: 0-84%

Temperature: 0-60C

Humidity: 5%-90%RH

Resolution: 0.1

Accuracy: 0.5%n

Operation:

Electrical Resistance Method, Automatic temperature Compensation

Power supply:

4x1.5 AAA size (UM-4) battery

Dimensions:

4607535mm

18.3x3x1.4 inch

Weight:

203g (not including batteries)

Guarantee:1 year

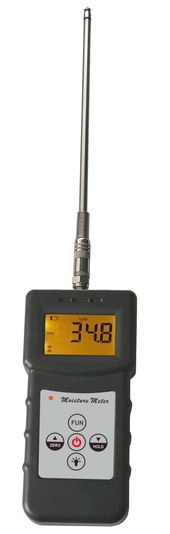

MM350 Capacitive Moisture Meter

Capacitive moisture meter MM350 is used for measuring moisture content of soil , chemical combination powder, coal powder and other powder materials. It applicable of chemical industry and other relevant industry.
Features:
1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.
1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.
1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.
1.4.The moisture meter operates by electrical resistance and has automatic temperature compensation.
1.5.Manual off at any time .Auto power off after 5 minutes from last operation.
1.6 Data hold function. Low battery alert.
Specification
Display:4 digital LCD
Measuring range :0-80%
Temperature:0-60C
Humidity:5%-90%RH
Resolusion:0.1
Accuracy: 0.5%n
Power supply:
4x1.5 AAA size (UM-4) battery
Dimensions:140mm60mm22mm
Needle: 230mm (400mm and 600mm are optional)
Weight:175g (not including batteries)
Guarantee:1 year

MM330 High Frequency Moisture Meter

High Frequency moisture meter MM330 is used for measuring moisture content of soil ,silver sand, chemical combination powder, coal powder and other powder materials. It applicable of chemical industry and other relevant industry.

Features:
1.1. It is portable, compact, easy to use and the moisture measurement readings are instant.
1.2. Digital display with back light gives exact and clearly reading although you stay at the somber conditions.
1.3. It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.
1.4. This instrument adopted the high frequency principle based on the introduction of the most advanced technology from foreign country.
1.5. Low battery alert.
Specification
Display:4 digital LCD
Measuring range : 0-2%, 0-90%
Measuring conditionTemperature:0-60C, Humidity:5%-90%RH
Resolusion:0.1 or 0.01
Accuracy: 0.5%n
Power supply: 9V battery
Dimensions: 1726628mm
Needle 235mm
Weight: 210g (not including batteries)
Guarantee: 1 year

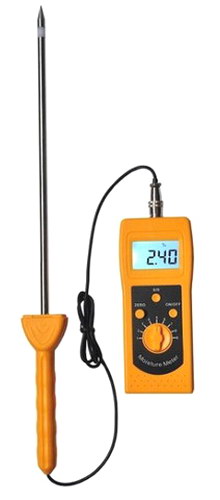

MM400 High Frequency Moisture Meter

High Frequency moisture meter MM400 is our new designed product with separate probe. It used for measuring moisture content of soil ,silver sand, chemical combination powder, coal powder and other powder materials. It applicable of chemical industry and other relevant industry.

Features:
1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.
1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.
1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.
1.4.This instrument adopted the high frequency principle based on the introduction of the most advanced technology from foreign country.
1.5 Low battery alert.
Specification
Display:4 digital LCD
Measuring range : 0-2%, 0-90%
Measuring conditionTemperature:0-60C, Humidity:5%-90%RH
Resolusion:0.1 or 0.01
Accuracy: 0.5%n
Power supply: 9V battery
Dimensions: 1726628mm
Needle450mm
Weight:250g (not including batteries)

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )

multifunctional moisture meter      grain moisture meter      wood/paper moisture meter      soil moisture meter      skin moisture meter      meat&food moisture meter      infrared moisture meter
