Advantages:

1. Small size, light weight, simple structure.

2. No influence from environment and humidity, without auxiliary equipment.

3. Simple operation, without installation and commissioning training.

4. High efficiency, fast speed, overall operation is not more than 10 minutes.

5. High precision, electromagnetic force weighing sensor ensure the weighing accuracy

6. Various analytical methods, including automatic, timing, semiautomatic.

7. Standard RS232 communication interface - easy to connect printers, computers and other peripheral equipment, comply with FDA / HACCP format requirements.

8. Quartz tungsten halogen infrared annular lamp can heat the inner material directly, shorting the drying time greatly, also heating uniformity, cleaning, high efficiency and energy conservation.

SR-610A, SR-720A, SR-100A Halogen Moisture Meter

SR Series quick moisture analyzer is configured on the basis of high-precision electronic scales weighing sensors and high efficiency halogen lamp heating devices to achieve fast and accurate moisture determination. Halogen moisture analyzer is the reliable solution to measure the moisture content of your product. This durable and affordable moisture analyzer benefits from our rich experience in manufacture of precision instruments, and years of moisture determination expertise.

Our products are widely used in tobacco, papermaking, food, tea, beverages, cereals, chemicals, pharmaceutical raw materials, textile raw materials and other industries, testing the free water contained in the sample.

Features:
1. High performance magnetic force sensor, up to 0.1 mg readability, provide the best measurement performance.
2. Fast operation and intuitive user interface allows users to become familiar with the instrument of operational processes quickly, one-button start the drying process.
3. Rapid analysis, advanced halogen lamp technology is the key to ensure rapid heating and precise temperature control. Final measurement results obtained in the shortest possible time.
4. Optional USB Interface.
5. Optional thermal printer.

Specification:

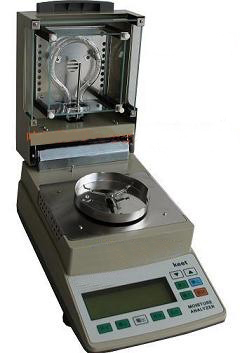

SR-MS Infrared Moisture Meter

SR-MSA Infrared Moisture Meter

Quick (1-6 minutes) Determination of moisture of the measured object, using the principle of heating and drying, moisture values measured object is automatically displayed, the data is stable and accurate.

Measurement: powder form, granular, paste, liquid, organic and inorganic chemical raw materials, a variety of cereals, grain, seed, feed, starch, food meat, tobacco, tea paper, grass, soil sludge, textiles, fuel, resin, silica, plastic particles, coal, fertilizer, medicine, ceramics, wood, ore.

Remark: If test liquid, lipid moisture, please put some Quartz sand into the meter (in order to prevent becoming impervious membrane when heating).

Features:

1. High accuracy: infrared halogen moisture analyzer with fast and sensitive load cell.

2. Standard RS-232 interface: connect a PC or a printer.

3. Easy to operate: ergonomically designed handle plate, to avoid burns hot when placed in a sample taken, wing-shaped handle easily turned off heated lid.

4. Three kinds of drying process.

1). Standard Drying: direct heating to the set temperature after starting.

2). Slow Drying: After a preset time and gradually heated to the set temperature.

3). Fast drying: The continuous rapid heating 200°C drying under heating for 3 minutes after the temperature setting.

Technical parameters:

Weighing range: 110g

Weighing Accuracy: 0.005g(SR-MS); 0.001g(SR-MSA)

Moisture measuring range: 0~100%

Resolution: 0.01%

Temperature range: room temperature -200°C

Temperature Accuracy: +/-1°C

Drying Technology: Moisture heat lamp ring

Measuring results: Moisture content & dry weight and moisture content%, humidity%.

Pan size: 85mm.

Dimensions: 330*200*200mm

Voltage Power consumption AC 220V 50HZ about 1W (maximum power of about 480W)

Raw material:

• base: die-casting aluminum alloy, paint
• upper cover: plastic (ABS/PC)
• heating cell: 304 stainless steel
• pan: aluminum alloy
Protective grade:
• dust-proof, water-proof
• anti-pollution grade: II
• installation grade: II

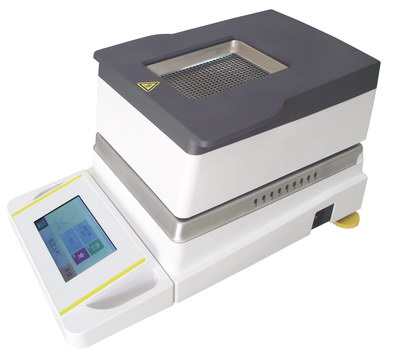

SR-SH105 Touch Screen Type Electronic Moisture Analyzer

Features:

Halogen light heating
Stainless steel heating chamber
Temperature/time adjust
Show the percentage of moisture content
With backlit LCD screen

With RS232 interface

Specification:

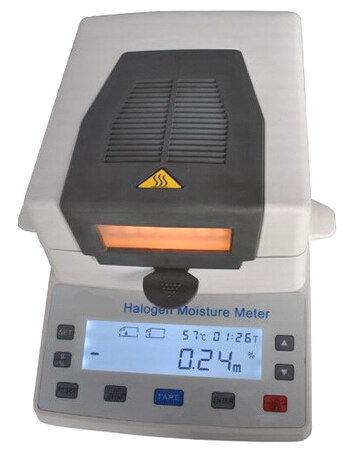

SR-110 Rapid Halogen Moisture Meter

SR-110 is a new type of high-speed infrared moisture test instrument and can be used to measure the moisture of any material (Except the substances which generate dangerous chemical reaction through heating). The instrument is designed in accordance with the thermogravimetric principle. While the instrument measures the weight of samples, infrared heating units and water evaporation channels dries samples rapidly too. In the drying process, instrument measures continually and displays immediately the lost moisture (%) of the samples in the process. When the drying is completed, the finally measured moisture is locked. Press the display button, data such as the moisture value, the starting value of the weight, the initial value and measuring time can be observed. Compared with the traditional oven heating method, infrared heating can achieve maximum heating power in the shortest possible time because that the samples are dried rapidly in high temperature can greatly accelerate the measurement time. The instrument is applicable to all the fields which need rapid moisture measurement such as medicine, grain, tobacco, chemicals, tea, foods, textiles, agriculture and forestry, etc. This instrument is able to communicate with computer. Measuring data of moisture can be printed out though the computer or directly by the printer matched.

Specification:
Measuring Accuracy of Moisture (%): 0.1 Amount of Samples ≥ 3 g
Measuring Ranges of Moisture (%): 0-100
Weight of Measurement Samples (g): 3-110
Maximum Weight (g): 110
Minimum Reading of Weight (g): 0.01
Readability of Moisture (%): 0.1
Temperature Indication Ranges (° C): Room Temperature -199
Display Parameter: 7 kinds
Power Supply: Voltage 220 v± 10% Frequency 50HZ± 1HZ
Temperature of the Working Environment: -5 ° C to 50 ° C
Relative Humidity: ≤ 80% RΗ
Dimensions: 337mm x 215mm x 334mm
Net weight: 3. 7kg

Picture for internal

Standard Packing List
Moisture Analyzer Mainframe 1 set
Wind Cover 1 piece
The sample pan holder 1 piece
Tray handle 1 piece
Power cord 1 piece
Aluminum sample tray 1 set (45pcs of aluminum pan)
100g standard weight 1 piece
Product Manual 1 piece
Product certification 1 piece
Warranty card 1 piece

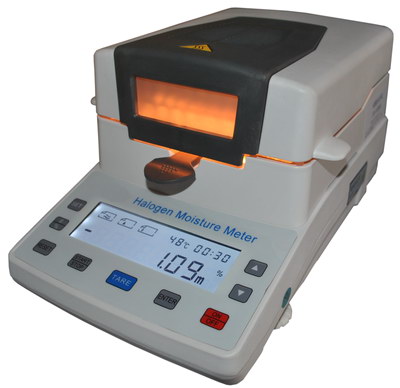

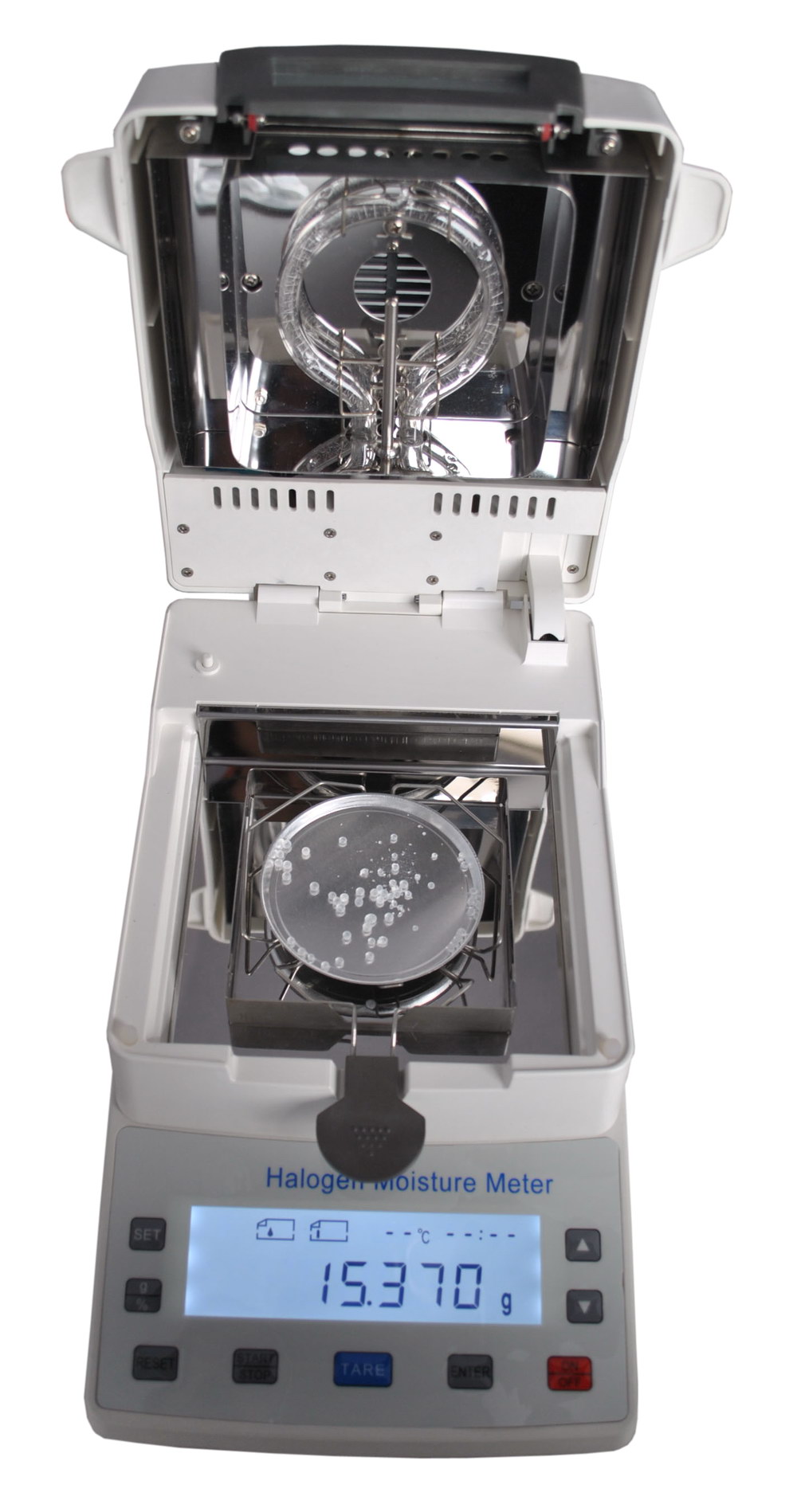

SR-105W, SR-102W, SR-100W Infrared Moisture Meter

Features:

Infrared Moisture meter is a new type of high-speed infrared moisture test instrument and can be used to measure the moisture of any material. (Except the substances which generate dangerous chemical reaction through heating) The instrument is designed in accordance with the thermo gravimetric principle.

Compared with the traditional oven heating method, infrared heating can achieve maximum heating power in the shortest possible time because that the samples are dried rapidly in high temperature can greatly accelerate the measurement time.

The instrument is applicable to all the fields which need rapid moisture measurement such as medicine, grain, tobacco, chemicals, tea, foods, textiles, agriculture and forestry, etc.

This instrument is able to communicate with computer .

Measuring data of moisture can be printed out though the computer or directly by the printer matched.
Specification:

SR-2000 Karl Fischer Moisture Meter

Instrument description:
The instrument of Coulometric Karl Fischer titrators is an used for Coulometric water determination according to Karl Fischer. The instrument is designed for usage as a titrator in analytical laboratories. Its main application field is volumetric titration.
The present instrument is suitable for processing chemicals and flammable samples. The usage of this titrators therefore requires that the user has basic knowledge and experience in the handling of toxic and caustic substances. Knowledge with respect to the application of the fire prevention measures prescribed for laboratories is also mandatory.
Technical specifications
Modes: Coulometric KF titration with automatic blank deduction
Endpoint indication: Voltametric, AC indication
Iodine production: Pulse with variable current strength and length
                          Current at the generator electrode: 400 mA
Titration speed: max. 2.4 mg H2O/min
Determination range: 10 ug to 100 mg H2O
Resolution: 0.1 ug H2O
Reproducibility Sample: Reagent manufacturer's standard.
                                   With 10 ug...1000 ug H2O: ± 2 ug
                                   With >1000 ug H2O: 0.2% or better
Drift compensation: automatic
Display: Graphical LCD, 320x 240 dots, LED back-lit
Printer: Built-in thermal printer, Paper width 57 mm
Memory: Data storage 200 results
Ambient temperature:
Nom. operation range 5 ... 40 °C
Storage -20 ... 60 °C
Transport -40 ... 60 °C
Mains connection
Voltage 220 V ± 10 % 50 Hz
110 V ± 10 % 60 Hz
Power consumption max. 40 W
Dimensions: Width 300mm * Height 300mm * Depth 220mm
Weight: 4kg
