PH / ORP monitor, PH / ORP controller



( Digital pH controller, Digital ORP controller, conductivity monitor, TDS Monitor, EC monitor, PH/PPM(EC)/Temp. Monitor )



PH / TEMP / ORP / TDS / EC / CF monitor          PH / ORP /  Conductivity controller



PH / TEMP / ORP / TDS / EC / CF monitor



PH-2851 Aquariums TDS & PH Monitor

SPECIFICATION

Range:pH:0.00~14.00pH; TDS: 0.00~19.99ppt

Resolution: pH: 0.01pH; TDS: 0.01ppt

Accuracy: pH: +/-0.1pH; TDS:+/-2%F.S

Power supply: DC 6V (Power adapter usable)

Temperature compensation: 0°C~50°C

Working temperature: 0°C~50°C

Size: 75mm*55mm*28mm

Weight:60g


PH-2583 Online PH & EC Monitor
Range
pH
0.00 to 14.00 pH
EC
0 to 19.99ms/cm
Resolution

pH
0.01 pH
EC
0.01ms/cm
Accuracy

pH
+/-0.1 pH
EC
+/-2℅F·S
Temperature Compensation
  0 to 50°C
Power Supply
6V DC (include), with adaptor
Environment
0 to 50°C
Humidity:≤95℅
Dimensions
88mm x 55mm x 22 mm
Weight
135g




PH-2117 Multi-parameter 5 IN 1 Water Quality Monitor
Technical Specification:
Range:pH:0.00-14.00pH
Temperature: 0°C-50°C
EC: 0.00-19.99EC
CF: 0.0-199.9CF
TDS: 10-9990ppm
Resolution: pH: 0.01pH
Temperature:0.1°C
EC: 0.01EC
CF: 0.1CF

TDS: 10ppm
Accuracy: pH +/-0.1pH
Temperature +/-1.0°C
EC,CF,TDS:+/-2%F.S
Power supply: DC 6V (Power adapter usable 110VAC or 220VAC)
After 3 hours charging, battery can work continuously around 10-16 hours.
Temperature compensation: 0°C-50°C
Working temperature: 0°C-50°C
Size: 152mm
*80mm*26mm
Weight:265g


PH-2118 Multi-parameter 6-in-1 Water Quality Monitor

(With ORP than PH-2117)

SPECIFICATION

Range:pH:0.00-14.00pH (ORP: 0-+/-1999MV)

Temperature: 0°C-50°C

EC:  0.00~19.99EC

CF:  0.0~199.9CF

TDS: 10~9990ppm

Resolution: pH: 0.01pH(ORP:1MV)

Temperature:0.1°C

EC: 0.01EC

CF: 0.1CF

TDS: 10ppm

Accuracy:  pH  +/-0.1pH (ORP: +/-5MV)
Temperature  +/-1.0°C

EC,CF,TDS:+/-2%F.S

Power supply:  DC  6V (Power adapter usable)

Temperature compensation: 0°C-50°C

Working temperature: 0°C-50°C

Size: 152mm*80mm*26mm

Weight:265g



click it for big picture



HOT SALES!!!

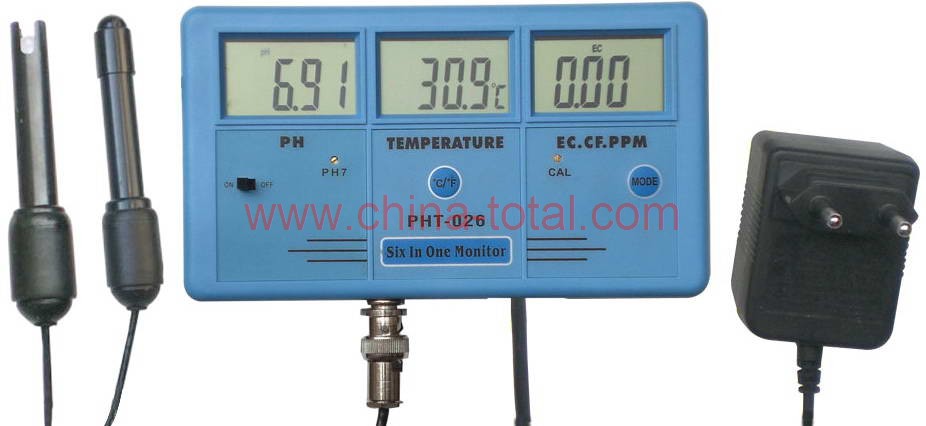

PHT-026 multi-parameter 5 IN 1 Water Quality Monitor

Model

PHT-026

Measuring Range

PH: 0.00~14.00 PH
ºC: -50ºC~70ºC (-58ºF~158ºF)
EC: 0.00~19.99EC
CF: 0.0~199CF
TDS: 10~19990ppm

Resolution

PH: 0.01PH
ºC: 0.1ºC(0.2ºF)
EC: 0.01EC
CF: 0.1CF
TDS: 10 ppm

Accuracy

PH: +/-0.1 PH
ºC: 1.0ºC
EC, CF, TDS: +/-2%F.S

Operating Temperature

0ºC~50ºC

Automatic Temperature Compensation

0ºC~50ºC

Power Supply

AC110~240V,
with rechargeable battery

Dimensions

155mm×86mm×22mm

Weight

230g



click it for big picture



HOT SALES!!!

PHT-027 multi-parameter 6 IN 1 Water Quality Monitor

(With ORP than PHT-026)

Model

PHT-027

Measuring Range

PH: 0.00~14.00 PH
oC: -50ºC~70ºC (-58ºF~158ºF)
EC: 0.00~19.99EC
CF: 0.0~199CF
TDS: 10~19990ppm
mv: 0~+/-1999mV

Resolution

PH: 0.01PH
ºC: 0.1ºC(0.2ºF)
EC: 0.01EC
CF: 0.1CF
TDS: 10 ppm
mv: 1mV

Accuracy

PH: +/-0.1 PH
ºC: 1.0ºC
EC, CF, TDS: +/-2%F.S
mv: +/-0.1%F.S+/-1digit

Operating Temperature

0ºC~50ºC

Automatic Temperature Compensation

0ºC~50ºC

Power Supply

AC110~240V,
with rechargeable battery

Dimensions

155mm×86mm×22mm

Weight

230g

standard delivery with all electrodes.



click it for big picture

This indicator combines 6 meters into one easy to use wall mounting continuous monitor. Featuring a large, dual-level, back-lit LCD display the meter can display the EC/TDS/CF of your solution together with the choice of either pH, temperature or Oxidation-Reduction Potential (ORP).
Precision pH monitor immediately detects changes in solution pH. With a 6 V DC power supply included with the meter (also included rechargeable battery). It is with BNC composite electrode, around the world to facilitate the replacement of electrodes, used.
standard delivery with all electrodes.

HOT SALES!!!

PHT-028 Multi-parameter 6 IN 1 Water Quality Monitor
Technical Specification:

Measuring range

PH: 0.0014.00 PH

ºC: -50ºC~70ºC

EC: 0.00~19.99EC

CF: 0.0~199CF

TDS: 10~19990ppm

MV: 0~+/-1999mV

Resolution

PH: 0.01PH

ºC:0.1ºC

EC: 0.01EC

CF: 0.1CF

TDS: 10ppm

MV: 1mV

Accuracy

PH: +/-0.05 PH (than PHT-027)

ºC:+/-1.0ºC

EC, CF, TDS: +/-2%F.S

MV: +/-0.1%F.S+/-1digit

Automatic Temperature Compensation

0ºC~50ºC

Operating Temperature

0ºC~50ºC

Power Supply

6V DC (include), with adaptor

Dimensions 130mm×91mm×37mm

Packing

2PCS/CTN, CTN SIZE: 50*42*37CM, G.W: 17KGS



PH-02636 multi-parameter Water Quality Monitor
Set in one of six functional parameters, online continuous monitoring device, three-level LCD. Equipped with rechargeable batteries, equipped with BNC composite electrode and around the power adapter, around the world to facilitate the replacement of electrodes, used.
Technical Specification:

Measuring range

PH: 0.00~14.00 PH
ºC: -50ºC~70ºC (-58ºF~158ºF)
RH: 10%RH-99%RH
EC: 0.00~19.99EC
CF: 0.0~199CF
TDS: 10~19990ppm

Resolution

PH: 0.01PH
ºC:0.1ºC(0.2ºF)
RH: 1%RH
EC: 0.01EC
CF: 0.1CF
TDS:10 ppm

Accuracy

PH: +/-0.1 PH
ºC: 1.0ºC
RH: +/-5%RH
EC, CF, TDS: +/-2%F.S

Automatic Temperature Compensation

0ºC~50ºC

Operating Temperature

0ºC~50ºC

Power Supply

DC 6V(include), with adaptor

Dimensions

140mm×76mm×16mm



PH-02726 PH/TDS/EC Monitor
The Combo has a large easy-to-read, dual-level LCD. pH and EC/TDS readings are automatically compensated for the effects of temperature (ATC).
The Combo pH, EC/TDS tester brings you all the features you've asked for and more!

Technical Specification:

Measuring range

PH: 0.00~14.00 PH
EC: 0~19.99ms/cm
0~1999us/cm
TDS: 10~19990ppm

Resolution

PH:0.01PH
EC: 0.01ms/cm
1us/cm
TDS:10 ppm

Accuracy

PH:+/-0.1 PH
EC, TDS:+/-2%F.S

Automatic Temperature Compensation

0ºC~50ºC

Operating Temperature

0ºC~50ºC

Power Supply

DC 6V(include), with adaptor

Dimensions 110mm×96mm×22mm

Packing

2PCS/CTN, CTN SIZE: 50*42*37CM, G.W: 17KGS

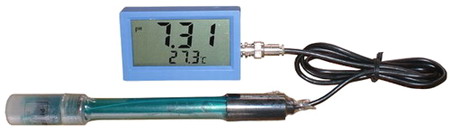

PH-055 Online PH & Temperature Monitor

Technical Specification:

Range

pH

0.00 to 14.00 pH

Temperature

0 to 55ºC

Resolution



pH

0.01 pH

Temperature

0.1ºC

Accuracy



pH

+/-0.1 pH

Temperature

+/-1ºC

Temperature Compensation

  0 to 50ºC

Power Supply

6V DC (include), with adaptor

Environment

0 to 50ºC

Humidity:≤95%

Dimensions

65mm×26mm×40mm

Weight

200g





PH-025W Aquariums PH Monitor

Technology Parameters:

Measuring range

0.0~9.9PH

Accuracy

+/-0.1PH

Resolution

0.1PH

Operating Temperature

0ºC~50ºC

Automatic Temperature Compensation

0ºC~50ºC

Calibration

1 or 2 points with auto

buffer recognition

Power Supply

6V DC (include), with adaptor

Dimensions

108mm x 28mm x 18mm

Weight

95g



PH-951 Seven In One Multi-parameter Water Quality Monitor

Technical Specification:

Measuring range

PH: 0.00~14.00 PH
ºC: -50ºC~70ºC (-58ºF~158ºF)
RH: 10%RH-99%RH
EC: 0.00~19.99EC
CF: 0.0~199CF
TDS: 10~19990ppm
mv: 0~+/-1999mV

Resolution

 PH: 0.01PH
ºC: 0.1ºC(0.2ºF)
RH: 1%RH
EC: 0.01EC
CF: 0.1CF
TDS: 10 ppm
mv: 1mV

Accuracy

PH: +/-0.1 PH
ºC: +/-1.0ºC
RH: +/-5%RH
EC, CF, TDS: +/-2%F.S
mv: +/-0.1%F·S+/-1digit

Automatic Temperature Compensation

0ºC50ºC

Operating Temperature

0ºC~50ºC

Power Supply

DC 6V(include), with adaptor

Dimensions

130mm×118mm×35mm

Weight

450g



PH-025 Mini PH Meter Monitor (Aquarium)


Model

PH-025

Range

0.00~14.00PH

Accuracy

+/-0.1PH

Resolution

0.01PH

Operating temperature

0ºC~50ºC

Power Supply

4×1.5V(AG13)or AC110V~240V

Dimensions

60mm×55mm×23mm

Weight

62g



TDS-RO22 Dual TDS Meter

Product description:
Measure the tap water coming in vs. the purified water
going out of your water filtration system at any time.
Displays TDS levels of the feed water and product water
with in & out electrode probes.Highly efficient and accurate
due to its advanced microprocessor technology.
Installs quickly and easily.

Technical Specification

Model

TDS-RO22

Measuring Range

0~1999ppm

Resolution

1ppm

Accuracy

+/-2%Full Scale

Automatic Temperature Compensation

0~50oC

Fittings (The pressure the tube can afford is 8kgs (0.8Mpa). 3/8" standard

Power Supply

4×1.5V (AG13)

Dimensions

60mm×55mm×23mm

Weight

98g





TDS-139B, TDS-1393B

TDS-139B TDS Tester

Model

TDS-139B Monitor

Measuring range

0~1999PPm(mg/L)

Accuracy

+/-2%F. S

Resolution

1PPm(mg/L)

Display

4-digital LCD

Environment

Humidity:≤95%

Automatic Temperature Compensation

0oC~50oC

Power Supply

4×1.5V(AG13)

Dimensions

60×55×23(mm3)

Weight

60g



TDS-1393B TDS Tester

Model

TDS-1393B Monitor

Measuring range

0~19.99PPt

Accuracy

+/-2%F.S

Resolution

0.01PPt

Display

4-digital LCD

Environment

Humidity≤95%

Automatic Temperature Compensation

0oC~50oC

Power Supply

4×1.5V(AG13)

Dimensions

60×55×23(mm3)

Weight

60g



EC-1382B, EC-1383B

EC-1382B Conductivity Tester

Model

EC-1382B Monitor

Measuring range

0~1999us/cm

Accuracy

+/-2℅F.S

Resolution

1us/cm

Display

4-digital LCD

Environment

Humidity:≤95℅

Automatic Temperature Compensation

0ºC~50ºC

Power Supply

4×1.5V(AG13)

Dimensions



60×55×23(mm3)

Weight



60g

EC-1383B Conductivity Tester

Model

EC-1383B Monitor

Measuring range

0~19.99ms/cm

Accuracy

+/-2℅F.S

Resolution

0.01ms/cm

Display

4-digital LCD

Environment

Humidity:≤95℅

Automatic Temperature Compensation

0ºC~50ºC

Power Supply

4×1.5V(AG13)

Dimensions



60×55×23(mm3)

Weight



60g



ORP-169F ORP/Redox Tester (Aquarium)

Technical Specification:
Measuring range:0~+/-1999mV
Accuracy: +/-5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:4×1.5V(AG13)
Dimensions:60×55×23(mm3)
Weight:62g


click it for big picture

PH-025T Online PH Monitor

Range

pH

0.00 to 14.00 pH

Temperature

0 to 55°C

Resolution



pH

0.01 pH

Temperature

0.1°C

Accuracy



pH

+/-0.1 pH

Temperature

+/-1°C

Temperature Compensation

  0 to 50°C

Power Supply

6V DC (include), with adaptor

Environment

0 to 50°C

Humidity:≤95%

Dimensions

60mm×55mm×23mm

Weight

75g



PH-0253 Online PH & EC Monitor

Range

pH

0.00 to 14.00 pH

EC

0 to 19.99ms/cm

Resolution



pH

0.01 pH

EC

0.01ms/cm

Accuracy



pH

+/-0.1 pH

EC

+/-2%F·S

Temperature Compensation

  0 to 50°C

Power Supply

6V DC (include), with adaptor

Environment

0 to 50°C

Humidity:≤95%

Dimensions

110 x 51 x 22 mm

Weight

200g



PH-0259 Online PH & TDS Monitor

Range

pH

0.00 to 14.00 pH

TDS

0 to 199.9ppt

Resolution



pH

0.01 pH

TDS

0.1ppt

Accuracy



pH

+/-0.1 pH

TDS

+/-2%F·S

Temperature Compensation

  0 to 50°C

Power Supply

6V DC (include), with adaptor

Environment

0 to 50°C

Humidity:≤95%

Dimensions

110 x 51 x 22 mm

Weight

200g





PH-025M Portable PH Meter

Model

PH-025M

Range

0.00~14.00PH

Resolution

0.01PH

Accuracy

+/-0.1PH(│T1-T2│≤5ºC)
+/-0.2PH(│T1-T2│> 5ºC)
(T1--The environment temperature, T2--The test liquid temperature)

Operating temperature

0ºC~50ºC

Power Supply

AC110~240V,with rechargeable battery

Dimensions

100mm×70mm×25mm

Weight

345g





PH-025N Hang on wall PH Monitor
Digital display, an external transformer, to 24 hours continuous measurement. The functions of hold data? to facilitate reading.

Technical Specification:

Range

0.00-14.00PH

Resolution

0.01PH

Accuracy

+/-0.1PH(T1-T2│≤5ºC)

+/-0.2PH(T1-T2│>5ºC)

(T1--The environment temperature, T2--The test liquid temperature)

Power Supply

DC 6V(include), with adaptor

Calibration

Manual 1 point, through trimmer

Operating Temperature

0ºC~50ºC

Dimensions

100mm×70mm×25mm



PH-202 Digital PH Monitor

Description:
High Accuracy
High stability
LED Digital display
The highly reliable constant read monitors that hang on the wall.
It can measures PH or ORP or Conductivity.
Specially designed to achieve high accuracy for long time use.

Specification:

Range

0.00-14.00PH

Resolution

0.01PH

Accuracy

+/-0.1%+0.02 PH

Display

4-digital LCD

Calibration

2 point calibration

Environment

Temperature:0ºC~50ºC Humidity:≤95℅

Power Supply

AC220V 50Hz

Dimensions

150mm×85mm×42mm

Weight

560g



PH-204 Digital PH/ORP monitor

Description:
High Accuracy
High stability
LED Digital display
The highly reliable constant read monitors that hang on the wall.
It can measures PH or ORP or Conductivity.
Specially designed to achieve high accuracy for long time use.

Specification:

Measuring range

PH

0.00~14.00PH



ORP

-1999~1999mV

Resolution

PH

0.01PH



ORP

1mV

Accuracy

PH

+/-0.1%+0.02PH



ORP

+/-5mV

Display

4-digital LED

Power Supply

AC220V  50HZ

Environment

Temperature:0ºC~50ºC
Humidity:≤95℅

Dimensions

150mm×85mm×42mm

Weight

560g







PH-260 & PH-260BD (with Bluetooth) Online PH/TEMP/EC/TDS Monitor

Description:
* Automatic Temperature Compensation: 0ºC~50ºC

* Environment: 0ºC~50ºC

* Display: 4 LED display

* Calibration: automatic two points

* Power Supply: with adaptor

* Dimensions (mm): 95*61*20mm

* Weight: 500g

Specification:

Measuring range

PH: 0.00~14.00PH
EC: 0.00
~1999us/cm;

       0 to 19.99ms/cm
TDS: 0~19990ppm;

         0.00~19.99ppt
ºC: 0ºC~50ºC

Resolution

PH: 0.01PH
EC: 1us/cm; 0.01ms/cm
TDS: 1ppm; 0.01ppt
ºC: 0.1ºC

Accuracy

PH: +/-0.1 PH

EC: +/-2%F.S
TDS: +/-2%F.S
ºC: +/-1ºC

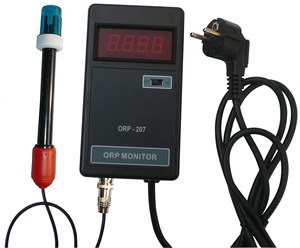

ORP-207 Digital ORP Monitor

Description:
High Accuracy
High stability
LED Digital display
The highly reliable constant read monitors that hang on the wall.
It can measures PH or ORP or Conductivity.
Specially designed to achieve high accuracy for long time use.
Specification:

Measuring range

0 ~ +/-1999mV

Resolution

1mV

Accuracy

+/-5mV

Display

4-digital LCD

Power Supply

AC220V  50HZ

Environment

Temperature:0ºC~50ºC  Humidity:≤95℅

Dimensions

150mm×85mm×40mm

Weight

560g





DM-1: In-Line Dual TDS Monitor          (HM digital product)

Measure the tap water coming in vs. the purified water going out of your water filtration system at any time.

FEATURES

  • Displays TDS levels of the feed water and product water with in & out electrode probes.

  • Highly efficient and accurate due to its advanced microprocessor technology.

  • Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.

  • Dual Range 0-9990 ppm (From 0 - 999 ppm the resolution is 1 ppm. From 1000 to 9990 ppm, the resolution is 10 ppm, indicated by a blinking 'x10' image.)

  • Factory calibration: our meters are calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.

  • Comes equipped with John Guest Quick-Connect T-fittings as shown.

  • Installs quickly and easily.

SPECIFICATIONS

Range: 0-9990 ppm
Accuracy: +/-2%
Cable Length: 24.5" (including sensor)
Fittings: 1/4"
Power source: 2 x 1.5V button cell batteries (included)
Battery life: approx. 1000 hours of continuous use
Size: 7.6 x 2 x 4.7 cm (3 x .8 x 1.9 in.)
Weight: 79.4 g (2.8 oz.)

Packing: 10PCS/CTN, CTN SIZE:15*12*18CM, G.W: :0.80KGS





Differences from the DM-1:

  • Designed for commercial/industrial applications.

  • Stronger, water-resistant casing.

  • Calibration can be done individually or simultaneously on each line.

  • Improved design, including an extra large, easy-to-read LCD display.

  • Longer, waterproof, shielded cables.

  • Variable mounting bracket.

DM-2: Commercial In-Line Dual TDS Monitor          (HM digital product)

Install on industrial systems such as car washes, window washing, manufacturing, and food processing.

FEATURES

  • Highly efficient and accurate due to its advanced microprocessor technology.

  • Displays TDS levels of the Feed Water and Product Water with in & out electrode probes.

  • Auto-Off function conserves battery power. The unit shuts off automatically after 20 seconds.

  • Dual Range - Measures from 0-999 ppm, with a resolution of 1 ppm. From 1000 to 9990 ppm, the resolution is in 10 ppm increments, indicated by a blinking 'x10' image.

  • Factory calibration: our meters are calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.

  • Comes equipped with 1/4 inch John Guest Quick-Connect T-fittings as shown.

  • Installs quickly and easily.

SPECIFICATIONS

Range: 0-9990 ppm
Accuracy: +/-2%
Cable Length: 46" (including sensor)
Calibration: Factory calibrated to NaCl 342 ppm. Re-calibration can be done separately for each line, or simultaneously for both.
Power source: 2 AAA batteries (included)
Battery life: over 1000 hours of continuous use
Size: 11.6 x 6.8 x1.8 cm (4.6 x 2.6 x .7in.)
Weight: 201.3 g (7.1 oz.)



DM-2EC Commercial Inline Dual EC Monitor         (HM digital product)

Inline ELECTRICAL CONDUCTIVITY monitor that can be installed on industrial water filtration systems such as car washes, window washing, manufacturing, and food processing.
FEATURES
Highly efficient and accurate due to its advanced microprocessor technology.
Displays EC levels of the Feed Water and Product Water with in & out electrode probes.
Auto-Off function conserves battery power. The unit shuts off automatically after 3 minutes.
Dual Range - Measures from 0-999 µS, with a resolution of 1 ppm. From 1000 to 9990 µS, the resolution is in 10 µS increments, indicated by a blinking 'x10' image.
Factory Calibrated: calibrated to 1413 µS. The DM-2EC features digital calibration.
Diagnostic error messaging
Shielded sensor cables
Comes equipped with 1/4 inch Mur-lok® Quick-Connect T-fittings.
Installs quickly and easily.
Differences from the DM-1:
Measures EC (Electrical Conductivity) in µS (micro-Siemens).
Designed for commercial/industrial applications.
Stronger, water-resistant casing.
Digital calibration can be done individually on each line.
Improved design, including an extra large, easy-to-read LCD display.
Longer, waterproof, shielded cables.
Variable mounting bracket.
SPECIFICATIONS
Range: 0-9990 µS
Accuracy: +/-2%
Cable Length: 46" (including sensor), shielded cables
Sensor: Dual, 1/4" diameter for quick-connect fittings (model SP-3, included)
Digital Calibration: Digitally factory calibrated to 1413 µS. Re-calibration can be done separately for each line.
Power source: 2 x AA batteries (included)
Battery life: Approx. 2 years
Size: 11.6 x 6.8 x1.8 cm (4.6 x 2.6 x .7in.)
Weight: 201.3 g (7.1 oz.)





TRM-1 Triple Inline TDS Monitor         (HM digital product)

TDS levels at 3 points, such as with DI/RO (deionization / reverse osmosis), or multiple points in an RO system, and more.

FEATURES
Displays TDS levels of the three sensing points with electrode probes.
Highly efficient and accurate due to its advanced microprocessor technology.
Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.
Dual Range 0-9990 ppm (From 0 - 999 ppm the resolution is 1 ppm. From 1000 to 9990 ppm, the resolution is 10 ppm, indicated by a blinking 'x10' image.)
Factory Calibrated: calibrated with a 342 ppm NaCl solution. Meters can be recalibrated with a mini-screwdriver.
Comes equipped with Mur-lok® Quick-Connect T-fittings (is 1/4")
Installs quickly and easily.

SPECIFICATIONS
Range: 0-9990 ppm
Accuracy: +/-2%
Conversion Factor: NaCl (avg. 0.5)
Cable Length: 24.5" (including sensor)
Fittings: 1/4" standard, also available with 3/8" or 1/2"
Power source: 2 x 1.5V button cell batteries (LR44 or equivalent; included)
Battery life: approx. 1000 hours of continuous use
Size: 7.6 x 2 x 4.7 cm (3 x .8 x 1.9 in.)
Weight: 79.4 g (2.8 oz.)



Features:
-With the push of a button, the unit displays a green or red light, indicating good water quality or service required, respectively.
-Tests for TDS or conductivity levels.
-Eight programmable set points (by dip switch).
-Bright LED lights

-Simple to use.

QC-1: Quick Check TDS/Conductivity Monitor         (HM digital product)

Press the "Push-to-Check" button for an instant water quality check!
.-Factory Calibrated to 100 ppm NaCl. Re-calibration is unncessary.
-Comes equipped with Mur-lok® Quick-Connect T-fitting (1/4 inch).
-Excellent Reverse Osmosis (RO) or Deionization (DI) monitor
-Installs quickly and easily.

Specifications:
-TDS/EC Range: 0-5000 ppm (10,000 µS)
-Max. Set Point: 50 ppm (100 µS)
-Accuracy: +/-3%
-ATC: No
-Cable Length: 24.5" (including sensor)
-Fittings: 1/4"
-Power source: 4 * 1.5V button cell batteries (included)
-Battery life: Approx. one year
-ize: 7.6 * 2 * 4.7 cm (3 * 8 * 1.9 in.)
-Weight: 39.7 g (1.4 oz.) (not including sensor)



Features:
-Displays TDS level of a single water line.
-Highly efficient and accurate due to its advanced microprocessor technology.
-Auto-Off function conserves battery power. The unit shuts off automatically after 10 minutes of non-use.
-Wide Range 0-9990 ppm (From 0 - 999 ppm the resolution is 1 ppm. From 1000 to 9990 ppm, the resolution is 10 ppm, indicated by a blinking 'x10' image.)

-Factory Calibrated: our meters are calibrated with a 342 ppm NaCl solution. -Meters can be recalibrated with a mini-screwdriver.

SM-1: In-Line Single TDS Monitor          (HM digital product)
Use the monitor to determine when a filter need to be changed.
Ideal for any water filtration system, including reverse osmosis systems, coolers and much more.
-Comes equipped with Mur-lok® Quick-Connect T-fitting (1/4 inch).
-Installs quickly and easily.

Specifications:
-Range: 0-9990 ppm
-Accuracy: +/-2%
-Conversion Factor: NaCl (avg. 0.5)
-Cable Length: 24.5" (including sensor)
-Fittings: 1/4"
-Power source: 2 x 1.5V button cell batteries (LR44 or equivalent; included)
-Battery life: approx. 1000 hours of continuous use
-Size: 7.6 x 2 x 4.7 cm (3 x .8 x 1.9 in.)
-Weight: 79.4 g (2.8 oz.)




Features:
-External single line internal TDS monitor that is ideal for most water purification systems.
-Includes a light and optional alarm that alerts the user service is required when the TDS level reaches the pre-programmed set-point.
-User-defined set points (any even number between 2 and 200).

PM-2: External In-Line TDS Purity Monitor         (HM digital product)

An ideal monitor/alert for water coolers and other enclosed water purification systems. Alerts a user when the filtration system requires service.
Specifications:
-Range: 0-200 ppm (mg/L)
-Accuracy: +/- 2%
-Calibration: Factory calibrated
-Alert: Warning light, optional alarm
-Light color: Either red or yellow
-Light function: Either flashes or is steady
-Alarm: Beeps for 20 seconds, then goes silent
-Power Source: AC 110V / 220V +/-2%
-Cable Length: 62.86 cm (24.75")
-Fittings: 1/4"
-Max. Water Pressure: 200 PSIG (at 23°C with a 1/4" fitting)
-Dimensions: 12.9 x 7.3 x 6 cm (5 x 2.9 x 2.4 in.)
-Weight: 340 g (12 oz.)



PH/ORP/temperature inline monitor

Model

PH-2612

Range

PH: 0.00~14.00

mV: 0~+/-1999mV

ºC: 0~100ºC

Resolution

PH: 0.01PH

mV: 1mV

ºC: 0.1ºC

Accuracy

PH: +/-0.01PH

mV: +/-1mV

ºC: +/-0.4ºC

Calibration

1point or 2point

A T C

0~95ºC

Power

DC9V/100mA  or

 Rechargeable battery

Operating Conditions

Temperature: 5~60ºC

 Humidity: 95% maximum

Dimensions

136×110×34mm

Weight

228g











































PH/Temperature inline monitor

Model

PH-2622

Range

PH: 0.00~14.00

ºC:9.9~99.9ºC

ºF: 16~210ºF

Resolution

PH: 0.01PH

ºC: +/-0.1 ºC

ºF: +/-1ºF

Accuracy

PH: +/-0.02PH

ºC: +/-1 ºC

ºF: +/-2ºF

Calibration

1point or 2point

Power

AC110v or AC230V+/-10%

Operating Conditions

Temperature: 5~60ºC

Humidity: 95% maximum

Dimensions

136×93×35mm

Weight

460g





















FEATURES
A five-stage filter monitor with five independent timers and a tri-color LED faucet indicator disc.
Works on time (and volume for the FM-2) for up to five stages (can be less).
The LED indicator disc will illuminate a green, yellow or red light when the water is turned on. The color indicates the percentage of elapsed time.
Auto-Off function conserves battery power. The unit shuts off automatically after 5 minutes of non-use.
The timer counts down in months or days (settings can be modified).
Includes an audible alarm (beep).
Modern design is perfect for any kitchen.
Installs quickly and easily.

Filter Monitor                              (HM digital product)

FM-2 SPECIFICATIONS

Timer Range: 0-999 days/months
Timer Modes: Days or months (default is months)
Volume Range 0-99999 Gallons / Liters
Volume Modes: Gallons (default) or Liters
Volume Accuracy: +/-1% (at typical flow rates of approx. 1.5 to 2.5 LPM; low and high rates may affect accuracy)
Maximum Pressure: 150 psi
Settings:
 One alert per stage, up to five stages
Default Setting: 12 months
Batteries: 2 x AA (included)
Battery Life: approx. 18 months
Base Unit Dimensions: 100 x 63 23 mm (4 x 2.5 x 0.9 in)
Base Unit Weight: 119 g (4.2 oz.) (including batteries)
Flow Sensor Cable Length: 93 cm (36.6 in)
Flow Sensor Fitting Size: 1/4" Quick Connect
LED Faucet Indicator Disc: Works with any non-air gap filter faucet
LED Faucet Indicator Disc Cable Length: 92 cm (36.25 in)
LED Faucet Indicator Disc Dimensions: 4.75 (1 1/4" in.) dia., 8 cm (5/16") high



 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )



PH / TEMP / ORP / TDS / EC / CF monitor          PH / ORP /  Conductivity controller
