PH / ORP monitor, PH / ORP controller

( Digital pH controller, Digital ORP controller, conductivity monitor, TDS Monitor, EC monitor, PH/PPM (EC)/Temp. Monitor )

PH / TEMP / ORP / TDS / EC / CF monitor          PH / ORP /  Conductivity controller

PH / ORP /  Conductivity controller

PPH-1000 Industrial Online PH Controller         (HM digital product)
FEATURES

-Intelligent online Monitoring and control of pH levels. Temperature display.
-LED display, easily and clearly read.
-the upper limit, lower limit alarm, relay control function, alarm ON\OFF. Use singly or in combination.
-4-20mA current output.
-Can control one or two relay, automatic closed loop control system is more flexible and convenient
-Installs easily in minutes.
-Widely used in various water quality treatment equipment on-line monitoring and control, to determine pH value of water solution in departments of petroleum, chemical, medicine-produce ect.
Specifications:
Measure Range: 0.01~14.00pH/0~80∼C(32~176沈)
Resolution: 0.01pH/0.1∼C(沈)
Accuracy:
㊣0.02pH
Temperature Compensation: ATC (0-80∼C)
Calibration: 4.00,7.00,10.00 by push button/manual
Realy Control: 2 realy, user set, ≒5A,220V
Alarm: ON/OFF upper/lower limit
Output Current: 4-20mA
Sensor Probe: combination electrode
Probe Length: 1.2m

Probe Overall connection: 3/4 inch outer thread
Working Condition: temp. -5∼C~50∼C, humidity≒85%
Power: AC110V/220V㊣10%  50/60Hz
Size: 72*72*111mm
Weight: 235g

PS-50S, PS-54S  EC TDS Controller         (HM digital product)
FEATURES

-Intelligent online Monitoring and control of EC, TDS levels.
-Large, bright LCD display with backlight, easily and clearly read.
-the upper limit, lower limit alarm relay control function, alarm ON\OFF.
-4-20mA output signal can connect to a PLC to record values. (model PS-54S only)
-Installs easily in minutes.
-Widely used in various water quality treatment equipment on-line monitoring and control.
Specifications:
EC Range: 0.0-9999us/0.0-20.0Ms
TDS Range: 0.0-9999ppm/0.0-10.0ppt
Resolution: uS&ppm:0.1(0.0-99.9);1(100-9999); ms&ppt(0.1)
Accuracy:㊣2%
Temperature Compensation: ATC(1-65∼C)
Calibration: digital by push button
Relay Control: 1 relay, user set, ≒2A,220V
Alarm: ON/OFF upper/lower limit
Display: LCD with backlight
Analog output: 4-20mA (model PS-54S)
Sensor Probe: 1/2∪NPTF bushing
Probe Length: 3m
Working Condition: temp. -5∼C~50∼C, humidity≒85%

Power: AC220V㊣10% 50/60Hz (Optional AC110V: PSC-50 110V; PSC-54 110V w/ 4-20mA)
Size: 96*48*100mm
Weight: 267g

PS-50D, PS-54D Dual EC TDS Controller         (HM digital product)

FEATURES
-Intelligent online Monitoring and control of EC, TDS levels.

-2 electrode probe allow for continuous and simultaneous monitoring and control of TDS/EC levels on two water lines e.g., feed water and product water
-Large, bright LCD display with backlight, easily and clearly read.
-the upper limit, lower limit alarm relay control function, alarm ON\OFF.
-4-20mA output signal can connect to a PLC to record values. (model PS-54D only)
-Installs easily in minutes.
-Widely used in various water quality treatment equipment on-line monitoring and control.

Specifications:
EC Range: 0.0-9999us/0.0-20.0Ms
TDS Range: 0.0-9999ppm/0.0-10.0ppt
Resolution: uS&ppm:0.1(0.0-99.9);1(100-9999); ms&ppt(0.1)
Accuracy:㊣2%
Temperature Compensation: ATC(1-65∼C)
Calibration: digital by push button
Alarm: ON/OFF upper/lower limit
Display: LCD with backlight
Analog output: 4-20mA (model PS-54D only)
Sensor Probe: 1/2∪ NPT bushing, dual
Probe Length: 3m
Working Condition: temp. -5∼C~50∼C, humidity≒85%
Power: AC220V㊣10% 50/60Hz (Optional AC110V: PSC-60D 110V; PSC-64D 110V w/ 4-20mA)
Size: 96*48*100mm
Weight: 258g

Features:
-Monitors and controls TDS levels for high output commercial systems.
-Large, bright L.E.D. display.
-An alarm will sound if the TDS level rises above the user-set level.
-Installs easily in minutes.
-Includes one sensor probe (at no extra cost).
-Protective cover also available (sold separately)

PS-100: Panel Mount TDS Controller         (HM digital product)

Install the Panel Mount Controller to constantly monitor TDS levels of water produced by a high-output system.
Specifications:
-Range: 0 - 999ppm
-Accuracy: ㊣2%
-Conversion Factor: NaCl (avg. 0.5)
-Resolution: 1 PPM
-ATC: Yes (1 - 65 degrees Celsius)
-Calibration: Adjustable (manual)
-Setting: Controlled by on-screen up/down buttons
-Relay Control: The unit will open or close a circuit via dry contacts when the ppm -level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
-Relay Voltage: 5V
-Alarm: Optional steady beep (set by user)
-Display: Bright 5/8" L.E.D. display
-Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
-Power supply: AC 110V / AC 220V
-Dimensions: 7.2 * 7.2 * 10.2 cm (2.8 * 2.8 * 4 in.)
-Monitor Weight: 476 g (1 lb .8 oz)
-Total Weight: 680.4 g (1 lb 8 oz)

PS-200 Dual TDS Controller         (HM digital product)

Install the Dual TDS Controller to constantly monitor TDS levels of water produced by a high-output system. Immediately know if the TDS levels rise above an acceptable level.
FEATURES
Monitors and controls TDS levels of two water lines (e.g., feed water and product water) for high output commercial systems.
Large, bright L.E.D. display.
An alarm will sound if the TDS level rises above the user-set level for the output water.
Installs easily in minutes.
Includes two sensor probes (at no extra cost).
The PS-200 is a monitor for Line 1 (in-line) and a controller for Line 2 (out-line).
Protective cover also available (sold separately)
SPECIFICATIONS
Range: 0 - 999ppm
Accuracy: ㊣2%
Conversion Factor: NaCl (avg. 0.5)
Resolution: 1 PPM
ATC: Yes (1 - 65 degrees Celsius)
Calibration: Adjustable
Setting: Controlled by on-screen up/down buttons
Relay Control: The unit will open or close a circuit via dry contacts when the ppm level (out line/line 2 only)reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device. (In line/Line 1 does not have a control function)
Relay Voltage: 5V (simple switch)
Alarm: Optional steady beep for Out line/Line 2 (set by user)
Display: Bright 5/8" L.E.D. display
2 Probes: 1/2" bushing (NPT), 3 meter (9.8 ft) shielded cable
Power supply: AC 110V / AC 220V
Dimensions: 7.2 x 7.2 x 10.2 cm (2.8 x 2.8 x 4 in.)
Monitor Weight: 476 g (1 lb .8 oz)
Total Weight: 822.1 g (1 lb 13 oz)

Features:
-Simultaneously monitors and controls the TDS levels of two water lines (e.g., the feed water and product water) for high output commercial systems.
-Large, bright L.E.D. displays.
-An alarm will sound if the TDS level rises above the user-set level for both lines.
-Installs easily in minutes.
-Includes two 1/2" sensor probes (at no extra cost).

PS-202: Dual Display TDS Controller         (HM digital product)

The PS-202 allows for continuous and simultaneous monitoring and control of TDS levels on two water lines.
Specifications:
-Range: 0 - 999ppm
-Accuracy: ㊣2%
-Conversion Factor: NaCl (avg. 0.5)
-Resolution: 1 PPM
-ATC: Yes (1 - 65 degrees Celsius)
-Calibration: Adjustable
-Setting: Controlled by on-screen up/down buttons
-Relay Control: The unit will open or close a circuit via dry contacts when the ppm -level of the output water (line 2) or input water (line 1) reaches or exceeds its control setting (simple switch). The PS-202 can be used to control one or two pumps, solenoid valves or other device.
-Relay Voltage: 5V
-Alarm: Steady beep for both lines
-Display: Bright 5/8" L.E.D. dual displays
-2 Probes: 1/2" bushing, 3 meter (9.8 ft) shielded cable
-Power supply: AC 110V / AC 220V
-Dimensions: 9.4 * 9.4 * 12.5 cm (3.7 * 3.7 * 4.9 in.)
-Monitor Weight: 569.8 g (1 lb 4.1 oz)
-Total Weight: 938.4 g (2 lbs 1.1 oz)

Features:
-Monitors and controls TDS levels for high output commercial systems.
-Large, bright L.E.D. display.
-An alarm will sound if the TDS level rises above the user-set level.
-On-screen temperature display (C/F).
-Installs easily in minutes.
-Includes one sensor probe (at no extra cost).
-Protective cover also available (sold separately)

PSC-150: Extended Range EC/TDS Controller         (HM digital product)

New controller includes extended range, digital calibration, on-screen temperature and tri-color display.
Specifications:
-EC Range: 0-9999 µS
-TDS Range: 0 - 5000 ppm
-Temperature Range: 1-75∼C; 33-167∼F
-Accuracy: ㊣2%
-onversion Factor: NaCl (avg. 0.5)
-Resolution: 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)
-ATC: Yes (1 - 65∼C)
-Calibration: Adjustable (manual)
-etting: Controlled by on-screen up/down buttons
-Relay Control: The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
-Relay Voltage: 5V
-Alarm: Optional steady beep (set by user)
-Display: Bright 5/8" L.E.D. display
-Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
-Power supply: AC 110V / AC 220V
-Dimensions: 7.2 * 7.2 * 10.2 cm (2.8 * 2.8 * 4 in.)
-Monitor Weight: 476 g (1 lb .8 oz)
-Total Weight: 680.4 g (1 lb 8 oz)

Features:
-Monitors and controls TDS/EC levels for high output commercial systems.
-Large, bright L.E.D. display.
-4-20mA output signal can connect to a PLC to record values.
-An alarm will sound if the TDS /EC level rises above the user-set level.
-A switch will control a device based upon the set point.
-On-screen temperature display (C/F).
-Installs easily in minutes.
-Includes one sensor probe (at no extra cost) (part #SP-1-PSC).
-rotective cover also available (sold separately)

PSC-154: TDS/EC Controller with 4-20mA Output         (HM digital product)

New controller includes extended range, digital calibration, on-screen temperature, tri-color display and 4-20mA output.
Specifications:
-EC Range: 0-9999 µS
-TDS Range: 0 - 5000 ppm
-Temperature Range: 1-75∼C; 33-167 ∼F
-Accuracy: ㊣2% (of the reading)
-Conversion Factor: NaCl (avg. 0.5)
-Resolution: 0.1 µS/ppm (0-999); 1 µS/ppm (1000-9999)
-ATC: Yes (1 - 65∼C)
-Calibration: Digital by push button
-Set-Point: Single point, controlled by on-screen up/down buttons (to any point within the range)
-Relay Control: The unit will open or close a circuit via dry contacts when the ppm/µS level reaches or exceeds the control setting (simple switch). It can be used to control a pump, solenoid valve or other device.
-Relay Voltage: 5V
-Output Signal: 4-20mA
-Output Accuracy (mA): ㊣1%
-Alarm: Optional steady beep (set by user)
-Display: Bright 5/8" L.E.D. display
-Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable
-Power supply: AC 110V / AC 220V
-Dimensions: 7.2 * 7.2 * 10.2 cm (2.8 * 2.8 * 4 in.)
-Monitor Weight: 476 g (1 lb .8 oz)
-Total Weight: 680.4 g (1 lb 8 oz)

Features:
-Monitors and controls dosing or injection systems.
-Large, bright tri-color L.E.D. display.
-Two adjustable set points keep TDS levels within a range (maximum and minimum TDS/EC levels).
-Minimum and maximum control points will activate relay controls via switching dry contacts.
-The CIC-152 can control two different devices (e.g., a pump and a valve).
-Two alarms (maximum and minimum levels) can be set independently of the control points.
-Digital calibration.
-On-screen temperature display.
-On-screen range & control indicator lights (green, yellow or red)
-Installs easily in minutes.
-Includes one sensor probe (no extra cost)

CIC-152: Dual Control Dosing/Injection TDS/EC Controller         (HM digital product)

-Protective cover also available (sold separately)
-Available with the NaCl conversion factor (model CIC-152-N) or the 442TM conversion factor (model CIC-152-4).
Specifications:
-TDS Range: 0 - 5000 ppm (CIC-152-N): 0 - 8500 ppm (CIC-152-4)
-EC Range: 0 - 9999 µS
-Temperature Range: 1-80∼C; 33-176∼F
-Accuracy: ㊣2% (of the reading)
-Resolution: 0.1 ppm (0-999); 1 ppm (1000-9999)
-TC: Yes (1 - 80 degrees Celsius)
-Calibration: Digital (by push button)
-Factory Calibration: 1413 µS
-Set Points: Adjustable by push button. Control Point 2: Maximum TDS Limit. -Control Point 1: Lower TDS Level.
-Relay Control: The unit will transmit an analog signal (simple switch) via open or closed contacts to a device (e.g. pump/valve) when the ppm/µS level reaches the maximum TDS/EC limit (Control Point 2) or the minimum TDS/EC limit (Control -----Point 1). The contacts are switched back to the normal position once the TDS returns to the acceptable range.
-Relay Voltage: 5V (attached devices must have their own power supply)
-Alarm: Two independent alarms (set by user)
-Display: Bright 5/8" L.E.D. display
-Probe: 1/2" bushing, 3 meter (9.8 ft) shielded cable (model SP-1-PSC)
-Power supply: AC 110V / AC 220V
-Dimensions: 7.2 * 7.2 * 11.1 cm (2.8 * 2.8 * 4.4 in.)
-Monitor Weight: 476 g (1 lb .8 oz)
-Total Weight: 680.4 g (1 lb 8 oz)

PHC series PH, ORP, CD meter and controller

(If you need clear photo withour our watermark, please ask at: xiushunjie@gmail.com )

HOT SALES!!!

Well designed structure, it works very professionally and functionally at any area, epecially for aquariums. It is easy to control or test the PH, ORP or salinity.

Description:
1. AC 120V-240V
2. Long-lasting test and controll the PH, ORP,conductivity and calcium
﹛ data in the water.
3. Light LED display
4. High porfomance electrode
5. Combination  funtions on testing and controlling
6. Hig precision and accuracy
7. Suitable  for fresh water and saltwater

8. 12pcs/ctn, ctns size: 53.5*44.5*35.5 g.w./ctn: 12 kgs

Model

Product

Measurement

Control range

Resolution

PHC200

ph meter

0-14ph

㊣0.01ph

PHC201

ph controller

0-14ph

0-14ph

㊣0.01ph

ORPC300

orp meter

-1999-+1999mv

㊣0.01mv

ORPC301

orp controller

-1999-+1999mv

0-1200mv

㊣0.01mv

POC231

ph-orp controller

ph:0-14ph
orp:
-1999+1999mv

ph:0-14ph
orp: 0-+1200mv

ph:㊣0.01ph

orp:㊣0.01mv

CDC400

conductivity meter

0-199.9ms

0.1ms

CDC401

conductivity controller

0-199.9ms

0-100ms

0.1ms

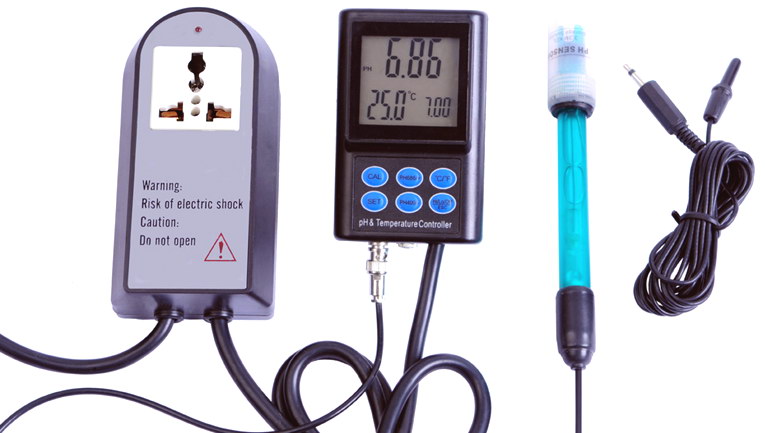

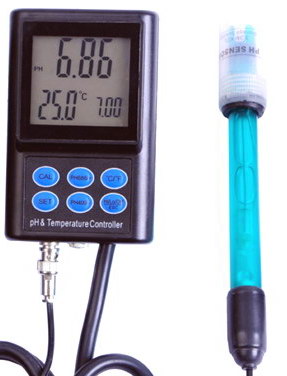

PH-221 Digital pH and Temperature Controller  LCD display

Technical Specification:

MODEL

PH-221

Measuring range

pH

0.00 ~ 14.00 pH

Temp

0~50∼C (32ºF-122ºF)

Resolution

pH

0.01 pH

Temp

0.1ºC (0.2ºF)

Accuracy

pH

㊣0.02pH

Temp

㊣0.5ºC

Display

pH

4-digital LCD

Temp

3-digital LCD

Relay Contact

5A/240VAC

Automatic Temperature Compensation

  0 ~ 50∼C

Calibration

2 points with auto buffer recognition

Set Range

0 ~ 14PH (High or Low)

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

95 x 61 x 20 mm

Weight

550g

PH-211 Digital pH Controller (Backlitght display) LCD display

Measuring range

0.00~14.00PH

Accuracy

㊣(0.1%+2 digits) after calibration

Resolution

0.01PH

Set Range

3.50~10.50PH

Relay contact

5A/240VAC

Environment

Temperature:0~50∼C Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

130mm*65mm*40mm

Weight

600g

Packing

 20PCS/CTN, CTN SIZE: 50*42*37CM, G.W.: 18KGS

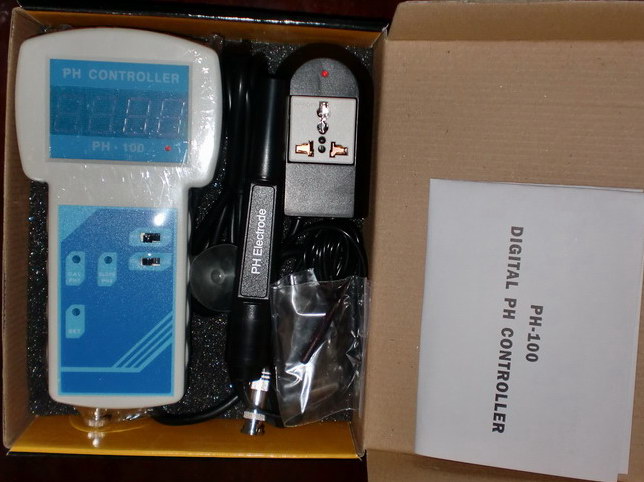

PH-100 Digital pH Controller

Model

PH-100

Measuring range

0.00~14.00PH

Accuracy

㊣0.02PH

Resolution

0.01PH

Set Range

3.50~10.50PH

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Display

4-digital LED

Input Impedance

1012

Power Supply

220V㊣10%50Hz㊣2%

Dimensions

108*210*48 (mm3)

Weight

550g

PH-201W Digital Waterproof pH Controller

Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries, Food Processing,
Photography, Laboratory, Paper Industry, Swimming Pool, Plating Industry

Same function as PH-201, but it is waterproof than PH-201.

Model

PH-201W (waterproof)

Measuring range

0.00~14.00PH

Accuracy

㊣(0.1%+2 digits) after calibration

Resolution

0.01PH

Set Range

3.50~10.50PH

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V/110V㊣10% 50Hz㊣2%

Dimensions

165mmx158mmx121mm

Net Weight

580g

Gross Weight

2.7kgs

PH-201 Digital pH Controller

Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries, Food Processing,
Photography, Laboratory, Paper Industry, Swimming Pool, Plating Industry

Model

PH-201

Measuring range

0.00~14.00PH

Accuracy

㊣(0.1%+2 digits) after calibration

Resolution

0.01PH

Set Range

3.50~10.50PH

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V/110V㊣10% 50Hz㊣2%

Dimensions

150mm*85mm*40mm

Weight

580g

PH-2012 Digital pH and ORP Controller

Technical Specification

Model

PH-2012

Measuring range

PH

0.00~14.00PH

ORP

-1999~1999mV

Accuracy

PH

㊣0.1%+0.02PH

ORP

㊣5 mV

Resolution

PH

0.01PH

ORP

1mV

Set Range

PH

3.50~10.50PH

ORP

-500~500mV

Relay Contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Display

double 4 LED display reading

Power Supply

220V/110V㊣10% 50Hz㊣2%

Dimensions

150mm*85mm*40mm

PH-203 Digital pH/ORP Controller

Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water Conditioning,
School & colleges.

Model

PH-203

Measuring range

PH

0.00~14.00PH

ORP

0~㊣1999mV

Accuracy

PH

㊣(0.1%+2 digits) after calibration

ORP

㊣5 mV

Resolution

PH

0.01PH

ORP

1mV

Set Range

PH

3.50~10.50PH

ORP

0~1000mV

Relay Contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V/110V㊣10% 50Hz㊣2%

Dimensions

150mm*85mm*40mm

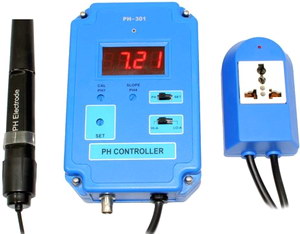

PH-301 Digital pH Controller

Model

PH-301

Measuring range

0.00~14.00PH

Accuracy

㊣0.1%+2 digits

Resolution

0.01PH

Set Range

3.50~10.50PH

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

160mm*102mm*40mm

Weight

772g

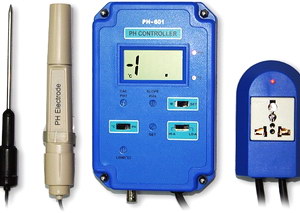

PH-601 Digital pH/Temperature Controller LCD display

Model

PH-601

Measuring range

PH

0.00~14.00PH

Temperature

0~100ºC

Accuracy

PH

㊣0.1%+2 digits

Temperature

㊣0.4ºC

Resolution

PH

0.01PH

Temperature

0.1ºC

Set Range

PH

3.50~10.50PH

Relay Contact

5A/240VAC

Display

4-digital LED

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

160mm*102mm*40mm

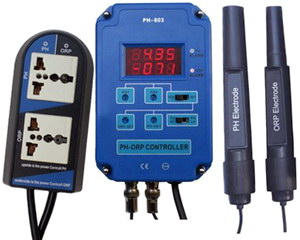

PH-803 Digital pH/ORP Controller

Model

PH-803

Measuring range

PH

0.00~14.00PH

ORP

-1999~1999mV

Accuracy

PH

㊣0.1%+0.02PH

ORP

㊣5 mV

Resolution

PH

0.01PH

ORP

1mV

Set Range

PH

3.50~10.50PH

ORP

-500~500mV

Relay Contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Display

double 4 LED display reading

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

160mm*102mm*40mm

Weigh

872g

Note: this meter display and controll ph/orp simultaneously.

PH-303 Digital pH/ORP Controller

Model

PH-303

Measuring range

PH

0.00~14.00PH

ORP

0~㊣1999mV

Accuracy

PH

㊣0.1%+2 digits

ORP

㊣5 mV

Resolution

PH

0.01PH

ORP

1mV

Set Range

PH

3.50~10.50PH

ORP

0~1000mV

Relay Contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

160mm*102mm*40mm

Note: this meter display and controll ph/orp not simultaneously, need switch from display to controll.

ORP-200C Digital ORP Controller

Model

ORP-200C

Measuring range

0~㊣1999mV

Accuracy

㊣0.1%+2 digits

Resolution

1mV

Output current

-500~500mV

Relay contact

AC220V/5A

Environment

Temperature:0~50ºC Humidity<95%

Display

4-digital LED

Input Impedance

1012

Power Supply

110Vor220V㊣10%50/60Hz㊣2%

Dimensions

108*210*48(mm3)

Weight

550g

ORP-206 Digital ORP Controller

Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water Conditioning,
School & colleges.

Model

ORP-206

Measuring range

0~㊣1999mV

Accuracy

㊣5 mV

Resolution

1mV

Set Range

-500~500mV

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V/110V㊣10% 50Hz㊣2%

Dimensions

150mm*85mm*40mm

Weight

580g

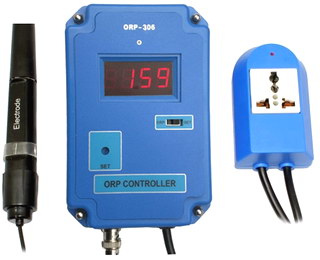

ORP-306 Digital ORP Controller

Model

ORP-306

Measuring range

0~㊣1999mV

Accuracy

㊣5 mV

Resolution

1mV

Set Range

-500~500mV

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

160mm*102mm*40mm

Weight

772g

CD-208 Digital Conductivity Controller

Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water Conditioning,
School & colleges.

Model

CD-208

Measuring range

0~1999us/cm, 0~199.9mS

Accuracy

㊣(1.5%+2 digits) after calibration

Resolution

1us, 0.1mS

Set Range

0~1000us, 0~100.0mS

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

150mm*85mm*40mm

CD-308 Digital Conductivity Controller

Model

CD-308

Measuring range

0~1999us/cm, 0~199.9mS

Accuracy

㊣1.5%+2 digits

Resolution

1us, 0.1mS

Set Range

0~1000us, 0~100.0mS

Relay contact

5A/240VAC

Environment

Temperature:0~50ºC Humidity<95%

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

160mm*102mm*40mm

HL-233 LEVEL CONTROLLER

Model

HL-233

Power Supply

AC 220V 50Hz

Environment

Temperature: 0~50ºC, Humidity<95%

Power Consumption

2 watts

Dimensions

150mm*85mm*42mm

Weight

690g

The electronic level controller with 2 sensors will automate aquarium water top off. Since safety is our number one concern, we include two float switch sensors with our electronic water level controller. The first float switch sensor triggers the feed pump (sold separately) to maintain the desire water level. The second float switch sensor ensures dependability and offers overflow protection. Our water level controller can also be used to protect pump from running dry. It can be utilized in three ways :
1.In this mode the power supply will turn on if the water level in the sump is low AND there is enough water in the storage tank. The power supply will turn off if the water level in the sump is high AND there is not enough water in the storage tank.
(View Operation diagram, MODE A-1)
With this set up the power supply will turn on as soon as the water level in the sump drops below the set level. The power supply will turn off if the water level in the sump is high the set level.
(View Operation diagram, MODE A-2)
2. The power supply will turn on when the level falls below the minimal level of float sensor1 and will turn off when water rises the set point of the flow sensor1. The float sensor2 acts as a backup sensor in the event the float sensor1 is stuck. The level controller will not allow the power supply to turn on if the water level in the sump reaches the maximum level of float sensor2.
(view Operation diagram, MODE B)
3. Immerse the sensor1 and sensor2 in the measured solution (sump).With this set up the power supply will turn on when both sensors detected that the water level is below the minimum level and stop only when the water rises the maximum level of both sensor.
(View Operation diagram, MODE C)

HL-233T LEVEL CONTROLLER (with temperature display)

Model

HL-233T

Temp Range

0~80ºC

Resolution

0.1ºC

Accuracy

㊣1ºC

Environment

Temperature: 0~50ºC, Humidity<95%

Power Supply

AC 220V 50Hz

Dimensions

150mm*85mm*42mm

Weight

690g

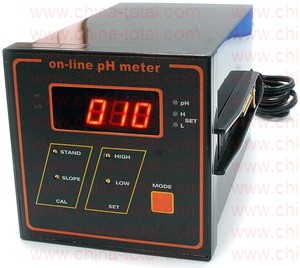

PH-018 Industrial Online pH Controller

It is an accurate secondary instrument with LED digital display. it is applicable to determine pH value of water solution in departments of petroleum, chemical, medicine-produce ect. Automatic temp. Compensation

Model

PH-018

Measuring range

0.00~14.00PH

Accuracy

㊣0.02PH

Resolution

0.01PH

Output current

4-20mA

Automatic temperature

compensation

0~100ºC

Warning accuracy

㊣0.02PH

Environment

Temperature:0~50ºC Humidity<95%

Display

4-digital LED

Input Impedance

1012

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions

96*96*160(mm3)

Weight

950g

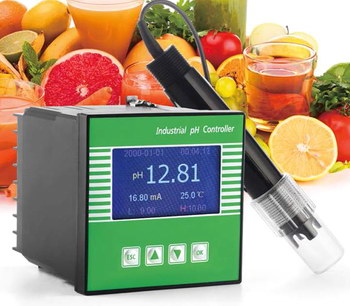

PH-018 (RS485) Industrial Online pH Controller

Product description :
• The intelligent: using micro processing chip, complete pH measurement, temperature measurement, temperature compensation, automatic communication network, man-machine interface and other functions.

• Anti - interference: mA output, RS485 communication and measurement circuit adopts photoelectric isolation technology, has good electromagnetic compatibility, strong anti-interference ability.

• The multi parameter display: time, temperature, pH, mA output, high and low limit setting value and the alarm output and displayed on the LCD screen.

• The display: 320*240 color LCD screen, high resolution, beautiful appearance, WIN8 METRO style menu, friendly man-machine interface.

• The RS485 communication: follow MODBUS RTU standard communication protocol, multi unit network monitoring and automatic control of computer connection.

• The industrial control watchdog: ensure that the instrument do not crash.

• The time display: built-in clock chip, display the current date and time.

• The temperature compensation, automatic temperature compensation, you can also manually input the temperature, manual temperature compensation.

• It is widely used in monitoring and control of pH in thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, aquaculture, greenhouse cultivation, food and tap water and other industries.

Specifications:

Model

PH-018 (RS485)

Measuring range

0.00~14.00PH

0~100ºC

Accuracy

≒㊣1%FS

Resolution

0.01PH

0.1ºC

Output current

4-20mA

Automatic temperature compensation

0~100ºC

Warning accuracy

㊣0.02PH

Environment

Temperature:0~60ºC Humidity<95%

High-low alarm relay

AC220V, 10A

Levels of protection

IP54

Power Supply

220V㊣10% 50Hz㊣2%

Dimensions(mm)

96*96*110

Weight

10500g

ORP-019 Industrial On-line ORP Controller

Model

ORP-019

Measuring range

0~㊣1999mV

Accuracy

㊣(0.1%+2 digits) after calibration

Resolution

1mV

Output current

4-20Ma(max charge:50次)

Relay contact

two 220V5A

Environment

Temperature:0~50ºC Humidity<95%

Display

4-digital LED

Input Impedance

1012

Power Supply

110Vor220V㊣10%50/60Hz㊣5%

Dimensions

96*96*160(mm3)

Weight

950g

click picture for backside of the controller

PH/ORP INDUSTRIAL ON-LINE CONTROLLER

PH/ORP-6658H

Power supply

AC 220V(160-250V)50Hz

Power unit

<5W

Accuracy

0.01PH    1mV

Measurement range

0-14PH    -999mV~+999mV

Set point

2

Environmental temperature

0~50∼C

Temperature compensation

Manual

Display

Four-level LED LCD instructions

Environmental humidity

35-85%RH

Parameters preservation

10 years

Output model

ON/OFF        4-20mA

Output capacity

AC 250v/3A     DC30V/3A

Input impedance

≡1012次

Insulation R

≡10M次

Size

96mmX96mmX120mm

Weight

600g

Optional electrode: CT-1001 for PH, CT-2001 for ORP  (click here to check)

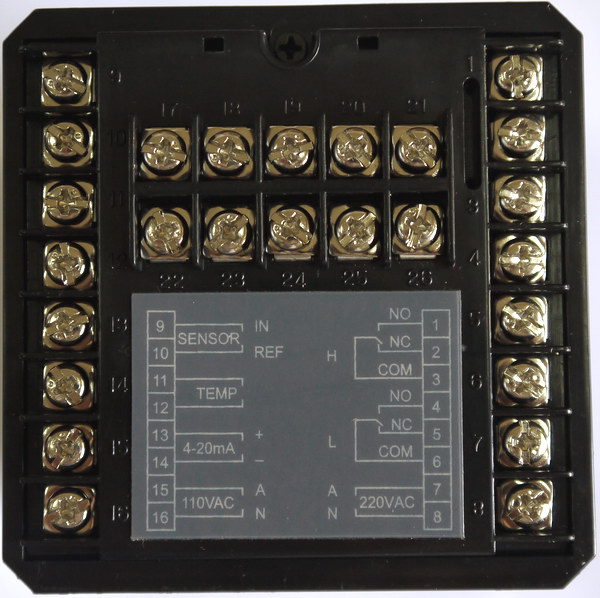

click picture for backside of the controller

Introduction:
-PH/ORP-6659H controller is a multifunctional and Intelligent PH monitor and redox controller. It has the characteristics of high precision, stability. It's widely used in the situation of sewage treatment such as electroplating factories, circuit board production, fermentation, food processing.
-Using America microchip.

PH/ORP-6659H Intelligent PH and ORP Controller

Parameters:

Power supply

AC 220V(160-250V)50Hz

Power unit

<5W

Accuracy

0.01PH/1mV

Measurement range

0~14PH/-2000mV~2000mV

Set point

2 groups ( pH4.01, pH6.86, pH9.18; pH4.01, pH7.00, pH10.01)

Environmental temperature

0~50∼C

Auto temperature compensation

0~100∼C (Auto)

Display

Four-level LED LCD instructions

Environmental humidity

35-85%RH

Parameters preservation

10 years

Output model

ON/OFF, 4~20mA

Output capacity

AC 250v/3A, DC30V/3A

alarm output

high & low two groups alarm output

Input impedance

>1012

Insulation R

>10M次

Size

96mm*96mm*120mm

Optional electrode: CT-1001C for PH, CT-2001 for ORP  (click here to check)

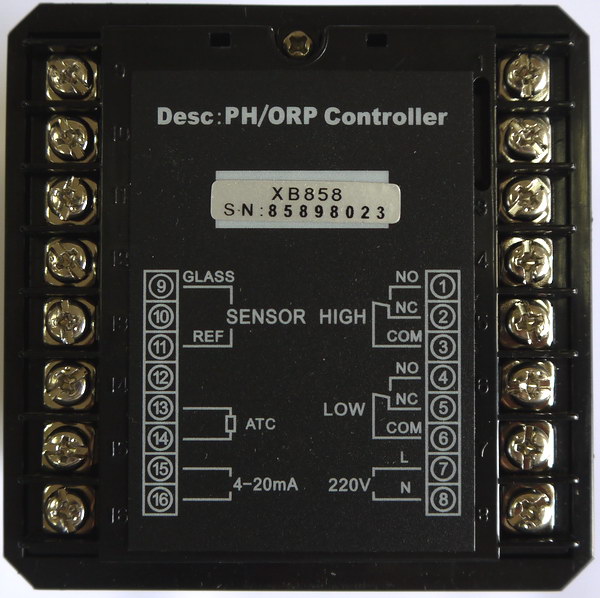

click picture for backside of the controller

PH/ORP INDUSTRIAL ON-LINE CONTORLLER
PH/ORP-2000

Range: 0-14PH, -1000-1000mV
Accuracy:
㊣(0.1%+2 dit)
Resolution: 0.01 pH/1mV
Display: LCD (Blue back light)
Set point:
2
Power Cap: Max
3A / 220 VAC.
Power supply:
AC110V 50Hz, AC220V 60 Hz.
Power:
 2 W
New weight: 0.2KG
Output: DC4-20mA, MAX. LOAD 1K

Optional electrode: CT-1001 for PH, CT-2001 for ORP  (click here to check)

Features:
• Economical online pH controller.
• 1 to 3 points push-button calibration with auto-buffer recognition.
• Selectable NIST or USA pH buffer standards.
• Automatic electrode slope display helps user decide whether to replace sensor.
• Automatic Temperature Compensation ensures accurate reading.
• Low and high alarm limits can be set by user and automatically activate an external device.
• 4 to 20mA output signal meets industrial requirements.
• Manual temperature calibration improves the measurement accuracy of meter.
• Selectable temperature unit (∼C or ∼F) for different application requirements.
• System menu allows setting the 9 parameters, including the pH buffer standards, number
  of calibration points, alarm limits, hysteresis value, etc.
• Reset feature automatically resumes all settings back to factory default options.

Note:

Probe length: 5M.

Probe Overall connection: 3/4 inch outer thread.

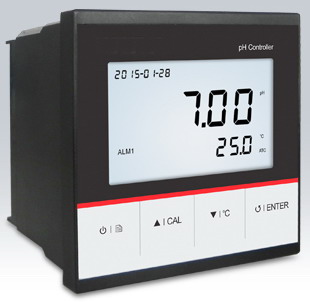

PH/ORP-620 Online pH Controller

Economical online pH controller, 3 points calibration, 4 to 20mA output signal. The meter is suitable for monitoring the pH of sample in the chemical, pharmaceutical, environmental protection and food industries.

Specification:

  Model

PH/ORP-620

   PH

   Range

-1.00~15.00pH

   Accuracy

㊣0.01pH

   Resolution

0.01pH

   Calibration Points

1 to 3 points

   Calibration Solutions

USA (pH4.01/7.00/10.01)

or NIST (pH4.01/6.86/9.18)

   Temperature Compensation

0~100∼C, 32~212∼F

   Compensation Mode

Automatic

   mV

   Range

-1000~1000mV

   Accuracy

㊣1mV

   Resolution

1mV

   Temperature

   Range

0~100∼C, 32~212∼F

   Accuracy

㊣1∼C

   Resolution

0.1∼C

   Communication

   Transmitter Function

4~20mA, Load 500次

  Low and high alarm limits/relay control output

1.00~10.00pH, Selectable

   Communication Interface

RS485

   Others

   Environmental Conditions

0~60∼C, 32~140∼F

   Power Requirements

DC24V

   Dimensions

96(L)℅96(W)℅75(H)mm

   Weight

350g

  Order information

  Accessories

1. IE-20T Industrial pH Electrode

2. PH Buffer Pouches (pH4.01/7.00/10.01)

  Optional Accessories

  Order Code

Description

  IE-20T pH Electrode

Suitable for measuring the general liquids

  PH Buffer Pouches (USA)

PH4.01/7.00/10.01

  PH Buffer Pouches (NIST)

PH4.01/6.86/9.18

  Packaging

  Dimensions

150(L)℅120(W)℅90(H)mm

  Weight

0.9kg

Applications:

High level water quality management. Automatic running.

High pure water /ultra pure water management control. The meter is used for Electronics, electric power, pharmaceutical, fine chemical, clinical medical science, life science research The meter is used for Industrial process solution salinity analysis of Water treatment, desalination, concentrate management, circulating cooling water, industrial coating, large-scale water treatment equipment.

The meter is used for inline monitoring of Metallurgy, petrochemical, industrial cleaning.

Note:

Probe length: 10M.

Probe Overall connection: 3/4 inch outer thread.

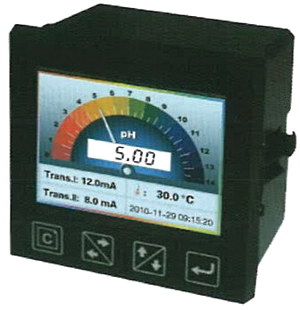

PH-8151A Controller

ORP-8151A Controller

Technical index.

Model No.

pH/ORP-8151A   pH/ORP transmitting controller

Measurement Parameter

Range

Resolution

Accuracy

pH

0.00 ~14.00

0.01

㊣0.1

ORP

(-1999 ~+1999mV

1mV

㊣5mV( Indicator )

Temperature

(0.0 ~ 100.0)∼C

0.1∼C

㊣0.5

Medium temperature compensation

(0.0~100.0)∼C

Temperature components

NTC10k temperature components

(4~20)mA

Current output

Channels

Double channels

Features

Isolated, adjustable, reversible, 4-20MA output, instruments/ transmitter mode.

Loop resistance

400次(max), DC 24V

Resolution

㊣0.1mA

Control contact

Channels

Triple channels

Contact

Photoelectric relay output

Programmable

Programmable(temperature, pH/ORP) output

Features

Can set pH/ORP/temperature/timing.

NO/NC/pH PID selection

Resistance load

50mA(max)AC/DC 30V

Data communication

RS485,modbus protocol

Power supply

DC 24V㊣4V

Consumption

<5.5W

Working

environment

Temperature: (0~50)∼C

Relative Humidity : ≒85%RH( non- condensing )

Storage

Temperature : (-20~60)∼C

Relative Humidity: ≒85%RH(non- condensing)

Protection level

IP65(with rear cover)

Outline dimension

96mm ℅96 mm ℅94mm (H℅W℅D)

Hole dimension

91mm℅91mm

Installation

Panel.

Application:

Widely used for online monitoring in environmental water treatment , chemical treatment, circulating cooling water, aquaculture.

Order direction

Basic order units:

PH-3520 pH/ORP Controller: double relay output (ON/OFF)

PH-3500 pH/ORP Controller: power supply DC 24V

Probe length: 10M.
Probe Overall connection: 3/4 inch outer thread.

Remark:

See sensor selection part for correctly choosing sensor and accessories

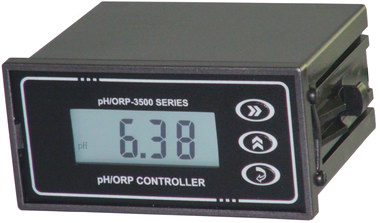

PH-3520/PH-3500 pH/ORP Controller

Technical Features:

Measurement Range:

PH: 0.00-14.00

ORP: (-2000-+2000)Mv

Temp.: (0.0-99.9) ºC (Temperature compensation: NTC10K)

Resolution:

Ph: 0.01

ORP: 1mV

Temp.: 0.1ºC

Accuracy:
Ph: 0.1 level

ORP: +/-5Mv (electronic unit)

Temp.: +/-5ºC

Buffer solution: 9.18; 6.86; 4.01; 10.00; 7.00; 4.00

Temp. compensation: (0-50) ºC, (with 25ºC as standard under normal medium), manual and automatic temperature compensation for selection.

Analog output: Single channel isolated (4-20)mA output instrument/transmitter mode for selection.

Control output: double relay output (ON/OFF)

Consumption: <3W

Working environment: Temp. (0-50) ºC; Humidity: </=85%RH (none condensation)

Storage environment: Temp. (-20-60) ºC; Humidity: </=85%RH (none condensation)

Dimension: 96mm*96mm*105mm (H*W*D)

Hole size: 91mm*91mm (H*W)

Installation: Panel mounted, fast installation


Features:
• Economical online conductivity controller with TDS measurement mode.
• 1 to 3 points calibration with automatic calibration solution recognition.
• Selectable cell constants, temperature coefficient and TDS conversion factors.
• Automatic Temperature Compensation ensures accurate reading.
• Low and high alarm limits can be set by user and automatically activate an external device.
• 4 to 20mA output signal meets industrial requirements.
• Manual temperature calibration improves the measurement accuracy of meter.
• Selectable temperature unit (∼C or ∼F) for different application requirements.
• System menu allows setting the 9 parameters, including the calibration points, cell constants, alarm limits, hysteresis value, etc.
• Reset feature automatically resumes all settings back to factory default options.

Note:

Probe length: 5M.

Probe Overall connection: 3/4 inch outer thread.

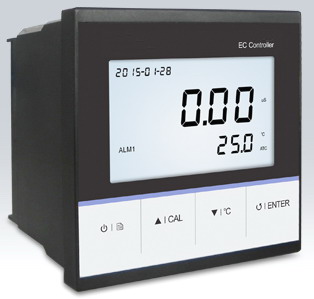

CCT-650 Online Conductivity Controller

Economical online conductivity controller, 3 points calibration, 4 to 20mA output signal. The meter is suitable for monitoring the conductivity and TDS of the water quality.

Specification:

   Model

CCT-650

   Conductivity

   Range

0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm

   Accuracy

㊣1% F.S

   Resolution

0.01, 0.1, 1

   Calibration Points

1 to 3 points

   Calibration Solutions

84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm

   TDS

   Range

0~10ppt (Max. 20ppt, depending on factor setting)

   Accuracy

㊣1% F.S

   TDS Factor

0.1~1.0 (Default 0.5)

   Temperature

   Range

0~100∼C, 32~212∼F

   Accuracy

㊣1∼C

   Resolution

0.1∼C

   Communication

   Transmitter Function

4~20mA, Load 500次

 Low and high alarm limits/relay control output

0.02uS/cm~20.0mS/cm, Selectable

   Communication Interface

RS485

   Others

   Temperature Compensation

0~100∼C, 32~212∼F, Automatic

   Temperature Coefficient

0.0~10.0%/∼C

   Cell Constant

K=0.1, 1, 10

   Normalization Temperature

25∼C

   Environmental Conditions

0~60∼C, 32~140∼F

   Power Requirements

DC24V

   Dimensions

96(L)℅96(W)℅75(H)mm

   Weight

350g

  Order information

  Accessories

IE-50MT Industrial Conductivity Electrode

  Optional Accessories

  Order Code

Description

  IE-50LT Conductivity Electrode

For the pure water

  IE-50MT Conductivity Electrode

For the general liquids

  IE-50HT Conductivity Electrode

For the high conductivity liquids

  Conductivity Calibration Solutions

84µS, 1413µS, 12.88mS, 111.8mS

  Packaging

  Dimensions

150(L)℅120(W)℅90(H)mm

  Weight

0.9kg

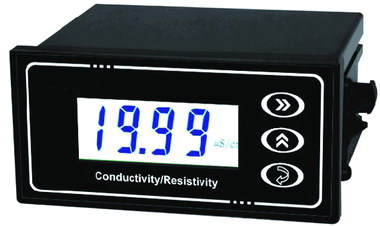

CCT-3300 series Conductivity (TDS) Controller

CCT-3300 series conductivity (TDS) measurement controller is a high-technology innovative product. Product performance and function updated to a new level.  It is a product with high performance and price ratio for inline water quality conductivity analysis.

Applications

This series is widely used for the water treatment control and monitoring of water treatment (high salt content), concentrated solution, recirculating cooling water and etc.

Main Technical Index

l        No adjustable component inside the instrument, totally programmed automatic calibration, higher reliability;

l        Automatic measurement range shift, digital temperature compensation.

l        Support conductivity cell constant (0.1 cm-1, 1.0 cm-1, 5.0 cm-1, 10.0 cm-1), measurement range compatible with liquid from pure water to concentrated solution, named online conductivity superman.

l        Conductivity (uS/cm) or TDS (ppm) engineering unit display can be chosen in operation.

l        present water temperature (∼C) / transmitting current (4~20mA) can be check onsite.

l        Measurement and calibration program for calculation and measurement inspection organization.

l        Isolated, transferable 4~20mA current output, two points transmitting range random setting within full scope. Support all the two wire PLC system under transmitter model.

l        Conductivity high limit alarm, high limit value and backlash value random setting within full measurement scope.

l        Patent short housing and fast installation method to save more space for the project,

l         High illumination, pure white backlight LCD display in accordance with international trend.

l        Industrial standard wire contact, EMC electromagnetic compatible design, platform design development, serial product classification.

l        Meeting international electronic power supply regulation, AC ,DC current input which with non polarity wire connection,

l        Our products with strict quality management , SMT  (Surface Mounted Technology), AOI (automatic optical inspection (system), ICT #

l        Complete manufacturing technique management, and quality management.

l         Electrode will be calibrated, tested, packed one by one.

Products classification

Model

Power supply

Frequency(Hz)

Current loop modes

Constant selection

Display

CCT-3300E

DC 24V

---------------

Instrument/Transmitter

0.1-1.0

Three digits and a half

CCT-3310E

AC 110V

50/60

Instrument/Transmitter

0.1-1.0

Three digits and a half

CCT-3320

AC 220V

50/60

Instrument/Transmitter

0.1-1.0

Three digits and a half

CCT-3320E

AC 220V

50/60

Instrument/Transmitter

0.1-1.0

Three digits and a half

CCT-3320T

AC 220V

50/60

Instrument/Transmitter

0.1-1.0

Three digits and a half

Note: The model with E is the EMC enhancement type.

CCT-3320T(Conductivity Monitor) without any control outputs.

Main technical feature

Name of product

CCT-3300 series of conductivity/TDS Controller

Display

LCD display

Auxiliary electrode Constant

0.10 cm-1

1.000 cm-1

5.000 cm-1

10.0 cm-1

Electrode coefficient  range

0.070- 0.130 cm-1

0.70 -1.30 cm-1

3.50 -6.50 cm-1

7.00 -13.0 cm-1

Auxiliary electrode accuracy measurement range

0.5~199.9米S/cm

1.0~1999米S/cm

0.05~9.99mS/cm

0.5~19.99mS/cm

Measurement range

conductivity

0.5米S/cm ~ 19.99mS/cm

TDS

0.25ppm~ 9.99 ppt

temperature

0.0~50.0∼C

Resolution

conductivity

0.01米S/cm

TDS

0.01ppm

temperature

0.1∼C

Accuracy

conductivity

1.5level

TDS

1.5level

temperature

㊣0.8∼C

Temperature compensation

NTC10K temperature component

Working Environment

Temp.0~50∼C  Relative Humidity: 80%RH

Transmitting output(4~20mA)

isolated/transferable/reversible /transmitter mode/meter mode

Loop resistance 0--400次 accuracy: ㊣0.1mA

Control output

Output port

double contact relay output  (ON/OFF)

load capacity

AC 220V/AC110V/DC24V 3A Max

Power consumption

<2.5W

Power supply

CCT-3300E

CCT-3310E

CCT-3320/CCT-3320E

CCT-3320T

DC 24V ㊣4V

AC 110V ㊣10%

AC 220V  ㊣10%

AC 220V  ㊣10%

Frequency(Hz)

------

------

50/60

50/60

Installation

Panel mounted ,fast installation clamp

Dimension

48mm*96mm*80mm(H*W*D)

Slot dimension

44mm*92mm(H*W)

Weight

0.27kg

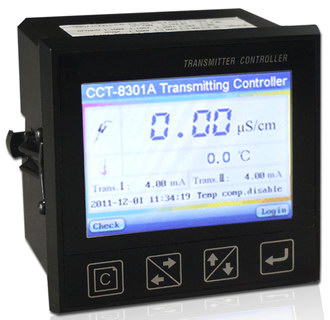

CCT-8301A Conductivity/ Resistivity/ TDS/ Temp Online Controller

Application:

Multi-effect distilled water for medical system, boiler bottom water, condensate, heat exchange system, industrial thermal mechanical parts cleaning, industrial water recycling and conductivity online analysis at high temperature environments running water quality management and automated control over a wide temperature range.

Characteristics:

* Integrates conductivity/ resistivity/ temperature;

* 3.5" 320*240 TFT color screen, multiple parameter display in same screen;

*  With the Conductivity constant 0.01, 0.1, 1.0, 10.0 (cm-1)

* Automatic range switch, arbitrary setting for  measurement unit;

* Double channel, Isolated (4-20)mA, Instrument/ Transmitter for selection;

* Control, transmit, arbitrary combination for conductivity/ resistivity/ TDS/ temperature;

* Triple channels Photo-electrical switch control, Choose to conductivity/ resistivity/ temperature time;

* Switching logic can be set, Static logic or pulse logic for optional;

* Calendar function, time setting, and making an appointment, provide time tags for recording data;

* Pt1000 temperature compensation, with the professionalization of temperature measurement/ temperature control;

* Complete isolated channel for the Power, measurement transmitter and control;

* RS485 communication port, Standard Modbus RTU protocol;

* Optional electromagnetic compatibility design, good anti-jamming performance;

* DC24V power supply, conform to the safety standards of high humidity site (Port polarity internal automatic identification);

* Password protection function, strengthen system security, with the CE certification.

Main Technical Specifications:

Constant

10.00cm-1

1.000cm-1

0.100cm-1

0.010cm-1

Conductivity

(500~100000)米S/cm

(1.0~10000)米S/cm

(0.5~200.000)米S/cm

(0.05~18.25)M次﹞cm

TDS

(250~20000)ppm

(0.5~2000)ppm

(0.25~100)ppm

---

Temp

0~180ºC (Temperature Compensation: Pt1000 )

Resolution

Conductivity: 0.01米S/cm, 0.01mS/cm, Resistivity: 0.01M次﹞cm, TDS: 0.01ppm, Temp: 0.1ºC

Accuracy

Conductivity: 1.5% (FS), Resistivity: 2.0% (FS), TDS: 1.5% (FS), Temp: ㊣0.5ºC

Temperature compensation

With 25ºC as standard under normal medium; With 90ºC as standard under high temp medium

Analog Output

Double channel (4-20)mA, Instrument/ Transmitter for selection

Control Output

Triple channels photo-electrical semiconductor replay switch, Load capacity: AC/ DC 30V, 50mA (max)

Communication port

RS485 Modbus RTU protocol

Power supply

DC24V㊣15%

Protection level

IP65 (with the back cover)

Working environment

Temperature: 0~50ºC; Relative humidity: ≒95%RH  (non-condensing)

Storage environment

Temperature: -20~60ºC; Relative humidity: ≒85%RH  (non-condensing)

Dimension

96mm*96mm*94mm (H*W*D)

Hole size

91mm*91mm (H*W)

Installation

Panel mounted, fast installation

Performance features:
Temperature + conductivity + resistivity controller. Electrode consistent check can be met by jam-in Microchip. Conductivity/resistivity can be displayed optionally. Conductivity/resistivity and temperature over limit alarm can be set optionally. Conductivity/resistivity can be displayed at the same time with double-line LED digital canal. With function of digit calculating temperature compensation, it can preset and modify compensation parameters. Conductivity/resistivity at temperature of 25ºC or 90ºC can be displayed optionally. It is with features of stability of high temperature and reliable long.

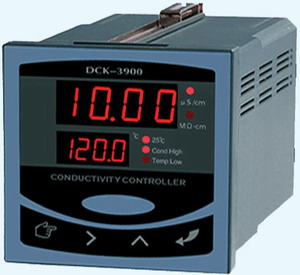

DCK-3900 Conductivity Controller (new model No. CCT7320A)
Main Technical Specifications
-Measuring range:
-Conductivity: 0~20米S/cm Resistivity: 0.05~18.25 M次﹞cm
-Accuracy: ㊣1.0%(FS)
-Stability: ㊣2*10-3(FS)/24h
-Auxiliary electrode: 0.1cm-1 High temperature sanitation 316 L stainless steel
-Medium temperature: 70~150ºC
-Temperature compensation: Automatic temperature compensation: calculate compensation with 90ºC as standard condition
-Power supply: AC 220V㊣10% 50Hz
-Power consumption: ≒4W
-Data connection port: RS485 port, Modbus agreement
-Output current signal: isolated output 4~20mA, switchable between active and passive output
-Maximum load impedance: 500次 Max@ 24V DC
-Display mode: Red LED digit double-window display
-Contact capacity: 5A/250V AC (for resistive load)
-Environment conditions: temperature: 0~50ºC; humidity: ≒85%RH
-Screw thread size: 1/2"NPT (pipe thread)
-Cable structure: RVP+ coaxial cable 75-2 (double shielding)
-Cable length: normal 5m or specified as ---m
working pressure of conductance cel:0~1.0MPa
-Control output: ON/OFF double channels relay output.
-Load capacity of the relay:AC230V/7A Max; AC115V/10A Max.
-Auxiliary printer: WDJ-4680 paperless recorder+ printer
-Dimensions: 96*96*130mm (height * width* depth)
-Slot dimensions for installation: 91*91mm (height *width)
-Installation: Jam-in

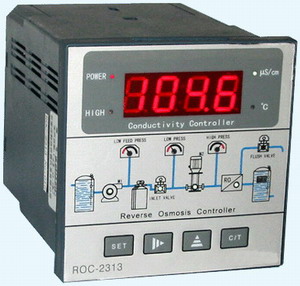

ROC-2313 RO Controller  (new model No. CCT7320)
General

The instrument is a combined control instrument of a reverse osmosis controller and an on-line conductivity instrument. It can perform the operation test, status control and on-line monitoring of water quality conductivity (combining PLC controller and conductivity meter). It takes multiple anti-interference measures, adopts unique process flow and graphical control panel with LED indicator lamp embedded, the interface is friendly; menu-driven operation is used, multiple groups of parameters can be set and modified, the requirements of automatic operation are met.
Main technical specifications:
1. Power voltage: AC 220V㊣15% 50Hz Power consumption: ≒3W
2. Environment conditions: 1) temperature: 0~50ºC; 2) humidity: ≒85%RH
3. Measuring range: 0~200米S /cm and 0~2000米S/cm can be chosen; Flushing mode: High flushing process and Low pressure flushing process can be chosen. (Please do indicate which one you need when you order)

4. Accuracy: 1.5 level
5. Load capacity of output contact: 3A/250V AC (the magnetic valve should be driven through intermediate relay)
6. Operation pressure of conductance cell: 0~0.5Mpa
7. Medium temperature:5~50ºC
8.Temperature compensation: automatic temperature with 25ºC as reference temperature
9. Distance of measuring range: less than 30m (the ex-factory configuration of electrode cable is 5m unless there is a special agreement)
10. Display mode: 3 1/2-digit LED digital display
11. Electrode selected: 1.0cm-1
12. outline dimensions: 96*96*110mm (height * width * depth)
13. meter board hole: 92*92mm (height * width)

Performance Features:
The instrument is combination of two stage reverse osmosis controller and on-line conductivity monitor. It is a special-purpose measurement and control system. This system has the functions of automatic test, operation test, status control, display, letter hint, indicating light display etc. The controller aggregates all the advantages of PLC controller and the meter for measuring water quality.

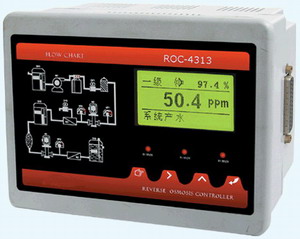

ROC-4313 RO Controller  (new model No. CCT9300)
Main Technical Specifications:
-Reverse osmosis collecting point: Raw water tank level, middle tank level, no water protection, handle/automatic control, first stage pressurization pump low/high pressure protection, second stage pressurization pump high pressure protection, and so on.
-Collecting input signal: Direct current power supply, pull electrical digit, all terminals are isolated .
-Reverse osmosis controlling point: Feed water pump, first-grade pressurization pump, second-grade pressurization pump, inlet water valve, pretreatment valve, flushing valve, first-grade over-limit outflow valve, second-grade over-limit outflow valve.
-Measuring collection point: Raw water conductivity collect ,first-stage outlet water conductivity collect, and second-stage outlet water as well as temperature collection .
-Measuring range: Raw water conductivity 0~20mS/cm, 0~2000米S/cm (match 10cm-1 or 1.0cm-1 electrode) first-stage reverse osmosis conductivity 0~200米S/cm (match 1.0 cm-1 electrode) second-stage reverse osmosis conductivity 0~20米S/cm (match 0.1cm-1 electrode)
-Power supply voltage: 24V DC (switch should be installed outside when designing)
-Accuracy:1.5 level
-Output control mode: ON single contactor output
-Load capacity of output contact: 5A/250V AC 3A/24V DC
-Rate of renewal of connecting result: ≒1second\time
-Operation pressure of conductance cell:0~0.5Mpa
-Temperature compensation: automatic temperature with 25ºC as reference temperature
-Outline dimensions: 130*180*60mm(height *width *depth)
-Slot dimension for installation: 122*172mm (height* width)
-Installation: Control plate panel

ROC-8221A/CCT-8320 Single Stage Double Channels RO Controller

Specification:

Model

ROC-8221A/CCT-8320

Signal detection(seven channels)

Dry contact input

Raw water tank level:double channels

Low level

High level

Pure water tank level:double channels

Low level

High level

Low pressure protection

High pressure protection

Pretreatment backwash signal

Control port (five channels)

Dry contact output



  Raw water pump



SPST-NO;
Load capacity
:
AC 220V/3A Max
;
AC 110V/5A Max
;
DC 24V/3A Max

lnlet valve

High pressure pump

Flush vavle

Conductivity voerlimit drainge valve

Measure detection points

Raw water conductivity, product water conductivity, raw water Temp.

Measurement range

Raw water conductivity

Measurement range

54000米S /cm

Conductivity Cell constant

1.0cm-1

Product water conductivity

Measurement range

2200米S /cm

Conductivity Cell constant

1.0cm-1

Medium Temp.

050ºC

Accuracy

1.5%(FS)

Communication

RS485 communication (Modbus protocol)

Work Environment

Temp: 050ºC relative humidity:</=85%RH (none condensation)

Storage Environment

Temp: -2060ºC;relative humidity: </=85%RH (none condensation)

Power supply

DC24V+/-4 V

Protection level

IP65 (with back cover)

Dimensions

130mm*180mm*60mm (H*W*D)

Hole size

122mm*172mm (H*W)

Installation

Panel mounted,fast installation

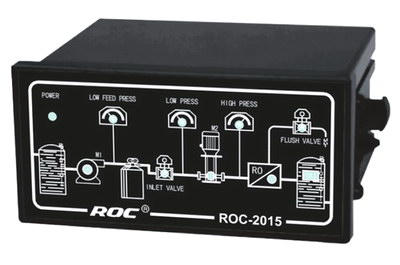

ROC-2015 single stage reverse osmosis controller
1 General

The controller is of an automatic operation management controller designed for small-scale first-class anti-osmosis water preparation system, which can realize automatic operation of anti- osmosis devices only by adding few electric elements at periphery. It has digital input (DI) ports in five states and four output control ports, and it is a small-scale economical controller.

2 Main Technical Specifications

Supply voltage

AC220V+10% 50/60Hz

Power consumption

<2W

Environmental conditions

1) Temperature: 0-50C

2)Humidity: <85%RH

Load capacity of output contacts

5A/250V AC (resistive load)

Dimensions

48*96*80mm (height*width*depth)

Hole size

44*92mm (height*width)



ROC-2015 RO Controller Main functions

Dry-run protection function



It is used to monitor water source when raw water is cut off (low level of water storage tank and the pressure of pipeline getting too low) to prevent from system idling. The controller stops the operation of whole RO system, while the indicator light on panel for ※LOW FEED PRESS§ lightens and buzzer sounds. After that, the controller will detect dry-run switch uninterruptedly, and if the water supply pressure or water level returns to normal, the controller will restart RO system for operation.

Low-pressure protection function

When front-end pretreatment system is in flushing or regenerating state, the security filter being dirtied and jammed, and cannot supply normal feeding pressure for RO system (namely the low pressure is insufficient) , the controller will temporally shut down the whole RO system. At this moment, the indicator light for ※LOW PRESS§ and the buzzer sounds.

Then, the controller will continuously detect the low-pressure protection switch, and after the pressure recovery for 1 minute, RO control system will start at first time, and operate RO system.

In event of low-pressure protection for system again, stop the operation of RO system. The procedure sets three times of trial running, and when they are not successful, the system will enter deadlock protection state. The indicator light for low-pressure protection is on to reminder the reason to shut down, and is waiting for restart by pressing the reset key after treatment by manpower.

High-pressure protection function

In some systems with high-pressure protection, if the system has overpressure, the controller will automatically close the whole RO system, and the indicator light for "HIGH PRESS" lights up. After elimination of high pressure for 1 minute, the controller will perform trial running at the first time. If the outlet pressure still has overpressure, the system will become into protection state again. The high-pressure protection procedure sets three times of trial running, and when they are not successful, the system will go into deadlock protection state and the buzzer sounds.

  *If the system has no high-pressure protection, short out the terminal (COM+HP)

Pure water tank level Control function

When pure water tank level is at preset low level, the controller will start RO system immediately to generate water till the level of pure water tank up to the preset high level, and the system will flush membrane completely and shift to standby state.

Membrane flushing function

  When the protective device and state is normal, the system will perform membrane flushing every time power up, and then repeat it every low-level water preparing. When the water producing tank is filled, the membrane flushing will be automatically ended.

Features:

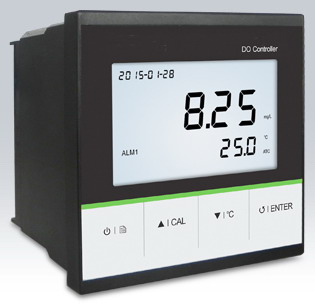

• Economical online Dissolved Oxygen controller.
• 1 or 2 points calibration using the air-saturated water and zero oxygen solution.
• Manual salinity and barometric pressure compensation improve the accuracy of meter.
• Automatic Temperature Compensation ensures accurate reading.
• Low and high alarm limits can be set by user and automatically activate an external device.
• 4 to 20mA output signal meets industrial requirements.
• Manual temperature calibration improves the measurement accuracy of meter.
• Selectable temperature unit (∼C or ∼F) for different application requirements.
• System menu allows setting the 10 parameters, including the calibration points, concentration
units, alarm limits, hysteresis value, etc.
• Reset feature automatically resumes all settings back to factory default options.

DOC-680 Online Dissolved Oxygen Controller
Economical online Dissolved Oxygen controller, 1 or 2 points calibration, 4 to 20mA output signal. The meter is suitable for monitoring the oxygen saturation levels or % saturation in the water.

Specification:

   Model

DOC-680

   Dissolved Oxygen

   Range

0.0~20.0mg/L

   Accuracy

㊣0.5mg/L

   Resolution

0.1mg/L

   % Saturation of Oxygen

   Range

0.0~200.0%

   Accuracy

㊣10% F.S

   Resolution

0.1

   Communication

   Transmitter Function

4~20mA, Load 500次

   Low and high alarm limits

1.00mg/L~18.00mg/L, Selectable

   Communication Interface

RS485

   Others

   Temperature Compensation

0~40∼C, 32~104∼F, Automatic

   Salinity Correction

0~35g/L

   Barometric Pressure Correction

60.0~112.5kPa, 450~850mmHg

   Power Requirements

DC24V

   Dimensions

96(L)℅96(W)℅75(H)mm

   Weight

350g

  Order information

  Accessories

IE-80T Industrial Dissolved Oxygen Probe

DO Filling Solution

DO Cap Membrane

  Optional Accessories

  Order Code

Description

  IE-80T Dissolved Oxygen Probe

Polarographic sensor

  DO Filling Solution

500mL

  DO Cap Membrane

Special-purpose spare

  Packaging

  Dimensions

150(L)℅120(W)℅90(H)mm

  Weight

0.9kg

DOC-8600 Dissolved Oxygen transmitting controller

Application
Dissolved oxygen measure in industrial boiler inlet water, industrial ferment measure, water measure of environment protection
Features
1. 128*64 LCD display, guided operation menu in Chinese/English.
2. Convenient application: single point calibration or known concentration calibration at any temperature.
3. Optional for manual/ automatically temperature compensation measurement. Dissolved oxygen sensor has temperature measurement itself.
4. Optional for current loop output in both modes, compatible with multiple PLC.
5. High/low level alarm setting, double channels photoelectric switch control output.
6. SMT (Surface Mount Technology), AOI (Automated Optical Inspection), ICT whole board analyze, computerized FCT inspection, strict quality management and control means.
7. All products have been tested by aging experience, A level in quality.
8. Matched calibration, complete packaging and storage of electric meter, conductivity cell; Purchase in accordance with international ordering process.

Technical parameters

Product

DOC-8600 Industrial Online Dissolved Oxygen Controller

Matched Sensor

DO3135-23Z Dissolved Oxygen Sensor

Temperature Sensor

Build in dissolved oxygen sensor

Meas. Range

Dissolved Oxygen

(0.0~20.00)mg/L

Temp.

(0.0~60.0)∼C

Resolution

Dissolved Oxygen

0.01 mg/L

Temp.

0.1∼C

Stability

Dissolved Oxygen

0.1 mg/L

Temp.

0.2∼C

Error

Zero Value Error

≒ ㊣0.10 mg/L

Dissolved Oxygen

≒ ㊣0.30 mg/L

Temp.

≒ ㊣0.5∼C

Approximate Equivalent Input Impedance

5*1012次

Salinity Compensation Error

Dissolved Oxygen

㊣2%

Compensation Range

Temp. Compensation

(5 ~ 45)∼C

Working

Environment

Temp.

(0 ~50)∼C

Humidity

≒85% RH

Cable Length

≒30m(Regular 5m)

Control Output

Double Photoelectric Switch,

Hysteresis Setting, Driving Voltage(19-22)V

Load Current ≒100mA

Power Consumption

≒3W

Current Loop Features

Transferable, Reversible,

4-20mA Current Loop Accuracy≒㊣0.1mA

Loop Resistivity: ≒500次

Power Supply

DC24㊣4V

Protection Level

IP65(With Rear Cover)

Fixing

Setting-in, clamp

Meter Dimension

96 mm *96 mm *103 mm (H*W*D)

Hole Dimension

91mm*91mm

Basic order units
Indicator: DCT-8600
Probe: DO3135-23Z
Accessories
Flow cell: P33
Mounting bracket: P16-Z
Floating bed: P18

Pipe fittings:

P33 series flow adjustment integration device for pH sensor installation

Complete Set
Dissolved Oxygen Meter 1pc (including rear waterproof cover and one pair of clamps)
Dissolved Oxygen Sensor 1pcs (Cable Length 5m)
Manual
Certificate

POP-2200(CFA-2200/CRA-2200) Integrated Free Chlorine/CLO2/pH Online Analyzer

General:

POP-2200 Integrated Free Chlorine /CLO2/pH Online Analyzer comes together intelligent control meter, Free Chlorine/CLO2 sensor, pH sensor, Temp probe and matching constant flow device and other relative accessories,with tight structure, easy transportation and installation and free of maintenance features.

System characteristics:

a.Wall mounted integrated Free Chlorine/CLO2 online analysis system integration;
b.Embedded free chlorine, chlorine dioxide analysis software of two mathematical models;
c.3.5"LCD color display,bilingual Chinese/English, complete operation guided ;
d.Constant flow rate control with the patents, make sure the measurement accuracy,do not changed by
the the pipeline pressure;
e.Anti-siphon design, the system automatically in the conservation of the state after the shutdown;
f.Double channels isolated (4~20)mA,Instrument / Transmitter for selection;
g.High/low limit setting relay*2, Photoelectric programmable*1, switching/pulse regulating
state;
h.Protective plastic chassis, preset back cover, the independent panel.

Applications:

Widely used for online monitoring HCIO/CLO2 free chlorine in residential&drinking water or food industries.It is designed for constructing swimming pool ,Spa online analysis and the sewage and waste-water disinfection and drug Dosing control .

Main technical features:

Model

POP-2200(CFA-2200)

POP-2200(CRA-2200)

Sensor

Free Chlorine/pH/Temp/

CLO2/Temp

Measurement range

Free Chlorine

(0.10~2.00)mg/L(ppm);(0.10~20.00)mg/L(ppm)

CLO2

(0.10~2.00)mg/L(ppm);(0.10~20.00)mg/L(ppm)

pH

2.00~12.00(for the Free Chlorine)

Temp

(0.0~99.9)∼C (Temp. Compensation Pt1000)

Resolution

Free Chlorine

0.01mg/L

CLO2

0.01mg/L

pH

0.01

Temp

0.1∼C

Accuracy

Free Chlorine

90% confidence interval  ㊣10%FS

CLO2

90% confidence interval  ㊣10%FS

pH

0.1level

Temp

㊣0.5∼C

Medium

pH

6.0~8.0(only for Free Chlorine)

Temp

(0.0~40.0)∼C

(4~20)mA

Output

Channel

Double

Technical feature

Isolated,Reversible, fully adjustable, instrument/transmitter mode for selection

Channel configuration

Programmable for free chlorine, CLO2, Temp, pH

Loop resistance

400次(Max),DC 24V

Accuracy

㊣0.1mA

Control port

channels

Triple channels

Contact mode

Photoelectric semiconductor relay

Load capacity

Load current 50mA(max),AC/DC 30V

Functions selection

Programmable( free chlorine, CLO2, Temp, pH, timing) output;

Communication port

RS485

MODBUS RTU RS485

Working power

Power supply voltage

System AC 220V /50Hz, indicator DC24V.

Power consumption

≒5.5W

Working environment

temperature:(0~50 )∼C; humidity:≒85% RH(none condensation)

Storage environment

Temperature:(0~60)∼C; humidity:≒85%RH(none condensation)

Protection level

IP54(plastic protection cabinet, integration system)

Cabinet material

ABS

Cabinet size

380mm℅280mm℅130mm(H*W*D)

installation

Wall mounted(with the preset back cover)

Cabinet weight

≒10kg

Pipeline flow

(250-350)mL/min

 ( If you need prices, user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )

PH / TEMP / ORP / TDS / EC / CF monitor          PH / ORP /  Conductivity controller
