PH-electrode

PH electrode, ph sensor, ph probe, ph electrode sensor, ph electrode probe, combination ph electrode, industrial ph electrode, on-line ph electrode, in-line ph electrode, ph combination electrode, ph sensor electrode, ORP electrode, conductivity electrode, DO electrode, glass ph combination electrode, DO probe, ph laboratory electrode, oxygen electrode, DO sensor

pH electrode of lab

type

measure range

applicable temperature

application (it can be add temperature compensation element according to client's need.)

E-201

BNC + 1m cable

0~14pH

0~60°C

The crust of PC be able to endure hit, gelatin KC1 electrolytic liquid dispense with complementarity ,in order laboratory and locale general use. *(For PH-8414/ORP-8414, PH-2601, 2602, 2603)

E-201C/E-210C

BNC + 1m cable

0~14pH

0~60°C

The crust of PC be able to endure hit, it can supplement electrolytic liquid, in order laboratory and locale general use, superior testing accuracy.

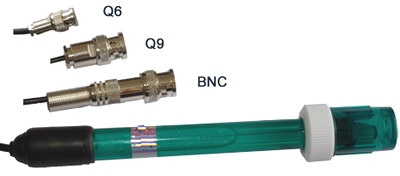

E201W PH

0~14pH

0~60°C

*(For PH-016, 016A, PHS-3C)

E201W ORP

0~±1999mv

0~60°C

Temperature electrode (for PH meters)

E-0101 (for PH-0101)

pH/ORP electrode for inline monitor

type

specification

applicable temperature

application

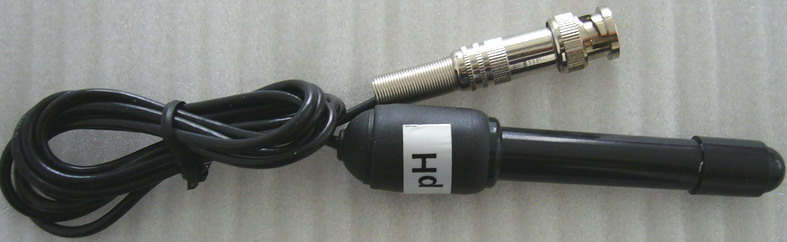

Click it for big pitcutre E201WM PH

Click it for big pitcutre E201WM ORP
Click it for big pitcutre E201WM Conductivity

Cable standard length 1.7meter (including probe), other length available upon request.

E201WM PH

Dia.14×length 85mm BNC

MeasuringRange: 0.00~14.00PH
Resolution:0.01PH
OperatingTemperature: 0°C~50°C
AutomaticTemperature Compensation (ATC): 0°C~50°C
Connection: BNC socket

0~50°C

*(For PHT-026, 027, 028, PH-025,

PH-02636, PH-02736, PH-0253,

PH-025M, PH-025N)

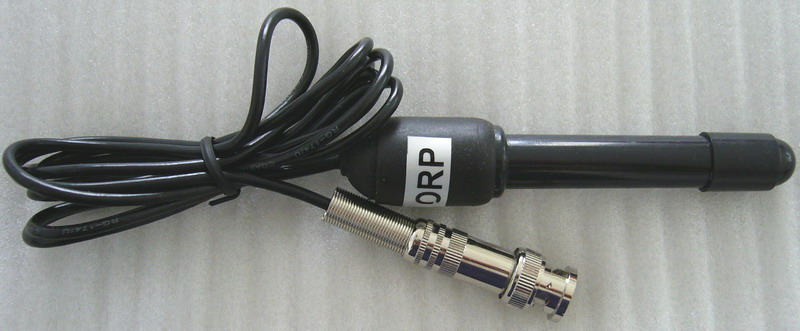

E201WM ORP

Dia.14×length 85mm BNC

Measuring Range: 0 ~ ±1999mV
Resolution: 1mV
Accuracy: ±0.1% F·S±1 digit
Connection: 300cm cable with BNC socket
Operating Temperature: 0°C~50°C ATC
Weight: 41g

0~50°C

*(For PHT-027, 028)

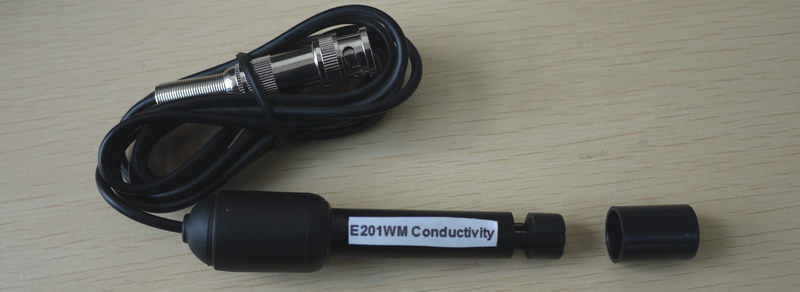

E201WM Conductivity
Dia.14×length 85mm BNC

Measuring Range: 0~19.99ms/cm, 0~1999us/cm
Resolution: 1us, 0.1mS
Accuracy: ±1.5%+2 digits
Connection: with BNC socket
Operating Temperature: 0°C~50°C ATC
K=1
Weight: 41g

0~50°C

*(For PHT-026, 027, 028, PH-02636, PH-02736)

pH/ORP electrode for Online controller

type

specification

applicable temperature

application

Cable standard length 2.9meter (including probe), other length available upon request.

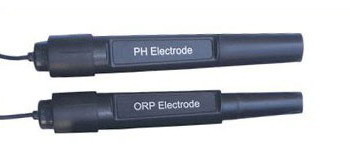

201DH PH

165mm×26mm×26mm

MeasuringRange: 0.00~14.00PH
Resolution:0.01PH
OperatingTemperature: 0°C~50°C
AutomaticTemperature Compensation (ATC): 0°C~50°C
Connection: BNC socket

0~50°C

*(For Online controller)

Note: Waterproof, Suitable for Aquarium.

201DH ORP

165mm×26mm×26mm BNC

Measuring Range: 0 ~ ±1999mV
Resolution: 1mV
Accuracy: ±0.1% F·S±1 digit
Connection: 300cm cable with BNC socket
Operating Temperature: 0°C~50°C ATC
Weight: 41g

0~50°C

*(For Online controller)

Note: Waterproof, Suitable for Aquarium.

Conductivity electrode for Online controller

type

specification

applicable temperature

application

Cable standard length 2.9meter (including probe), other length available upon request.

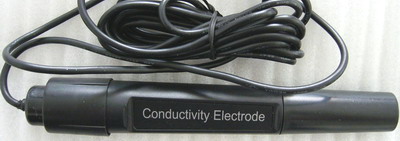

208DH Conductivity electrode

165mm×26mm×26mm BNC (or cut-off ends)

Measuring Range: 0~1999us/cm, 0~199.9mS
Resolution: 1us, 0.1mS
Accuracy: ±1.5%+2 digits
Connection: with BNC socket
Operating Temperature: 0°C~50°C ATC
K=1
Weight: 41g

0~50°C

*(For CD-208, CD-308)

Note: Waterproof, Suitable for Aquarium.

SP300

0~14pH

0~80°C

vitreous material, using in measure of laboratory precision pH, The measure solution contains organic impregnant and occasion of superior temperature. it can complement KC1 electrolytic liquid.

SP600

0~14pH

0~80°C

The crust of PC be able to endure hit, gelatin KC1 electrolytic liquid dispense with complementarity, the sensitive velum of special plan. it is applicable to determine surface pH value of paper making, piece goods, skin, fruit ect.

ORP electrode of lab

type

direction electrode

applicable temperature

application

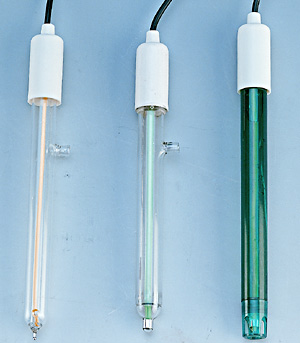

SO100

ф6×2.5mm
platinic golden loop

-5~60°C

The crust of PC be able to endure hit, it can supplement electrolytic liquid, in order laboratory and locale general use to measure the oxidable reductive electricity of solution. it use to reductive medium currently.

SO300

ф6×2.5mm
platinic golden loop

-5~100°C

vitreous material, in order laboratory and locale general use to measure the oxidable reductive electricity of solution. The measure solution contains organic impregnant and occasion of superior temperature. it use to reductive medium currently. it can complement KC1 electrolytic liquid.

ion selective electrode

type

measure range

applicable temperature

application

6801 natrium electrode

0~6pNa

20~40°C

It is use in the department of thermoelectric mill, paper mill, hospital and aquaculture ect.

701 complex natrium electrode

0~6pNa

20~40°C

The complex electrode is made of natrium electrode and reference electrodes, use expediently.It is use in the department of thermoelectric mill, paper mill, hospital and aquaculture ect.

conductance electrode of lab

type

constant of conductance pool

measure range

application (it can be add temperature compensation element according to client's need.)

The conductance electrode is measure element of conductivity meter. It is use to measure conductivity of solution. it can be add temperature compensation element to increase the measure precision according to client's need. and it is provided with the capability of temperature compensation. It is mostly applicable to electricity factory, semiconductor, pharmacy, pure-water processing, chemical industry, foodstuff drink, paper making and sewage-water processing ect.

DJS-1

1±0.2

5~10,000μ S

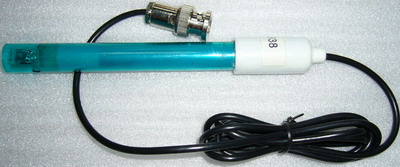

DJS-10

10±2

500~200,000μS

industrial pH electrode

type

constant of conductance pool

measure range

application (it can be add temperature compensation element according to client's need.)

Click it for big pitcutre

model

PH range

Resolution

°C

MPa

connect

MΩ
(25°C)

Zero electricity

(PH)

Theory slope %

Use range

CT-1001

sewage

0~14

±0.01PH

0~50

0.6

cable

≤250

7±0.5

>95

Environment -protection
sewage
online check

CT-1001

water

0~14

±0.01PH

0~50

0.6

cable

≤80

7±0.5

>95

High purify water

Products:

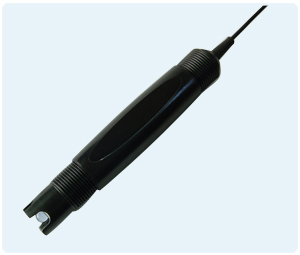

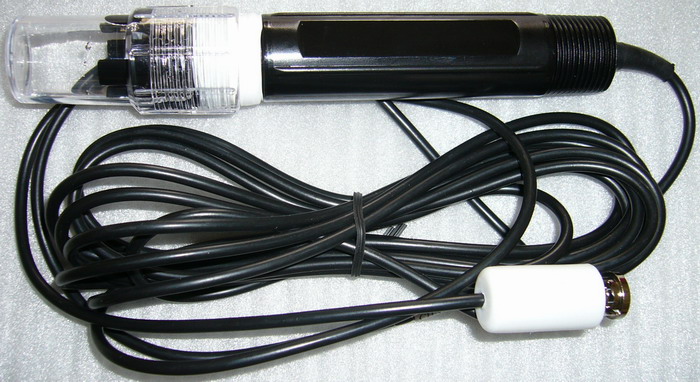

    CT-1001 PH electrode using international advanced solid dielectric and a large area of PTFE liquid interface, clogging, easy to maintain
    Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
    The PH electrode made of high quality low-noise cable, allows the model output greater than 40 meters in length, no interference
    High accuracy, fast response, good repeatability
    Online PH detection are widely used in medicine, chemical industry, environmental protection, electroplating and other industries
PH electrode Features:
    PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
   No need to supplement the dielectric, little maintenance
    Correct operation and long service life
   PH electrode with similar electrode interchangeable abroad
PH electrode technology Data:

Model	CT-1001
Temperature (º C)	0~50°C
Connection form	Cable (shielded cable)
Zero potentiometer (PH)	7±0.5
PH range	0 ~ 14
Withstanding pressure (MPa)	0.6
Internal resistanceMΩ(25ºC)	250
Theoretical percentageslope%	>95
Terminal Blocks	BNC head, Pin-type inserts, Y-piece inserts
Overall connection	3/4 inch outer thread
Size	188*31mm

Installation:
    PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
    PH electrode and instrument cable plug: BNC connector, PIN connector, Y blade connector (please indicate when you order)
    Electrode cable length: 5 meters standard, can be customized according to user requirements

Click it for big pitcutre

Products:
    CT-1001C PH electrode using international advanced solid dielectric and a large area of PTFE liquid interface, clogging, easy to maintain
    Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
    The PH electrode made of high quality low-noise cable, allows the model output greater than 40 meters in length, no interference
    High accuracy, fast response, good repeatability
    Online PH detection are widely used in medicine, chemical industry, environmental protection, electroplating and other industries
PH electrode Features:
    PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
   No need to supplement the dielectric, little maintenance
    Correct operation and long service life
   PH electrode with similar electrode interchangeable abroad
PH electrode technology Data:

Model	CT-1001C
Temperature (º C)	0~50°C
Temperature compensation	Yes
Connection form	Cable (shielded cable)
Zero potentiometer (PH)	7±0.5
PH range	0 ~ 14
Resolution	±0.01PH
Withstanding pressure (MPa)	0.6
Internal resistanceMΩ(25ºC)	250
Theoretical percentageslope%	>95
Terminal Blocks	BNC head, Y-piece inserts
Overall connection	3/4 inch outer thread
Size	188*31mm

Installation:
    PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
    PH electrode and instrument cable plug: BNC connector, Y blade connector (please indicate when you order)
    Electrode cable length: 10 meters standard, can be customized according to user requirements.

Click it for big picture

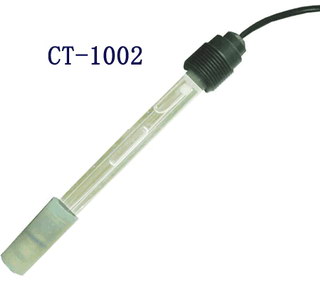

CT-1002 High temperature Glass type PH electrode

The industry PH electrode adopt specific glass, electropolar sense velamen and gelation electrolyte salt. It can meet international standards with the express correspondence and good stability.
Performance Features
1. Convenient and don’t need to add electrolyte
2. Gelation electrolyte salt can effectively prevent from Electrode poisoning. e.g.: S2-, CN-
3. Annular polyethylene solution can counteract stain. So continued-online detection is supported.
4. Different sensitive membrane electrode can be applied for different kinds of PH measurement. And it has lower electrode resistance, express correspondence and good stability.
Use Soap
1. The electrode can work with various types of ph meter.
2. The electrode adopts connector way with the 3/4 inches standard screw thread.
3. The electrode can work for 1 year normally. But the life of the electrode will be reduced if there is a poor environment or an improper maintenance.
Parameter

model

range

Resolution

°C

MPa

connect

MΩ

(25°C)

Zero electricity (PH)

Theory slope %

Use range

CT-1002

sewage

0~14

±0.01PH

0~90

0.4

cable

≤250

7±0.5

>95

Environment -protection sewage

online check

CT-1002

water

0~14

±0.01PH

0~90

0.4

cable

≤80

7±0.5

>95

High purify water

Note: temperature compensation resistance choice: PT1000, PT100, PT50, 10K, 20K etc.

Installation:
    PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
    PH electrode and instrument cable plug: BNC connector, Y blade connector (please indicate when you order)
    Electrode cable length: 5 meters standard, can be customized according to user requirements.

Click it for big pitcutre

GP400 pH complex electrode (pure-water)

2~12pH

0~60°C

The complex electrode is not need complement KCL. It is mostly used in supply water of boiler and concentrated water of smoke ect.

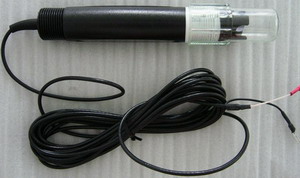

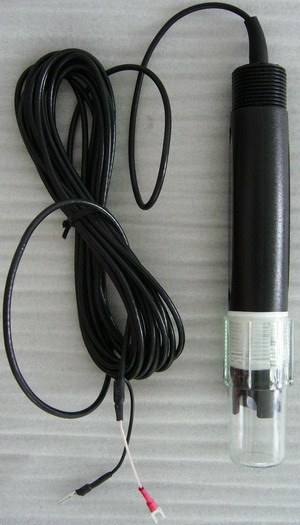

GP500 complex electrode of high temperature strong acid

0~9pH

20~100°C

It is made of reference electrodes with special sensitive glass-velum and capillary Ag/AgCl of use chronically. It is applicable to the medium of high temperature strong acid.

The electrode adopts connector way with the 3/4 inches standard screw thread.

Connector can be BNC or Y connector, please indicate when you order.

industrial ORP electrode

type

direction electrode

applicable temperature

application

Click it for big pitcutre

model

range

°C

· Electrode's voltage: 245-270MV(15-30°C)

· Reference electrode's internal resistance : ≤10KΩ

· Electrode stability: ±8Mv/24 hours

· Indication electrode: ALIVH well

· The electrode is form of PT electrode and silver chloride reference electrode.

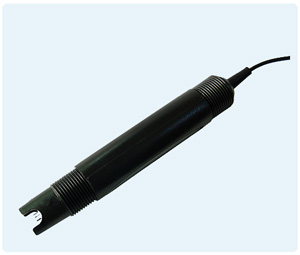

CT-2001(CT-1111)

-1999~+1999mv

5~75

Products:
     CT-2001(CT-1111) ORP electrodes using PTFE liquid interface of the international state-of-the-art solid dielectric and a large area of clogging, easy maintenance
     Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
     The PH electrode made of high quality low-noise cable, allows the model outputgreater than 40 meters in length, no interference
     High accuracy, fast response, good repeatability
     Widely used in medicine, chlor-alkali industry, pigment dyes, pulp and paper, environmental protection, electroplating and other industries on the redox potential ofdetection

PH electrode Features:
     PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
      No need to supplement the dielectric, little maintenance
     Correct operation and long service life
     Electrodes can be used with similar foreign electrode swap
Technical Data:

Model	CT-2001(CT-1111)
Temperature (ºC)	-5~50°C
Connection form	Cable (shielded cable)
Measurement accuracy	≤ 2mv
ORP range	±1999 mV
Resolution	±0.2%
Response time	≤ 10sec
Material	PC.PPS
Platinum (Gold) purity	99.99%
Terminal Blocks	BNC head, Pin-type inserts, Y-piece inserts
Overall connection	3/4 inch outer thread
Size	188*31mm

ORP electrode installation: can be side or mounted vertically in the reaction tank or pipeline.
Ordering Guide:
    ORP electrode and instrument cable plug: BNC connector, PIN connector, Y blade connector (please indicate when you order)
    Electrode cable length: 5 meters standard, can be customized according to user requirements
    The electrode installation: flow-through, sunk, flange type, Piped
