ORP Meter / Redox Meter / Redox Tester

For PH+ORP combined meters, please click here

Waterproof ORP Meter ORP-200                 (HM digital product)

Features:
1. Measures Oxidation Reduction Potential (Redox) and Temperature
2. Auto-ranging calibration with digital fine tuning
3. Includes storage solution in a sponge embedded in a clear cap
4. Waterproof housing (IP-67 rating)
5. Simultaneous temperature display
6. Digital Calibration (push button)
7. Auto-off function, data-hold function and low-battery indicator.
8. Display: large and easy-to-read LCD screen includes simultaneous temperature reading.
9. Replaceable Sensor (model SP-O2)
10. Factory Calibrated: The ORP-200 meter is factory calibrated to +92 mV The meter can be easily recalibrated with digital calibration using the push buttons, rather than a screwdriver.
11. Includes a cap, batteries, and lanyard
Specifications:
ORP Range: -999 to +1000 mV
Temperature Range: 0-80°C; 32-176°F
Resolution: 1 mV; Temperature resolution is 0.1°C/°F
Accuracy: 0.5% (+/-2mV)
Calibration: Digital calibration by push button.
Electrode: Replaceable glass sensor and reference tube electrodes
Housing: IP-67 Waterproof (submersible; floats)
Power source: 2 x 1.5V AAA Alkaline batteries (included)
Dimensions: 18.5 x 3.4 x 3.4 cm (7.3 x 1.3 x 1.3 inches)
Weight: 96.4 g (3.4 oz)

100PCS/CTNS  SIZE: 65.5*53*42cm  GW: 15kg

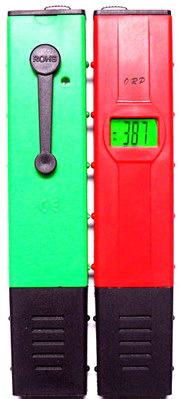

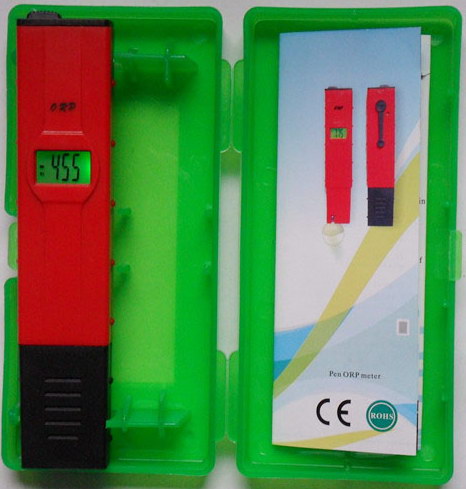

ORP-069   Pen-type ORP meter

Specifications:

Range: 01999mV

Resolution: 1mV

Accuracy: ±5mV

Battery: 4×1.5V(AG-13)

Operating Temperature:  0°C~50°C

Dimensions: 151mm*33mm*20mm

Weight: 53g





ORP-986 ORP/Redox Tester

Technical Specification:
-Measuring range:0~±1999mV
-Accuracy: ±5mV
-Resolution:1 mV
-Display:4-digital LCD
-Power Supply:4*1.5V(AG13)
-Dimensions:170mm*33mm*20mm
-Weight:69g

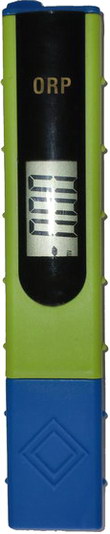

ORP-16961 ORP/Redox Tester

Technical Specification:
Measuring range:0~±1999mV
Accuracy: ±5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:4*1.5V(AG13)
Dimensions:155mm*31mm*16mm
Weight:60g




ORP-169A ORP/Redox Tester (Recommended)


Technical Specification:
Measuring range:0~±1999mV
Accuracy: ±5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:4×1.5V(AG13)
Dimensions:165×26×26(mm3)
Weight:63g



ORP-169B ORP/Redox Tester (Recommended)

Technical Specification:
Measuring range:0~±1999mV
Accuracy: ±5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:2×3V(CR2032 Battery)
Dimensions:157×27×20(mm3)
Weight:46g

Packing: 100PCS/CTN, CTN SIZE: 35*34*31CM, G.W.: 9KGS



ORP-01 ORP/Redox Tester (Economical)

Specification

Measuring Range: 0-±1999mV

Resolution: 1mV

Accuracy: ±50mV

Automatic Calibration: 1 point

Working Temperature: 0-60 °C

Battery: LR44 1.5V*2

Single package size: 22*18*8 cm
Single gross weight: 300g



ORP-169C ORP/Redox Temperature Tester (Recommended)


Technical Specification:
Measuring range:0~±1999mV

Temperature: 0-55 °C
Accuracy: ±5mV, 0.1
°C
Resolution:1 mV, +/-1
°C
Display:4-digital LCD
Power Supply:4×1.5V(AG13)
Dimensions:170×36×23(mm3)
Weight:91g



ORP-169D ORP/Redox Tester (Recommended)

Technical Specification:
Measuring range:0~±1999mV
Accuracy: ±5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:4×1.5V(AG13)
Dimensions:170×36×23(mm3)
Weight:85g




ORP-169E ORP/Redox Tester (Recommended)

Technical Specification:
Measuring range:0~±1999mV
Accuracy: ±5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:4×1.5V(AG13)
Dimensions:188×35×35(mm3)
Weight:118g



ORP-169F ORP/Redox Tester (Recommended) (Aquarium)

Technical Specification:
Measuring range:0~±1999mV
Accuracy: ±5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:4×1.5V(AG13)
Dimensions:60×55×23(mm3)
Weight:62g

Packing: 40PCS/CTN, CTN SIZE: 46*34*32CM, G.W: 15KGS



ORP-1061 ORP/Redox Tester



Technical Specification:
Measuring range:
-999~999mV
Accuracy: ±5mV
Resolution: 1 mV
Display: 4-digital LCD
Power Supply: 4×1.5V(AG13)
Dimensions:
152×29×15mm
Weight: 50g



packing

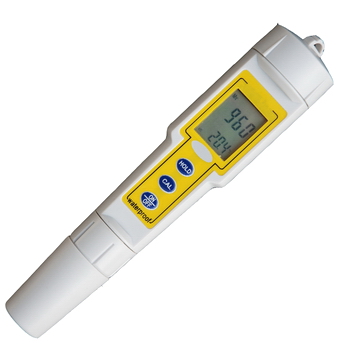

ORP-8022 Waterproof ORP/Redox + Temperature Meter

This all-in-one orp meter includes the electrode in one easy to use, accurate meter. Automatic temperature compensation is included.
Easy to change electrode.
Temperature measurement(
°C/°f);
IP67 waterproof protection.
Auto calibration for 0, 500;
High input impedance
LCD with two display and bar graph indicator
Data hold function.
Auto power off.
100 point datalogger with recall.
orp electrode: included
Measurement rang: +/-600MV temperature: 0 to 50
°C (32-122°F)
Resolution: 1MV; temperature:
0.1ºC / 0.1ºF
Accurary: 1MV; temperature:
+/- 0.8ºC / +/-1.5ºF
Data hold: freeze the display reading
ORP calibration: 0, 500 (2 points)



Pen Type ORP Meter

Features:

Automatic calibration, Automatic recognization of standard solutions, Auto power-off, low voltage alarm.

Automatic temperature compensation, Automatic ranging.

IP57 dustproof and waterproof.

Model

PH-011

EC-021

TDS-031

ORP-041

SAL-051

Description

pH Meter

Conductivity Tester

TDS Meter

ORP Meter

Salinity Meter

Range

0~14.0pH

0~100.0μS/cm
0~1000μS/cm
0~10.00mS/cm

0~50.0 ppm
0~500 ppm
0~5.00 ppt

±1000mV

0~5.00ppt

Resolution

0.1pH

0.1/1μS/cm
0.01mS/cm

0.1/1ppm
0.01ppt

1mV

0.01ppt

Accuracy

±0.2pH

±1%FS

±1%FS

±0.5%FS

±1%FS

Tem Compensation

No

Yes

Yes

No

Yes

Calibration solution

Yes

Yes

Yes

No

Yes

Power

AAA batteries*2, 1.5V*2

Dimension

39*25*176 mm



Model: ORP-630

Features:

- The smallest and thinnest dimension: 148*29*14mm.

- The most convenient operation: Single button operation.

- The most efficient function: Automatic calibration,  automatic indication and electrode changing indication etc.

- The most reliable performance: easy to replace a new electrode, dustproof and waterproof ,meter meets IP54 standards.

- The most humanization consideration design: large LCD with two array display. plastic carrying case includes meter calibration buffer and electrode soaking liquor.

- The highest performance and the lowest cost.

Specifications:

Model

ORP-630

Measuring Parameter

mV  (ORP)

Range

±1999 mV

Accuracy

±0.2%FS

ATC Range

No

Calibration

No

Buffer Solution

222mV ORP standard reagent

Electrode

Yes

Soaking Solution

Power

Two (2) CR2032 3V Lithium Ion Batteries

IP Standard

Waterproof and dustproof meets IP57 standard

Auto power off

After 10 minutes (override available)

Size & Weight

Meter: 148×29×14mm, weight: 43g; Carrying case: 168×96×28mm, weight: 178g

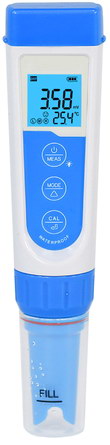

ORP-05 Premium ORP Pocket Tester

Features:

* Calibration mode available for ORP at different temperatures.
* Replaceable ORP Platinum Probe, easy to install so that you don't have to buy a whole new meter once the probe retires
* Auto recognition of stable values (optional auto hold function available) improves consistency so you don't have to guess when to manually hold measurement
* LARGE CLEAR LCD with 3 backlit colors (indicating 3 different modes), dual display of temp./ORP, and indications of completed calibrations and stable readings
* COMPLETE KIT with ready-to-use calibration solutions, a calibration bottle, storage solutions, AAA batteries, and a lanyard all in a premium portable carrying case

Meter's Technical Specs

ORP (mV)

Range

±1000 mV

Resolution

1 mV

Accuracy

±0.2% F.S

Temp.

Range

0 to 50°C (32 to 122°F)

Resolution

0.1°C

Accuracy

±0.5°C

LCD

3-Color Backlit LCD, 180° Viewing Angle

Blue: Measurement Mode; Green: Calibration Mode;

Red: Heads-Up Mode

Reading Lock

HOLD

Stable Reading Indication

Smiley Face icon

Low-Battery Warning

Battery icon flashing, reminder of battery replacement

Self-Diagnosis

Yes

Heads-Up Function

Yes

Auto. Power-Off

Yes, auto power-off in 8 minutes without operation

Waterproof Rating

IP67; Floatable

Power

DC3V, AAA batteries*4

Battery Life

Continuous operation up to 2000 hours

Dimensions& Weight

Tester: (40*40*178) mm/ 133g

With case_(255*210*50) mm/ 700g

Electrode's Technical Specs

Application

Regular water solution testing, such as pools and spas, hydroponics, tap water, drinking water, water treatment, aquaculture, etc.

Sensor material

Platinum

Replaceable

Yes

Temperature sensor

Yes

Reference Electrode

Ag/AgCl

Electrolyte

KCL Gel

Range

±1000 mV

Temperature Range

0 to 50°C (32 to 122°F)

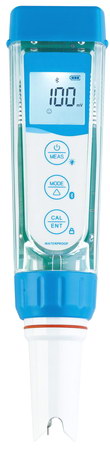

ORP-60 (Bluetooth) Smart Pocket ORP Tester

Features:

* The ORP-60 Smart Pocket ORP Tester powered by ZenTest Mobile App is the next-generation tester designed for providing seamless water test experience for general water solutions.
*Just connect the tester to the ZenTest App in your smartphone with Bluetooth, the step-by-step smart guides will lead you to become a water test professional with just a few taps.

Specifications:

Parameter

Model

ORP-60

mV

Range

±1000 mV

Accuracy

±0.2% F.S

Temperature

Range

0 to 50˚C (32 to 122˚F)

Others

Application

General water solutions

Temp. Compensation

Automatic 0 to 50˚C (32 to 122˚F)

IP Rating

IP67 Waterproof and Dustproof

Power Supply

DC3V AAA batteries *4

Compatible Probes

ORP60-DE

Alarm Function

Yes (customizable in ZenTest App)

Automatic Hold

Yes (5 to 20 seconds, customizable in ZenTest App)

Calibration Reminder

Yes (by hours/days, customizable in ZenTest App)

ZenTest App Functions (Bluetooth, iOS/Android)

Four Display Modes

Yes

Cloud Data Management

Yes

Smart Self- Diagnosis

Yes

Step-by-step calibration guide

Yes



ORP-10 Pocket ORP Tester

Specification:

Model

ORP-10

ORP Range

-999~999mV

ORP Accuracy

±2mV

Calibration Points

1 point, Manual

Sensor Type

Platinum (Order Code: ORPscan-S)

Connector

6-pin

Measurement Modes

Absolute or Relative mV

Auto-Off

Manual or Automatic (8 minutes after last key pressed)

Hold Function

Manual or Automatic endpoint

Reset Function

Yes

Operating Temperature

0~60°C, 32~140°F

Power Requirements

2×1.5V "AAA" batteries

Battery Life

Approximately 200 hours

Dimensions

185(L)×40(Dia.)mm

Weight

100 grams





ORP-20 Pocket ORP Tester

Specification:

Model

ORP-20

ORP Range

-999~999mV

ORP Accuracy

±2mV

Calibration Points

1 point, Manual

Sensor Type

Platinum ORP Electrode

Connector

BNC

Measurement Modes

Absolute or Relative mV

Auto-Off

Manual or Automatic (8 minutes after last key pressed)

Hold Function

Manual or Automatic endpoint

Reset Function

Yes

Operating Temperature

0~60°C, 32~140°F

Power Requirements

2×1.5V "AAA" batteries

Battery Life

Approximately 200 hours

Dimensions

185(L)×40(Dia.)mm

Weight

100 grams

Order code and Accessories:

ORP-20: 501 ORP Electrode, Carrying Case and Batteries.

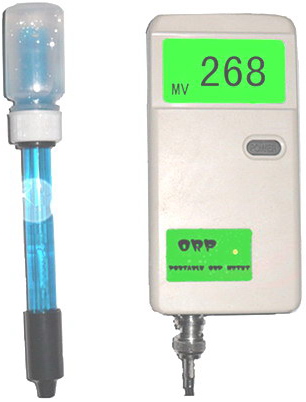

ORP-036  Portable ORP meter



Features:

ORP-036 is a large screen rechargeable 4 LCD display with backlight, easy to read and accurately measuring ORP, Simple operation, strong and durable, economical and practical, Equipped with standard BNC electrode composite.

It is very convenient that to change electrode in the world, complete with various industry test needs.

Specifications:

Range:     0~±1999mV

Resolution:    1mV

Accuracy:   ±5mV

Battery:   6VDC

Charging time:   4h(After charging 16 hours of continuous work)

Operating Temperature:  0°C~50°C

Dimensions: 128mm*68mm*25mm

Weight: 110g

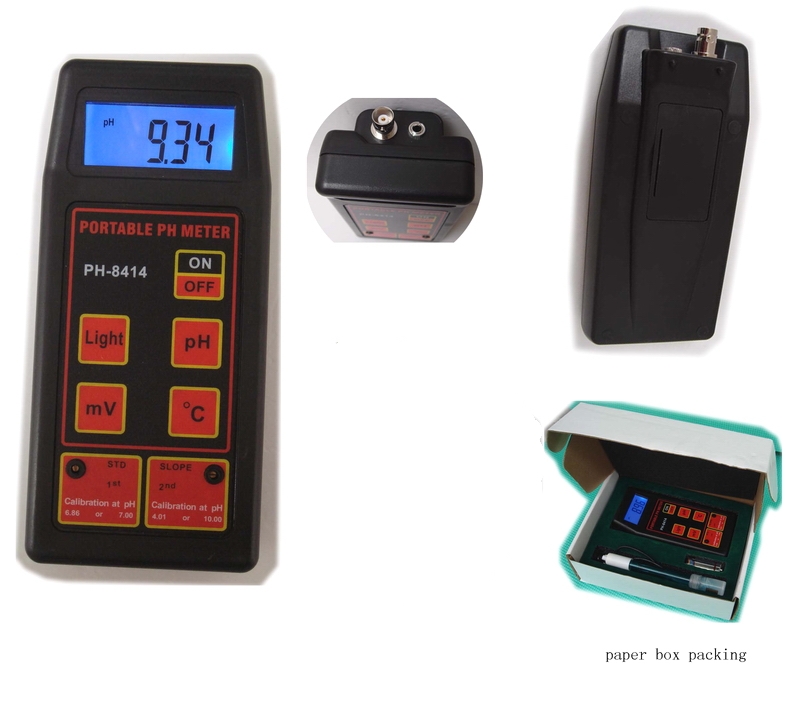

ORP-8414 pH/Temp/ORP Meter (Recommended)

High Accuracy Portable pH/Temp/ORP Meter

LCD backlight

Low battery indication

(The red color function is new adding than old model ORP-013)





Range

PH:0.00~14.00

mV:01999mV

°C:0~100°C



Resolution

PH:0.01PH

mV:1mV

°C:0.1°C



Accuracy



PH:±0.01PH

mV:±1mV±1digit

°C:±0.4°C

Calibration

1point or 2point

A T C

0°C~95°C

Power

9V battery

Operating Conditions

0~60°C  RH95%

Dimensions

180×82×45mm

Weight

290g

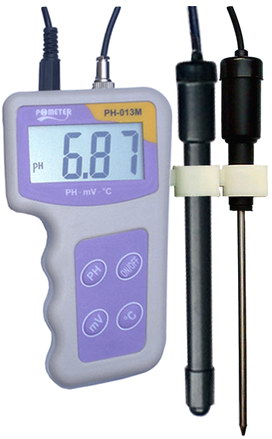

ORP-013M Portable pH/mV/°C Meter (Recommended)

(Same function as ORP-013, but smaller design)

Technical Specification:

Model

ORP-013M

Measuring range

PH

0.00~14.00PH

mV

0~±1999mV

Temp

0~100°C

Accuracy

PH

±0.01pH

mV

±0.1℅F·S±1digit

Temp

±0.4°C

Resolution

PH

0.01pH

mV

1mV

Temp

0.1°C

Environment

Temperature:0°C~50°C Humidity:≤95℅

Display

4-digital LCD

Power Supply

1×9V Battery

Input Impedance

1012Ω

Dimensions

123mm×72mm×33mm

Weight

238g

Packing

50PCS/CTN, CTN SIZE: 50*41*25CM, G.W.: 26KGS

SR712 Waterproof Portable ORP Meter

Prominent Features

Built-in microprocessor chip, beautiful appearance, multi-functional and easy to use, this meter has the following prominent features:

1. Built-in microprocessor chip, with the intelligent functions of data storage, function setting and auto power off and low voltage display etc. Equips with ORP standard solution and special carrying case, easy to use.

2. Adopts digital filter and step slipping technology to intelligently improve meter's response speed and result accuracy. "" icon will appear when reading to be stable.

3. Meter's circuit board adopts SMT film-covering technology to improve meter's production reliability.

4. Meter has the blue backlight LCD display.

5. Dustproof and waterproof meter meets IP57 rating.

Technical parameter

1. ORP:

Measuring-range (mV/ORP/EH)

-1999 mV to 0 to 1999mV

Resolution

1mV

Accuracy

Meter:±0.1% FS, connect meter with electrode: ±15mV

2. Other Technical Parameters:

Data storage

100 groups

Storage content

Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V x2)

Size and weight

(25×21×5) cm/1.5kg

Quality and safety certification

ISO9001:2000, CE and CMC

IP rating

IP57 Dustproof and waterproof

Package includes

1. SR712 portable meter;

3. 222mV ORP standard solution (50mL)

2. 301Pt-S ORP combination electrode

4. Carrying case



For PH+ORP combined meters, please click here
