(HM
digital product)
Package includes:
1 Hydro Master Monitor
1 Wall mount bracket
1 EC/TDS/Temp Sensor
1 PH probe
1 USB power adapter & cable
2 probe holder float discs
1 PH-STOR, PH-4, PH-7, CP-1000ppm liquid packet
1 user's guide
|
HM-501 pH/Conductivity/TDS/Temp HydroMaster Monitor
The HM-501 monitors pH, Electrical Conductivity (EC), Total
Dissolved Solids TDS) and temperature with very high accuracy. This
instrument can be calibrated with various buffer solutions, and is
equipped with automatic buffer recognition for user convenience. The
touch-screen LCD makes it user-friendly, and features automatic light
detection making it easy to view in dark environments.
Technical Specification:
Measurement Range |
pH: 0.00 - 14.00 pH |
Temperature: 0.0 - 80°C / 32.0 - 176°F |
TDS: 0 - 9990ppm / 0 - 10.00ppt |
EC: 0 - 9990µS / 0 - 20.00ms |
Automatic Temperature Compensation (ATC) |
0.0-60.0°C |
Accuracy |
pH: ± 0.02 pH |
Temp: ± 1°C /°F |
EC/TDS: ± 2% |
Measurement Scales |
pH: pH |
Temp: °C / °F |
TDS: ppm & ppt (NaCL) 0.5 scale & ppm (442TM) 0.7 scale |
EC: µS / mS |
Resolution |
pH: 0.01 pH |
Temp: 0.1°C / 0.1 °F |
TDS: ppm: 0.1 ppm (0 - 99.9ppm) / 1ppm (100 - 999ppm) /
10ppm (1000 - 9990ppm),
ppt: 0.01 ppt (0.01 - 10.0 ppt) |
EC: µS: 0.1 µS (0 - 99.9 µS) / 1 µS (100 - 999µS) / 10 µS
(1000 – 9990 µS),
mS: 0.01 mS (0.01 - 20.00 mS) |
Data Storage |
Up to 20 readings |
Auto Shut-Off |
After 5 minutes (While in Battery Mode) |
Alarm |
Adjustable Set Point (See section 5) |
Power Source |
AC 110 V - 220V / Rechargeable Lithium Ion Battery |
Service Environment |
0 - 50°C / RH 80% |
Display |
LCD Touch Screen controls with Auto Backlit lighting |
Probe |
ABS with Electrodes Conductivity Sensor/ Single Junction
Ag/AgCl PH Sensor |
Sensor Cable |
2m (80 inch) shielded and Coaxial Cable |
Dimensions |
Approx. 8 x 4 x 1.4 inches / 20 x 11 x 3.6 cm |
Weight |
15.2 oz (0.43kg) for body / 5 oz (140g) for two probes
(without case) |
|
|
|
(HM
digital product)
FEATURES:
Measures Potential Hydrogen (pH), Electrical Conductivity (EC),
Total Dissolved Solids (TDS), Salinity and Temperature.
Five scales: pH, μS, mS, ppm 0.5 (NaCl) Scale & 0.7 (442™) Scale.
Automatic Temperature Compensation (ATC) using three temperature
coefficients.
Digital Calibration (push button) to any point within the meter’s
range.
Auto-off function, data-hold function and low-battery indicator.
Large and easy-to-read LCD Screen.
Displays 3 parameters (pH/EC or TDS/Temp) simultaneously.
Replaceable Sensors (model SP-C2 for Conductivity, SP-P5 for pH).
Factory Calibrated (pH/EC/TDS).
Includes protective rubber boot, 2 (AA) alkaline batteries, pH 4 & 7
calibration solutions, pH storage solution. |
HM-200: Portable pH/EC/TDS/Temp
Monitor
HM-200 is a versatile portable pH/EC/TDS/Temp monitor ideal for
all water quality testing, hydroponics, water purification
applications, wastewater regulation, aquaculture, colloidal silver,
labs & scientific testing, pools & spas, ecology testing, boilers &
cooling towers, water treatment and more.
Specification
1. Measurement Range
• pH: 0.0 - 14.0
• Temperature: 0 - 55 °C / 32 - 130 °F
• TDS: 0 - 9990 ppm
• EC: 0 - 9990 μS / 0 - 20.00 mS
2. Automatic Temperature Compensation Range (ATC)
• ATC: 0.0 - 60.0 °C
3. Accuracy
• pH: ± 0.1 pH
• Temp: ± 1 °C / ˚F
• EC/TDS: ± 2 %
4. Measurement Scales
• pH: pH
• Temp: °C / °F
• TDS: ppm (NaCl) 0.5 scale / ppm (442TM))
0.7 scale
• EC: μS / mS
5. Resolution
• pH: 0.1 pH
• Temp: 0.1°C / 0.1 °F
• TDS: TDS: ppm: 0.1ppm (0 - 99.9ppm) / 1 ppm (100 - 999ppm)
/ 10ppm (1000-9990 ppm)
• EC: μS: 0.1 μS (0 - 99.9 μS) / 1 uS (100 - 999 μS) / 10μS (1000 -
9990 μS)
mS: 0.01 mS (0.01 - 20.00 mS)
6. Data Storage: Up to 20 readings
7. Auto Shut-Off: After 5 minutes
8. Power Source: 2 Double A (AA) batteries
9. Service Environment: 0 - 50 °C / RH 80 %
10. Display: Main LCD Screen
11. Probe: ABS with Electrodes Conductivity Sensor / Single Junction
Ag/AgCl pH Sensor
12. Sensor Cables: 2m (80 inch) Non-shielded and Coaxial Cable
13. Dimensions: Approx. 5.5 x2.6 x 1.1 inches / 14 x 6.6 x 2.8 cm
14. Weight: Approx 212 g (7.5 oz) for body (batteries and cover
included) /
155 g (5.5 oz) for two probes |
|
|
(HM
digital product) |
HM-100: Portable pH/EC/TDS/Temp
Monitor
HM-100 is capable of displaying the pH,
EC and temperature values at the same time.
In addition, HM-100 is suitable in countinous monitoring of nutrient
solution to control
parameters important in plant growth, which makes it adequate
equipment in hydroponics farming. Its
application stretches from hydroponics to industrial and water
quality areas.
Technical Specification:
1. Range
• pH: 0.1 - 14.0 pH.
• Temperature: 0.0 - 80.0 °C / 32.0 - 176.0 °F.
• TDS: 0 - 9990 ppm.
• EC: 0 - 10.00 mS.
2. Resolution
• pH: 0.1 pH.
• Temperature: 0.1°C / 0.1 °F.
• TDS: ppm: 1 ppm (0-999ppm) / 10ppm (1000-9990 ppm).
• EC: mS: (0-10.00 mS).
3. Accuracy
• pH: ± 0.1 pH.
• Temperature: ± 1 °C / ˚F.
• EC/TDS: ±2 %.
4. Units
• pH: pH.
• Temperature: °C / °F.
• TDS: ppm 0.5 scale / (442TM)
0.7 scale.
• EC: mS.
5. Automtic Temperature Compesation (ATC) range:
0.0 - 60.0 °C.
6. Data store: Max. 6 data values.
7. Alarm: LOW, HIGH. Assigned separately.
9. Power: 5V/1A.
10. Usage environment: 0 - 50 °C / RH 80 %.
11. Sensor: Electroconductivity Sensor / Single juction Ag/AgCl pH
sensor.
12. Weight: 285g (excl. sensors /
accessories). |
|
|
|

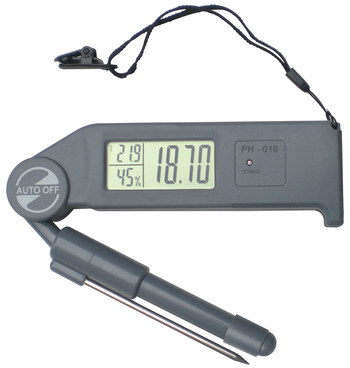

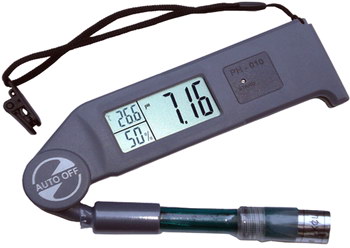

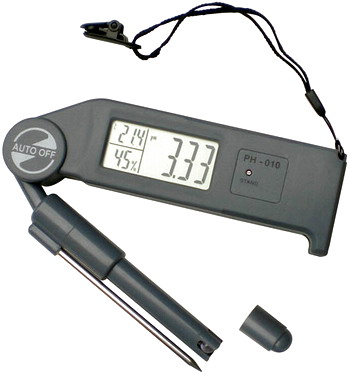

PH-010 Folding Three In One pH Tester
Folding design feature to use
expediently
Replaceable pH electrode
Clear LCD display featuring both pH, temperature and humidity
The PH-0101 offers increased accuracy when measuring solutions at
different temperatures as it automatically measures the temperature
and compensates the pH reading accordingly.
Measuring
range |
PH |
0.00~14.00PH
|
ºC
|
-5~50ºC
|
RH |
10%~99%RH
|
Resolution
|
PH |
0.01PH
|
ºC
|
0.1ºC
|
RH |
1%RH
|
Accuracy
|
PH |
±0.1PH
|
ºC
|
±1ºC
|
RH |
±5%RH |
Automatic
Temperature Compensation |
0ºC~50ºC
|
Power Supply
|
4×1.5V(AG13) |
Operating
Temperature |
0ºC~50ºC
|
Calibration |
Manual 1
point |
Dimensions
|
156mm×55mm×23mm |
Weight
|
95g |
|
|
|
|

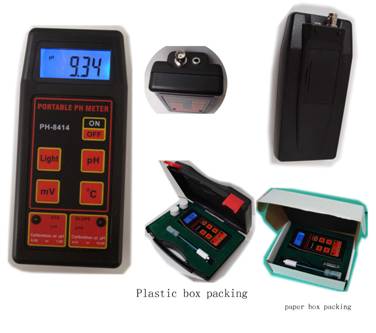

PH-8414
pH/Temp/ORP
Meter
High Accuracy Portable
pH/Temp/ORP
Meter
(noted: ORP
function need buy ORP
electrode to actualize, standard delivery is without ORP electrode.
If with ORP electrode, the model number is ORP-8414)
LCD backlight
Low battery indication
(The red color function
is new adding than old model PH-013)
Range |
PH:0.00~14.00;
mV:0~±1999mV
ºC:0~100ºC |
Resolution |
PH:0.01PH
mV:1mV
ºC:0.1ºC |
Accuracy
|
PH:±0.01PH
mV:±1mV±1digit
ºC:±0.4ºC |
Calibration |
1point or
2point |
A T C |
0ºC~95ºC |
Power |
9V battery |
Operating Conditions |
0~60ºC RH≤95% |
Dimensions |
180×82×45mm |
Weight |
290g |
|
|
|
|
PH-013M Portable pH/mV/ºC Meter
(Same function as
PH-8414, but smaller design)
Technical Specification: |
Model |
PH-013M |
Measuring range |
PH |
0.00~14.00PH |
mV |
0~±1999mV |
Temp |
0~100ºC |
Accuracy |
PH |
±0.01pH |
mV |
±0.1℅F. S±1digit |
Temp |
±0.4ºC |
Resolution |
PH |
0.01pH |
mV |
1mV |
Temp |
0.1ºC |
Environment |
Temperature:0ºC~50ºC Humidity:≤95℅ |
Display |
4-digital LCD |
Power Supply |
1×9V Battery |
Input Impedance |
1012Ω |
Dimensions |
123mm×72mm×33mm |
Weight |
238g |
|
|
|
|

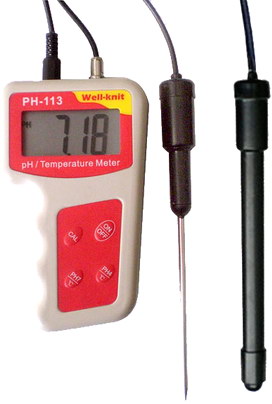

PH-113 Portable pH/Temperature meter
High-precision; small size; simple, easy
accessibility and the operation panel that makes machines easy to
understand, easy to operate. Automatic
temperature compensation, with the help of the temperature probe,
can automatically correct the impact of temperature on the pH.
Accurate thermometer, the temperature of an independent probe, the
sensor can be quickly tested solution temperature. BNC with the
composite electrode and 9 V battery, around the world to facilitate
the replacement of batteries and electrodes. Economical and
practical, fully in line with a wide range of industries need to
test.
Technical Specification:
Measuring range |
PH |
0.00~14.00PH |
ºC |
0~100ºC |
Resolution |
PH |
0.01PH |
ºC |
0.1ºC |
Accuracy |
PH |
±0.02PH |
ºC |
±0.5ºC |
Display |
PH |
4-digital LCD |
ºC |
3-digital LCD |
Automatic Temperature
Compensation |
0ºC~50ºC |
Power Supply |
1x9V |
Operating Temperature
|
0ºC~50ºC |
Calibration |
2 points with auto buffer
recognition |
Dimensions |
123mm×72mm×33mm |
|
|
|
|
|
|

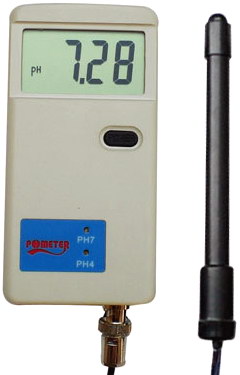

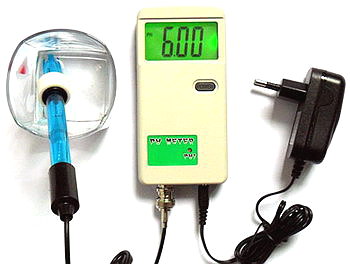

PH-012 Portable pH Meter
Technical Specification: |
Model |
PH-012 |
Range |
0.00~14.00pH |
Accuracy |
±0.05PH |
Resolution |
0.01PH |
Operating temperature |
0ºC~50ºC |
Automatic Temperature
Compensation |
0ºC~50ºC |
Power Supply |
DC 9V |
Dimensions |
128mm×64mm×25mm |
Weight |
227g |
Packing |
50PCS/CTN, CTN SIZE: 50*41*25CM,
G.W: 26KGS |
|
|
|
Features:
2 points push-button calibration with auto-buffer recognition.
Automatically calculates and displays electrode slopes that helps
you
decide whether to replace pH electrode.
Selectable either temperature units between degrees Celsius (°C) and
degrees Fahrenheit (°F).
Automatic Temperature Compensation (ATC) ensures highly accurate
measurements over the entire pH range.
Manual temperature calibration provides accurate temperature values
Hold function freezes the current displayed values for easy viewing
and recording.
Help message as a operational guide to helps you understand how to
use meter.
Setup menu allows user customizes temperature units, date and time
to meet measurement requirements.
Expanded memory stores and recalls up to 50 readings.
Built-in real-time clock stamps stored data to meets GLP standards.
Stored data can be transferred into computer via USB communication
interface.

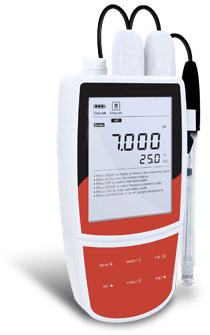

SR220 is an
economical portable pH/mV meter designed for
outdoor applications, which is equipped with a large LCD and
a standard BNC connecter. The meter is capable of connecting
the various combination pH electrodes to measures pH values
of solutions.
|
SR220 Portable pH/mV/°C/°F Meter
Specification:
Model |
SR220 |
pH Range |
-2.00~16.00pH |
pH Accuracy |
±0.01pH |
mV Range |
-1999~1999mV |
mV Accuracy |
±1mV |
Calibration Points |
2 points |
Calibration Solutions |
USA (pH4.01, 7.00, 10.01) |
Temperature Range |
0~100°C, 32~212°F |
Temperature Accuracy |
±1°C |
Temperature Calibration |
Manual |
Temperature Compensation |
0~100°C, 32~212°F, Automatic or Manual |
Hold Function |
Manual |
Memory |
50 data sets with Date/Time stamping |
Output |
USB Communication Interface |
Connector |
BNC |
Power Requirements |
1×9V/800mA battery |
Battery Life |
Approximately 150 hours |
Dimensions |
185(L)×88(W)×32(H)mm |
Weight |
300 grams |
Order code and Accessories: |
Order Code |
Accessories |
SR220-UK |
P11 pH Electrode (Made in UK), Standard pH Buffers,
Temperature probe, Battery, Carrying Case |
SR220-CN |
E65-1 pH Electrode (Made in China), Standard pH Buffers,
Temperature probe, Battery, Carrying Case |
SR220-ORP |
E65-1 pH Electrode, 501 ORP Electrode, Standard pH Buffers,
Temperature Probe, Battery, Carrying Case |
|
|
|
Features:
During the pH mode, Up to 5 points push-button calibration with
auto-
buffer recognition.
Selectable pH buffer standards and temperature units.
Automatically calculates and displays electrode slope after
calibration.
Automatic Temperature Compensation (ATC) ensures highly accurate
measurements over the entire range.
Calibration due reminder prompts you to calibrate the meter
regularly.
During ORP mode, Single point offset calibration allows user adjusts
displayed value to a known standard.
Absolute or Relative millivolt (R.mV) measurement provides accurate
ORP readings.
Automatic endpoint function freezes the stable measured values for
easy reading and recording data.
Manual temperature calibration provides accurate temperature value.
Help message as a operational guide to helps you understand how to
use meter.
SR221 is a high
performance portable pH/ORP meter designed for outdoor applications.
The meter contains a built-in setup menu that provides many advanced
and useful options to improves accuracy of measurements and simplify
operations. |
SR221 Portable pH/ORP/°C/°F Meter
Specification:
Model |
SR221 |
pH Range |
-2.000~20.000pH |
pH Accuracy |
±0.002pH |
Resolution |
0.001, 0.01, 0.1pH, Selectable |
mV Range |
-1999.9~1999.9mV |
mV Accuracy |
±0.2mV |
Resolution |
0.1, 1mV, Selectable |
Calibration Points |
Up to 5 points |
Calibration Solutions |
USA(pH1.68/4.01/7.00/10.01/12.45),
NIST(pH1.68/4.01/6.86/9.18/12.45), DIN (pH1.09/4.65/6.79/9.23/
12.75) |
Temperature Range |
0~105°C, 32~221°F |
Temperature Accuracy |
±0.5°C, ±0.9°F |
Temperature Calibration |
Manual |
Temperature Compensation |
0~100°C, 32~212°F, Automatic or Manual |
Auto-Off |
Manual or Automatic (10, 20, 30 minutes after last key pressed,
Selectable) |
Hold Function |
Manual or Automatic endpoint |
Stability Conditions |
Low or High, Selectable |
Calibration due reminder |
1 to 30 days or Off |
Reset Function |
Yes |
Memory |
500 data sets with Date/Time stamping |
Output |
USB Communication Interface |
Connector |
BNC |
Power Requirements |
3×1.5V "AA" batteries |
Battery Life |
Approximately 150 hours |
Dimensions |
170(L)×85(W)×30(H)mm |
Weight |
300 grams |
Order code and Accessories: |
Order Code |
Accessories |
SR221-UK |
P11 pH Electrode (Made in UK), Standard pH Buffers, Temperature
Probe, Batteries, Carrying Case |
SR221-CN |
E65-1 pH Electrode (Made in China), Standard pH Buffers,
Temperature Probe, Batteries, Carrying Case |
SR221-ORP |
E65-1 pH Electrode, 501 ORP Electrode, Standard pH Buffers,
Temperature Probe, Batteries, Carrying Case |
|
|
|
Features:
During the pH mode, Up to 5 points push-button calibration with
auto-
buffer recognition.
Selectable pH buffer standards and temperature units.
Automatically calculates and displays electrode slope after
calibration.
During ORP mode, Single point offset calibration allows user adjusts
displayed value to a known standard.
Absolute or Relative millivolt (R.mV) measurement provides accurate
ORP readings.
During the ion mode, 2 to 5 points push-button calibration from low
to
high concentrations.
Selectable multiple concentration units, including ppm, mg/L and
mol/L.
Direct readout ion concentration simplifies the elaborate
measurement
process.
Automatic Temperature Compensation (ATC) ensures highly accurate
measurements over the entire range.
Automatic endpoint function freezes the stable measured values for
easy reading and recording data.
Calibration due reminder prompts you to calibrate the meter
regularly.
Manual temperature calibration provides accurate temperature value.
Help message as a operational guide to helps you understand how
to use meter.
SR320 is a
multi-parameter ion meter used for measuring the
ion concentration and pH value of liquids. The meter is equipped
with a BNC connecter that can connects various combination
Ion Selective Electrodes. |

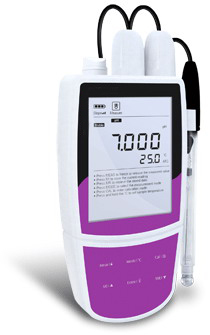

SR320 Portable pH/ORP/Ion/°C/°F Meter
Specification:
Model |
SR320 |
pH Range |
-2.000~20.000pH |
pH Accuracy |
±0.002pH |
Resolution |
0.001, 0.01, 0.1pH, Selectable |
Calibration Points |
Up to 5 points |
Calibration Solutions |
USA(pH1.68/4.01/7.00/10.01/12.45),
NIST(pH1.68/4.01/6.86/9.18/12.45), DIN (pH1.09/4.65/6.79/9.23/
12.75) |
Ion Concentration Range |
0.001~19999ppm, mg/L or mol/L (Depending on measuring range of
Ion Selective Electrode) |
Ion Concentration Accuracy |
±0.5% Full Scale (Monovalent), ±1% Full Scale (Divalent) |
Calibration Points |
2 to 5 points |
Calibration Solutions |
0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm |
mV Range |
-1999.9~1999.9mV |
mV Accuracy |
±0.2mV |
Resolution |
0.1, 1mV, Selectable |
Temperature Range |
0~105°C, 32~221°F |
Temperature Accuracy |
±0.5°C, ±0.9°F |
Temperature Calibration |
Manual |
Temperature Compensation |
0~100°C, 32~212°F, Automatic or Manual |
Auto-Off |
Manual or Automatic (10, 20, 30 minutes after last key pressed,
Selectable) |
Hold Function |
Manual or Automatic endpoint |
Stability Conditions |
Low or High, Selectable |
Calibration due reminder |
1 to 30 days or Off |
Reset Function |
Yes |
Memory |
500 data sets with Date/Time stamping |
Output |
USB Communication Interface |
Connector |
BNC |
Power Requirements |
3×1.5V "AA" batteries |
Battery Life |
Approximately 150 hours |
Dimensions |
170(L)×85(W)×30(H)mm |
Weight |
300 grams |
Order code and Accessories: |
Order Code |
Accessories |
SR320-UK |
P11 pH Electrode (Made in UK), Standard pH Buffers, Temperature
Probe, Batteries, Carrying Case |
SR320-CN |
E65-1 pH Electrode (Made in China), Standard pH Buffers,
Temperature Probe, Batteries, Carrying Case |
SR320-ORP |
E65-1 pH Electrode, 501 ORP Electrode, Standard pH Buffers,
Temperature Probe, Batteries, Carrying Case |
|
|
|
|

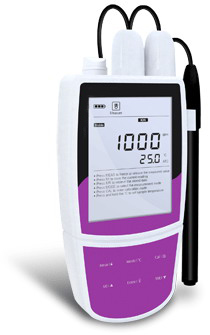

SR321 Portable Ion/mV/°C/°F
Meter
Features:
2 to 5 points push-button calibration from low to high concentrations.
Selectable multiple concentration units, including ppm, mg/L and mol/L.
Direct readout ion concentration simplifies the elaborate measurement
process.
mV measurement allows user to check performance of ion electrode.
Automatic Temperature Compensation (ATC) ensures highly accurate
measurements over the entire range.
Automatic endpoint function freezes the stable measured values for easy
reading and recording data.
Calibration due reminder prompts you to calibrate the meter regularly.
Help message as a operational guide to helps you understand how to use
meter.
Setup menu lets user customize calibration points, ion concentration
units, stability conditions, temperature units, date and time to meet
measurement requirements.
Reset function can resumes all settings to factory default values.
Expanded memory stores and recalls up to 500 readings.
Built-in real-time clock stamps stored data to meets GLP standards.
Stored data can be transferred into computer via USB communication
interface. |
Model |
SR321-F |
SR321-CL |
SR321-NO3 |
SR321-Na |
SR321-Ca |
SR321-Br |
SR321-NH4 |
SR321-Cn |
SR321-Ag |
Ion Concentration Range |
1×10-6M~Saturation |
5×10-5~1M |
7×10-6~1M |
4×10-6~1M |
5×10-7~1M |
5×10-7~1M |
5×10-6~0.1M |
8×10-6~0.01M |
1×10-7~1M |
Ion Concentration Accuracy |
±0.5% Full Scale |
±1% Full Scale |
±0.5% Full Scale |
±1% Full Scale |
Units |
ppm, mg/L, mol/L |
Calibration Points |
2 to 5 points |
Calibration Solutions |
0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm |
mV Range |
-1999.9~1999.9mV |
mV Accuracy |
±0.2mV |
Temperature Range |
0~105°C, 32~221°F |
Temperature Accuracy |
±0.5°C, ±0.9°F |
Temperature Calibration |
Measuring value ±10°C |
Temperature Compensation |
0~100°C, 32~212°F, Automatic or Manual |
Auto-Off |
Manual or Automatic (10, 20, 30 minutes after last key
pressed, Selectable) |
Hold Function |
Manual or Automatic endpoint |
Stability Conditions |
Low or High, Selectable |
Calibration due reminder |
1 to 30 days or Off |
Reset Function |
Yes |
Memory |
500 data sets with Date/Time stamping |
Output |
USB Communication Interface |
Connector |
BNC |
Power Requirements |
3×1.5V "AA" batteries |
Dimensions |
170(L)×85(W)×30(H)mm |
Weight |
300 grams |
|
|
|
|
SR321 Portable Ion/mV/°C/°F
Meter
Features:
2 to 5 points push-button calibration from low to high concentrations.
Selectable multiple concentration units, including ppm, mg/L and mol/L.
Direct readout ion concentration simplifies the elaborate measurement
process.
mV measurement allows user to check performance of ion electrode.
Automatic Temperature Compensation (ATC) ensures highly accurate
measurements over the entire range.
Automatic endpoint function freezes the stable measured values for easy
reading and recording data.
Calibration due reminder prompts you to calibrate the meter regularly.
Help message as a operational guide to helps you understand how to use
meter.
Setup menu lets user customize calibration points, ion concentration
units, stability conditions, temperature units, date and time to meet
measurement requirements.
Reset function can resumes all settings to factory default values.
Expanded memory stores and recalls up to 500 readings.
Built-in real-time clock stamps stored data to meets GLP standards.
Stored data can be transferred into computer via USB communication
interface. |
Model |
SR321-Cd |
SR321-Cu |
SR321-Pb |
SR321-I |
SR321-S |
Ion Concentration Range |
1×10-6~0.1M |
5×10-8~1M |
1×10-7~1M |
Ion Concentration Accuracy |
±1% Full Scale |
Units |
ppm, mg/L, mol/L |
Calibration Points |
2 to 5 points |
Calibration Solutions |
0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000ppm |
mV Range |
-1999.9~1999.9mV |
mV Accuracy |
±0.2mV |
Temperature Range |
0~105°C, 32~221°F |
Temperature Accuracy |
±0.5°C, ±0.9°F |
Temperature Calibration |
Measuring value ±10°C |
Temperature Compensation |
0~100°C, 32~212°F, Automatic or Manual |
Auto-Off |
Manual or Automatic (10, 20, 30 minutes after last key
pressed, Selectable) |
Hold Function |
Manual or Automatic endpoint |
Stability Conditions |
Low or High, Selectable |
Calibration due reminder |
1 to 30 days or Off |
Reset Function |
Yes |
Memory |
500 data sets with Date/Time stamping |
Output |
USB Communication Interface |
Connector |
BNC |
Power Requirements |
3×1.5V "AA" batteries |
Dimensions |
170(L)×85(W)×30(H)mm |
Weight |
300 grams |
|
Order Code and Accessories:
Order Code |
Accessories |
SR321-F |
F ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-CL |
Cl ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-NO3 |
NO3
ion electrode (Made in US), Temperature Probe, Carrying Case
and Batteries |
SR321-Na |
Na
ion electrode (Made in US), Temperature Probe, Carrying Case
and Batteries |
SR321-Ca |
Ca ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-Br |
Br
ion electrode (Made in US), Temperature Probe, Carrying Case
and Batteries |
SR321-NH4 |
NH4
ion electrode (Made in US), Temperature Probe, Carrying Case
and Batteries |
SR321-Cn |
Cn ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-Ag |
Ag ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-Cd |
Cd ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-Cu |
Cu ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-Pb |
Pb ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-I |
I ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
SR321-S |
S ion electrode (Made in US), Temperature Probe, Carrying
Case and Batteries |
|
|
|
SR900 Series Portable Multi-parameter
Water Quality Meter
Order Code and Accessories:
Order Code |
Accessories |
SR900P-UK |
P11 Glass pH Electrode (Made in UK), K10 Conductivity
Electrode (Made in UK), DO100 DO Probe (Made in US), DO
electrode membrane cap kit, PT-10 Temperature Probe, pH Buffer Pouches (pH4.01, 7.00, 10.01),
Conductivity Calibration Solutions (146uS/cm, 1413uS/cm,
12.88mS/cm), Carrying Case and “AA” Batteries |
SR900P-CN |
E65-1-BNC Glass pH Electrode, CON-1 Conductivity Electrode
(K=1),
DO100 DO Probe
(Made in US), DO electrode membrane cap kit, PT-10 Temperature Probe,
pH Buffer Pouches (pH4.01, 7.00, 10.01), Conductivity
Calibration Solutions (146uS/cm, 1413uS/cm, 12.88mS/cm),
Carrying Case and “AA” Batteries |
SR901P-UK |
P11 Glass pH Electrode (Made in UK), K10 Conductivity
Electrode (Made in UK), PT-10 Temperature Probe,
pH Buffer Pouches (pH4.01, 7.00, 10.01), Conductivity
Calibration Solutions (146uS/cm, 1413uS/cm, 12.88mS/cm),
Carrying Case and “AA” Batteries |
SR901P-CN |
E65-1-BNC Glass pH Electrode, CON-1 Conductivity Electrode
(K=1), PT-10 Temperature Probe, pH Buffer Pouches (pH4.01, 7.00,
10.01), Conductivity Calibration Solutions (146uS/cm,
1413uS/cm, 12.88mS/cm), Carrying Case and “AA” Batteries |
SR902P-UK |
P11 Glass pH Electrode (Made in UK), K10 Conductivity
Electrode (Made in UK), PT-10 Temperature Probe,
pH Buffer Pouches (pH4.01, 7.00, 10.01), Conductivity
Calibration Solutions (146uS/cm, 1413uS/cm, 12.88mS/cm),
Carrying Case and “AA” Batteries |
SR902P-CN |
E65-1-BNC Glass pH Electrode, CON-1 Conductivity Electrode,
PT-10 Temperature Probe, pH Buffer Pouches (pH4.01, 7.00,
10.01), Conductivity Calibration Solutions (146uS/cm,
1413uS/cm, 12.88mS/cm), Carrying Case and “AA” Batteries |
SR903P-UK |
P11 Glass pH Electrode (Made in UK), DO100 DO Probe (Made in
US), DO electrode membrane cap kit, PT-10 Temperature Probe, pH Buffer Solutions (pH4.01,
7.00, 10.01), Carrying Case and “AA” Batteries |
SR903P-CN |
E65-1-BNC Glass pH Electrode, DO100 DO Probe (Made in US),
DO electrode membrane cap kit, PT-10 Temperature Probe, pH Buffer Solutions (pH4.01, 7.00,
10.01), Carrying Case and “AA” Batteries |
SR904P-UK |
K10 Conductivity Electrode (Made in UK), DO100 DO Probe
(Made in US), DO electrode membrane cap kit, PT-10 Temperature Probe,
Conductivity Calibration Solutions (146uS/cm, 1413uS/cm,
12.88mS/cm), Carrying Case and “AA” Batteries |
SR904P-CN |
CON-1 Conductivity Electrode, DO100 DO Probe (Made in US),
DO electrode membrane cap kit, PT-10 Temperature Probe, Conductivity Calibration Solutions
(146uS/cm, 1413uS/cm, 12.88mS/cm), Carrying Case and “AA”
Batteries |
|
|
|
Extech
PH300 is OEM made based on ours this meter SR711. They use totally
same IC borard and shell, and technology to produce.
Package includes
1. SR711portable meter; |
3. pH calibration solution
(4.00, 7.00,
10.01pH/50ml) |
2. 201T-S plastic pH/ATC 3-in-1 combination electrode |
4. Carrying case |
|

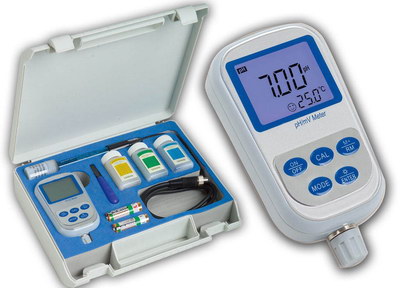

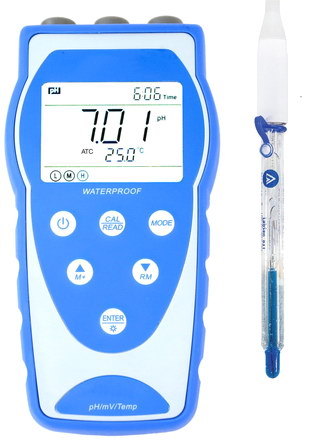

MODEL:
SR711
pH/mV/Temp.
3-in-1 Portable Meter
Features:
-Built-in
microprocessor chip, with the intelligent functions of automatic
calibration, automatic temperature compensation, data storage,
function setting and automatic self-diagnose, auto power off and low
voltage display etc.
-Adopts
digital filter and step slipping technology to intelligently improve
meter's response speed
and result accuracy.
""will
appear when reading to be stable.
-Automatically
recognize 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions: Europe & U.S.A.
series, NIST series, China series.
-Purified
water and ammonia added purified water pH measuring mode can be set
up, especially suitable for the fields of electric power and
petrochemical etc.
-Meter's circuit
board adopts SMT film-covering technology to improve meter's
production reliability.
-Meter
has the back light LCD display monitor.
-Dustproof
and waterproof meter meets IP57 rating.
Specifications:
Measuring range |
pH: (-2.00 ~ 19.99)pH mV: ±1999mV |
Resolution |
pH: 0.1/0.01pH mV: 1mV |
Accuracy |
pH:
±0.01pH mV: ±0.1%FS |
Stability |
±0.01 pH/3h |
Temp. compensation
range |
(0 ~ 100) ºC (ATC) |
Data storage |
200 groups |
Storage content |
Series number,
measuring value, measuring unit and temperature |
Power |
Two AA batteries (1.5V
x2) |
Size and weight |
Meter:
(65×120×31)mm/180g Carrying case:(255 x 210x 50)mm/790g |
Quality and safety
certification |
ISO9001:2000, CE and
CMC |
|
|
|
Prominent Features
-Double parameters
meter, equips with pH and ORP electrode,calibration solution and
special carrying case, easy to use.
-Built-in
microprocessor chip, with the intelligent functions of automatic
calibration, automatic temperature compensation, data storage,
function setting and automatic self-diagnose, auto power off and low
voltage display etc.
-Adopts
digital filter and step slipping technology to intelligently improve
meter's response speed and result accuracy, ""
will appear when reading to be stable.
-Automatically
recognize 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions: Europe & U.S.A.
series, NIST series, or China series.
-Purified water and
ammonia added purified water pH measuring mode can be set up, for
this two special pH measuring modes, besides the general slope
temperature compensation, also added function of nonlinearity
solution temperature compensation to make measurement more accurate,
especially suitable for the fields of electric power and
petrochemical etc.
-Meter's
circuit board adopts SMT film-covering
technology to improve meter's production reliability.
-Meter
has the back light LCD display monitor.
-Dustproof
and waterproof meter meets IP57 rating.
|

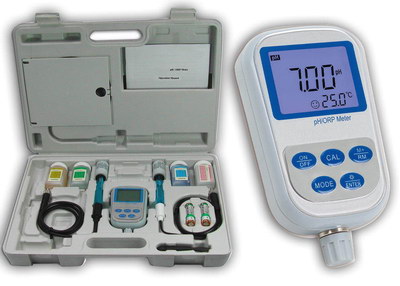

Model: SR721 pH/ORP/Temp. Meter
Technical
parameter
1. pH:
Measuring
range |
(-2.00 to
19.99) pH |
Resolution |
0.1/0.01 pH |
Accuracy |
Meter:±0.01pH; connect meter with electrode: ±0.02pH |
Temp.
Compensation range |
(0 to
100)
ºC
(automatic) |
2. ORP:
Measuring
range (mV/ORP/EH) |
-1999 mV to 0
to 1999mV |
Resolution |
1mV |
Accuracy |
Meter:±0.1%
FS, connect meter with electrode: ±15mV |
3. Other Technical
Parameters:
Data storage |
200 groups |
Storage
content |
Series
number, measuring value measuring unit and temperature, |
Power |
Two AA
batteries (1.5V x2) |
Size and
weight |
(360 x 270x
76) mm/1.5kg |
Packing |
10PCS/CTN, CTN SIZE: 69*39*29CM, G.W:
15KGS, VOLUME WEIGHT: 16KGS |
Quality and
safety certification |
ISO9001:2000,
CE and CMC |
IP rating |
IP57
Dustproof and waterproof |
Package includes
1. SR721portable meter; |
4. pH calibration solution
(4.00, 7.00,
10.01pH/50ml) |
2. 201T-S plastic pH/ATC 3-in-1 combination electrode |
5. 220mV ORP standard solution(50mL) |
3. 301Pt-S ORP combination electrode |
6. Carrying case |
|
|
|
Extech
EC600 is OEM made based on ours this meter SR723. They use totally
same IC borard and shell, and technology to produce.
Prominent Features
-Double
parameters meter, with pH electrode, conductivity electrode, and
with calibration solution and special carrying case, easy to use.
-Built-in
microprocessor chip, with the intelligent functions of automatic
calibration, automatic temperature compensation, data storage,
function setting and automatic self-diagnose, auto power off and low
voltage display etc.
-Adopts digital
filter and step slipping technology to intelligently improve meter's
response speed and result accuracy. "" will appear when reading to be
stable.
-Automatically
recognize 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions: Europe & U.S.A.
series, NIST series, China series.
-High purified water
and ammonia added purified water pH measuring mode can be set up,
for this two special pH measuring modes, besides the general slope
temperature compensation, also added function of nonlinearity
solution temperature compensation to make measurement more accurate,
especially suitable for the fields of electric power and
petrochemical etc.
-Adopts advanced
automatic frequency convertible and voltage regulation technology to
enlarge the measuring range of conductivity electrode which constant
K=1 to 10 times. It can meet measuring accuracy requirement for
range within 0 to 200mS/cm by using only one-point calibration. It
is the particular one–point calibration function for this meter.
-Automatically
recognize 8 kinds of conductivity standard solution. User can choose
anyone from two series of standard solutions: Europe & USA series
and CHINA series.
-Automatically select
conductivity measuring range, the meter will do non-linearity
temperature compensation test for purified and high purified water
less than 10uS/cm, which greatly improve the measuring accuracy. It
is especially suitable for use in fields of electric power,
microelectronics and medicine.
-Meter's
circuit board adopts SMT film-covering
technology to improve meter's production reliability.
-Meter has the back
light LCD display monitor.
1-Dustproof and
waterproof meter meets IP57 rating.
|

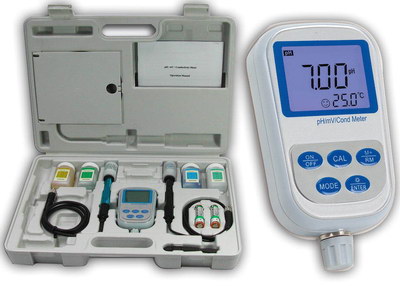

Model: SR723 pH/mV/Conductivity/TDS/Sal./Res./Temp. 7-in-1 Meter
Technical
parameter
1. pH:
Measuring
range |
(-2.00 to
19.99) pH |
Resolution |
0.1/0.01 pH |
Accuracy |
Meter:±0.01pH; connect meter with electrode: ±0.02pH |
Temp.
Compensation range |
(0 to
100)
ºC
(automatic) |
2. mV:
Measuring
range (mV/ORP/EH) |
-1999 mV to 0
to 1999mV |
Resolution |
1mV |
Accuracy |
Meter:±0.1%
FS, connect meter with electrode: ±15mV |
3. Conductivity:
Measuring
range |
Conductivity:
(0.00
to 19.99)μS/cm
(20.0 to 199.9)μS/cm
(200 to
1999)μS/cm
(2.00 to 19.99) mS/cm
(20.0 to
199.9) mS/cm
TDS: (0 to
100) g/L
Salinity:(0
to 100) ppt
Resistivity:(0 to 100) MΩ*cm |
Resolution |
0.01/0.1/1μS/cm
0.01/0.1 mS/cm |
Accuracy |
Meter:±1.0%
FS, connect meter with electrode:±1.5% FS |
Temp.
compensation range |
(0 to
50)
ºC
(automatic) |
Electrode
constant |
0.1 / 1 / 10
cm-1 |
Benchmark
temperature |
25ºC,
20ºCand
18ºC |
4. Other Technical
Parameters:
Data storage |
300 groups |
Storage
content |
Series
number, measuring value measuring unit and temperature, |
Power |
Two AA
batteries (1.5V x2) |
Size and
weight |
(360 x 270x
76) mm/1.7kg |
Quality and
safety certification |
ISO9001:2000,
CE and CMC |
IP rating |
IP57
Dustproof and waterproof |
Package includes
1. SR723portable meter; |
4. pH calibration solution
(4.00, 7.00,
10.01pH/50ml) |
2. 201T-S plastic pH/ATC 3-in-1 combination electrode |
5. Conductivity calibration solution
(1413μS/cm/50ml) |
3. 2301-S plastic conductivity electrode
(ATC, K=1) |
6. Carrying case |
|
|
|
Prominent Features
1.
Double parameters meter, with pH and DO electrode, also with
calibration solution and special carrying case, easy to use.
2. Built-in
microprocessor chip, with the intelligent functions of automatic
calibration, automatic temperature compensation, data storage,
function setting and automatic self-diagnose, auto power off and low
voltage display etc.
3. Adopts digital
filter and step slipping technology to intelligently improve meter's
response speed and result accuracy. ""
will appear when reading to be stable.
4. It automatically
recognizes 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions: Europe & U.S.A.
series, NIST series and China series.
5. Purified water and
ammonia added purified water pH measuring mode can be set up, for
this two special pH measuring modes, besides the general slope
compensation, also added function of nonlinearity temperature
compensation for pH values of solution to make measurement more
accurate, especially suitable for use in the fields of electric
power and petrochemical etc.
6. Equipped with new
type of DO electrode with temperature and salinity sensor which
makes DO measuring mode has auto temperature compensation, auto
salinity compensation and manual barometric pressure compensation.
It's easy to use and accurate to measure.
7. Polarogram type DO
electrode has special electrode calibration cap. Only needs 3 to 5
minutes for electrode polarization. Electrode adopts combination
diaphragm cap which very convenient to use. Each DO electrode equips
with three spare diaphragms caps.
8. Meter's circuit
board adopts SMT film-covering
technology to improve meter's production reliability.
9. Meter has the blue
back light LCD display monitor.
10. Dustproof and
waterproof meter meets IP57 rating.
|
Model: SR725
pH/mV/DO/Temp.
4-in-1 Meter
Technical
parameter
1. pH:
Measuring range |
(-2.00 to 19.99)
pH |
Resolution |
0.1/0.01 pH |
Accuracy |
Meter:±0.01pH;
connect meter with electrode: ±0.02pH |
Temp. Compensation
range |
(0 to 100)
ºC
(automatic) |
2. mV:
Measuring range
(mV/ORP/EH) |
-1999 mV to 0 to
1999mV |
Resolution |
1mV |
Accuracy |
Meter:±0.1% FS,
connect meter with electrode: ±15mV |
3.
Dissolved Oxygen:
Measuring range |
(0 to 40.00) mg/L(ppm)
(0 to 200.0) % |
Resolution |
0.1/0.01 mg/L(ppm)
1/0.1% |
Accuracy |
Meter:±0.10 mg/L,
connect meter with electrode:±0.40 mg/L |
Temp. Compensation
range |
(0 to 45)
ºC
(automatic) |
Salinity
compensation range |
(0 to 45) ppt
(automatic) |
Barometric
pressure compensation range |
(66 to 200) kPa
(manual) |
Automatic
calibration |
Air saturated by
water; water saturated by air |
Electrode type |
Polarogram type |
4. Other Technical
Parameters:
Data storage |
300 groups |
Storage content |
Series number,
measuring value measuring unit and temperature, |
Power |
Two AA batteries
(1.5V x2) |
Size and weight |
(360 x 270x 76)
mm/1.7kg |
Quality and safety
certification |
ISO9001:2000, CE
and CMC |
IP rating |
IP57 Dustproof and
waterproof |
Package includes
1. SR725 portable meter; |
4. pH calibration solution (4.00, 7.00, 10.01pH/50ml) |
2. 201T-S plastic pH/ATC 3-in-1 combination electrode |
5. Carrying case |
3. DO500 DO electrode,
3pcs of membrane caps inner solution for DO probe (30ml) |
|
|
|
Prominent Features
1. Multi-parameter
meter, equipped with pH electrode, ORP electrode, conductivity
electrode, equips with calibration solution and special carrying
case, easy to use.
2. Built-in
microprocessor chip, with the intelligent functions of automatic
calibration, automatic temperature compensation, data storage,
function setting and self-diagnose information, auto power off and
low voltage display etc.
3. Adopts digital
filter and step slipping technology to intelligently improve meter's
response speed and result accuracy. ""
will appear when reading to be stable.
4. Automatically
recognize 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions: Europe & U.S.A.
series, NIST series, China series.
5. High purified
water and ammonia added purified water pH measuring mode can be set
up, for this two special pH measuring modes, besides the general
slope temperature compensation, also added function of nonlinearity
solution temperature compensation to make measurement more accurate,
especially suitable for the fields of electric power and
petrochemical etc.
6. Adopts advanced
automatic frequency convertible and voltage regulation technology to
enlarge the measuring range of conductivity electrode which constant
K=1 to 10 times. It can meet measuring accuracy requirement for
range within 0 to 200mS/cm by using only one-point calibration. It
is the particular one–point calibration function for this meter.
7. Automatically
recognize 8 kinds of conductivity standard solution. User can choose
anyone from two series of standard solutions: Europe & USA series
and China series.
8. Automatically
select conductivity measuring range, the meter will do non-linearity
temperature compensation test for purified and high purified water
less than 10uS/cm, which greatly improve the measuring accuracy. It
is especially suitable for use in fields of electric power,
microelectronics and medicine.
9. Meter's circuit
board adopts SMT film-covering
technology to improve meter's production reliability.
10. Meter has the
blue backlight LCD display.
11. Dustproof and
waterproof meter meets IP57 rating.
|

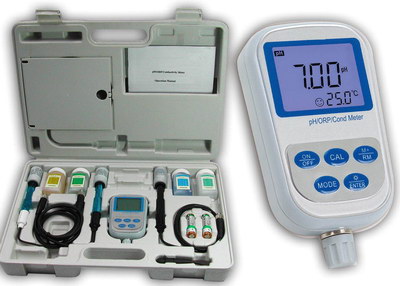

Model:
SR731 pH/ORP/Conductivity/TDS/Sal./Res./Temp.
7-in-1 Meter
Technical
parameter
1. pH:
Measuring range |
(-2.00 to 19.99)
pH |
Resolution |
0.1/0.01 pH |
Accuracy |
Meter:±0.01pH;
connect meter with electrode: ±0.02pH |
Temp. Compensation
range |
(0 to 100)
ºC
(automatic) |
2. ORP(mV):
Measuring range
(mV/ORP/EH) |
-1999 mV to 0 to
1999mV |
Resolution |
1mV |
Accuracy |
Meter:±0.1% FS,
connect meter with electrode: ±15mV |
3. Conductivity:
Measuring range |
Conductivity:
(0.00 to 19.99)μS/cm
(20.0 to 199.9)μS/cm
(200 to 1999)μS/cm
(2.00 to 19.99) mS/cm
(20.0 to 199.9) mS/cm
TDS: (0
to 100) g/L
Salinity :
(0 to 100) ppt
Resistivity:(0 to
100) MΩ*cm |
Resolution |
0.01/0.1/1μS/cm
0.01/0.1 mS/cm |
Accuracy |
Meter:±1.0% FS,
connect meter with electrode:±1.5% FS |
Temp. compensation
range |
(0 to 50)
ºC
(automatic) |
Electrode constant |
0.1 / 1 / 10 cm-1 |
Benchmark
temperature |
25ºC,
20ºCand
18ºC |
4. Other Technical
Parameters:
Data storage |
300 groups |
Storage content |
Series number,
measuring value measuring unit and temperature, |
Power |
Two AA batteries
(1.5V x2) |
Size and weight |
(360 x 270x 76)
mm/1.7kg |
Quality and safety
certification |
ISO9001:2000, CE
and CMC |
IP rating |
IP57 Dustproof and
waterproof |
Package includes
1. SR731portable meter; |
5. pH calibration solution
(4.00, 7.00,
10.01pH/50ml) |
2. 201T-S plastic pH/ATC 3-in-1 combination electrode |
6. Conductivity calibration solution
(1413μS/cm/50ml) |
3. 301Pt-S ORP combination electrode |
7. Carrying case |
4. 2301-S plastic conductivity electrode
(ATC, K=1) |
|
|
|
|
Extech
DO700 is OEM made based on ours this meter SR736. They use totally
same IC borard and shell, and technology to produce.
Prominent Features
1. Multi-parameter
meter, equipped with pH electrode, ORP Electrode, conductivity
electrode, temperature electrode, DO
electrode, when
connect the electrode to the meter, the meter can automatically know
the electrode, easy to use.
2. Built-in
microprocessor chip.. Its features up to automatic calibration,
automatic temperature compensation, data storage, auto power off,
low voltage indication, functions setting and automatic
self-diagnose etc.
3. Adopts digital
filter and step slipping technology to intelligently improve meter's
response speed and result accuracy. ""
will appear when reading to be stable.
4. Automatically
recognize 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions: Europe & U.S.A.
series, NIST series, and China series.
5. High purified
water and ammonia added purified water pH measuring mode can be set
up, for this two special pH measuring modes, besides the general
slope temperature compensation, also added function of nonlinearity
solution temperature compensation to make measurement more accurate,
especially suitable for the fields of electric power and
petrochemical etc.
6. Adopts advanced
automatic frequency convertible and voltage regulation technology to
enlarge the measuring range of conductivity electrode which constant
K=1 to 10 times. It can meet measuring accuracy requirement for
range within 0 to 200mS/cm by using only one-point calibration. It
is the particular one–point calibration function for this meter.
7. Automatically
recognize 8 kinds of conductivity standard solution. User can choose
anyone from two series of standard solutions: Europe & USA series
and CHINA series.
8. Automatically
select conductivity measuring range, the meter will do non-linearity
temperature compensation test for purified and high purified water
less than 10uS/cm, which greatly improve the measuring accuracy. It
is especially suitable for use in fields of electric power,
microelectronics and medicine.
9. Equips new type of
DO electrode with temperature and salinity sensor which has function
of automatic temperature compensation and automatic salinity
compensation as well as manual Atmospheric pressure compensation
inside meter, easy to use, accurate to measure.
10. Polarogram type
DO electrode has special electrode calibration cap. Only needs 3 to
5 minutes for electrode polarization. Electrode adopts combination
diaphragm cap which very convenient to use. Each DO electrode equips
with three spare diaphragms caps.
11. Meter's circuit
board adopts SMT film-covering
technology to improve meter's production reliability.
12. Meter has the
back light LCD display monitor.
13. Dustproof and
waterproof meter meets IP57 rating.
|
Model: SR736 pH/mV/Conductivity/TDS/Sal./Res./DO/Temp.
8-in-1 Meter
Technical
parameter
1. pH:
Measuring range |
(-2.00 to 19.99)
pH |
Resolution |
0.1/0.01 pH |
Accuracy |
Meter:±0.01pH;
connect meter with electrode: ±0.02pH |
Temp. Compensation
range |
(0 to 100)
ºC
(automatic) |
2. Conductivity:
Measuring range |
Conductivity:
(0.00 to 19.99)μS/cm
(20.0 to 199.9)μS/cm
(200 to 1999)μS/cm
(2.00 to 19.99) mS/cm
(20.0 to 199.9) mS/cm
TDS:
(0 to
100) g/L
Salinity :
(0 to
100) ppt
Resistivity:(0 to
100) MΩ·cm |
Resolution |
0.01/0.1/1μS/cm
0.01/0.1 mS/cm |
Accuracy |
Meter:±1.0% FS,
connect meter with electrode:±1.5% FS |
Temp. compensation
range |
(0 to 50)
ºC
(automatic) |
Electrode constant |
0.1 / 1 / 10 cm-1 |
Benchmark
temperature |
25ºC,
20ºCand
18ºC |
3. Dissolved
Oxygen:
Measuring range |
(0 to 40.00) mg/L(ppm)
(0 to 200.0) % |
Resolution |
0.1/0.01 mg/L(ppm)
1/0.1% |
Accuracy |
Meter:±0.10 mg/L,
connect meter with electrode:±0.40 mg/L |
Temp. Compensation
range |
(0 to 45)
ºC
(automatic) |
Salinity
compensation range |
(0 to 45) ppt
(automatic) |
Barometric
pressure compensation range |
(66 to 200) kPa
(manual) |
Automatic
calibration |
Air saturated by
water; water saturated by air |
Electrode type |
Polarogram type |
4. Other Technical
Parameters:
Data storage |
400 groups |
Storage content |
Series number,
measuring value measuring unit and temperature, |
Power |
Two AA batteries
(1.5V x2) |
Size and weight |
(360 x 270x 76)
mm/1.7kg |
Quality and safety
certification |
ISO9001:2000, CE
and CMC |
IP rating |
IP57 Dustproof and
waterproof |
Package includes
1. SR736portable meter; |
2. 201T-S plastic pH/ATC 3-in-1 combination electrode |
3. 2301-S plastic conductivity electrode
(ATC, K=1) |
4. DO500 DO electrode,
3pcs of membrane caps inner solution for DO probe (30ml)
|
5. pH calibration solution
(4.00, 7.00, 10.01pH/50ml) |
6. Conductivity calibration solution
(1413μS/cm/50ml) |
7. Carrying case |
8. Battles (1.5V x 2) |
9. Operation
Manual |
|
|
|
Prominent Features
1. Multi-parameter
meter, equipped with pH electrode, ORP Electrode, conductivity
electrode, temperature electrode, DO
electrode, when
connect the electrode to the meter, the meter can automatically know
the electrode, easy to use.
2. Built-in
microprocessor chip.. Its features up to automatic calibration,
automatic temperature compensation, data storage, auto power off,
low voltage indication, functions setting and automatic
self-diagnose etc.
3. Adopts digital
filter and step slipping technology to intelligently improve meter's
response speed and result accuracy. ""
will appear when reading to be stable.
4. Automatically
recognize 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions: Europe & U.S.A.
series, NIST series, and China series.
5. High purified
water and ammonia added purified water pH measuring mode can be set
up, for this two special pH measuring modes, besides the general
slope temperature compensation, also added function of nonlinearity
solution temperature compensation to make measurement more accurate,
especially suitable for the fields of electric power and
petrochemical etc.
6. Adopts advanced
automatic frequency convertible and voltage regulation technology to
enlarge the measuring range of conductivity electrode which constant
K=1 to 10 times. It can meet measuring accuracy requirement for
range within 0 to 200mS/cm by using only one-point calibration. It
is the particular one–point calibration function for this meter.
7. Automatically
recognize 8 kinds of conductivity standard solution. User can choose
anyone from two series of standard solutions: Europe & USA series
and CHINA series.
8. Automatically
select conductivity measuring range, the meter will do non-linearity
temperature compensation test for purified and high purified water
less than 10uS/cm, which greatly improve the measuring accuracy. It
is especially suitable for use in fields of electric power,
microelectronics and medicine.
9. Equips new type of
DO electrode with temperature and salinity sensor which has function
of automatic temperature compensation and automatic salinity
compensation as well as manual Atmospheric pressure compensation
inside meter, easy to use, accurate to measure.
10. Polarogram type
DO electrode has special electrode calibration cap. Only needs 3 to
5 minutes for electrode polarization. Electrode adopts combination
diaphragm cap which very convenient to use. Each DO electrode equips
with three spare diaphragms caps.
11. Meter's circuit
board adopts SMT film-covering
technology to improve meter's production reliability.
12. Meter has the
back light LCD display monitor.
13. Dustproof and
waterproof meter meets IP57 rating.
|
Model:
SR751 pH/ORP/Conductivity/TDS/Sal./Res./DO/Temp.
8-in-1 Meter
Technical
parameter
1. pH:
Measuring range |
(-2.00 to 19.99)
pH |
Resolution |
0.1/0.01 pH |
Accuracy |
Meter:±0.01pH;
connect meter with electrode: ±0.02pH |
Temp. Compensation
range |
(0 to 100)
ºC
(automatic) |
2. ORP(mV):
Measuring range
(mV/ORP/EH) |
-1999 mV to 0 to
1999mV |
Resolution |
1mV |
Accuracy |
Meter:±0.1% FS,
connect meter with electrode: ±15mV |
3. Conductivity:
Measuring range |
Conductivity:
(0.00 to 19.99)μS/cm
(20.0 to 199.9)μS/cm
(200 to 1999)μS/cm
(2.00 to 19.99) mS/cm
(20.0 to 199.9) mS/cm
TDS:
(0 to
100) g/L
Salinity :
(0 to
100) ppt
Resistivity:(0 to
100) MΩ*cm |
Resolution |
0.01/0.1/1μS/cm
0.01/0.1 mS/cm |
Accuracy |
Meter:±1.0% FS,
connect meter with electrode:±1.5% FS |
Temp. compensation
range |
(0 to 50)
ºC
(automatic) |
Electrode constant |
0.1 / 1 / 10 cm-1 |
Benchmark
temperature |
25ºC,
20ºCand
18ºC |
4. Dissolved
Oxygen:
Measuring range |
(0 to 40.00) mg/L(ppm)
(0 to 200.0) % |
Resolution |
0.1/0.01 mg/L(ppm)
1/0.1% |
Accuracy |
Meter:±0.10 mg/L,
connect meter with electrode:±0.40 mg/L |
Temp. Compensation
range |
(0 to 45)
ºC
(automatic) |
Salinity
compensation range |
(0 to 45) ppt
(automatic) |
Barometric
pressure compensation range |
(66 to 200) kPa
(manual) |
Automatic
calibration |
Air saturated by
water; water saturated by air |
Electrode type |
Polarogram type |
5. Other Technical
Parameters:
Data storage |
400 groups |
Storage content |
Series number,
measuring value measuring unit and temperature, |
Power |
Two AA batteries
(1.5V x2) |
Size and weight |
(360 x 270x 76)
mm/1.7kg |
Quality and safety
certification |
ISO9001:2000, CE
and CMC |
IP rating |
IP57 Dustproof and
waterproof |
Package includes
1. SR751portable meter; |
5. DO500 DO electrode
3pcs of membrane caps inner solution for DO probe (30ml) |
2. 201T-S plastic pH/ATC 3-in-1 combination electrode |
6. pH calibration solution
(4.00, 7.00,
10.01pH/50ml) |
3. 301Pt-S ORP combination electrode |
7. Conductivity calibration solution
(1413μS/cm/50ml) |
4. 2301-S plastic conductivity electrode
(ATC, K=1) |
8. Carrying case |
|
|
|
The most cost effective portable pH,
suited for industrial and mining factories, power plant, water
treatment project, environmental protection industry, etc,
especially suited in field and on-site.
INTRODUCTION:
1. 1-3 point automatic calibration, the
meter provides calibration guide and automatic checking function.
2. The meter is able to recognize up to 12 types of pH standard
buffer solutions. There are three options of standard buffer
solutions: USA series, NIST series and Chinese series (CH), there is
also customer-defined solution calibration.
3. The meter provides two special modes for pure water and pure
water mixed with ammonia. These special modes offer temperature
compensation for pH value, especially suitable or the electricity
and petrochemical industries.
4 Equipped with calibration solution and portable case and suited in
field and on site.
5.Meter meets IP57 rating.
|
SR811
Portable pH Meter
SPECIFICATION:
pH |
Range |
(-2.00 ~ 19.99)pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1digit |
Input current |
≤1×10-12 A |
Input impedence |
≥1×1012 Ω |
Stability |
±0.01 pH/3h ±1 digit |
Temperature compensation |
(0 ~ 100)°C (manual or automatic) |
mV |
Range |
-1,999mV ~ 0 ~ 1,999mV |
Resolution |
- 200 mV ~ 0 ~ 200 mV: 0.1 mV;others:1mV |
Accuracy |
±0.1% FS ±1digit |
Temperature |
Range |
0~100°C |
Resolution |
0.1°C |
Accuracy |
±0.5°C±1digit |
Other Technical Parameters |
Data storage |
500 groups |
Storage content |
Serial number, date, time, measuring value, measuring unit
and temperature value |
Power |
AAA batteries × 3 (1.5V× 3) / DC5V adaptor ( USB port) |
Dimension & Weight |
Meter: (88×170×33 )mm / 313g;Portable case:
(360×270×76)mm/1.6kg |
IP rating |
IP57 dustproof and waterproof |
|
|
|
The most cost effective portable
conductivity meter, measurement of conductivity, TDS, salinity and
resistivity of water solutions, suited for industrial and mining
factories, water treatment engineering and environmental protection
field, especially suited in field and on-site.
1) 4 calibration points can be chosen, the meter provides
calibration guide and automatic checking function.
2) The meter is able to switch among conductivity, TDS, salinity and
resistivity measurement mode. For TDS measurement, the coefficient
is adjustable.
3) The meter is able to recognize up to 8 types of conductivity
standard solutions. There are two options of standard buffer
solutions: USA series and Chinese series (CH), there is also
customer-defined solution calibration.
4) The meter has an automatic range feature with automatic
non-linear temperature compensation for pure water and high purity
water with conductivity values lower than 10uS/cm greatly improving
accuracy and suitable for the electricity, microelectronics and
pharmaceutical industries.
5) Equipped with calibration solution and portable case and suited
in field and on site.
6) Meter meets IP57 rating. |
SR813 portable conductivity meter
SPECIFICATION:
Conductivity |
Range |
Cond: 0~200mS/cm
divided into five ranges:
(0.00~19.99)μS/cm (20.0~199.9)μS/cm (200~1999)μS/cm
(2.00~19.99)mS/cm (20.0~199.9)mS/cm TDS:(0 ~ 100)g/L
Salinity:
(0
~ 100)ppt Resistivity:
(0
~ 100)MΩ·cm |
Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
Accuracy |
±1.0% FS ±1digit |
Temperature compensation |
(0 ~ 50)°C(manual or automatic) |
Electrode constant |
0.1 / 1 / 10 cm-1 |
Temperature |
Range |
0~100°C |
Resolution |
0.1°C |
Accuracy |
±0.5°C±1digit |
Other Technical Parameters |
Data storage |
500 groups |
Storage content |
Serial number, date, time, measuring value, measuring unit
and temperature value |
Power |
AAA batteries × 3 (1.5V× 3) / DC5V adaptor ( USB port) |
Dimension & Weight |
Meter: (88×170×33 )mm / 313g;Portable
case: (360×270×76)mm/1.6kg |
IP rating |
IP57 dustproof and waterproof |
|
|
|
Suited for aquaculture,
water source monitoring, sewage treatment and environmental
protection monitoring, etc, especially suited in field and on-site.
1) DO electrode offers a built-in temperature and salinity sensor
with automatic temperature compensation and automatic salinity
ompensation as well as manual barometric pressure compensation. The
measurement is more accurate
2) Polarographic DO electrode with special DO calibration cover,
electrode polarization only requires 3-5 min, three combined
membranes convenient to renew.
3) Equipped with calibration solution and portable case and suited
in field and on site.
4) Meter meets IP57 rating.
|
SX816 portable DO meter
SPECIFICATION:
Dissolved Oxygen |
Range |
(0
~ 20.00)mg/L(ppm)
(0 ~ 200.0)% |
Resolution |
0.01/0.1 mg/L(ppm)
0.1/1 % |
Indicating value accuracy |
±0.30 mg/L |
Response time |
≤30 s(25°C, response at 90%) |
Zero accuracy |
≤ 0.10 mg/L |
Temperature compensation |
(0
~ 45)°C(automatic) |
Salinity compensation |
(0
~ 45)ppt(automatic) |
Barometric pressure compensation |
(66.0
~ 199.9)kPa(manual) |
Electrode type |
Polarographic |
Temperature |
Range |
0~100°C |
Resolution |
0.1°C |
Accuracy |
±0.5°C±1digit |
Other Technical Parameters |
Data storage |
500 groups |
Storage content |
Serial number, date, time, measuring value, measuring unit
and temperature value |
Power |
AAA batteries × 3 (1.5V× 3)
/ DC5V adaptor ( USB port) |
Dimension & Weight |
Meter: (88×170×33
)mm / 313g; Portable case:
(480×360×95)mm/3.2kg |
IP rating |
IP57 dustproof and waterproof |
|
|
|
Measurement of
parameters such as pH, mV, conductivity, TDS, salinity, resistivity
and temperature of water solution, the most cost effective portable
analytical instrument.
1) Double-parameter meter, equipped with pH electrode and
conductivity electrode, automatic identification of electrode by
meter.
2) The meter is able to recognize up to 12 types of pH standard
buffer solutions. There are three options of standard buffer
solutions: USA series, NIST series and Chinese series (CH), there is
also customer-defined solution calibration.
3) The meter provides two special modes for pure water and pure
water mixed with ammonia. These special modes offer temperature
compensation for pH value, especially suitable for the electricity
and petrochemical industries.
4) The meter is able to switch among conductivity, TDS, salinity and
resistivity measurement mode. For TDS measurement, the coefficient
is adjustable.
5) The meter is able to recognize up to 8 types of conductivity
standard solutions. There are two options of standard buffer
solutions: USA series and Chinese series (CH), there is also
customer-defined solution calibration.
6) The meter has an automatic range feature with automatic
non-linear temperature compensation for pure water and high purity
water with conductivity values lower than 10uS/cm greatly improving
accuracy and suitable for the electricity, microelectronics and
pharmaceutical industries.
7) Equipped with calibration solution and portable case and suited
in field and on site.
8) Meter meets IP57 rating. |
SR823 portable pH/conductivity meter
SPECIFICATION:
pH |
Range |
(-2.00
~ 19.99)pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1digit |
Input current |
≤1×10-12 A |
Input impedence |
≥1×1012 Ω |
Stability |
±0.01 pH/3h ±1 digit |
Temperature compensation |
(0
~ 100)°C(manual
or automatic) |
mV |
Range |
-1,999mV ~ 0 ~ 1,999mV |
Resolution |
- 200 mV ~ 0 ~ 200 mV: 0.1 mV;others:1mV |
Accuracy |
±0.1% FS ±1digit |
Conductivity |
Range |
Cond:0~200mS/cm
divided into five ranges:
(0.00~19.99)μS/cm
(20.0~199.9)μS/cm
(200~1999)μS/cm
(2.00~19.99)mS/cm
(20.0~199.9)mS/cm
TDS:(0
~ 100)g/L
Salinity:(0
~ 100)ppt
Resistivity:(0
~ 100)MΩ·cm |
Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
Accuracy |
±1.0% FS ±1digit |
Temperature compensation |
(0
~ 50)°C(manual
or automatic) |
Electrode constant |
0.1 / 1 / 10 cm-1 |
Temperature |
Range |
0~100°C |
Resolution |
0.1°C |
Accuracy |
±0.5°C±1digit |
Other Technical Parameters |
Data storage |
1000 groups |
Storage content |
Serial number, date, time, measuring value,
measuring unit and temperature value |
Power |
AAA batteries × 3 (1.5V× 3) / DC5V adaptor (
USB port) |
Dimension & Weight |
Meter: (88×170×33 )mm / 313g;Portable
case:(480×360×95)mm/3.2kg |
IP rating |
IP57 dustproof and waterproof |
|
|
|
The most cost effective
portable pH+Dissolved Oxygen double-parameter meter, suited for
industrial and mining factories, power plant, aquaculture and
environmental protection field, especially suited in field and
on-site.
1) Double-parameter meter, equipped with pH electrode and
conductivity electrode, automatic identification of electrode by
meter.
2) The meter is able to recognize up to 12 types of pH standard
buffer solutions. There are three options of standard buffer
solutions: USA series, NIST series and Chinese series (CH), there is
also customer-defined solution calibration.
3) The meter provides two special modes for pure water and pure
water mixed with ammonia. These special modes offer temperature
compensation for pH value, especially suitable for the electricity
and petrochemical industries.
4) DO electrode offers a built-in temperature and salinity sensor
with automatic temperature compensation and automatic salinity
compensation as well as manual barometric pressure compensation. The
measurement is more accurate
5) Polarographic DO electrode with special DO calibration cover,
electrode polarization only requires 3-5 min, three combined
membranes convenient to renew.
6) Equipped with calibration solution and portable case and suited
in field and on site.
7) Meter meets IP57 rating. |
SR825 portable pH/DO meter
SPECIFICATION:
pH |
Range |
(-2.00 ~ 19.99)pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1digit |
Input current |
≤1×10-12 A |
Input impedence |
≥1×1012 Ω |
Stability |
±0.01 pH/3h ±1 digit |
Temperature compensation |
(0 ~ 100)°C(manual or automatic) |
mV |
Range |
-1,999mV ~ 0 ~ 1,999mV |
Resolution |
- 200 mV ~ 0 ~ 200 mV: 0.1 mV;others:1mV |
Accuracy |
±0.1% FS ±1digit |
Dissolved Oxygen |
Range |
(0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)% |
Resolution |
0.01/0.1 mg/L(ppm) 0.1/1 % |
Indicating value accuracy |
±0.30 mg/L |
Response time |
≤30 s(25°C, response at 90%) |
Zero accuracy |
≤ 0.10 mg/L |
Temperature compensation |
(0 ~ 45)°C(automatic) |
Salinity compensation |
(0 ~ 45)ppt(automatic) |
Barometric pressure compensation |
(66.0 ~ 199.9)kPa(manual) |
Electrode type |
Polarographic |
Temperature |
Range |
0~100°C |
Resolution |
0.1°C |
Accuracy |
±0.5°C±1digit |
Other Technical Parameters |
Data storage |
1000 groups |
Storage content |
Serial number, date, time, measuring value,
measuring unit and temperature value |
Power |
AAA batteries × 3 (1.5V× 3) / DC5V adaptor (
USB port) |
Dimension & Weight |
Meter: (88×170×33 )mm / 313g;Portable case:(480×360×95)mm/3.2kg |
IP rating |
IP57 dustproof and waterproof |
|
|
|
Measurement of
parameters such as pH, conductivity, TDS, salinity, resistivity,
dissolved oxygen and temperature of water solution, the most cost
effective portable analytical instrument.
Double-parameter meter, equipped with pH electrode and conductivity
electrode, automatic identification of electrode by meter.
1) The meter is able to recognize up to 12 types of pH standard
buffer solutions. There are three options of standard buffer
solutions: USA series, NIST series and Chinese series (CH), there is
also customer-defined solution calibration.
2) The meter provides two special modes for pure water and pure
water mixed with ammonia. These special modes offer temperature
compensation for pH value, especially suitable for the electricity
and petrochemical industries.
3) The meter is able to switch among conductivity, TDS, salinity and
resistivity measurement mode. For TDS measurement, the coefficient
is adjustable.
4) The meter is able to recognize up to 8 types of conductivity
standard solutions. There are two options of standard buffer
solutions: USA series and Chinese series (CH), there is also
customer-defined solution calibration.
5) The meter has an automatic range
feature with automatic non-linear temperature compensation for pure
water and high purity water with conductivity values lower than
10uS/cm greatly improving accuracy and suitable for the electricity,
microelectronics and pharmaceutical industries.
6) DO electrode offers a built-in temperature and salinity sensor
with automatic temperature compensation and automatic salinity
compensation as well as manual barometric pressure compensation. The
measurement is more accurate
7) Polarographic DO electrode with special DO calibration cover,
electrode polarization only requires 3-5 min, three combined
membranes convenient to renew.
8) Equipped with calibration solution and portable case and suited
in field and on site.
9) Meter meets IP57 rating. |
SR836 portable pH/Cond./DO meter
SPECIFICATION:
pH |
Range |
(-2.00 ~ 19.99) pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1digit |
Input current |
≤1×10-12 A |
Input impedence |
≥1×1012 Ω |
Stability |
±0.01 pH/3h ±1 digit |
Temperature compensation |
(0 ~ 100) °C(manual or automatic) |
mV |
Range |
-1,999mV ~ 0 ~ 1,999mV |
Resolution |
- 200 mV ~ 0 ~ 200 mV: 0.1 mV; others:1mV |
Accuracy |
±0.1% FS ±1digit |
Conductivity |
Range |
Cond: 0~200mS/cm divided into five ranges:
(0.00~19.99) μS/cm (20.0~199.9) μS/cm (200~1999) μS/cm
(2.00~19.99) mS/cm (20.0~199.9) mS/cm TDS:(0 ~ 100) g/L
Salinity: (0 ~ 100) ppt Resistivity: (0 ~ 100) MΩ·cm |
Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
Accuracy |
±1.0% FS ±1digit |
Temperature compensation |
(0 ~ 50) °C(manual or automatic) |
Electrode constant |
0.1 / 1 / 10 cm-1 |
Dissolved Oxygen |
Range |
(0 ~ 20.00) mg/L(ppm) (0 ~ 200.0) % |
Resolution |
0.01/0.1 mg/L(ppm) 0.1/1 % |
Indicating value accuracy |
±0.30 mg/L |
Response time |
≤30 s(25°C, response at 90%) |
Zero accuracy |
≤ 0.10 mg/L |
Temperature compensation |
(0 ~ 45) °C (automatic) |
Salinity compensation |
(0 ~ 45) ppt(automatic) |
Barometric pressure compensation |
(66.0 ~ 199.9) kPa(manual) |
Electrode type |
Polarographic |
Temperature |
Range |
0~100°C |
Resolution |
0.1°C
|
Accuracy |
±0.5°C
±1digit |
Other Technical Parameters |
Data storage |
1000 groups |
Storage content |
Serial number, date, time, measuring value, measuring unit
and temperature value |
Power |
AAA batteries × 3 (1.5V× 3) / DC5V adaptor ( USB port) |
Dimension & Weight |
Meter: (88×170×33 )mm / 313g; Portable case:
(480×360×95)mm/3.2kg |
IP rating |
IP57 dustproof and waterproof |
|
|
|
|
SR811-SS Portable pH Meter for
Food and
Dairy Products
The SR811-SS Portable pH Meter is an
outstanding combination of the advanced digital processing
technology, software design, and electrochemical sensor technology,
specially designed for the pH measurement of food and dairy product
(meat, cheese, dairy products, fruit, etc.), canning, and other
semi-solids (such as soil). Its LabSen® spear electrode adopts
durable food-grade stainless steel sheath, solid electrolyte, and
long-life reference electrode, making the probe hard to be
contaminated and maintenance-free.
Features:
* Equipped with LabSen 753 Stainless
Steel Spear pH Electrode (Swiss technology), designed for
professional food/semi-solids pH measurement, hard to be
contaminated and maintenance-free.
* Accurate Measurement: Accuracy: ±0.01 pH, Range: -2.00-19.99 pH,
ATC, Auto Calibration, Advanced digital processing technology,
supports stable reading/auto-hold display mode.
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, easy parameter setting.
* Data Processing: GLP standard data management, 500 data sets of
storage, manual/auto timing storage, USB charging and data output,
data protection in case of a power outage
* Reliable Structure Design: large LCD, the foldable stand allows
use as a benchtop, soft silicone case gives you a nice grip, IP57
waterproof, 3*AA Alkalkine batteries' power supply.
* The meter is CE certified and comes with a 2-year warranty
(6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100°C (Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
0 to 80°C (32 to
176°F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3 |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Food grade stainless steel |
Temperature sensor |
Yes |
Junction |
Single Junction
Ceramic |
Reference Electrode |
Long-Life
Reference System |
Electrolyte |
Polymer |
Range |
0 to 14 pH |
Temperature Range |
0 to 80°C (32 to 176°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-BS Portable Meat pH Meter
The SR811-BS Portable Meat pH Meter is a
food grade pH meter/tester with specially and professionally
designed food grade electrode, and it is an outstanding combination
of the advanced digital processing technology, software design, and
electrochemical sensor technology, specially designed for the pH
measurement of meat, meat products, fish, or beef. Its LabSen spear
electrode adopts durable food-grade stainless steel sheath, a solid
electrolyte, and a long-life reference electrode, making the probe
hard to be contaminated and maintenance-free.
Features:
* Equipped with LabSen Blade Electrode
(Swiss technology), designed for professional meat pH measurement,
hard to be contaminated and maintenance-free
* Accurate Measurement: Accuracy: ±0.01 pH, Range: -2.00-19.99 pH,
ATC, Auto Calibration, Advanced digital processing technology,
supports stable reading/auto-hold display mode
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, easy parameter setting
* Data Processing: GLP standard data management, 500 data sets of
storage, manual/auto timing storage, USB charging and data output,
data protection in case of a power outage
* Structure Design: White backlit large LCD, the foldable stand
allows use as a benchtop, soft silicone case gives you a nice grip,
IP57 waterproof, battery and/or USB power supply
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100°C (Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
0 to 80°C (32 to
176°F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3 |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Food grade stainless steel |
Temperature sensor |
Yes |
Junction |
Single Junction
Ceramic |
Reference Electrode |
Long-Life
Reference System |
Electrolyte |
Polymer |
Shape of glass membrane |
Spear |
Range |
0 to 14 pH |
Temperature Range |
0 to 80°C (32 to 176°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-DP Portable pH Meter for Liquid Food
(milk, buttermilk cream, yogurt, etc.)
The SR811-DP Portable pH Meter is
designed for professional pH measurement of dairy products (milk,
buttermilk cream, yogurt, etc.) and other liquid food such as jam,
BBQ sauce, syrup, etc. The equipped Swiss LabSen 823 3-in-1 Glass
pH/Temperature Electrode adopts Proselyte electrolyte, Silver Ion
Trap reference system, and a patented pH/temp. dual sensor
structure, making precise and quick pH measurement of dairy products
easier than ever. Say goodbye to clogged junctions and fluctuating
readings. The unique LabSen blue hemispherical glass membrane has a
faster response rate, better repeatability, and built tough - highly
resistant to general impact (totally differentiates from the fragile
conventional glass bulb membrane).
Features:
* Equipped with Swiss LabSen 823
Professional 3-in-1 pH/Temperature Electrode designed for
professional pH measurement of dairy products and liquid food.
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting.
* GLP standard data management, 500 data sets of storage,
manual/auto storage, USB data output.
* Reliable Structure Design: Large white backlit LCD, soft silicone
case gives you a comfortable grip, IP57 waterproof rating.
* Powered by AAA batteries; the foldable stand also allows use as a
benchtop meter.
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100°C (Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
0 to 80°C (32 to
176°F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3 |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Lead-free glass |
Temperature sensor |
Yes |
Junction |
Ceramic*3 |
Reference Electrode |
Silver Ion Trap |
Electrolyte |
Protelyte |
Range |
0 to 14 pH |
Temperature Range |
-5 to 100°C (23
to 212°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-PW Portable pH Meter for
Purified
Water (Drinking/ RO/ Distilled/ Deionized Water)
The SR811-PW Portable pH Meter is
designed for professional pH measurement of purified water such as
drinking/RO/distilled/deionized water and other low
ion-concentration solutions. The equipped LabSen 803 3-in-1 Glass
pH/temp. Electrode adopts a moveable sleeve junction, Long-Life
reference system, and a patented pH/temp. dual sensor structure,
making precise purified water pH measurement easier than ever. Get
stable readings as quick as 30 seconds. The unique LabSen blue
cylindrical glass membrane has a faster response rate, better
repeatability, and built tough - highly resistant to general impact
(totally differentiates from the fragile conventional glass bulb
membrane).
Features:
* Equipped with Swiss LabSen 803
Professional 3-in-1 pH/Temperature Electrode designed for quick and
stable pH measurement of purified water (RO/Drinking/distilled/deionized
water)
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting
* GLP standard data management, 500 data sets of storage,
manual/auto storage, USB data output
* Reliable Structure Design: Large white backlit LCD, soft silicone
case gives you a comfortable grip, IP57 waterproof rating
* Powered by AAA batteries; the foldable stand also allows use as a
benchtop meter
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100°C (Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
0 to 80°C (32 to
176°F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3 |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Lead-free glass |
Temperature sensor |
Yes |
Junction |
Moveable Sleeve |
Reference Electrode |
Silver Ion Trap |
Electrolyte |
3M KCL |
Range |
1-11 pH |
Temperature Range |
0 to 80°C (32 to
176°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-WW Portable pH Meter for
Wastewater Treatment
The SR811-WW Portable pH Meter is
designed for professional pH measurement of wastewater, emulsions,
effluents, and other turbid water solution containing sulfides and
proteins. The equipped Swiss LabSen 333 3-in-1 POM pH/Temp.
Electrode adopts Polymer electrolyte, Long-Life reference system,
and a patented pH/temp. dual sensor structure, making precise
wastewater pH measurement easier than ever. The unique LabSen blue
glass membrane has a faster response rate, better repeatability, and
built tough - highly resistant to general impact (totally
differentiates from the fragile conventional glass bulb membrane).
Features:
* Equipped with Swiss LabSen 333
Professional 3-in-1 pH/Temperature Electrode designed for
professional wastewater measurement.
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting.
* GLP standard data management, 500 data sets of storage,
manual/auto storage, usb data output.
* Reliable Structure Design: Large white backlit LCD, soft silicon
case gives you a comfortable grip, IP57 waterproof rating.
* Powered by AAA batteries; the foldable stand also allows use as a
bench top meter.
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 60 ˚C (Auto
or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
0 to 100˚C (32
to 212˚F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3/ DC5V (USB
port) |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
POM |
Temperature sensor |
Yes |
Junction |
2-Pore |
Reference Electrode |
Long-Life |
Electrolyte |
Polymer |
Range |
0-14 pH |
Temperature Range |
0 to 80°C (32 to
176°F) |
Connector |
BNC and RCA |
|
|
|
How to direct-test soil pH?
If the soil is dry, add a small amount of distilled or RO water to
moisten the soil (do NOT add tap water since it will affect the pH
value significantly). Ideally, wait 24 hours before you take a
measurement.
Insert the pH connector (the blue one) to the pH socket, and twist
it clockwise to lock in; Insert the temperature connector to the
temperature socket.
Rinse the probe with distilled water/RO water before inserting it
into the soil.
If measuring outside of solution, rockwool or small pots, remove the
top 5cm/2inch soil from the surface of the sample area. Insert the
probe approximately 4 to 6 inches (10 to 15cm) into the soil samples
from various locations (3 to 4), wait for the stable readings before
recording (smiley face icon stays on the screen).
Users can press the M+ button to save the stable readings on the
meter. Then take the average of the measured data as the
representative pH level of the sample area.
Do NOT use extra force to insert the probe. If you feel like the
probe can’t be inserted any deeper, stop inserting. The spear tip
could break.
Rinse off the soil residue between tests using distilled water for
the best results. Use the probe cleaning brush in the case if
needed. |
SR811-SL Portable pH Meter for
Soil
The SR811-SL Portable pH Meter is
designed for professional direct soil pH measurements. The equipped
Swiss LabSen 553 3-in-1 POM pH/Temp. Electrode adopts Polymer
electrolyte, Long-Life reference system, and a unique blue spear
sensor tip, making precise direct soil pH measurement easier than
ever.
Features:
* Equipped with Swiss LabSen 553
Professional 3-in-1 pH/Temperature Spear Electrode, this SR811-SL
professional soil pH meter is designed for direct soil pH
measurement. Say goodbye to slurry making.
* This soil pH meter has a ±0.01 pH
accuracy in a range of 0-14 pH, and Temperature Range: -5 to 80°C
(23 to 176°F), Auto Calibration with auto recognition of up to 12
kinds of buffer solutions, Auto. Temp. Compensation, and supports
stable reading/auto-hold display mode. The meter's digital filter
technology improves response time and accuracy.
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting.
* GLP standard data management, 500 data sets of storage,
manual/auto storage, USB data output.
* Reliable Structure Design: Large white backlit LCD, soft silicone
case gives you a comfortable grip, IP57 waterproof rating.
* Powered by AAA batteries; the foldable stand also allows use as a
benchtop meter.
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100 ˚C
(Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
0 to 60˚C (32 to
140˚F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3/ DC5V (USB
port) |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
POM |
Temperature sensor |
Yes |
Junction |
Ceramic Single
Pore |
Reference Electrode |
Long-Life |
Electrolyte |
Polymer |
Range |
0-14 pH |
Temperature Range |
0 to 60°C (32 to
140°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-MS Portable pH Meter for Test
Tubes and Small Liquid Samples
The SR811-MS Portable pH Meter is
designed for professional pH measurement in test tubes and small
liquid samples (>0.2mL). The equipped Swiss LabSen 243-6 3-in-1 POM
pH/Temperature Electrode adopts a Long-Life reference system, and a
unique cylindrical semi-micro sensor, making precise small sample pH
measurement easier than ever.
Features:
* Equipped with Swiss LabSen 243-6 Micro
pH/Temperature Probe/Electrode/Sensor, designed for pH measurement
of small samples (>0.2mL).
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting.
* GLP standard data management, 500 data sets of storage,
manual/auto storage, USB data output.
* Reliable Structure Design: Large white backlit LCD, soft silicon
case gives you a comfortable grip, IP57 waterproof rating
* Powered by AAA batteries; the foldable stand also allows use as a
benchtop meter.
* The meter is CE certified and comes with a 2-year warranty
(6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100 ˚C
(Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
0 to 100˚C (32
to 212˚F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3/ DC5V (USB
port) |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Lead-free glass |
Temperature sensor |
Yes |
Junction |
Ceramic |
Reference Electrode |
Long-Life |
Electrolyte |
3M KCL |
Range |
0-14 pH |
Temperature Range |
0 to 100°C (32
to 212°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-BR Portable pH Meter for
Beverage
Making
The SR811-BR Portable pH Meter is
designed for professional pH measurement of for brewing, such as
beer, wine, kombucha, juice, etc. The equipped Swiss LabSen 213
3-in-1 Glass pH/Temperature Electrode adopts a Long-Life reference
system, and a patented pH/temp. dual sensor structure, making
precise beverage pH measurement easier than ever. It's also working
well in high-temperature samples (up to 212°F), so you don't have to
wait for the beverage samples to cool down. The unique LabSen blue
hemispheric glass membrane has a faster response rate, better
repeatability, and built tough - highly resistant to general impact
(totally differentiates from the fragile conventional glass bulb
membrane).
Features:
* Equipped with the Swiss LabSen 213
Professional 3-in-1 Glass pH/Temperature Electrode, designed for
professional quality control of brewing and beverage making (beer,
wine, juice, kombucha, etc.), works well under high temperature (up
to 212°F).
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting.
* GLP standard data management, 500 data sets of storage,
manual/auto storage, USB data output.
* Ragged Structure Design: IP57 waterproof rating; Large white
backlit LCD; Soft silicon case gives you a firm and comfortable
grip.
* Powered by AAA batteries; the foldable stand also allows use as a
benchtop meter.
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100 ˚C
(Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
-5 to 100°C (23
to 212°F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3/ DC5V (USB
port) |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Lead-free glass |
Temperature sensor |
Yes |
Junction |
Single Junction
Ceramic |
Reference Electrode |
Long-Life |
Electrolyte |
3M KCL |
Range |
0-14 pH |
Temperature Range |
-5
to 100°C (23 to 212°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-HF Portable pH Meter for
Strong
Acid Samples and
HF (Hydrofluoric) Acid
The SR811-HF Portable pH Meter is
designed for professional pH measurement of Strong Acid Samples and
HF (Hydrofluoric) Acid (<1%). The equipped Swiss LabSen 833 3-in-1
Glass pH/Temperature Electrode adopts a Silver Ion Trap reference
system. The unique LabSen HF glass membrane, which has a faster
response rate, better repeatability in strong acid samples, and
resistant to hydrofluoric corrosion.
Features:
* Equipped with the Swiss LabSen 833
Professional 3-in-1 Glass pH/Temperature Electrode, designed for
professional pH measurement of Strong Acid Samples and HF
(Hydrofluoric) Acid (<1%).
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting.
* GLP standard data management, 500 data sets of storage,
manual/auto storage, USB data output.
* Ragged Structure Design: IP57 waterproof rating; Large white
backlit LCD; Soft silicon case gives you a firm and comfortable
grip.
* Powered by AAA batteries; the foldable stand also allows use as a
benchtop meter.
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100 ˚C
(Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
-5 to 100°C (23
to 212°F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C
±1 digit |
Data Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries * 3/ DC5V (USB
port) |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Lead-free glass |
Temperature sensor |
Yes |
Junction |
Ceramic |
Reference Electrode |
Silver Ion Trap |
Electrolyte |
3M KCL |
Range |
0-11 pH |
Temperature Range |
0
to 100°C (32 to 212°F) |
Connector |
BNC and RCA |
|
|
|
|
SR811-SB Portable pH Meter for
Strong
Alkali Solution
The SR811-SB Portable pH Meter is
designed for professional pH measurement of Strong Alkali Solution.
The equipped Swiss LabSen 843 3-in-1 Glass pH/Temperature Electrode
adopts a Silver Ion Trap reference system. The unique LabSen H glass
membrane, which has a faster response rate, better repeatability in
strong base solutions (10-14 pH).
Features:
* Equipped with the Swiss LabSen 833 Professional 3-in-1 Glass
pH/Temperature Electrode, designed for professional pH measurement
of Strong Alkali Solution.
* Intelligent Functions: Self-Diagnosis of out-of-range value and
electrode invalidation, calibration reminders, calibration date
checking, clock display, easy parameter setting.
* GLP standard data management, 500 data sets of storage,
manual/auto storage, USB data output.
* Ragged Structure Design: IP57 waterproof rating; Large white
backlit LCD; Soft silicon case gives you a firm and comfortable
grip.
* Powered by AAA batteries; the foldable stand also allows use as a
benchtop meter.
* The meter is CE certified and comes
with a 2-year warranty (6-month for the probe).
Specifications
Meter's Specs |
pH |
Range |
-2.00 ~ 19.99 pH |
Resolution |
0.01/0.1 pH |
Accuracy |
±0.01 pH ±1 digit |
Temperature Compensation |
0 to 100 ˚C
(Auto or Manual) |
mV |
Range |
-1999 ~ +1999 mV |
Resolution |
-200 mV ~ 0 ~
+200 mV: 0.1 mV; Remaining: 1 mV |
Accuracy |
±0.1% F.S ±1 digit |
Temp. |
Range |
-5 to 100°C (23
to 212°F) |
Resolution |
0.1°C |
Accuracy |
±0.5°C ±1 digit |
Data
Storage |
500 groups |
Storage Content |
Numbering, date, time,
measurement, unit, temperature |
Output |
USB |
Power |
AA Batteries *
3/ DC5V (USB port) |
IP Ranking |
IP57 dust-proof and
waterproof |
Dimensions& Weight |
Meter: 88*170*33mm/ 313g, With case:
360*270*76mm/ 1.6kg |
Electrode's Specs |
Material |
Lead-free glass |
Temperature sensor |
Yes |
Junction |
Single Junction
Ceramic |
Reference Electrode |
Silver Ion Trap |
Electrolyte |
3M KCL |
Range |
2-14 pH |
Temperature Range |
-5 to
100°C (23 to 212°F) |
Connector |
BNC and RCA |
|
|
|
Standard packing:
SR100 Meter*1
F501 3-in-1 Fluoride Probe*1
201T-S Combination pH Electrode (ATC)*1
Fluoride Ion calibration solutions
(0.19mg/L and 19.00mg/L, 50ml for each)
PH calibration solutions (pH4.00,
pH7.00, pH10.1, 50ml, one for each)
Screw driver*1
Instruction manual*1
Portable case*1
|
SR100 Fluoride/pH Portable Meter Kit
with 3-in-1 Fluoride Probe
The SR100 Fluoride/pH Portable Meter Kit
is designed for accurate and reliable measurement of fluoride, pH,
ORP (probe sold separately), and temperature altogether. The
patented 3-in-1 Fluoride Ion probe is composed of an ion electrode,
a reference electrode, and a temperature electrode, generating
reliable readings with stable potential and fast response rate.
Range: 0.02 ppm to 1900 ppm; Accuracy: ±0.02 ppm, or ±5% of reading
(whichever is greater).
Intelligent Functions -- 2-point
automatic calibration (0.19mg/L, 19.0 mg/L) for fluoride; 3-point
automatic calibraiton for pH (4.00, 7.00, 10.01 pH); 300 groups of
data storage (measurements, temperature, units of measurements);
auto. power-off; backlight adjustment; Self-Diagnosis; Units
switchable from mg/L, ppm, ppt, and pF.Convenient Use -- There is no
need for probe stirring or added reagents during tests. You can
directly measure your sample solutions' fluoride ion concentration
just like pH test (only takes 10 minutes to activate the fluoride
probe before tests)
Features:
* Patented 3-in-1 fluoride ion probe -
no need for stirring or added reagents, directly measuring the ion
concentration of fluoride in a quick and simple manner.
* Stable potential, fast response rate, convenient use; 2-point
auto. calibration for fluoride.
* Comes with an ATC pH electrode, testing fluoride, pH & temperature
altogether with high accuracy.
* Large backlit screen, 300 groups of data storage, self-diagnosis,
parameter setup.
* Rugged portable design, IP57 Water-Resistant Rating, ideal for
both lab and field test.
Specifications:
Specifications:
Fluoride:
Measuring range: 0.02 ppm to 1900 ppm
Display units: mg/L, ppm, pF
Accuracy: ±0.02 ppm or ±5% of reading (whichever is greater)
Temperature Compensation Range: (0-80)ºC (Automatic)
pH:
Measuring range: -2.00 - 19.99 pH
Resolution: 0.1/0.01 pH
Accuracy: ± 0.01 pH ± 1 digit
Temperature Compensation Range: (0-100)ºC (Automatic)
Other technical parameters:
Data Storage: 300 Groups
Storage Content: Numberings, measurements, units of measurement and
a temperature values
Power Supply: AA Battery (1.5VX2)
Size and Weight: Instrument:(65*120*31) mm/180g
Quality and Safety Certification:
ISO9001:2000,CE and CMC
IPClass: IP57 Dustproof and waterproof |
|
|
Standard packing:
SR200 Meter*1
F501 3-in-1 Fluoride Probe*1
201T-S Combination pH Electrode (ATC)*1
2301T-S Conductivity Probe (ATC)*1
Fluoride Ion calibration solutions (0.19mg/L and 19.00mg/L, 50ml for
each)
PH calibration solutions (pH4.00, pH7.00, pH10.1, 50ml, one
for each)
Conductivity calibration solution (1413μS/cm, 50ml)
Screw driver*1
Instruction manual*1
Portable case*1 |
SR200 Fluoride/pH/Conductivity 7-in-1
Portable Meter Kit
The SR200 Fluoride/pH/Conductivity
7-in-1 Portable Meter Kit is designed for accurate and reliable
measurement of fluoride, pH, conductivity, salinity, TDS,
resistivity, ORP (ORP probe sold separately), and temperature
altogether. The patented 3-in-1 Fluoride Ion probe is composed of an
ion electrode, a reference electrode, and a temperature electrode,
generating reliable readings with stable potential and fast response
rate. Range: 0.02 ppm to 1900 ppm; Accuracy: ±0.02 ppm, or ±5% of
reading (whichever is greater).
Intelligent Functions -- 2-point automatic calibration (0.19mg/L,
19.0 mg/L) for fluoride; 3-point automatic calibration for pH (4.00,
7.00, 10.01 pH) and 1-point calibration for conductivity; 800 groups
of data storage (measurements, temperature, units of measurements);
auto. power-off; backlight adjustment; Self-Diagnosis; Fluoride
units switchable from mg/L, ppm, ppt, and pF. Convenient Use --
There is no need for probe stirring or added reagents during tests.
You can directly measure your sample solutions' fluoride ion
concentration just like pH test (only takes 10 minutes to activate
the fluoride probe before tests).
Features:
* Patented 3-in-1 fluoride ion probe -
no need for stirring or added reagents, directly measuring the ion
concentration of fluoride in a quick and simple manner.
* Stable potential, fast response rate, convenient use; 2-point
auto. Calibration for fluoride.
* Equipped with an atc ph and conductivity electrode, testing
fluoride, ph, ec, tds, salinity, resistivity, orp (orp probe sold
separately) & temperature altogether with high accuracy.
* Large backlit screen, 800 groups of data storage, self-diagnosis,
parameter setup.
* Rugged portable design, suitable for both lab and field test; 800
groups of data storage.
Specifications:
Fluoride:
Measuring range: 0.02 ppm to 1900 ppm
Display units: mg/L, ppm, pF
Accuracy: ±0.02 ppm or ±5% of reading (whichever is greater)
Temperature Compensation Range: 0-80 (Automatic)
Specifications:
Fluoride:
Measuring range: 0.02 ppm to 1900 ppm
Display units: mg/L, ppm, pF
Accuracy: ±0.02 ppm or ±5% of reading (whichever is greater)
Temperature Compensation Range: (0-80)ºC (Automatic)
pH:
Measuring range: -2.00 - 19.99 pH
Resolution: 0.1/0.01 pH
Accuracy: ± 0.01 pH ± 1 digit
Temperature Compensation Range: (0-100)ºC (Automatic)
mV:
Measuring range: -1999mV ~ 0 ~ 1999mV
Resolution: 1mV
Accuracy:±0.1% FS
Conductivity:
Measuring Range: Conductivity: (0.00~19.99) μS/cm, (20.0~199.9)
μS/cm, (200~1999) μS/cm, (2.00~19.99) mS/cm, (20.0~199.9) mS/cm
TDS: (0 ~ 100) g/L
Salinity: (0 ~ 100) ppt
Resistivity: (0 ~ 100) MΩ·cm
Resolution: 0.01/0.1/1μS/cm, 0.01/0.1 mS/cm
Accuracy: ±1.0% F.S
ATC Range: (0-50)ºC (Automatic)
Electrode Constant: 0.1 / 1 / 10 cm-1
Standard Temperature: 25ºC, 20ºC and 18ºC
Other technical parameters:
Data Storage: 800 Groups
Storage Content: Numberings, measurements, units of measurement and
a temperature values
Power Supply: AA Battery (1.5VX2)
Size and Weight: Instrument:(65*120*31) mm/180g;
Suitcases:(360*270*76) mm/1.5Kg
Quality and Safety Certification: ISO9001:2000,CE and CMC
IPClass: IP57 Dustproof and waterproof |
|
|
|
SR204 Portable pH/mV Meter
CHARACTERISTICS:
1. With blue back-light displaying LCD
2. Auto. Calibration function
3. Displaying pH and temp. or mV and temp. simultaneously
4. With manual Temp. compensation
5. Two points calibration
SPECIFICATION:
1. Measuring Range: pH: (0.00-14.00)pH; mV: (-1400-0)mV,(0~1400)mV
2. Resolution: pH: 0.01pH; mV: 1mV
3. Accuracy: pH: ±0.03pH±1bit; mV: ±0.2%(FS)mV±1bi
4. Input impedance: 5×1011Ω
5. Stability: ±0.03pH±1bit/3h
6. Temp. compensation range: (0~60)ºC
Standard configuration:
1. Main instrument |
1 |
2. AA Salinity Battery |
4 |
3. PH Combined Electrode |
1 |
4. PH4.00, 7.00, 10.00 Buffer |
5 bags for each |
Overall dimension & weight:
Shipping package dimension: 255-255-195mm
Packing:
10PCS/CTN, CTN SIZE: 61*29*84CM, G.W:
18KGS,Volume Weight:30KGS |
|
|
|
SR260 Portable pH/mV/Temp. Meter
Characteristics:
-Microprocessor technology.
-Automatic calibration, automatic or manual temperature compensation.
-Measurement results can be stored, deleted, searched and printed. It
can store at most 250 sets of measurement data.
-With low voltage display, automatic switching off, protection from
electricity cutting off. With 4 pieces of No.5 batteries.
-With RS-232 interface.
Specifications:
1. Measurement range:
pH (0.00-14.00)pH, mV: (-1800~1800)mV, temperature:
0.0-60.0ºC
2. Resolution: pH: 0.01 pH, mV: 0.1mV; temperature: 0.1ºC
3. Accuracy: pH: ±0.01pH, mV: ±0.1% FS, temperature: ±0.3ºC
4. Input impedance: ≥ 1×1012Ω
5. Temperature compensation range: (-5.0-105.0) ºC
Standard configuration:
1. Main instrument |
1 |
2. AA Salinity
Battery |
4 |
3. PH Combined
Electrode |
1 |
4. Suitcase |
1 |
5. PH4, 6.86, 9.18
Buffer |
5 bags for each |
6. Data Collecting
software |
1 |
7. RS-232
Communication Line |
1 |
8. TP-16 Print
Connection Line |
1 |
Overall dimension & weight:
Shipping package dimension: 355-335-135mm
Gross weight: 3kg Net weight: 2kg
|
|
|
|
SR3030 Portable Multi-parameter Water
Analyzer
Working Principle:
This analyzer uses the light with single wavelength to cross the
water sample. According to Lambert-Beer’s Law, users can calculate
concentration value of any material contained in the sample water by
measuring absorbance value.
The instrument can be based on user needs and salts of heavy metals
(including copper, nickel, chromium, manganese, iron, zinc, lead,
cadmium, cyanide, phosphate, sulfate, nitrite, nitrate, chlorine,
free combination of parameters such as hardness) and the like
(source comprising four channels) customization. Widely used in
drinking water, surface water, ground water, sewage and industrial
wastewater measured.
Features:
1. Wavelength repeatability is excellent, basic can be realized
without errors.
2. Instrument optical section through strictly controlled to ensure
its high performance.
3. With a 16mm tube, 25mm tube, 10mm and 20mm cuvette cuvette
adapter, can take into account different applications for both
accuracy and convenience.
4. LCD large screen, easy and intuitive.
5. With USB interface, can be recorded to a computer to transfer
data to the way the file is saved.
6. Data storage capabilities.
7. Recording and printing capabilities.
Main Technical Index:
Channels: 8
Wavelength: 420nm, 440nm, 470nm, 520nm, 540nm, 560nm, 600nm, 610nm,
630nm, 660nm, 680nm, 700nm (Users can customized 8 wavelength from
the up range)
Wavelength Accuracy: Central wavelength±1nm
Measurement parameter: See the below form
Optical Stability: Drifting of absorbance <0.002A in 20 min
Dimension: 340mm*250mm*130mm
Weight: 4kg |
Product Characteristics:
No. |
Measurement parameter |
Measurement range (mg/L) |
Max Error |
Wavelength (nm) |
1 |
pH |
5.00-8.00pH |
0.1±0.1 |
|
2 |
DO |
0.1-10.0 |
0.1±5% |
|
3 |
Ozone |
0.00-2.5 |
5%(F.S) |
|
4 |
Chroma low |
0-50PCU |
5%(F.S) |
470 |
5 |
Chroma High |
40-100 PCU |
5% |
470 |
6 |
CODCr (low range) |
5--100 |
5mg/L |
440 |
7 |
CODCr (middle range) |
100--1200 |
5% |
610 |
8 |
CODCr (high range) |
1000-2000 |
5% |
610 |
9 |
CODMn(low range) |
0.00-5.00 |
0.2mg/L |
520 |
10 |
CODMn (high range) |
4.00-10.00 |
5% |
520 |
11 |
Ammonia nitrogen(low range) |
0.0-10.0 |
0.2 or 5% |
420 |
12 |
Ammonia Nitrogen (high range) |
10.0-25.0 |
5% |
420 |
13 |
Total Phosphorus (low range) |
0.0-10.0 |
0.2 or 5% |
700 |
14 |
Total Phosphorus (high range) |
5.0-25.0 |
5% |
700 |
15 |
Total nitrogen (low range) |
0.0-10.0 |
0.2 or 5% |
540 |
16 |
Total nitrogen (high range) |
10.0-100.0 |
5% |
540 |
17 |
Residual Chlorine (low range) |
0.02-2.00 |
0.1 or 5% |
520 |
18 |
Residual chlorine (high range) |
2.00-10.00 |
5% |
520 |
19 |
Total chlorine (low range) |
0.02-2.00 |
0.1 or 5% |
520 |
20 |
Total chlorine (high range) |
2.00-10.00 |
5% |
520 |
21 |
Chlorine dioxide (low range) |
0.05-5.00 |
0.2 or 5% |
520 |
22 |
Chlorine Dioxide (high range) |
5.00-25.00 |
5% |
520 |
23 |
Permanganate index |
0.25-10.0 |
5% |
520 |
24 |
Sulfate |
8-100 |
5% |
420 |
25 |
Nitrate (low range) |
0.02-2.00 |
0.1 or 5% |
700 |
26 |
Nitrate (high range) |
0.20-10.0 |
0.2 or 5% |
700 |
27 |
Nitrite (low) |
0.02-1.00 |
0.05 or 5% |
540 |
28 |
Nitrite high) |
0.50-5.00 |
5% |
540 |
29 |
Sulfide (low range) |
0.005-1.000 |
5% |
680 |
30 |
30 Sulfide(high range) |
0.50-3.00 |
5% |
680 |
31 |
Fluoride |
0.05-1.80 |
5% |
610 |
32 |
Cyanide |
0.01-0.50 |
5% |
620 |
33 |
Bromide |
0.10-5.00 |
5% |
610 |
34 |
Volatile phenol |
0.20-10.0 |
5% |
520 |
35 |
Formaldehyde |
0.05-3.20 |
5% |
420 |
36 |
Hydrazine |
0.01-1.00 |
5% |
470 |
37 |
Anilines |
0.03-5.00 |
5% |
540 |
38 |
Nitrobenzene |
0.1-100 |
0.5 or 5% |
540 |
39 |
Silica |
0.00-5.00 |
5% |
680 |
40 |
Total Hardness |
5.0-200 |
5% |
470 |
41 |
Total alkalinity |
0-1000 |
5% |
520 |
42 |
Chloride |
0.20-10.0 |
5% |
470 |
43 |
Copper |
0.02-10.0 |
5% |
610 |
44 |
Zinc |
0.2-3.0 |
5% |
610 |
45 |
Nickel |
0.02-1.00 |
5% |
560 |
46 |
Iron |
0.0-10.0 |
5% |
520 |
47 |
Hexavalent chromium |
0.01-1.00 |
5% |
540 |
48 |
Cadmium |
0.05-0.50 |
5% |
520 |
49 |
Manganese |
0.02-5.00 |
5% |
520 |
50 |
Chrome |
0.02-0.50 |
5% |
540 |
51 |
Aluminum |
0.01-4.00 |
5% |
540 |
52 |
Silver |
0.01-1.00 |
5% |
560 |
53 |
Molybdenum |
0.05-1.00 |
5% |
470 |
54 |
Arsenic |
0.0004-0.500 |
5% |
520 |
55 |
Antimony |
0.05-1.20 |
5% |
610 |
56 |
Beryllium |
0.001-0.028 |
5% |
520 |
57 |
Boron |
0.10-1.00 |
5% |
420 |
58 |
Barium |
0.06-3.00 |
5% |
440 |
59 |
Mercury |
0.002-0.04 |
5% |
470 |
60 |
Iodine |
0.02-1.00 |
5% |
560 |
|
|
