EC-3 Handheld Conductivity Tester with
Case
(HM digital product)
Features:
1. Ideal for commercial use. Includes a
carrying case with belt clip.
2. Highly efficient and accurate due to its advanced microprocessor
technology.
3. Hold Function: saves measurements for convenient reading and
recording.
4. Auto-off function: the meter shuts off automatically after 10
minutes of non-use to conserve batteries.
5. Measurement Range: 0-9990 µS. From 0-999 µS, the resolution is in
increments of 1 µS. From 1000 to 9990 µS, the resolution is in
increments of 10 µS, indicated by a blinking 'x10' image.
6. Built-in digital thermometer
7. Display: large and easy-to-read LCD screen.
8. Factory Calibrated: our meters are calibrated with a 700 µS NaCl
solution. 9. Meters can be recalibrated with
a mini-screwdriver.
10. the meter with its leather case packing.
Specifications:
EC Range: 0 - 9990 µS (µS/cm)
Temp. Range: 0 - 80 degrees Celsius
Resolution: 1 µS; 10 µS, 0.1 degree Celsius
Accuracy: +/- 2%
ATC: Built-in sensor for Automatic Temperature Compensation of 1 to
50°C (33 to 122°F)
Power source: 2 x 1.5V button cell batteries (included) (357A)
Battery life: 1000 hours of usage
Dimensions: 15.5 x 3.1 x 2.3cm (6.1 x 1.25 x 1 inches)
Weight with case: 76.5g (2.7 oz)
Weight without case: 56.7g (2 oz)
500PCS/CTNS
SIZE: 65.5*53*42cm GW: 45kg |
|
|
|
|
 |
EC-3M: Millisiemens Conductivity
Tester with Case (HM digital product)
With its rugged design and build, the EC-3M is an ideal meter (tool)
that can be used for any and all applications, ranging from water
purification, to hydroponics to industrial waste water treatment. It
comes with a black vinyl carrying case, protecting it when carried
in a toolbox.
Features:
Hold Function
Auto-off Function (After 10 min.)
Built-in digital thermometer
Includes a carrying case with belt clip
Factory Calibrated with a 1413 µS KCl solution. (Meter can be
recalibrated with a mini-screwdriver).
Specifications:
EC Range: 0 – 9.99 mS (mS/cm)
Temp. Range: 0 – 80 degrees Celsius
Resolution: 0-9.99: 0.001 mS; 1-9.99: 0.01 mS (indicated by a ‘x10’
icon)
Temperature Resolution: 0.1 degree Celsius (Celsius only)
Accuracy: +/- 2%
ATC: Built-in sensor for Automatic Temperature Compensation of 1 to
50o C (33 to 122o F)
Power source: 2 x 1.5V button cell batteries (included) (LR44 or
equivalent)
Battery life: 1000 hours of usage
Dimensions: 15.5 x 3.1 x 2.3cm (6.1 x 1.25 x 1 inches)
Weight with case: 76.5g (2.7 oz)
Weight without case: 56.7g (2 oz) |
|
|
|
|
 |
AP-2: AquaPro Water Quality Tester
(EC) (HM digital product)
New AquaPro series, a line of handheld TDS/EC meters with a sleek
design that's perfect for today's modern kitchen. The AquaPro
digital water testers are the next generation for today's tech-savvy
and health-conscience consumer.
Features:
-Measures electrical conductivity (EC) and temperature.
-Automatic Temperature Compensation (ATC)
-Water-resistant housing
-Measurement Range: 0-9999 µS
-Digital Calibration (push button)
-Auto-off function, data-hold function and low-battery indicator.
-Display: large and easy-to-read LCD screen includes simultaneous
temperature reading.
-Factory Calibrated: The AquaPro is calibrated with a 700 µS
solution. The meter can be recalibrated with digital calibration
using the push buttons, rather than a screwdriver.
-Includes a cap and batteries
-Comes in a retail-oriented package
SPECIFICATIONS
-EC Range: 0-9999 µS
-Temperature Range: 0-80 ºC; 32-176 ºF
-Resolution: 1 µS; Temp. resolution is 0.1 ºC/F
-Accuracy: +/- 2%
-Calibration: Digital calibration by push button.
-Housing: Water-resistant
-Power source: 1 x 3V button cell (included) (model CR2032)
-Dimensions: 15 x 2.8 x 1.3 cm (5.9 x 1.1 x .5 inches)
-Weight: 42.5 g (1.5 oz)
200PCS/CTNS
SIZE: 54*32*33cm GW: 20kg |
|
|
|
|
|
COM-80: EC/TDS HydroTester
(HM digital product)
NEW!
The COM-80 is an economically priced, reliable EC/TDS meter that
is ideal for testing applications such as hydroponics &
gardening, pools & spas, aquariums & reef tanks, water ionizers,
drinking water and more.
Features:
-Measures electrical
conductivity (EC), total dissolved solids (TDS). Exellent for
nutrient testing.
-Four scales: EC: µS, mS; TDS: ppm, ppt
-Automatic Temperature Compensation
(ATC)
-Water resistant
-Measurement Range: 0-9990 µS; 0-5000 ppm; 0-9.9 mS; 0-5.0 ppt
-Digital Calibration (push button) to any point within the
meter's range
-Auto-off function, data-hold
function and low-battery indicator
-Display: large and easy-to-read LCD screen includes
simultaneous temperature reading.
-Factory Calibrated: The
COM-80 meter is calibrated with a 1413 µS solution. The meter
can be recalibrated with digital calibration using the push
buttons.
-Includes a protective cap and batteries.
-Need help deciding which meter is right for you? View our
TDS/EC Meter Selection Guide.
Specifications:
-EC Range: 0 - 9990 µS; 0 - 9.9 mS
-TDS Range: 0 - 5000 ppm (mg/L); 0 - 5.0 ppt
-Temperature Range: 1-80 °C; 33-176 °F
-Resolution: 1 µS/ppm; 0.1 mS/ppt.
-Temp. resolution: 0.1 °C/F
-Accuracy: +/- 2%
-EC-to-TDS Conversion Factor: NaCl (avg of 0.5).
-Calibration: Digital calibration by push button.
-Probe: Fixed
-Housing: Water resistant
-Power source: 3 x 1.5V button cell batteries (included) (model
LR44 or equivalent)
-Dimensions: 15.3 * 3.2 * 1.8 cm (6.0 * 1.3 * 0.7 inches)
-Weight: 53.9g (1.9 oz) |
|
|
|
|
 |
COM-100:
Waterproof EC / TDS / Temp Combo
Meter
(HM digital product)
Ideal
for all water quality testing, water purification applications,
wastewater regulation, aquaculture, hydroponics, colloidal
silver, labs & scientific testing, pools & spas, ecology
testing, boilers & cooling towers, water treatment and more.
Features:
Measures electrical conductivity (EC), total dissolved solids
(TDS) and temperature.
Three different calibration options (KCl, 442TM, NaCl), each
with its own non-linear conversion factor.
Automatic Temperature Compensation (ATC) using three temperature
coefficients
Waterproof housing
Measurement Range: 0-9990 µS; 0-8560 ppm (auto-ranging).
Digital Calibration (push button)
Auto-off function, data-hold function and low-battery indicator.
Display: large and easy-to-read LCD screen includes simultaneous
temperature reading.
Factory calibration: The COM-100 meter is calibrated with a 1413
µS solution. The meter can be recalibrated with digital
calibration using the push buttons, rather than a screwdriver.
Includes a cap, batteries and lanyard.
Specifications:
EC
Range: 0 - 9990 µS
TDS Range: 0-8560 ppm (mg/L)
Temperature Range: 0-80
ºC; 32-176 ºF
Resolution: 0-99: 0.1 µS/ppm; 100-999: 1
µS/ppm; 1000-9990: 10 µS/ppm. Temp. resolution is 0.1
ºC/F
Accuracy: +/- 2%
EC to TDS Conversion Factor: Non-linear
conversions for KCl, 442TM or NaCl solutions, set by the user.
Calibration: Digital calibration by push
button.
Probe: Detachable platinum electrodes
Housing: Waterproof (submersible)
Power source: 2 x 1.5V
AAA Alkaline batteries (included)
Dimensions: 18.5 x 3.4 x 3.4 cm (7.3 x 1.3 x
1.3 inches)
Weight: 90.7g (3.2 oz)
100PCS/CTNS SIZE: 65.5*53*42cm GW: 15kg |
|
|
|
|
 |
COM-300: Waterproof
pH/ EC/ TDS/ Temp Meter
(HM digital product)
COM-300 is a professional grade level pH/EC/TDS/Temp meter ideal for
all water quality testing, hydroponics, water purification
applications, wastewater regulation, aquaculture, colloidal silver,
labs & scientific testing, pools & spas, ecology testing, boilers &
cooling towers, water treatment and more.
FEATURES:
Measures Potential Hydrogen (pH), Electrical Conductivity (EC),
Total Dissolved Solids (TDS), Salinity and Temperature.
Five scales: pH, μS, mS, ppm 0.5 (NaCl) Scale & 0.7 (442™) Scale.
Automatic Temperature Compensation (ATC) using three temperature
coefficients
Waterproof housing (IP-67 rating).
Digital Calibration (push button) to any point within the meter’s
range.
Auto-off function, data-hold function and low-battery indicator.
Display: large and easy-to-read LCD screen includes simultaneous
temperature reading.
Replaceable Sensor (model SP-CP).
Factory Calibrated (pH/EC/TDS).
Includes translucent cap, 2 (AAA) alkaline batteries, pH 4 & 7
calibration solutions, pH storage solution and lanyard.
PRODUCT DESCRIPTION
pH Range: 0 – 14 pH.
EC Range: 0 – 9990 μS; 0 – 9.99 mS.
TDS Range: 0 – 8560 ppm (0.7 Scale); 0 – 5000 ppm (0.5 Scale).
Temperature Range: 0-55 °C; 32-130°F.
Resolution: 0-99: 0.1 μS/ppm/ 0.01mS ; 100-999: 1 μS/ppm; 1000-9990:
10 μS/ppm. Temp. resolution is 0.1 °C/F.
Accuracy: +/- 2%.
EC to TDS Conversion Factor: Non-linear conversions for KCl, 442TM
or NaCl solutions, selected by the user.
Probe: Detachable platinum electrodes & pH glass sensor with
reference tube electrodes.
Housing: IP-67 Waterproof (submersible; floats).
Power source: 2 x Triple A (AAA) included.
Dimensions: 18.5 x 3.4 x 3.4 cm (7.3 x 1.3 x 1.3 inches).
Weight: 101.5g (3.6 oz).
442 is a registered trademark of the Myron L Company. |
|
|
|
|
 |
COM-360: Waterproof
pH/EC/TDS/Temp Meter
(HM digital product)
The COM-360 is a professional grade level pH/EC/TDS/Temp meter ideal
for all water quality testing, hydroponics, water purification
applications, wastewater regulation, aquaculture, colloidal silver,
labs & scientific testing, pools & spas, ecology testing, boilers &
cooling towers, water treatment and more.
FEATURES:
Measures Potential Hydrogen (pH), Electrical Conductivity (EC),
Total Dissolved Solids (TDS), Salinity and Temperature
Five scales: pH, µS, mS, ppm 0.5 (NaCl) Scale & 0.7 (442™) Scale
Automatic Temperature Compensation (ATC) using three temperature
coefficients
Water resistant housing
Digital Calibration (push button) to any point within the meter’s
range
Auto-off function, data-hold function, and low-battery indicator
Display: large and easy-to-read LCD screen includes simultaneous
temperature reading
Replaceable Sensor (model SP-CP)
Factory Calibrated (pH/EC/TDS)
Includes translucent cap, 2 (AAA) alkaline batteries, pH 4 & 7
calibration solutions, pH storage solution and lanyard.
PRODUCT DESCRIPTION
pH Range: 0 – 14 pH
EC Range: 0 – 9990 µS; 0 – 9.99 mS
TDS Range: 0 – 8560 ppm (0.7 Scale); 0 – 5000 ppm (0.5 Scale)
Temperature Range: 0-55 °C; 32-130°F
Resolution: 0-99: 0.1 µS/ppm/ 0.01mS ; 100-999: 1 µS/ppm; 1000-9990:
10 µS/ppm. Temp. resolution is 0.1 °C/F
Accuracy: +/- 2%
EC to TDS Conversion Factor: Non-linear conversions for KCl, 442TM
or NaCl solutions, selected by the user.
Probe: Detachable platinum electrodes & pH glass sensor with
reference tube electrodes
Housing: Water resistant
Power source: 2 x Triple-A (AAA) included
Dimensions: 20.0 x 3.4 x 3.4 cm (7.8 x 1.3 x 1.3 inches)
Weight:110g (4.0 oz)
442 is a registered trademark of the Myron L Company. |
|
|
|
|
|
|
|
 |

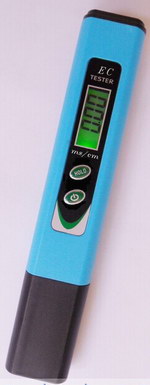

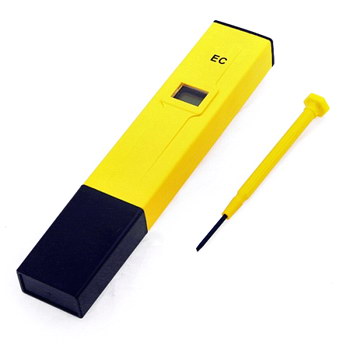

EC-9063 Pen Type EC Tester
SPECIFICATIONS
Range: 0.00~19.99ms/cm
Resolution: 0.01ms/cm
Accuracy: +/-2%F.S
Battery: 2 * 3V (CR1632)
Temperature Compensation: 0°C~50°C
Operating Temperature: 0°C~50°C
Dimensions: 147mm*27mm*18mm
Weight: 42g |
|
|
|
|
 |

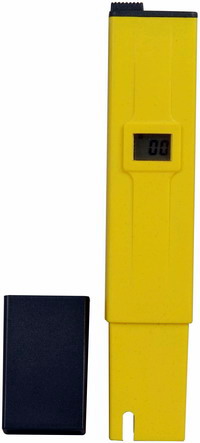

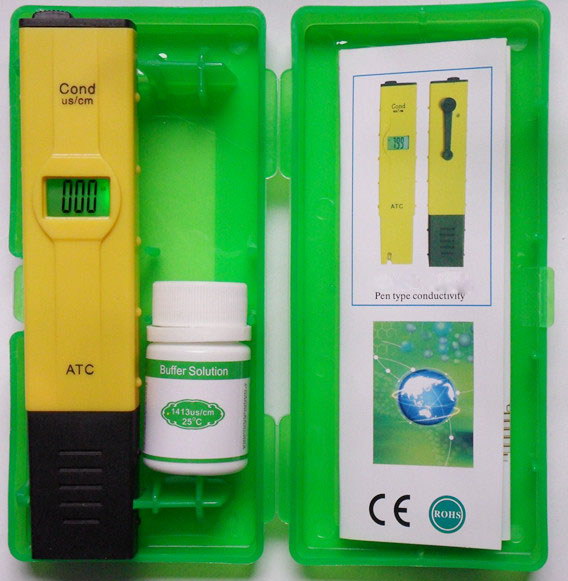

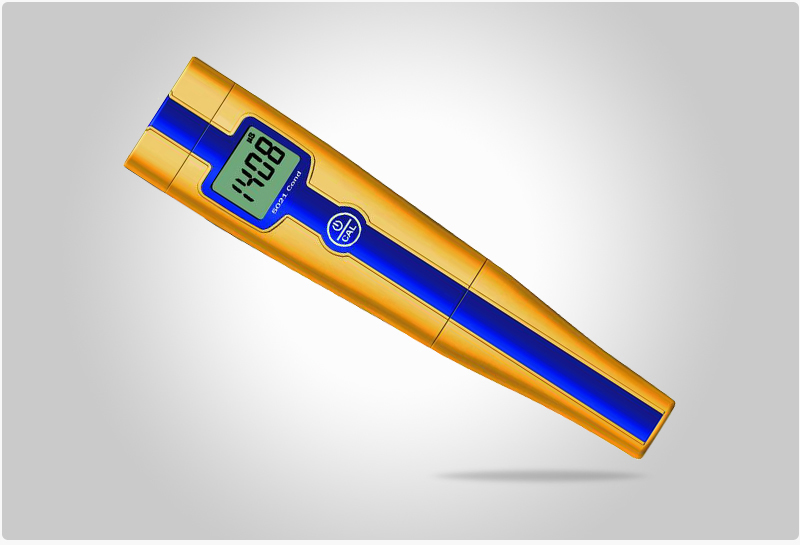

Pen Type Conductivity meter
Product description:
-Waterproof design
-Low battery alert
-Hold Function saves measurements for convenient reading and recording
Specifications:
|
Model |
EC-988 |
EC-989 |
|
Description |
Conductivity meter |
Conductivity meter |
|
Measuring range |
0~1999μS/cm |
0~19.99ms/cm |
|
Accuracy |
±2%FS |
±2%FS |
|
Resolution |
1μS/cm |
0.01ms/cm |
|
Display |
4-digital LCD with Backlit |
|
Automatic Temperature
Compensation |
0°C~50°C |
|
Environment |
Temperature:0°C~50°C; Humidity:≤95% |
|
Power Supply |
4*1.5V(AG13) |
|
Dimensions |
170mm*33mm*20mm |
|
Weight |
69g |
|
|
|
|
|
 |
Pen Type Conductivity Meter
Features:
Automatic calibration, Automatic recognization of standard solutions,
Auto power-off, low voltage alarm.
Automatic temperature compensation, Automatic ranging.
IP57 dustproof and waterproof.
|
Model |
PH-011 |
EC-021 |
TDS-031 |
ORP-041 |

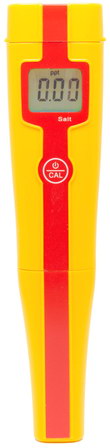

SAL-051 |
|
Description |
pH Meter |
Conductivity
Tester |
TDS Meter |
ORP Meter |
Salinity Meter |
|
Range |
0~14.0pH |
0~100.0μS/cm
0~1000μS/cm
0~10.00mS/cm |
0~50.0 ppm
0~500 ppm
0~5.00 ppt |
±1000mV |
0~5.00ppt |
|
Resolution |
0.1pH |
0.1/1μS/cm
0.01mS/cm |
0.1/1ppm
0.01ppt |
1mV |
0.01ppt |
|
Accuracy |
±0.2pH |
±1%FS |
±1%FS |
±0.5%FS |
±1%FS |
|
Tem Compensation |
No |
Yes |
Yes |
No |
Yes |
|
Calibration solution |
Yes |
Yes |
Yes |
No |
Yes |
|
Power |
AAA
batteries*2, 1.5V*2 |
|
Dimension |
39*25*176 mm |
|
|
|
|
|
 |
EC-05 Premium EC/TDS/Salinity Pocket
Tester
Features:
*The EC-05 Portable Pocket
EC/TDS/Salinity Meter/Tester simply tests all kinds of regular
conductivity measurements in an ACCURATE, QUICK, and RELIABLE
manner. The applications include hydroponics, tap/drinking water,
pools& spas, education, water treatment, environmental monitoring,
etc. Up to 3 points of Auto Calibration with auto buffer recognition
and 0 to 50°C Auto Temperature Compensation (ATC), 0.01 mS/±1% F.S,
0.5°C accuracy with measuring range of 0-200.0 μS/cm, 0-2000 μS/cm,
0-20.00 mS/cm, 0-50.0°C.
* Unique BPB (Brush-Resistant Platinum Black) sensor adopts a
special processing technology, which minimizes electrode
polarization, expands measuring range, and increases the firmness of
the electrode, hence ensuring a much higher accuracy and consistency
in a wide-range conductivity measurement than traditional stainless
steel electrodes, and is easy to clean. The probe is replaceable and
easy to install so that you don't have to buy a whole new meter once
the probe is aged.
* Auto recognition and indication of stable values improves
consistency, saving you the trouble of guessing when to manually
hold measurement. With a large clear 180° viewing angle screen with
2 backlit colors (blue for measuring mode and green for calibration
mode), it supports dual display of temp./EC value and indications of
completed calibrations (where M/H indicate 2 points of calibrations)
and stable readings (with a smiley face).
* Easy menu setting, customizing your tester functions according to
your needs (switch of temperature unit, TDS factor setting, Switch
of salinity unit, auto hold on/off). Smart self-diagnosis, warning
of out-of-range/preset measurement and incorrect calibrations.
* Comes with a complete kit. IP67
waterproof and dustproof, floating on water. 1000 hours' continuous
operation powered by AAA batteries (with low power warning and auto
power off in 8 min if no operation).
* Warranty: 2 years for the meter, 6
months for the probe.
|
Meter's Technical Specs |
|
Conductivity |
Range |
0 to 200.0 μS; 0 to 2000 μS; 0 to 20.00 mS |
|
Resolution |
0.1/1 μS, 0.01 mS |
|
Accuracy |
±1% F.S |
|
Calibration Points |
Automatic 1 to 3 points |
|
Temperature Compensation |
Auto Temperature Compensation
0 to 50°C (32 to 122°F) |
|
TDS |
Range |
0.1 ppm to 10.00 ppt |
|
TDS Factor |
0.40 to 1.00 |
|
Salinity |
Range |
0 to 10.00 ppt |
|
Temp. |
Range |
0 to 50°C (32 to 122°F) |
|
Resolution |
0.1°C |
|
Accuracy |
±0.5°C |
|
LCD |
2-Color Backlit LCD, 180° Viewing Angle
Blue: Measurement Mode; Green: Calibration Mode; |
|
Reading Lock |
HOLD |
|
Stable Reading Indication |
Smiley Face icon |
|
Low-Battery Warning |
Battery icon flashing, reminder of battery replacement |
|
Self-Diagnosis |
Yes |
|
Heads-Up Function |
No |
|
Auto. Power-Off |
Yes, auto power-off in 8 minutes without operation |
|
Waterproof Rating |
IP67; Floatable |
|
Power |
DC3V, AAA batteries*4 |
|
Battery Life |
Continuous operation up to 1000 hours |
|
Dimensions& Weight |
Tester: (40*40*178) mm/ 133g; With case: (255*210*50) mm/
700g |
|
Electrode's Technical Specs |
|
Application |
Regular water solution testing, such as pools
and spas, hydroponics, tap water, drinking water, water
treatment, waste water treatment, aquaculture, etc. |
|
Type of Conductivity Sensor |
BPB (Brush-Resistant Platinum Black) |
|
Replaceable |
Yes |
|
Temperature sensor |
Yes |
|
Range |
0.1 μS to 20.00 mS |
|
Temperature Range |
0 to 50°C (32 to 122°F) |
|
|
|
|
|
 |

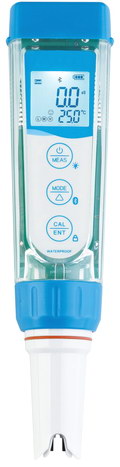

EC-60 (Bluetooth)
Smart Conductivity/TDS Tester
Features:
*The EC-60 Smart Pocket Conductivity/TDS
Tester powered by ZenTest Mobile App is the next-generation water
tester designed for providing seamless water test experience.
Professional tests for conductivity (EC), TDS (ppm), salinity (ppt),
and resistivity now become easier than ever.
*Just connect the tester to ZenTest App in your smartphone with
Bluetooth, the step-by-step smart guides will lead you to become a
water test professional with just a few taps.
Specifications:
|
Parameter |
Model |
EC-60 |
|
Conductivity (EC) |
Range |
0 to 20.0 mS/cm |
|
Accuracy |
±1% F.S |
|
Calibration |
1 to 3 points Auto. Calibration |
|
TDS |
Range |
0 ppm to 10.0 ppt (10,000 ppm) |
|
TDS Factor |
0.4 tp 1.0 |
|
Salinity |
Range |
0 to 10.0 ppt (10,000 ppm) |
|
Resistivity |
Range |
50Ω·cm to 20MΩ·cm |
|
Temperature |
Range |
0 to 50˚C (32 to 122˚F) |
|
Others |
Application |
General water solutions |
|
Temp. Compensation |
Automatic 0 to 50˚C (32 to 122˚F) |
|
IP Rating |
IP67 Waterproof and Dustproof |
|
Power Supply |
DC3V AAA batteries *4 |
|
Compatible Probes |
EC60-DE |
|
Alarm Function |
Yes (customizable in ZenTest App) |
|
Automatic Hold |
Yes (5 to 20 seconds, customizable in ZenTest App) |
|
Calibration Reminder |
Yes (by hours/days, customizable in ZenTest App) |
|
ZenTest App Functions (Bluetooth, iOS/Android) |
Four Display Modes |
Yes |
|
Cloud Data Management |
Yes |
|
Smart Self- Diagnosis |
Yes |
|
Step-by-step calibration guide |
Yes |
|
|
|
|
|
 |

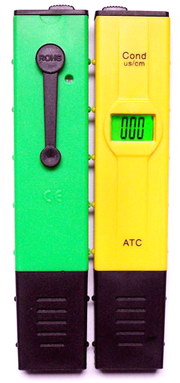

EC-6013
Pen type
conductivity
Meter
Features
Compact & pen-type desig
Easy to use and provides a quick
measurement
Wide range 0
~ 1999 μs/cm for
various applications
High accuracy of ±
2% full scale
Large and clear LCD display with
backlight
Built with Automatic
Temperature Compensation (ATC)
Specifications
Measuring range: 0 ~ 1999 μs/cm
Resolution: 1 μs/cm
Accuracy: ±2% Full Scale (F.S.)
LCD Display: 4-digits
Automatic Temperature Compensation: 0 ~
50 ˚C (32 ~ 122 ˚F)
Operating Temperature: 0 ~ 50 ˚C (32 ~
122 ˚F)
Power supply: 4 x 1.5 V (AG13) Button
Cell Batteries
Dimensions: approx. 151 (L) x 33 (W) x
20 (D) mm (5.94’ x 1.30’ x 0.79’ inch)
Weight: approx. 53g
|
|
|
|
|
|
Conductivity Meter
|
Model |
EC-310 |
EC-138
(EC-303) |

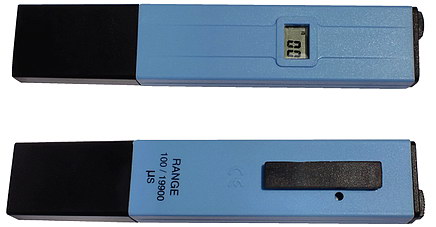

EC-1383C
(EC-304) |
|
Range |
0-999μS/cm |
10-1990μS/cm |
100-19900μS/cm |
|
Resolution |
1μS/cm |
10μS/cm |
100μS/cm |
|
Accuracy |
±2%F.S |
|
Calibration solution |
800μS/cm |
1413μS/cm |
12880μS/cm |
|
A T C |
5 to 50ºC(41 to 122ºF) |
|
Power |
4 x 1.5V
(AG13)
alkaline |
|
Dimensions |
150mm×29mm×15mm |
|
Weight |
51g |
|
|
|
|
|
 |
EC-311, EC-1388 conductivity
meters
|
Model |
EC-311 |
EC-1388 |
|
Measuring range |
10~9990μS/cm |
0~19.9 ms/cm |
|
Accuracy |
±2%F·S |
±2%F·S |
|
Resolution |
10μS/cm |
0.1 ms/cm |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13) |
4×1.5V(AG13) |
|
Dimensions |
150mm×29mm×15mm |
150mm×29mm×15mm |
|
Weight |
51g |
51g |
|
|
|
|
|
  |
EC-1382 Conductivity
Tester
Technical Specification:
1.Measuring range:0~1999μs/cm
2.Resolution: 1μs/cm
3.Accuracy: ±2%F.S
4.Operating Temperature: 0ºC- 50ºC
5.Power Supply: 2×3V(CR2032 Battery)
6.Display:4-digital LCD
7.Environment:Humidity:≤95%
8.Weight:46g
9.Dimension:150mm×27mm×20mm
EC-1383 Conductivity
Tester
|
Model |
EC-1383 |
|
Measuring range |
0~19.99ms/cm |
|
Accuracy |
±2%F.S |
|
Resolution |
0.01ms/cm |
|
Display |
4-digital LCD |
|
Environment |
Humidity:≤95% |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
2×3V(CR2032 Battery) |
|
Dimensions |
150×27×20(mm3) |
|
Weight |
46g |
|
|
EC-1382A, EC-1383A
EC-1382B, EC-1383B |

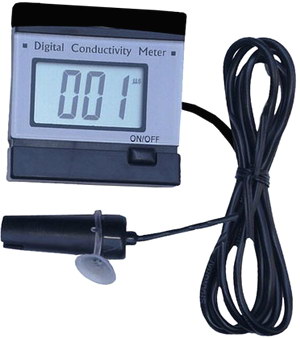

EC-1382A/B Conductivity
Tester
|
Model |
EC-1382A |
EC-1382B Monitor |
|
Measuring range |
0~1999us/cm |
|
Accuracy |
±2%F.S |
|
Resolution |
1us/cm |
|
Display |
4-digital LCD |
|
Environment |
Humidity:≤95% |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
165×26×26(mm3) |
60×55×23(mm3) |
|
Weight |
63g |
60g |
EC-1383A/B Conductivity
Tester
|
Model |
EC-1383A |
EC-1383B Monitor |
|
Measuring range |
0~19.99ms/cm |
|
Accuracy |
±2%F.S |
|
Resolution |
0.01ms/cm |
|
Display |
4-digital LCD |
|
Environment |
Humidity:≤95% |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
165×26×26(mm3) |
60×55×23(mm3) |
|
Weight |
63g |
60g |
|
Packing |
40PCS/CTN, CTN SIZE: 46*34*32CM,
G.W: 15KGS |
|
|
|
|
|
 |
Waterproof Conductivity and temperature
meter EC-1387
|
|
μs/cm |
Temp(°C) |
|
Measuring range |
0~19990μs/cm |
-50°C~70°C |
|
Resolution |
10μs/cm |
0.1°C |
|
Accuracy |
±2%F·S |
±1°C |
|
Display |
4-digital LCD |
|
Environment |
Humidity:≤95% |
|
Automatic Temperature
Compensation |
0°C~50°C |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
188mm×35mm×35mm |
|
Weight |
98g |
|
|
|
|
|
 |
EC-10L/10M/10H Pocket Conductivity
Tester
Specification:
|
Model |
ECscan10L |
ECscan10M |
ECscan10H |
|
Conductivity Range |
1.0~199.9uS/cm |
10~1999uS/cm |
0.1~19.99mS/cm |
|
Conductivity Accuracy |
±1% Full Scale |
|
Calibration Points |
1 point |
|
Calibration Solutions |
146.5uS/cm |
1413uS/cm |
12.88mS/cm |
|
Temperature Compensation |
0~50°C |
|
Temperature Coefficient |
2% per °C |
|
Cell Constant |
K=1 |
|
Normalization Temperature |
25°C |
|
Auto-Off |
8 minutes after last key pressed |
|
Sensor Type |
Platinum (Order Code: ECscan-C1-100K) |
|
Connector |
6-pin |
|
Operating Temperature |
0~60°C, 32~140°F |
|
Power Requirements |
3×1.5V "G13A" batteries |
|
Battery Life |
Approximately 150 hours |
|
Dimensions |
185(L)×40(Dia.)mm |
|
Weight |
100 grams |
|
|
|
|
|
 |
EC-20 Pocket Conductivity/°C/°F
Tester
Specification:
|
Model |
EC-20 |
|
Conductivity Range |
0~20mS/cm |
|
Conductivity Accuracy |
±1% Full Scale |
|
Resolution |
0.01, 0.1, 1 |
|
Calibration Points |
1, 2 or 3 points |
|
Calibration Solutions |
10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm |
|
Temperature Range |
0~60°C, 32~140°F |
|
Temperature Accuracy |
±1°C |
|
Temperature Calibration |
Measuring value ±10°C |
|
Temperature Compensation |
0~60°C, 32~140°F, Automatic |
|
Temperature Coefficient |
2% per °C |
|
Cell Constant |
K=1 |
|
Normalization Temperature |
25°C |
|
Auto-Off |
Manual or Automatic (8 minutes after last key pressed) |
|
Hold Function |
Manual or Automatic endpoint |
|
Reset Function |
Yes |
|
Sensor Type |
Platinum (Order Code: ECscan-C1-10K) |
|
Connector |
6-pin |
|
Operating Temperature |
0~60°C, 32~140°F |
|
Power Requirements |
2×1.5V "AAA" batteries |
|
Battery Life |
Approximately 150 hours |
|
Dimensions |
185(L)×40(Dia.)mm |
|
Weight |
100 grams |
|
|
|
|
|
|
EC-30 Pocket Conductivity/TDS/°C/°F Tester
Specification:
|
Model |
EC-30 |
|
Conductivity Range |
0~20mS/cm |
|
Conductivity Accuracy |
±1% Full Scale |
|
Calibration Points |
1, 2 or 3 points |
|
Calibration Solutions |
10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm |
|
TDS Range |
0~10ppt (Max. 20ppt, Depending on factor setting) |
|
TDS Accuracy |
±1% Full Scale |
|
TDS Factor |
0.1~1.0 (Default 0.5) |
|
Temperature Range |
0~60°C, 32~140°F |
|
Temperature Accuracy |
±1°C |
|
Temperature Calibration |
Measuring value ±10°C |
|
Temperature Compensation |
0~60°C, 32~140°F, Automatic |
|
Temperature Coefficient |
2% per °C |
|
Cell Constant |
K=1 |
|
Normalization Temperature |
25°C |
|
Auto-Off |
Manual or Automatic (8 minutes after last key pressed) |
|
Hold Function |
Manual or Automatic endpoint |
|
Reset Function |
Yes |
|
Sensor Type |
Platinum (Order Code: ECscan-C1-10K) |
|
Connector |
6-pin |
|
Operating Temperature |
0~60°C, 32~140°F |
|
Power Requirements |
2×1.5V "AAA" batteries |
|
Battery Life |
Approximately 150 hours |
|
Dimensions |
185(L)×40(Dia.)mm |
|
Weight |
100 grams |
|
|
|
|
|
|
EC-40 Pocket
Conductivity/TDS/Salinity/°C/°F Tester
Specification:
|
Model |
EC-40 |
|
Conductivity Range |
0~20mS/cm |
|
Conductivity Accuracy |
±1% Full Scale |
|
Calibration Points |
1, 2 or 3 points |
|
Calibration Solutions |
10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm |
|
TDS Range |
0~10ppt (Max. 20ppt, Depending on factor setting) |
|
TDS Accuracy |
±1% Full Scale |
|
TDS Factor |
0.1~1.0 (Default 0.5) |
|
Salinity Range |
0~10ppt |
|
Salinity Accuracy |
±1% Full Scale |
|
Temperature Range |
0~60°C, 32~140°F |
|
Temperature Accuracy |
±1°C |
|
Temperature Calibration |
Measuring value ±10°C |
|
Temperature Compensation |
0~60°C, 32~140°F, Automatic |
|
Temperature Coefficient |
2% per °C |
|
Cell Constant |
K=1 |
|
Normalization Temperature |
25°C |
|
Auto-Off |
Manual or Automatic (8 minutes after last key pressed) |
|
Hold Function |
Manual or Automatic endpoint |
|
Reset Function |
Yes |
|
Sensor Type |
Platinum (Order Code: ECscan-C1-10K) |
|
Connector |
6-pin |
|
Operating Temperature |
0~60°C, 32~140°F |
|
Power Requirements |
2×1.5V "AAA" batteries |
|
Battery Life |
Approximately 150 hours |
|
Dimensions |
185(L)×40(Dia.)mm |
|
Weight |
100 grams |
|
|
|
|
|
 |

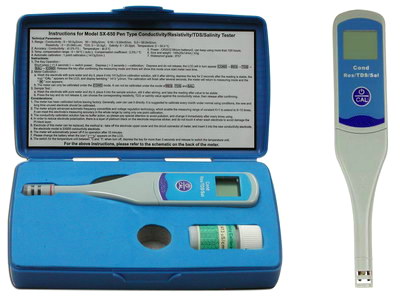

Model: COM-650
SR-650 meter adopts advanced
automatic frequency conversion and booster technology to keep
the constant of electrode in standard solution of different
concentration to be same. It can meet measuring accuracy in the
whole range of this electrode by only using one-point
calibration function.
Features:
-
The
smallest and thinnest dimension: 148*29*14mm.
-
The
most convenient operation: Single button operation.
-
The
most efficient function: Automatic calibration, automatic
indication and electrode changing indication etc.
-
The
most reliable performance: easy to replace a new electrode,
dustproof and waterproof ,meter meets IP54 standards.
-
The
most humanization consideration design: large LCD with two array
display. plastic carrying case includes meter calibration buffer and
electrode soaking liquor.
-
The
highest performance and the lowest cost.
Specifications:
|
Model |
COM-650 |
|
Measuring Parameter |
Conductivity/TDS/Resistivity/Salinity/ºC |
|
Range |
Conductivity:
0 to 50.0μ S/cm |
|
50 to 500μ S/cm |
|
0.5 to 5.00 mS/cm |
|
5.0 to 50.0 mS/cm |
|
Resestivity:
0 to 20 MΩ-cm |
|
TDS:
0 to 35.0 g/L |
|
Salinity:
0 to25.0 ppt |
|
Temp:
0 to 50ºC
|
|
Accuracy |
Cond: ±1.0% full scale |
|
Temp: ± 0.5ºC |
|
ATC Range |
0 to 50ºC |
|
Calibration |
One-Point |
|
Buffer Solution |
1413μ S/cm |
|
Electrode |
No |
|
Soaking Solution |
|
Power |
Two (2) CR2032 3V Lithium Ion Batteries |
|
IP Standard |
Waterproof and dustproof meets IP57 standard |
|
Auto power off |
After 10 minutes (override available) |
|
Size & Weight |
Meter: 148×29×14mm, weight: 43g; Carrying case:
168×96×28mm, weight:178g |
|
|
|

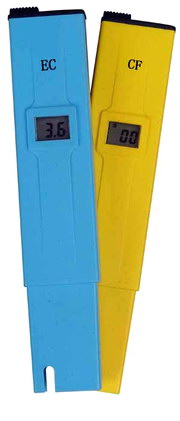

EC Meter CF Meter
|
Model |
EC-1371 |
EC-1361 |
|
Range |
0-19.9EC |
100CF |
|
Resolution |
0.1EC |
1CF |
|
Accuracy |
±2% Full Scale |
|
Calibration solution
|
6.44EC |
64.4CF |
|
A T C |
5 to 50ºC (41 to 122ºF) |
|
Power |
4 x 1.5V alkaline |
|
Automatic Shut-off |
Approx:8 minutes |
|
Operating Conditions
|
0 to 50ºC (32 to 122ºF); RH max 95% |
|
Dimensions |
152×29×15mm |
|
Weight |
53g |
|
|
  |
EC Meter CF Meter
|
Model |
EC-1372 |
EC-1362 |
|
Range |
0-19.9EC |
100CF |
|
Resolution |
0.01EC |
1CF |
|
Accuracy |
±2% Full
Scale |
|
A T C |
5 to 50ºC
(41 to 122ºF) |
|
Power |
2×3V(CR2032 Battery) |
|
Operating
Conditions |
0 to 50ºC
(32 to 122ºF); RH max 95% |
|
Dimensions |
150×27×20(mm3) |
|
Weight |
46g |
|
|
 |

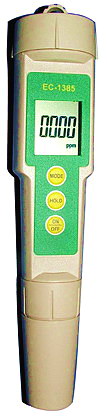

EC-1385
EC/CF/TDS Waterproof Conductivity
Meter
1. Large and easy-to-read LCD
2. Waterproof design to withstand wet environment
3. Measures 3 parameters including EC, CF, TDS using one
electrode
4. Hold Function-Saves measurements for convenient reading and
recording
|
Model |
EC -1385 EC/CF/TDS |
|
Measuring range |
EC |
0.00~19.99EC |
|
CF |
0.0~199CF |
|
TDS |
10~19990ppm |
|
Resolution |
EC |
0.01EC |
|
CF |
0.1CF |
|
TDS |
10ppm |
|
Accuracy |
±2%F. S |
|
Operating Temperature |
0ºC~50ºC |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
185×38×38(mm3) |
|
|
 |

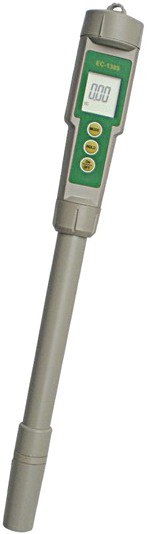

EC-1385L
EC/CF/TDS Waterproof Conductivity
Meter
1. Large and easy-to-read LCD
2. Waterproof design to withstand wet environment
3. Measures 3 parameters including EC, CF, TDS using one
electrode
4. Hold Function-Saves measurements for convenient reading and
recording
|
Model |
EC -1385 EC/CF/TDS |
|
Measuring range |
EC |
0.00~19.99EC |
|
CF |
0.0~199CF |
|
TDS |
10~19990ppm |
|
Resolution |
EC |
0.01EC |
|
CF |
0.1CF |
|
TDS |
10ppm |
|
Accuracy |
±2%F. S |
|
Operating Temperature |
0ºC~50ºC |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
185×38×38(mm3) |
|
|
|
|
|
 |
TDS/Conductivity/Temp. Combo METER
TDS-801
Features
–Measures total dissolved solids
(TDS, mg/L), electrical conductivity (EC,µS/cm), temperature
(°C) and Fahrenheit (°F) of water
–Pen type, portable and handheld
–With backlight design is
convenient for using in darkness
–Auto-hold function: avoid to
misreading and mis-recording
–Auto-off function: shuts off
automatically after 60 seconds of non-use to conserve batteries
–Display: large and easy-to-read LCD
screen
–Factory calibrated: pls
recalibrated with professional advices
–LCD display: 34mm x 17mm
–Power source: CR2032 Battery, DC3V
–Show temperature 0~99°C & 32~212°F
–Dimension: 161.9 x 29.4 x 15.9 mm

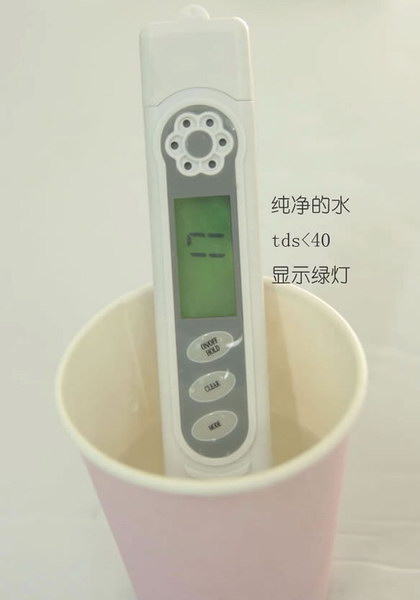

–Backlight: green, TDS≤40ppm, direct
drinking water
red,
TDS﹥40ppm, non-drinking water
–Battery life: 1000 hours continuous
testin
White color is also available.
|
|
|
|
|
What makes this TDS specially from other
TDS meter, please focus on Orange words right hand. |

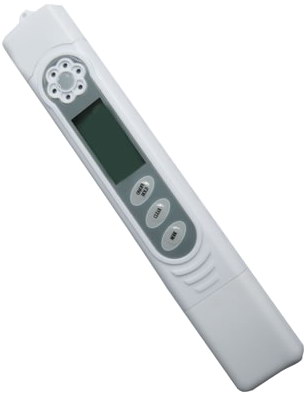

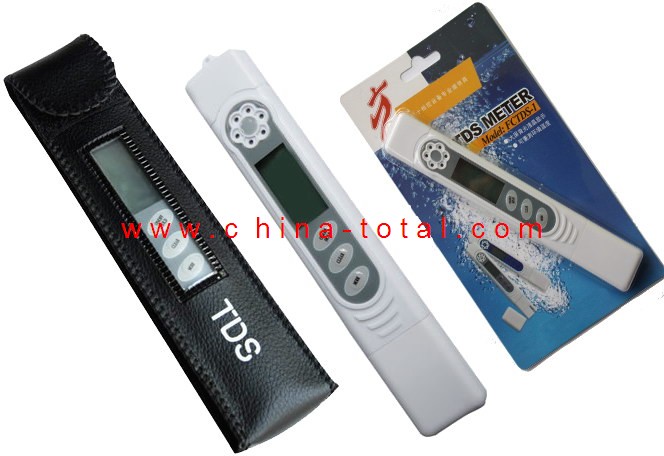

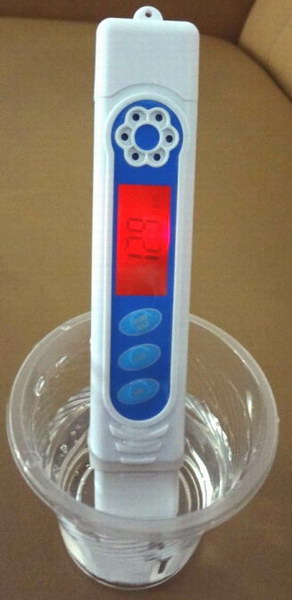

TDS/Conductivity/Temp. Combo METER TDS-800
SPECIFICATIONS:
Test range:
TDS: 0 ~ 4999 ppm; Conductivity (EC): 0
~ 9999
μS/cm
Resolution: <1000,1 ppm, ≥ 1000,10 ppm; automatic transmission.
Test accuracy: ± 2%
Temperature range: 0 ~ 99°C (degrees Fahrenheit for 32 ~ 212 °F), the accuracy of ± 0.1°C
●
Press
mode button to select different function
●
Show
TDS data 0-4999 ppm at accuracy ±2%
●
Show temperature 0-99°C
at accuracy ±3°C
●
Show EC
data 0-9999
µS
at accuracy ±2%
Specialties:
1. switch button (ON.OFF / HOLD)
function:
Boot: In the shutdown mode, pressed the button, you can boot.
Automatic shutdown: 60S-free operation after shutdown automatically.
Manual shutdown: continue to press ON.OFF / HOLD button shutdown 3S
Manually lock: the larger the value of the TDS, or changes in water
temperature automatically lock when reading difficult to achieve,
rather than pressing the button can be locked manually reading. Lock
symbol at the corresponding physical unit, said flashing.
2. function select button (MODE): Boot to test the water quality of
the default display value of total dissolved solids ppm; by one of
the function keys, indicating conductivity of water quality testing
μs / cm value, and then a show at the temperature°C, and then a show
Fahrenheit ° F; and then repeat the cycle showed that the
above-mentioned content.
3. CLEAR key features: Clear. Lock to clear readings. Re-testing.
Automatic Test and lock.
4. reading: straight into the water can be cleared automatically
after the reading, according to different water quality shows that
the corresponding conductivity or TDS value of μs / cm value.
And
then automatically lock, lock status reading, and its corresponding
symbol flashing unit.
5. calibration functions: calibration in accordance with national
standards. And the use of appropriate reference to international
practice. Direct drinking water with reference to the international
epidemic alert TDS = 40 for the use of the line.
Less than 40
green
backlight display for qualified drinking water, more than 40
non-purified water drinking straight.
Red backlight dispaly the
water is not qualified.
6. backlight function: the use of low-power backlight for night-time
dark and light areas to test the use of. At the same time, the scope
display also serves as the water quality.
7. manual adjustments: with manual adjustment for factory
calibration and correction.
8. big-screen display: STN thin high-twisted through the entire LCD
screen shows the number of four units and the corresponding physical
quantities. TDS reading of 0 --- 9999 scope, identifier; overflow
shows Err.
9. supply voltage: CR2032 battery, DC3V; 350mAh.
10. The use of environment: 0 ~ 50°C; the maximum relative humidity
95%.
11. packing: 1pcs/pvc bag, 30pcs/inner
box, 240pcs/carton. Meas.: 54.6x37x30cm G.W: 15.6kgs, N.W.: 10.56 |
|
|
|
|
Features:
-Built-in
microprocessor chip,with the intelligent functions of automatic
calibration, automatic temperature compensation, data storage,
function setting and automatic self-diagnose, auto power off and low
voltage display etc.
-Adopts
digital filter and step slipping technology to intelligently improve
meter's response speed
and result accuracy.
" "will
appear when reading to be stable.
-Automatically
recognize 13 kinds of pH standard buffer solution. User can choose
anyone from three series of buffer solutions:
Europe & U.S.A.
series,
NIST series, China series.
-Purified
water and ammonia added purified water pH measuring mode can be set
up, especially suitable for the fields of electric power and
petrochemical etc.
-Meter's
circuit board adopts SMT film-covering technology to improve meter's
production reliability.
-
Meter has the back light LCD display monitor.
-Dustproof
and waterproof meter meets IP57 rating.
|

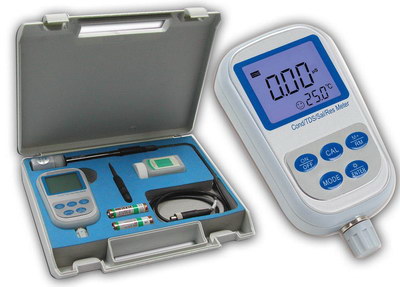

Model SR713 Portable
Conductivity/TDS/Sal./Res./Temp.
5-in-1 Meter
Technical Parameters:
|
|
Conductivity: |
|
|
(0.00 to 19.99)μS/cm (20.0 to
199.9)μS/cm |
|
Measuring range |
(200 to 1999)μS/cm (2.00 to
19.99) mS/cm |
|
|
(20.0 to 199.9) mS/cm |
|
|
TDS: (0 to 100) g/L |
|
|
Salinity : (0 to 100) ppt |
|
|
Resistivity:(0 to 100) MΩ*cm |
|
Resolution |
0.01/0.1/1μS/cm 0.01/0.1 mS/cm |
|
Accuracy |
Meter:±1.0% FS, connect meter
with electrode:±1.5% FS |
|
Temp. compensation range |
(0 to 50) ºC (automatic) |
|
Electrode constant |
0.1 / 1 / 10 cm-1 |
|
Benchmark temperature |
25ºC, 20ºCand 18ºC |
|
Data storage |
100 groups |
|
Storage content |
Series number, measuring value,
measuring unit and temperature, |
|
Power |
Two AA batteries (1.5V x2) |
|
Size and weight |
Meter: (65×120×31)mm/180g;
Carrying case:(255 x 210x 50)mm/790g |
|
Quality and safety certification |
ISO9001:2000, CE and CMC |
|
IP rating |
IP57 Dustproof and waterproof |
|
|
|
|
|
|
Prominent Features
1. Double parameters meter, equipped with
conductivity electrode, DO electrode, calibration solution and
special carrying case, easy to use.
2. Built-in microprocessor chip. Its
features up to functions of automatic calibration, automatic
temperature compensation, data storage, function stting, auto power
off and low voltage indication etc.
3. Adopts digital filter and step slipping
technology to intelligently improve meter's response speed and
result accuracy. ""
will appear when reading to be stable.
4. Adopts advanced automatic frequency
convertible and voltage regulation technology to enlarge the
measuring range 10 times for conductivity electrode which constant
K=1. It can meet measuring accuracy requirement for range within 0
to 200mS/cm by using only one-point calibration. It is the
particular one–point calibration function for this meter.
5. It automatically recognizes 8 kinds of
conductivity standard solution. User can choose anyone from two
series of standard solutions: Europe & USA series and China series.
6. Automatically select conductivity
measuring range, the meter will do non-linearity temperature
compensation test for purified and high purified water less than 10
uS/cm, which greatly improve the measuring accuracy. It is
especially suitable for use in fields of electric power,
microelectronics and medicine.
7. Equips new type of DO electrode with
temperature and salinity sensor which has function of automatic
temperature compensation and automatic salinity compensation as well
as manual barometric pressure compensation inside meter, easy to
use, accurate to measure.
8. Polarogram type DO electrode has
special electrode calibration cap. Only needs 3 to 5 minutes for
electrode polarization. Electrode adopts combination diaphragm cap
which very convenient to use. Each DO electrode equips with three
spare diaphragms caps.
9. Meter's circuit board adopts SMT
film-covering technology to
improve meter's production reliability.
10. Meter has the blue backlight LCD
display.
11. Dustproof and waterproof meter meets
IP57 rating. |

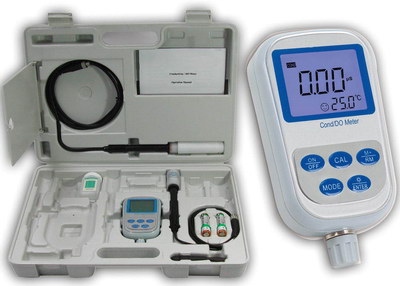

Model:
SR726 Conductivity/TDS/Sal./Res./DO/Temp. 6-in-1 Meter
Technical
parameter
1. Conductivity:
|
Measuring range |
Conductivity:
(0.00 to 19.99)μS/cm
(20.0 to 199.9)μS/cm
(200 to 1999)μS/cm
(2.00 to 19.99) mS/cm
(20.0 to 199.9) mS/cm
TDS:
(0 to
100) g/L
Salinity : (0 to
100) ppt
Resistivity:(0 to
100) MΩ*cm |
|
Resolution |
0.01/0.1/1μS/cm
0.01/0.1 mS/cm |
|
Accuracy |
Meter:±1.0% FS,
connect meter with electrode:±1.5% FS |
|
Temp. compensation
range |
(0 to 50)
ºC
(automatic) |
|
Electrode constant |
0.1 / 1 / 10 cm-1 |
|
Benchmark
temperature |
25ºC,
20ºCand
18ºC |
2. Dissolved
Oxygen:
|
Measuring range |
(0 to 40.00) mg/L(ppm)
(0 to 200.0) % |
|
Resolution |
0.1/0.01 mg/L(ppm)
1/0.1% |
|
Accuracy |
Meter:±0.10 mg/L,
connect meter with electrode:±0.40 mg/L |
|
Temp. Compensation
range |
(0 to 45)
ºC
(automatic) |
|
Salinity
compensation range |
(0 to 45) ppt
(automatic) |
|
Barometric
pressure compensation range |
(66 to 200) kPa
(manual) |
|
Automatic
calibration |
Air saturated by
water; water saturated by air |
|
Electrode type |
Polarogram type |
3.
Other Technical Parameters:
|
Data storage |
200 groups |
|
Storage content |
Series number,
measuring value measuring unit and temperature, |
|
Power |
Two AA batteries
(1.5V x2) |
|
Size and weight |
(360 x 270x 76)
mm/1.7kg |
|
Quality and safety
certification |
ISO9001:2000, CE
and CMC |
|
IP rating |
IP57 Dustproof and
waterproof |
Package includes
|
1. SR726 portable meter; |
4. Conductivity calibration solution
(1413μS/cm/50ml) |
|
2. 2301-S plastic conductivity electrode (ATC, K=1) |
5. Carrying case |
|
3. DO500 DO electrode
3pcs of membrane caps inner solution for DO probe (30ml)
|
|
|
|
|
|
|
|
Order Code |
Accessories |
|
SR520A-S |
CON-1 Conductivity Electrode |
|
TP-10K Temperature Probe |
|
Conductivity Standard Solutions (84µS, 1413µS, 12.88mS) |
|
AA Batteries |
|
Carrying Case |
|
SR520A-DL |
CON-1 Conductivity Electrode |
|
CON-0.1 Conductivity Electrode |
|
Conductivity Standard Solutions (84µS, 1413µS, 12.88mS) |
|
AA Batteries |
|
Carrying Case |
|
SR520A-DH |
CON-1 Conductivity Electrode |
|
CON-10 Conductivity Electrode |
|
Conductivity Standard Solutions (84µS, 1413µS, 12.88mS) |
|
AA Batteries |
|
Carrying Case |
Applications:
• Water quality monitoring
• Geological and ecological research
• Cooling towers
• Printing industry
• Swimming pools and Spas
• Agriculture and aquaculture
• Aquariums
• Education applications |

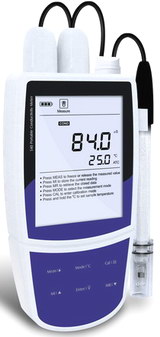

SR520A Portable Conductivity
Meter
Features:
• Economy portable conductivity meter is equipped with a large
backlit LCD display.
• 1 to 3 points push-button calibration with automatic
calibration solution recognition.
• Selectable cell constant (0.1/1/10) and temperature
coefficient.
• Automatic Temperature Compensation provides accurate reading
over the entire range.
• Auto-Hold function freezes stable measured value for easy
viewing and recording.
• Selectable temperature unit (°C or °F) meets different
application requirements.
• Help message as a operational guide that helps you quickly
begin using the meter.
• System menu allows setting the 7 parameters, including the
number of calibration points,
temperature unit, hold function, etc.
• Reset feature automatically resumes all parameters back to
factory default settings.
• Expanded memory stores and recalls up to 50 readings.
• Stored data can be transferred into computer by USB
communication interface.
• Multi-mode power scheme (battery, power adapter, computer's
USB port) ensures that use
the meter smoothly.
Specifications:
|
Conductivity |
|
|
Range |
0~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
|
Accuracy |
±0.5% F.S |
|
Resolution |
0.01, 0.1, 1 |
|
Calibration Points |
1 to 3 points |
|
Calibration Solutions |
10µS/cm, 84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm |
|
Temperature |
|
|
Range |
0~105°C, 32~221°F |
|
Accuracy |
±0.5°C, ±0.9°F |
|
Resolution |
0.1°C |
|
Calibration Points |
1 point |
|
Calibration Range |
Measured value ±10°C |
|
Others |
|
|
Temperature Compensation |
0~100°C, 32~212°F, Manual or Automatic |
|
Temperature Coefficient |
0.0~10.0%/°C |
|
Cell Constant |
K=0.1, 1, 10 or User-defined |
|
Normalization Temperature |
25°C |
|
Hold Function |
Manual or Automatic |
|
Power Off |
Manual or Automatic (10 minutes after last key pressed) |
|
Reset Function |
Yes |
|
Connector |
6-pin Mini Plug |
|
Memory |
Stores up to 50 data sets |
|
Output |
USB Communication Interface |
|
Power Requirements |
3×1.5V "AA" Batteries |
|
Battery Life |
Approximately 150 hours (Turn off the backlit) |
|
Dimensions |
170(L)×85(W)×30(H)mm |
|
Weight |
300g |
|
|
|
|
|
Order code and Accessories:
|
Order Code |
Accessories |
|
SR530/531-S |
Suitable for measurement of routine liquids. CON-1
Conductivity Cell, 146.5uS/cm, 1413uS/cm, 12.88mS/cm
Conductivity Calibration Solution, Temperature probe,
Batteries and Carrying Case |
|
SR530/531-DH |
Suitable for measurement of high concentrations and
routine liquids. CON-1 and CON-10 Conductivity Cell,
146.5uS/cm, 1413uS/cm, 12.88mS/cm Conductivity
Calibration Solution, Temperature probe, Batteries and
Carrying Case |
|
SR540-S |
Suitable for measurement of routine liquids. CON-1
Conductivity Cell, 1413uS/cm Conductivity Calibration
Solution, Temperature probe, Battery and Carrying Case |
|
SR540-DL |
Suitable for measurement of low concentrations and
routine liquids. CON-1 and CON-0.1 Conductivity Cell,
1413uS/cm Conductivity Calibration Solution, Temperature
probe, Battery and Carrying Case |
|
SR540-DH |
Suitable for measurement of high concentrations and
routine liquids. CON-1 and CON-10 Conductivity Cell,
1413uS/cm Conductivity Calibration Solution, Temperature
probe, Battery and Carrying Case |
|

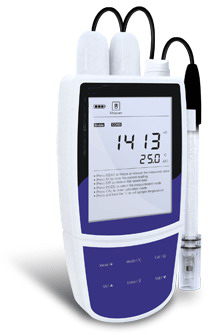

SR530/531/540 Portable Conductivity/TDS/Salinity/Resistivity/°C/°F
Meter
Specification:
|
Model |
SR530 |
SR531 |
SR540 |
|
TDS Range |
0~10ppt (Max. 20ppt, Depending on factor setting) |
-- |
0~10ppt (Max. 20ppt) |
|
TDS Accuracy |
±1% Full Scale |
-- |
±1% Full Scale |
|
TDS Factor |
0.1~1.0 (Default 0.5) |
-- |
0.1~1.0 (Default 0.5) |
|
Salinity Range |
-- |
0~10ppt (Max. 80ppt) |
0~10ppt (Max. 80ppt) |
|
Salinity Accuracy |
-- |
±1% Full Scale |
±1% Full Scale |
|
Salinity Measurement Modes |
-- |
Practical Salinity (PSU) or Seawater Measurement
Standard (ppt) |
Practical Salinity (PSU) or Seawater Measurement
Standard (ppt) |
|
Resistivtiy Range |
-- |
-- |
0~100MΩ |
|
Resistivtiy Accuracy |
-- |
-- |
±1% Full Scale |
|
Resolution |
-- |
-- |
0.001, 0.01, 0.1, 1, Automatic |
|
Conductivity Range |
0~20mS/cm (Max.200mS/cm) |
|
Conductivity Accuracy |
±0.5% Full Scale |
|
Calibration Points |
Up to 5 points |
|
Calibration Solutions |
10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm |
|
Temperature Range |
0~105°C, 32~221°F |
|
Temperature Accuracy |
±0.5°C, ±0.9°F |
|
Temperature Calibration |
Manual |
|
Temperature Compensation |
0~100°C, 32~212°F, Automatic or Manual |
|
Temperature Coefficient |
0.0~10.0% per °C |
|
Compensation Modes |
Linear or Pure Water |
|
Cell Constant |
K=0.1, 1, 10, Selectable |
|
Normalization Temperature |
20°C or 25°C |
|
Auto-Off |
Manual or Automatic (10, 20 or 30 minutes after last key
pressed) |
|
Hold Function |
Manual or Automatic endpoint |
|
Stability Conditions |
Low or High, Selectable |
|
Calibration due reminder |
1 to 30 days or Off |
|
Reset Function |
Yes |
|
Sensor Type |
Platinum (Order Code: CON-0.1, CON-1, CON-10) |
|
Connector |
6-pin |
|
Memory |
500 data sets with Date/Time stamping |
|
Output |
USB Communication Interface |
|
Power Requirements |
3×1.5V "AA" batteries |
|
Battery Life |
Approximately 150 hours |
|
Dimensions |
170(L)×85(W)×30(H)mm |
|
Weight |
300 grams |
|
|
|
|
|
Standard configuration:
|
1. Main instrument |
1 |
|
2. AA Salinity Battery |
4 |
|
3. Platinum-black Electrode |
1 |
|
4. Temperature Sensor |
1 |
|
5. Suitcase |
1 |
|
6. Data Collecting software |
1 |
|
7. RS-232 Communication Line |
1 |
|
8. TP-16 Print Connection Line |
1 |
Optional accessories:
1. DJS-1 bright electrode
2. DJS-10 Conductivity electrode
3. DJS-0.1 Platinum electrode
4. DJS-0.01 Titanium alloy electrode
Overall dimension & weight:
Shipping package dimension:
355-335-135mm
Gross weight: 3kg Net weight: 2kg |
SR350 Portable Conductometer
Conductivity/TDS/Salinity /Temp Meter
Characteristics:
1. It can be used to measure conductivity, TDS, salinity and
temperature.
2. Automatic temperature compensation, automatic calibration,
automatic range changing and electricity cutting off protection
3. Measurement results can be stored, deleted, searched and
printed. It can store at most 250 sets of measurement data.
4. With calibration function, electrode constant and TDS
transfer coefficient can be calibrated.
5. With RS-232 interface, Model TP-16 printer can be connected.
6. D.C. power supply: 4 pieces of No.5 batteries
Specifications:
1. Measurement range:
Conductivity: 0.00-1.999×105 uS/cm;
TDS: 0.00-19990 mg/L be divided into five ranges;
Salinity: (0.0-8.00)%
Temperature: 0.0-40.0ºC
2. Electrode constant: cm-1: 0.01. 0.1, 1.0.10.0
3. Accuracy of the electronic unit:
Conductivity: ±1.0%(FS) ± 1bit
Salinity: ±0.2% ± 1bit
Temperature: ±0.3ºC ± 1bit
4. Stability of the electronic unit: ±0.7%(FS) ± 1bit/3h |
|
|
|
|
Standard configuration:
|
1. Main instrument |
1 |
|
2. AA Salinity Battery |
4 |
|
3. DJS-1C Platinum-black Electrode |
1 |
Optional accessories:
1. DJS-1 bright electrode
2. DJS-10 Conductivity electrode
3. DJS-0.1 Platinum electrode
4. DJS-0.01 Titanium alloy electrode
5. Suitcase
Overall dimension & weight:
Shipping package dimension:
255-255-195mm
Gross weight: 1.5kg
Net weight: 0.5kg |
SR303A Portable
Conductivity Meter
Characteristics:
1. 31/2LCD displaying with blue back-light
2. Four measurement ranges and automatic range change.
3. Manual temperature compensation
4. Automatic switching measuring frequency, measuring ultrapure
water with using K=0.01cm-1 titanium alloy electrode and sealing
measuring cell
5. D.C. power supply: one piece of 9V battery (the life of
battery is greater than 100h for continuous duty.)
6. Easy to carry
Specifications:
1. Measurement range: 0-1´105 mS/cm
There is the best correspondence point between conductivity
measuring range and conduction cell constant
|
conduction cell constant(cm-1) |
0.01 |
0.1 |
1 |
10 |
|
Measuring range (uS/cm) |
0~2 |
0.2~20 |
2~1×104 |
1×104~1×105 |
2. Electrode constant, cm-1: 0.01. 0.1, 1.0.10.0
3. Accuracy of the electric unit: ±1.0%(FS) ±1 bit
4. Stability of the electronic unit: ±0.66%(FS) ±1bit/3h
5. Accuracy ±1.5%(FS) ±1 bit
6. The range of temperature compensation: 15-35ºC, basic
temperature: 25ºC
|
|
|
|
|
 |
Pen Type Salinity Meter
Features:
Automatic calibration, Automatic recognization of standard solutions,
Auto power-off, low voltage alarm.
Automatic temperature compensation, Automatic ranging.
IP57 dustproof and waterproof.
|
Model |
PH-011 |
EC-021 |
TDS-031 |
ORP-041 |
SAL-051 |
|
Description |
pH Meter |
Conductivity
Tester |
TDS Meter |
ORP Meter |
Salinity Meter |
|
Range |
0~14.0pH |
0~100.0μS/cm
0~1000μS/cm
0~10.00mS/cm |
0~50.0 ppm
0~500 ppm
0~5.00 ppt |
±1000mV |
0~5.00ppt |
|
Resolution |
0.1pH |
0.1/1μS/cm
0.01mS/cm |
0.1/1ppm
0.01ppt |
1mV |
0.01ppt |
|
Accuracy |
±0.2pH |
±1%FS |
±1%FS |
±0.5%FS |
±1%FS |
|
Tem Compensation |
No |
Yes |
Yes |
No |
Yes |
|
Calibration solution |
Yes |
Yes |
Yes |
No |
Yes |
|
Power |
AAA
batteries*2, 1.5V*2 |
|
Dimension |
39*25*176 mm |
|
|
|
|
|
 |
SAL-052
Saltwater Salinity Tester
Features:
* Dip and test - the easiest way to
get reliable saltwater salinity readings (range: 0-100 ppt;
accuracy:1.5% of full range)
* Unique platinum-coated sensor with automatic temperature
compensation (32 to 140˚F) ensures accuracy and precision
* Standardized against the normal standard seawater (s = 35),
accurately calibrated in conductivity ratio (K15) and in
salinity
* Designed for saltwater aquariums, fish farms, and
environmental monitoring
* Single-button easy operation. Calibration is only needed once
a month
Specifications:
|
Model |
SAL-052 |
|
Range |
0~100.0ppt |
|
Resolution |
0.01/ 0.1ppt |
|
Accuracy |
±1.5%FS |
|
Tem Compensation |
Yes |
|
Calibration solution |
Yes |
|
Power |
AAA
batteries*2, 1.5V*2 |
|
Dimension |
39*25*176 mm |
|
Weight |
87g |
|
|
|
|
|
 |
SAL-053 High Concentration Salinity
Tester
Features:
* Automatic calibration,
Auto power-off, low voltage alarm
*
IP57 dustproof and waterproof.
Specifications:
|
Model |
SAL-053 |
|
Range |
0~20.0% |
|
Resolution |
0.1% |
|
Accuracy |
±2%FS |
|
Tem Compensation |
Yes |
|
Calibration solution |
Yes |
|
Power |
AAA
batteries*2, 1.5V*2 |
|
Dimension |
39*25*176 mm |
|
Weight |
87g |
|
|
|
|
|
Features:
Standard platinum sensor provides fast and reliable
measurements.
Up to 3 points push-button calibration allows user to uses
customized calibration solutions.
Manual temperature calibration provides accurate measured value.
Automatic Temperature Compensation ensures highly accurate
measurements over the entire range.
Hold function freezes the current displayed value for easy
viewing
and recording.
Setup menu lets user customize calibration points, temperature
unit,
automatic or manual hold function to meet personal preferences.
Reset feature allows user to resume all of the default settings.
Auto-power off feature helps you effectively conserve battery
life.
Replaceable electrode reduces maintenance and replacement cost.
Waterproof feature to ensures complete protection in harsh
environments. |
SAL-10, SAL-20 Pocket
Salinity/Conductivity Tester
Specification:
|
Model |
SAL-10 |
SAL-20 |
|
Salinity Range |
0.00~10.00ppt |
0.00~80.00ppt |
|
Salinity Accuracy |
±1% Full Scale |
|
Conductivity Range |
0~20mS/cm |
0~200mS/cm |
|
Conductivity Accuracy |
±1% Full Scale |
|
Calibration Points |
1, 2 or 3 points |
|
Calibration Solutions |
10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm |
84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm |
|
Temperature Range |
0~60°C, 32~140°F |
|
Temperature Accuracy |
±1°C |
|
Temperature Calibration |
Measuring value ±10°C |
|
Temperature Compensation |
0~60°C, 32~140°F, Automatic |
|
Temperature Coefficient |
2% per °C |
|
Normalization Temperature |
25°C |
|
Auto-Off |
Manual or Automatic (8 minutes after last key pressed) |
|
Hold Function |
Manual or Automatic endpoint |
|
Reset Function |
Yes |
|
Sensor Type |
K=1, Platinum (Order Code: ECscan-C1-10K) |
K=10, Platinum (Order Code: ECscan-C10-10K) |
|
Connector |
6-pin |
|
Operating Temperature |
0~60°C, 32~140°F |
|
Power Requirements |
2×1.5V "AAA" batteries |
|
Battery Life |
Approximately 150 hours |
|
Dimensions |
185(L)×40(Dia.)mm |
|
Weight |
100 grams |
|
|
|
|
|
- Pen type digital salt meter,
all in one, salt electrode included, easy to use.
- Build in temperature sensor,
ATC(auto temperature compensation).
- Easy to change the salt
electrode.
|
HST3080 Pen-type Salt Meter
(Water-proof)
-
Temperature measurement, ºC, ºF.
- LCD
with indicates both mg/L & temp.
- Data
hold function for freezing the
desired value.
- Auto
power off without operation in 5
minutes.
-
Microcomputer circuit, intelligent
function, high accuracy, water
proof.
-
Compact size, light weight.
- Power
supply by 1.5 V battery (LR44) *
4pcs
-
Available for wide applications,
such as beverage, fish hatcheries,
food processing, aquarium,
photography, laboratory, quality
control, school & colleges, water conditions.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+/- 1% FS After calibration
|
|
|
|
|
|
706 mg/L(1413 us/cm), 1
point calibration
|
|
|
|
|
|
188 * 38 mm, Meter with Salt
electrode
|
|
|
|
|
|
|
|
- Pen type digital salt meter,
all in one, salt electrode included, easy to use.
- Build in temperature sensor,
ATC(auto temperature compensation).
- Easy to change the salt
electrode.
|
HST3081 Pen-type Salt Meter
(Water-proof)
- Temperature measurement, ºC,
ºF.
- LCD with indicates both mg/L &
temp.
- Data hold function for
freezing the desired value.
- Auto power off without
operation in 5 minutes.
- Microcomputer circuit,
intelligent function, high accuracy, water proof.
- Compact size, light weight.
- Power supply by 1.5 V battery
(LR44) * 4pcs
-
Available for wide applications,
such as beverage, fish hatcheries, food processing,
aquarium, photography, laboratory, quality control, school &
colleges, swimming pools, water conditions.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
+/- 1% FS After
calibration
|
|
|
|
|
|
6640mg/L(12.88ms/cm), 1
point calibration
|
|
|
|
|
|
188 * 38 mm, Meter
with Salt electrode
|
|
|
|
|
|
|
|
|
Features:
HST3086 Pen-type High Concentration Salinometer uses a
microcontroller technology, LCD display,automatic temperature
compensation and temperature display function, a
littlecorrection. Electrode integrated digital pen conductance,
and the electrode can be replaced, waterproof shell. |
HST3086 Pen-type
High Concentration Salinometer (Water-proof)
Introduction:
HST3086 Pen-type High
Concentration Salinometer is a precision instrument for test
solution mL / g values.ML / g value and the temperature is
displayed at the same time. Its stable performance,
full-featured, easy to operate and so on. Making it the wild
andlaboratory testing and control of enterprises and
institutions mL / g values. Widely used in the monitoring of the
chemical, pharmaceutical, electronics, food and otherindustries.
Specifications:
|
Measuring range |
0～1000
mL/g |
|
Accuracy |
±1% FS |
|
Resolution |
1 mL/g |
|
Automatic temperature compensation |
0ºC～50ºC |
|
Operating Temperature |
0ºC～50ºC |
|
Correction |
1:00 automatic correction |
|
Automatic shutdown |
5 minute auto shut off |
|
Low voltage indication |
Yes |
|
Automatic conversion of C / F |
Yes |
|
Hold Function |
Yes |
|
Low voltage indication |
Yes |
|
Display |
mL / g and temperature dual display |
|
Battery |
6V (4 * AG13 button batteries) |
|
CBM |
188mm×38mm |
|
Weight |
82g |
|
|
|
|
|
|
HST3088 Pen-type
High Concentration Salinometer (Water-proof)
Introduction:
HST3088 Pen-type High Concentration Salinometer is a precision
instrument.
It is available for wide applications, such as seawater
salinity, Preserved food, salt intake control.
Features:
* Salinity scale 0.0% ~10.0%
* LCD with displays in both salinity and temperature
* Pen type digital Salinity meter, all in one, electrode is
included.
* Data hold function for freezing the desired value
* Water proof and protection
* Temperature measurement in ℃ or ℉
* Build in temperature sensor, ATC (auto temperature
compensation)
* Power supply by DC 1.5 V battery (LR44, BAT ) x 4 PCs
* Auto power off in 5 minutes
Specifications:
|
Display |
LCD Size: 20 mm x 27 mm |
|
Measurement Range |
Salinity |
0.0% to 10.0% |
|
Resolution |
Salinity |
0.1% |
|
Accuracy |
Salinity |
±0.2%FS |
|
Temperature |
Range |
0-50ºC
(32～122°F) |
|
Accuracy |
±1ºC/
2°F |
|
ATC (auto temperature compensation) |
0-50ºC
(32～122°F) |
|
Dimension |
188 x 38 mm |
|
Weight |
82 g |
|
|
|
|
|
 |
SA-287 Salinity Meter
|
Model |
SA-287 |
|
Range |
0~100.0ppt |
|
Accuracy |
±2%FS |
|
Resolution |
0.1ppt |
|
Automatic Temperature Compensation |
0~50ºC |
|
Environment |
Temperature: 0~50ºC; Humidity: ≤95% |
|
Battery Type |
4×1.5V(AG13) |
|
Dimensions |
175mm×30mm×22mm |
|
Weight |
67g |
|
|
|
|
|
 |
SA-367 Salinity Meter
|
Model |
SA-367 |
|
Range |
0~100.0ppt |
|
Accuracy |
±2%FS |
|
Resolution |
0.1ppt |
|
Automatic Temperature Compensation |
0~50ºC |
|
Environment |
Temperature: 0~50ºC; Humidity: ≤95% |
|
Battery Type |
4×1.5V(AG13) |
|
Dimensions |
160mm×22mm×20mm |
|
Weight |
55g |
|
|
|
|
|
 |
SA-987 Salinity Meter
|
Model |
SA-987 |
|
Range |
0~100.0ppt |
|
Accuracy |
±2%FS |
|
Resolution |
0.1ppt |
|
Automatic Temperature Compensation |
0~50ºC |
|
Environment |
Temperature: 0~50ºC; Humidity: ≤95% |
|
Battery Type |
4×1.5V(AG13) |
|
Dimensions |
170mm×33mm×20mm |
|
Weight |
69g |
|
|
|
|
|
 |
SA-1397 Salinity &Temperature Meter
|
Model |
SA-1397 |
|
Range |
Salinity |
0~100.0ppt |
|
Temp |
0~50ºC |
|
Accuracy |
Salinity |
±2%FS |
|
Temp |
±1ºC |
|
Resolution |
Salinity |
0.1ppt |
|
Temp |
0.1ºC |
|
Automatic Temperature Compensation |
<95% |
|
Environment |
0~50ºC |
|
Battery Type |
4*1.5V(AG13) |
|
Dimensions |
188mm×35mm×35mm |
|
Weight |
98g |
|
|
|
|
|
 |
SA-3287 Waterproof Salinity Meter
|
|
|
|
|
|
|
|
|
|
|
|
Automatic Temperature Compensation
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SB-1500
Salt/Temp
Digital Tester
(HM digital product)
|
Model |
SB-1500 |
|
Range |
0.01% - 5.00% Salt
|
|
0-99.9ºC
|
|
Resolution |
0.01% |
|
0.1ºC
|
|
Accuracy |
±0.01% |
|
Temperature compensation
|
25ºC |
|
Battery |
3*1.5V |
|
Dimension |
21.4*3.4*3.4cm |
|
Weight |
81g |
Feature:
This tester can be used to test both
salinity and temperature. It's with a platinum sensor and
completely waterproof. |
|
|
|
|
SAL-1700 Salt and Temperature
meter (HM digital product)
|
Model |
SAL-1700 |
|
Units |
PSU, S.G., ppt |
|
Range |
PSU: 0.0 ~ 55.0
S.G: 1.000 ~ 1.042
ppt: 0.0 ~ 100.0
Temp: -5.0~105ºC (ATC Range) |
|
Resolution |
PSU: 0.1
S.G: 0.001
ppt: 0.1
Temp: 0.1ºC/0.1ºF |
|
Accuracy |
PSU: ±2.0
S.G: ±0.002
ppt: 0.0~55.1: ±2.0 / 55.1 ~ 100.0: ±5.0
Temp: +/-0.5ºC
(+/-1.0ºF) |
|
Calibration |
Factory calibrated |
|
Electrode |
Platinum Sensor |
|
Housing |
Water-Resistant |
|
Power Source |
2 X 1.5V AAA Alkaline batteries (included) |
|
Dimensions |
21.4cm x 3.4 x 3.4 cm (8.4 x 1.3 x 1.3 inches) |
|
Weight |
81g (2.9 oz.) (include batteries) |
Application:
This Newly released SAL-1700 is
ideal for measuring the salinity of natural or artificial
seawater, aquariums and many more.
(Aquaculture, Aquarium, Drinking
Water, Food & Beverage, Food Service, Industrial, Pool/Spa)
Features:
-Designed for seawater salinity analysis (not NaCl).
-Ideal for pools, saltwater aquariums.
-High accuracy measurements displayed as PSU, ppt and
specific gravity.
-Large LCD display – horizontal angle for easy viewing.
-Waterproof housing.
-Automatic Temperature Compensation.
|
|
|
|
|
HST-2121
Salt/Temp Digital Tester
|
Model |
HST-2121 |
|
Range |
0‰ - 100‰ ( ‰PPt )
0-90°C (32-194 °F) |
|
Resolution |
0.1‰
0.1ºC / 0.2°F |
|
Accuracy (23±5°C) |
0‰-29‰ (± 1-2‰);
30‰-49‰ (±2-5‰); 50‰-100‰ (± 5-10‰); |
|
Operating Temperature |
5 - 45°C (ATC)/ 41 °F - 113°F ( ATC ) |
|
Calibration |
One point 35‰ Salt calibration buffer solution
( 3.5g NaCl/100mL pure water / 53 Salinity mS )
|
|
Power supply |
DC 4 x 1.5V ( LR44 ) |
|
Packing |
100PCS/CTN, CTN SIZE: 52*45*35CM, N.W./G.W.:
14.5KGS/16KGS, VOLUME WEIGHT: 16.38KGS |
Features:
Automatic
switch-off function: After 8-10 minutes without pushing buttons, the
meter will be switched off automatic. Data holding (for 8-10
minutes).
Replacement or Repair Warranty:
12 months
for defective parts and materials from date of manufacture. Proof of
purchase required. Warranty does not cover submersion in liquids,
battery corrosion or abuse. |
.jpg)
