DDS-W
SERIES MICROPROCESSOR CONDUCTIVITY METER
Single Point Push-Button Calibration:
DDS-W series with single point calibration function, you need only
set conductivity value of the calibration solution at 25oC
and immerse conductivity electrode into solution, then press [ENTER]
key, the meter will calibrated automatically.
Auto-Ranging for Conductivity:
The meter with auto-ranging function when measure conductivity.
After electrode immersed in solution, the meter will fast response
and convert range.
Auto Temperature Compensation:
DDS-12DW will recognize the temperature sensor automatically and
measure temperature after temperature sensor connected to the meter.
If the conductivity electrode connected to it, the meter will
enter automatic temperature
compensation.
Adjustable Temperature Coefficient:
Different ion solution usually have different temperature
coefficient, setting temperature coefficient correctly is very
important to measurement, DDS-W series can be set in the range of 0
to 3.9%per centigrade degree.
Adjustable Cell Constant:
When measuring higher or lower
conductivity solution, you should choose conductivity electrode with
different constant. The meter with three
cell constant (0.1,1,10) for your choice.¡¡
What's
included:
DJS-1 conductivity electrode(K=1),
electrode holder, 9V power adapters, temperature probe (only for
DDS-12DW)
| Model |
¡¡ |
DDS-11AW |
DDS-307W |
¡¡ |
DDS-12DW |
|
Conductivity Range |
¡¡ |
0~1.999, 19.99, 199.9,
1999uS/cm, 19.99, 199.9mS/cm |
|
Conductivity Accuracy |
¡¡ |
¡À1.5%
F.S |
¡À1%
F.S |
¡À1%
F.S |
|
Temperature Range |
¡¡ |
--- |
--- |
0~100oC |
|
Temperature Accuracy |
¡¡ |
--- |
--- |
¡À1oC |
|
Calibration Points |
¡¡ |
1 Point |
|
Calibration Solution |
¡¡ |
146.6uS/cm, 1408uS/cm, 12.85mS/cm |
|
Temperature Compensation |
¡¡ |
0~50oC, Manual |
0~50oC, Manual |
0~50oC, Manual or
Automatic |
|
Temperature Coefficient |
¡¡ |
0~3.9%/oC |
|
Cell Constant |
¡¡ |
K=0.1, 1, 10, Adjustable |
|
Display |
¡¡ |
LCD |
|
Power Requirements |
¡¡ |
9VDC, using AC adapters 220VAC, 50Hz |
|
Dimensions |
¡¡ |
210(L)mm¡Á205(W)mm¡Á65(H)mm
|
|
Weight |
¡¡ |
1.5kg |
|
|
¡¡ |
¡¡ |
|
 |

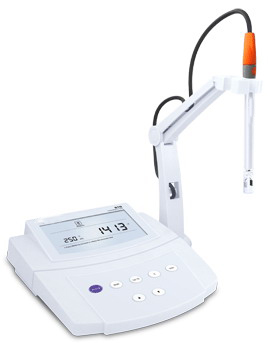

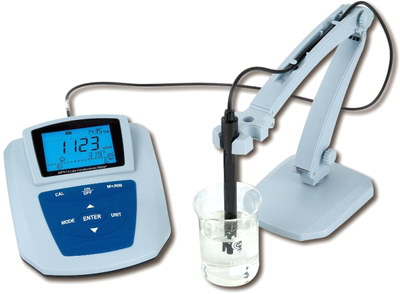

PHS510 Benchtop Conductivity/TDS/¡ãC/¡ãF
Meter
Order code and
Accessories:
PHS510-S:
DJS-1 Conductivity Electrode, Temperature probe, Power Adapters
PHS510-DH:
DJS-10 Conductivity Electrode, Temperature probe, Power Adapters
PHS510-DL:
DJS-0.1 Conductivity Electrode, Temperature probe, Power Adapters
Specification:
|
Model |
PHS510 |
|
Conductivity Range |
0~20mS/cm (Max.200mS/cm) |
|
Conductivity Accuracy |
¡À1% Full Scale |
|
Calibration Points |
Up to 3 points |
|
Calibration Solutions |
10uS/cm, 84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm |
|
TDS Range |
0~10ppt (Max. 20ppt) |
|
TDS Accuracy |
¡À1% Full Scale |
|
TDS Factor |
0.1~1.0 (Default 0.5) |
|
Temperature Range |
0~105¡ãC, 32~221¡ãF |
|
Temperature Accuracy |
¡À1¡ãC |
|
Temperature Calibration |
Manual |
|
Temperature Compensation |
0~100¡ãC, 32~212¡ãF, Automatic or Manual |
|
Temperature Coefficient |
0.0~10.0% per ¡ãC |
|
Cell Constant |
K=0.1, 1, 10, Selectable |
|
Normalization Temperature |
25¡ãC |
|
Auto-Off |
Manual or Automatic (180 minutes after last key pressed) |
|
Hold Function |
Manual or Automatic endpoint |
|
Reset Function |
Yes |
|
Connector |
6-pin |
|
LCD Display |
Custom Dual-Display LCD (135¡Á75mm) |
|
Power Requirements |
DC9V, using AC adapters, 220VAC/50Hz |
|
Dimensions |
210(L)¡Á205(W)¡Á75(H)mm |
|
Weight |
1.2kg |
|
|
¡¡ |
¡¡ |
|
Features:
Up to 5-point push-button calibration allows user to uses
customized calibration solutions.
Adjustable TDS factors, cell constants, temperature coefficients
and normalization temperature.
In salinity measurement modes, selectable practical salinity
(PSU) or seawater measurement standard (ppt).
Automatic Temperature Compensation (ATC) ensures highly accurate
measurements over the entire range.
Manual temperature calibration provides accurate temperature
value.
Selectable either temperature units between degrees Celsius (¡ãC)
and degrees Fahrenheit (¡ãF).
Selectable linear or pure water compensation modes.
Calibration due reminder prompts you to calibrate the meter
regularly.
Automatic endpoint function freezes the stable measured values
for easy reading and recording data.
Help message as a operational guide to helps you understand how
to use meter.
Setup menu lets user customize calibration points, stability
conditions, temperature units, date and time to meet measurement
requirements.
Reset function can resumes all settings to factory default
values.
Expanded memory stores and recalls up to 500 readings.
Built-in real-time clock stamps stored data to meets GLP
standards.
Stored data can be transferred into
computer via USB communication interface. |

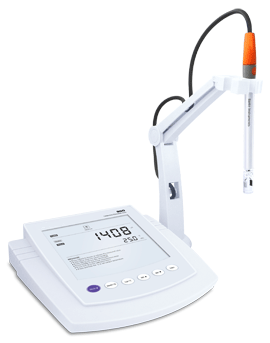

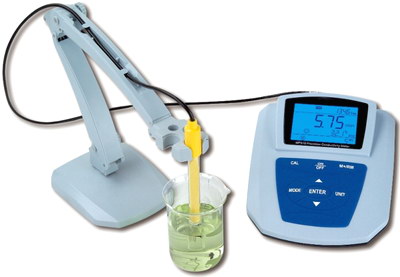

PHS950
Precision
Conductivity/TDS/Salinity/Resistivity/¡ãC/¡ãF
Meter
PHS950
meter
is
used
for measuring conductivity,
Total
Dissolved Solid (TDS), salinity, resistivity and
temperature in liquids.
SPECIFICATIONS:
¡¡
|
Model |
PHS950 |
|
Conductivity Range |
0~20mS/cm (Max.200mS/cm) |
|
Conductivity Accuracy |
¡À0.5% Full Scale |
|
Calibration Points |
Up
to 5 points |
|
Calibration Solutions |
10uS/cm,
84uS/cm, 1413uS/cm, 12.88mS/cm, 111.8mS/cm |
|
TDS Range |
0~10ppt (Max. 20ppt) |
|
TDS Accuracy |
¡À1% Full Scale |
|
TDS Factor |
0.1~1.0 (Default 0.5) |
|
Salinity Range |
0~10ppt (Max. 80ppt) |
|
Salinity Accuracy |
¡À1% Full Scale |
|
Salinity Measurement Modes |
Practical Salinity (PSU) or
Seawater Measurement Standard (ppt) |
|
Resistivtiy Range |
0~100M¦¸ |
|
Resistivtiy Accuracy |
¡À1% Full Scale |
|
Resolution |
0.001, 0.01, 0.1, 1, Automatic |
|
Temperature Range |
0~105¡ãC,
32~221¡ãF |
|
Temperature Accuracy |
¡À0.5¡ãC,
¡À0.9¡ãF |
|
Temperature Calibration |
Manual |
|
Temperature Compensation |
0~100¡ãC,
32~212¡ãF, Automatic or Manual |
|
Temperature Coefficient |
0.0~10.0% per
¡ãC |
|
Compensation Modes |
Linear or Pure Water |
|
Cell Constant |
K=0.1, 1, 10, Selectable |
|
Normalization Temperature |
20¡ãC
or 25¡ãC |
|
Auto-Off |
Manual or Automatic (10, 20, 30
minutes after last key pressed, Selectable) |
|
Hold Function |
Manual or Automatic endpoint |
|
Stability Conditions |
Low or High, Selectable |
|
Calibration due reminder |
1 to 30 days or Off |
|
Reset Function |
Yes |
|
Sensor Type |
Platinum (Order Code: DJS-0.1,
DJS-1 or DJS-10) |
|
Connector |
6-pin |
|
Memory |
500 data sets with Date/Time
stamping |
|
Output |
USB Communication Interface |
|
LCD Display |
Custom dual-display LCD
(130¡Á110mm) |
|
Power Requirements |
DC5V, using AC adapters,
220VAC/50Hz |
|
Dimensions |
210(L)¡Á188(W)¡Á60(H)mm |
|
Weight |
1.2kg |
Order code and
Accessories:
PHS950-S:
DJS-1 Conductivity Electrode, Temperature probe, Power Adapters
PHS950-DH:
DJS-10 Conductivity Electrode, Temperature probe, Power Adapters
PHS950-DL:
DJS-0.1 Conductivity Electrode, Temperature probe, Power Adapters
|
|
¡¡ |
¡¡ |
|
 |

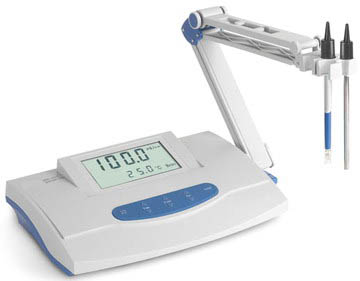

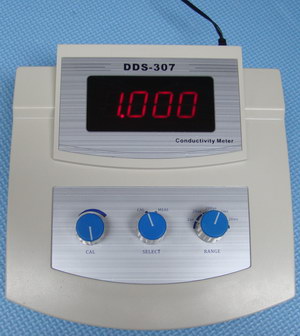

DDS-307
Conductivity Meter
|
Model |
DDS-307 |
|
Range |
0.001~2¦ÌS/cm
0.01~20¦ÌS/cm
0.1~200¦ÌS/cm
0.001~2ms/cm
0.01~20ms/cm
0.1~200mS/cm |
|
Accuracy |
¡À1% Full Scale |
|
Power |
DC9V 100mA |
|
Operating Conditions |
Temperature: 5~40ºC
Humidity: 90% maximum |
|
Dimensions |
208¡Á200¡Á76mm |
|
Weight |
390g |
¡¡ |
|
¡¡ |
¡¡ |
|
Optional accessories:
1. DJS-1 bright electrode
2. DJS-10 Conductivity electrode
3. DJS-0.1 Platinum electrode
4. DJS-0.01 Titanium alloy electrode
Overall dimension & weight:
Shipping package dimension:
332-265-275mm
Gross weight: 3kg Net weight: 2kg |
SRS-307 Conductivity Meter
Characteristics:
1. 31/2LED display
2. With manual temperature compensation.
3. There are four types of electrodes for conduction cell constant:
0.01,0.1,1.0 and 10.0cm-1 ,user can select by your need.
4. Automatic switching measuring frequency, measuring ultrapure
water with using K=0.01cm-1 titanium alloy electrode and sealing
measuring cell
5. With 0~10mV output signal
Specifications:
1. Measurement range: 0-1¡Á105 mS/cm
There is the best correspondence point between conductivity
measuring range and conduction cell constant
|
conduction cell constant(cm-1
) |
0.01 |
0.1 |
1 |
10 |
|
Measuring range (uS/cm) |
0~2 |
0.2~20 |
2~1¡Á104 |
1¡Á104~1¡Á105 |
2. Electrode constant, cm-1: 0.01. 0.1, 1.0.10.0
3. Accuracy of the electric unit: ¡À0.5%(FS) ¡À1 bit
4. Stability of the electronic unit: ¡À0.33%(FS) ¡À1bit/3h
5. Accuracy ¡À1.0%(FS) ¡À1 bit
6. The range of temperature compensation: 15-35ºC, basic
temperature: 25ºC
Standard configuration:
|
1. Main instrument |
1 |
|
2. Power cable |
1 |
|
3. Platinum-black Electrode
DJS-1C |
1 |
|
4. Multi-function Electrode support stand |
1 |
|
|
¡¡ |
¡¡ |
|
|
SRS-307A Conductivity/TDS/ºC Meter
Functions:
Large screen and LCD segmented display
It functions as automatic and manual temperature compensation.
If matched with the titanium alloy sensor of 0.01cm-1 and sealed measuring reservoir, it can test high purity water.
It is equipped with DJS-1C conductancesensor(platinum black) and T-818-B-6 temperaturesensor.
Specifications:
1, Measuring range:
Conductivity: 0.00μS/cm~100μS/cm
TDS:
0~1000 mg/L
Temperature: 0.0~60.0
ºC
2,
Accuracy:
Conductivity: ±0.5%FS
T D S:
±1.0%FS)
Temperature: ±0.3ºC±1 bit
3,
Stability:
(±0.33%FS±1 digital) /3h
4,
Temperature compensation range: Manual/Automatic (0.0~40.0)ºC
5,
Temperature compensation coefficient: 2%
6,
Power supply:: AC(220±22)V; (50±l)Hz
7,
Dimension(mm):
300×200×72
8,
Weight: 1.5kg
9,
Case outside serial No: WXS-A008-1
Conductance Constant and corresponding Conductivity measuring range
|
Electrodeconstant (K) (cm-1) |
0.01 |
0.1 |
1 |
10 |
|
Measuring range(¦ÌS/cm) |
0.0~2.0 |
0.2~20.0 |
2~1¡Á104 |
1¡Á104~1¡Á105 |
|
|
¡¡ |
¡¡ |
|
¡¡
¡¡
Standard Configuration:
|
No. |
Descriptions and Specifications |
Quantity |
|
1 |
SRS-308F Conductivity Meter |
1 set |
|
2 |
Conductive probe(Platinum black, K=1) |
1 |
|
3 |
ATC Probe |
1 |
|
4 |
Universal power supply (9V DC, 500mA,) |
1 |
|
5 |
Electrode Holder |
1 |
|
6 |
Communication Line |
1 |
|
7 |
TP-16 Printer Line |
1 |
|
8 |
Protective Caver |
1 |
|
9 |
Operation Manual |
1 |
¡¡ |

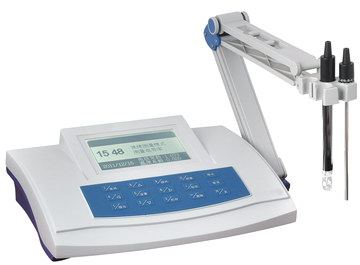

SRS-308F Benchtop Conductivity Meter
Conductivity/Resistivity/TDS/Salinity/Temp
Characteristics:
1.
Smart-Read function: More stable the reading with auto recognition
end-point
Timed-Read function: Auto timed to store the reading
Cont-Read function: It is clear to read continuously the sample
changing in measurement process
2.
More accuracy measurement with reminder the electrode performance
and calibration
3.
Auto upgrade hardware: Complete and simple user¡¯s operation
4.
Support GLP norm: More complete checking the stored information
The
meter requires setting operator No and records the all operating
procedures.
It
can record, view and print calibration data.
It
can store measuring data(600 sets) which follows GLP norm.
Support view, print, delete stored data
5.
Large and light screen: displaying measurement value, temperature
value, constant, measurement mode, operation date and time
6.
Auto temperature compensation, range switch and frequency switch
7.
Support calibration(constant or TDS factor, up to two point
calibration)
8.
No calculation: displaying conductivity, resistivity, TDS, salinity.
9.
Support USB
10.
Supports the function of power-off protection, protect your data
Specifications:
|
Model |
SRS-308F |
|
Specifications |
|
Parameters |
Conductivity/Resistivity/TDS/Salinity/¡æ |
|
Range |
Conductivity |
0.000¦ÌS/cm - 199.9mS/cm |
|
Resistivity |
5.00¦¸¡¤cm - 20.00M¦¸¡¤cm |
|
TDS |
0.000 mg/L - 99.9g/L |
|
Salinity |
(0.00 - 8.00)% |
|
Temperature |
-5.0 - 110.0¡æ |
|
Accuracy |
Conductivity |
¡À0.5%FS |
|
TDS |
¡À0.5%FS |
|
Salinity |
¡À0.1% |
|
Temperature |
¡À0.2¡æ |
|
Stability |
¡À0.3%(FS)/3h |
|
Temp compensation |
Manual/Auto(-5.0
- 110.0)¡æ |
|
Temp coefficient |
Adjustable |
|
Display |
LCD screen, backlight |
|
Power |
Universal power adapter |
|
(9V DC,800mA,
inside ¨C positive, outside ¨C negative) |
|
Dimension (mm),
Weight(kg) |
280¡Á215¡Á92,
1 |
|
|
¡¡ |
¡¡ |
|
Standard Configuration
|
Order No |
Product Name and
Specification |
Quantity |
|
1. |
SRSJ-318 conductivity meter |
1 |
|
2. |
Platinum black electrode(K=1) |
1 |
|
3. |
Temperature sensor |
1 |
|
4. |
Multifunctional electrode
holder |
1 |
|
5. |
Power
source(9VDC,800mA,inside-positive and outside-negative) |
1 |
¡¡
Optional Accessories
|
Order No |
Product Name and
Specification |
Quantity |
|
1. |
Bright electrode(K=1) |
1 |
|
2. |
Conductivity electrode(K=10) |
1 |
|
3. |
Platinum electrode(K=0.1) |
1 |
|
4. |
Titanium alloy electrode(K=0.01) |
1 |
¡¡
Functions:
1. It can measure conductivity, resistivity. TDS£¨total dissolved
solids£©, salinity and temperature of the current solution.
2. It applies microprocessor-based technology and functions as
automatic temperature compensation, auto-calibration, auto
measuring range switch.
3. The user can calibrate the electrode constant or TDS
conversion coefficient. Also, the instrument supports two-point
calibration.
4. 5.7 inch large touch screen, friendly English language
interface for easy use
5. It follows GLP practice
6. The stored data can be displayed by graphics and can be
viewed, printed and deleted.
7. It allows the user to review current measuring date and the
last calibration data.
8. It contains 3 kinds of measuring modes: Continuous
measurement, timed measurement and balance measurement which can
meet different measuring requirements.
9. It has RS-232 interface and USB. If matched with data
collecting software, it can be communicated with PC. |

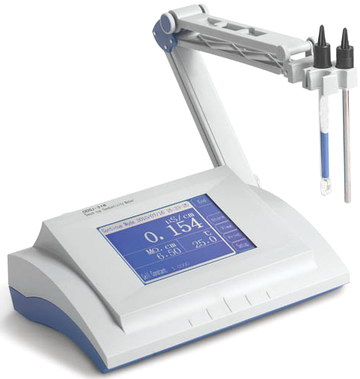

SRS-318 Conductivity Meter (touch
screen)
¡¡
SPECIFICATION:
|
Model
Specifications |
SRSJ-318 |
|
Parameters |
Conductivity/Resistivity/TDS/Salinity/¡ãC |
|
Range
|
Conductivity |
0.055¦ÌS/cm~199.9mS/cm
(
full
range measuring, no need to exchange electrode) |
|
Resistivity |
5.00¦¸¡¤cm~18.25M¦¸¡¤cm |
|
TDS |
0.000 mg/L~100g/L |
|
Salinity |
(0.00~8.00)% |
|
Temperature |
-5.0~135.0¡ãC |
|
Resolution |
Conductivity |
0.001¦ÌS/cm |
|
Resistivity |
0.01¦¸¡¤cm |
|
TDS |
0.001 mg/L |
|
Salinity |
0.01% |
|
Temperature |
0.1¡ãC |
|
Accuracy |
Conductivity |
¡À0.5%FS |
|
Resistivity |
¡À0.5%FS |
|
TDS |
¡À0.5%FS |
|
Salinity |
¡À0.1%
|
|
Temperature |
¡À0.3¡ãC |
|
Temp compensation |
Manual/Auto (-5.0~135.0)
¡ãC |
|
Temp coefficient |
Adjustable |
|
Calibration |
May calibrate electrode constant or TDS switch coefficient.
support two-point
calibration |
|
Measuring mode |
3 (continuous
measurement, timed measurement and balance measuring mode) |
|
Data storage |
1500 data with
time-and-date for GLP compliance (to
display measuring result in diagram directly) |
|
View, delete and print |
Yes |
|
Display |
Touch, big LCD screen |
|
Output |
RS-232,
USB |
|
Software |
1.1DC |
|
Power |
Universal power
adapter (9V DC, 800mA,
inside - positive, outside - negative) |
|
Case outside serial
No. |
WXS-A009-1 |
|
Dimension (mm), Weight(kg) |
250*195*100,
2 |
|
Gross Weight(kg) |
4 |
|
Packing Size (mm)
(Carton
Box) |
370*310*340 |
|
|
¡¡ |
¡¡ |
 |
SR513
Lab Conductivity Meter (5 in 1)
Features and
Applications:
-
Be used for conductivity measuring of general water solution
- Plastic
conductivity electrode with ATC, easy to use
- Economical
bench-top conductivity meter
- Nice appearance, easy
to use. It equips a flexible electrode holder, intelligent
stirrer and a brief operation manual.
- Meter meets with the
requirement of international GLP standards. It features up to
automatic calibration, automatic temperature compensation,
storage data, clock display, time measurement, RS232 output,
functions setting and self-diagnose information etc.
- It adopts digital
filter and step slipping technology to improve meter's response
speed and repeatability.
- Meter has the only
product serial number.
Dustproof and waterproof
meter meets IP54 standards.
Measuring
Parameters:
Conductivity, resistivity, TDS, salinity and temperature
Range:
Cond:0
to 200 mS/cm,be
divided into five ranges
(0.00
to 20.00)¦ÌS/cm;
(20.0 to 200.0)¦ÌS/cm;
(200
to 2000)¦ÌS/cm;
(2.00 to 20.00)mS/cm;
(20.0
to 200.0)mS/cm
Res:
(0 to 100)M¦¸¡¤cm;
TDS: (0
to 100)g/L
Sal:
(0 to 100)ppt Temp:
(-10
to 110)ºC
Accuracy:
Cond:
¡À1.0% full scale
Temp:
¡À0.5ºC
Other Parameters:
ATC:
(0
to 50)ºC
Storage
Data:
100 groups;
Communication
Connector:
RS-232;
Power:
DC9V/300mA;
Size & Weight:
(160¡Á190¡Á70)mm/880g
Accessories:
1.
2301-M plastic
conductivity electrode
(K=1,ATC)
2.
Model 602 flexible
electrode holder
3.
RS-232 communication
software |
 |
¡¡
Model: SR515
Precision Conductivity Meter
Measuring
Parameters:
Conductivity, Resistivity, TDS, salinity and temperature
Features and
Applications
-
High precision bench-top conductivity meter
- ¡°CH¡± and ¡°USA¡± two
series of standard solution can be setup, automatically recognizes
eight kinds of conductivity
- Calibration
solution.
- 18
ºC,
20 and 25 three kinds
of reference ºC
temperature can be setup.
- Inside setup with
function of high purified water non-linearity automatic temperature
compensation, suitable for accurate conductivity measurement for
high purified water.
Specifications:
Range:
Cond:
0 to 2000 mS/cm,be
divided into five ranges
(0.00
to 20.00)¦ÌS/cm;
(20.0 to 200.0)¦ÌS/cm;
(200
to 2000)¦ÌS/cm;
(2.00 to 20.00)mS/cm;
(20.0
to 200.0)mS/cm;
(200 to 2000)mS/cm
(k=10)
Res:
(0 to 100)M¦¸¡¤cm;
TDS:
(0 to 100)g/L
Sal:
(0 to 100)ppt
Temp: (-10
to 110)
ºC
Accuracy:
Cond:
¡À0.5% full scale
Temp:
¡À0.4
ºC
Other Parameters:
ATC:
(0
to 50) ºC
Storage
Data:
600 groups;
Communication
Connector:
RS-232;
Power:
DC9V/300mA;
Size & Weight:
(160¡Á190¡Á70)mm/880g
What's included:
1.
2401-M conductivity electrode
(K=1,ATC)
2.
Model 602 flexible electrode holder
3.
RS-232 communication software
|
|
¡¡ |
¡¡ |
 |

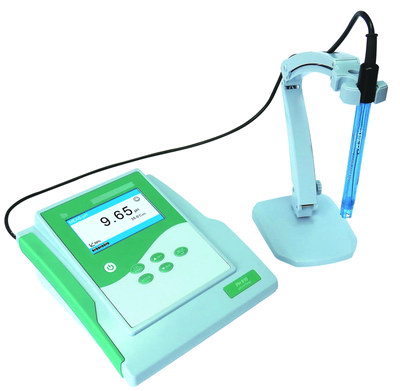

EC910
Conductivity/TDS/Salt/Temp. Meter
Main features:
* TFT color screen with graphic and text guides
* Equipped with a flexible electrode holder
* Multi-language operating system (English, Chinese, German,
Italian and Spanish)
Technical
Parameters:
Conductivity
Measuring range
|
Conductivity: 0~200.0mS/cm
TDS:
0.1mg/L~100 g/L
Salinity:
0~100 ppt |
|
Resolution |
0.1/1uS, 0.01/0.1mS |
Accuracy
|
¡À1% FS ¡À 1
digit |
|
Temp.
compensation range |
0 to 50
ºC (32 to 212
ºF),
automatic or manual |
|
Electrode
constant |
0.1 / 1 /
10 cm-1 |
|
Criterion temperature |
15-30
ºC |
|
Temp. compensation coefficient |
0~10.00%/
ºC |
|
Calibration |
1~4 points automatic |
|
Calibration standard |
USA/ CH |
|
Calibration data checking |
Yes |
Temperature:
|
Measuring
range |
-0~100.0
ºC;
32.0~212 ¡ãF
|
|
Resolution |
0.1
ºC; 0.1/1
¡ãF
|
|
Accuracy |
¡À0.5
ºC ¡À 1
digit;
¡À0.9
ºF ¡À 1
digit |
Function:
|
Display |
TFT color display |
|
Automatic hold |
Yes |
|
Data storage |
100 sets |
|
Self diagnosis information |
Yes |
|
pH electrode connector |
BNC |
|
Electrode holder |
602
flexible
holder |
|
IP Rating |
IP54 water and dust proof |
|
Electrode |
2301T-F |
Other Technical
Parameters:
|
Power |
DC9V |
|
Size and
weight |
200¡Á220¡Á100mm/ 950g |
|
|
¡¡ |
¡¡ |
 |

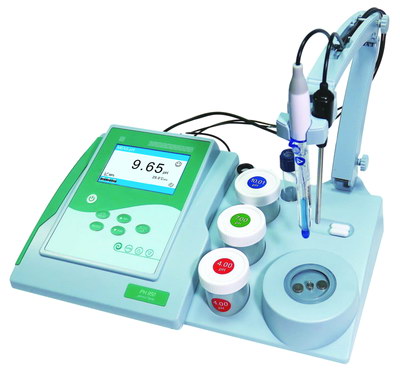

EC950
Conductivity/TDS/Salt/Temp.
Meter
Main features
* TFT color screen with graphic and text guide
* Multifunctional test bench with intelligent stirrer and
flexible electrode holder
* Multi-language operating system (English, Chinese, German,
Italian and Spanish)
Technical
Parameters:
Conductivity
Measuring range
|
Conductivity: 0~200.0mS/cm
TDS:
0.1mg/L~100 g/L
Salinity:
0~100 ppt |
|
Resolution |
0.1/1uS, 0.01/0.1mS |
Accuracy
|
¡À1% FS ¡À 1
digit |
|
Temp.
compensation range |
0 to 50
ºC (32 to 212
ºF),
automatic or manual |
|
Electrode
constant |
0.1 / 1 /
10 cm-1 |
|
Criterion temperature |
15-30
ºC |
|
Temp. compensation coefficient |
0~10.00%/
ºC |
|
Calibration |
1~4 points automatic |
|
Calibration standard |
USA/ CH |
|
Calibration data checking |
Yes |
Temperature:
|
Measuring
range |
-0~100.0
ºC;
32.0~212 ¡ãF
|
|
Resolution |
0.1
ºC; 0.1/1
¡ãF
|
|
Accuracy |
¡À0.5
ºC ¡À 1
digit;
¡À0.9
ºF ¡À 1
digit |
Function:
|
Display |
TFT color display |
|
Automatic hold |
Yes |
|
Data storage |
100 sets |
|
Self diagnosis information |
Yes |
|
pH electrode connector |
BNC |
|
Electrode holder |
606 combination test bench (with
stirrer) |
|
IP Rating |
IP54 water and dust proof |
|
Electrode |
2401T-F |
Other Technical
Parameters:
|
Power |
DC9V |
|
Size and
weight |
360¡Á165¡Á400mm/ 1250g |
|
|
¡¡ |
¡¡ |
 ¡¡
Main features
* TFT color screen with graphic and text guides
* Conform to GLP data management standard, each group data
includes time & date, ID of sample, electrode, and user
* Operation with password protection; support GLP printer
* Multi-language operating system (English, Chinese, German,
Italian and Spanish) |

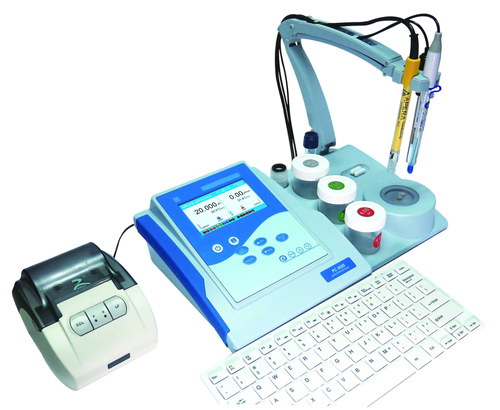

EC9500
Conductivity/TDS/Salt/Res/Temp. Meter
Technical
Parameters:
Conductivity
Measuring range
|
Conductivity: 0~2000mS/cm
TDS:
0.1mg/L~500 g/L
Salinity:
0~100 ppt
Resistivity:
0~20M¦¸▪cm |
|
Resolution |
0.01/0.1/1uS,0.01/0.1/1mS |
Accuracy
|
¡À0.5% FS ¡À 1
digit |
|
Temp.
compensation range |
0 to 50
ºC (32 to 212
ºF),
automatic or manual |
|
Electrode
constant |
0.1 / 1 /
10 cm-1 |
|
Criterion temperature |
15-30
ºC |
|
Temp. compensation coefficient |
0~10.00%/
ºC |
|
Calibration |
1~4 points automatic |
|
Calibration standard |
USA/ CH/ User |
|
Calibration reminding |
Yes |
|
Calibration data checking |
Yes |
|
Measuring alarm |
Yes |
Temperature:
|
Measuring
range |
-10~110.0
ºC;
14.0~230 ¡ãF
|
|
Resolution |
0.1
ºC; 0.1/1
¡ãF
|
|
Accuracy |
¡À0.5
ºC ¡À 1
digit;
¡À0.9
ºF ¡À 1
digit |
Function:
|
Display |
TFT color display |
|
Automatic hold |
Yes |
|
Date and time |
Yes |
|
Data storage |
1000 sets |
|
Timing storage |
Yes |
|
Self diagnosis information |
Yes |
|
USB output |
Yes |
|
GLP print |
Yes (printer
optional) |
|
External keypad |
Yes |
|
pH electrode connector |
BNC |
|
Electrode holder |
606 combination test bench (with
stirrer) |
|
IP Rating |
IP54 water and dust proof |
|
Electrode |
2401T-F |
Other Technical
Parameters:
|
Power |
DC9V |
|
Size and
weight |
360¡Á165¡Á400mm/ 1250g |
|
