SRxxPC series New Mini Laser Distance Meter

Model: SR40PC, SR60PC, SR80PC, SR100PC

Features

New mini Laser Distance Meter with a measuring range of 0.05-100m

Color: Grey+Yellow

1.6" LCD display

Pythagoras function for remote measuring of height or length

Addition / Subtraction calculation

Backlit display shows multiple readings

Audible alarm

Dust protected & splash proof to IP54 rating

Auto laser switch off after 30 sec's

Auto Power Off after 30 sec's no activity

Accuracy: ±1.5mm / ±0.06in

Measurement units: m/in/ft

Laser Type: Red laser, 635nm, <1mW, Class II

Operating temperature: 0-40'C,(32-104'C)

Powered by 2 x AAA batteries (included)

Dimensions: 110mm*47mm*27mm

Weight: 75g(without battery)

Packing Size: 50PCS/CTN, 34.7*28.7*24.5CM, G.W:7.5KG, N.W:6.5KG.

Specifications

Model

Measuring Range

SR40PC

0.05-40M

SR60PC

0.05-60M

SR80PC

0.05-80M

SR100PC

0.05-100M



SRxxPS series  New Laser Distance Meter

Model: SR40PS, SR50PS, SR60PS, SR70PS, SR80PS, SR100PS

Features

Laser Distance Meter with a measuring range of 0.05-100m

With or Without Water Level

Color: Black+Blue, Black+Yellow(can be customized)

1.6" LCD display

Pythagoras function for remote measuring of height or length

Addition / Subtraction calculation

Backlit display shows multiple readings

Audible alarm

Dust protected & splash proof to IP54 rating

Auto laser switch off after 30 sec's

Auto Power Off after 30 sec's no activity

Accuracy: ±1.5mm / ±0.06in

Measurement units: m/in/ft

Laser Type: Red laser, 635nm, <1mW, Class II

Operating temperature: 0-40'C,(32-104'C)

Powered by 2 x AAA batteries (not included)

Dimensions: 119.4mm*50mm*29mm

Weight: 135g

Packing Size: 50PCS/CTN, 35.2*30.5*26CM, G.W:10KG, N.W:9.3KG.

Specifications

Model

Measuring Range

SR40PS

0.05-40M

SR50PS

0.05-50M

SR60PS

0.05-60M

SR70PS

0.05-70M

SR80PS

0.05-80M

SR100PS

0.05-100M

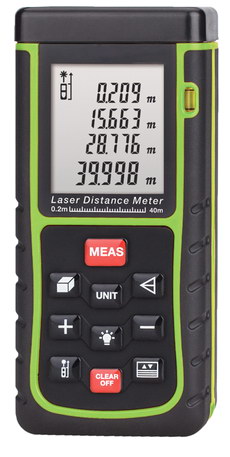

SR40WE Laser Distance Meter

Specification:

Item

SR40WE

Measure Range

40m

Distance measurement precision

±2mm

Measurement unit options

mm/in/ft

Continuous measurement

function

yes

board

no

Area measurement function

yes

Volume measurement function

yes

Pythagorean proposition

measurement function

Full mode

Add and subtract measurement

function

yes

Min/Max value

yes

Max storage

99 units

Automatic backlight

yes

Buttons/Keys sound

yes

Laser level

II

Laser type

635nm,<1mW

Automatically cut off laser

20s

Automatic shutdown

150S

Storage temperature

-20°C-60°C

Working temperature

0°C-40°C

Storage humidity

RH85%

Battery

1.5V 3*AAA

Battery life

40000 times for single measurements

Weight (including battery)

180g

Dimension

123*54*28mm



SR50WE Laser Distance Meter

Specification:

Item

SR50WE

Measure Range

50m

Distance measurement precision

±2mm

Measurement unit options

mm/in/ft

Continuous measurement

function

yes

board

no

Area measurement function

yes

Volume measurement function

yes

Pythagorean proposition

measurement function

Full mode

Add and subtract measurement function

yes

Min/Max value

yes

Max storage

99 units

Automatic backlight

yes

Buttons/Keys sound

yes

Laser level

II

Laser type

635nm,<1mW

Automatically cut off laser

20s

Automatic shutdown

150S

Storage temperature

-20°C-60°C

Working temperature

0°C-40°C

Storage humidity

RH85%

Battery

1.5V 3*AAA

Battery life

40000 times for single measurements

Weight (including battery)

180g

Dimension

123*54*28mm

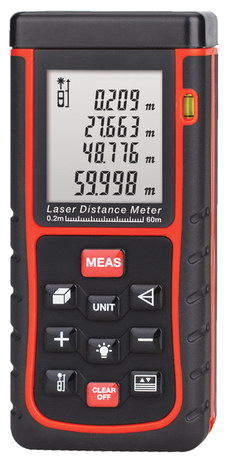

SR60WE Laser Distance Meter

Specification:

Item

SR60WE

Measure Range

60m

Distance measurement precision

±2mm

Measurement unit options

mm/in/ft

Continuous measurement

function

yes

board

no

Area measurement function

yes

Volume measurement function

yes

Pythagorean proposition

measurement function

Full mode

Add and subtract measurement function

yes

Min/Max value

yes

Max storage

99 units

Automatic backlight

yes

Buttons/Keys sound

yes

Laser level

II

Laser type

635nm,<1mW

Automatically cut off laser

20s

Automatic shutdown

150S

Storage temperature

-20°C-60°C

Working temperature

0°C-40°C

Storage humidity

RH85%

Battery

1.5V 3*AAA

Battery life

40000 times for single measurements

Weight (including battery)

180g

Dimension

123*54*28mm

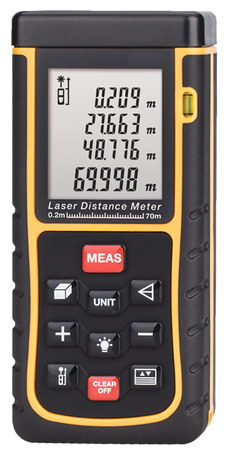

SR70WE Laser Distance Meter

Specification:

Item

SR70WE

Measure Range

70m

Distance measurement precision

±2mm

Measurement unit options

mm/in/ft

Continuous measurement

function

yes

board

no

Area measurement function

yes

Volume measurement function

yes

Pythagorean proposition

measurement function

Full mode

Add and subtract measurement function

yes

Min/Max value

yes

Max storage

99 units

Automatic backlight

yes

Buttons/Keys sound

yes

Laser level

II

Laser type

635nm,<1mW

Automatically cut off laser

20s

Automatic shutdown

150S

Storage temperature

-20°C-60°C

Working temperature

0°C-40°C

Storage humidity

RH85%

Battery

1.5V 3*AAA

Battery life

40000 times for single measurements

Weight (including battery)

180g

Dimension

123*54*28mm



SR80WE Laser Distance Meter

Specification:

Item

SR80WE

Measure Range

80m

Distance measurement precision

±2mm

Measurement unit options

mm/in/ft

Continuous measurement

function

yes

board

no

Area measurement function

yes

Volume measurement function

yes

Pythagorean proposition

measurement function

Full mode

Add and subtract measurement function

yes

Min/Max value

yes

Max storage

99 units

Automatic backlight

yes

Buttons/Keys sound

yes

Laser level

II

Laser type

635nm,<1mW

Automatically cut off laser

20s

Automatic shutdown

150S

Storage temperature

-20°C-60°C

Working temperature

0°C-40°C

Storage humidity

RH85%

Battery

1.5V 3*AAA

Battery life

40000 times for single measurements

Weight (including battery)

180g

Dimension

123*54*28mm

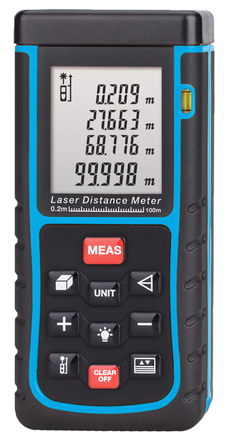

SR100WE Laser Distance Meter

Specification:

Item

SR100WE

Measure Range

100m

Distance measurement precision

±2mm

Measurement unit options

mm/in/ft

Continuous measurement

function

yes

board

no

Area measurement function

yes

Volume measurement function

yes

Pythagorean proposition

measurement function

Full mode

Add and subtract measurement function

yes

Min/Max value

yes

Max storage

99 units

Automatic backlight

yes

Buttons/Keys sound

yes

Laser level

II

Laser type

635nm,<1mW

Automatically cut off laser

20s

Automatic shutdown

150S

Storage temperature

-20°C-60°C

Working temperature

0°C-40°C

Storage humidity

RH85%

Battery

1.5V 3*AAA

Battery life

40000 times for single measurements

Weight (including battery)

180g

Dimension

123*54*28mm









SR50W Laser Distance Meter

Features:

1, Max measured distance: 50m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.

Specification:

ITEM

SR50W

Max measured distance

50m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes (optional accessory)

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

Measuring recodes

last 99 records stored

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

LCD Display

FSTN, LCD

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

118*48*25.5mm

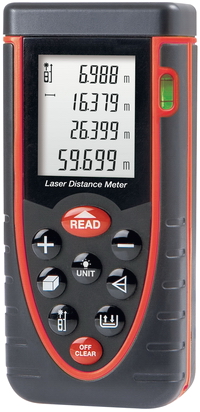

SR60W Laser Distance Meter

Features:

1, Max measured distance: 60m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.

Specification:

ITEM

SR60W

Max measured distance

60m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes (optional accessory)

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

Measuring recodes

last 99 records stored

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

LCD Display

FSTN LCD

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

118*54*28mm







SR70W Laser Distance Meter

Features:

1, Max measured distance: 70m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.

Specification:

ITEM

SR70W

Max measured distance

70m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes (optional accessory)

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

Measuring recodes

last 99 records stored

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

LCD Display

FSTN LCD

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

118*54*28mm

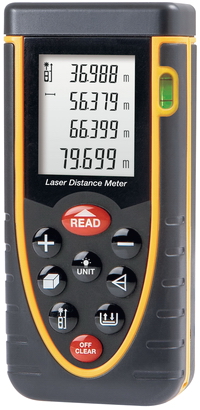

SR80W Laser Distance Meter

Features:

1, Max measured distance: 80m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.

Specification:

ITEM

SR80W

Max measured distance

80m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes (optional accessory)

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

Measuring recodes

last 99 records stored

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

LCD Display

FSTN LCD

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

118*54*28mm

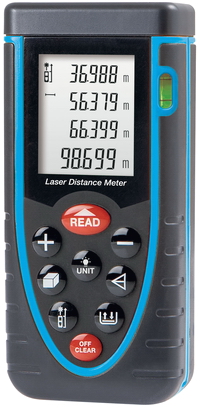

SR100W Laser Distance Meter

Features:

1, Max measured distance: 100m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.

Specification:



ITEM

SR100W

Max measured distance

100m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes (standard delivery accessory)

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

Measuring recodes

last 99 records stored

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

LCD Display

FSTN LCD

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

118*54*28mm



SR100WA Laser Distance Meter

Features:

1, Max measured distance: 100m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.

Specification:



ITEM

SR100WA

Max measured distance

100m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes (standard delivery accessory)

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

Tilt measurement yes

Measuring recodes

last 99 records stored

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

LCD Display

FSTN LCD

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

118*54*28mm

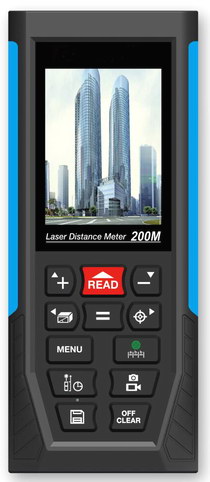

SR200W Laser Distance Meter (under development)

Features:

1, Max measured distance: 200m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, With photographs and video function, real-time recording of the test scenarios(3 million pixels, 4 times digital zoom camera), 3 million pixel camera with 4x digital zoom, the maximum memory 8GB

5, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.200m, 260m product with photographs and video function (3 million pixel camera with 4x digital zoom, the maximum memory 8GB), real-time recording of the test scenarios, make you feel view the test results more intuitive, more vivid and rich image, also layout surveying/The lofting measurement, hypotenuse test ,Delay test, Through the wall test, Circumference test

Specification:

ITEM

SR200W

Max measured distance

200m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

camera

3 million pixel camera with

4x digital zoom

(take photos and video)

Max storage

8GB

staking-out

yes

tilt measurement/hypotenuse test

yes

Delay test

yes

Through the wall test

yes

angular surveying

yes(+-45°)

Circumference test

yes

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

Maximum storage

SD card support

LCD Display

2.4IN color

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

145*58*32mm







SR260W Laser Distance Meter (under development)

Features:

1, Max measured distance:260m

2, Distance measurement precision: ±2mm

3, Measurement unit options: Mm/in/ft

4, with level bubble features, make the test more accurate

5, 3 million pixel camera with 4x digital zoom, the maximum memory 8GB

6, Our products with other similar products is not the same as that our laser rangefinder with level bubble features, make the test more accurate.200m, 260m product with photographs and video function (3 million pixel camera with 4x digital zoom, the maximum memory 8GB), real-time recording of the test scenarios, make you feel view the test results more intuitive, more vivid and rich image, also layout surveying/The lofting measurement, hypotenuse test ,Delay test, Through the wall test, Circumference test

Specification:



ITEM

SR260W

Max measured distance

260m

Accuracy

±2mm

Measurement unit

Mm/in/ft

Continuous measurement

yes

Outdoor target reflection board

yes

Area calculations

yes

Volume calculations

yes

Measurement using Pythagoras

yes

Addition/subtraction

yes

Min/Max measurement

yes

camera

3 million pixel camera with 4x digital zoom,

(take photos and video)

Max storage

8GB

staking-out

yes

tilt measurement/hypotenuse test

yes

Delay test

yes

Through the wall test

yes

angular surveying

yes(+-45°)

Circumference test

yes

backlight

yes

Buttons/Keys sound

yes

Laser class

class II

Laser type

635nm,<1mW

Auto laser off

20s

Auto power off

150s

Storage temperature

-20°C~60°C

Working temperature

0°C~40°C

Storage humidity

RH85%

Maximum storage

SD card support

LCD Display

2.4IN color

Battery

1.5V 3*AAA

Weight (including battery)

0.31KG

Dimension

145*58*32mm





Application:
The rangefinder has a wide variety of applications in construction, industries, travel, sightseeing, golf sport, hunting and camping. It is very useful and convenient for any measurement of outdoor projects. It is a very good assistant to improve our outdoor life quality. It is very easy to carry about.

Description of product:
Multifunctional laser rangefinder is a portable optoelectronic device integrated with functions of laser range finder and angle finder.
1) It helps you observe objects with great clearness. In addition, it can measure the distance of a stationary or slowly moving object within a certain range.
2) It could simultaneously measure the distances and angle between users and targets. It displays the angle, horizontal distance and height in through-the-lens LCD.
3) It measures distances in a short time with a high accuracy. It consumes low power and can automatically shut off. With compact and handy design.

4)The laser rangefinder monocular is very small and does no harm to users eyes, and any target can be measured at random.

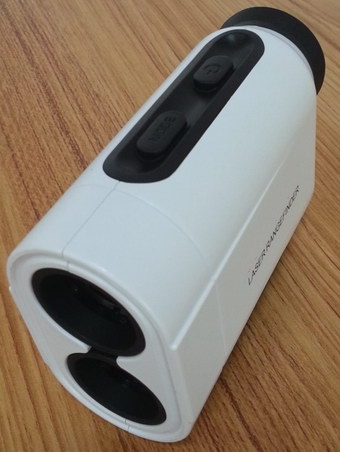

Technical Specification:
Model SR600Q SR900Q SR1500Q SR900QS SR1500QS
Feature Single function Multifunction
Measuring  Range 0.5-600m 0.5-900m 0.5-1500m 0.5-900m 0.5-1500m
Measuring Accuracy ±1m
Size of meter/package 110*75*45mm/148*113*60mm
Weight of meter/package 190g/370g
Color Balck,yellow,blue,red,white is available

Measuring

Functions

Distance Yes Yes
 Height No Yes
Angle  No Yes
Focusing Control Yes
Golf Mode Yes
M/Yd Switch Yes



SR900W Laser Distance Meter Telescope

Application scope and product introduction:

The laser distance meter telescope and multifunctional meterage angle meterage distance telescope is a portable optoelectronic device combined The laser distance meter and a monocular in one.

• It can measure the distance of a stationary or slowly moving object within a certain range, and at the same time, can observe the object with great clearness. It possesses many advantages, such as a high accuracy, short measuring time, low power consumption and automatic shutoff for power saving etc.

• Multifunctional meterage angle meterage distance telescope can Taking advantage of the latest scientific technology, this device can simultaneously measure the distances and angle of the target. It could display the angle, straight line distance, horizontal distance and height.

• The transmission power of this device is very small and no harm to users' eyes, any target can be measured at random. It is compact, light in weight, small in volume, very easy to operate and carry about. One piece of CR2/3v battery is used which can be bought and changed easily.

• The laser distance meter telescope can be widely used for travel, sightseeing, golf sports, hunting, camping as well a for any measurement of outdoor projects. it is a very good assistant to improve our outdoor life quality.





Specifications

Measuring range

5-900M

Measuring Accuracy

±1.0M

Angle range

±60° (Only multifunctional model)

Magnification

6X

Objective caliber

25.0mm

Eyepiece caliber

16.0mm

Exit pupil caliber

3.8mm

Diopter adjustable range

±5°

Battery

CR2\3V

Weight of the body

185g

Laser wave length

905nm

Working temperature

-20-50ºC

Viewing angle

7°

Size

104*72*41mm

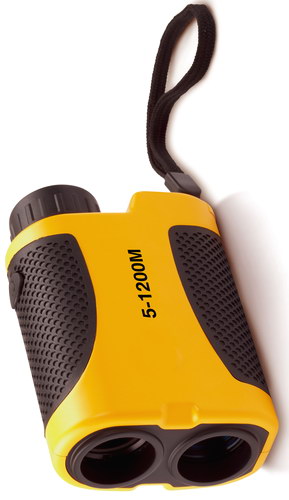

SR1200W Laser Distance Meter Telescope

Application scope and product introduction:

The laser distance meter telescope and multifunctional meterage angle meterage distance telescope is a portable optoelectronic device combined The laser distance meter and a monocular in one.

• It can measure the distance of a stationary or slowly moving object within a certain range, and at the same time, can observe the object with great clearness. It possesses many advantages, such as a high accuracy, short measuring time, low power consumption and automatic shutoff for power saving etc.

• Multifunctional meterage angle meterage distance telescope can Taking advantage of the latest scientific technology, this device can simultaneously measure the distances and angle of the target. It could display the angle, straight line distance, horizontal distance and height.

• The transmission power of this device is very small and no harm to users' eyes, any target can be measured at random. It is compact, light in weight, small in volume, very easy to operate and carry about. One piece of CR2/3v battery is used which can be bought and changed easily.

• The laser distance meter telescope can be widely used for travel, sightseeing, golf sports, hunting, camping as well a for any measurement of outdoor projects. it is a very good assistant to improve our outdoor life quality.





Specifications

Measuring range

5-1200M

Measuring Accuracy

±1.0M

Angle range

±60° (Only multifunctional model)

Magnification

6X

Objective caliber

25.0mm

Eyepiece caliber

16.0mm

Exit pupil caliber

3.8mm

Diopter adjustable range

±5°

Battery

CR2\3V

Weight of the body

185g

Laser wave length

905nm

Working temperature

-20-50ºC

Viewing angle

7°

Size

104*72*41mm





SR1500W Laser Distance Meter Telescope

Application scope and product introduction:

The laser distance meter telescope and multifunctional meterage angle meterage distance telescope is a portable optoelectronic device combined The laser distance meter and a monocular in one.

• It can measure the distance of a stationary or slowly moving object within a certain range, and at the same time, can observe the object with great clearness. It possesses many advantages, such as a high accuracy, short measuring time, low power consumption and automatic shutoff for power saving etc.

• Multifunctional meterage angle meterage distance telescope can Taking advantage of the latest scientific technology, this device can simultaneously measure the distances and angle of the target. It could display the angle, straight line distance, horizontal distance and height.

• The transmission power of this device is very small and no harm to users' eyes, any target can be measured at random. It is compact, light in weight, small in volume, very easy to operate and carry about. One piece of CR2/3v battery is used which can be bought and changed easily.

• The laser distance meter telescope can be widely used for travel, sightseeing, golf sports, hunting, camping as well a for any measurement of outdoor projects. it is a very good assistant to improve our outdoor life quality.





Specifications

Measuring range

5-1500M

Measuring Accuracy

±1.0M

Angle range

±60° (Only multifunctional model)

Magnification

6X

Objective caliber

25.0mm

Eyepiece caliber

16.0mm

Exit pupil caliber

3.8mm

Diopter adjustable range

±5°

Battery

CR2\3V

Weight of the body

185g

Laser wave length

905nm

Working temperature

-20-50ºC

Viewing angle

7°

Size

104*72*41mm







 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )



ultrasonic distance meter, Ultrasonic Range finder               Laser distance meter, laser range finder
