Force Gauge, Digital force gauge, analog force gauge, analogue force gauge, push-pull force gauge, force meter, mechanical force gauge

SR204 series Digital Force Gauge

Applications:

The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.

Features:
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.

Specifications:

Model

SR204-10

SR204-20

SR204-50

SR204-100

SR204-200

SR204-500

SR204-1K


Force Range

1kgf

2kgf

5kgf

10kgf

20kgf

50kgf

100kgf

1000gf

2000gf

5000gf

- - - -
9.8N 19.6N 49N 98N 196N 490N 980N

2.2Lbf

4.4Lbf

11Lbf

22Lbf

44Lbf

110Lbf

220Lbf


Load Value

0.001kgf

0.001kgf

0.001kgf

0.001kgf

0.01kgf

0.01kgf

0.01kgf

1gf

1gf

1gf

- - - -
0.01N 0.01N 0.01N 0.01N 0.1N 0.1N 0.1N

0.001Lbf

0.001Lbf

0.01Lbf

0.01Lbf

0.01Lbf

0.1Lbf

0.1Lbf

Accuracy

0.5%FS 1digit

Unit kgf, gf, N, Lbf
Measurement State Peak value measurement, Real time measurement
Display 2 reversed 4 digit LCD
Power Off 10 minutes auto power off, manual power off
Backlight Blue backlight
Safe Load 150%FS (Buzzer alarm over 110%FS)
Power Supply 2*1.5 AA battery or 6V DC power supply
Operating Conditions Temperature: 0~40C, Humidity: <80%
Surrounding No vibration source or corrosive medium around
Weight and Size 390g/ 211*80*36mm

Accessories:

Standard: Digital Force Gauge, Pulling Hook, Flat Tip, Cone Tip, V-shaped Groove Tip, V-shaped Wedge Tip, Lengthening Connection Rod (Screw Rod, Cap Nut), Manual, Carrying Case
Optional: Power Adapter, Force Gauge Stand

Application Of Accessories:

Accessory

Applications

Pulling Hook

To hang tested objects when testing pulling force.

Flat Tip

To test thrust of flat surface or convex surface.

Cone Tip

To test thrust of flat surface, concave surface or circular hole.

V shaped Groove Tip

To test thrust of cylindrical surface or the edge of perpendicular planes.

V-shaped Wedge Tip

To test thrust of flat surface or groove surface.

Lengthening Connection Rod

It is used in the situation when the measurement tip is not long enough.

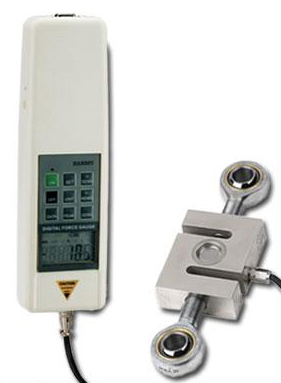

SR204 series Digital Force Gauge

Applications:

The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.

Features:
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.

Specifications:

Model

SR204-2K

SR204-5K

SR204-10K


Force Range

200kgf

500kgf

1000kgf

1960N 4900N 9800N

440Lbf

1100Lbf

2200Lbf


Load Value

0.01kgf (<100kgf)

0.1kgf (100kgf)

0.01kgf (<100kgf)

0.1kgf (100kgf)

0.01kgf (<100kgf)

0.1kgf (100kgf)

0.1N (<1000N)

1N (1000N)

0.1N (<1000N)

1N (1000N)

0.1N (<1000N)

1N (1000N)

0.1Lbf

0.1Lbf (<1000Lbf)

1Lbf (1000Lbf)

0.1Lbf (<1000Lbf)

1Lbf (1000Lbf)

Accuracy

0.5%FS 1digit

Unit kgf, N, Lbf
Measurement State Peak value measurement, Real time measurement
Display 2 reversed 4 digit LCD
Power Off 10 minutes auto power off, manual power off
Backlight Blue backlight
Safe Load 150%FS (Buzzer alarm over 110%FS)
Power Supply 2*1.5 AA battery or 6V DC power supply
Operating Conditions Temperature: 0~40C, Humidity: <80%
Surrounding No vibration source or corrosive medium around
Weight and Size 1165g/ unit size: 175*80*36mm, sensor size: 181*54*30mm

Accessories:

Standard: Digital Force Gauge, Sensor (M12 Screw Hole), 2 Suspension Links, Manual, Carrying Case
Optional: Power Adapter, Force Gauge Stand

SR207 series Digital Force Gauge

Applications:

The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.

Features:
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 4 measurement unit for selection and conversion, N, kg, lb, g.
* With peak value hold function.
* With data memory function, can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Power can be supplied by either alkaline battery or 6V DC power.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications:

Model

SR207-10

SR207-20

SR207-50

SR207-100

SR207-200

SR207-500

SR207-1K


Force Range

1kgf

2kgf

5kgf

10kgf

20kgf

50kgf

100kgf

1000gf

2000gf

5000gf

- - - -
9.8N 19.6N 49N 98N 196N 490N 980N

2.2Lbf

4.4Lbf

11Lbf

22Lbf

44Lbf

110Lbf

220Lbf


Load Value

0.001kgf

0.001kgf

0.001kgf

0.001kgf

0.01kgf

0.01kgf

0.01kgf

1gf

1gf

1gf

- - - -
0.01N 0.01N 0.01N 0.01N 0.1N 0.1N 0.1N

0.001Lbf

0.001Lbf

0.01Lbf

0.01Lbf

0.01Lbf

0.1Lbf

0.1Lbf

Accuracy

0.2%FS 1digit

Unit kgf, gf, N, Lbf
Measurement State Peak value measurement, Real time measurement
Display 2 reversed 4 digit LCD
Power Off 10 minutes auto power off, manual power off
Backlight Blue backlight
Safe Load 150%FS (Buzzer alarm over 110%FS)
Data Output USB, Bluetooth
Power Supply 2*1.5 AA battery or 6V DC power supply
Operating Conditions Temperature: 0~40C, Humidity: <80%
Surrounding No vibration source or corrosive medium around
Weight and Size 390g/ 211*80*36mm

Accessories:

Standard: Digital Force Gauge, Pulling Hook, Flat Tip, Cone Tip, V-shaped Groove Tip, V-shaped Wedge Tip, Lengthening Connection Rod (Screw Rod, Cap Nut), Manual, Carrying Case
Optional: CD, USB Data Cable, Bluetooth Adapter, Power Adapter, Force Gauge Stand

Application Of Accessories:

Accessory

Applications

Pulling Hook

To hang tested objects when testing pulling force.

Flat Tip

To test thrust of flat surface or convex surface.

Cone Tip

To test thrust of flat surface, concave surface or circular hole.

V-shaped Groove Tip

To test thrust of cylindrical surface or the edge of perpendicular planes.

V-shaped Wedge Tip

To test thrust of flat surface or groove surface.

Lengthening Connection Rod

It is used in the situation when the measurement tip is not long enough.

SR207 series Digital Force Gauge

Applications:

The digital force gauge is a kind of simple and convenient multi-functional instrument for high-accuracy push force and pull force test. It is widely used in electronics, building hardware, textile, auto parts, ignition device such as lighter, fire fighting equipment, pen manufacturing, lock manufacturing, fishing gear, chemical, power machinery, scientific research institutions and other industries.

Features:
* High accuracy and high resolution.
* Digital display with no guessing or errors.
* With 3 measurement unit for selection and conversion, N, kg, lb.
* With peak value hold function.
* Can memorize 99 groups of data.
* With 10 minutes auto power off and manual power off.
* Either alkaline battery Power supply or 6V DC power.
* Use USB cable or Bluetooth adapter for data output.

Specifications:

Model

SR207-2K

SR207-5K

SR207-10K


Force Range

200kgf

500kgf

1000kgf

1960N 4900N 9800N

440Lbf

1100Lbf

2200Lbf


Load Value

0.01kgf (<100kgf)

0.1kgf (100kgf)

0.01kgf (<100kgf)

0.1kgf (100kgf)

0.01kgf (<100kgf)

0.1kgf (100kgf)

0.1N (<1000N)

1N (1000N)

0.1N (<1000N)

1N (1000N)

0.1N (<1000N)

1N (1000N)

0.1Lbf

0.1Lbf (<1000Lbf)

1Lbf (1000Lbf)

0.1Lbf (<1000Lbf)

1Lbf (1000Lbf)

Accuracy

0.2%FS 1digit

Unit kgf, N, Lbf
Measurement State Peak value measurement, Real time measurement
Display 2 reversed 4 digit LCD
Power Off 10 minutes auto power off, manual power off
Backlight Blue backlight
Safe Load 150%FS (Buzzer alarm over 110%FS)
Data Output USB, Bluetooth
Power Supply 2*1.5 AA battery or 6V DC power supply
Operating Conditions Temperature: 0~40C, Humidity: <80%
Surrounding No vibration source or corrosive medium around
Weight and Size 1165g/ unit size: 175*80*36mm, sensor size: 181*54*30mm

Accessories:

Standard: Digital Force Gauge, Sensor (M12 Screw Hole), 2 Suspension Links, Manual, Carrying Case
Optional: CD, USB Data Cable, Bluetooth Adapter, Power Adapter, Force Gauge Stand

FMS-1 Force Gauge Measurement Stand (for SR204, SR207 series)
This support, being combined with a force gauge, can measure the pushing or pulling force in vertical or horizontal direction.

Operation procedure:

Pushing or Pulling force measurements in vertical position:

1. Put the support vertically. Hold the force gauge vertically with the sensing end
upward. With M3 screws through the ϕ3 Hole to connect the force gauge on the
Connection Block.
2. Connect the Hook on the Fixing Beam through the ϕ6 Hole.
3. Connect the measured connector between the sensing end of force gauge and the

hook. When connecting, the position of the Sliding Block can be adjusted by rotating
the Rotation Handle. When the Rotation Wheel is rotated clockwise, the Sliding
Block moves upward; when the Rotation Wheel is turned counterclockwise, the
Sliding Block moves downward.
4. By rotating the Rotation Handle, pulling force of the measured connector under
various state can measured.
5. To measure the pushing force of the connector, simply change the hook to the
corresponding connector.

Pushing or Pulling force measurements in horizontal position:
1. Put the support horizontally. Hold the force gauge horizontally with the sensing end
pointing the Fixing Beam. With M3 screws through the ϕ3 Hole to connect the force
gauge on the Connection Block.
2. Connect the Hook on the Fixing Beam through the ϕ6 Hole.
3. Connect the measured connector between the sensing end of force gauge and the
hook. When connecting, the position of the Sliding Block can be adjusted by rotating
the Rotation Handle. When the Rotation Wheel is rotated clockwise, the Sliding
Block moves toward the Fixing Beam; when the Rotation Wheel is turned
counterclockwise, the Sliding Block moves toward the Base.
4. By rotating the Rotation Handle, pulling force of the measured connector under
various state can measured.
5. To measure the pushing force of the connector, simply change the hook to the
corresponding connector.

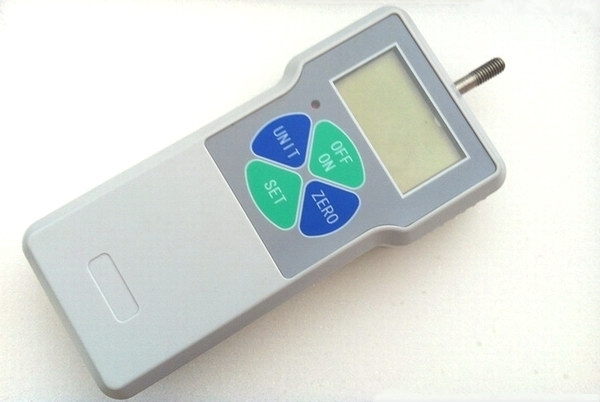

SRG Series Digital Force Gauge
Product Description:
This product is a simple push pull force gauge with high performance.
Character:
1.Digital display, easy reading;
2.In light weight, small size, easy to carry;
3.Unit display: Lb, Kg, N
4.The battery has over-load protection in case of short circuit and leakage of electricity .It also can tell you when the battery is running low. It adopt the 3.7V lithium battery and auto shut off with no operation in 10 minutes at the same time;

5. Peak hold function.
Specification:

Model

SRG-2

SRG-3

SRG-5

SRG-10

SRG-20

SRG-30

SRG-50

SRG-100

SRG-200

SRG-300

SRG-500


The max. Load value

2N

3N

5N

10N

20N

30N

50N

100N

200N

300N

500N

0.2kg

0.3kg

0.5kg

1kg

2kg

3kg

5kg

10kg

20kg

30kg

50kg

0.45Lb

0.65Lb

1.1Lb

2.2Lb

4.5Lb

6.5Lb

11Lb

22Lb

45Lb

65Lb

110Lb


Load Value

0.001N

0.01N

0.1N

0.001KG

0.001KG

0.01KG

0.001Lb

0.001Lb

0.01Lb

The sensor

Sensor inside

Precision

0.5%

Power

3.7V lithium battery

Charging time

4~6 hours

Continuous usage  time of battery

About 15 hours

Battery life

>/=300 times

Charger

Input: AC100- 240V 50-60Hz           Output: DC 5V 1000mA

Working temperature

5 C ~35 C

Transportation  temperature

-10 C~60 C

Relative humidity

15%~80%RH

Work environment

No focus ,Non-corrosive in surroundings

SRF Series Digital Force Gauge

Product Description:

The SRF series are digital force gauge with compact size, high accuracy,
They are easy to operate and handy to carry out.
Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts,
lighter and ignition system, light industry, mechanical, textile,
and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment.
This digital force gauge is new generation pulls the pressure measuring instrument.

Character:

1:Connect the computer in-phase test.
2:The compare value set by users request.
3:Large memory deposit function.
4:LCD overturns show.
5:Auto peak.
6:Auto close time set.

Specification:

Model specification

SRF-2

SRF-5

SRF-10

SRF-20

SRF-50

SRF-100

SRF-200

SRF-500

SRF-1K

Peak load value

N

2

5

10

20

50

100

200

500

1000

kg

0.2

0.5

1

2

5

10

20

50

100

lbs

0.44

1.1

2.2

4.4

11

22

44

110

220

load division value

N

0.001

0.001

0.01

0.01

0.01

0.1

0.1

0.1

1

kg

0.0001

0.0001

0.001

0.001

0.001

0.01

0.01

0.01

0.1

lbs

0.0001

0.0001

0.001

0.001

0.001

0.01

0.01

0.01

0.1

Indication error

0.50%

Unit

N / kg / lb

Data interface

Rs232 nine-hole socket

Power

rechargeable batteries, charger(charging voltage 100V-240V)

Sensor structure

S-type sensor with high precision (inner sensor)

Ambient temperature

5 C~35 C

Transport temperature

-10 C~60 C

Relative humidity

15%~80%RH

Working conditions

No hypocenter and corrosive medium

Gross weight

~2000g

Size

273 x 182 x70 mm

HP Digital Force Gauge

Function & Specification :
-High accuracy & high resolution;
-Having 5 kinds of test modes, 3 kinds of display usages for selection;
-Units : N, Kg and Ibf for your selection, which can make conversion each;
-Function of reset the acceleration of gravity;
-Peak hold function;
-Peak automatic clearance function;
-Set the tolerance limit (Max/Min);
-Super memory function - deposit 888 test values.
-Automatic power off function ;
-With 2 sets of different installation size;
-LCD screen turn direction function ;
-Inductive background light;
-RS-232 output;
a. match a free software for analysis ( without graph).
b. match a synchronous test software ( software is optional ), it can connect to PC to get synchronous graph, and also can reserve ,print,analysis, and so on.

Parameter:

 Model:

HP-2

HP-3

HP-5

HP-10

HP-20

HP-30

HP-50

HP-100

HP-200

HP-300

HP-500

HP-1K

 Capacity:

2N

3N

5N

10N

20N

30N

50N

100N

200N

300N

500N

1000N

 Resolution:

0.001N

0.001N

0.001N

0.01N

0.01N

0.01N

0.01N

0.1N

0.1N

0.1N

0.1N

1N

 Sensor:

Sensor Inside

 Accuracy:

0.5%

 Dimension:

230x66x36mm

Dimension :



HP Digital Force Gauge

Function & Specification :
-High accuracy & high resolution;
-Having 5 kinds of test modes, 3 kinds of display usages for selection;
-Units : N, Kg and Ibf for your selection, which can make conversion each;
-Function of reset the acceleration of gravity;
-Peak hold function;
-Peak automatic clearance function;
-Set the tolerance limit (Max/Min);
-Super memory function - deposit 888 test values.
-Automatic power off function ;
-With 2 sets of different installation size;
-LCD screen turn direction function ;
-Inductive background light;
-RS-232 output;
a. match a free software for analysis ( without graph).
b. match a synchronous test software ( software is optional ), it can connect to PC to get synchronous graph, and also can reserve ,print, analysis, and so on. free charge. See demo here: software demo.

Please be noted:

1, From HP-2K to 50k, standard delivery is with rod ends/clamps, from 100k to 1000K without, it is optional part.

2, The standard delivery for HP-2K to HP-1000K is already with sensor. If you need it as spare part, you can order separately.

Parameter:

Model:

HP-2K

HP-3K

HP-5K

HP-10K

HP-20K

HP-30K

HP-50K

HP-100K

HP-200K

HP-300K

HP-500K

HP-1000K

Capacity:

2K

3K

5K

10KN

20KN

30KN

50KN

100KN

200KN

300KN

500KN

1000KN

Resolution:

1N

1N

1N

0.01KN

0.01KN

0.0K1N

0.1KN

0.1KN

0.1KN

0.1N

0.1KN

1KN

Sensor:

Sensor Outside(S beam)

Sensor Outside(Spoke type)

Accuracy:

0.5%

1%

Dimension:

230x66x36mm

Sensor dimension:

NK Analog Force Gauge

Function:
NK series are Analog Force Gauge with compact size and high accuracy. They are easy to operate and handy to carry out. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force) to the tracking indication (the needle moves in accordance with change of force). As two types of scales (Newton scale and kilogram scale) are available and you can choose the most suitable graduation from the range of 10N(1kgf) to 500N(50kgf) for your measurement purpose.

Specification:
-High accuracy and high resolution;
-Compact size, easy to operate and handy to carry out;
-Peak hold and track mode;
-Two units: Newton and Kilogram;
-Match to all kinds of test stand and grips.

Parameter:

 Model:

NK-10

NK-20

NK-30

NK-50

NK-100

NK-200

NK-300

NK-500

 Capacity:

10N

20N

30N

50N

100N

200N

300N

500N

 Resolution:

0.05N

0.1N

0.2N

0.2N

0.5N

1.0N

2.0N

2.0N

 Accuracy:

1%

DL Analog Force Gauge

Parameter:

Model

capacity

resolution

accuracy

DL-2

2lb

0.01lb

+/-5%

DL-5

5lb

0.025lb

+/-5%

DL-10

10lb

0.05lb

+/-5%

DL-20

20lb

0.1lb

+/-5%

DL-50

50lb

0.25lb

+/-5%

DL-100

100lb

0.5lb

+/-5%



( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
