Electric Test Stand, Motorized Test Stand, force gauge test stand

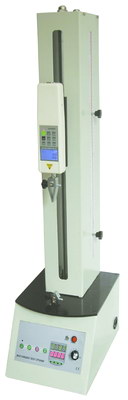

HSV Electric Test Stand
Function :
HSV Motorized Test Stand are special designed for HP Digital force gauge and NK Analog force gauge. They with step less timing, manual and automatic controller, test number or test time controller, LED screen shows, overload protected, high quality motor advantages. They are easy operation and widely use for tension/compression, insertion/withdraw, fatigue test and fracture test.

Specification:
-Capacity: 500/1000N;
-Stroke: 700 mm;
-Speed: 30~500 mm/min;
-Dimension: 360*255*1000(mm);
-Net weight: 40 Kgs;
-Counter : Max.working cycle 9999 times one time;
-Signal input:Stop working when reach the limit stops;
-Safty: Automatic stop working when overload;
-Voltage: AC 220V ( AC 110V can be specified ).

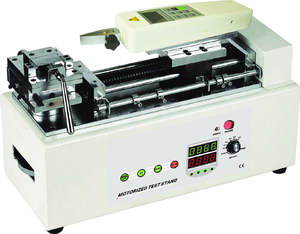

HTH Electric Test Stand
Function:

-Match to NK/HP series force gauge;
-Horizontal installation;
-Electronic operation, automatically adjust or handy to control;
-With stability, facility advantage;
-Speed adjust according to requirement ;
-With a counter, which can set the test number as required.

Specification:
-Capacity: 500N;
-Stroke: 150 mm;
-Speed: 30~500 mm/min;
-Dimension: 220*470*255(mm);
-Net weight: 50 Kgs;
-Voltage: AC 220V ( AC 110V can be specified ).

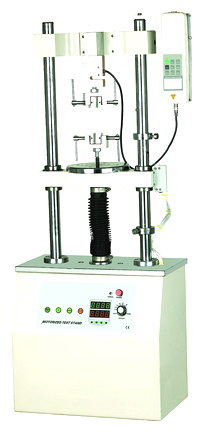

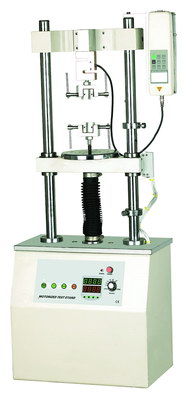

HDV-5K Electric Test Stand
Function :

HDV-5K Motorized Test Stand are special designed for HP Digital force gauge and NK Analog force gauge. They with step less timing, manual and automatic controller, test number or test time controller, LED screen shows, overload protected, high quality motor advantages. They are easy operation and widely use for tension/compression, insertion/withdraw, fatigue test and fracture test.

Specification:
-Capacity: 5000N;
-Stroke: 220 mm;
-Speed: 30~300 mm/min;
-Dimension: 410*260*1000(mm);
-Net weight: 75 Kgs;
-Counter : Max.working cycle 9999 times one time;
-Signal input:Stop working when reach the limit stops;
-Safty: Automatic stop working when overload;
-Voltage: AC 220V ( AC 110V can be specified ).
HDV-10K Electric Test Stand
Function :

HDV-10K Motorized Test Stand are special designed for HP Digital force gauge and NK Analog force gauge. They with step less timing, manual and automatic controller, test number or test time controller, LED screen shows, overload protected, high quality motor advantages. They are easy operation and widely use for tension/compression, insertion/withdraw, fatigue test and fracture test.

Specification:
-Capacity: 10000N;
-Stroke: 220 mm;
-Speed: 30~300 mm/min;
-Dimension: 410*260*1200(mm);
-Net weight: 85 Kgs;
-Counter : Max.working cycle 9999 times one time;
-Signal input:Stop working when reach the limit stops;
-Safty: Automatic stop working when overload;
-Voltage: AC 220V ( AC 110V can be specified ).

HDV-20K Electric Test Stand
Function :

HDV-20K Motorized Test Stand are special designed for HP Digital force gauge . They with step less timing, manual and automatic controller, test number or test time controller, LED screen shows, overload protected, high quality motor advantages. They are easy operation and widely use for tension/compression, insertion/withdraw, fatigue test and fracture test.
Specification:
Capacity: 20000N;
Stroke: 220 mm;
Speed: 30~240 mm/min;
Dimension: 410*260*1000(mm);
Net weight: 80 Kgs;
Counter : Max.working cycle 9999 times one time;
Signal input:Stop working when reach the limit stops;
Safty: Automatic stop working when overload
Voltage: AC 220V ( AC 110V can be specified ).

HDV-30K Electric Test Stand
Function :

HDV-30K Motorized Test Stand are special designed for HP Digital force gauge and NK Analog force gauge. They with step less timing, manual and automatic controller, test number or test time controller, LED screen shows, overload protected, high quality motor advantages. They are easy operation and widely use for tension/compression, insertion/withdraw, fatigue test and fracture test.
Specification:
Capacity: 30000N;
Stroke: 220 mm;
Speed: 30~240 mm/min;
Dimension: 460*260*1000(mm);
Net weight: 100 Kgs;
Counter : Max.working cycle 9999 times one time;
Signal input:Stop working when reach the limit stops;
Safty: Automatic stop working when overload
Voltage: AC 220V ( AC 110V can be specified ).

กก กก

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
