weighing indicator

Simple weighing for platform scale         Terminal for truck scale

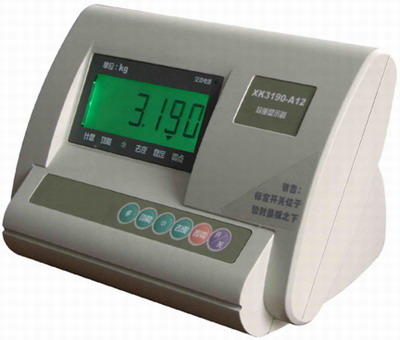

Model: XK3190-A12

Introduction:
- Fast speed, high precision -∆ A/D conversion
- Anti-vibration software
- Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.

Features:
- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Software to strength anti-vibration ability
- Zero-tracking, Zero range setup (auto/manual)
- Setup digital filter intensity, range and stable time
- Counting function with unit data save protection in case of power off
- Alarm for low battery and auto power off when low battery
- Optional function:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output

Parameters:

Model

Model: XK3190-A12

Input signal range

-10mV~15mV

Input sensitivity

 1V/e

Load cell Excitation

Dc 5V: /150mA

Max. load cell connection

4 at 350 ohm

Display

6 bits LCD, 6 status indications

6 bits LED, 6 status indication

Optional interface

RS232C serial communication

Transmission distance

RS232C30 meters

Packing 8PCS/CTN, CTN SIZE: 64*46*47CM, G.W.: 24KGS, VOLUME WEIGHT: 27.8KGS

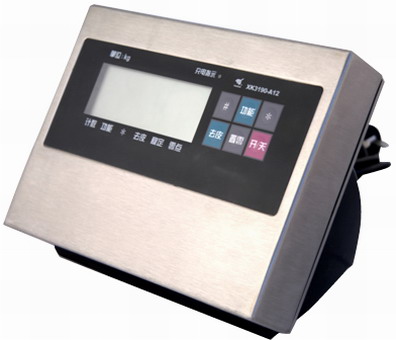

Model:  XK3190-A12S

Introduction:
- Fast speed, high precision -∆ A/D conversion
- Anti-vibration software
- Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.

Features:
- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Software to strength anti-vibration ability
- Zero-tracking, Zero range setup (auto/manual)
- Setup digital filter intensity, range and stable time
- Counting function with unit data save protection in case of power off
- Alarm for low battery and auto power off when low battery
- Optional function:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output

Parameters:

Model

XK3190-A12S

Input signal range

-10mV~15mV

Input sensitivity

1V/e

Load cell Excitation

Dc 5V: /150mA

Max. load cell connection

4 at 350 ohm

Display

6 bits LCD, 6 status indications

6 bits LED, 6 status indication

Optional interface

RS232C serial communication

Transmission distance

RS232C30 meters

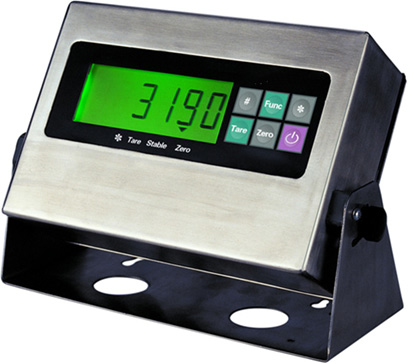

Model:  XK3190-A12SS

Introduction:
- Fast speed, high precision -∆ A/D conversion
- Anti-vibration software
- Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.

Features:
- A/D conversion with readability 1/30000
- Use inner code to replace weight observing and analysis tolerance
- Software to strength anti-vibration ability
- Zero-tracking, Zero range setup (auto/manual)
- Setup digital filter intensity, range and stable time
- Counting function with unit data save protection in case of power off
- Alarm for low battery and auto power off when low battery
- Optional function:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output

Parameters:

Model XK3190-A12SS
Input signal range -10mV~15mV
Input sensitivity 1V/e
Load cell Excitation Dc 5V: /150mA
Max. load cell connection 4 at 350 ohm
Display 6 bits LCD, 6 status indications
Optional interface RS232C serial communication
Transmission distance RS232C30 meters
Packing 4PCS/CTN, CTN SIZE: 0.085CBM, G.W.: 14.2KGS, VOLUME WEIGHT: 17.0KGS

( If you need prices, pictures without our warter mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
