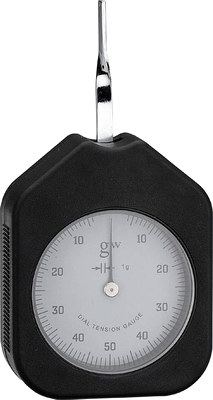

HTS
Dial Tension Gauge
Function:
HTS Dial Tension Gauge is used in testing the tension of
electronic switches, micro-switches, valves, automatic telephone
equipment connector and pressure mechanical pressure equipment,
other precision pressure and so on.
Operation:
When testing, only use active needle to dial the tested thing to
make it move from stationary state to the needed position. Dial
Tension Gauge not only can be tested from clockwise direction,
but also can be tested from counterclockwise on the condition
that the active needle arm must be always upright with the
direction of push pull force. Dial Tension Gauge include single
needle and double needle. The double needle Dial Tension Gauge
would be stopped to move from passive needle after getting the
highest numerical value, to the effect that the user can read
the testing value conveniently.
Parameter:
|
Model |
HTS-5 |
HTS-10 |
HTS-30 |
HTS-50 |
HTS-100 |
HTS-150 |
HTS-300 |
HTS-500 |
|
Capacity |
5g |
10g |
30g |
50g |
100g |
150g |
300g |
500g |
|
Resolution |
0.1g |
0.2g |
0.5g |
1g |
2g |
2.5g |
5g |
10g |
|
Calibration mode |
1-5-1g |
2-10-2g |
6-30-6g |
10-50-10g |
20-100-20g |
30-150-30g |
60-300-60g |
100-500-100g |
¡¡
|
MODEL
|
HTS-0.05N
|
HTS-0.1N
|
HTS-0.3N
|
HTS-0.5N
|
HTS-1N
|
HTS-1.5N
|
HTS-3N
|
HTS-5N
|
|
Capacity
|
0.05N
|
0.1N
|
0.3N
|
0.5N
|
1N |
1.5N
|
3N |
5N |
|
Resolution
|
0.002N
|
0.005N
|
0.01N
|
0.02N
|
0.05N
|
0.05N
|
0.1N
|
0.2N
|
|
Scale mode
|
0.01-0.05-0.01N
|
0.02-0.1-0.02N
|
0.06-0.3-0.06N
|
0.1-0.5-0.1N
|
0.2-1-0.2N
|
0.3-1.5-0.3N
|
0.6-3-0.6N
|
1-5-1N
|
¡¡
Dimension:
 |
|
HTD
Dial Tension Gauge (peak hold)
Function:
HTD Dial Tension Gauge is used in testing the tension of
electronic switches, micro-switches, valves,automatic telephone
equipment connector and pressure mechanical pressure equipment,
other precision pressure and so on.
Operation:
When testing, only use active needle to dial the tested thing to
make it move from stationary state to the needed position. Dial
Tension Gauge not only can be tested from clockwise direction,
but also can be tested from counterclockwise on the condition
that the active needle arm must be always upright with the
direction of push pull force. Dial Tension Gauge include single
needle and double needle. The double needle Dial Tension Gauge
would be stopped to move from passive needle after getting the
highest numerical value, to the effect that the user can read
the testing value conveniently.
Parameter:
|
Model |
HTD-10 |
HTD-30 |
HTD-50 |
HTD-100 |
HTD-150 |
HTD-300 |
HTD-500 |
|
Capacity |
10g |
30g |
50g |
100g |
150g |
300g |
500g |
|
Resolution |
0.2g |
0.5g |
1g |
2g |
2.5g |
5g |
10g |
|
Calibration mode |
2-10-2g |
6-30-6g |
10-50-10g |
20-100-20g |
30-150-30g |
60-300-60g |
100-500-100g |
¡¡
|
MODEL
|
HTD-0.1N
|
HTD-0.3N
|
HTD-0.5N
|
HTD-1N
|
HTD-1.5N
|
HTD-3N
|
HTD-5N
|
|
Capacity
|
0.1N
|
0.3N
|
0.5N
|
1N |
1.5N
|
3N |
5N |
|
Resolution
|
0.005N
|
0.01N
|
0.02N
|
0.05N
|
0.05N
|
0.1N
|
0.2N
|
|
Scale mode
|
0.02-0.1-0.02N
|
0.06-0.3-0.06N
|
0.1-0.5-0.1N
|
0.2-1-0.2N
|
0.3-1.5-0.3N
|
0.6-3-0.6N
|
1-5-1N
|
Dimension :
 |
|
SRTS series
Digital Line Tension Tester
The
SRTS
series Digital Tension Meter is a
hand-held device which accurately measures the running as well
as static tensions of a wide variety of process materials
including yarns, fibers, wires, optical fiber.
Features:
* It employs the ¡®three-roller principle¡¯ of tension test.
* High accuracy and high resolution.
* Power is supplied by 4xAAA alkaline battery.
* With 4 measurement unit for selection, N, kg, lb, g.
* Current Value, Max. Value, Peak Value, Min Value can be
displayed at the same time.
* With 10 minutes auto power off and manual power off.
* The Meter takes 62 tension measurements per second and
displays the average of these measurements.
* Optional data output, by USB cable or Bluetooth adapter.
General Specifications:
|
Unit
|
Kgf , gf , N , Lbf
|
|
Measuring Principle
|
Strain gauge
|
|
Measuring Frequency |
16msec (62.5 samples / sec) |
|
Sensing Roller
|
Deflection of Sensing Roller
( max. ) 0.2 mm
|
|
Overload Capacity
|
150 % of Full Scale
|
|
Temperature Coefficient
|
Zero: less than ¡À0.3% FS/ ¡ãC;
Span: less than ¡À0.01% FS/ ¡ãC
|
|
Display
|
Blue Back light LCD
|
|
Display Update Rate
|
0.5 , 1.0 , 2.0 or 4.0
seconds , selectable
|
|
Memory System
|
Current Value , Max. Value ,
Peak Value , Min Value
|
|
Over range Indicator
|
Buzzer Alarm
|
|
Power Off
|
10 Minutes Auto , Manual
|
|
Data Output
|
USB , Bluetooth (Optional)
|
|
Roller Material
|
Stainless Steel (Standard);
Plastic (Optional)
|
|
Maximum Speed
|
2000 m/min
|
|
Power Supply
|
4 x 1.5 AAA( UM-4 ) Battery
|
|
Operation Temperature &
Humidity
|
Temperature:
0 ~ 40 ¡ãC,
Humidity:
< 80 %
|
|
Weight & Size
|
400g/
Size:
Main Unit: 149 x 70 x 30 mm,
Sensor: 102 x 81 x 34 mm
|
Model Specifications:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0~200gf |
|
0~1000gf |
|
0~5000gf |
- |
- |
- |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
¡¡ |
¡¡ |
¡¡ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SRT series Rope Tension Tester
Function:
SRT series Rope Tension Testing Instrument can be applied to
various occasions, such as power industry, telecommunications
industry, transportation industry, glass curtain wall
decoration, ropeway industry, construction industry, pleasure
grounds, tunnel construction, fishing, major research
institutions and teaching institutions, testing institutions and
other occasions involved with the tension of ropes and steel
wire ropes.
Features:
1. It has the rope structure with tension force, and can be
measured directly without the need of being taken apart.
2. It has the light weight, simple structure, convenient
operation, and applies to any situations.
3. It has the stable performance, high measurement accuracy,
with automatic system compensation function.
When the specification of the tested rope is the same as the
rope tension testing instrument rope number, the measurement
accuracy can reach 2% error or less within the rated measurement
range.
4. It has broader range of measurement, with 15 kinds of
rope-diameter measuring functions.
5. Applied range: applied to flexible, stretched ropes, such as
various steel wire ropes, high-strength ropes, etc.
6. Accuracy grade: 2~6% of maximum function (depending on the
rope form and features).
7. Rope Diameter: 6~40mm.
Specification:
|
Model |
SRT-20KN
|
SRT-50KN |
SRT-100KN |
SRT-200KN |
|
Maximum load value (KN) |
20 |
50 |
100 |
200 |
|
Divided load value (KN) |
0.01 |
0.01 |
0.1 |
0.1 |
|
Output connector |
Rs232 9-hole socket |
|
Power |
rechargeable battery charger (charging voltage 100V~240V) |
|
Operating temperature |
5ºC~35ºC
|
|
Transport temperature |
-10ºC~60ºC
|
|
Relative humidity |
15%~80%RH |
|
Operation |
No vibration focus and corrosive media around
|
|
Net weight |
5kg |
|
Dimensions |
650*375*100mm
|
Physical Form and Structure:
¡¡
1. function keys 2. LCD screen 3. handle 4. RS232
9-hole socket and power socket
5. support seat 6. positioning block 7. locking
block 8. hand wheel |
