Manual Test Stand, Manual Force Measurement Test Stands, manual horizontal test stand, Spring Tester, Digital Spring Tester

 HLA Manual Test stand
Function:
-Match to NK/HP series force gauge;
-Both vertical and horizontal installation;
-Manual operation, easy and stable to operate;
-With wheel handle.

Specification:
-Capacity: 500N;
-Stroke: 150 mm;
-Dimension: 250*152*245(mm);
-Net weight: 11Kgs.

HLB Manual Test stand
Function:
-Match to NK/HP series force gauge;
-Both vertical and horizontal installation;
-Manual operation, easy and stable to operate;
-With wheel handle, with digital scale (compared with HLA);

Specification:
-Capacity: 500N;
-Stroke: 150 mm;
-Dimension: 250*152*245(mm);
-Net weight: 11 Kgs. 		HHB Manual Test Stand
Function:
-Match to NK/HP series force gauge;
-Both vertical and horizontal installation;
-Manual operation, easy and stable to operate;
-With wheel handle;

Specification:
-Capacity: 500N;
-Stroke: 140 mm;
-Dimension: 200*160*540(mm);
-Net weight: 20 Kgs.

HPA Manual Test stand
Function:
-Match to NK/HP series force gauge ;
-Manual operation, easy and stable to operate ;
-Compact construction.

Specification:
-Capacity: 500N;
-Stroke: 70 mm;
-Dimension: 200*160*540(mm);
-Net weight: 12 Kgs. 		HPB Manual Test Stand
Function:
-Match to NK/HP series force gauge ;
-Manual operation, easy and stable to operate ;
-Compact construction, with digital scale.

Specification:
-Capacity: 500N;
-Stroke: 70 mm;
-Dimension: 200*160*540(mm);
-Net weight: 12 Kgs.

HPH Manual Test Stand
Function:
-Match to NK/HP series force gauge;
-Horizontal installation;
-Manual operation, easy and stable to operate.

Specification:
-Capacity: 500N;
-Stroke: 50 mm;
-Dimension: 450*190*180(mm);

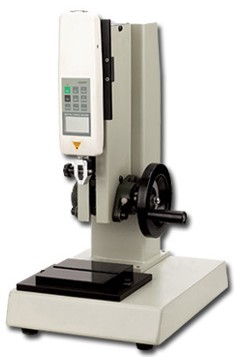

-Net weight: 20 Kgs. 		HLD Manual Test stand
Function:
-Match to NK/HP series force gauge;
-With excellent stability, suit for operate on desk indoor.
-Trapezoid screw wheel, manual and easy operate.
-With a moving pedestal, easy moving up and down, X and Y axis.
-The design is convenient to fix clamps.

Specification:
-Capacity: 1000N;
-Stroke: 180 mm;
-Dimension: 450*450*700(mm);
-Net weight: 30 Kgs.

¡¡

¡¡

Digital Spring Tester

¡¡

HD Digital Spring Tester

Function:
The Digital spring tester test tension and compression of springs. The spring tester can provide the data of load and distortion same time. The digital spring tester can provide the data of load and distortion same time.
Characteristic:
1. High accuracy, high resolution;
2. Peak hold function;
3. peak automatic clearance function;
4. tolerance limit (up and down limit);
5. automatic power off function;
6. 3 units available: N, kgf, lbf;
7. full range 120% overload;
8. reset acceleration of gravity function;
9. large memory, 99 memory value;
10. background light choose on or off;
11. USB output;
12. match a synchronous analysis software, which can connect to PC to get synchronous graph, and also can reserve, print, analysis and so on.

Specification:

Model

HD-10

HD-20

HD-30

HD-50

HD-100

HD-150

HD-200

HD-300

HD-500

HD-1000

HD-2000

HD-3000

HD-5000

Max working load (N)

10

20

30

50

100

150

200

300

500

1000

2000

3000

5000

Resolution (N)

0.001

0.001

0.001

0.001

0.01

0.01

0.01

0.01

0.01

0.1

0.1

0.1

0.1

Max travel (mm)

70

70

70

90

90

90

90

90

90

150

150

150

150

Travel resolution (mm)

0.01

0.01

0.01

0.01

0.01

0.01

0.01

0.01

0.01

0.01

0.01

0.01

0.01

Platen diameter (mm)

34

34

34

49

49

49

49

49

49

108

108

108

108

Max free testable length (mm)

100

100

100

150

150

150

150

150

150

200

200

200

200

Accuracy

¡À0.5%¡¡

Working voltage

AC: 220V, 50HZ¡¡

Working power

13W

Recommend measuring range

20%~100%¡¡

Working temperature

20~¡À10ºC

Transport temperature

-27~+70ºC

Relative moisture

15%~80%RH¡¡

¡¡

¡¡

¡¡

Attachment, Grips and Tips

HJJ-001
-2 Pcs
-Capacity: 500N
-Sponge, foam, tape, leather, paper, flake and so on. 		HJJ-002
-2 Pcs
-Capacity: 500N
-Rubber, cables and wires, paper,electrical components, plastic films and so on.

HJJ-003
-2 Pcs
-Capacity: 500N
-Sponge, foam, glass, hardness of stone materials, destructive test and so on. 		HJJ-005
-3 Pcs
-Capacity: 500N
-Plastic wood, glass, leather, paper, destructive test and so on.

HJJ-007
-2 Pcs
-Capacity: 500N
-Various wires and cables, glass, leather, various electrical and so on. 		HJJ-008
-2 Pcs
-Capacity: 500N
-Plastic, wood, glass, leather, paper, flake and so on.

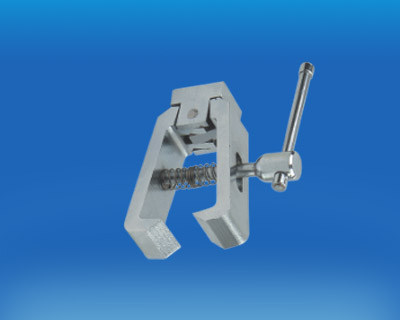

HJJ-009
-2 Pcs
-Capacity: 500N
-Rubber, PCB, adhesive tape , various materials peel strength test and so on. 		HJJ-010
-1 Pcs
-Capacity: 500N
-Tape, leather, paper, flake, destructive test and so on.

HJJ-011
-2 Pcs
-Capacity: 500N

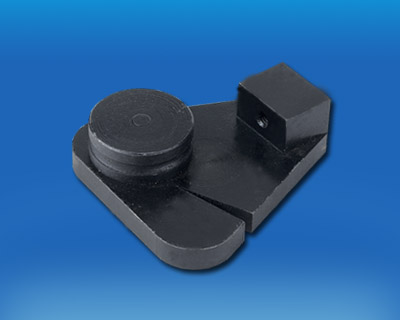

-iron wire, steel wire ,fishing wire , all kinds of cables and wires and so on. 		HJJ-012
-2 Pcs
-Capacity: 5000N
-iron wire, steel wire ,fishing wire , all kinds of cables and wires and so on.

HJJ-015
Capacity: 500N
Rubber, PCB, adhesive tape , various materials peel strength test and so on.

HJJ-016
Capacity: 1000N
iron wire, steel wire ,fishing wire , all kinds of cables and wires and so on.

HJJ-017
For wire or soft samples,crips and so on.
Capacity : 1000N
Opening width : 10mm
Weight : Approx900g

HJJ-018

This attachment rotates and accomodates a various sizes of terminals without being detached from the force gauge, thus contributing to more efficient testing. Capacity : 1000N
Number of slit : 12
Weight : Approx.380g

HJJ-019

Capacity: 500N
Weight: Approx500g

Diameter: 20mm
Apply Range: Applied in rubber, each kind of line cable, paper, electric appliance component, plastic film push pull force insertion force and destructive experiment.

HJJ-020

Capacity: 500N
Weight: Approx500g

Diameter: 35mm
Apply Range: Applied in rubber, each kind of line cable, paper, electric appliance component, plastic film push pull force insertion force and destructive experiment.

¡¡

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
