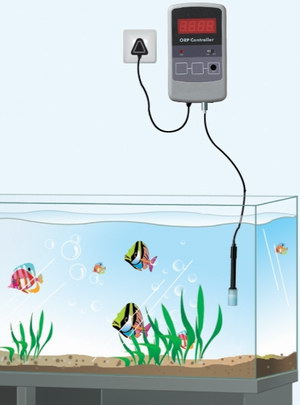

PHC series PH, ORP, CD meter and
controller
(If you need clear
photo withour our watermark, please ask at:
xiushunjie@gmail.com )
|
 |
Well designed structure, it works very
professionally and functionally at any area, epecially for
aquariums. It is easy to control or test the PH, ORP or salinity.
Description:
1. AC 120V-240V
2. Long-lasting test and controll the PH, ORP,conductivity and
calcium
data in the water.
3. Light LED display
4. High porfomance electrode
5. Combination funtions on testing and controlling
6. Hig precision and accuracy
7. Suitable for fresh water and saltwater
8. 12pcs/ctn, ctns size: 53.5*44.5*35.5
g.w./ctn: 12 kgs
|
Model |
Product |
Measurement
|
Control range
|
Resolution |
|
PHC200 |
ph
meter |
0-14ph |
|
±0.01ph |
|
PHC201 |
ph
controller |
0-14ph |
0-14ph |
±0.01ph |
|
ORPC300 |
orp
meter |
-1999-+1999mv |
|
±0.01mv |
|
ORPC301 |
orp
controller |
-1999-+1999mv |
0-1200mv |
±0.01mv |
|
POC231 |
ph-orp controller
|
ph:0-14ph
orp:
-1999+1999mv |
ph:0-14ph
orp: 0-+1200mv |
ph:±0.01ph
orp:±0.01mv |
|
CDC400 |
conductivity meter
|
0-199.9ms |
|
±0.1ms |
|
CDC401 |
conductivity controller
|
0-199.9ms |
0-100ms |
±0.1ms |
|
KCC500 |
calcium meter
|
100-600ppm |
|
±1ppm |
|
KCC501 |
calcium controller
|
100-600ppm |
200-500ppm |
±1ppm |
|
|
|
|
|
 |

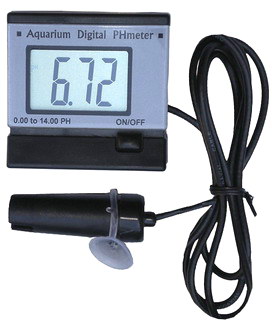

PH-025 Mini PH Meter Monitor
(Aquarium)
|
Model |
PH-025 |
|
Range |
0.00~14.00PH |
|
Accuracy |
±0.1PH |
|
Resolution |
0.01PH |
|
Operating temperature |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13)or AC110V~240V |
|
Dimensions |
60mm×55mm×23mm |
|
Weight |
62g |
|
|
|
|
|
TDS-139B, TDS-1393B |
TDS-139B TDS Tester
|
Model |
TDS-139B Monitor |
|
Measuring range |
0~1999PPm(mg/L) |
|
Accuracy |
±2%F. S |
|
Resolution |
1PPm(mg/L) |
|
Display |
4-digital LCD |
|
Environment |
Humidity:≤95% |
|
Automatic Temperature
Compensation |
0oC~50oC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
60×55×23(mm3) |
|
Weight |
60g |
TDS-1393B TDS Tester
|
Model |
TDS-1393B Monitor |
|
Measuring range |
0~19.99PPt |
|
Accuracy |
±2%F.S |
|
Resolution |
0.01PPt |
|
Display |
4-digital LCD |
|
Environment |
Humidity≤95% |
|
Automatic Temperature
Compensation |
0oC~50oC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
60×55×23(mm3) |
|
Weight |
60g |
|
|
|
|
|
EC-1382B, EC-1383B |

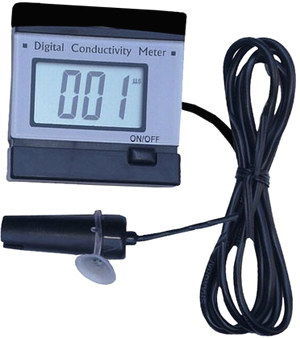

EC-1382B Conductivity
Tester
|
Model |
EC-1382B Monitor |
|
Measuring range |
0~1999us/cm |
|
Accuracy |
±2℅F.S |
|
Resolution |
1us/cm |
|
Display |
4-digital LCD |
|
Environment |
Humidity:≤95℅ |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
|
60×55×23(mm3) |
|
Weight |
|
60g |
EC-1383B Conductivity
Tester
|
Model |
EC-1383B Monitor |
|
Measuring range |
0~19.99ms/cm |
|
Accuracy |
±2℅F.S |
|
Resolution |
0.01ms/cm |
|
Display |
4-digital LCD |
|
Environment |
Humidity:≤95℅ |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
4×1.5V(AG13) |
|
Dimensions |
|
60×55×23(mm3) |
|
Weight |
|
60g |
|
|
|
|
|
 |
ORP-169F ORP/Redox Tester
(Aquarium)
Technical Specification:
Measuring range:0~±1999mV
Accuracy: ±5mV
Resolution:1 mV
Display:4-digital LCD
Power Supply:4×1.5V(AG13)
Dimensions:60×55×23(mm3)
Weight:62g
|
|
click it for big picture
HOT
SALES!!! |

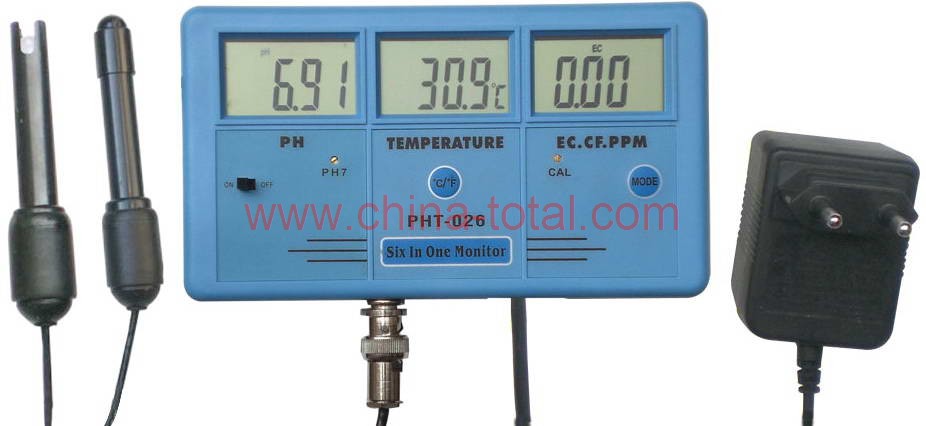

PHT-026 multi-parameter
5 IN 1
Water Quality Monitor
|
Model |
PHT-026 |
|
Measuring Range |
PH: 0.00~14.00 PH
ºC: -50ºC~70ºC (-58ºF~158ºF)
EC: 0.00~19.99EC
CF: 0.0~199CF
TDS: 10~19990ppm |
|
Resolution |
PH: 0.01PH
ºC: 0.1ºC(0.2ºF)
EC: 0.01EC
CF: 0.1CF
TDS: 10 ppm |
|
Accuracy |
PH: ±0.1 PH
ºC: 1.0ºC
EC, CF, TDS: ±2%F.S |
|
Operating Temperature |
0ºC~50ºC |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
AC110~240V,
with rechargeable battery |
|
Dimensions |
155mm×86mm×22mm |
|
Weight |
230g |
|
|
|
|
|
click it for big picture
HOT
SALES!!! |

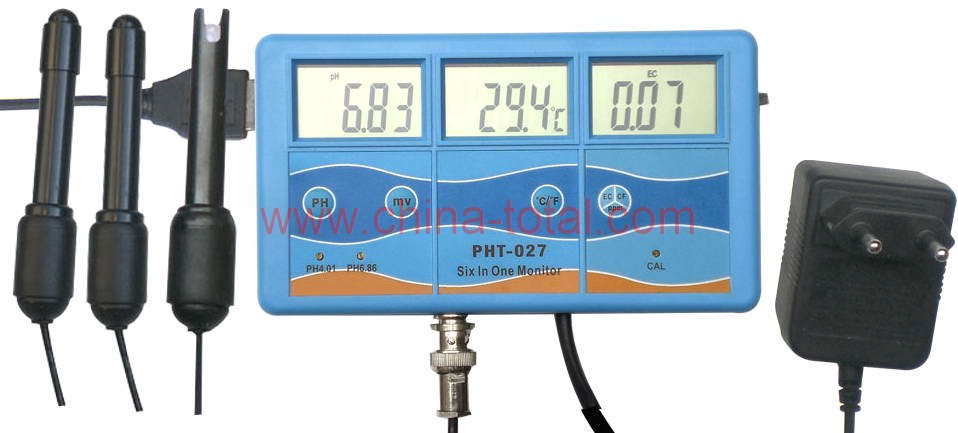

PHT-027 multi-parameter
6 IN 1
Water Quality Monitor
(With ORP than
PHT-026)
|
Model |
PHT-027 |
|
Measuring Range |
PH: 0.00~14.00 PH
oC: -50ºC~70ºC (-58ºF~158ºF)
EC: 0.00~19.99EC
CF: 0.0~199CF
TDS: 10~19990ppm
mv: 0~±1999mV |
|
Resolution |
PH: 0.01PH
ºC: 0.1ºC(0.2ºF)
EC: 0.01EC
CF: 0.1CF
TDS: 10 ppm
mv: 1mV |
|
Accuracy |
PH: ±0.1 PH
ºC: 1.0ºC
EC, CF, TDS: ±2%F.S
mv: ±0.1%F.S±1digit |
|
Operating Temperature |
0ºC~50ºC |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Power Supply |
AC110~240V,
with rechargeable battery |
|
Dimensions |
155mm×86mm×22mm |
|
Weight |
230g |
standard
delivery with all electrodes. |
|
|
|
|
click it for big picture
This indicator combines 6 meters into one easy to use wall mounting
continuous monitor. Featuring a large, dual-level, back-lit LCD
display the meter can display the EC/TDS/CF of your solution
together with the choice of either pH, temperature or
Oxidation-Reduction Potential (ORP).
Precision pH monitor immediately detects changes in solution pH.
With a 6 V DC power supply included with the meter (also included
rechargeable battery). It is with BNC composite electrode, around
the world to facilitate the replacement of electrodes, used.
standard
delivery with all electrodes.
HOT
SALES!!! |

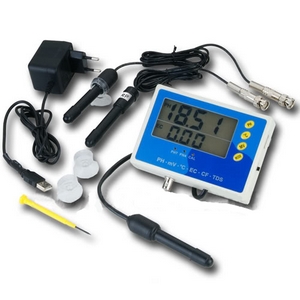

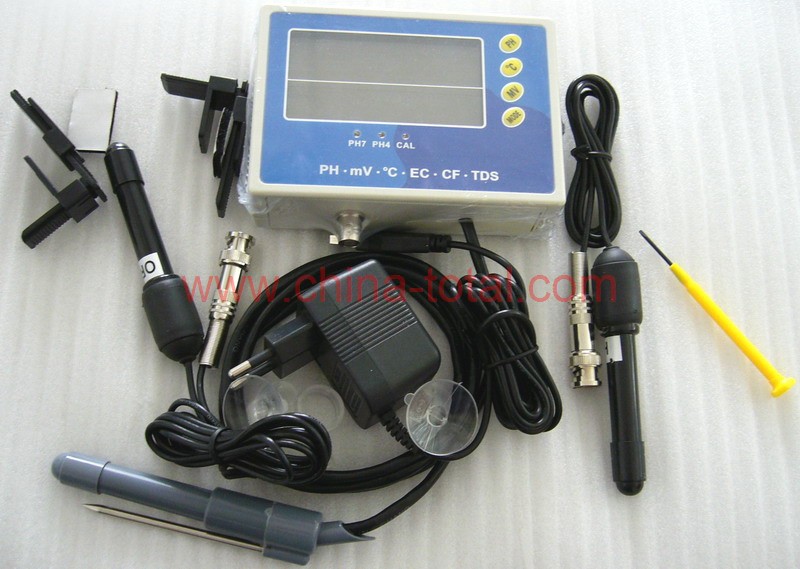

PHT-028 Multi-parameter
6 IN 1
Water Quality Monitor
Technical Specification:
|
Measuring range |
PH: 0.0014.00
PH |
|
ºC:
-50ºC~70ºC |
|
EC:
0.00~19.99EC |
|
CF:
0.0~199CF |
|
TDS:
10~19990ppm |
|
MV:
0~±1999mV |
|
Resolution |
PH:
0.01PH |
|
ºC:0.1ºC |
|
EC:
0.01EC |
|
CF:
0.1CF |
|
TDS:
10ppm |
|
MV:
1mV |
|
Accuracy |
PH:
±0.05 PH (than PHT-027) |
|
ºC:±1.0ºC |
|
EC,
CF, TDS: ±2%F.S |
|
MV:
±0.1%F.S±1digit |
|
Automatic Temperature Compensation |
0ºC~50ºC |
|
Operating Temperature |
0ºC~50ºC |
|
Power Supply |
6V DC (include), with adaptor |
|
Dimensions |
130mm×91mm×37mm |
|
|
|
|
|
 |

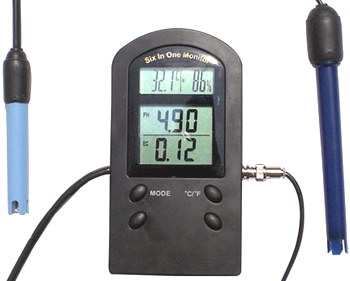

PH-02636 multi-parameter Water
Quality Monitor
Set in one of six functional parameters, online continuous
monitoring device, three-level LCD. Equipped with rechargeable
batteries, equipped with BNC composite electrode and around the
power adapter, around the world to facilitate the replacement of
electrodes, used.
Technical Specification:
|
Measuring range |
PH: 0.00~14.00 PH
ºC: -50ºC~70ºC (-58ºF~158ºF)
RH: 10%RH-99%RH
EC: 0.00~19.99EC
CF: 0.0~199CF
TDS: 10~19990ppm |
|
Resolution |
PH: 0.01PH
ºC:0.1ºC(0.2ºF)
RH: 1%RH
EC: 0.01EC
CF: 0.1CF
TDS:10 ppm |
|
Accuracy |
PH: ±0.1 PH
ºC: 1.0ºC
RH: ±5%RH
EC, CF, TDS: ±2%F.S |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Operating Temperature
|
0ºC~50ºC |
|
Power Supply |
DC 6V(include), with adaptor |
|
Dimensions |
140mm×76mm×16mm |
|
|
|
|
|
 |

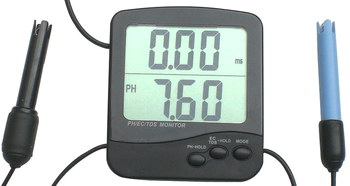

PH-02726 PH/TDS/EC Monitor
The Combo has a large easy-to-read, dual-level LCD. pH and EC/TDS
readings are automatically compensated for the effects of
temperature (ATC).
The Combo pH, EC/TDS tester brings you all the features you've asked
for and more!
Technical Specification:
|
Measuring range |
PH: 0.00~14.00 PH
EC: 0~19.99ms/cm
0~1999us/cm
TDS: 10~19990ppm |
|
Resolution |
PH:0.01PH
EC: 0.01ms/cm
1us/cm
TDS:10 ppm |
|
Accuracy |
PH:±0.1 PH
EC, TDS:±2%F.S |
|
Automatic Temperature
Compensation |
0ºC~50ºC |
|
Operating Temperature
|
0ºC~50ºC |
|
Power Supply |
DC 6V(include), with adaptor |
|
Dimensions |
110mm×96mm×22mm |
|
|
|
|
|
 |

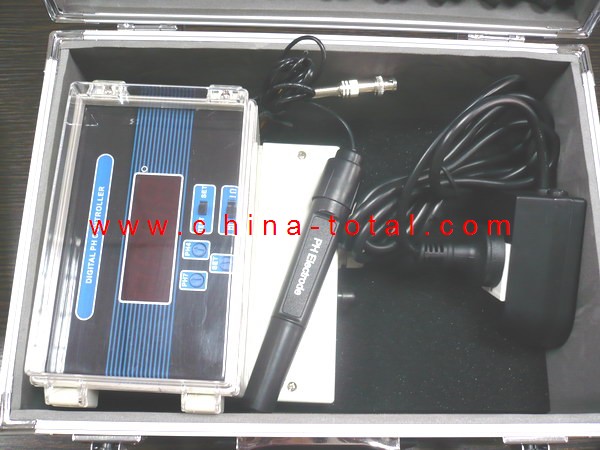

PH-201W Digital Waterproof pH
Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing,
Photography, Laboratory, Paper Industry, Swimming Pool, Plating
Industry
Same function as
PH-201, but it is waterproof than PH-201.
|
Model |
PH-201W (waterproof) |
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
±(0.1%+2 digits)
after calibration |
|
Resolution |
0.01PH
|
|
Set Range |
3.50~10.50PH |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V±10%
50Hz±2% |
|
Dimensions |
165mmx158mmx121mm |
|
Net Weight |
580g |
|
Gross Weight |
2.7kgs |
|
|
|
|
|
 |

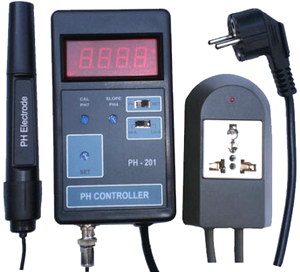

PH-201 Digital pH Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing,
Photography, Laboratory, Paper Industry, Swimming Pool, Plating
Industry
|
Model |
PH-201 |
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
±(0.1%+2 digits)
after calibration |
|
Resolution |
0.01PH
|
|
Set Range |
3.50~10.50PH |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V±10%
50Hz±2% |
|
Dimensions |
150mm×85mm×40mm |
|
Weight |
580g |
|
|
|
|
|
 |

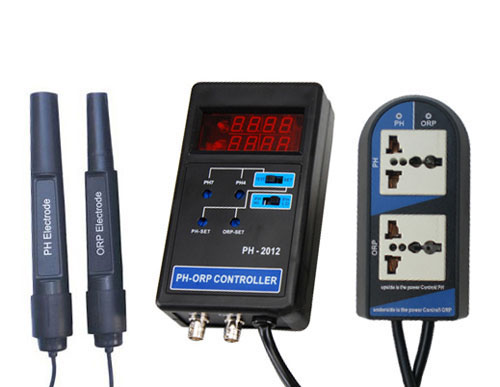

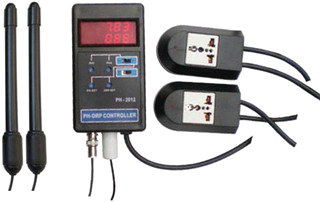

PH-2012 Digital pH and ORP Controller
Technical Specification
|
Model
|
PH-2012
|
|
Measuring range |
PH |
0.00~14.00PH |
|
ORP |
-1999~1999mV |
|
Accuracy |
PH |
±0.1%+0.02PH |
|
ORP |
±5 mV |
|
Resolution |
PH |
0.01PH |
|
ORP |
1mV |
|
Set Range |
PH |
3.50～10.50PH |
|
ORP |
-500~500mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Display |
double 4 LED display reading |
|
Power Supply |
220V±10% 50Hz±2% |
|
Dimensions |
150mm×85mm×40mm |
|
|
|
|
|
 |

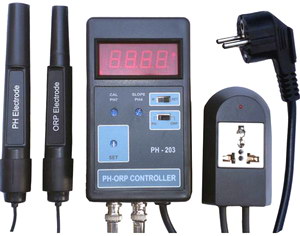

PH-203 Digital pH/ORP
Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water
Conditioning,
School & colleges.
|
Model |
PH-203 |
|
Measuring range |
PH |
0.00~14.00PH |
|
ORP |
0~±1999mV |
|
Accuracy |
PH |
±(0.1%+2 digits) after
calibration |
|
ORP |
±5 mV |
|
Resolution |
PH |
0.01PH |
|
ORP |
1mV |
|
Set Range |
PH |
3.50~10.50PH |
|
ORP |
0~1000mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V±10%
50Hz±2% |
|
Dimensions |
150mm×85mm×40mm |
|
|
|
|
|
 |

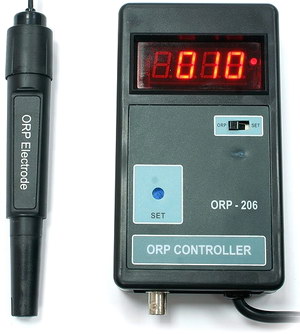

ORP-206 Digital ORP
Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water
Conditioning,
School & colleges.
|
Model |
ORP-206 |
|
Measuring range |
0~±1999mV |
|
Accuracy |
±5 mV |
|
Resolution |
1mV |
|
Set Range |
-500~500mV |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V±10%
50Hz±2% |
|
Dimensions |
150mm×85mm×40mm |
|
Weight |
580g |
|
|
|
|
|
 |

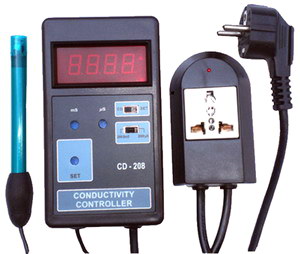

CD-208
Digital Conductivity Controller
Applications: Aquariums, Aquacultures, Beverage, Fish Hatcheries,
Food Processing, Photography, Laboratory, Paper Industry,
Swimming Pool, Plating Industry, Quality control, Water
Conditioning,
School & colleges.
|
Model |
CD-208 |
|
Measuring range |
0~1999us/cm,
0~199.9mS |
|
Accuracy |
±(1.5%+2 digits)
after calibration |
|
Resolution |
1us, 0.1mS |
|
Set Range |
0~1000us,
0~100.0mS |
|
Environment |
Temperature:0~50ºC Humidity<95% |
|
Power Supply |
220V±10%
50Hz±2% |
|
Dimensions |
150mm×85mm×40mm |
|
|
|
|
|
click it for big picture |

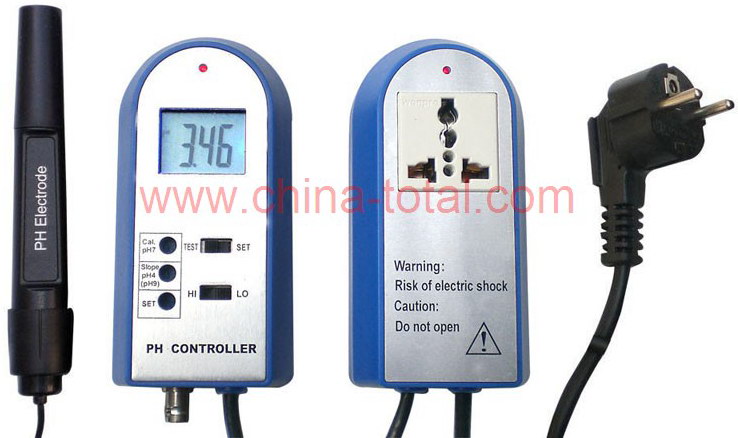

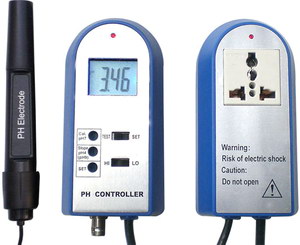

PH-211 Digital
pH Controller
(Backlitght display)
|
Measuring range |
0.00~14.00PH |
|
Accuracy |
±(0.1%+2 digits)
after calibration |
|
Resolution |
0.01PH
|
|
Set Range |
3.50～10.50PH |
|
Environment |
Temperature:0~50℃ Humidity<95% |
|
Power Supply |
220V±10% 50Hz±2% |
|
Dimensions |
130mm×65mm×40mm |
|
Weight |
600g
|
|
|
|
|
|
 |
HL-233 LEVEL CONTROLLER
|
Model |
HL-233 |
|
Power Supply |
AC 220V 50Hz |
|
Environment |
Temperature: 0~50ºC, Humidity<95% |
|
Power Consumption |
2
watts |
|
Dimensions |
150mm×85mm×42mm |
|
Weight |
690g |
|
|
The electronic level controller
with 2 sensors will automate aquarium water top off. Since
safety is our number one concern, we include two float switch
sensors with our electronic water level controller. The first
float switch sensor triggers the feed pump (sold separately) to
maintain the desire water level. The second float switch sensor
ensures dependability and offers overflow protection. Our water
level controller can also be used to protect pump from running
dry. It can be utilized in three ways :

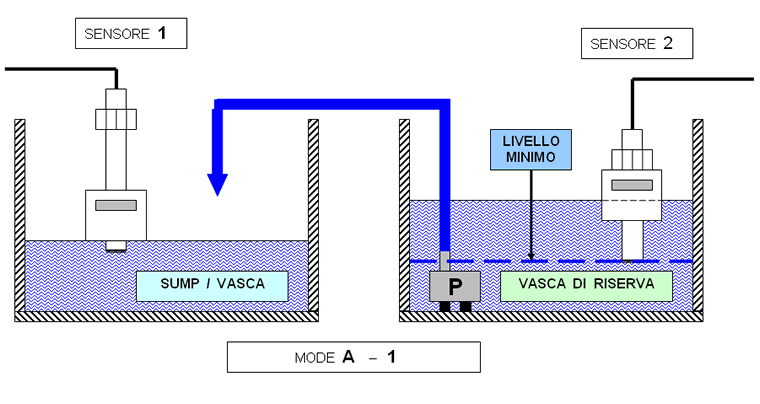

1.In this mode the power supply will turn on if the water level
in the sump is low AND there is enough water in the storage
tank. The power supply will turn off if the water level in the
sump is high AND there is not enough water in the storage tank.
(View Operation
diagram, MODE A-1)

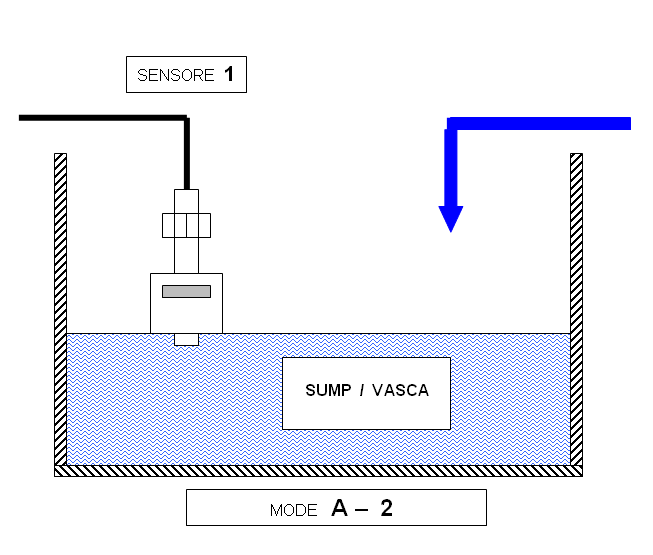

With this set up the power supply will turn on as soon as the
water level in the sump drops below the set level. The power
supply will turn off if the water level in the sump is high the
set level.
(View Operation
diagram, MODE A-2)
2. The power supply will turn on when the level falls below the
minimal level of float sensor1 and will turn off when water
rises the set point of the flow sensor1. The float sensor2 acts
as a backup sensor in the event the float sensor1 is stuck. The
level controller will not allow the power supply to turn on if
the water level in the sump reaches the maximum level of float
sensor2.
(view Operation
diagram, MODE B)
3. Immerse the sensor1 and sensor2 in the measured solution
(sump).With this set up the power supply will turn on when both
sensors detected that the water level is below the minimum level
and stop only when the water rises the maximum level of both
sensor.
(View Operation diagram, MODE
C) |
|
|
|
|
 |

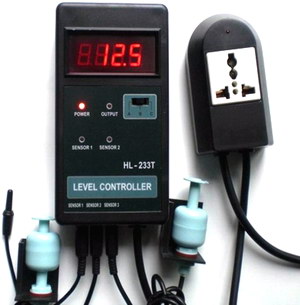

HL-233T LEVEL CONTROLLER
(with temperature display)
|
Model |
HL-233T
|
|
Temp Range |
0~80ºC |
|
Resolution |
0.1ºC |
|
Accuracy |
±1ºC |
|
Environment |
Temperature: 0~50ºC, Humidity<95% |
|
Power Supply |
AC 220V 50Hz |
|
Dimensions |
150mm×85mm×42mm |
|
Weight |
690g |
|
|
|
|
|
 |

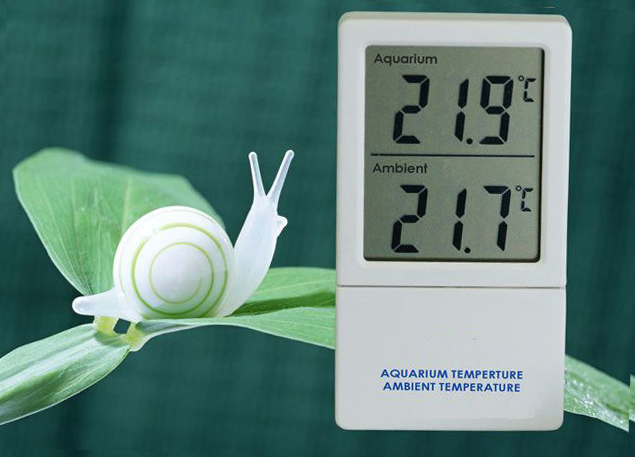

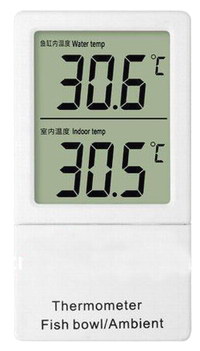

AT902 (Aquarium Thermometer)
Description:
indoor & inside tank temperature display
temperature unit °C/°Fchangeable
Temperature Range:
Temp. inside tank: -10°C~+50°C (14°F~+122°F)
Indoor temp.: -50°C~+70°C (-58°F~+158°F)
Product Dimension: 60×76×13mm
Power-supply: 1.5V x1
Packing detailed:
50PCS/CTN,
CTN SIZE: 38.4*20.5*9.8CM,
N.W/G.W: 1.85/2.15KGS |
|
 |

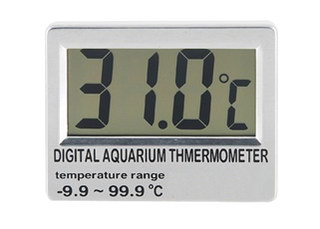

AT500 (Aquarium
Thermometer)
Description:
inside tank temperature display
temperature unit °C/°F changeable
Temperature Range: -9.9°C ~+99.9°C (14°F~+244°F)
Product Dimension: 60×76×13mm
Power-supply: 1.5V x1
Patent No.: ZL 2011 3 0013590.9
Packing detailed:
50PCS/CTN
CTN SIZE: 31.1*25.4*13.3CM
N.W/G.W: 3/3.3KGS |
|
 |

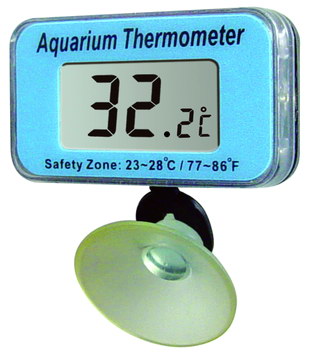

SDT-1 (Aquarium Thermometer)
Features:
Fashionable and elegant appearance, specially water-proof design.
Strong cupula can make it stick to the aquarium case firmly.
Temperature measuring precisely and conveniently
Digits on LCD display bigger and clear, easy to read.
Technical parameters:
Temperature measuring range: -50ºC~70ºC
Accuracy: ±1ºC
Operation environment: 0ºC~50ºC
Power supply: Button Battery (DC1.5V)
Instruction:
1.Turn off the battery cover, put into one LR44 Button cell. Please
ensure the polarity correct. When put into the battery the LCD will
display immediately.
2.Turn the battery cover firmly. Please ensure the sealed circle to
place rightly and not damaged.
3.Please take off the cell if long time no use. |
|
 |
ST-9806 Digital Mini Thermometer
(Aquarium Thermometer)
LCD display
In/out temperature measurement
Super-thinness design
Technical Specification:
Measuring range: -50ºC ~ 70ºC
Resolution: 0.1ºC
Accuracy: ±1ºC
Power Supply: 1.5V(AG13)
Dimensions: 60×55×23mm
Weight: 43g |
 |

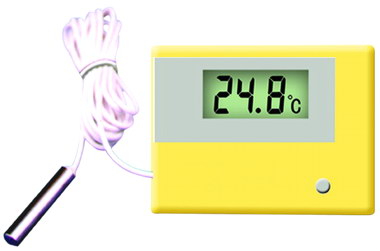

ST-1
(Aquarium Thermometer)
Functions:
LCD display. One place measurement.
Fashionable & mini-size design.
Technical parameters:
Temp. measuring range: -50ºC~+70ºC
Resolution: >-20ºC is 0.1
≤-20ºC is 1
Accuracy: ±1ºC
Power: DC1.5V button battery LR44
Size:
Product size: 55.5×42.5×16(mm)
Screen size: 26×12.5(mm) |
|
 |

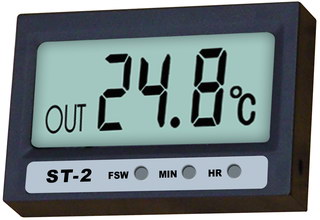

ST-2
(Aquarium Thermometer)
Functions:
In / out temperature measurement.Clock
function display.Super-thinness design.
Technical parameters:
Temp. measuring range:: -50ºC~+70ºC
Resolution: >-20ºC is 0.1
≤-20ºC is 1
Accuracy: ±1ºC
Power: DC1.5V button battery LR44
Size:
Product size: 57×38.5×13(mm)
Screen size: 47×21.5(mm) |
|
 |

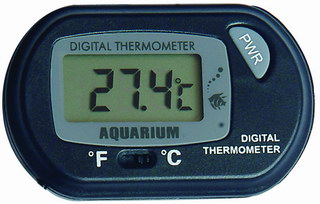

ST-3
(Aquarium Thermometer)
Small and fashionable appearance, especially applied in the
aqua-containers, switch between Celsius and Fahrenheit.
Technical parameter:
Measurement crange: -50ºC~+70ºC
Distinguish: 0.1ºC
Accuracy: ±1ºC
Power: DC1.5V, battery LR44
Product size: 58×37×16mm
Screen size: 26.5×13.5mm |
.JPG)
.JPG)
