Coating Thickness Meter / Coating Thickness Gauge

For ultrasonic thickness meter, please click here: ultrasonic thickness meter / thickness gauge

For through coating ultrasonic thickness meter, please click here: Through coating/paint

Operating principle

Measuring methods

Application

For example

F type

Magnetic induction

Can measure the thickness of non-magnetic coating layers covered on magnetic substrate

Such as: thickness of layer (aluminum, chrome, copper, zinc, tin, lead, cadmium, porcelain, powder,  enamel, rubber, paint, plastic, anodic-oxide); which covered on magnetic (ferrous) substrate (steel, iron, alloy and magnetic stainless steel).

It doesn't matter if the coating layers are conductive or nonconductive, but must be non-magnetic.

The substrate must be metallic.

NF type

Eddy current

Can measure the thickness of nonconductive coating layers covered on nonferrous substrate

Such as: thickness of layer (enamel, rubber, paint, vanish, plastic, anodic-oxide layer); which covered on nonferrous substrate (aluminum, brass, zinc, tin and nonmagnetic stainless steel, gold, silver)

The coating layers must be nonconductive.

The substrate must be metallic.

Models explaining:

F   (SR2xxxxF) means the meter can use only F TYPE magnetic induction measuring method.

N   (SR2xxxxN) means the meter can use only NF TYPE eddy current measuring method.

FN (SR2xxxxFN) means the meter can use both F TYPE magnetic induction and NF TYPE eddy current measuring methods.

Model selecting guide more details please click it!

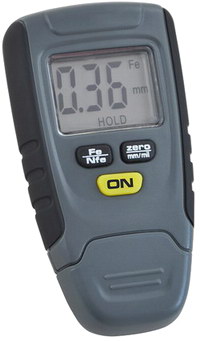

SR2120B Coating Thickness Gauge

Features:

SR2120B coating thickness gauge adapts principles of electromagnetic induction and magnetic induced edd-current. It can measure the thickness of non-metal coatings on metal surface. Press the button to select magnetic metal or ono-magnetic metal, chemical industry and commodity inspection, especially in automobile trading.

SR2120B has been designed as a user friendly and economical way, with the function of LCD displaying and measurement data maintaining automatically. It has the advantages of easy operation, rapid measurement, safe usage and portability.

Specifications:

Target: Non-metal coating thickness on the metal surface;

Measuring range: 0~1.25mm;

Measuring precision: 2%RDG0.02mm (2%RDG1mil) for steel and aluminum;

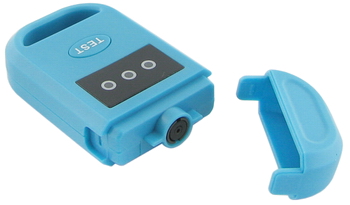

SR2870 Paint Thickness Tester, Coating Thickness Gauge Checker

This paint thickness meter is designed to not-destructively measure the Paint Thickness for all types of car.
- allows measurements of paint and plastic coating
  thickness on metal surfaces
- ideal for the vehicle trade, improper bodywork
  repairs can be quickly found without much effort
- output via 3-color LEDs
   red LED, paint thickness is greater than 1.8 mm
   yellow LED, paint thickness is between 1.0 to 1.8 mm
   green LED, paint thickness is less than 1.0 mm
- comparison measurements are possible
  on a reference base
- measuring head  protected by a removable cap
- weight 50g
- dimensions: 68 x 40 mm

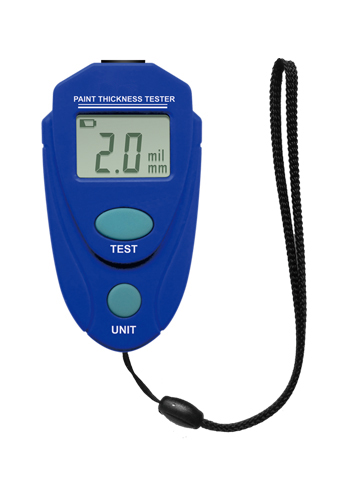

SR2871 Paint Thickness Tester, Coating Thickness Gauge

This paint thickness meter is designed to not-destructively measure the thickness of non-magnetic coatings (including paint, enamel, plastic, epoxy, etc.) on iron,steel or aluminum.
Features:

Portable Digital Paint thickness gauge

With Range of 0.1~2.00mm,0.1 accuracy

Measurement mode : Fe

Automatic calibration, Data hold

Auto power off mode designed to conserve battery life

Compact design and easy to carry

Powered by 3V button cell (included in set)

Specifications:

Measuring Range: 0.0mm to 2.0mm (0mil to 80mil)

Accuracy : 2%rdg 0.1mm, or 2%rdg 4mil

note: Accuracy is guaranteed at the operating temperature of 23C 5C and relative humidity of not more than 75%.

(Note: Please choose our other high accuracy models if you need high accuracy than this model).

Resolution : 0.1mm/1mil

Power Supply : 1 x 3V button cell, CR2032 or equivalent

Operating Environment

Temperature : 0C to 40C, Relative Humidity : < 80%

Temperature Coefficient :

0.05x(2%rdg 0.1mm, or 2%rdg 4mil)/C(<18C or >28C)

Storage Environment

Temperature : -10C to 50C, Relative Humidity : <80%

Size : 6.9 x 3.8 x 2cm

Weight : About 23g (including button cell)
Set Including:

1 x Paint Thickness Tester

1 x 3V(CR2032) button cell buttery (sometimes not including because of air/courier checking).

1 x English Manual

Standard Blister Packaging

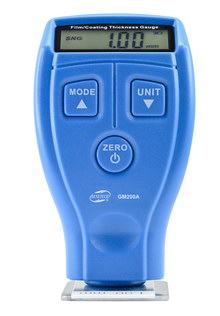

SR2820 Coating Thickness Gauge

Features:

This product is a portable coating thickness gauge
for fast, accurate and nondestructive measurement of
the thickness of non-magnetic coatings (such as paint
and film) on magnetic metal substrates. This product has
seen wide application in manufacture, metal working,
chemical industry, commodity inspection and other fields.

Specifications:

Measurement ranges

0 ~1.80mm/0 ~71.0 mil

Resolution

0.01mm/1mil

Measurement error

0.03mm

Min. diameter of substrate

50mm

Min. thickness of substrate

0.5mm

Power supply

2*1.5V AAA batteries

Operating temperature range

0 ~ 40C

Operating humidity range

10-95%RH

Overall dimensions

65*31*108mm

Weight

63.98g(exclusive of batteries)

SR2800 series Coating Thickness Gauge

Model: SR2800F, SR2800N, SR2800FN.

DESCRIPTION
This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
The internal probe can work on both principles, magnetic induction and the eddy currents. The probe can automatically detect the substrates type (Magnetic or not), and calculate the coating thickness and display it fast.
There are five data groups, and readings will be automatically stored to memory for general groups (Not for direct group). Each group has individual statistics, alarm limit settings and calibration. User can recall and delete specified readings easily.
User does all operations via standard menu so easily. User can press the CAL button to start calibration freely.
FEATURES
A. 128*128 dot matrix LCD display, standard menu operations;
B. Two measure mode: single and continuous;
C. Two group mode: direct (DIR) and general (GEN), readings will be lost when power off in direct mode, and not be lost in general mode. 80 readings can be stored for each group;
D. Zero point calibration and multi-point calibration (up to 4 points) for each group;
E. User can recall, delete specified readings, or delete group readings;
F. Statistics display: mean, minimum, maximum and standard deviation;
G. Three probe mode: auto, magnetic and eddy current; (only for
SR2800FN )
H. User can set high or low limit alarm for each group;
I. Power off automatically;
J. USB interface to data transmission;
K. Low battery and error indication;
SPECIFICATIONS
1. Measuring principle:

Magnetic induction (F-probe) (SR2800F), eddy current (N-probe) (SR2800N), Magnetic induction (F-probe) and eddy current (N-probe) (SR2800FN);
2. Measuring range: 0 to 1300um (0 to 51.2mils);
3. Accuracy: (3% of readings+2um); (3% of readings+0.078mils);
4. Resolution: 0um~999um (1um), 1000um~1300um (0.01mm); 0mils~39.39mils (0.01mils), 39.4mils~51.2mils (0.1mils);
5. Calibration: One to four point calibration, zero calibration;
6. Data Group: One direct group (readings not be stored to memory), four general group (readings can be stored), and each group have individual statistics, alarm settings and calibration;
7. Statistics: No. of readings, mean, minimum, maximum and standard deviation;
8. Units: um, mm and mils;
9. Alarm: User can set the high/low alarm, and alarm icon displayed on LCD when over the limit;
10. Minimum curvature radius: convex 1.5mm(59mils) and concave 25mm(984mils);
11. Minimum measuring size: Diameter 6mm(236mils);
12. Minimum thickness of substrate: F-probe: 0.5mm(0.02"), N-probe: 0.3mm(0.012");
13.Computer interface: Download data via USB interface;
14. Power supply: Two 1.5v AAA battery;
15. Operation temperature: 0C to 40C(32F to 104F);
16. Storage temperature: -20C to 70C(-4F to 158F);
17. Size: 110mm*53mm*24mm (4.33"*2.09"*0.94");
18. Weight: 92g (3.24oz);
STANDARD CONFIGURATION

Item

Quantity

Gauge

1

Aluminum substrate (for SR2800N&SR2800FN)

1

Standard foil

5

1.5V AAA battery

2

Technical manual

1

USB cable

1

Package (Gift box)

Packing:

Gift box size: 230 x155 x60mm, 0.65kgs/1pcs. 20pcs/CTN, Gross weight 13.0kgs

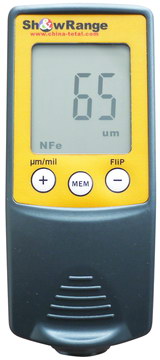

SR2801 Series Coating Thickness Gauge

Model: SR2801F, SR2801N, SR2801FN.

Feature:
-Includes F type (
SR2801F), NF type (SR2801N) and F/NF 2 in 1 type (SR2801FN)
-Has CE marking, conforms with the essential health and safety requirements set out by the European Directives
-The F type probe for measuring the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper/aluminum and some ally tiles papers and others.
-The NF type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc. ), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.
-Microcomputer based, auto-detection, no damage to the coating surface.
-Metric/imperial system selectable, Auto power off.
-10 points value memory.
-Flip LCD display

-Suitable for the laboratory, Powder Coating Companies, Manufacturing Companies, Paint Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions.

Specification:
Range: 0 - 1250um; M, 0 - 50mil
Resolution: 1um0.1mils
Accuracy: +/-(3%+2um) or +/-(3%+0.1mils)
Modes: Single & Continuous
Battery Indicator: Low battery indicator
Metric/ Imperial: Convertible.

Memory: 10 points

Battery: 1.5V x 1, AAA size (not included)
Packing: Spectacle case, Bandbox

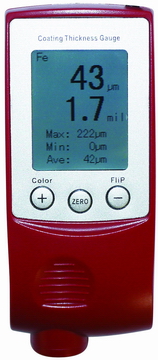

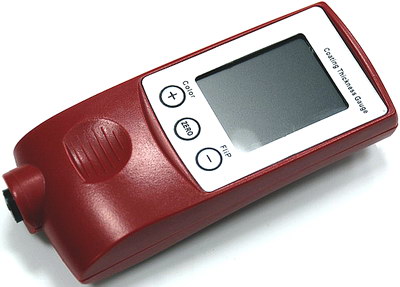

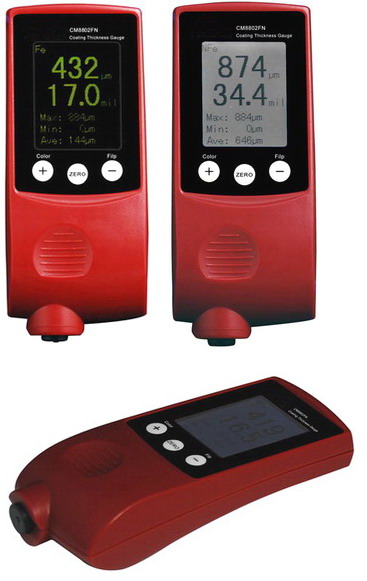

SR2802 Series Coating Thickness Gauge

Model: SR2802F, SR2802N, SR2802FN.
Features

-Includes F type (SR2802F), NF type (SR2802N) and F/NF 2 in 1 type (SR2802FN)
Easy Holding : Well designed housing and shape fits the hand comfortably
Nice Viewing : Dot Matrix display with two colors switchable (Black letter on white background and Green letter on black background). Reading is clearly visible on any conditions and angles .
Convenient Measurement : Simultaneously display the current reading in m/mil,

Max, Min and Average value will be on the bottom of the screen . Makes the measurement more efficient and
comparable.
Easy Calibration: Calibration is unnecessary for most
conditions, if need, only place the probe on the uncoated
surface and press "ZERO" , or adjust the reading by "+" . "-"
Basic Functions
Auto switch on by place the the probe on a surface ,
And Auto goes off after 30s of inaction
Flip display
The MAX . MIN and AVE value are clearable
Low voltage indicator

Specification

Range

0-1250m, 0-49mils

Accuracy

(2m+3%H), H is standard thickness

Operation Temperature

-10C-60C

Storage Temperature

0-40C

Dimensions

109x45x27mm

Weight

150With battery

Power Supply

1.5V AAA X 2

Included Accessories

Carry case; instruction manual; Calibration shims , uncoated substrates

Standard Individual Packing

Gift box with carrying case inside

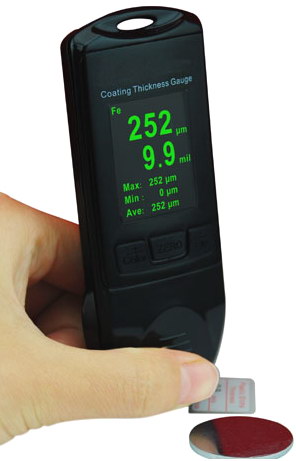

SR2802+ Series Coating Thickness Gauge

Model: SR2802F+, SR2802N+, SR2802FN+.

Features:
Easy Holding: Well designed housing and shape fits the hand comfortably
Nice Viewing: DOT Matrix display with two colors switchable (Black letter on white background and Green letter on black background ). Reading is clearly visible on any conditions and angles.
Convenient Measurement: Simultaneously display the current reading in m/mil, Max, Min and Average value will be on the bottom of the screen. Makes the measurement more efficient and comparable.
Easy Calibration: Calibration is unnecessary for most conditions, if need, only place the probe on the uncoated surface and press "ZERO", or adjust the reading by "+" " -"
Basic Functions:
1. Auto recognize the substrate of Ferrous or Non-Ferrous
2. Auto switch on by place the the probe on a surface, And Auto goes off after 30s of inaction
3. Flip display
4. The MAX. MIN and AVE value are clearable
5. Low voltage indicator
Specification:
Rang: 0-1250m, 0-49mils
Accuracy:
+/- (2m+3%)
Dimensions: 109*45*27mm
Power Supply: 1.5V AAA * 2
Weight: 150 with battery
Included Accessories: Carry case; Instruction manual; Calibration shims, uncoated substrates
Standard Packing: Gift box with carrying case inside

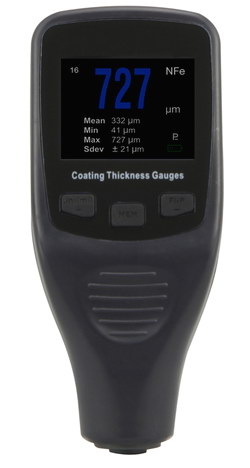

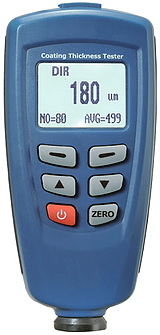

SR2806 Coating Thickness Gauge

Features:

1. Non-magnetic coatings (e.g. paint, zinc) on steel

2. Insulating coatings (e.g. paint) on no-ferrous metals

3. No-ferrous metals coatings on insulating substrates

4. Menu operation system

5. Two measuring mode: CONTINUE and SINGLE mode

6. Two working Mode: DIRECT and GROUP mode

7. Statistic Display: AVG, MAX, MIN, NO., S.DEV

8. One point calibrating, two points calibrating and basic calibrating easily

9. Memory for 400 readings(80 DIRECT and 320 GROUP readings)

10. Delete single readings and all group readings easily

11. High alarm and Low alarm for all working mode

12. Low battery, error indication

13. USB interface for PC software (windows 98/2000/xp/vista)

Accessories:

Two AAA batteries, USB cable, CD, Calibration Iron, Calibration Aluminum, Precision Standard, gift box with carrying case.

Specifications:

Sensor probe

F

N

Working principle

magnetic induction

Eddy current principle

Measuring range

0~1250um

0~1250um

Guaranteed tolerance (of reading)

(+/- 3%+1)um

(+/- 3%+1.5)um

Low range Precision

0.1um

0.1um

Minimum curvature radius

1.5mm

3mm

Diameter of Minimum area

3mm

5mm

Basic critical thickness

0.5mm

0.3mm

Size(HxWxD)

113.5mm x 54mm x 27mm

Weight

110g

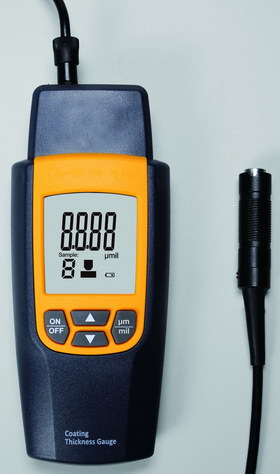

SR2042 Coating Thickness Guage
Features:
By electromagnectic method, the meter can measure the coating thickness non-destructively, including paint, spray-plastic, rubber, enamel, or chrome plate, copperizing, aluminum plating on steel, iron, non-austenitic stainless steel. It is F type.
Four digitals LCD display, differentiating upto m.
System calibrating by user-self.
Pocket shell, convenient for engineering locale.
Thickness unit "m" or "mil" optional.
Micro-controller controls, high accuracy.
Coupling state display
Shut down manually or automatically.
Low battery voltage indication.
Specifications:
Digital display: 4 digitals.
Measurement range: 0~1200m.
Resolution: 1m.
Accuracy: (3%H+2m)
Measurement rate: 0.5 second.
Display units: m or mil.
Critical thickness of metallic base: 1mm.
Minimum thickness of metallic base: 0.2mm.
Minimum curvature radius: protruding 1.5mm, concave 6mm.
Probe diameter: 13mm.
Power supply: 7# alkaline cell, 1.5V*3.

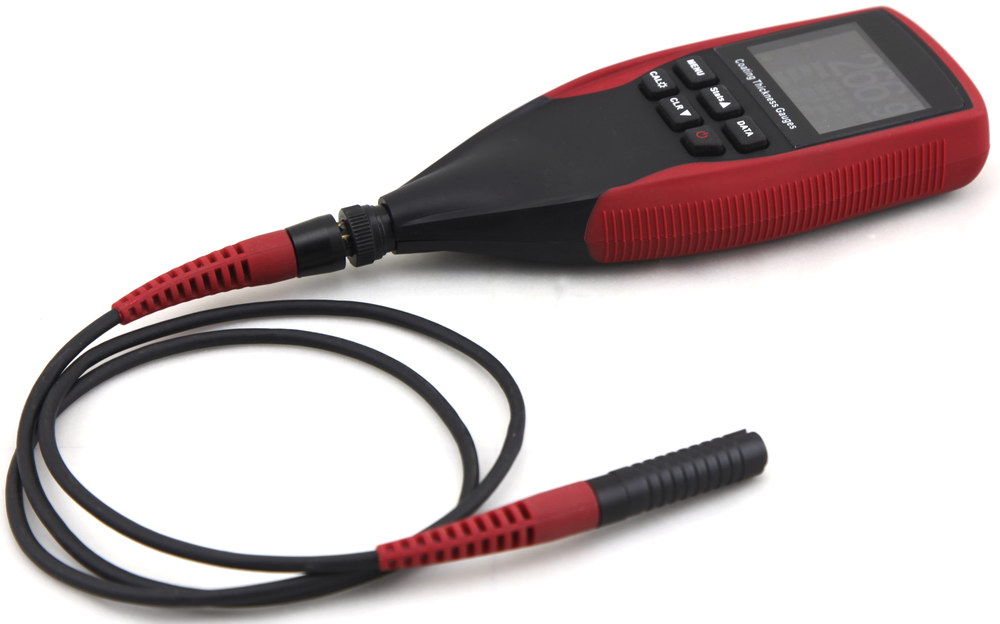

Click for big picture which with probe

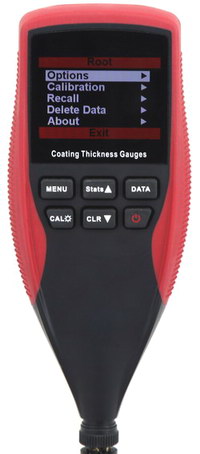

SR2811FN Coating Thickness Gauge
Overview
Coating Thickness Gauge SR2811FN is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface.
It not only indicates thickness of coating or plating but also automatically identifies the base material.
It is applicable to measure non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel , non- ferrous metal plating such as nickel & chromium, anticorrosive coating, non- conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices.
Function:
Measuring: Continuous and Single Measurement available
Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
Memory: 80 data store
Unit: Metric/Imperial switchable (mil/um selectable)
Backlight: Brightness adjustable, clear and easy reading under any light condition
Alarm: Set higher and lower alarm range for measuring
Calibration: Zero-in, 2 points calibration and multi-point calibration selectable
Battery: Low battery indication
Language: English and Chinese selectable (customization for other languages available)
Data Delete: delete a single data or clear all the data
Specification
Range: 0-1250m /0-50mil
Resolution: 0.1m/mil
Accuracy: (2%+2m) / (2%+0.1mil)
Display: TFT 320*240 LCD
Test Limits:
Surface curvature: convex 1.5 mm / concave 7 mm
Minimum test surface: 8mm
Minimum thickness of base material: 0.4mm
Operation Condition (not in high magnetic field): Temperature: 0C~40C
Humidity: 20%RH-90RH
Product Size: 166*68*30mm
Weight: 180g (batteries included)
Standard Individual Packing: Fe / NFe probes. Set of plastic test shims and 2 reference calibration plates (Steel and Aluminum). Hard shell storage case. Instruction manual.
Standard Quantity Per Carton: 30pcs
Standard Carton Measurement: 48.5*58.5*26mm
Standard Carton Gross Weight: 14.8kg

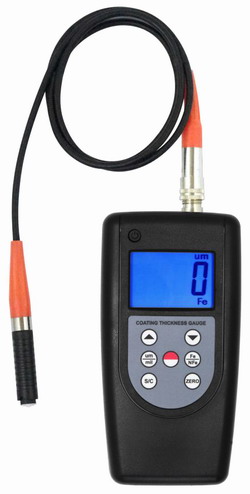

SR2810F Micro Coating Thickness Meter
Features:

* Specially for the thickness measurement of coating on small workpiece.
* Measuring methods: magnetic induction (F).
* Two measurement mode: Single and Continuous (Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use "USB data output" to connect with PC.
* Provide "Bluetooth ™ data output"choice.
* Separate Type, measurements can be more flexibility.

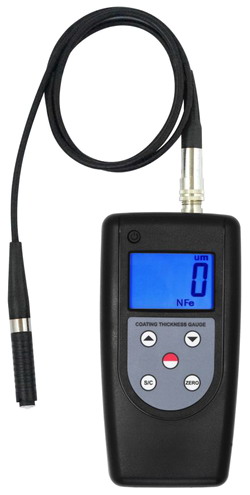

SR2810N Micro Coating Thickness Meter
Features:

* Specially for the thickness measurement of coating on small workpiece.
* Measuring methods: eddy current (N).
* Two measurement mode: Single and Continuous (Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use "USB data output" to connect with PC.
* Provide "Bluetooth data output" choice.
* Separate Type, measurements can be more flexibility.

Specifications

Model SR2810F

Model SR2810N

Operating Principle

Magnetic Induction (F)

  Eddy Current (NF)

Measuring Range

0~200um / 0~8mil

Resolution

0.1um

Min. Radius Workpiece

convex 2mm / concave 4mm

Min. Measuring Area

2mm

Min. Sample Thickness

0.1mm

Accuracy

1~3%n or 2.5um

Auto Power Off

Yes

Metric / Imperial

Convertible

Battery Indicator

Low Battery Indicator

Operating Conditions

Temp. 0~40C, Humidity: 10~90%RH

Power Supply

4 x 1.5V AAA (UM-4) Battery

Dimensions

140 x 72 x 34mm ( 5.5 x 2.8 x 1.3inch )

Weight

215g (Not Including Batteries)

Standard delivery

Main Unit

Main Unit

Probe (F Type)

Probe (NF Type)

Calibration Base Set (F Type) CTG-BS

Calibration Base Set (NF Type) CTG-BS

Calibration Foils CTG-CF (1set, 4pieces)

Calibration Foils CTG-CF (1set, 4pieces)

Carrying Case

Carrying Case

Operation Manual

Operation Manual

Optional accessories

 1. USB, RS-232C data cable with software
 2. Bluetooth data out put with software

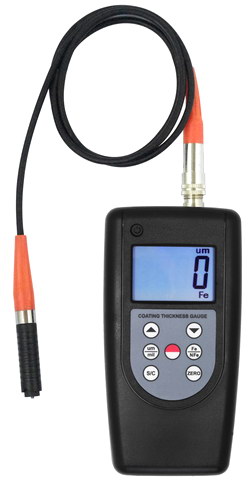

SR2810A Digital Coating Thickness Meter

(F & NF type)

Features:

* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous (Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value, and auto recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Use USB data output to connect with PC.
* Provide Bluetooth ™ data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.

Applications:

The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphate layer, copper tile, aluminum tile, some alloy tile, paper etc. The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

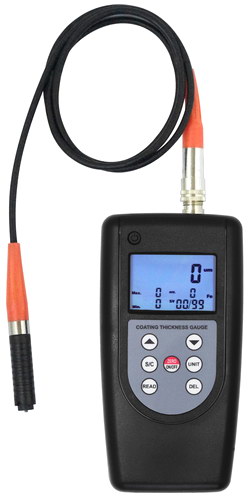

SR2810B Digital Coating Thickness Meter

(F & NF type)

Features:

* Can store the new data in 99 groups.
* Two measuring methods: magnetic induction (F) and eddy current (N).
* Two measurement mode: Single and Continuous (Notice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value, and auto recognize the substrate.
* Operation process have buzzing reminder, while no buzzing in continuous mode.
* Use USB data output to connect with PC.
* Provide Bluetooth ™ data output choice.
* Separate Type can provide several type probe, measure can be more flexibility.

Applications:

The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphate layer, copper tile, aluminum tile, some alloy tile, paper etc. The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

Specifications

Model

SR2810A

SR2810B

Operating principle

Magnetic Induction & Eddy Current (F&NF)

Magnetic Induction & Eddy Current (F&NF)

Measuring range

 0~2000 um / 0~80 mil

Resolution

0.1 um / 1 um

Min. Radius Workpiece

  F Type: convex 1.5 mm / concave 25 mm, NF Type: convex 3 mm / concave 50 mm

Min. Measuring Area

6 mm

Min. Sample Thickness

0.3 mm

Accuracy

1~3%n or 2.5 um

Auto Power Off

Yes

Metric / Imperial

Convertible

Battery Indicator

Low Battery Indicator

Operating Conditions

 Temp. 0~40 C, Humidity: 10~90 %RH

Power Supply

4 * 1.5 V AAA (UM-4) Battery

Dimensions

140 * 72 * 34 mm ( 5.5 * 2.8 * 1.3 inch )

Weight

215g (Not Including Batteries)

Standard delivery

Main Unit

1

Probe (F & NF 2 in 1)

1

Calibration Base Set

1  F Type & 1 NF Type

Calibration Foils

4

Carrying Case

1

Operation Manual

1

Optional accessories

USB Cable & software, Bluetooth data output

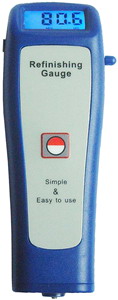

SR2807 Digital Coating Thickness Gauge

(F & NF type)

Features
* It meets the standards of both ISO2178 and ISO-2360 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphate layer, copper tile, aluminum tile, some alloy tile, paper etc.
* The N probes measure the thickness of non-magnetic coatings on nonmagnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface .

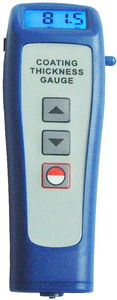

SR2808 Digital Coating Thickness Gauge

(F & NF type)

Features
* It meets the standards of both ISO2178 and ISO-2360 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphate layer, copper tile, aluminum tile,

some alloy tile, paper etc.
* The N probes measure the thickness of non-magnetic coatings on nonmagnetic
metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface .

Specifications

Model

SR2807

SR2808

Operating principle

(F& NF)

(F & NF)

Display

4 digits, 10 mm LCD, backlit

Measuring range

0-1250µm/0-50mil (other range may be specified)

Resolution

0.1 µm (0~99.9µm); 1 µm (over 100µm)

Accuracy

1~5%n or 3.5 µm or 0.1mil (Whichever is the greater)

Two measurement mode

Single and Continuous

Metric/Imperial

convertible

Operating condition

Temp. 0~50C, Humidity <80%

PC interface

with RS-232C interface

Auto switch off

Power supply

2x1.5 AAA(UM-4) battery

Dimensions & weight

102x35x23 mm (4.0x1.4x0.9 inch)

& about 40g (in-built probes) (not including batteries)

Standard delivery

Main unit

1

F Type probe

1

1

NF Type probe

1

1

Substrate (Iron)

1

1

Substrate (Aluminum)

1

1

Calibration foil set

1 set

Carrying case

1

Instruction manual

1

Optional accessories

RS-232C Cable & software, USB Cable & software, Bluetooth data output

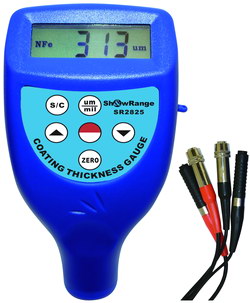

SR2825,SR2825S

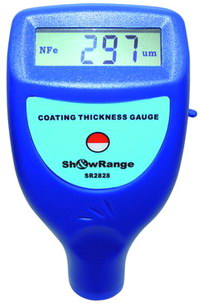

SR2828

Specifications

Model

SR2825 in built probe(s)

SR2828

SR2825S with separate probe(s)

Operating principle

F Type

SR2825FN

SR2825N

SR2825F

(F & NF)

NF Type

SR2825SFN

SR2825SN

SR2825SF

(F & NF)

(only NF)

(only F)

Measuring range

0-1250um/0-50mil (default range)

Resolution

0.1/1

Accuracy

1-3%n or 2.5um

Min. radius work piece

F: Convex 1.5mm / Concave 25mm

N: Convex 3mm / Concave 50mm

Min. measuring area

6mm

Min. sample thickness

0.3mm

Battery indicator

low battery indicator

Metric/ imperial

convertible

Power supply

4x1.5V AAA(UM-4)battery; Auto switch off

Operating conditions

Temperature: 0--45(32--104), Humidity90%RH

Dimensions & weight

126x65x27mm & 81g(not including battery)

Standard delivery

Main unit

1

F Type probe

1

--

1

1

N Type probe

1

1

--

1

F Calibration base set

1

--

1

1

N Calibration base set

1

1

--

1

Calibration foil set

1 set (4 foils)

--

Carrying case

1

Instruction manual

1

Optional accessories

RS23S Cable & software, USB Cable & software, Bluetooth data output

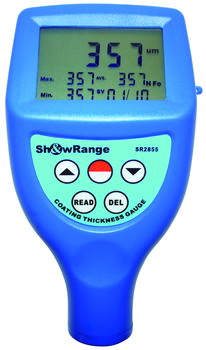

SR2855 Coating Thickness Meter (F & NF type)

(with probes in built)

Features

* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.

* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.

* The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.

* Manual or automatic shut down.

* Two measurement mode: Single and Continuous

* Wide measuring range and high resolution.

* Metric/Imperial conversion.

* Digital backlit display gives exact reading with no guessing or errors.

* Can communicate with PC computer for statistics and printing by the optional cable.

* Can store 99 groups of measurements.

* Statistics is available.

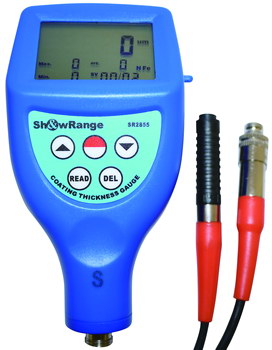

SR2855S Coating Thickness Meter (F & NF type)

(with probes separate)

Features

* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.

* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.

* The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.

* Manual or automatic shut down.

* Two measurement mode: Single and Continuous

* Wide measuring range and high resolution.

* Metric/Imperial conversion.

* Digital backlit display gives exact reading with no guessing or errors.

* Can communicate with PC computer for statistics and printing by the optional cable.

* Can store 99 groups of measurements.

* Statistics is available.

Specifications

Model

SR2855 in built probe(s)

SR2855S with separate probe(s)

Operating principle

SR2855 (F & NF)

SR2855S (F & NF)

Display

4 digits LCD, backlit

Measuring range

0-1250µm/0-50mil (default range)

Resolution

0.1 µm (0~99.9µm); 1 µm (over 100µm)

Accuracy

1-3%n or 2.5µm

Min. radius work piece

F: Convex 1.5mm / Concave 25mm

NF: Convex 3mm / Concave 50mm

Min. measuring area

6mm

Min. sample thickness

0.3mm

Metric/Imperial

convertible

Operating condition

Temp. 0~50C ; Humidity <95%

Battery indicator

low battery indicator

Auto switch off

Power supply

2x1.5V AAA(UM-4)battery

Dimensions & weight

126x65x35 mm ; 5.0x2.6x1.6 inch

& 81g(not including battery)

Standard delivery

Main unit

1

F Type probe

1

1

NF Type probe

1

1

Substrate (Iron)

1

1

Substrate (Aluminum)

1

1

Calibration foil set

1

Carrying case

1

Instruction manual

1

Optional accessories

RS-232C Cable & software, USB Cable & software, Bluetooth data output. Other ranges can be specified.

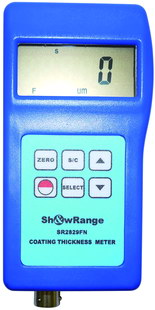

SR2829

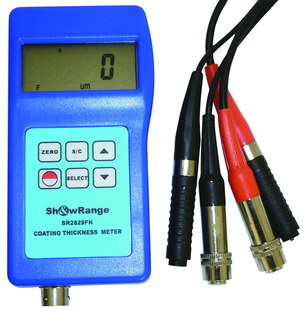

SR2829S

Specifications

Model

SR2829 in built probe(s)

SR2829S with separate probe(s)

Operating principle

F Type

SR2829FN

SR2829N

SR2829F

NF Type

SR2829SFN

SR2829SN

SR2829SF

(F & NF)

(only NF)

(only F)

Measuring range

0-1250µm/0-50mil (default range)

Resolution

0.1/1

Accuracy

1-3%n or 2.5µm

Min. radius work piece

F: Convex 1.5mm / Concave 25mm

NF: Convex 3mm / Concave 50mm

Min. measuring area

5mm

Min. sample thickness

0.3mm

Battery indicator

low battery indicator

Auto switch off

Metric/ imperial

convertible

Power supply

4x1.5V AAA(UM-4) battery

Dimensions

124x62x30mm

Weight (Not including battery)

115g (SR2829)

200g (SR2829S)

Standard delivery

Main unit

1

F Type probe

1

--

1

NF Type probe

1

1

--

F Calibration base set

1

--

1

NF Calibration base set

1

1

--

Calibration foil set

1 set (4 foils)

Carrying case

1

Instruction manual

1

Optional accessories

RS-232C Cable & software, USB Cable & software, Bluetooth data output. Other ranges can be specified.

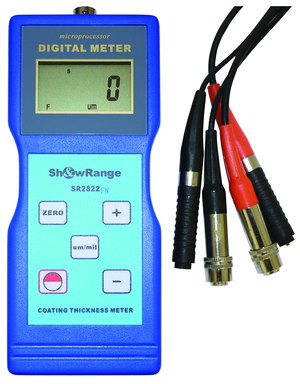

Specifications

Model

SR2822FN

SR2822F

SR2822N

Operating principle

F & NF

only F

only NF

Measuring range

0-1000µm/0-40mil (default range)

Resolution

0.1/1

Accuracy

1-3%n or 2.5µm

Min. radius work piece

F: Convex 1.5mm / Concave 25mm

NF: Convex 3mm / Concave 50mm

Min. measuring area

6mm

Min. sample thickness

0.3mm

Battery indicator

low battery indicator

Auto switch off

Metric/ imperial

convertible

Power supply

4x1.5V AA(UM-3) battery

Operating conditions

0~40C, 10~90%RH

Dimensions

160x68x32mm

Weight (Not including battery)

250g

210g

Standard delivery

Main unit

1

F Type probe

1

1

--

NF Type probe

1

--

1

F Calibration base set

1

1

--

NF Calibration base set

1

--

1

Calibration foil set

1 set (4 foils)

Carrying case

1

Instruction manual

1

Optional accessories

Other range can be specified up to 18000µm

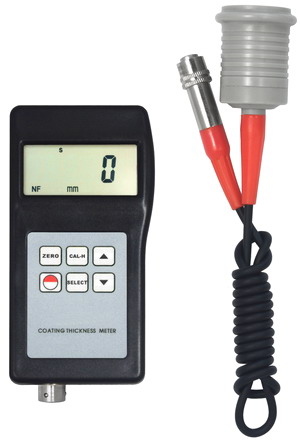

SR2829HF Anticorrosion Coating Thickness Gauge
Applications:

The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on materials of iron, often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.

Features:
-The F probes measure the thickness of non-magnetic materials on magnetic materials.
-Two measurement mode: Single and ContinuousNotice: Continuous mode is convenient to measure the coating thickness of curved objects and tiny objects.
-Metric/imperial system selectable.
-Manual or automatic shut down.
-Auto memory of calibration value,and auto recognize the substrate.
-Operation process have buzzing reminder,while no buzzing in continuous mode.
-Use "USB data output" to connect with PC.
-Provide Bluetooth™ data output choice.

Specifications:

  Operating Principle

  F Magnetic Induction

  Measuring Range

  0~12mm

  Resolution

  0.01mm / 0.1mm

  Min. Raius Workpiece

  F Type: convex 20mm / concave 50mm

  Min. Measuring Area

  16mm

  Min. Sample Thickness

  0.3mm

  Accuracy

  1~3%n or 0.2mm

  Auto Power Off

  Metric / Imperial

  Convertible

  Battery Indicator

  Low Battery Indicator

  Operating Conditions

  Temp. 0~40C, Humidity: 10~90%RH

  Power Supply

  4 x 1.5 V AAA (UM-4) Battery

  Dimensions

  126 x 65 x 27 mm

  Weight

  210g (Not Including Batteries)

Standard delivery

1. Main Unit

2. Probe (F Type)

3. Calibration Base Set (F Type) CTG-BS

4. Calibration Foils CTG-CF (1set, 4pieces)

5. Carrying Case

6. Operation Manual

Optional accessories

1. USB data cable with software

2. Bluetooth data output with software

SR2841

SR2842

- Color: Red + Grey, - Material: ABS, - LCD Display: 1.1'', 22 x 22mm
- This product can be quick and accurate to measure coating thickness on ferrous metal substrate (magnetic) without causing any damage. It is widely used in manufacturing, metal processing, chemical industry, commercial inspection, etc.

Specifications

Range

Best Accuracy

Model

SR2841

SR2842

Iron Matrix Measure

0m~55m

3dgt

3dgt

56m~1000m

(3.0%+1dgt)

(3.0%+1dgt)

Aluminum Matrix Measure

0m~55m

3dgt

56m~1000m

(3.0%+1dgt)

Resolution

1m

Features

Display Count

9999

9999

Auto Power Off

Low Battery Indication

Data Hold

MAX/MIN

Data Logging

2000

2000

LCD Backlight

Measurement Mode

Continuous or Single Measurement

Key Mis-press Buzzer

General Characteristic

Power

9V Alkaline Battery(6LF22)

LCD Size

22mm X 22mm

Product Color

Red and Grey

Product Net Weight

144.2g

Product Size

153mm X 110mm X 40mm

Standard Accessories

SR2841-Battery,Standard Membrane Slice, Iron Matrix Slice, Carrying Bag

SR2842-Battery,Standard Membrane Slice, Iron Matrix Slice, Aluminum Matrix Slice, Carrying Bag

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

40 PCs

Standard Carton Measurement

530mm X 485mm X 320mm (0.082 CBM Per Standard Carton)

Standard Carton Gross Weight

9.5 Kg

SR2068 Series Coating Thickness Meter
Characteristic:
-Zero adjustment, second point adjustment
-LCD digital display
-The metric system / England system unit transform
-Two types of probe heads design, which is applicable to different test situations
-Have an automatic turn off functions

Specifications

Model

SR2068F

SR2068N

SR2068FN

Operating principle

(only F)

(only NF)

(F & NF)

Test method

the magnetism and backset measuring

Measuring range

0-1000um

Measure precision

(3%H1.5)

Display precision

0~99.9um: 0.1um/ Over 100um: 1um

Two measurement mode

Single and Continuous

Minimum substrate

10*10 mm

Minimum curvature

protruding5mm, concave25mm

Most thinnest substrate

0.5mm

Environment temperature

0ºC~40ºC

Relative humidity

85%

Power Supply

DC9V1

Dimensions

125mm74mm33mm

SR2083 Series Coating Thickness Meter
Characteristic:

-Small style design, conveniently carry
-Complete intelligent design, easily operate
-Rapid measure, excellent repeated performance
-Zero adjustment, second point adjustment
-LCD digital display
-The metric system / England system unit transform
-There is bee ring song prompt during operation
-Two types of probe heads design, which is applicable to different test situations
-Have an automatic turn off functions

Specifications

Model

SR2083F

SR2083N

SR2083FN

Operating principle

(only F)

(only NF)

(F & NF)

Test method

the magnetism and backset measuring

Measuring range

0-1000um

Measure precision

(3%H1.5)

Display precision

0~99.9um: 0.1um/ Over 100um: 1um

Minimum substrate

10*10 mm

Minimum curvature

protruding 5mm, concave 25mm

Most thinnest substrate

0.5mm

Environment temperature

0ºC~40ºC

Relative humidity

85%

Power Supply

DC1.5V2

Dimensions

102mm66mm24mm

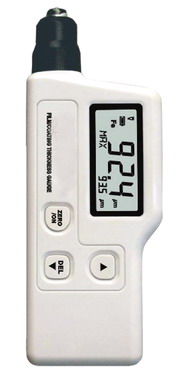

SR2830F Film/Coating Thickness Gauge (F type)

Measuring range: 0~1800µm
Accuracy: (3%H1µm)
Resolution: 0.1µm (<100µm) or 1µm(>100µm)
Use Hi-sensibility sensor for precise measurement
Zero point, two point and basic, three different calibration
Measuring mode: Single, Continually and Difference
Data store/ Data recall/ Data delete function
Data Analysis: Average, Maximum, Minimum, Standard deviation and measuring times
Beep sound indication
Measure in Metric/Imperial
LCD backlight display
Low battery indication
Auto power off

Packing method: Gift box + PP box
Power supply: 9V battery
Weight: 147g (without battery)
Dimension: 67*30*183mm

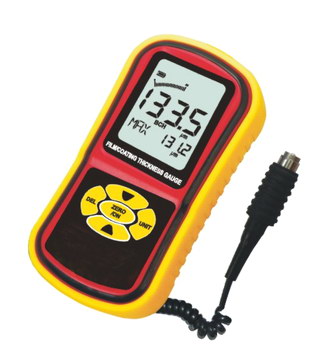

SR2831F Film/Coating Thickness Gauge (F type)

Measuring range: 0~1800µm
Accuracy: (3%H1µm)
Resolution: 0.1µm (<100µm) or 1µm(>100µm)
Use Hi-sensibility sensor for precise measurement
Zero point, two point and basic, three different calibration
Measuring mode: Single, Continually and Difference
Data store/ Data recall/ Data delete function
Data Analysis: Average, Maximum, Minimum, Standard deviation and measuring times
Beep sound indication
Measure in Metric/Imperial
LCD backlight display
Low battery indication
Auto power off

Packing method: Gift box + PP box
Power supply: 9V battery
Weight: 147g (without battery)
Dimension: 67*30*183mm

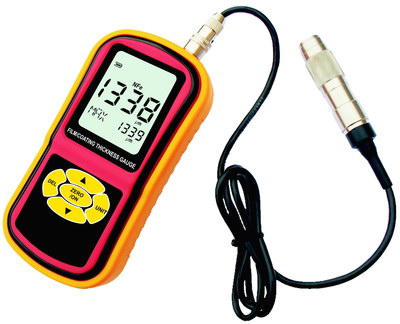

SR2831N Film/Coating Thickness Gauge (N type)
*Measuring range: 0~1500µm
*Accuracy: +/- (3%H+/-1µm)
*Resolution: 0.1µm (<100µm) or 1µm(>100µm)
*Use Hi-sensibility sensor for precise measurement
*Zero point, two point and basic, three different calibration
*Measuring mode: Single, Continually and Difference
*Data store/ Data recall/ Data delete function
*Data Analysis: Average, Maximum, Minimum, Standard deviation and measuring times
*Beep sound indication
*Measure in Metric/Imperial
*LCD backlight display
*Low battery indication
*Auto power off
*Packing method: Gift box + PP box
*Power supply: 3*1.5V AAA battery
*Weight: 250g (without battery)
*Dimension: 70*145*28mm

SR2001 (Pocket size) Thickness Tester
Feature:

-Pocket size tester which enables checking the condition of car body and approximate determining the thickness of the varnish layer.
-Enables to check whether the car was painted for the second time or the body was repaired after crash.
-Makes possible finding places where filler was laid and how thick it was done.
-It is possible to check weather the repairs were made in a correct way or the rough places were just filled.
-SR2001 is calibrated in real units; This allows the user to estimate the thickness of the varnish in mm.
-6 level skills enable more accurate estimating the thickness of measured layers than in other testers.
-The tester is ready to work without any preparation.
-Waterproof housing enables work even during rain.
-Automatic switch off function protects the batteries against discharging.
-The measurements are possible only on body made of steel.
-The user's manual includes data about varnish thickness on typical cars and information about way of evaluating the quality of repairs.
-Warranty 1 year.

Specification:

 Range (um): 0~150, 150~200, 200~350, 350~500, 500~1000, 1000~1200.
Accuracy: +/-5%

Length: 170mm
Diameter: 29mm
Weight: 100g
Power: 3PCS LR44 batteries

Packing: 70PCS/CTN, CTN SIZE: 53x33x37CM, G.W: 18.5KGS

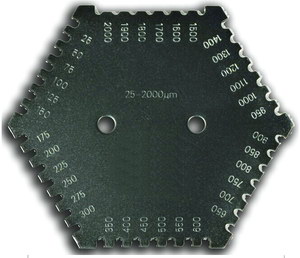

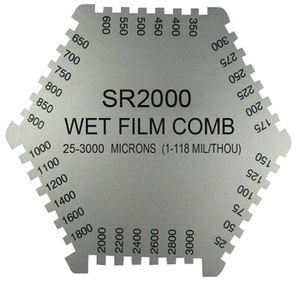

SR2000 Wet film comb Gauge (alloy steel)

Application:
Used for checking the thickness coating of wet paint, enamel lacquer, adhensive, architectural coating, color coating, varnish, chemical industry, or other coating that has been applied to a smooth surface.

Specification:

Measuring Range: 25-3000um (5-118mil)
Step Graduation: 25um

Mateiral: alloy steel
Measuring Procedure:
1. Select appropriate comb according to approximate known thickness.
2. Hold comb perpendicular to surface coating to be measured.
3. Press into coating until the comb stands square on substrate.
4. Wet film thickness is between the highest step which is coated and the next (higher) step which remains uncoated.

SR2002 Stainless Wet Film Gauge

Feature:
SR2002 Stainless Wet Film Thickness Gauge has a long service life and an excellent reusability.

Material: stainless steel
Hexagonal

Specification:
Measurement range: 25-2000m
Step Graduation: 25um

SR2003 Plastic Wet Film Comb

Feature:
SR2003 Wet Film Combs are made from ABS plastic. They are disposal instruments to record the measurement of wet film thickness for quality assurance or customer requirements. Customization is available.

Specification:
Measurement range: 25-900m

Step Graduation: 25um

Notice: SR2801FN, SR2802FN, SR2807, SR2808, SR2068FN, SR2083FN, SR2828, SR2825FN,

SR2825SFN, SR2855, SR2855S, SR2001, SR2871, SR2870 are more suitable for automotive field using.

( If you need user manual, E-catalogue or picture without watermark for above meters, please ask for at: xiushunjie@163.com )

For ultrasonic thickness meter, click here: ultrasonic thickness meter / thickness gauge

For through coating ultrasonic thickness meter, please click here: Through coating/paint

(paint thickness gauge, painting thickness gauge, paint thickness meter, painting thickness meter, paint thickness tester, painting thickness tester; paint coating thickness meter, paint coating thickness gauge, paint coating thickness tester;

paint thickness tester, car paint thickness tester, painting thickness tester, car painting thickness tester, paint thickness meter, car paint thickness meter, painting thickness meter, car painting thickness meter, paint thickness gauge, car paint thickness gauge, painting thickness gauge, car painting thickness gauge; coat thickness tester, car coat thickness tester, coating thickness tester, car coating thickness tester, coat thickness meter, car coat thickness meter, coating thickness meter, car coating thickness meter, coat thickness gauge, car coat thickness gauge, coating thickness gauge, car coating thickness gauge;

paint tester, car paint tester, painting tester, car painting tester, paint meter, car paint meter, painting meter, car painting meter, paint gauge, car paint gauge, painting gauge, car painting gauge; coat tester, car coat tester, coating tester, car coating tester, coat meter, car coat meter, coating meter, car coating meter, coat gauge, car coat gauge, coating gauge, car coating gauge)
