Insulation resistance tester / Megohmmeter

(insulation resistance tester /meter, insulation meter /tester, Megohmmeter, digital Megohmmeter, megohm meter /tester, Megger, Megger Tester, Megger Tester)

Multi function Resistance tester

Insulation Resistance Tester

Megohmmeter, Hand-held Insulation Tester

Insulation Resistance Tester

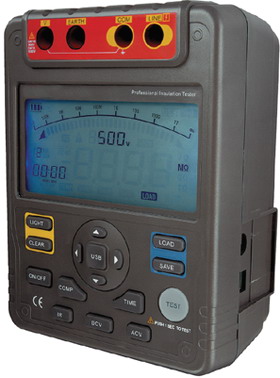

insulation resistance tester SRR5511

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Insulation Resistance

500k次 ~ 10G次
1M次*~1000G次

㊣(3%+5)

Low Resistance

1000次

㊣(1%+3)

Testing Voltage

100V/250V/500V/1000V

0~20%

DC Voltage

1000V

㊣(1%+3)

AC Voltage

750V

㊣(1.5%+3)

Special Functions





Auto Ranging



Yes

Short Circuit Current



<2mA

Data Logging



18

Data Recall



Yes

Sleep Mode



Yes

Polarization index (PI)



Yes

Dielectric Absorption (DAR)



Yes

Timer

Within 30 minutes

Yes

Compare



Yes

Battery Display



Yes

Display Backlight

EL

Yes

Over Range and High
Voltage Warning



Yes

USB





Max. Display
Analogue Bar Graph

9999

Yes

Yes

GENERAL CHARACTERISTICS

Power

SRR5511-1.5V Battery (R14) x 8

LCD Size

123 mm x 58 mm

Product Color

Grey

Product Net Weight

2kg

Product Size

202 x 155 x 94 mm

Standard Accessories

SRR5511 - A pair of one plug test lead to one alligator clip, English Manual, Tool Box , Batteries,
A pair of two plugs test lead to one alligator clip.

Optional Accessories*

Power Adapter

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5 pcs

Standard Carton Measurement

600 x 350 x 320 mm (0.067 CBM Per Standard carton)

Standard Carton Gross Weight

Around 13kg

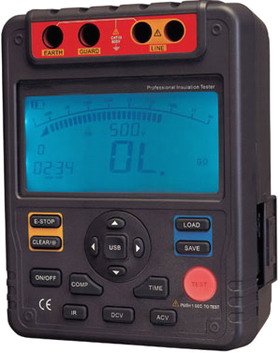

insulation resistance tester SRR5512

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Insulation Resistance

0.5M次 ~100G次

㊣(3%+5)

Testing Voltage

500V/1000V/1500V/2500V

0~20%

DC Voltage

600V

㊣(2%+5)

AC Voltage

600V

㊣(2%+5)

Special Functions





Auto Ranging



Yes

Short Circuit Current



<1.8mA

Data Logging



18

Data Recall



Yes

Sleep Mode



Yes

Polarization index (PI)



Yes

Dielectric Absorption (DAR)



Yes

Timer

Around 15 minutes

Yes

Compare



Yes

Battery Display



Yes

White Display Backlight



Yes

Over Range and High
Voltage Warning



Yes

USB



Yes

Max. Display

9999

Yes

Analogue Bar Graph



Yes

GENERAL CHARACTERISTICS

Power

1.5V Alkaline Battery(LR14)℅8

LCD Size

123 mm x 58 mm

Product Color

Red and Grey

Product Net Weight

1.8Kg

Product Size

202℅155℅94mm

Standard Accessories

2 pcs of one plug test lead to one alligator clip (black and Green), Batteries, English Manual , Tool Box, 1pc of two plugs test lead to one alligator clip (Red), USB Interface Cable, Software

Optional Accessories*

Power Adapter

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

525 ℅ 335 ℅ 345mm (0.061 CBM Per Standard Carton)

Standard Carton Gross Weight

18kg

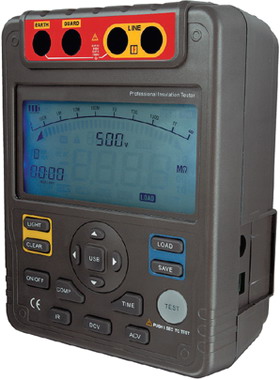

insulation resistance tester SRR5513

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

Insulation Resistance

500kW ~ 10GW
1MW*~1000GW

㊣(5%+5)

Low Resistance

1000W

㊣(1%+3)

Testing Voltage

500V/1000V/1500V/2500V/5000V

0~20%

DC Voltage

1000V

㊣(1%+3)

AC Voltage

750V

㊣(1.5%+3)

Special Functions





Auto Ranging



Yes

Short Circuit Current



<1.3mA

Data Logging



18

Data Recall



Yes

Sleep Mode



Yes

Polarization index (PI)



Yes

Dielectric Absorption (DAR)



Yes

Timer

Within 30 minutes

Yes

Compare



Yes

Battery Display



Yes

Display Backlight

EL

Yes

Over Range and High
Voltage Warning



Yes

USB



Yes

Max. Display
Analogue Bar Graph

9999

Yes

Yes

GENERAL CHARACTERISTICS

Power

SRR5513 -1.5V Alkaline Battery (LR14) x 8

LCD Size

123 mm x 58 mm

Product Color

Grey

Product Net Weight

2kg

Product Size

202 x 155 x 94 mm

Standard Accessories

Batteries, English Manual, Tool Box,  A pair of one plug test lead to one alligator clip,
A pair of two plugs test lead to one alligator clip, USB Interface.

Optional Accessories*

Power Adapter

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

5 pcs

Standard Carton Measurement

600 x 350 x 320 mm (0.067 CBM Per Standard carton)

Standard Carton Gross Weight

Around 13kg

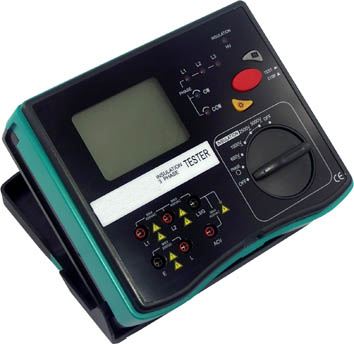

Digital Insulation 3 Phase Tester SRR5103A



The brand new 510 Series instrument can measure insulation resistance, AC voltage and phase sequence. As a new generation all mighty electrical test instrument we have successfully developed recently, it has made fundamental changes to the circuit industry of conventional insulation resistance. Aided by the nice and fashionable design, have more and stronger functions are easier to use and more reliable.

The instrument and accessories are all in the toolbox fit for field application It can be used to test the insulation resistance of power system electrical equipment lightning arrester equipment and measure AC voltage and phase sequence test.

Features:
-Insulation resistance measurement;
-Phase rotation check;
-Voltage measurement;
-Testing voltage up to 5000V;
-LCD background light.

Specifications:

MODEL

SRR5103A

Testing Voltage

1000/2500/5000V

Insulation Resistance

0.1~200G次 ㊣(3%+5)

Phase Rotation Check

yes

AC V

700V ㊣(2%+5)

Resolution

0.01M次

Auto Range

yes

Function Symbol Display

yes

Data Hold

yes

Low Battery Warning

yes

Max Displays.

1999

LCD Backlight

yes

General Characteristics:

Power

AA1.5V*8

Product Size

190*155*75 mm

Product Net Weight

900g

Standard Accessories

Standard individual packing

Carry case

Standard Quantity per Carton

6 pcs.

Measurement of Standard Carton

645*360*276mm (0.064 CBM)

Gross weight of Standard Carton

14kgs

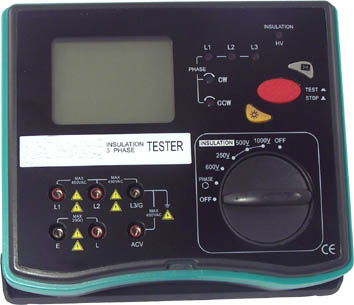

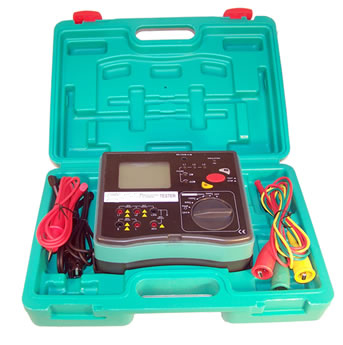

Digital Insulation 3 Phase Tester SRR5101A, SRR5102A

The brand new 510 Series instrument can measure insulation resistance, AC voltage and phase sequence. As a new generation all mighty electrical test instrument we have successfully developed recently, it has made fundamental changes to the circuit industry of conventional insulation resistance. Aided by the nice and fashionable design, have more and stronger functions are easier to use and more reliable.

The instrument and accessories are all in the toolbox fit for field application It can be used to test the insulation resistance of power system electrical equipment lightning arrester equipment and measure AC voltage and phase sequence test.

Main Features:
-Insulation resistance measurement;
-Phase rotation check;
-Voltage measurement;

Specifications:

MODEL

SRR5101A

SRR5102A

Testing Voltage

250/500/1000V

500/1000/2500V

Insulation Resistance

0.1~20G次 ㊣(3%+5)

0.1~20G次 ㊣(3%+5)

Phase Rotation Check

yes

yes

AC V

700V ㊣(2%+5)

700V ㊣(2%+5)

Resolution

0.01M次

0.01M次

Auto Range

yes

yes

Function Symbol Display

yes

yes

Data Hold

yes

yes

Low Battery Warning

yes

yes

Max. Displays

1999

1999

LCD Backlight

yes

yes

General Characteristics:

Power

AA1.5V*8

Product Size

190*155*75 mm

Product Net Weight

900g

Standard Accessories

Standard individual packing

Carry case

Standard Quantity per Carton

6 pcs.

Measurement of Standard Carton

645*360*276mm (0.064 CBM)

Gross weight of Standard Carton

14kgs

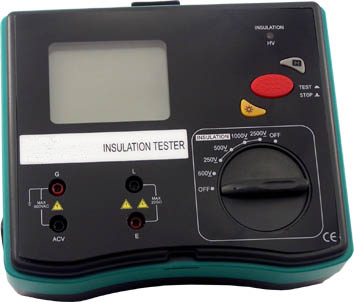

Digital Insulation Tester SRR5104A, SRR5105A



Main Features:
-Insulation resistance measurement;
-Voltage measurement;
-LCD background light.

Specifications:

MODEL

SRR5104A

SRR5105A

Testing Voltage

250/500/1000/2500V

100/250/500/1000V

Insulation Resistance

0.1~20G次 ㊣(3%+5)

0.1~20G次 ㊣(3%+5)

AC V

700V ㊣(2%+5)

700V ㊣(2%+5)

Resolution

0.01M次

0.01M次

Auto Range

yes

yes

Function Symbol Display

yes

yes

Data Hold

yes

yes

Low Battery Warning

yes

yes

Max. Diplay

1999

1999

LCD Background Light

yes

yes

General Characteristics:

Size

190*155*75 mm

Weight

900g

Standard Accessories

Standard individual packing

Carry case

Standard Quantity per Carton

6 pcs.

Measurement of Standard Carton

645*360*276mm (0.064 CBM)

Gross weight of Standard Carton

14kgs

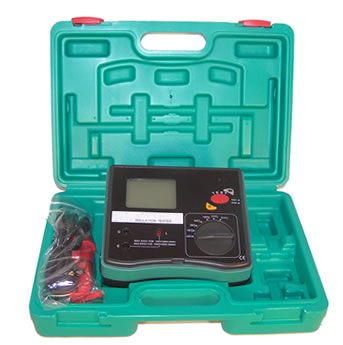

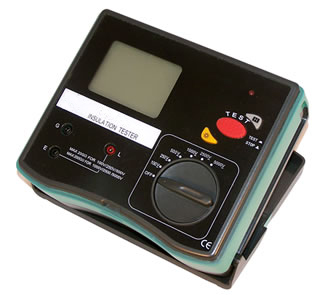

Digital insulation resistance tester SRR5106A



Features:
-From 100V to 5000V, wide range;
-Insulation resistance measurement;
-Voltage measurement;
-LCD background light.

Specifications:

MODEL

SRR5106A

Testing Voltage

100/250/500V

1000/2500/5000V

Insulation Resistance

0.1~20G次 ㊣(3%+5)

0.1~200G次 ㊣(5%+10)

Resolution

0.01M次

Auto Range

yes

Function Symbol Display

yes

Data Hold

yes

Low Battery Warning

yes

Max. Diplay

1999

LCD Backglight

yes

General Characteristics:

Power

AA1.5V*8

Product Size

190*155*75 mm

Product Net Weight

900g

Standard Accessories

Standard individual packing

Carry case

Standard Quantity per Carton

6 pcs.

Measurement of Standard Carton

645*360*276mm (0.064 CBM)

Gross weight of Standard Carton

16kgs

Digital Insulation Resistance Tester SRR30-1/30-2/30-3/30-4/30-5



The newly style of Digital Insulation Resistance Tester is 30 series, including SRR30-1, SRR30-2, SRR30-3, SRR30-4 and SRR30-5. It has fashionable design and improved electro circuit, so that has more fully function, higher precision, easier operation.

The output voltage testing can be changed in 250V/500V/1000V/2500V for deferent applications. Resistance range can touch 20G ohm. Alternating current also can be tested.

30-x series apply for all kinds of electric equipment and insulation materials such as transformer, electromotor, cable, switch, appliance, etc. It is a perfect electrical testing meter.


Main Features:
-Insulation resistance testing
-Voltage testing
-SRR30-1(250/500/1000V)
-SRR30-2(500/1000/2500V)
-SRR30-3(15/50/100V)
-SRR30-4(100/250/500/1000V)
-SRR30-5(250/500/1000/2500V)

Specifications:

MODEL

SRR30-1

SRR30-2

SRR30-3

SRR30-4

SRR30-5

Testing Voltage

250/500/1000V

500/1000/2500V

15/50/100V

100/250/500/1000V

250/500/1000/2500V

Resistance

0~2000M次 ㊣(3%+5)

0~20G次 ㊣(3%+5)

0~100M次 ㊣(3%+5)

0~2000M次 ㊣(3%+5)

020G次

AC V

700V ㊣(2%+5)

700V ㊣(2%+5)

700V ㊣(2%+5)

-

-

Auto Range

yes

Function Symbol Display

yes

Data Hold

yes

Low Resistance Buzzer

yes

Low Battery Warning

yes

LCD MAX. Count

1999

General Characteristics:

Power

AA1.5Vx6(UM3)

Product Size

150*100*70 mm

Product Net Weight

approx. 680g

Standard Accessories



Standard individual packing

gift box

Standard Quantity per Carton

20 pcs.

Measurement of Standard Carton

450*330*413mm (0.061 CBM)

Gross weight of Standard Carton

22kgs

Analogue Insulation Resistance Tester SRR3165/3166

The newly style of Analog Insulation Resistance Tester is 316X series, including SRR3165, SRR3166, etc. It has fashionable design and improved circuit, so that has more fully function, higher precision, and easier operation. The SRR3165 rating testing voltage is 500V, the SRR3166 rated testing voltage is 1000V. Resistance ranges up to 2000M ohm. Alternating current also can be tested.

This Tester apply for all kinds of electric equipment and insulation materials such as transformer, electromotor, cable, switch appliance, etc.

It is a perfect, low cost electrical testing meter.

Specifications:

MODEL

SRR3165

SRR3166

Testing Voltage

500V

1000V

Insulation Resistance

1-1000M次㊣5%

2-2000M次㊣5%

AC V

600V ㊣5%

600V ㊣5%

Low Battery Warning

yes

yes

General Characteristics:

Power

AA1.5Vx6(UM3)

Product Size

150*100*70 mm

Product Net Weight

680g

Standard Accessories

Standard individual packing

gift box

Standard Quantity per Carton

20 pcs.

Measurement of Standard Carton

450*330*413mm (0.061 CBM)

Gross weight of Standard Carton

20kgs

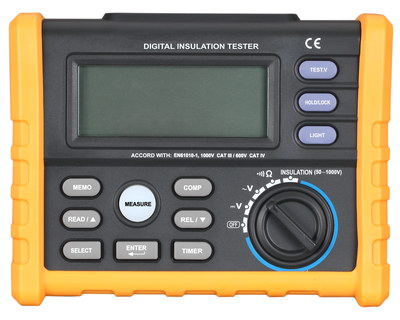

 Digital Insulation Tester SRR5203

INSULATION TESTS

Source Output Voltage

Measuring Range

50V (0%~+20%)

0.01M次~50M次㊣ (3%+5)

100V (0%~+20%)

0.01M次~100M次㊣ (3%+5)

250V (0%~+20%)

0.01M次~250次M㊣ (3%+5)

500V (0%~+20%)

0.01M次~500M次㊣ (3%+5)

1.00G次~5.00G次㊣ (5%+0.1G次)

1000V (0%~+20%)

5.00G次~10.00G次㊣ (10%+0.2G次)

SHORT CIRCUIT CURRENT

1.8mA

Multimeter functions

DC Voltage Test

0.1~1000V㊣0.5%

AC Voltage Test

0.1~750V㊣1%

Continuity Test

0.01次~200次㊣0.5%





Features

» Design according to the IEC61010-1CAT III 1000V.CAT IV 600V

» Auto Calculate PI and DAR

» Store /Load Function

» Compare function

» Auto discharge for capacitive load

» Timer Function for insulation test

» Lock function for insulation test

»Low Battery Indication

» DCV and ACV Test

» Continuity test

» Auto power Off

» Digital and analog display

GENERAL

Power Supply

6x1.5v AA batteries

Product Size

180mm x 140mm x65mm (7.1§ x 5.5§ x 2.6§)

Product Weight

950g(2.0lb)

Category

CE ETL CAT III 1000V.CAT IV 600V RoHS

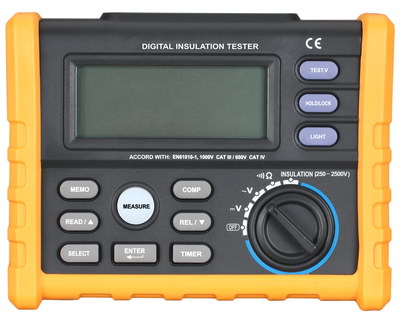

Digital Insulation Tester SRR5205

INSULATION TESTS

Source Output Voltage

Measuring Range

250V (0%~+20%)

0.01M次~250M次㊣ (3%+5)

500V (0%~+20%)

0.01M次~500M次㊣ (3%+5)

1000V (0%~+20%)

0.01M次~1000M次㊣ (3%+5)

1.00G次~5.00G次㊣ (5%+0.1G次)

5.00G次~10.00G次㊣ (10%+0.2G次)

2500V (0%~+20%)

0.1M次~2.00G次 (3%+5)

2.00G次~20.00G次㊣ (5%+0.2G次)

20.0G次~100.0G次㊣ (10%+2G次)

SHORT CIRCUIT CURRENT

2mA

Multimeter functions

DC Voltage Test

0.1~1000V㊣0.5%

AC Voltage Test

0.1~750V㊣1%

Continuity Test

0.01次~200次㊣0.5%

Features

» Design according to the IEC61010-1 1000V CAT III 600V IV

» Auto Calculate PI and DAR

» Store /Load Function

» Compare function

» Auto discharge for capacitive load

» Timer Function for insulation test

» Lock function for insulation test

» DCV and ACV Test

» Continuity test

» Auto Power Off

» Digital and analog display

GENERAL

Power Supply

6x1.5v LR batteries

Product Size

180mm x 140mm x65mm (7.1§ x 5.5§ x 2.6§)

Product Weight

950g(2.0lb)

Category

CE ETL CAT. III 1000v RoHS

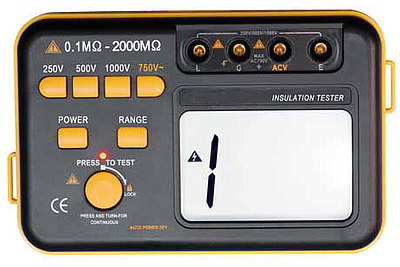

New Type Digital Insulation Tester SRR5160

Specification:

Basic Function

Measuring Voltage

250V㊣10%

500V㊣10%

1000V㊣10%

Range

0.1M次~20 M次

0.1M次~50 M次

0.1M次~100 M次

20M次~500 M次

50M次~1000 M次

100M次~2000 M次

Accuracy

㊣(4%+2)

Current of Short Circuit

1.8mA

1.8mA

1.6mA

Median Resistance

2M次

2M次

5M次

Jack Position

L, E

Special Function

SRR5160

Low Battery Indication

yes

Alarm Function

Red indicator light is illuminated

Over Load Indication

yes

Unit Symbol Display

yes

Auto Power Off

yes

Max. Display

1999

Using Temperature

0ºC ~40ºC

Relative Humidity

30%RH~85%RH

Over Range Display

 ※1§

Dimension

105℅164℅70mm

Weight

630g (including battery)

Power

9V(6pcs 1.5V5# battery)

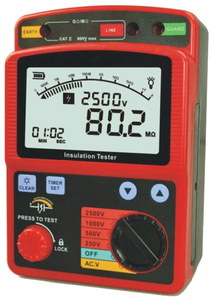

SRR3123

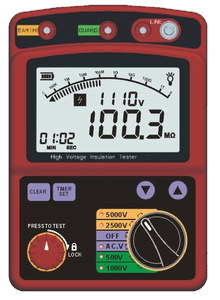

SRR3125

SRR3123 Rated Voltage: 250V/500V/1000V/2500V

SRR3125 Rated Voltage: 500V/1000V/2500V/5000V

SRR3123 TestingRange: 250V:0.0~499M次; 500V:0.0~999M次; 1000V:0.0~19.9G次; 2500V:0.0~99.9G次

SRR3125 TestingRange: 500V:0.0~999M次; 1000V:0.0~1.99G次; 2500V:0.0~99.9G次; 5000V:0.0~1000G次

Accuracy: ㊣5%rdg㊣5%dgt

DC/AC Testing: 30~600V

Resolution: 1.0V

Overload Protection: AC 1200V/10sec

Withstand Voltage: AC8320V/5sec

Insulation Resistance: 1000M次/DC1000V

Line Probe (SRR3125)

USB Trasmission (SRR3125)

Short Circuit Current: 1.3mA (SRR3123), 1.4mA (SRR3125)

Polarization Index (SRR3125)

DAR (SRR3125)

Operation Voltage: 12V

Power : 8 * 1.5V LR14 Battery

Unit size: 153*96*220mm

Standard Quantity Per Carton: 3PCS

Standard Carton Size: 44.5*33.0*28.5CM
Standard Carton Gross Weight: 7.2KG

Multi function Resistance tester

Insulation Resistance Tester

Megohmmeter, Hand-held Insulation Tester

For ground/earth resistance tester, please click here ground/earth/surface resistance tester

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
