Multi function
insulation/Ground/rCD resistance Electric tester
SRR5525
﹛
|
SPECIFICATIONS
|
Basic
Functions |
Measuring
Range |
Best
Accuracy |
|
Insulation
Resistance Measurement |
Test Voltage
100V/250V/500V |
㊣(10%+0) |
|
Test Current
100V (R=100kW); 1mA
250V (R=250kW); 1mA
500V (R=500kW); 1mA
1000V (R=1MW); 1mA |
㊣(10%+0)
㊣(10%+0)
㊣(10%+0)
㊣(10%+0) |
|
Test Current
Short Circuit
<2mA |
Yes |
|
100V
0.05MW ~ 200MW
250V
0.05MW ~ 200MW
500V
0.05MW ~ 200MW |
㊣(5%+5)
㊣(5%+5)
㊣(5%+5) |
|
RCD |
Operational
Voltage 220V㊣10% / 45Hz ~
65Hz |
Yes |
|
Test Current
10mA/30mA/100mA/300mA |
0~10% |
|
Trip
Time 0ms--2000ms, 1→n General (10mA) |
㊣(5%+2) |
|
Earth
Resistance Measurement |
Test Voltage
Around 5.0V |
Yes |
|
Test Current
>200mA (R<2W) |
Yes |
|
Continuity
Resistance Range 0.00W
~ 2000W (UT526) |
㊣(2%+5) |
|
Voltage
Measurement |
AC/DC
Voltage
0~440V |
㊣(2%+3) |
|
Frequency |
Reference
Only |
|
Special
Functions |
|
|
AC or DC
Judgment |
Voltage
Measurement |
Yes |
|
Test Light |
|
Yes |
|
Phase Switch
(RCD) |
0∼ and 180∼ |
Yes |
|
Low Battery
Display |
|
Yes |
GENERAL
CHARACTERISTICS
|
Power |
1.5V Battery
x 6 |
|
LCD Size |
71 mm x 34
mm |
|
Product
Color |
Red & Grey |
|
Product Net
Weight |
380g |
|
Product Size |
160 x 100 x
71 mm |
|
Standard
Accessories |
Test Lead,
Battery, English Manual, Carrying Bag,
Alligator Clip |
|
Standard
Individual Packing |
Gift Box |
|
Standard
Quantity Per Carton |
20 pcs |
|
Standard
Carton Measurement |
400 x 430 x
335 mm (0.063 CBM Per Export Carton)
|
|
Standard
Carton Gross Weight |
16kg |
|
|
﹛ |
|

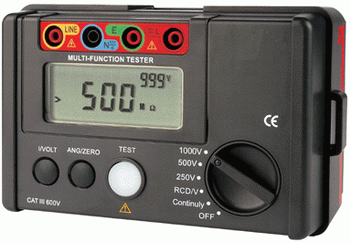

Multi function
insulation/Ground/rCD resistance Electric tester
SRR5526
﹛
|
SPECIFICATIONS
|
Basic
Functions |
Measuring
Range |
Best
Accuracy |
|
Insulation
Resistance Measurement |
Test Voltage
250V/500V/1000V |
㊣(10%+0) |
|
Test Current
100V (R=100kW); 1mA
250V (R=250kW); 1mA
500V (R=500kW); 1mA
1000V (R=1MW); 1mA |
㊣(10%+0)
㊣(10%+0)
㊣(10%+0)
㊣(10%+0) |
|
Test Current
Short Circuit
<2mA |
Yes |
|
250V
0.05MW ~ 200MW
500V
0.05MW ~ 300MW
1000V
0.05MW ~ 500MW |
㊣(5%+5)
㊣(5%+5)
㊣(5%+5) |
|
RCD |
Operational
Voltage 220V㊣10% / 45Hz ~
65Hz |
Yes |
|
Test Current
10mA/30mA/100mA/300mA |
0~10% |
|
Trip
Time 0ms--2000ms, 1→n General (10mA) |
㊣(5%+2) |
|
Earth
Resistance Measurement |
Test Voltage
Around 5.0V |
Yes |
|
Test Current
>200mA (R<2W) |
Yes |
|
Continuity
Resistance Range 0.00W
~ 2000W (UT526) |
㊣(2%+5) |
|
Voltage
Measurement |
AC/DC
Voltage
0~440V |
㊣(2%+3) |
|
Frequency |
Reference
Only |
|
Special
Functions |
|
|
AC or DC
Judgment |
Voltage
Measurement |
Yes |
|
Test Light |
|
Yes |
|
Phase Switch
(RCD) |
0∼ and 180∼ |
Yes |
|
Low Battery
Display |
|
Yes |
GENERAL
CHARACTERISTICS
|
Power |
1.5V Battery
x 6 |
|
LCD Size |
71 mm x 34
mm |
|
Product
Color |
Red & Grey |
|
Product Net
Weight |
380g |
|
Product Size |
160 x 100 x
71 mm |
|
Standard
Accessories |
Test Lead,
Battery, English Manual, Carrying Bag,
Alligator Clip |
|
Standard
Individual Packing |
Gift Box |
|
Standard
Quantity Per Carton |
20 pcs |
|
Standard
Carton Measurement |
400 x 430 x
335 mm (0.063 CBM Per Export Carton)
|
|
Standard
Carton Gross Weight |
16kg |
|
|
﹛ |
|

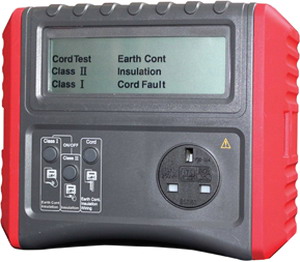

Multi function
insulation/Ground/Cord/Outwith resistance Safety tester
SRR5527
﹛
SPECIFICATIONS:
|
Basic Functions |
Measuring Range |
Accuracy |
Technical parameter |
|
Insulation Resistance
Measurement |
class I
PASS value
1M次 |
㊣0.1M次 |
Test Voltage
500V |
|
class II
PASS value
2M次 |
Test Current
(R=500K次) >1mA |
|
cord PASS
value
2M次 |
Test Current Short Circuit
<3mA |
|
Protect Conductor Resistance
Measurement |
class I
PASS value
0.2次 |
㊣0.03次 |
Test Current >200mA
(R<2次) |
|
cord PASS
value
0.2次 |
Test Voltage
5v DC |
|
Cord measurement |
right connection |
Yes Cord Fault |
|
open
circuit,short
circuit
reverse connection |
℅ Cord Fault |
|
Phase
Falling
Measurement |
normal |
Cue※LNYes,LE
Yes,NEYes§ |
AC220V㊣10%
input |
|
ground
wire falling |
Cue※LNYes,LE℅,
NE℅§ |
|
null
line falling |
Cue※LN℅,LE
Yes,NE℅ |
|
Special Functions |
﹛ |
|
Auto
Power-off |
|
Yes |
|
Low Battery Display |
|
Yes |
GENERAL CHARACTERISTICS:
|
Power |
1.5V Battery(R14 or L14)x 6
|
|
LCD Size |
136 mm x 47 mm |
|
Product Color |
Red & Grey |
|
Product Net Weight |
970g |
|
Product Size |
210 x 178 x90 mm |
|
Standard Accessories |
Test Lead, Alligator Clip &
ground wire, |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
510 x 330 x 300 mm |
|
Standard Carton Gross Weight |
11kg |
﹛ |
|
Multi function
insulation/Ground/Cord/Outwith Safety
tester SRR5528
﹛
SPECIFICATIONS:
|
Basic Functions |
Measuring Range |
Accuracy |
Technical parameter |
|
Insulation Resistance
Measurement |
0.20M次~19.99M次
﹛ |
㊣5%+2 |
Test Voltage
500V |
|
Test Current
(R=500K次) >1mA |
|
Test Current Short Circuit
<3mA |
|
Protect Conductor Resistance
Measurement |
0.00次~19.99次
﹛ |
㊣5%+2 |
Test Current >200mA
(R<2次) |
|
Test Voltage
5v DC |
|
RCD Measurement |
0.10~10.5mA
﹛ |
㊣5%+2 |
Test Voltage
50V rms |
|
Test Frequency
50HZ AC |
|
Cord measurement |
right connection |
Yes Good |
|
open
circuit,short circuit
reverse connection |
℅ Fail |
|
Phase
Falling
Measurement |
normal |
Cue※LNYes,LE
Yes,NEYes§ |
AC220V㊣10%
input |
|
ground
wire falling |
Cue※LNYes,LE℅,
NE℅§ |
|
null
line falling |
Cue※LN℅,LE
Yes,NE℅ |
|
Special Functions |
﹛ |
|
Auto
Power-off |
|
Yes |
|
Low Battery Display |
|
Yes |
GENERAL CHARACTERISTICS:
|
Power |
1.5V Battery(R14 or L14)x 6
|
|
LCD Size |
136 mm x 47 mm |
|
Product Color |
Red & Grey |
|
Product Net Weight |
970g |
|
Product Size |
210 x 178 x90 mm |
|
Standard Accessories |
Test Lead, Alligator Clip &
ground wire, |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
510 x 330 x 300 mm |
|
Standard Carton Gross Weight |
11kg |
﹛ |
|

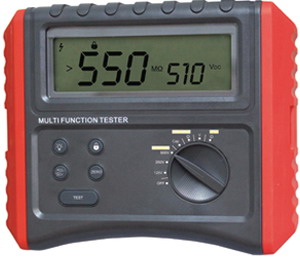

Multi function
insulation/Ground Resistance
tester SRR5529A
﹛
SPECIFICATIONS:
|
Basic Functions |
Measuring Range |
Accuracy |
Technical parameter |
|
Insulation Resistance
Measurement |
0.05M~110M次/
0.05M~275M次/0.05~550M次
﹛ |
㊣5%+5 |
Test Voltage 100V/250V/500V |
|
Output Voltage
㊣10% |
|
Test Current Short Circuit
<2mA |
|
Low Resistance Continuity
Measurement |
0次~100次
﹛ |
㊣2%+5 |
Test Current 250mA
(Max) |
|
Test Voltage (open circuit
output)
5v DC |
|
AC Voltage & Frequency
Measurement |
0~600V/45~65Hz
﹛ |
㊣3%+5 |
﹛ |
|
DC Voltage
Measurement |
0~600V |
㊣2%+5 |
|
|
Ground Resistance & Voltage
Measurement |
Resistance 20次/200次/2000次 |
㊣3% ㊣0.1次(20次 file)
㊣3%+3( 200次&2K次 file) |
﹛ |
|
Voltage &Frequency
0~600V/45~65Hz |
㊣3%+5 |
﹛ |
|
Capacitance Measurement |
0~20uF |
㊣3%+10 |
Test
Frequency 400Hz |
|
Special Functions |
﹛ |
|
Input Protection |
﹛ |
Yes |
|
Auto Measurement Range |
﹛ |
Yes |
|
Relative Value Measurement |
﹛ |
Yes |
|
Over Voltage Caution |
﹛ |
Yes |
|
Ground Resistance Connection
Check Function |
﹛ |
Yes |
|
Backlight |
|
Yes |
|
Auto
Power-off (can select) |
|
Yes |
|
Low Battery Display |
|
Yes |
GENERAL CHARACTERISTICS:
|
Power |
1.5V (AA) Battery x 8
|
|
LCD Size |
125 mm x 37 mm |
|
Product Color |
Red & Grey |
|
Product Net Weight |
1000g |
|
Product Size |
210 x 175 x90 mm |
|
Standard Accessories |
Battery, Carrying Bag,
Simple test lead with clamp (one dual plug&single plug),
Standard test lead with clamp
(red:20m,yellow:10m,green:5m),2 Auxiliary grounding
nail, Test lead with alligator Clip |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
510 x 330 x 300 mm |
|
Standard Carton Gross Weight |
15kg |
﹛ |
|

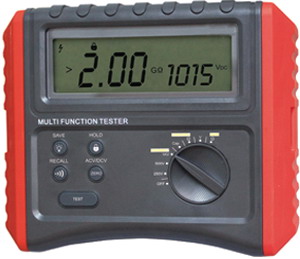

Multi function
insulation/Ground Resistance
tester SRR5529B
﹛
SPECIFICATIONS:
|
Basic Functions |
Measuring Range |
Accuracy |
Technical parameter |
|
Insulation Resistance
Measurement |
0.05~275M次/0.05~550M次/0.05~1G次 |
㊣5%+5 |
Test Voltage 250V/500V/1000V |
|
Output Voltage
㊣10% |
|
Test Current Short Circuit
<2mA |
|
Low Resistance Continuity
Measurement |
0次~100次
﹛ |
㊣2%+5 |
Test Current 250mA
(Max) |
|
Test Voltage (open circuit
output)
5v DC |
|
AC Voltage & Frequency
Measurement |
0~600V/45~65Hz
﹛ |
㊣3%+5 |
﹛ |
|
DC Voltage
Measurement |
0~600V |
㊣2%+5 |
|
|
Ground Resistance & Voltage
Measurement |
Resistance 20次/200次/2000次 |
㊣3% ㊣0.1次(20次 file)
㊣3%+3( 200次&2K次 file) |
﹛ |
|
Voltage &Frequency
0~600V/45~65Hz |
㊣3%+5 |
﹛ |
|
Capacitance Measurement |
0~20uF |
㊣3%+10 |
Test
Frequency 400Hz |
|
Special Functions |
﹛ |
|
Input Protection |
﹛ |
Yes |
|
Auto Measurement Range |
﹛ |
Yes |
|
Data hold |
|
Yes |
|
Data storage |
20 groups |
Yes |
|
Relative Value Measurement |
﹛ |
Yes |
|
Over Voltage Caution |
﹛ |
Yes |
|
Ground Resistance Connection
Check Function |
﹛ |
Yes |
|
Buzzer |
|
Yes |
|
Backlight |
|
Yes |
|
Auto
Power-off (can select) |
|
Yes |
|
Low Battery Display |
|
Yes |
GENERAL CHARACTERISTICS:
|
Power |
1.5V (AA) Battery x 8
|
|
LCD Size |
125 mm x 37 mm |
|
Product Color |
Red & Grey |
|
Product Net Weight |
1000g |
|
Product Size |
210 x 175 x90 mm |
|
Standard Accessories |
Battery, Carrying Bag,
Simple test lead with clamp (one dual plug&single plug),
Standard test lead with clamp
(red:20m,yellow:10m,green:5m),2 Auxiliary grounding
nail, Test lead with alligator Clip |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
510 x 330 x 300 mm |
|
Standard Carton Gross Weight |
15kg |
﹛ |
|

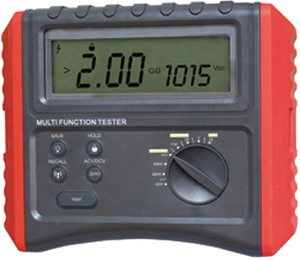

Multi function
insulation/Ground Resistance
tester SRR5529C
﹛
SPECIFICATIONS:
|
Basic Functions |
Measuring Range |
Accuracy |
Technical parameter |
|
Insulation Resistance
Measurement |
0.05~275M次/0.05~550M次/0.05~2G次 |
㊣5%+5 |
Test Voltage 250V/500V/1000V |
|
Output Voltage
㊣10% |
|
Test Current Short Circuit
<2mA |
|
Low Resistance Continuity
Measurement |
0次~220次
﹛ |
㊣2%+5 |
Test Current 250mA
(Max) |
|
Test Voltage (open circuit
output)
5v DC |
|
AC Voltage & Frequency
Measurement |
AC Voltage
0~600V/45~65Hz |
㊣3%+5 |
﹛ |
|
Frequency 45~400Hz |
㊣0.1%+3 |
|
DC Voltage
Measurement |
0~600V |
㊣2%+5 |
|
|
Ground Resistance & Voltage
Measurement |
Resistance 40次/400次/4000次 |
㊣3% ㊣0.2次(40次 file)
㊣3%+3( 400次&4K次 file) |
﹛ |
|
Voltage &Frequency
0~600V/45~65Hz |
㊣3%+5 |
﹛ |
|
Capacitance Measurement |
0~50uF |
㊣3%+10 |
Test
Frequency 400Hz |
|
Special Functions |
﹛ |
|
Input Protection |
﹛ |
Yes |
|
Auto Measurement Range |
﹛ |
Yes |
|
Data hold |
|
Yes |
|
Data storage |
20 groups |
Yes |
|
Relative Value Measurement |
﹛ |
Yes |
|
Over Voltage Caution |
﹛ |
Yes |
|
Ground Resistance Connection
Check Function |
﹛ |
Yes |
|
Buzzer |
|
Yes |
|
Backlight |
|
Yes |
|
Auto
Power-off (can select) |
|
Yes |
|
Low Battery Display |
|
Yes |
GENERAL CHARACTERISTICS:
|
Power |
1.5V (AA) Battery x 8
|
|
LCD Size |
125 mm x 37 mm |
|
Product Color |
Red & Grey |
|
Product Net Weight |
1000g |
|
Product Size |
210 x 175 x90 mm |
|
Standard Accessories |
Battery, Carrying Bag,
Simple test lead with clamp (one dual plug&single plug),
Standard test lead with clamp
(red:20m,yellow:10m,green:5m),2 Auxiliary grounding
nail, Test lead with alligator Clip |
|
Standard Individual Packing |
Gift Box |
|
Standard Quantity Per Carton |
4 pcs |
|
Standard Carton Measurement |
510 x 330 x 300 mm |
|
Standard Carton Gross Weight |
15kg |
|
|

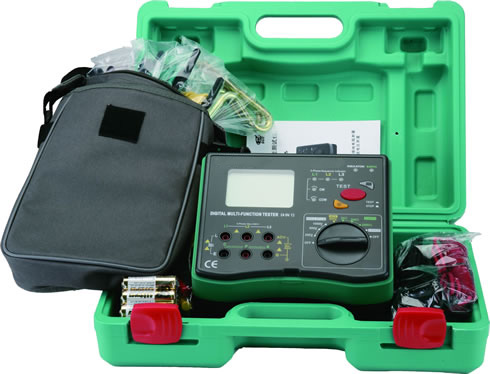

Multi
function tester SRR5500
Main Features:
-Earth resistance measurement;
-Insulation resistance measurement;
-Phase rotation check;
-Voltage measurement.
Specifications:
|
MODEL |
SRR5500 |
|
Earth Resistance |
0~20/200/2000次 ㊣(2%+5) |
|
Testing Voltage |
250/500/1000V |
|
Insulation Resistance |
0.1~2000M次 ㊣(3%+5) |
|
Phase Rotation Check |
yes |
|
AC V |
700V ㊣(2%+5) |
|
Auto Range |
yes |
|
Function Symbol Display |
yes |
|
Data Hold |
yes |
|
Low Battery Warning |
yes |
|
Max. Displays |
1999 |
|
LCD Backlight |
yes |
General Characteristics:
|
Product Size |
190 * 155 * 75 mm |
|
Product Net Weight |
approx. 900g |
|
Power |
AA1.5V x 8 |
|
Standard Accessories |

   |
|
Standard individual packing |
Carry case |
|
Standard Quantity per Carton |
5 pcs. |
|
Measurement of Standard Carton |
645*360*276mm (0.064 CBM) |
|
Gross weight of Standard Carton |
18kgs |
|
|
|
|
﹛
Insulation Resistance Testers SRR5501A
|
Specifications |
Range |
Best Accuracy |
|
Model |
﹛ |
SRR5501A |
|
Insulation Resistance(次) |
Test Voltage |
100V/250V/500V/1000V |
0%~10% |
|
100V |
0.00M次~100M次 |
㊣(3%+5) |
|
250V |
0.00M次~99.9M次 |
㊣(3%+5) |
|
100M次~5.5G次 |
㊣(5%+5) |
|
500V |
0.00M次~99.9M次 |
㊣(3%+5) |
|
100M次~5.5G次 |
㊣(5%+5) |
|
1000V |
0.00M次~99.9M次 |
㊣(3%+5) |
|
100M次~5.5G次 |
㊣(5%+5) |
|
Load Current |
50V(R=50K次) 1mA |
0%~10% |
|
100V(R=100K次) 1mA |
0%~10% |
|
250V(R=250K次) 1mA |
0%~10% |
|
500V(R=500K次) 1mA |
0%~10% |
|
1000V(R=1M次) 1mA |
0%~10% |
|
Short Circuit Current |
﹛ |
<2mA |
|
AC Voltage (V) |
30V~750V |
㊣(2%+3) |
|
Features |
|
Display Count |
﹛ |
2000 |
|
Auto Range |
﹛ |
﹟ |
|
Low Battery Indication |
﹛ |
﹟ |
|
LCD Backlight |
﹛ |
﹟ |
|
Alarm Light Display |
﹛ |
﹟ |
|
Alarm Buzzer |
﹛ |
﹟ |
|
High Voltage Indication |
﹛ |
﹟ |
|
Over Load Indication |
﹛ |
﹟ |
|
Auto Disharge |
﹛ |
﹟ |
|
Test Voltage Vice Display |
﹛ |
﹟ |
|
10M次 Internal Resistance Test |
﹛ |
﹟ |
|
General Characteristic |
|
Power |
1.5V BatteriesㄗLR6)
℅ 6 |
|
LCD Size |
70.6mm x 34mm |
|
Product Color |
Red and Grey |
|
Product Net Weight |
500g |
|
Product Size |
150mm x 100mm x 71mm |
|
Standard Accessories |
Batteries, Probe, Alligator Clip, Test Lead, Gallus |
|
Standard Individual Packing |
Gift Box, Carrying Bag, English Manual |
|
Standard Quantity Per Carton |
20 PCs |
|
Standard Carton Measurement |
500mm ℅ 380mm ℅ 330mm (0.063 CBM Per Standard
Carton) |
|
Standard Carton Gross Weight |
10.5 Kg |
|
|
﹛ |
|
﹛ |
