Megohmmeter

(insulation resistance tester /meter, insulation meter /tester, Megohmmeter, digital Megohmmeter, megohm meter /tester)

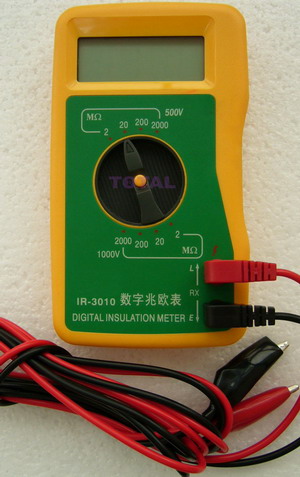

SRR3000 series digital megohmmeter

Traditional instrument measuring insulation resistor of the low voltage products, such as elevator, motor, electric switch, cable and so on is replaced with the series of instruments. It includes the following performance: wide range, using is convenient, high reliability, high accuracy, etc.
Specifications:

Model	Specifications	Range
SRR3010R	1000/500V	0.01MΩ~2000MΩ
SRR3005R	500/250V	0.01MΩ~2000MΩ

Measurement voltage:

Voltage	Open circuit voltage	Resistance	Short circuit current
1000V	1000~1100V	5MΩ	1.5mA
500V	500~550V	2MΩ	1.5mA
250V	250~275V	0.5 MΩ	3mA
100V	50~55V	0.2 MΩ	3mA

Accuracy of the resistance measurement:

Range	Measuring range	Accuracy
2 MΩ	0.01~1.999 MΩ	±（5%+1D）
20 MΩ	0.20~19.99 MΩ	±（5%+1D）
200 MΩ	2.0~199.9 MΩ	±（5%+1D）
2000 MΩ	20~1999 MΩ	±（5%+2D）

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
