Digital Clamp Meter
(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)
PAGE1 PAGE2 PAGE3 PAGE4 PAGE5 PAGE6
3266 Series

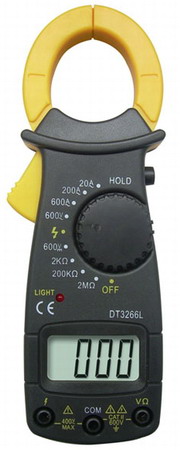

DT3266L 3 1/2 DIGITAL CLAMP METER
 |
Function | Range | Accuracy |
| DC voltage | 600V | ±1.0% | |
| AC voltage | 450V | ±1.2% | |
| OHM | 2000-2MΩ | ±1.0% | |
| ACA | 20-200 -400A | ±2.0% | |
| Power supply | (AAA) 1.5V×2 | ||
| Max display | 1999 | ||
| Data hold | YES | ||
| Weight | 160g | ||
| Dimension | 160L×55W×22Hmm | ||
| Accessories | operation manual, test leads | ||

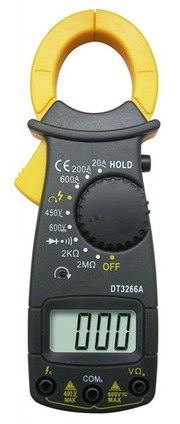

DT3266A 3 1/2 DIGITAL CLAMP METER
 |
Function | Range | Accuracy |
| DC voltage | 600V | ±1.0% | |
| AC voltage | 450V | ±1.2% | |
| OHM | 2000-2MΩ | ±1.0% | |
| ACA | 20-200 -400A | ±2.0% | |
| Power supply | (AAA) 1.5V×2 | ||
| Max display | 1999 | ||
| Data hold | YES | ||
| Audible continuity | YES | ||
| Diode test | YES | ||
| Weight | 160g | ||
| Dimension | 160L×55W×22Hmm | ||
| Accessories | operation manual, test leads | ||

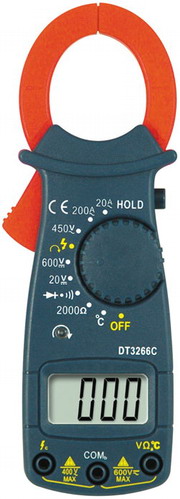

DT3266C 3 1/2 DIGITAL CLAMP METER
 |
Function | Range | Accuracy |
| DC voltage | 20-600V | ±1.0% | |
| AC voltage | 450V | ±1.2% | |
| OHM | 2000Ω | ±1.0% | |
| ACA | 20-200 A | ±2.0% | |
| TEMP | ℃ | ±3.0% | |
| Power supply | (AAA) 1.5V×2 | ||
| Max display | 1999 | ||
| Data hold | YES | ||
| Audible continuity | YES | ||
| Diode test | YES | ||
| Weight | 160g | ||
| Dimension | 160L×55W×22Hmm | ||
| Accessories | operation manual, test leads | ||

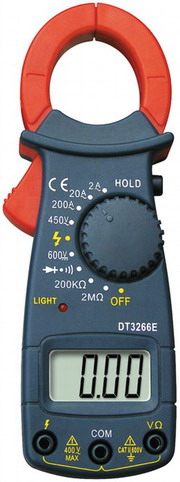

DT3266E 3 1/2 DIGITAL CLAMP METER
 |
Function | Range | Accuracy |
| DC voltage | 600V | ±1.0% | |
| AC voltage | 450V | ±1.2% | |
| OHM | 200K-2MΩ | ±1.0% | |
| ACA | 2-20 -200A | ±2.0% | |
| Power supply | (AAA) 1.5V×2 | ||
| Max display | 1999 | ||
| Data hold | YES | ||
| Weight | 160g (include battery) | ||
| Dimension | 160L×55W×22Hmm | ||
| Accessories | operation manual, test leads | ||

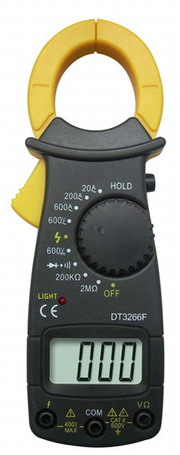

DT3266F 3 1/2 DIGITAL CLAMP METER
 |
Function | Range | Accuracy |
| DC voltage | 600V | ±1.0% | |
| AC voltage | 450V | ±1.2% | |
| OHM | 200k-2MΩ | ±1.0% | |
| ACA | 20-200 -400A | ±2.0% | |
| Power supply | (AAA) 1.5V×2 | ||
| Max display | 1999 | ||
| Data hold | YES | ||
| Weight | 160g | ||
| Dimension | 160L×55W×22Hmm | ||
| Accessories | operation manual, test leads | ||

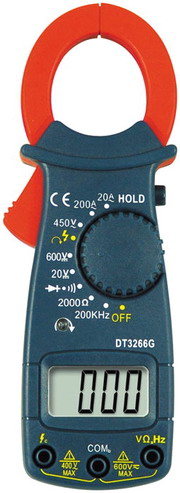

DT3266G 3 1/2 DIGITAL CLAMP METER
 |
Function | Range | Accuracy |
| DC voltage | 600V | ±1.0% | |
| AC voltage | 450V | ±1.2% | |
| OHM | 2000-2MΩ | ±1.0% | |
| ACA | 20-200 -400A | ±2.0% | |
| Frequency | 200KHZ | ±3.0% | |
| Power supply | (AAA) 1.5V×2 | ||
| Max display | 1999 | ||
| Data hold | YES | ||
| Audible continuity | YES | ||
| Diode test | YES | ||
| Weight | 160g | ||
| Dimension | 160L×55W×22Hmm | ||
| Accessories | operation manual, test leads | ||
