Digital Clamp Meter

(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)

PAGE1          PAGE2          PAGE3          PAGE4          PAGE5          PAGE6

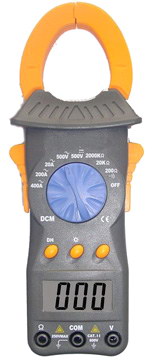

Product name: DM3266A 3 1/2 DIGITAL DOUBLE OPEN JAW AC CLAMP MULTIMETER (super thin)

1. Function
*AC /DC Voltage, AC Current, Resistance, Diode test and Audible continuity test, ADP
* Display: 3 1/2 digit LCD with a max. reading of 1999.
* AC Current to 400A
* AC/DC Voltage to 500V
* Clamp opening size(double open jaw):1.34" (34mm)
* Data Hold to freeze the displayed value
* Back light
* Safety:According to EN61010-1 protection class overvoltage category(CAT 600V) pollution degreen 2.
* Power supply: 31.5V AAA batteries.
SPECIFICATIONS:
AC Current:20A,200A,400A
AC Voltage:500V
DC Voltage:500V
*Certificate: CE Approval

2. Packing
Each item in one color box
Dimension:  179(H)73(W)26(D)mm
Ctn size:        478318315
QTY / Ctn:      40pcs
Gw/Nw:        14.5/13.5KG
Minimum Q'ty: 100pcs
