DRx Series Digital Refractometer
Specifications:

Temperature Measurement Range: 0°C -40°C (32-104°F)
Precision of Measurement temperature: ±1°C (2°F)
Measurement temperature Resolution: 0.1°C
Operation Temperature: 0-35°C (32-90°F)
Storage temperature: 0-50°C (32-122°F)
Dimension: 185×59×45mm
Weight: 230g
Power Supply: 1battery(9v)
Operating Time: More than 2000 times per battery
Automatic Temperature Compensation
Automatic Shut Off
Conversion between Centigrade and Fahrenheit Degree
Alarm of Low Voltage

Features:
(1). DRB series Digital Refractometer for Brix are developed for working with sugar related liquids (fruit juices, soft drinks, wine), help monitor and control sugar concentrations in foods and beverages. Whether users are checking the “ripeness” of fruit in the field, verifying product quality after harvesting, or controlling concentrations during processing and packaging, refractometers provide critical information to ensure product quality. But, it is also commonly used for controlling the concentration of various industrial fluids cutting lubricants and flux rinsing compounds). This instrument is equipped with an Automatic Temperature Compensation System making it ideal for field use.
(2). The DRS series are developed for measuring the concentration of ketchup, mayonnaise, pickle juice, salt water and brine. The DRS series proves themselves invaluable for agriculture, food processing and wildlife management. This instrument is equipped with an Automatic Temperature Compensation System making it ideal for field use.
(3). The DRH-300 is specially designed for measuring the refractive index, Baume, Warter of honey
(4). The digital °Oe Testers are ideal for concentrated fruit juice and canned foods that use a sugar infusion.It has four scales: Oechsle(Oe°), MASS s/v(Brix), AP and KMW.
(5). The DRA series are designed for measuring the concentration of the battery fluids. the freezing point of antifreeze liquid and windshield cleaning fluid. With the indication of the percentage you may know at which temperature the fluid will be frozen for both propylene glycol and ethylene glycol. It can also be used for checking the strength of electrolyte solution battery.
(6). The DRC series are designed for clinical usage and intended for both Veterinary and Human Being. This unit provides veterinarians and Human Being with quick and accurate indication of vital fluids levels. It can read urine specific gravity, total serum protein and refractive index.

DRx Series Digital Refractometer Scale List

Model



Measure Range

Resolution

 Accuracy

DRB0-45

Brix

0-45%

0.10%

±0.2%

DRB0-45nD

Brix

0-45%

0.10%

±0.2%

Refractive Index

1.3330-1.4098

0.0001

±0.0003

DRB28-65

Brix

28-65%

0.10%

±0.2%

DRB28-65nD

Brix

28-65%

0.10%

±0.2%

Refractive Index

1.3770-1.4535

0.0001

±0.0003

DRB58-92

Brix

58-92%

0.10%

±0.2%

DRB58-92nD

Brix

58-92%

0.10%

±0.2%

Refractive Index

1.4370-1.5232

0.0001

±0.0003

DRBS-300

Brix

0-35%

0.10%

±0.2%

Salinity

0-28%

0.10%

±0.2%

Refractive Index

1.3330-1.3900

0.0001

±0.0003

DRS0-28

Salinity

0-28%

0.10%

±0.2%

DRS0-28nD

Salinity

0-28%

0.10%

±0.2%

Refractive Index

1.3330-1.3900

0.0001

±0.0003

DRBS-300

Brix

0-35%

0.10%

±0.2%

Salinity

0-28%

0.10%

±0.2%

Refractive Index

1.3330-1.3900

0.0001

±0.0003

DRH-300

Nd

1.4419-1.5232

0.0001

±0.0003

°Be′

33.1-47.7

0.1

±0.2%

WATER

38.4% -5.4%

0.10%

±0.2%

DRBS-400

MASS s/v

0-35%

0.10%

±0.2%

Vol AP

0-22%

0.10%

±0.2%

Oe

0-150

1

±1.0

KMW

0-25

0.1

±0.2

DRA-403C

Propylene Glycol

-95-0 °C

0.1 °C

±0.20 °C

Ethylene Glycol

-70-0 °C

0.1 °C

±0.20 °C

Battery

1.000-1.510sg

0.01sg

±0.01sg

Cleaner

-72-0 °C

0.1 °C

±0.20 °C

DRA-403F

Propylene Glycol

-130-32 °F

0.1 °F

±0.5 °F

Ethylene Glycol

-95-32 °F

0.1 °F

±0.5 °F

Battery

1.000-1.510sg

0.01sg

±0.01sg

Cleaner

-100-32 °F

0.1 °F

±0.5 °F

DRC-200

Urine SP.G

1.000-1.050

0.001

±0.001

Serum P.

0-12g/dl

0.1

±0.1

Refractive Index

1.3330-1.3900

0.0001

±0.0003

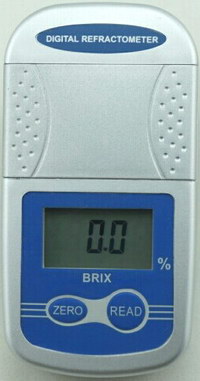

QDR Series Digital Refractometer

The pocket digital refractometer's feature is fast, precise readout and easy to use.
Despite its compact size and light weight but it can give out a laboratory accuracy.
Measure concenttrations in brix, salinity and a wide variety of other parameters in

the Field.


Special Features:

1.Wide measurement range
2.High precision
3.Automatic Temperature Compensation (ATC)
4. Alarm of Low Voltage
5.Stainless Steel Sample Plate.





QDR Series Digital Refractometer Scale List

SERIES

MODEL

SCALE'S NAME

RANGE

DIVISIONS

ACCURACY

1.BRIX

QDR101

BRIX%

065%

0.1

+/-0.2%

QDR102

BRIX%

065%

0.1

+/-0.2%

nD

1.33301.4535nD

0.0001

+/-0.0003

QDR111

BRIX%

4095% Brix

0.1

+/-0.2%

QDR112

BRIX%

4095% Brix

0.1

+/-0.2%

nD

1.39901.5320nD

0.0001

+/-0.0003

QDR151

BRIX%

095% Brix

0.1

+/-0.2%

QDR152

BRIX%

095% Brix

0.1

+/-0.2%

nD

1.33301.5320nD

0.0001

+/-0.0003

QDR153

nD

1.33301.5320nD

0.0001

+/-0.0003

2.SALINITY

QDR201

 SALINITY%

028% Salinity

0.1

+/-0.2%

QDR202

SALINITY%

028% Salinity

0.1

+/-0.2%

nD

1.33301.3900nD

0.0001

+/-0.0003

QDR203

SALINITY%

028% Salinity

0.1

+/-0.2%

SALINITY‰

0280‰ Salinity

1

+/-2‰

3.CLINICAL

QDR301

Urine SP.G.

 1.0001.050

0.001

+/-0.002

QDR302

Urine SP.G.

 1.0001.050

0.001

+/-0.002

Serum P.

 012

0.1

+/-0.2

nD

 1.33301.3900nD

0.0001

+/-0.0003

4.WINE

QDR401

BRIX%

035%

0.1

+/-0.2%

%VOP ap

022%

0.1

+/-0.2%

Oe

0150

1

+/-2

KMW

025

0.1

+/-0.2

5.COMPOSITIVE

QDR501

BRIX%

035%

0.1

+/-0.2%

SALINITY%

028%

0.1

+/-0.2%

nD

1.33301.3900nD

0.0001

+/-0.0003

6.HONEY

QDR601

Water

38%5%

0.1

+/-0.2%

Be'

3348

0.1

+/-0.4%

nD

1.44001.5320nD

0.0001

+/-0.0003

QDR602

BRIX%

6092%

0.1

+/-0.2%

Water

38%5%

0.1

+/-0.2%

Be'

3348

0.1

+/-0.4

nD

1.44001.5320nD

0.0001

+/-0.0003

7.CAR

QDR701

Cleaner

(14)≈(-40)ºF

0.1

+/-0.2ºF

Ethylene Glycol

(32)≈(-50)ºF

0.1

+/-0.2ºF

propylene Glycol

(32)≈(-50)ºF

0.1

+/-0.005sg

Battery

1.0001.500 sg

0.001sg

+/-0.2ºF

QDR702

Cleaner

(0)≈(-40)°C

0.1

+/-0.2°C

Ethylene Glycol

(0)≈(-50)°C

0.1

+/-0.2°C

propylene Glycol

(0)≈(-50)°C

0.1

+/-0.005sg

Battery

1.0001.500 sg

0.001

+/-0.2°C

PDR series Digital Refractometer

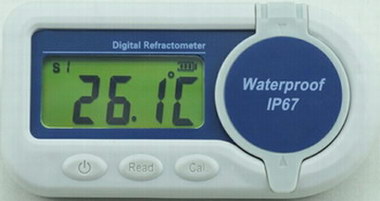

RDR Series Rugged Digital Refractometer

Funtions:

Multi-scales (up to 9)

Over-Limit alarm

Long battery life (more than 50,000 times testing perfully charge)

Automatic power-off

Option: Sapphire Prism

Latest high performance electronics

Latest high performance electronics give meters extremely stable and accurate readings.

32-bit ARM Cortex-M0+microcontroller: LPC1114

Precision Micropower Low Noise Analog devices

Intelligent Battry Chargers and Front-End Solutions

IP67 Waterproof

and will Float if accidentally dropped in water.

Protective soft-grip outer layer

Double injection molded housing, internal hard ABS and soft rubber, make the meter both feels soft and provides the strongest protection.

Rechargeable Lithium-lon Battery

Provides over 50,000 measurements per fully charge, with a battery life of 10 years and anti over charge function.



RDR Series

Model

Scales

Range

Resolution

Accuracy















Sugar























RDR101



Brix

0.00--60.00%

0.1%

+/-0.2%

Refractive Index

1.3330--1.4420nD

0.0001nD

+/-0.0003nD

RDR102



Brix

40.00--95.00%

0.1%

+/-0.2%

Refractive Index

1.3330--1.5320nD

0.0001nD

+/-0.0003nD

RDR103



Brix

0.00--95.00%

0.1%

+/-0.2%

Refractive Index

1.3330--1.5320nD

0.0001nD

+/-0.0003nD







RDR104





Sucrose(Brix)

0.00--95.00%

0.1%

+/-0.2%

Refractive Index

1.3330--1.5320nD

0.0001nD

+/-0.0003nD

Dextran

0.00--10.60%

0.1%

+/-0.2%

Fructose

0.00--68.90%

0.1%

+/-0.2%

Glucose

0.00--59.90%

0.1%

+/-0.2%

Lactose

0.00--16.50%

0.1%

+/-0.2%

Maltose

0.00--15.60%

0.1%

+/-0.2%

RDR104S

Sapphire Prism

Sucrose(Brix)

0.00--95.00%

0.1%

+/-0.2%

Refractive Index

1.3330--1.5320nD

0.0001nD

+/-0.0003nD

Dextran

0.00--10.60%

0.1%

+/-0.2%

Fructose

0.00--68.90%

0.1%

+/-0.2%

Glucose

0.00--59.90%

0.1%

+/-0.2%

Lactose

0.00--16.50%

0.1%

+/-0.2%

Maltose

0.00--15.60%

0.1%

+/-0.2%







Salt









RDR201 (sodium chloride)

salinity

0.00--28.00%

0.1%

+/-0.2%

salinity

0--280

1

+/-2

specific gravity

1.000-1.217

0.001

+/-0.002

Refractive Index

1.3330--1.3900nD

0.0001nD

+/-0.0003nD



RDR202 (sea water)





salinity

0--100

1

+/-2

chlorinity

0--57

1

+/-2

specific gravity

1.000-1.070

0.001

+/-0.002

Refractive Index

1.3330--1.3530nD

0.0001nD

+/-0.0003nD







Car











RDR701





Cleaner

(32)--(-40)ºF

 0.1ºF

+/-0.2ºF

ETHYLENE GLYCOL

(32)--(-50)ºF

 0.1ºF

+/-0.2ºF

PROPYLENE GLYCOL

(32)--(-50)ºF

 0.1ºF

+/-0.2ºF

Battery

1.000--1.500sg

0.001

+/-0.005sg



RDR702





Cleaner

(0)--(-40)°C

 0.1°C

+/-0.2°C

ETHYLENE GLYCOL

(0)--(-50)°C

 0.1°C

+/-0.2°C

PROPYLENE GLYCOL

(0)--(-50)°C

 0.1°C

+/-0.2°C

Battery

1.000--1.500sg

0.001

+/-0.005sg

Note: Suffix"S" means Sapphire Prism

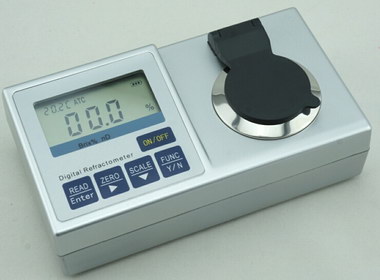

SDR Series PC Digital Refractometer

The PC digital refractometr has more functions than a handheld refractometer and at the same time is more cost-effective than a desttop unit. It is easy to connected to a PC via USB interface, it comes preloaded with the commonly used refractive index and Brix or Salinity scales.

And you could create your own custom scales. An unlimited number of scales can be stored in the software's databases. Scales can be loaded and unloaded from your database to your refractometer at any time.

Test results can be saved to your computer, graphed analyzed and printed out.

Special Features:

1.Connect PC via USB interface

2.Create your own custom scales

3.Wide measurement range from 1.3300-1.5318nD; 0-95% Brix

4.High precision 0.1% Brix

5.Automatic Temperature Compensation (ATC)

Alarm of Low Voltage:

Stainless Steel Sample Plate

Temperature display

Automatic shutoff (after 3 minutes)

Option: Scratch resistant sapphire crystal prism

SDR SERIES

MODEL

SCALE'S NAME

RANGE

DIVISIONS

ACCURACY

SDR101

BRIX

060%

0.1

+/-0.1%

REFRACTIVE INDEX

1.333301.4419nD

0.0001

+/-0.0002

SALINITY%

028% Salinity

0.1

+/-0.1%

SDR111

BRIX

4595%

0.1

+/-0.1%

REFRACTIVE INDEX

1.40981.5318nD

0.0001

+/-0.0002

SDR151

BRIX

095%

0.1

+/-0.1%

REFRACTIVE INDEX

1.333301.5318nD

0.0001

+/-0.0002

SDR_PC SERIES

MODEL

SCALE'S NAME

RANGE

DIVISIONS

ACCURACY

SDR101PC

BRIX

060%

0.1

+/-0.1%

REFRACTIVE INDEX

1.333301.4419nD

0.0001

+/-0.0002

SALINITY%

028% Salinity

0.1

+/-0.1%

SDR111PC

BRIX

4595%

0.1

+/-0.1%

REFRACTIVE INDEX

1.40981.5318nD

0.0001

+/-0.0002

SDR151PC

BRIX

095%

0.1

+/-0.1%

SALINITY%

030%

0.1

+/-0.1%

REFRACTIVE INDEX

1.333301.5318nD

0.0001

+/-0.0002



OTR series handheld refractometer NTR series handheld refractometer Illumination handheld refractometer

Abbe refractometer Digital handheld Refractometer Digital bench-top Refractometer

Gem refractometer

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
