NTR series hand held refractometer

NTR series hand held refractometer is professionally designed for testing the concentration of many kinds of solution listed as following: Juices, Beverages, Honey, Oechsle, Salt water, Brine, Vital fluid, Alcohol and Grape, Cleaning fluid, Battery fluid, Antifreeze and Industrial fluids and Milk etc..Our NTR series is designed with a outstanding calibration screw. The calibration in this kind of refractometer is very easy, just by hands will be OK. No screw-driver was required!

Model (click on the model No. to see picture)		Measurement Range	Min. Div.	Accuracy
Brix refractometer	RSGN-100/ATC	0-32%Brix 1.000-1.130sg	0.2%Brix 0.001sg	±0.2%Brix ±0.001sg

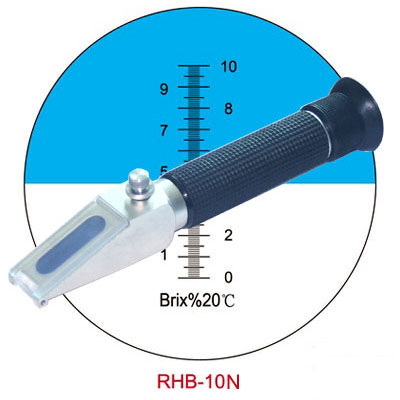

	RHBN-10/ATC	0-10%Brix	0.1%Brix	±0.10%

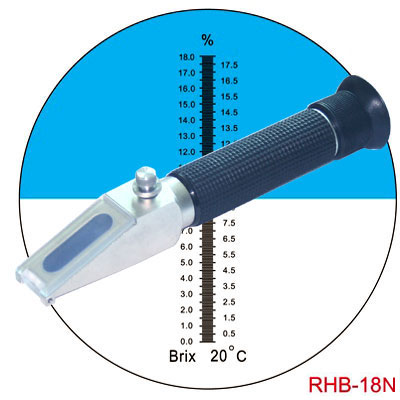

	RHBN-18/ATC	0-18%Brix	0.1%Brix	±0.10%

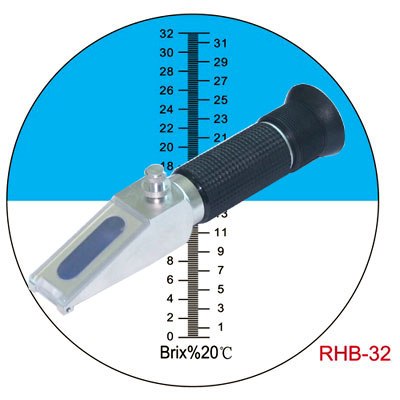

	RHBN-32/ATC	0-32%Brix	0.2%Brix	±0.20%
	RHBN-62/ATC	28-62%Brix	0.2%Brix	±0.20%

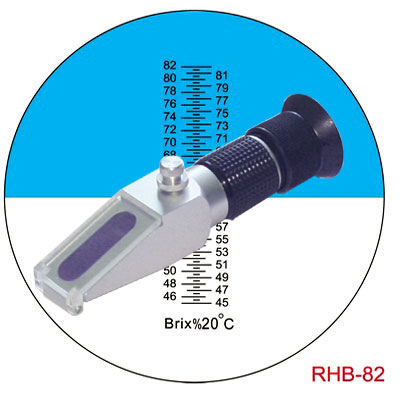

	RHBN-82/ATC	45-82%Brix	0.2%Brix	±0.5%

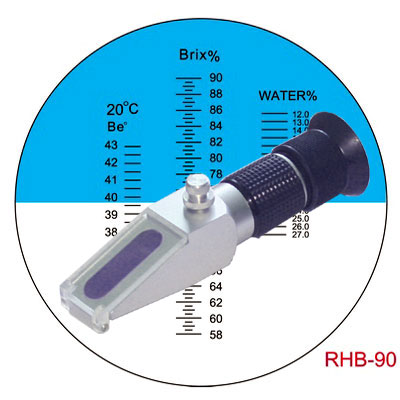

	RHBN-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

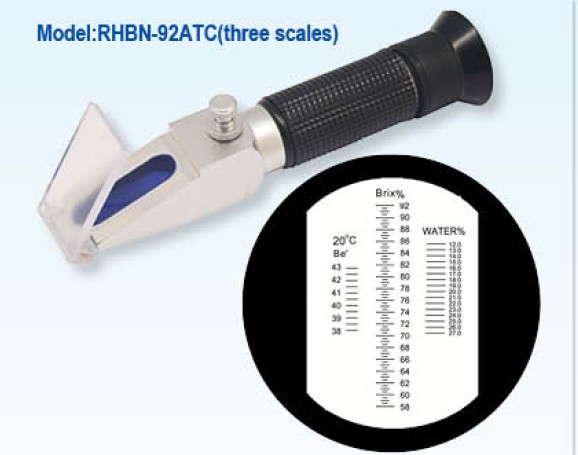

	RHBN-92T/ATC	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

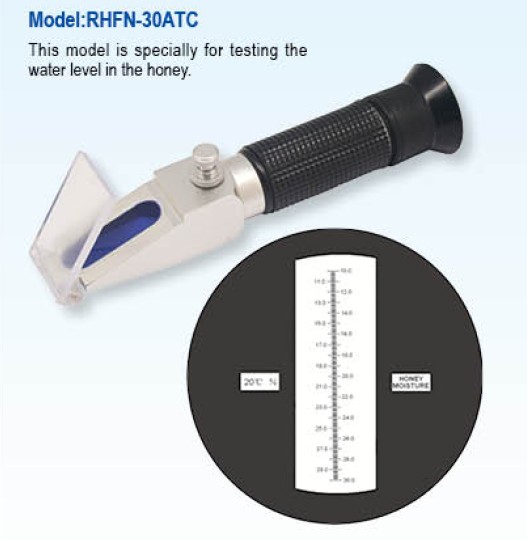

	RHFN-30/ATC	0-30%water	0.1%water	±0.1%water

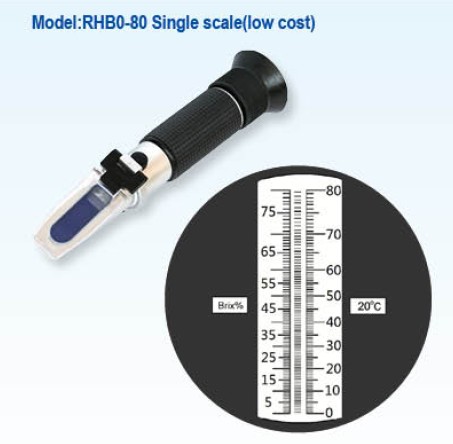

	RHB0-80 (1scale)	0-80%Brix	1%Brix	±1%Brix

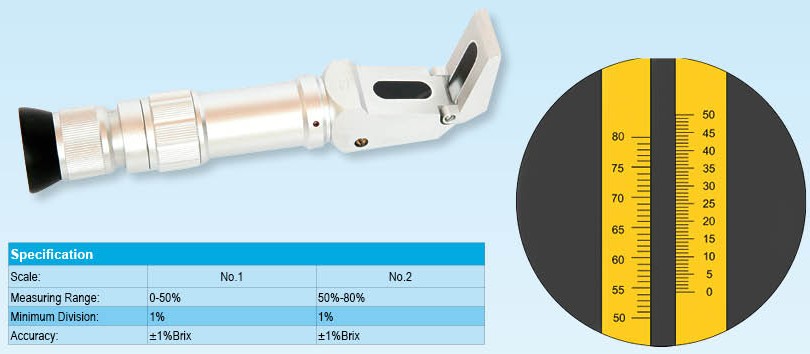

	RHB0-80 (2 scale)	0-50%Brix 50-80%Brix	1%Brix	±1%Brix

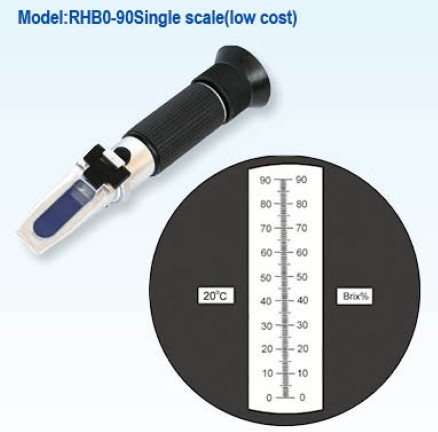

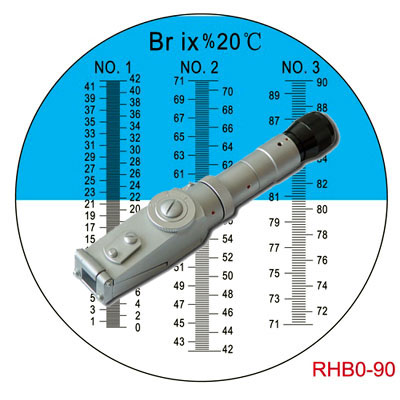

	RHB0-90 (1 scale)	0-90%Brix	1%Brix	±1%Brix
	RHB0-90 (3 scale)	0-42%Brix 42-71%Brix 71-90%Brix	0.2%Brix	±0.2%Brix
Industrial Fluid Refractometer	RHBN-10/ATC	0-10%Brix	0.1%Brix	±0.10%
	RHBN-18/ATC	0-18%Brix	0.1%Brix	±0.10%
	RHBN-32/ATC	0-32%Brix	0.2%Brix	±0.20%
Honey Refractometer	RHBN-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water
	RHBN-92T/ATC	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

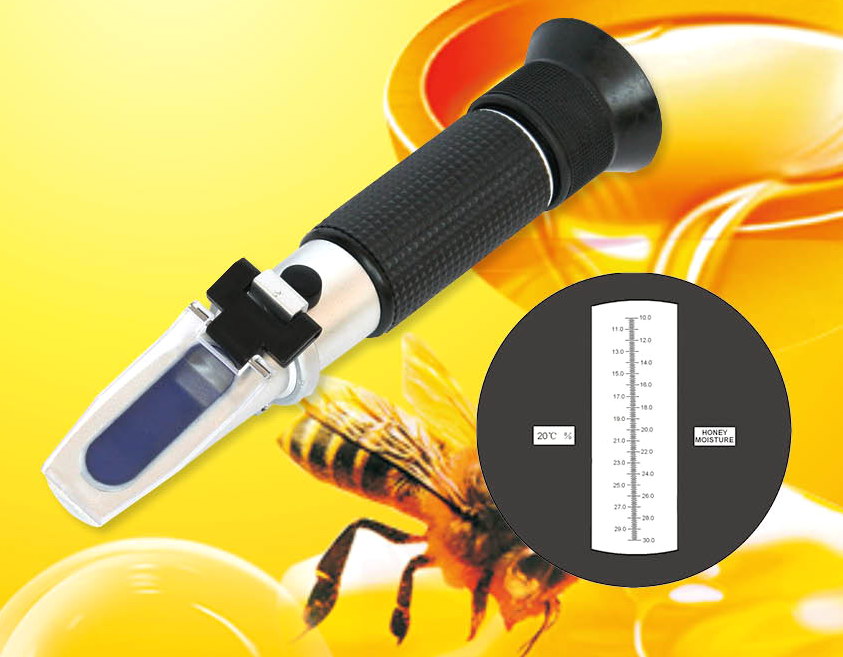

	RHF-30/ATC	10-30%water	0.1%water	±0.1water

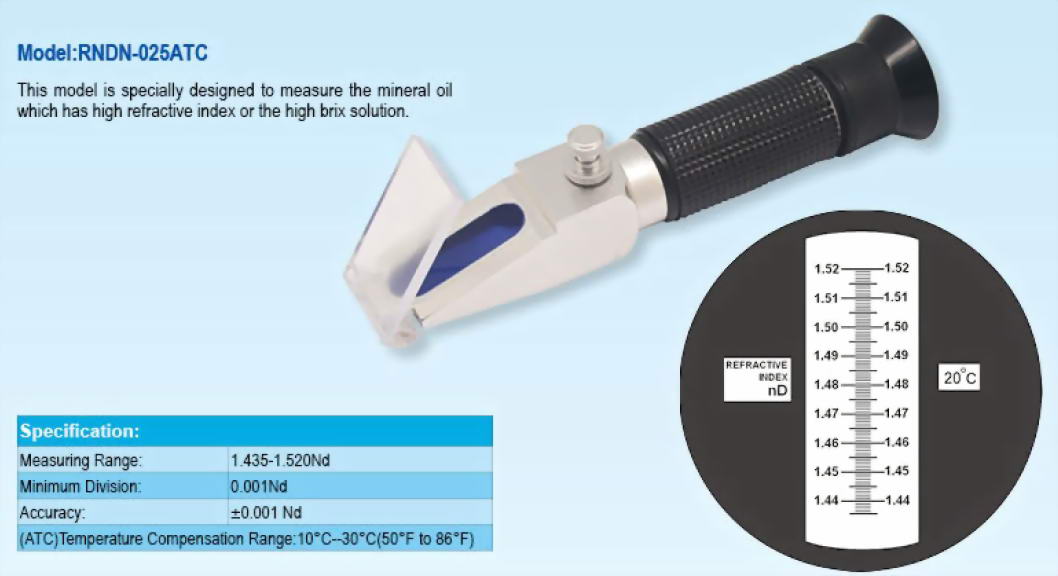

Refractometer for Oil testing	RNDN-025/ATC	1.435-1.520Nd	0.001Nd	±0.002Nd

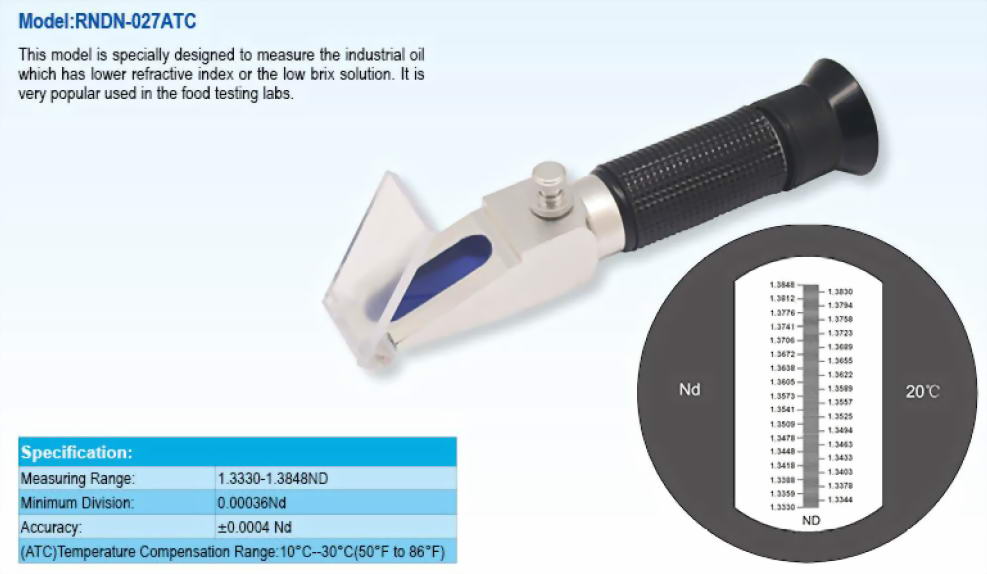

Refractometer for Oil testing	RNDN-027/ATC	1.330-1.3448Nd	0.001Nd	±0.0002Nd

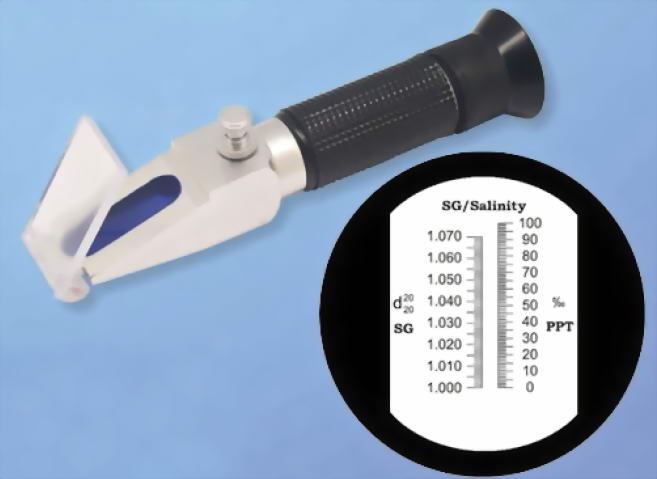

Salinity Refractometer	RHSN-10/ATC	0-10%Salinity 1.000-1.070 RI	0.1%Salinity 0.001 RI	±0.1% ±0.001 RI

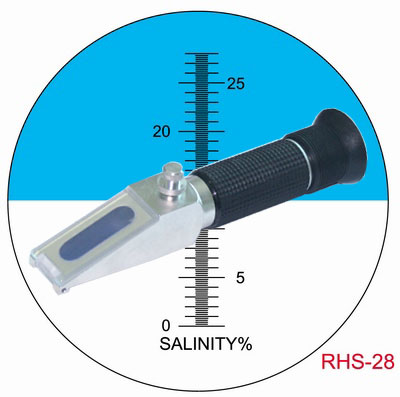

	RHSN-28/ATC	0-28%Salinity	0.2%Salinity	±0.2%
	RHSN-4/ATC	2-4%Salinity(20-40ppt) 1.015-1.030sg	0.1%(1ppt) 0.001sg	±0.1%(1ppt) ±0.001sg

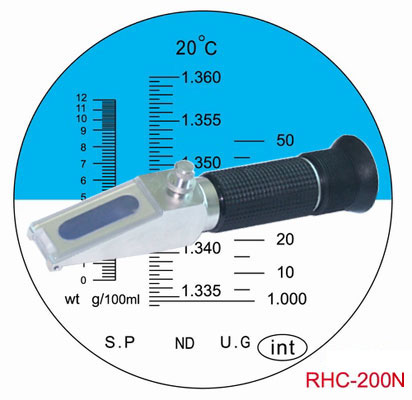

Clinical refractometer	RHCN-200/ATC	0-12g/dl 1.000-1.050sg 1.3300RI-1.3600RI	0.2g/dl 0.005sg 0.0005RI	±0.2g/dl ±0.005sg ±0.0005RI

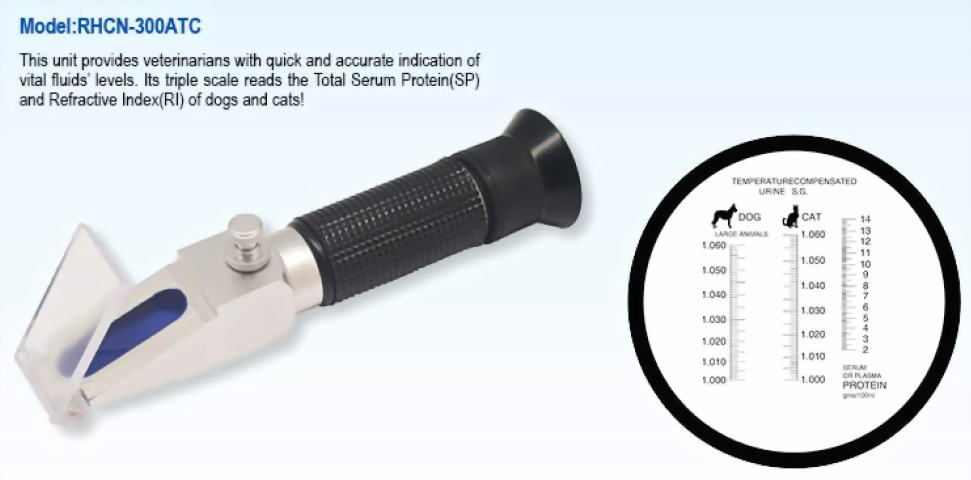

Clinical refractometer	RHCN-300/ATC	2-14g/dl 1.000-1.060RI Dog 1.000-1.060RI Cat	0.2g/dl 0.001RI 0.001RI	±0.2g/dl ±0.001RI ±0.001RI

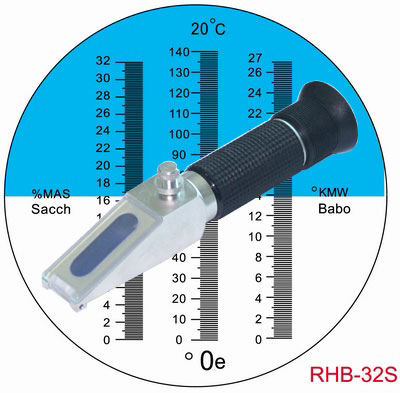

Oe refractometer	RHBN-32S/ATC	0 - 140 °Oe 0 - 27 KMW (Babo) 0 – 32%Brix (Sacch.)	1°Oe 0.2KMW 0.2%Brix	±1°Oe ±0.2KMW ±0.2%Brix

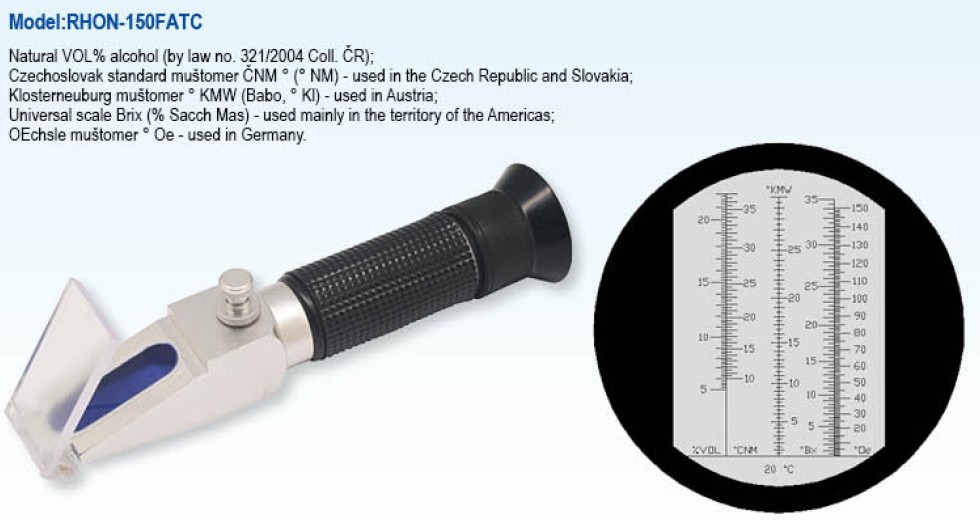

	RHON-150F/ATC	5-22%Vol 10-37CNM 0-30 °KMW 0-35%Brix 0-150 °Oe	0.2% 0.5CNM 0.5 °KMW 0.5%Brix 1 °Oe	±0.2% ±0.5CNM ±0.5 °KMW ±0.5%Brix ±1 °Oe

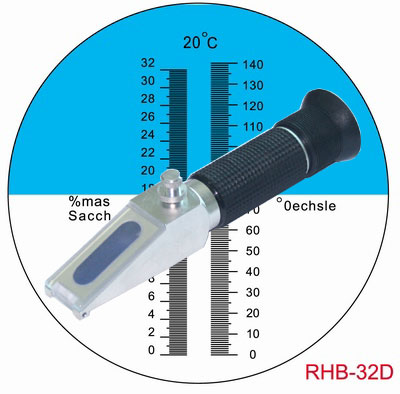

	RHBN-32D/ATC	0 - 140 °Oe 0 – 32%Brix (Sacch.)	1°Oe 0.2%Brix	±1°Oe ±0.2%Brix

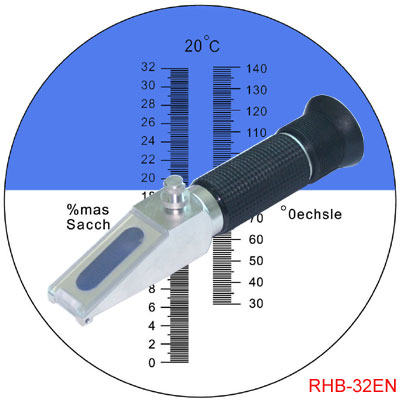

	RHBN-32E/ATC	30 - 140 °Oe 0 – 32%Brix (Sacch.)	1°Oe 0.2%Brix	±1°Oe ±0.2%Brix

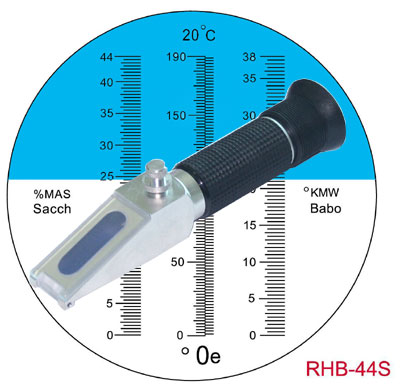

	RHBN-44S/ATC	0 - 190 °Oe 0 - 38 KMW (Babo) 0 – 44%Brix (Sacch.)	2°Oe 0.2KMW 0.5%Brix	±2°Oe ±0.2KMW ±0.5%Brix
Wine refractometer
	RHWN-25/Brix/ATC	0-25%Vol 0-40%Brix	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

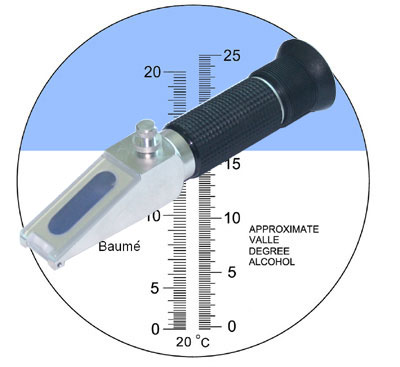

	RHWN-25/Be/ATC	0-25%Vol 0-20 Beo	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

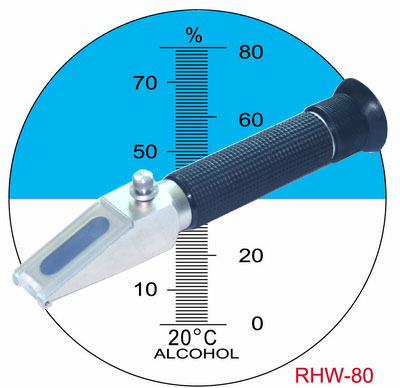

	RHWN-80	0-80%w/w	1%w/w	±1%w/w
Antifreeze/Battery/ Cleaning Fluids Refractometer	RHAN-218/ATC	E: -50°C-0°C (0--70%) P: -50°C-0°C (0--70%)	5°C (5%) 5°C (5%)	±5°C (5%) ±5°C (5%)

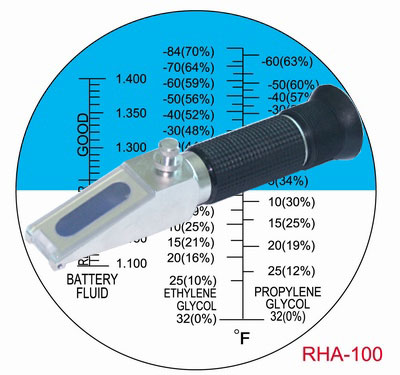

	RHAN-100/ATC	E:-84° F-32° F P:-60° F-32° F B:1.100-1.400sg	5° F 5° F 0.01sg	±5° F ±5° F ±0.01sg

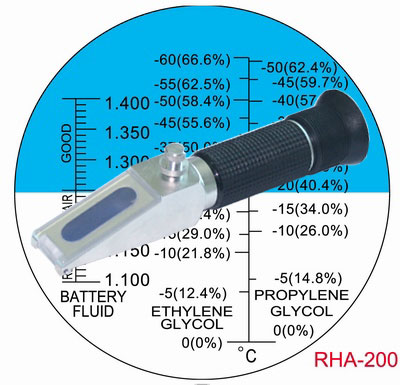

	RHAN-200/ATC	E:-60°C-0°C P:-50°C-0°C B:1.100-1.400sg	5°C 5°C 0.01sg	±5°C ±5°C ±0.01sg
	RHAN-300/ATC	E:-60°F-32°F P:-50°F-32°F B:1.15-1.30sg	10°F 10°F 0.01sg	±10°F ±10°F ±0.01sg

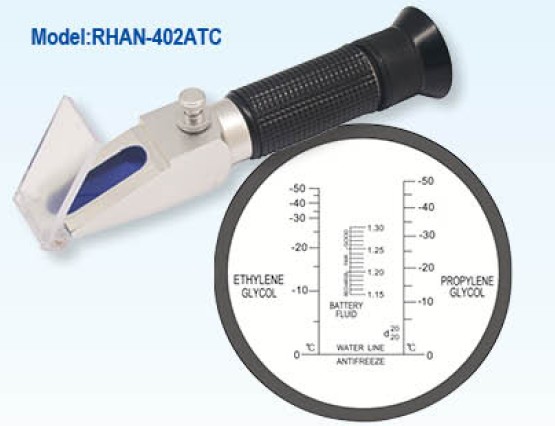

	RHAN-402/ATC	E: -50°C-0°C P: -50°C-0°C B: 1.15-1.30sg	5°C 5°C 0.01sg	±5°C ±5°C ±0.01sg

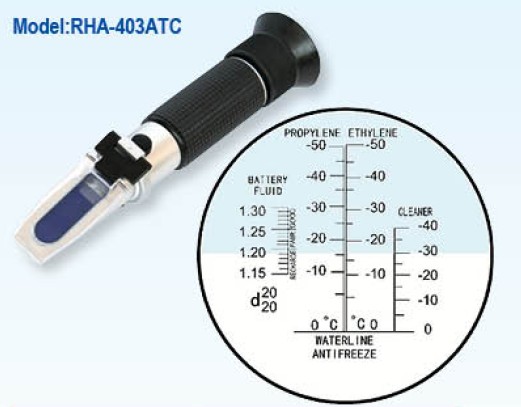

	RHAN-403/ATC	E: -50°C-0°C P: -50°C-0°C C: -40°C-0°C B: 1.15-1.30sg	5°C 5°C 5°C 0.01sg	±5°C ±5°C ±5°C ±0.01sg

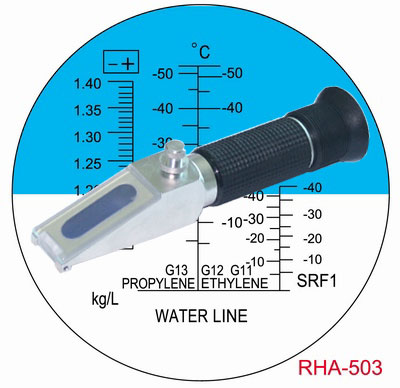

	RHAN-503/ATC	B:1.100-1.400sg E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C	0.01sg 5°C 5°C 5°C	±0.01sg ±5°C ±5°C ±5°C

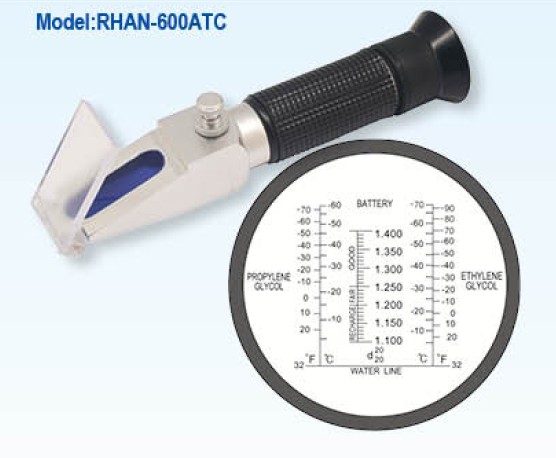

	RHAN-600/ATC	E:-70°C-0°C(-90°F-32°F) P:-60°C-0°C(-70°F-32°F) B:1.100-1.400sg	5°C 5°C 0.01sg	±5°C ±5°C ±0.01sg

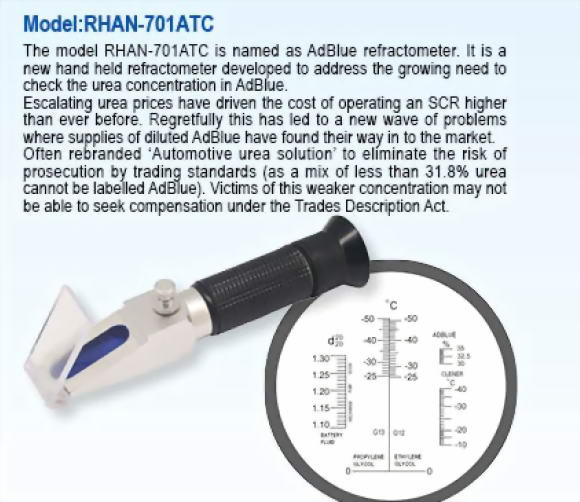

	RHAN-701/ATC	Adblue: 30%-35% E: -50°C~-25°C P: -50°C~-25°C C: -40°C~-10°C B: 1.100-1.400sg	0.5% 5°C 5°C 5°C 0.01sg	±0.5% ±5°C ±5°C ±5°C ±0.01sg

OTR series handheld refractometer	NTR series handheld refractometer	Illumination handheld refractometer

Abbe refractometer	Digital handheld Refractometer	Digital bench-top Refractometer

Gem refractometer

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
