OTR series hand held refractometer

OTR series hand held refractometer is professionally designed for testing the concentration of many kinds of solution listed as following: Juices, Beverages, Honey, Oechsle, Salt water, Brine, Vital fluid, Alcohol and Grape, Cleaning fluid, Battery fluid, Antifreeze and Industrial fluids and Milk etc..

Model (click on the model No. to see picture)		Measurement Range	Min. Div.	Accuracy

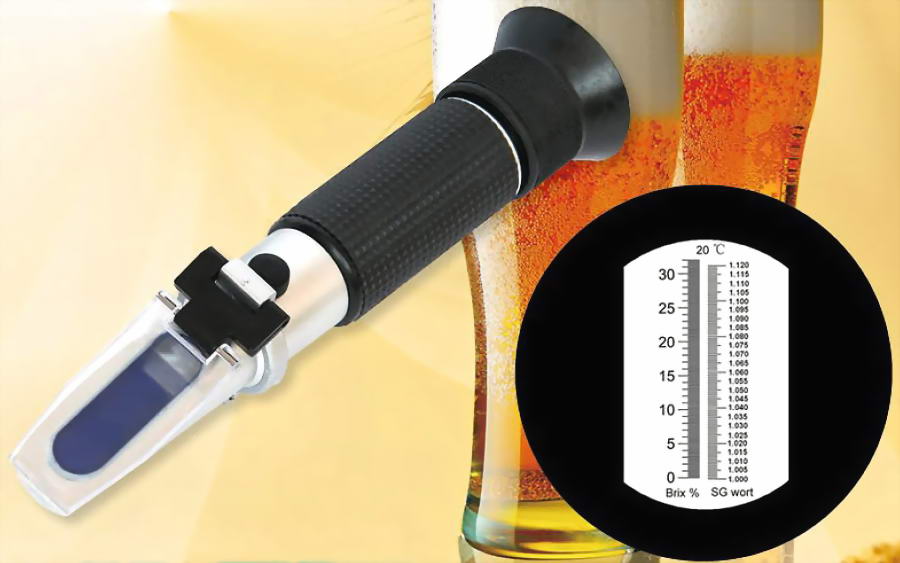

Brix refractometer	RSG-100/ATC (RHB-32SG/ATC)	0-32%Brix SG: 1.000-1.120	0.2%Brix 0.001sg	--

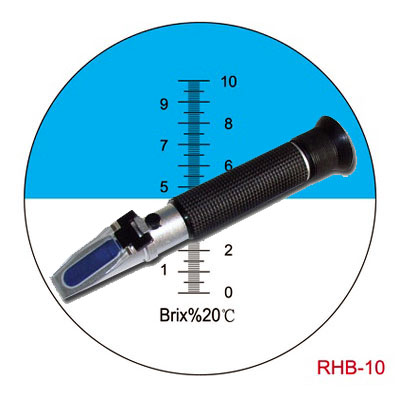

	RHB-10/ATC	0-10%Brix	0.1%Brix	±0.10%

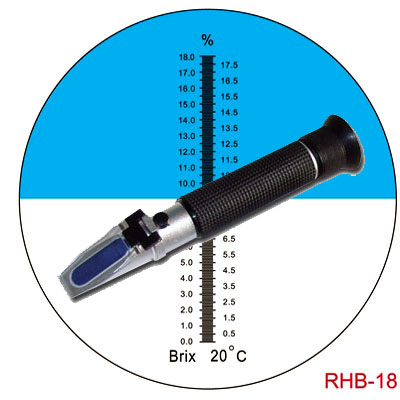

	RHB-18/ATC	0-18%Brix	0.1%Brix	±0.10%

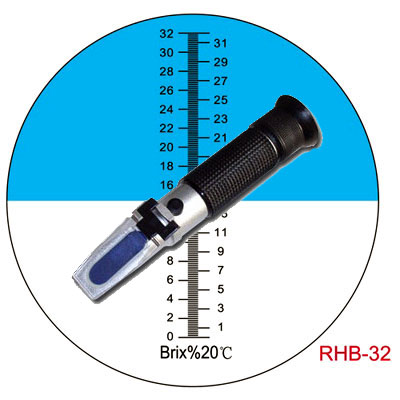

	RHB-32/ATC	0-32%Brix	0.2%Brix	±0.20%

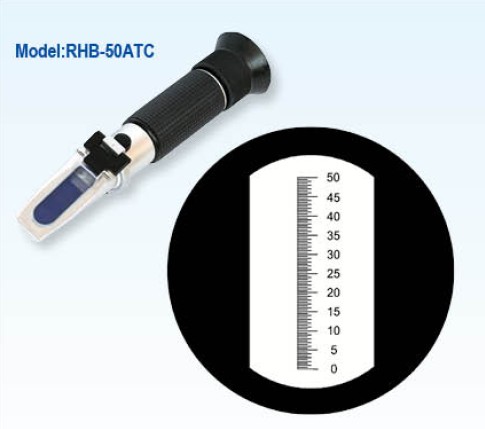

	RHB-50/ATC	0-50%Brix	0.5%Brix	±0.50%

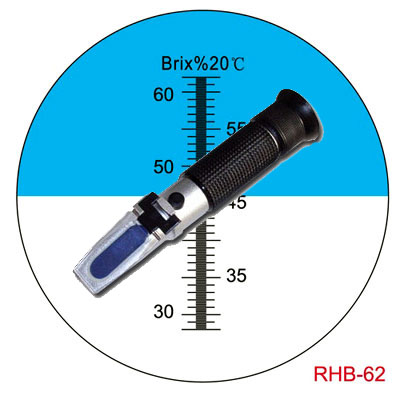

	RHB-62/ATC	28-62%Brix	0.2%Brix	±0.20%

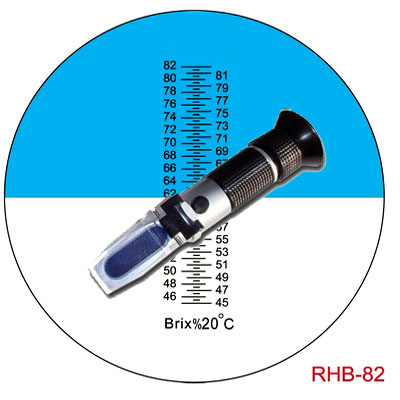

	RHB-82/ATC	45-82%Brix	0.2%Brix	±0.5%

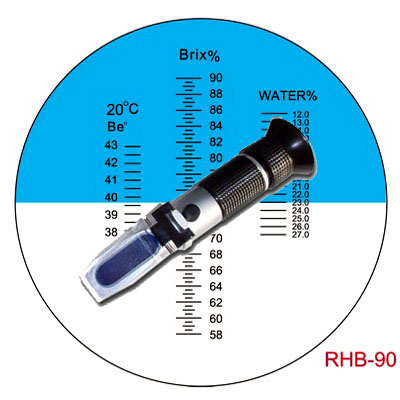

	RHB-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

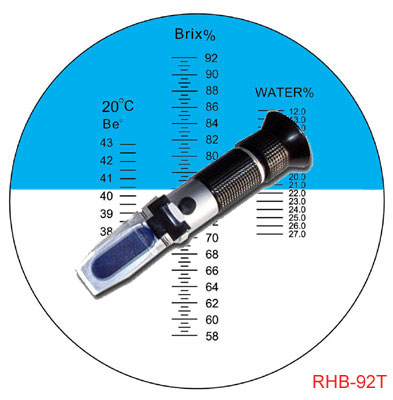

	RHB-92T/ATC	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water

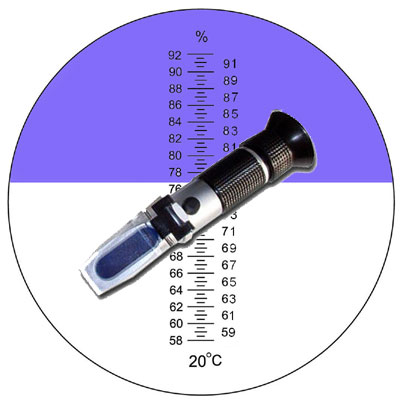

	RHB-92/ATC	58-92%Brix	0.5%Brix	±0.5%

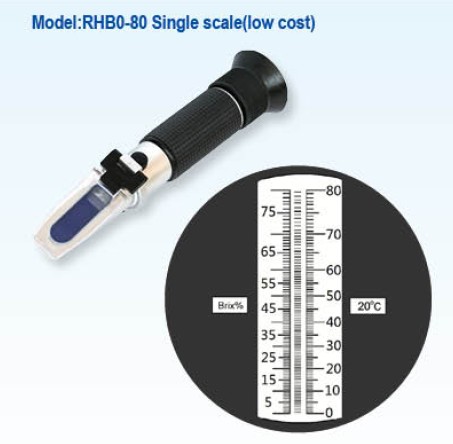

	RHB0-80 (1scale)	0-80%Brix	1%Brix	±1%Brix
	RHB0-80 (2 scale)	0-50%Brix 50-80%Brix	1%Brix	±1%Brix
	RHB0-90 (1 scale)	0-90%Brix	1%Brix	±1%Brix
	RHB0-90 (3 scale)	0-42%Brix 42-71%Brix 71-90%Brix	0.2%Brix	±0.2%Brix
Industrial Fluid Refractometer	RHB-10/ATC	0-10%Brix	0.1%Brix	±0.10%
	RHB-18/ATC	0-18%Brix	0.1%Brix	±0.10%
	RHB-32/ATC	0-32%Brix	0.2%Brix	±0.20%
Honey Refractometer	RHB-90/ATC	58-90%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water
	RHB-92T/ATC	58-92%Brix 38-43Be' 12-27%water	0.5%Brix 0.5Be' 1%water	±0.50% ±0.5Be' ±1%water
	RHB-92/ATC	58-92%Brix	0.5%Brix	±0.5%
	RHF-30/ATC	10-30%water	0.1%water	±0.1water

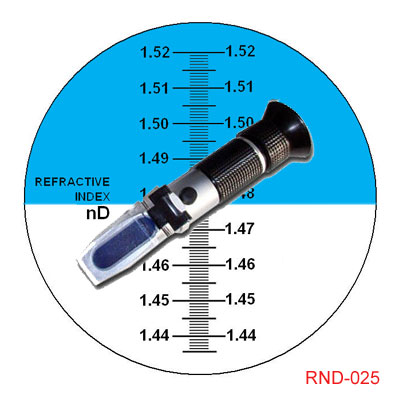

Refractometer for Oil testing	RND-025/ATC	1.435-1.520Nd	0.001Nd	±0.002Nd
Refractometer for Oil testing	RND-027/ATC	1.330-1..3448Nd	0.001Nd	±0.0002Nd
Salinity Refractometer	RHS-10/ATC	0-10%Salinity 1.000-1.070 RI	0.1%Salinity 0.001 RI	±0.1% ±0.001 RI

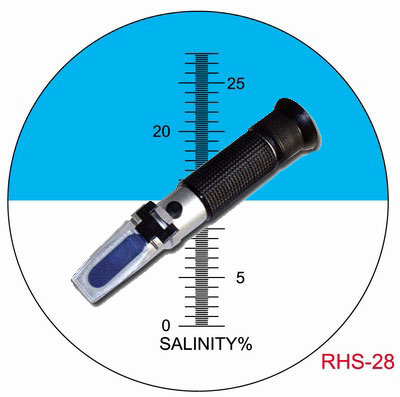

	RHS-28/ATC	0-28%Salinity	0.2%Salinity	±0.2%

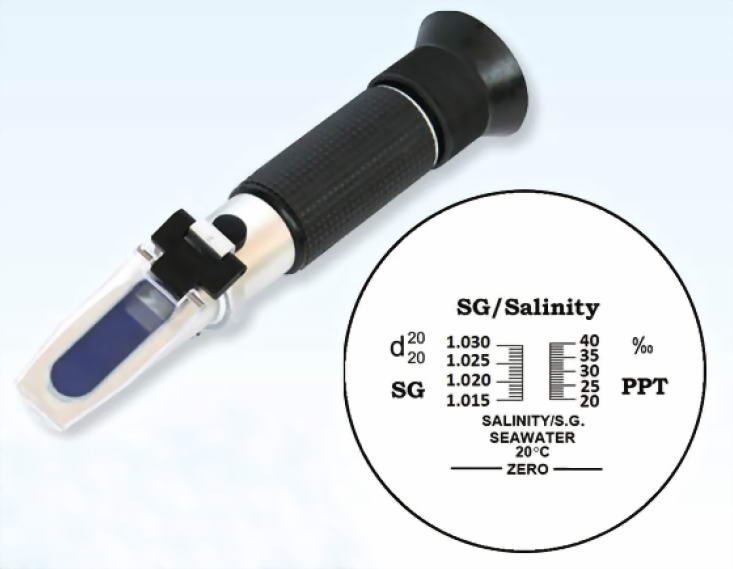

	RHS-4/ATC	2-4%Salinity(20-40ppt) SG: 1.015-1.030	0.1%(1ppt) 0.001sg

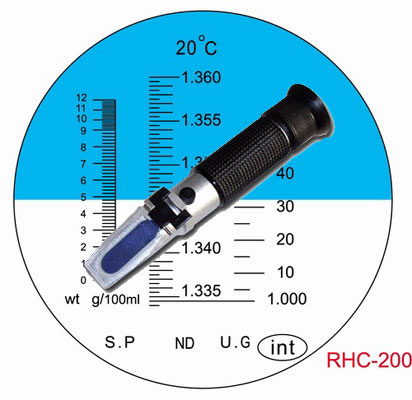

Clinical refractometer	RHC-200/ATC	0-12g/dl 1.000-1.050sg 1.3300RI-1.3600RI	0.2g/dl 0.005sg 0.0005RI	±0.2g/dl ±0.005sg ±0.0005RI

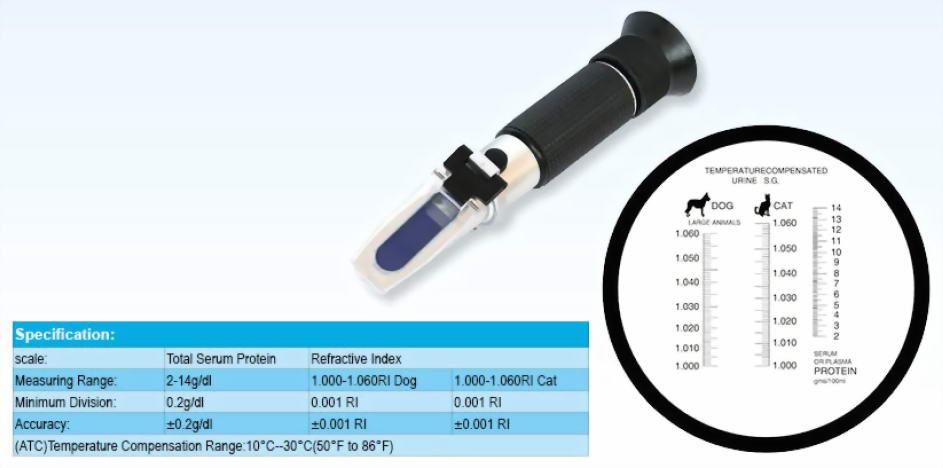

Clinical refractometer	RHC-300/ATC	2-14g/dl 1.000-1.060RI Dog 1.000-1.060RI Cat	0.2g/dl 0.001RI 0.001RI	± 0.2g/dl ± 0.001RI ± 0.001RI

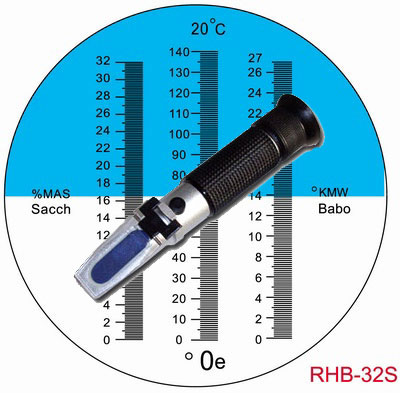

Oe refractometer	RHB-32S/ATC	0 - 140 °Oe 0 - 27 KMW (Babo) 0 – 32%Brix (Sacch.)	1°Oe 0.2KMW 0.2%Brix	±1°Oe ±0.2KMW ±0.2%Brix

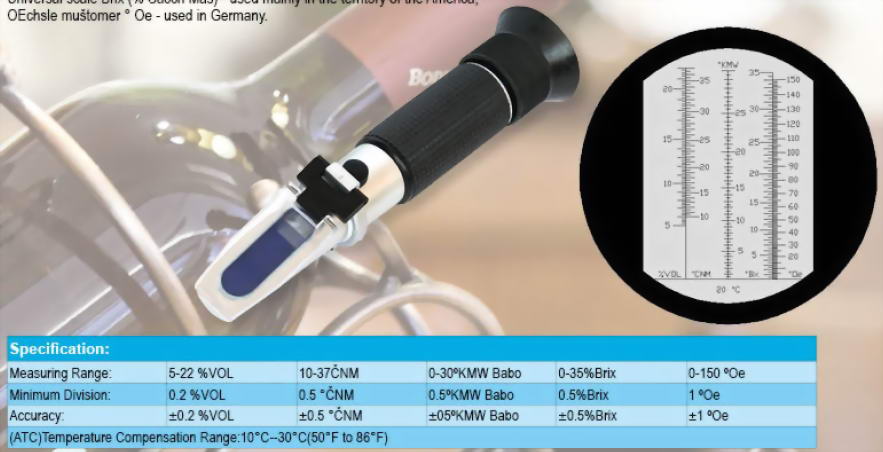

	RHO-150F/ATC	5-22%VOL 10-37CNM 0-30 °KMW (Babo) 0-35%Brix 0-150 °Oe	0.2%VOL 0.5 °CNM 0.5 °KMW (Babo) 0.5%Brix 1°Oe	±0.2%VOL ±0.5 °CNM ± 0.5 °KMW (Babo) ± 1°Oe

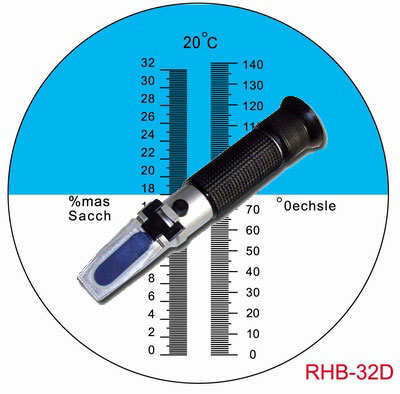

	RHB-32D/ATC	0 - 140 °Oe 0 – 32%Brix (Sacch.)	1°Oe 0.2%Brix	±1°Oe ±0.2%Brix

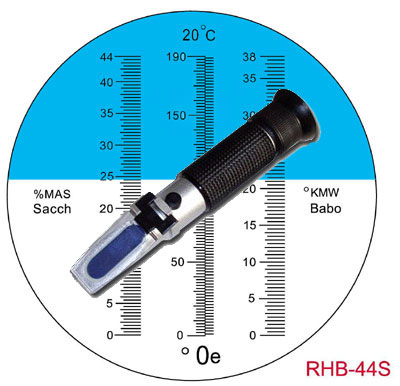

	RHB-44S/ATC	0 - 190 °Oe 0 - 38 KMW (Babo) 0 – 44%Brix (Sacch.)	2°Oe 0.5KMW 0.5%Brix	±2°Oe ±0.2KMW ±0.5%Brix
Wine refractometer

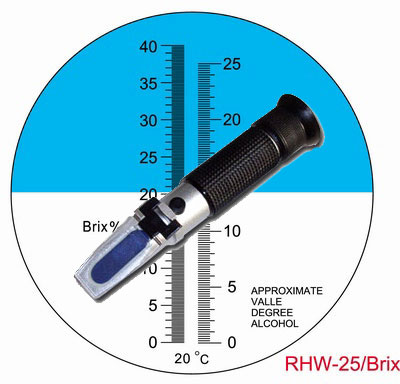

	RHW-25Brix/ATC	0-25%Vol 0-40%Brix	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

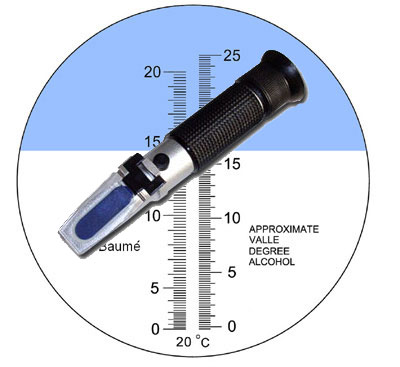

	RHW-25Be/ATC (RHW-25Baume/ATC)	0-25%Vol 0-20 Beo	0.2%Vol 0.2%Brix	±0.2%Vol ±0.2%Brix

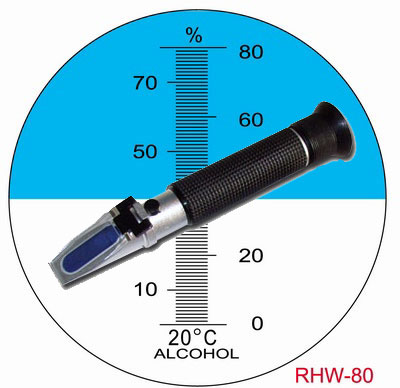

	RHW-80/ATC	0-80%w/w	1%w/w	±1%w/w
Antifreeze/Battery/ Cleaning Fluids Refractometer	RHA-100/ATC	E:-84° F-32° F P:-60° F-32° F B:1.100-1.400sg	5° F 5° F 0.01sg	±5° F ±5° F ±0.01sg

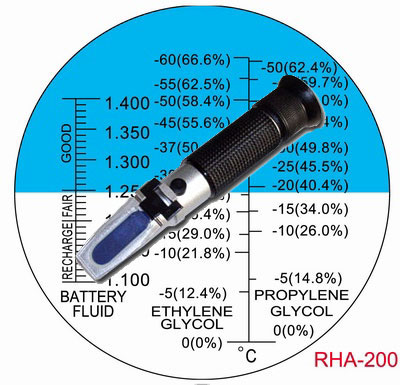

	RHA-200/ATC	E:-60°C-0°C P:-50°C-0°C B:1.100-1.400sg	5°C 5°C 0.01sg	±5°C ±5°C ±0.01sg

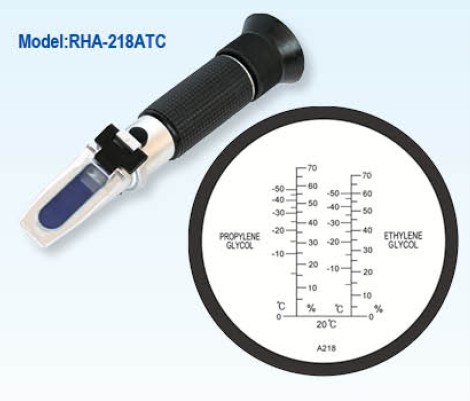

	RHA-218/ATC	E:-50°C-0°C (70%--0) P:-50°C-0°C (70%--0)	5°C (5%) 5°C (5%)	±5°C (5%) ±5°C (5%)

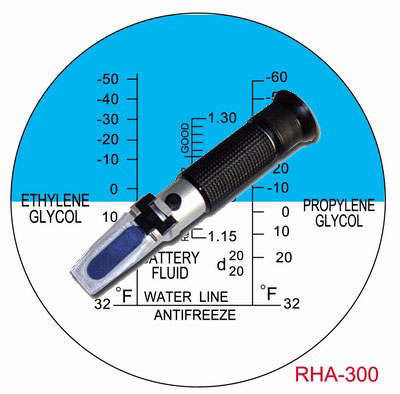

	RHA-300/ATC	E:-60°F-32°F P:-50°F-32°F B:1.15-1.30sg	10°F 10°F 0.01sg	±10°F ±10°F ±0.01sg

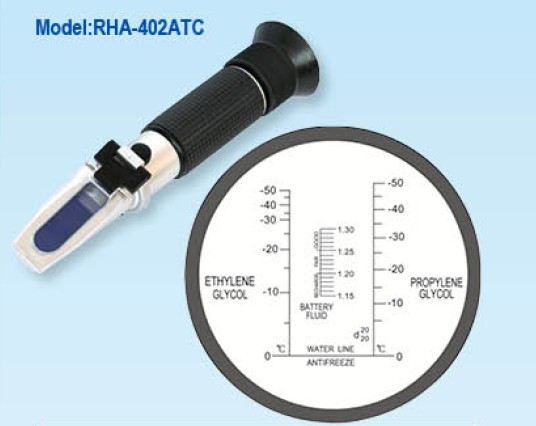

	RHA-402/ATC	E:-50°C-0°C P:-50°C-0°C B:1.15-1.30sg	5°C 5°C 0.01sg	±5°C ±5°C ±0.01sg
	RHA-403/ATC	E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C B:1.15-1.30sg	5°C 5°C 5°C 0.01sg	±5°C ±5°C ±5°C ±0.01sg

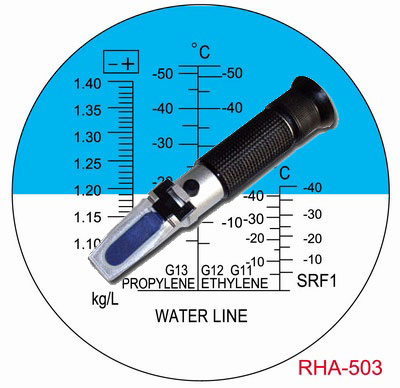

	RHA-503/ATC	B:1.100-1.400sg E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C	0.01sg 5°C 5°C 5°C	±0.01sg ±5°C ±5°C ±5°C

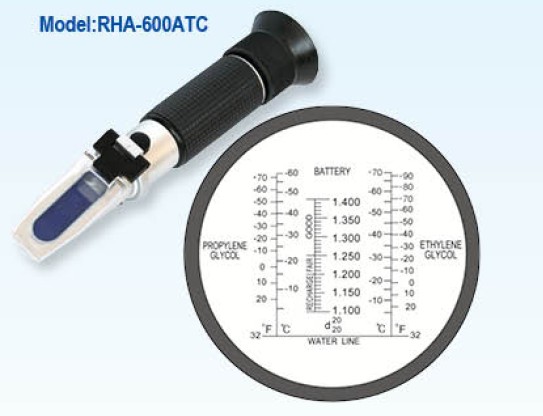

	RHA-600/ATC	E:-70°C-0°C (-90°F-32°F) P:-60°C-0°C (-70°F-32°F) B:1.100-1.400sg	5°C (10°F) 5°C (10°F) 0.01sg	±5°C (10°F) ±5°C (10°F) ±0.01sg
Antifreeze/Battery/AdBlue Refractometer	RHA-701/ATC	Adblue: 30%--35%B:1.100-1.400sg E:-50°C-0°C P:-50°C-0°C C:-40°C-0°C	0.5% 0.01sg 5°C 5°C 5°C	±0.5% ±0.01sg ±5°C ±5°C ±5°C

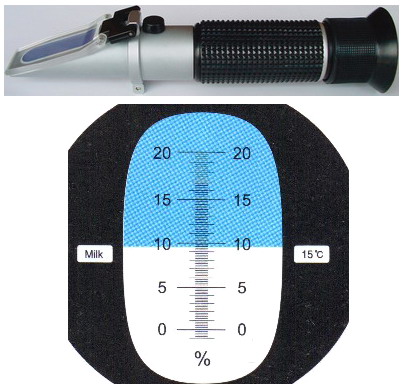

Milk refractometer	RHB-611	0~20% milk	0.2% milk	±0.20%

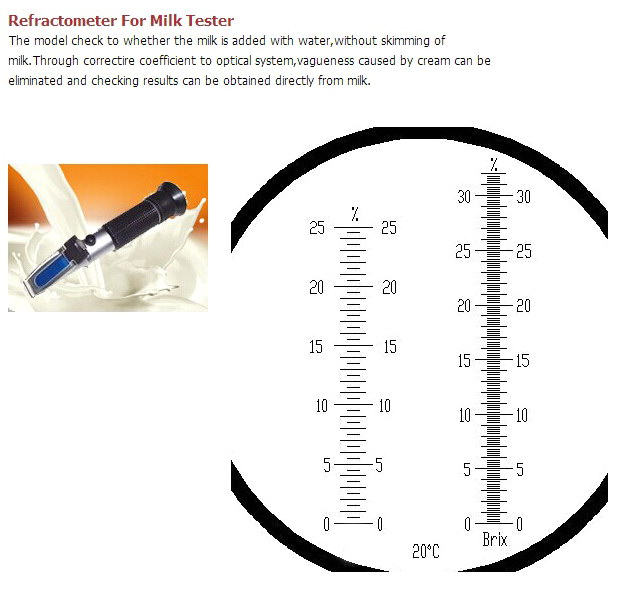

	RHB-612/ATC	0-25% Soybean Milk 0-32% Brix	0.10% Soybean Milk 0.2% Milk	0.10% 0.20%

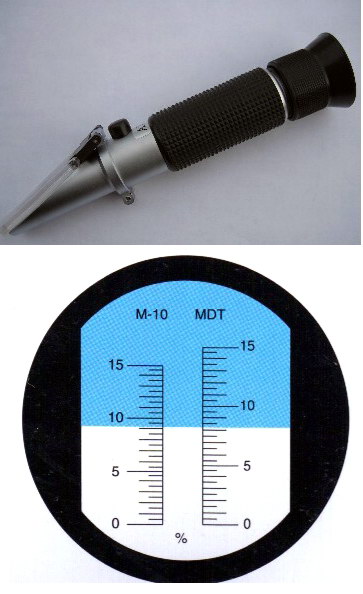

	RHB-811/ATC	0-15% M-10 0-15% MDT	0.5% M-10 0.5% MDT	0.50% 0.50%

click big picture

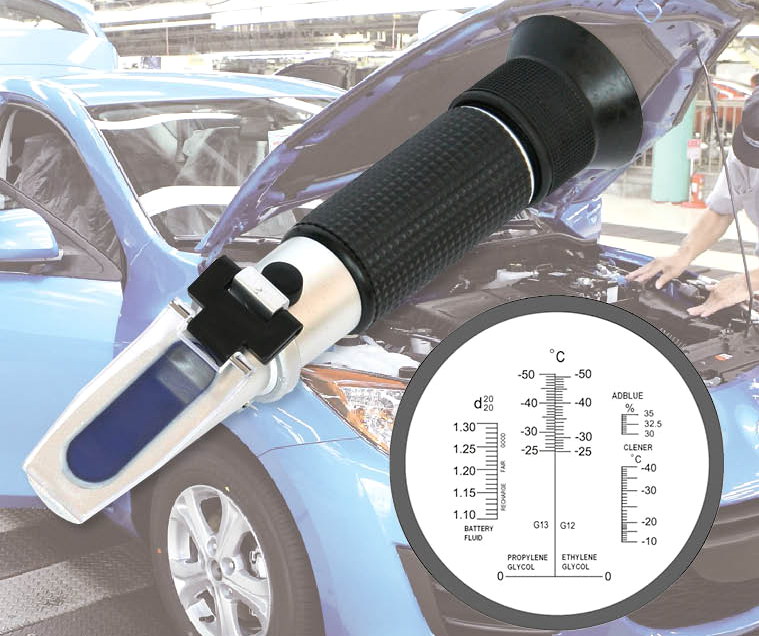

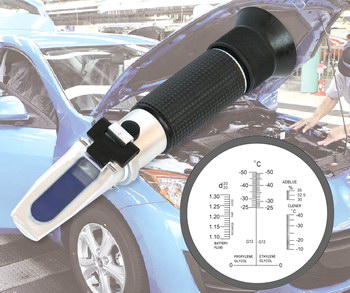

Antifreeze/Battery/AdBlue Refractometer RHA-701/ATC

Description:

The AdBlue refractometer is a new hand held refractometer developed to address the growing need to check the urea concentration in AdBlue.
Escalating urea prices have driven the cost of operating an SCR higher than ever before. Regretfully this has led to a new wave of problems where supplies of diluted AdBlue have found their way in to the market.
Often rebranded 'Automotive urea solution' to eliminate the risk of prosecution by trading standards (as a mix of less than 31.8% urea cannot be labelled AdBlue). Victims of this weaker concentration may not be able to seek compensation under the Trades Description Act.
Guarantee: Offers 1 year warranty
Specification:
Measuring Range:
Adblue: 30%--35%
Ethylene Glycol: -50°C-0°C
Propylene Glycol: -50°C-0°C
Cleaning Fluids: -40°C-0°C
Battery Fluids:1.100-1.400sg
Resolution Factor: 0.5% 5°C,5°C,5°C,0.01sg
(ATC) Temperature Compensation Range: 10°C-30°C
Accessories included:
1pc Pipette ***Operations manual***Mini-screw driver***Soft protective carrying case or blue plastic case
