Abbe refractometer

This instrument is designed for the measurement of refractive index(nD) and the average optical dispersion(NF-NC) of the transparent, the semitransparent and the solid matter. It was connect with a circulating thermostatic bath, can measure the refractive index in 0¡æ~70¡æ. It also can measure the Brix percentage of sugar solution. It was widely used in oil industry, fat industry, pharmaceutical factories, paint, food processing, chemistry, sugar refineries, geologic etc., and relative factories, schools and research center.

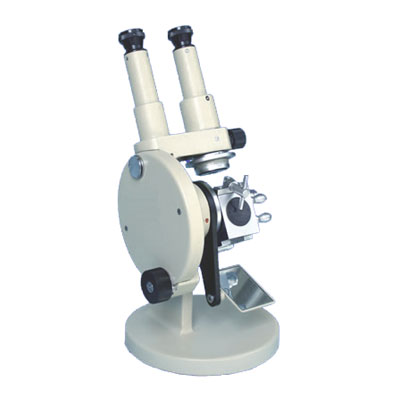

Model: WYA
Measurement range: 1.300~1.700Nd
0~95%Brix
Min. Div.: 0.0002 Nd
0.25%Brix
Weight: 4kgs
Outer size: 200mm¡Á100mm¡Á240mm 		This instrument is designed for the measurement of refractive index(nD) and the average optical dispersion(NF-NC) of the transparent, the semitransparent and the solid matter. It was connect with a circulating thermostatic bath, can measure the refractive index in 0¡æ~70¡æ. It also can measure the Brix percentage of sugar solution. It was widely used in oil industry, fat industry, pharmaceutical factories, paint, food processing, chemistry, sugar refineries, geologic etc., and relative factories, schools and research center.

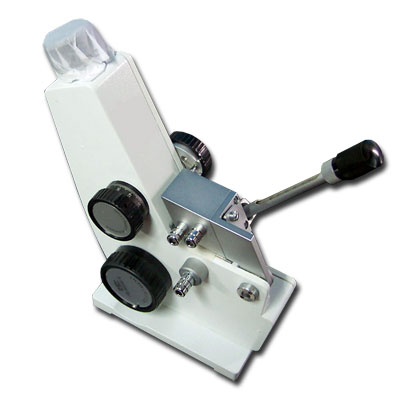

Model: 2WAJ
Measurement range: 1.300~1.700Nd
0~95%Brix
Min. Div.: 0.0002 Nd
0.25%Brix
Weight: 3kgs
Outer size: 200mm¡Á100mm¡Á240mm
¡¡ ¡¡

Model: WYA-Z Automatic digital ABBE Refractometer

Specifications:

Full automatic measuring, avoid personal error Operating on the big screen of LCD directly, The material of instrument connection is hard glass, wear resistant Have the function of temperature display, automatic correction and saving the date RS232 interface

Characteristics:

-Measuring range
Refractive index nD: 1.3000-1.7000
Brix (BX-TC): 0-95%
Brix (BX): 0-95%
-Measuring accuracy
Refractive index nD: ¡À0.0002
Dissolved solids Brix: ¡À0.1%
-Measuring resolution
Refractive index nD: ¡À0.0001
Dissolved solids Brix: ¡À0.1%
-Quality: 2kg
-Outer size: 329mm¡Á214mm¡Á150mm

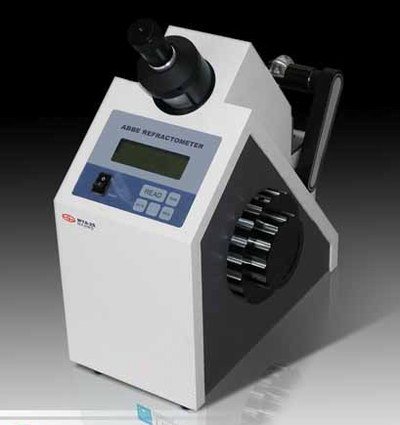

Model: WYA-2S Digital  ABBE Refractometer

Specifications:

-Measurement range:
Refractive index nD: 1.3000-1.7000
Dissolved Solids Brix: 0-95%
-Accuracy:
Refractive index nD: £¡À0.0002
Dissolved Solids Brix:: £¡À0.1%
-Temperature Range (Min. 0.1ºC): 0-50ºC
-Weight (net): 10kg
-Overall dimensions: 330mm¡Á180mm¡Á380mm

Characteristics:

-Measurement of refractive index nD of transparent or translucent liquid and solid substances.
-measurement of the Brix of sugar solution.
-Visual aim and LCD display
-Automatic correction of the effect of temperature on the Brix.
-prism made of hard glass, uneasy to be worn.
-Printer interface for direct data print-out.

¡¡
