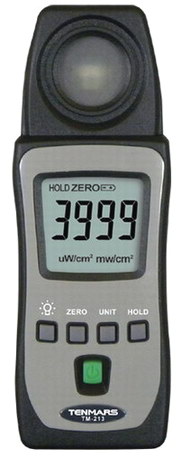

TM-213 Pocket Size UVAB Light Meter

Application:

TM-213 is ideal for measuring mercury, xenon, metal halide or fluorescent lamps, commonly used for studies in the UVA region, as well as sunlight.
Product Description:
- 3 3/4 digits LCD with backlit maximum reading 3999.
- Data hold.
- Low battery indication.
- Zero function.
- Over indicator: Display shows "OL".
- Highly reliable direct reading Instrument designed expressly for measuring light intensity at the wafer plane of mask aligners.
- UV curing light sources, and any other UV light source.
Specifications:

TM-213  UVAB measurement

Measuring range

   4000uW/cm2, 20mW/cm2

Resolution

   1uW/cm2, 0.01mW/cm2

Accuracy

   -/+5(%FS + 2dgt)  FS: full scale

Wavelength

   290~390nm

Sample Time

   Approx. 0.4 sec.

Power Supply

   2 batteries 1.5V AAA

Battery life

   Approx. 100 hour

Weight

   Approx. 90g

Size

   133(L)mm x 48(W)mm x 23 (H)mm

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
