TM-209
Luminous Intensity
Measurement
- LED Light
- All Visible Light
Source
Display:
-3 3/4 digits LCD with maximum reading
3999.
-Overload indication.
-Low battery indication.
Functions:
- According to JISC1609:1993 and CNS
5119 general
A class specifications.
- Spectral response close to CIE luminous spectral
efficiency.
- Measuring intensities of illumination in unit of Lux
or Foot-candle.
-
M-
Measuring lights source include all visible range.
- 99 records storage.
- C
-Cosine angular corrected.
- Le -Length of wire for light sensor: approximately
1.5M.
Specification: |
TM-209 |
|
Light Source Selecting |
Tungsten/Daylight, Fluorescent, 0~9 select rating |
|
Measuring range |
40, 400, 4,000, 40,000, 400,000 Lux,
40, 400, 4,000, 40,000, Foot-candle |
|
Accuracy
|
+/-3% (Calibrated to standard incandescent lamp
2856º K)
and corrected LED day while-light spectrum.
+/-6% (other visible light source |
|
Meter size (LxWxH) |
130x55x38mm |
|
Sensor size (LxWxH) |
80x55x25mm |
|
Weight (including battery) |
250g |
|
|
| |
|
|
TM-201 Digital Light Meter
Display:
- 3½ digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.
Functions:
- According to JISC1609:1993 and CNS 5119 general A class
specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Length of wire for light sensor: approximately 1.5M.
- Cosine angular corrected.
Applications:
-Warehouses, factories, office buildings, restaurants, schools, library,
hospitals, photographic,video, parking garages, museums, art galleries,
stadiums, building security.
Dimension:
-Meter size (L*W*H): 130x55x38mm
-Sensor size (L*W*H): 80x55x25mm
-Weight (including battery): 250g |
TM-201 |
|
Model |
TM-201 |
TM-202 |
|
Data hold |
V |
V |
|
DC analog output |
|
V |
|
Max/ Min /AVG hold |
|
V |
|
Max hold |
V |
|
|
Zero adjustment |
V |
V |
Sensor
|
Silicon photodiode and filter |
|
Measuring range |
20 ( TM- 202 ), 200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle |
|
Accuracy |
+/- 3% (Calibrated to standard
incandescent lamp 2856º K)
+/- 8% (other visible light source
TM-201)
+/- 6% (other visible light source
TM-202) |
|
Angle deviation from
cosine characteristics |
30º |
+/- 2% |
|
60º |
+/- 6% |
|
80º |
+/- 25% |
|
| |
|
|
TM-202 Digital Light Meter
Display:
- 3½ digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.
Functions:
- According to JISC1609:1993 and CNS 5119 general A class
specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Length of wire for light sensor: approximately 1.5M.
- Cosine angular corrected.
Dimension:
-Meter size (L*W*H): 130x55x38mm
-Sensor size (L*W*H):
80x55x25mm
-Weight (including battery): 250g
Applications:
Warehouses, factories, office buildings, restaurants, schools, library,
hospitals, photographic,video, parking garages, museums, art galleries,
stadiums, building security. |
 |
Sensor
|
Silicon photodiode and filter |
|
Measuring range |
20 ( TM- 202 ), 200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle |
|
Accuracy |
+/- 3% (Calibrated to standard
incandescent lamp 2856º K)
+/- 8% (other visible light source
TM-201)
+/- 6% (other visible light source
TM-202) |
|
Angle deviation from
cosine characteristics |
30º |
+/- 2% |
|
60º |
+/- 6% |
|
80º |
+/- 25% |
|
| |
|
|

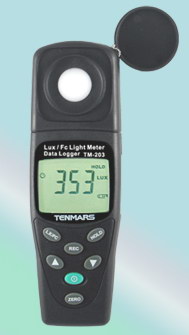

TM-203 Autoranging Datalogging Light Meter
Display:
- 3½ digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.
Functions:
- According to JISC1609:1993 and CNS 5119 general A class
specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Cosine angular corrected.
- Autorange.
- Datalogger : RS-232 interface,7000 Records.
Dimension:
-Meter size (L*W*H); 172x55x38mm
-Weight (including battery): 250g
Applications:
Warehouses, factories, office buildings, restaurants, schools, library,
hospitals, photographic,video, parking garages, museums, art galleries,
stadiums, building security. |
 |
|
Model |
TM-203 |
TM-204 |
TM-205 |
|
Data hold |
V |
V |
V |
|
Max/ Min /AVG hold |
V |
|
V |
|
Max hold |
|
V |
|
|
Zero adjustment |
V |
V |
V |
|
Auto ranging |
V |
|
V |
|
Auto power off |
V |
|
V |
|
Datalogger |
V |
|
|
|
Sensor |
Silicon photodiode and filter |
|
Measuring range |
20(TM-203/205),200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle |
|
Accuracy |
+/- 3% (Calibrated to standard incandescent lamp 2856º K)
+/-
8% (other visible light source TM-204)
+/- 6%(other visible light source TM-203/205) |
|
Angle deviation from
cosine characteristics |
30º |
+/- 2% |
|
60º |
+/- 6% |
|
80º |
+/-25% |
|
| |
|
|

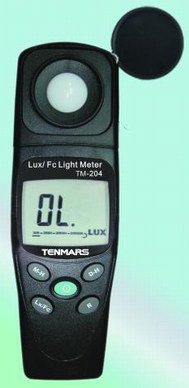

TM-204 Light Meter
Display:
- 3½ digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.
Functions:
- According to JISC1609:1993 and CNS 5119 general A class
specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Cosine angular corrected.
Dimension:
-Meter size (L*W*H): 172x55x38mm
-Weight (including battery): 250g
Applications:
-Warehouses,
factories, office buildings, restaurants, schools, library, hospitals,
photographic,video, parking garages, museums, art galleries, stadiums,
building security. |
 |
|
Sensor |
Silicon photodiode and filter |
|
Measuring range |
20(TM-203/205),200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle |
|
Accuracy |
+/- 3% (Calibrated to standard incandescent lamp 2856º K)
+/-
8% (other visible light source TM-204)
+/- 6%(other visible light source TM-203/205) |
|
Angle deviation from
cosine characteristics |
30º |
+/- 2% |
|
60º |
+/- 6% |
|
80º |
+/-25% |
|
|
|
|

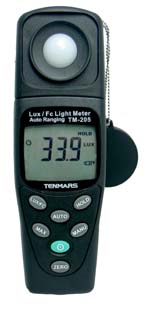

TM-205 Autoranging Light Meter
Display:
- 3½ digits LCD with maximum reading 2000.
- Overload indication.
- Low battery indication.
Functions:
- According to JISC1609:1993 and CNS 5119 general A class
specifications.
- Spectral response close to CIE luminous spectral efficiency.
- Measuring intensities of illumination in unit of Lux or Foot-candle.
- Measuring lights source include all visible range.
- Cosine angular corrected.
Dimension:
-Meter size (L*W*H): 172x55x38mm
-Weight (including battery): 250g
Applications:
Warehouses, factories, office buildings, restaurants, schools, library,
hospitals, photographic,video, parking garages, museums, art galleries,
stadiums, building security. |
 |
|
Sensor |
Silicon photodiode and filter |
|
Measuring range |
20(TM-203/205),200, 2000, 20000, 200000 Lux
20,200, 2000, 20000 Foot-candle |
|
Accuracy |
+/- 3% (Calibrated to standard incandescent lamp 2856º K)
+/-
8% (other visible light source TM-204)
+/- 6%(other visible light source TM-203/205) |
|
Angle deviation from
cosine characteristics |
30º |
+/- 2% |
|
60º |
+/- 6% |
|
80º |
+/-25% |
|
|
|
|
|
YF-172 lux Meter
Display:
- 3½ digits LCD with maximum reading 2000.
Feature:
- Measuring light source
include all visible light source.
- Silicon photo diode and filter.
- Cosine angular corrected.
- Spectral response close to CIE luminous spectral
efficiency.
- According to JISC1609:1993 and CNS 5119 general A
class specifications.
- Data hold.
Measuring range:
-Lux: 200,2000,20000
-Foot candle: 20,200,2000
Dimension:
-Meter size:143*74*34mm(L*W*H)
-Sensor size:125*98*40mm(L*W*H)
Applications:
Warehouses, factories, office buildings, restaurants,
schools, library, hospitals, photographic,video, parking
garages, museums, art galleries, stadiums, building
security. |
 |
|
|
|
|

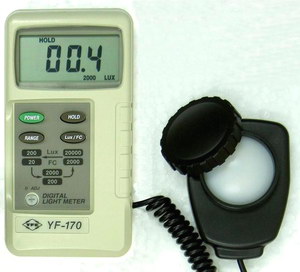

YF-170 Lux
Meter
Display:
- 3½ digits LCD with maximum reading 2000.
Feature:
- Measuring light source include all
visible light source.
- Silicon photo diode and filter.
- Cosine angular corrected.
- Spectral response close to CIE luminous spectral
efficiency.
- According to JISC1609:1993 and CNS 5119 general A
class specifications.
- Data hold
-- Real Zero function.
Dimension:
-Meter size:143*74*34mm(L*W*H)
Applications:
Warehouses, factories, office buildings, restaurants,
schools, library, hospitals, photographic,video, parking
garages, museums, art galleries, stadiums, building
security. |
 |
|
|
|
|

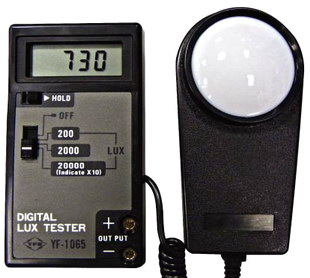

YF-1065 Lux
Meter
Display:
- 3½ digits LCD with maximum reading 2000.
Feature:
- Silicon photo diode and filter.
- Cosine angular corrected.
- Spectral response close to CIE luminous spectral
efficiency.
- According to JISC1609:1993 and CNS 5119 general A
class specifications.
- Data hold
Dimension:
-Meter size:119*67*26mm(L*W*H)
Applications:
Warehouses, factories, office buildings, restaurants,
schools, library, hospitals, photographic,video, parking
garages, museums, art galleries, stadiums, building
security. |
 |
|
|
|
|
TM-720 Light Meter
Display:
-3 3/4 digits Backlit LCD with maximum-reading of 3999.
-Overload and Low battery indication.
Features:
- According to JISC1609:1993 and CNS 5119 general
A class specifications.
- Spectral response close to CIE luminous spectral
efficiency.
- Measuring the intensities of illumination displays
in unit of Lux or Foot-candle.
- Silicon photo diode and filter.
- Measuring light source include all visible light
source.
- Cosine angular corrected.
- Auto power off and disable function.
- Data hold, Max/Min/AVG hold.
- Real Zero function.
- Auto ranging.
Applications:
Warehouses, factories, office buildings, restaurants,
schools, library, hospitals, photographic, video,
parking garages, museums, art galleries, stadiums,
building security.
Specifications: |
 |
|
TM-720 Light Meter |
|
Light Source Selecting |
Tungsten/Daylight, Fluorescent, 0~9
select rating |
|
Measuring range |
40,400,4,000,40,000,400,000Lux |
|
40,400,4,000,40,000Foot-candel |
|
Accuracy |
+/-3% (Calibrated to standard
incandescent lamp
2856º K) |
|
+/- 8% (other visible light source) |
|
Dimension |
133mm x48mm x23mm (LxWxH) |
|
Power |
2 batteries 1.5V AAA |
|
Weight (including battery) |
80g |
|
|
| |
|
