TES-3 Phase Power Analyzer

TES-3600 3P4W POWER ANALYZER

10 Display Easy - to - View LCD Screen.
Connectors for 4 Current Sensing Clamps.
1P2W, 1P3W, 3P3W2M & 3P4W Power Measurement.
True RMS Sensing.
Power KW, KVAR, KVA, PF, θ ,Hz, & Energy KWh, KVARh & KVAh Measurement.
Phase sequency indicator function.
Backlight display function.
Manual Data Memory and Read (99 sets).
Data Logging (512KB Memory, 20,000 sets)
Programmable Trigger - Points and Start / Stop Time.
RS-232 Optical Interface with three phase voltage / current Waveform display and Harmonic analysis.
Easy - to - use Push - Button Operation.
Light Weight, Portable Design.

Voltage Measurement (V)

Ranges	Method	Accuracy	Input impedance
600.0V	True RMS	± 0.5%rdg ± 10dgts (>30V)	2M Ω

Current Measurement (A)

Ranges	Method	Accuracy
250A, 500A, 1000A	True RMS	± 0.5%rdg ± 10dgts + clamp on sensor specifications

Active Power Measurement (KW)

Ranges	Accuracy	Effect of power factor
600.0KW	± 0.5%rdg ± 10dgts + clamp on sensor specifications	± 0.1%rdg

Reactive Power Measurement (KVAR)

Ranges	Accuracy	Effect of power factor
600.0KVAR	± 0.5%rdg ± 10dgts + clamp on sensor specifications	± 0.1%rdg

Apparent Power Measurement (KVA)

Ranges	Accuracy
600.0KVA	± 0.5%rdg ± 10dgts + clamp on sensor specifications

Power Integration Measurement

Power Integration	Resolution	Accuracy
0.0KWh to 9999MWh	0.1KWh	± 0.5%rdg ± 10dgts + clamp on sensor specifications
0.0Kvarh to 9999Mvarh	0.1Kvarh
0.0KVAh to 9999MVAh	0.1KVAh

Power Factor Measurement

Ranges	Accuracy	Polarity display
-1.000(lead) to 0.000 to + 1.000 (lag)	± 1dgt for each calculation from measured values	When the current lags the voltage unsigned ; when the current leads the voltage : "-".

Frequency Measurement

Ranges	Measurement source	Accuracy
40Hz to 100Hz	Voltage U1	± 0.5%rdg ± 1dgt

General Specifications

Size	235(L)x116(W)x54(H)mm (9.3"Lx4.6"Wx2.1"H)
Operating Temperature and Humidity	0 ºC to 50 ºC (32 ºF to 122 ºF ) R.H. < 80% non-condensing
Storage Temperature and Humidity	- 10 ºC to 60 ºC (14 ºF to 140 ºF ) R.H. < 70% non-condensing
Accessories	1) Instruction manual 2) Software CD Rom / Optical RS-232 interface 3) Deluxe carrying case 4) Battery ("AA" 1.5V x 8pcs ) 5) AC adaptor (110V -> 12V ; 220V -> 12V) 6) 4pcs current clamp transducer (1, 2, 3, 4 cable length 3 meters) (1000A AC, jaw opening 40mm) 7) 4pcs crocodiles test leads (blue, yellow, red, black, wire length 3 meters)

Model PROVA 21/23 Power Harmonics and Leakage Tester

Model PROVA 19 Harmonics and Leakage Tester

MODEL PROVA 19, 21, 23

True RMS value (V and A)
Leakage Current Measurement at 10 μ A Resolution
Harmonic Analysis (V and A) to the 99 th Order
Better Understanding of High Frequency Harmonic Analysis (up to 5/6 KHz)
Non-interrupted Harmonic Analysis
Analysis of Total Harmonic Distortion (THD-F)
Analysis of Crest Factor (C.F.)
Fast Peak Function (33 μ s and 39 μ s)
Programmable CT Ratio (1 to 250)

Model 21(50A) and 23(100A)

W, KW, H.P.
VA, KVA, VAR, KVAR
PF, Phase Angle ( Φ )
Energy (mWH, WH, KWH)
Analysis of Standby Power Consumption
Balanced 3 Φ Power Quality
Balanced 3 Φ Sequence

AC Watt (50 or 60 Hz, PF 0.5 to 1. CT = 1, Accuracy of Readings)

Model 21 (0 to 50A), Model 23 (0 to 100A)

Range	Resolution	Accuracy 21 (0 - 30A) Accuracy 23 (0 - 60A)	Accuracy 21 (30 - 50A) Accuracy 23 (60 - 100A)
0.000 - 9.999 W	0.001 W	±1% ± 0.02 W	±2% of VA ± 5dgts
10.00 - 99.99 W	0.01 W	±1% ± 0.2 W	±2% of VA ± 5dgts
100.0 - 999.9 W	0.1 W	±1% ± 0.2 W	±2% of VA ± 5dgts
1.000 - 9.999 KW	0.001 KW	±1% ± 0.02 KW	±2% of VA ± 5dgts
10.00 - 99.99 KW	0.01 KW	±1% ± 0.2 KW	±2% of VA ± 5dgts
100.0 - 999.9 KW	0.1 KW	±1% ± 0.2 KW	±2% of VA ± 5dgts
1000 - 9999 KW	1 KW	±1% ± 2 KW	±2% of VA ± 5dgts

AC Current (50 or 60 Hz, True RMS)

Range (Model 19, 21)	Range (Model 23)	Resolution	Accuracy of Readings
0.30 - 60.00mA	0.30 - 60.00mA	0.01mA	±0.5% ± 5dgts
60.0 - 600.0mA	60.0 - 600.0mA	0.1mA	±0.5% ± 5dgts
0.030 - 3.000 A	0.030 - 9.999 A	0.001 A	±0.5% ± 5dgts
3.00 - 30.00 A	10.00 - 60.00 A	0.01 A	±0.5% ± 5dgts
30.00 - 50.00 A	6 0.00 - 99.99 A	0.01 A	±1.0% ± 5dgts

AC Voltage (50 or 60 Hz, True RMS)

Range	Resolution	Accuracy of R.	Range	Resolution	Accuracy of R.
3V - 250V	0.1 V	±0.5% ± 5dgts	250V - 600V	0.1 V	±0.5% ± 5dgts

Harmonics of AC Voltage in % and Magnitude (1 to 99th order)

Range	Resolution	Accuracy in %	Resolution	Accuracy in Magnitude
50V - 600V	0.1 %	±0.5%	0.1 V	±0.5% ± 0.5V

Harmonics of ACA in % Percentage and Magnitude (1 to 99th order)

Range (Model 19, 21)	Range (Model 23)	Res.	Accuracy (%)	Res.	Accuracy of R.
10.00 - 60.00mA	10.00 - 60.00mA	0.1 %	±0.5%	0.01mA	±0.5% ± 0.1mA
60.0 - 600.0mA	60.0 - 600.0mA	0.1 %	±0.5%	0.1mA	±0.5% ± 1mA
0.5 - 3.000 A	0.5 - 9.999 A	0.1 %	±0.5%	0.001 A	±0.5% ± 0.01 A
3.00 - 30.00 A	10.00 - 60.00 A	0.1 %	±0.5%	0.01 A	±0.5% ± 0.1 A
30.00 - 60.00 A	6 0.00 - 99.99 A	0.1 %	±1.0%	0.01 A	±1.0% ± 0.1 A

Power Factor and Phase Angle (PF, Φ, Model 21 and 23)

Range (PF)	Resolution	Accuracy	Range (Φ)	Resolution	Accuracy
0.000 - 1.000	0.001	± 1º	-180º to 180º (0 º to 360 º )	0.1º	± 1º

Total Harmonic Distortion (THD-F, 1 to 99th order) Crest Factor (C.F., Accuracy of Readings)

Range	Resolution	Accuracy of R.	Range	Resolution	Accuracy of R.
0.0-999.9%	0.1%	± 0.5% ± 5 digits	1.00 - 99.99	0.01	± 5% ± 30 digits

General Specification

Conductor Size	30mm (approx.)
Battery Type	1.5V SUM-3 x 2
Display	4+2+2 digits LCD
Power Consumption	5mA (approx.)
Auto-Power-Off	30 minutes
No. Of Samples/Period	512 (V & A), 256 (W)
LCD update rate	2 times / sec.
Weight	200g (battery included)
Operating Temperature	-10 ºC to 50ºC
Operating Humidity	< 85% relative
Storage Temperature	-20ºC to 60ºC
Storage Humidity	< 75% relative
Dimension	210 (L) x 62 (W) x 35.6mm (H), 8.3" (L) x 2.5" (W) x 1.4" (H)
Accessories	test leads, Carrying bag x 1, Users manual x 1, Batteries 1.5V x 2
Option	alligator clips

PROVA 6830A+6801 Power and Harmonics Analyzer (100A)

PROVA 6830A+6802 Power and Harmonics Analyzer (1000A)

PROVA 6830A+3009 Power and Harmonics Analyzer (1200A)

PROVA 6830A+3007 Power and Harmonics Analyzer (3000A)

PROVA 6830A+3006 Power and Harmonics Analyzer (6000A)

PROVA 6830A+3007

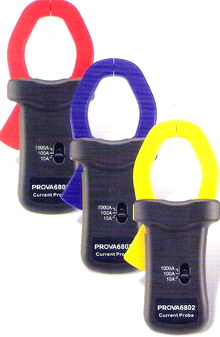

6802

3006

* Analysis for 3P4W, 3P3W, 1P2W, 1P3W

* True RMS Value (V 123 and L 123 )

* Active Power (W, KW, MW, GW)

* Apparent and Reactive Power (KVA, KVAR)

* Power Factor (PF), Phase Angle (Φ)

* Energy (WH, KWH, KVARH, PFH)

* Current Measurement from 0.1mA to 6000A, Capable of Analyzing IT Standby Power Consumption to the Maximum Demand of a Factory

* Display of 35 Parameters in One Screen(3P4W)

* Programmable CT (1 to 600) and PT (1 to 3000) Ratios

* Display of Overlapped Voltage and Current Waveform

* 2.4M Memory with Programmable Interval (1 to 6000 seconds, 17000 Records for 3P4W System)

* Output of Waveform, Power Parameters and Harmonics at Command

* Large Dot Matrix LCD Display with Backlight

* Average Demand (AD in W, KW, MW)

* Maximum Demand (MD in W, KW, MW) with Programmable Period

* Harmonic Analysis to the 99th Order

* Display of 50 Harmonics in One Screen with Waveform

* Display of Waveform with Peak Values (1024 Samples/Period)

* Analysis of Total Harmonic Distortion (%THD-F)

* Graphic Phasor Diagram with 3 Phase System Parameters

* Capture 28 Transient Events (Time + Cycles) with Programmable Threshold(%)

* 3 Phase Voltage Unbalance Ratio (VUR)

* 3 Phase Voltage Unbalance Factor (d0%, d2%)

* Calculated Unbalance Current through Neutral Line (In)

* Optical isolated USB Interface

* Built-in Timer and Calendar for Data Logging

6801

3009

AC Watt (50 or 60 Hz, PF 0.5 to 1, CT=1)

Range	Resolution	Accuracy of Readings
Range	Resolution	6830+6801	6830+6802	6830+3007
5.0 – 999.9W	0.1W	±1% ± 8dgts	±1% ± 8dgts	±1% of VA Range ±8dgts
1.000 – 9.999 KW	0.001 KW	±1% ± 8 dgts	±1% ± 8 dgts	±1% of VA Range ±8dgts
10.00 – 99.99 KW	0.01 KW	±1% ± 8 dgts	±1%± 8 dgts	±1%of VA Range ±8dgts
100.0 – 999.9 KW	0.1 KW	±1% ± 8dgts	±1% ± 8dgts	±1% of VA Range ±8dgts
1000 – 9999 KW	1 KW	±1% ± 8dgts	±1% ± 8dgts	±1%of VA Range ±8dgts
0.000 – 9.999MW	0.001MW	–	±1% ± 8 dgts	±1% of VA Range ±8dgts

AC Current( 50 or 60Hz, Auto Range, True RMS, Crest Factor<4, CT=1)　

	Range	Resolution	Accuracy of Readings
6830A+6801 (Overload Protection AC200A)	0.050 – 9.999A	0.001A	±0.5% ± 5dgts
	10.00 – 60.00A	0.01A	±0.5% ± 5dgts
	60.00 – 99.99A	0.01A	±1.0% ± 5dgts
6830A+6802 (Overload Protection AC2000A)	0.04 – 10.00A	0.01A	–
	0.4A – 100.0A	0.1A	±0.5% ± 5dgts
	4.0 – 1000.0A	1A	±0.5% ± 5dgts
6830A+ 3007 (Overload Protection AC3500A)	4 – 300A	0.1A	±1% of Range ±5dgts
	300.0 – 999.9A	0.1A	±1% of Range ±5dgts
	1000 – 3000A	1A	±1% of Range ±5dgts

AC Voltage (50 or 60 Hz, Auto Range, True RMS, Crest Factor<4)

Range	Resolution	Accuracy of Readings	Range	Resolution	Accuracy of Readings
4.0V – 500.0 (Phase to Neutral)	0.1V	± 0.5% ± 5dgts	4.0V –600.0V (Phase to phase)	0.1V	± 0.5% ± 5dgts

Harmonics of AC Voltage in % and in Magnitude (1 to 99th order, minimum voltage at the 50 or 60 Hz>AC 80V)

Range	In Percentage		In Magnitude
Range	Resolution	Accuracy of readings	Resolution	Accuracy of readings
1 – 20 th	0.1%	±2%	0.1 V	±2% ±0.5V
21 – 49 th		4% of reading ±2.0%		4% of reading ±0.5A
50 – 99 th		6% of reading ±2.0%		6% of reading ±0.5A

Harmonics of AC Current in % and in Magnitude

Model 6830A+6801(100A)(1 to 99th order, minimum current at 50 or 60 Hz is greater than 10% of the range)

Range	In Percentage		In magnitude
Range	Resolution	Accuracy of reading	Resolution	Accuracy of reading
1 – 10 th	0.1%	±0.2 of reading ±1%	0.1mA / 0.1A	±0.2% of reading ±7dgts
11 – 20 th		±2% of reading ±1%		±2% of reading ±7dgts
2 1 – 50 th (A range)		±5% of reading ±1%		±5% of reading ±7dgts
2 1 – 50 th (mA range)		±10% of reading ±1%		±10% of reading ±7dgts
5 1 – 99 th		±35% of reading ±1%		±35% of reading ±7dgts

Model 6830A+6802(1000A); 6830A+3007(3000A)(1 to 99th order, minimum current at the 50 or 60 Hz>20A)

Range	In Percentage		In Magnitude
Range	Resolution	Accuracy of reading	Resolution	Accuracy of reading
1 – 20 th	0.1%	±2%	0.1A(6802) / 0.3A(3007)	±2% of reading ±0.4A/0.6A
21 – 49 th		4% of reading ±2.0%		±4% of reading ± 0.4A/0.6A
50 – 99 th		6% of reading ±2.0%		±6% of reading ± 0.4A/0.6A

Total Harmonic Distortion

Range	Resolution	Accuracy(6801)	Accuracy(6802)	Accuracy(3007)
0.0 – 20%	0.1%	±1%	±2%	±2%
20 – 100%	0.1%	±3% of reading ±5%	±6% of reading ±1%	±6% of Range ±1%
100 – 999.9%	0.1%	±10% of reading ±10%	±10% of reading ±1%	±10% of Range ±1%

Peak Value of Ac Voltage or AC Current, VT=1

Range	Sampling Time	Accuracy of reading
50Hz	39 μS	±5% ±30digits
60Hz	33 μS	±5% ±30 digits

Crest Factor (C.F.) of ACV or ACA, VT=1

Range	Resolution	Accuracy of reading
1.00 – 99.99	0.01	±5% ±30digits

Frequency in AUTO mode

Range	Resolution	Accuracy of reading
45 – 65Hz	0.1Hz	0.1Hz

Power Factor (PF)

Range	Resolution	Accuracy of reading
0.00 – 1.00	0.01	± 0.04

Phase Angle (Φ)

Range	Resolution	Accuracy of reading
-180 º to 180 º	0.1 º	± 1 º

Conductor Size (6801)	30mm (approx.)
Conductor Size (6802)	55mm(approx.), 64 X 24mm(Bus Bar)
Battery Type	1.5V SUM-3 x 8
Display	Dot Matrix LCD with backlight
Power Consumption	140mA (approx.)
External DC Input	DC 12V adaptor (for safety purpose, the adaptor must be certified with 600Visolation protection)
LCD update rate	1 times / sec
No. Of Samples/Period	1024
Operating Humidity	< 85% relative
Operating Temperature	-10ºC to 50ºC
Storage Humidity	< 75% relative
Storage Temperature	- 20ºC to 60ºC
Weight(6830)	1160g
Weight(6801)	200g
Weight(6802)	600g
Weight(3009)	390g
Weight(3007)	410g
Dimension(6830)	257 (L) x 155 (W) x 57 (H) mm, 10.1"(L) x 6.1" (W) x 2.3" (H)
Dimension(6801)	210 (L) x 62 (W) x 36 (H) mm, 8.3 " (L) x 2.5" (W) x 1.4" (H)
Dimension(6802)	244 (L) x 97 (W) x 46 (H) mm, 9.6 " (L) x 3.8" (W) x 1.8" (H)
Dimension(3009)	130mm(L) x 80mm(W) x 43mm(H), 5.1 " (L) x 3.1" (W) x 1.7" (H)
Dimension(3007)	130mm(L) x 80mm(W) x 43mm(H), 5.1 " (L) x 3.1" (W) x 1.7" (H)
Accessories	Test leads x 4, alligator clips x 4, Carrying bag x 1, Users manual x 1, Batteries 1.5V x 8

PROVA-6200 Graphic Power Quality Analyzer


Analysis for Single Phase and Balanced 3 phase system True RMS Value (V and I) Active Power (K, KW, MW, GW) Apparent (VA, KVA, MVA) and Reactive Power (VAR, KVAR, MVAR) Power Factor (PF), Phase Angle( Φ ) Energy (WH, KWH, KVARH, PFH) Programmable PT(1 to 3000)Ratios Display of Overlapped Voltage and Current Waveform Maximum Demand (MD in W, KW, MW) with programmable Period Harmonic Analysis (V and I) to 50th Order Display of 25 Harmonics in one screen Optical Isolated RS-232C Interface Smart Datalogging to save Battery	Datalogging of 32,64,128 or 256 points/cycles Analysis of Total Harmonic Distortion (%THD-F) Graphic Phasor Diagram Capture 128 Transient Events (Time+Cycles+Faults) with Programmable Threshold(%),also can be reviewed in LCD 50000 Records with Programmable Interval (1 to 6000 seconds) Real-time Output of Waveform, Power Parameters and Harmonics at Command Large Dot Matrix LCD Display with Backlight Power for Long-term Monitoring Built -in Calendar Clock for Data Logging

AC Current (50 or 60 Hz, Auto Range, True RMS)

Range	Resolution	Accuracy of Reading
4.0 V - 1500.0 A	0.01 A	± 0.5 % ± 5 dgts

AC Voltage (50 or 60 Hz, Auto Range, True RMS)

Range	Resolution	Accuracy of Reading
4.0 - 600.0 V	0.1 V	± 0.5 % ± 5 dgts

Harmonics of AC Voltage in Percentage and Magniude(1 to 50th order)

Range	Resolution	Accuracy (in%)	Accuracy (in Magnitude)
1 – 20 th	0.1 %	± 2 %	± 2 % ± 0.5 V
20 – 50 th	0.1 %	4 % of reading ± 2 %	4 % of reading ± 0.5 V

Harmonics of AC Current in Percentage and Magnitude (1 to 50th order)

Range	Resolution	Accuracy (in %)	Accuracy (in Magnitude)
1 – 20 th	0.1 %	± 2 %	± 2 % of reading ± 0.4 A
20 – 50 th	0.1 %	4 % of reading ± 2 %	± 4 % of reading ± 0.4A

Power Factor (PF)

Range	Resolution	Accuracy (>20 V and >20 A)
0.000 - 1.000	0.001	± 0.04

Phase Angle ( Φ )

Range	Resolution	Accuracy (>20 V and >20 A)
-180 º to 180 º (0 º to 360 º )	0.1 º	±1 º

Total Harmonic Distortion(%THD-F, 1 to 50th order)

Range	Resolution	Accuracy (>20 V and >20 A)
0.0 - 20%	0.1%	± 2 %
20 - 100%	0.1%	± 6 % of reading ± 1 %
100 - 999.9%	0.1%	± 10 % of reading ± 1 %

Crest Factor (C.F.)

Range	Resolution	Accuracy of Readings
1.00 - 99.99	0.01	± 5 % ± 30 digits

AC Watt (50 or 60 Hz, PF 0.5 to 1, CT=1)

Range	Resolution	Accuracy of Readings (>20V and >20A)
10.0 - 999.9 W	0.1 W	± 1% ± 20 dgts
1.00 - 9.999 KW	0.001 KW	± 1% ± 20 dgts
10.00 - 99.99KW	0.01 KW	± 1% ± 20 dgts
100.0 - 999.9 KW	0.1 KW	± 1% ± 20 dgts
1000 - 9999 KW	1 KW	± 1% ± 20 dgts

General Specification:

Conductor Size	55mm(approx.), 64*24mm(bus bar)
Battery Type	Two 1.5 V SUM-3
Display	128*64 Dot Matrix
Power Consumption	10 mA (approx.)
Auto - Power - Off	30 minutes after power-on
Update time	2 times/sec. (display)
No. of Samples per Period	512 (voltage or current), 256 (power)
Operating Temperature	-10 ºC to 50 ºC
Operating Humidity	<85% RH
Storage temperature	-20 ºC to 60 ºC
Storage Humidity	<75% RH
Dimension	210 mm (L) * 62 mm (W) * 35.6 mm (H), 8.3"(L) * 2.5 "(W) * 1.4"(H)
Weight	Test leads 1 pair, Carrying bag1, Users manual1, Batteries 1.5V2
Accessories	640g

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )

EMF Tester	Light meter
Solar Power Meter	Sound Level Meter
Anemometer	CO2 Tester
DC/AC current clamp Meter	Insulation Tester
Tachometer	3 Phase Power Analyzer
Thermometer	Battery Capacity Tester
Lan Cable Tester	Power Clamp Meter
Multi-Meter	Calibrator
temperature data logger	PH / ORP / Temperature Meter
Flexible AC Current Clamp	Color Meter
Humidity/Temperature Meter	Particle Counter
Micro-Ohmmeter
