True Power
&
Apparent power measurement |
|
|
|
|
-Crest
Factor: <4 for stated accuracy |
|
|
|
|
-Crest
Factor: <3 for stated accuracy |
|
|
-Peak
Detect Acquisitions Time<=1ms |
|
|
-Peak
Detect Acquisitions Time<=1ms |
|
|
|
|
|
|
|
|
|
|
Maximum Voltage between any
terminal and earth ground |
600Vrms
|
|
Numerical Dual Display |
4 digit liquid
crystal display (LCD) maximum reding 9999.
|
|
Bargraph
display |
40 Segments.
|
|
Battery
Life |
30hr approx.
(Alkaline) |
|
Jaw
Opening Diameter |
Cables f 46mm.
|
|
Operating Temperature and Humidity
|
0 ºCto 50
ºC (32
ºF to 122 ºF ) R.H. < 80% non-condensing. |
|
Storage
Temperature and Humidity |
-10
ºC to 60 ºC (14 ºF to 140 ºF ) R.H. < 70% non-condensing. |
|
Dimensions |
260mm(L) x 93mm(W) x
45mm(H) |
|
Weight
|
Approx. 450g
|
|
Accessories |
Carrying Case, Test
leads, One 9V Battery & Instruction manual
|
|
|
|
|
TES-3079K
Power Clamp Meter
|
HVAC
Application:
-
Check
current draw in motors and compressors.
-
Use
MAX/MIN/Recording in the temperature mode to
assess efficiency.
-
Test
run/start capacitors.
-
Confirm low
voltage control signals.
-
Measure
flame safeguard device current draw.
-
Confirm
power sources.
-
Analyze
temperature and voltage or current data with
the aid of the time stamp.
-
Insulation
test up to 100M Ω.
|
Electrical Application:
-
Check for
energized circuits and balance loads.
-
1 Φ /3 Φ
(3P3W/3P4W)Power analyzer.
-
Evaluate
electrical contacts.
-
Capture
motor in-rush current readings.
-
Determine
peak power demand periods.
-
Verify line
voltage stability.
-
Monitor
motors and other loads for excess heat.
-
Check motor
run/start capacitor values
|
|
|
|
|
|
AC
Voltage (50Hz to 400 Hz): Trms
|
|
|
|
|
|
|
|
|
|
±1% ±
0dgts(50,60Hz)
±2%±20dgts(40~100Hz) |
|
|
|
|
|
|
|
|
|
±1% ±
20dgts(50,60Hz)
|
|
|
|
|
|
|
|
|
|
Resistance
(Continuity <40 Ω on the 999.9Ω range)
|
|
|
|
|
１Φ/３Φ Phase Angle: (50Hz, 60Hz)
|
|
|
１Φ/３Φ KW/hp TRUE Power: (PF>0.5 or Φ<60º) (1hp=745.7W) |
|
|
|
|
|
|
|
|
± 5 %rdg
± 20dgts(50,60Hz)
|
|
|
|
|
|
|
|
|
AC Current
(50 Hz to 400Hz): Trms |
|
|
|
|
|
|
|
|
|
±2%±20dgts
(50,60Hz)
± 4% ±
20dgts (40~400Hz) |
|
|
|
|
|
|
|
|
μ A
Trms: (AC+DC) (Burden Voltage: 5mV/ μA)
|
|
|
|
|
Temperature (K-Type Thermocouple): |
|
|
Diode
(Continuity < 40mV) |
|
|
|
Accessory: 9V battery, Carrying Case &
Manual
|
|
|
TES-3095T TRMS KW Clamp
Meter
|
|
 |
-
3-3/4 Digital
LCD, 4000 count, Autoranging.
-
Trms KW,
Current, Voltage measurement.
-
AC Current 0.1A
to 700A.
-
Resistance and
Continuity test.
-
Data hold
& MAX
function.
-
Pocket size.
-
Auto Power off.
|
|
|
|
|
|
|
AC
Current (Trms) (Autorange)
|
|
|
AC
Voltage (Trms) (Autorange)
|
|
|
|
|
|
|
Numerical
Display |
3-3/4 digit liquid
crystal display (LCD) maximum
reading 3999.
|
|
Over Range
Indication |
LCD will show .
|
|
Low Battery
Indication |
The is displayed when the
battery voltage drops below the
operating voltage |
|
Power Source
|
One 9V battery
(006P or IEC6F22)
|
|
Battery Life
|
100hr approx.
|
|
Operating
Temperature and Humidity
|
0ºC to
50ºC (32ºF to 122ºF) below 80%RH.
|
|
Storage
Temperature and Humidity
|
-10ºC to
60ºC (14ºF to 140ºF) below 70%RH
|
|
Dimensions
|
192(L) x 64(W) x 31(H)㎜
|
|
Weight
|
Approx. 240 g
|
|
Jaw Opening
Diameter |
Cables 27 mm
|
|
Accessories
|
Carrying case, Battery
&
Instruction Manual, Test Lead.
|
|
|
|
|
PROVA-6600
3 Φ Power
Clamp
|
|
 |
-
3 f 4W, 3 f 3W,
3 f Balanced, 1 f 2W, and 1 f 3W Power
Measurement.
-
AC+DC true
power, and True RMS AC Voltage and Current
-
AC+DC 2000A, AC
600V, DC 800V
-
AC+DC
1200KW(1 f ), AC+DC 2000KW (3 f )
-
Dual Display
V+Hz, A+Hz, W+PF, KVA+KVAR, V+A
-
Phase Angle
Measurement
-
3 f RST(L1L2L3)
Sequence Indication.
-
Memory of 4
records.
-
DCA/DCW Auto
Zero when power clamp powering on.
-
AC/DC Auto
Detection.
-
Auto range.
|
|
|
|
|
AC+DC True
Power (PF 0.2-1.0, 3 Φ 3W, 3 Φ 4W, 1 Φ 2W,
and 1 Φ 3W) |
|
|
|
|
|
|
|
|
|
AC 600V, DC
800V, ACA/DCA 2000A
|
|
|
|
|
AC 600V, DC
800V, ACA/DCA 2000A
|
|
|
|
|
AC 600V, DC
800V, ACA/DCA 2000A
|
|
|
AC+DC True
Power (Power Factor 0.2-1.0, 3 Φ Balanced
Power) |
|
|
|
|
|
|
|
|
|
AC 600V, DC
800V, ACA/DCA 2000A
|
|
|
|
|
AC 600V, DC
800V, ACA/DCA 2000A
|
|
|
|
|
AC 600V, DC
800V, ACA/DCA 2000A
|
|
POWER FACTOR
(PF)
PF=KW/KVA |
|
|
AC+DC
Voltage (True RMS, Crest Factor<4, Autorange,
Overload Protection 800VAC for all ranges)
|
|
|
AC+DC
Current (True RMS, Crest Factor<4)
|
|
AC+DC KVA
(Apparent Power)
(KVA)=VxA/1000
AC+DC KVAR
(Reactive Power)
|
|
|
Phase Angle
(must zerºCurrent reading before
measurement) |
|
|
Frequency
(if<10 Hz, Hz=0) |
|
|
Conductor Size |
Cable f
55mm. (approx.)
Bus Bar 65mm(D)x24mm(W) |
|
Battery Type |
9V
|
|
Display |
2x4 Digits
Dual Display LCD |
|
Range Selection
|
Auto
|
|
Overload Indication
|
OL
|
|
Power Consumption
|
28mA
(approx.) |
|
Sampling Time |
0.5 sec.
(V and A)
1.6 sec. (W) |
|
Operating Temperature
|
4 o to 50ºC |
|
Operating Humidity
|
Less than
85% relative |
|
Altitude |
up to 2000M
|
|
Storage Temperature
|
-20ºC
to 60ºC |
|
Storage Humidity
|
Less than
75% relative |
|
Dimensions |
271mm(L)x112mm(W)x46mm(H)
10.7"(L)x4.4"(W)x1.8"(H) |
|
Weight |
647g/22.8 oz
(Battery included) |
|
|
|
PROVA-6601
3 Φ PF Power Clamp
|
|
 |
-
PF( 3 Φ
3W, 3 Φ 4W 1Φ 2W )
-
AC+DC
2000A, 600V Power Factor
-
AC+DC
1200KW(1Φ) AC+DC 200KW(3Φ)
-
AC/DC
Auto Detection
-
Dual
Display V+Hz, A+V, KW+PF, KVA+KVAR
|
|
|
AC+DC True Power (Power
Factor 0.2 ~ 1.0, 3 Φ 3W, 3
Φ 4W 1Φ 2W and, 1 Φ 3W) |
|
|
|
|
|
|
|
|
|
ACA/DCA2000A |
|
|
|
|
ACA/DCA2000A |
|
|
|
|
ACA/DCA2000A |
|
|
AC+DC Voltage (True RMS, Crest Factor < 4, Autorange,
Overload Protection 800VAC
for all range ) |
|
|
AC+DC A (True RMS, Crest
Factor < 4) |
|
|
AC+DC KVAR (3 Φ 3W, 3 Φ 4W) |
|
|
|
|
|
|
|
|
|
AC600V,DC800V
ACA/DCA2000A
|
|
|
|
|
AC600V,DC800V
ACA/DCA2000A
|
|
|
|
|
AC600V,DC800V
ACA/DCA2000A
|
|
|
Frequency (Hz) (if < 10 Hz,
Hz = 0) |
|
|
Conductor Size |
Cable F 55mm (approx)
Bus Bar 65mm(D) x 24mm(W)
|
|
Battery Type |
9V |
|
Display |
2 x 4 Digits Dual Display
LCD |
|
Range Selection |
Auto |
|
Overload Indication |
OL |
|
Sampling TIME |
5sec (V and A) 16sec(W)
|
|
Operating
Temperature |
4 ºC ~ 50 ºC |
|
Operating Humidity |
Less than 80% relative
|
|
Storage Temperature |
﹣20 ºC ~ 60 ºC (﹣40 ºF ~140
ºF )
|
|
Storage Humidity |
Less than 75% relative
|
|
Power Consumption |
Approx. 25mA |
|
Dimension |
10.7"(L) x 4.4"(W) x 18"(H)
271mm(L) x 112mm(W) x
26.2mm(H) |
|
Weight |
647g / 22.8oz. (Batteries
Included) |
|
Accessories |
Carrying bag x 1
Users manual x 1
9V Battery x 1 (Installed) |
|
|
|
|
 |

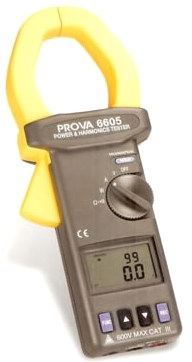

Prova 6605 AC Clamp-on Power
& Harmonics Tester
Power Analysis:
-W, KW, H.P.
-VA, KVA, VAR, KVAR.
-PF, Phase angle.
-Energy (WH, KWH).
-Balanced three phase power quality.
-Balanced 3 phase 3 sequence.
-Programmable CT ratio (1 to 250).
-Dual displays (W+PF, VA+KVAR)
-Resistance and Continuity with beeper.
Harmonic Analysis:
-True RMS value (V and A).
-1500Amp.
-Harmonic analysis (V and A) to the 99th order in % and in
magnitude.
-Better understanding of high frequency harmonic analysis
(UP TO 5/6 -KHz).
-Non-interupted harmonic analysis.
-Analysis of Total Harmonic Distortion (THD-F).
-Analysis of Crest Factor (C.F).
-Fast Peak Function (33µs and 39µs).
-Auto Power Off: 30 minutes. |
|
