TES-32A Battery Capacity Tester (RS-232)

  • Test Condition Without Shutting Down Battery.

  • Simultaneously Measure Battery Resistance, Voltage.

  • Comparator Function.

  • Rates Conditions as Pass, Warning, or Fail.

  • Memory and Read Function

  • Compact and Lightweight.

  • RS232 PC Interface

Storage Battery Systems Battery Capacity Testers,
Check battery condition in seconds, with the battery in service!

Battery Types Tested

Compact storage batteries, Alkali and lead-acid batteries..

Battery Capacity

0 to 500AH

Resistance

Ranges : 40m次, 400m次, 4次, 40次
Resolution : 10米次, 100米次, 1m次, 10m次
Accuracy : ㊣(1%reading + 8digits) on all ranges.

Measurement

Current : 25mA, 2.5mA, 250米A,25米A
Frequency : 1KHz
Accuracy : ㊣10%

Voltage

Measurement : 4V, 40V
Resolution : 1mV, 10mV
Accuracy : ㊣(0.1%rdg ㊣6digits)

Open Circuit Voltage

3.5Vpp max

Data Memory

500 data sets

Continuous Data Memory

9600 data sets (only use PC download)

Comparator

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values

Operating Environment

0ºC to 50ºC (32ºF to 122ºF), 80%RH or less, non-condensing.

Maximum Input Voltage

50VDC

Power Supply or AC Adapter

Six size AAA 1.5V

Battery Life

7 hours

Weight

Approx. 500g including batteries

Dimensions

Approx. 250(L)℅100(W)℅45(H)mm

Accessories

Instruction manual, Batteries, Test probe, Software, RS232 cable.

Optional Accessories

AC adaptor (Isolated output 9VDC)

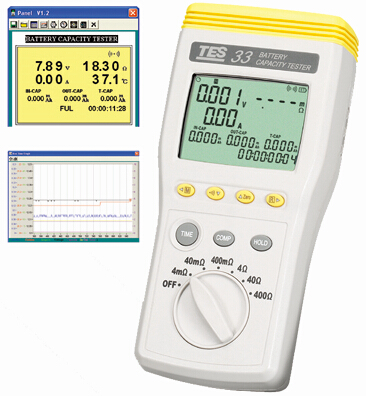

TES-33 Battery Capacity Tester (USB)

TES-33 Battery Capacity Tester (USB)

Applications:

Storage Battery Systems Battery Capacity Testers,
Check battery condition in seconds, with the battery in service!

Features
Test Condition Without Shutting Down Battery.
Simultaneously Measure Battery Resistance, Voltage, Current, Temperature.
Auto-hold and Auto-data storage.
Comparator Function.
Rates Conditions as Pass, Warning, or Fail.
Memory and Read Function
Compact and Lightweight.
USB PC Interface

Specifications:

Battery Types Tested

Compact storage batteries, Alkali and lead-acid batteries..

Battery Capacity

0 to 1200AH

Resistance

Ranges : 4m次, 40m次, 400m次, 4次, 40次, 400次
Resolution : 1米次 , 10米次 , 100米次 , 1m次 , 10m次 , 100m次
Accuracy : 4m次:㊣(3% reading ㊣20digits) / 40m次~400次:㊣(0.8% reading ㊣6digits)

Measurement Condition

Current : Approx. 40mA, 4mA, 400米A, 40米A, 4米A
Frequency : 1KHz㊣30Hz

DC Voltage

Range : 6V, 60V
Resolution : 1mV, 10mV
Accuracy : ㊣(0.1%rdg ㊣6digits)

Temperature

Range : -20∼C  to 60∼C  (-4∼F  to 140∼F )
Resolution :0.1∼C  / 0.1∼F
Accuracy : ㊣1∼C  / ㊣1.8∼F

DC Current

Range : 60A , 600A
Resolution : 0.01A , 0.1A
Accuracy : 60A : ㊣(2%rdg+20dgt) , 600A : ㊣(2%rdg+2dgt)

Open Circuit Voltage

5V max

Manual Data Memory

999 data sets

Continuous Data Memory

6000 data sets (only use PC download)

Comparator

Setting : Resistance upper and lower limits and voltage
throughold limit.
Memory : 99 sets of values

Operating Environment

0∼C  to 40∼C  (32∼F  to 104∼F ), 80%RH or less, non-condensing.

Maximum Input Voltage

60VDC

Power Supply or AC Adapter

Six AA size 1.5V alkaline batteries

Battery Life

5.5 hours

Weight

Approx. 530g including batteries

Dimensions

Approx. 198(L) ℅ 94(W) ℅ 49(H)mm

Accessories

Clip - type test lead with temperature sensor, Pin 每 type test lead, 3092CP DCA current adaptor, Zero adjustment board, Instruction manual, batteries, AC adaptor, USB cable, CD PC software, Carrying case.

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
