Applications:
Monitoring clean-rooms, manufacturing processes and
pharmaceutical production.
Indoor Air Quality (IAQ) monitoring.
Monitoring gowning rooms.
Testing filter seals.
Locating particle contamination sources.
Monitoring particle size distributions.
|

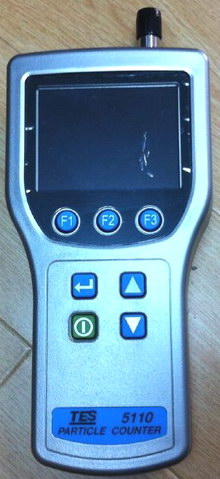

TES-5110 Particle Counter
Features:
The meter is a portable instrument
that measures and reports air contamination. It holds 500
samples in memory and records the date,
time, counts, sample volume, temperature, and relative humidity
of each sample. The data can be easily downloaded to a personal
computer using the USB interface cable.
Specifications:
6 Particle size channels: 0.3, 0.5,
1.0, 2.0, 5.0, 10.0 ¦Ìm
Flow rate: 0.1 cfm (2.83 L/min)
Light source: Laser diode
Calibration: PSL particles in air (NIST traceable)
Counting efficiency: 50 % at 0.3 ¦Ìm; 100 % for particles > 0.45
¦Ìm
(per JIS B9921:1997)
Zero count: 1 count/5 minute (per JIS B9921:1997)
Coincidence loss: 5 % at 2,000,000 particles per cubic ft.
Relative humidity: ¡À 7 %, 20 % RH to 90 % RH, non-condensing
Temperature: ¡À 3 ¡ãC, 10 ¡ãC to 40 ¡ãC (50 ¡ãF to 104 ¡ãF)
Data storage: 500 sample records (rotating buffer)
Data recorded: Date, time, counts, relative humidity,
temperature, sample
volumes, alarms, label
Display: TFT color display with backlight
Count modes: Concentration, totalize, audio
Delay time: 0 to 24 hours
Sample inlet: Isokinetic probe
Interface: USB
Vacuum source: Internal pump flow controlled
Dimensions: 11.0 x 21.8 x 6.7 cm (4.33 " x 8.58 " x 2.64 ")
Weight: 875 g
Environmental:
Operating: 10 ¡ãC to 40 ¡ãC (50 ¡ãF to 104 ¡ãF), 20 % to 90 % RH,
noncondensing
Storage: -10 ¡ãC to 50 ¡ãC (14 ¡ãF to 122 ¡ãF), Up to 90 % RH,
noncondensing
Power: AC Adapter, 12 VDC at 3 A, 100 to 240 VAC, 50 to 60 Hz
Rechargeable Battery: Lithium ion, 8.4 V at 2.5 Ah; replaceable
Charge time: 2 hours (Fast Charge mode), 27 hours (Trickle
Charge
mode)
Continuous Operating Time: 4 hours
Standards: Complies with CE, JIS B9921: 1997, ISO 21501-4
Accessories: Instruction manual, AC adapter, Power cord, USB
cable,
Zero count filter, Hardshell carrying case.
|
