TES-1300/1302/1303 Thermometer
|
|
 |
 |
|
|
|
 |
|
|
Measuring Range
|
-50ºC -1300
ºC ; -50 ºF -1999 ºF |
|
Sensor |
K Type
thermocouple |
|
Input |
Single(1300), Dual (1302,1303)
|
|
Resolution |
-50ºC +
199.9ºC...0.1ºC
-50ºF + 199.9ºF...0.1ºF
(Others-1ºC/1ºF) |
|
Accuracy: |
-50 ºC to
199.9 ºC ...0.3% rdg + 1 ºC
-50 ºF to 199.9 ºF...0.3% rdg + 2 ºF
-50 ºC to 1000 ºC ...0.5% rdg + 1 ºC
-50 ºF to 1999 ºFF. ..0.5% rdg + 2 ºF
1000 ºC to 1300 ºC ..0.75% rdg + 1 ºC
(apply to mainframe only at 23 ºC +/- 5
ºC ) |
|
Function |
H Data Hold
& Display ºC / o F selection
0.1 o /1 o resolution selection
T1 & T2 dual points display
T1 - T2 differential measurement
3-1/2 digit LCD |
|
Temperature Coefficient
|
Less than
0.1 time the applicable
accuracy specification per ºC (ºF)
|
|
Overrange |
1------
|
|
Low Battery
|
BT
|
|
Temperature Coefficient
|
Less than
0.1 time the applicable
accuracy specification per ºC ( ºF)
|
|
Input Protection
|
60V DC or 24
Vrms AC maximum
input voltage on any combination of
input Connector.
Sampling Rate: 2.5 times/sec.
|
|
Operating Condition
|
0 ºC - 50 ºC
(32 ºF-122 ºF),
0-90% R.H. (0-35 ºC ) |
|
Power Source
|
one 9V
battery |
|
Size Weight
|
135mm(L)x72mm(W)x31mm(H) & 57g
Accessories: Battery & Instruction
Manual |
|
* OPTIONAL TEMPERATURE PROBES
|
Model Range
(Type K (CA) THERMOCOUPLE)
TP-K01 Bead -50 ºC to 200 ºC /-58 ºF to
392 ºF
General Purpose
TP-K02 Immersion -50 ºC to 1000 ºC
/-58ºF to 1832 ºF
Liquid or gels.
TP-K03 Surface -50 ºC to 750 ºC /-58ºF
to 1382 ºF |
|
|
|
|
|
|
TES-1306 Thermometer
|
|
|
 |
-
K/J Type thermocouple input
-
Auto ranging
-
Maximum / Minimum reading
-
Relative reading
Multi-channels scanner
(T1-->T2-->T1 - T2) |
|
|
|
|
Measurement Range
|
Type J : (-200 ºC to 760 ºC ) ,
(-328 ºF to 1400 ºF )
Type K: (-200 ºC to 1370 ºC ) ,
(-328 ºF to 2498 ºF )
Basic Accuracy : 23 +/- 5 ºC Calibration
|
|
Unit
|
Resd.
|
Range
|
Accuracy
|
|
|
|
Type K
|
Type J
|
|
|
ºC
|
0.1 ºC
|
-200 ºC ~0 ºC
|
-200 ºC ~0 ºC
|
+/-(0.2%rdg + 1 ºC )
|
|
0 ºC ~200 ºC
|
0 ºC ~150 ºC
|
+/-(0.1%rdg + 0.8 ºC )
|
|
1 ºC
|
200 ºC ~1370 ºC
|
150 ºC ~760 ºC
|
+/-(0.2%rdg + 2 ºC )
|
|
ºF
|
0.2 ºF
|
-328 ºF ~32 ºF
|
-328 ºF ~32 ºF
|
+/-(0.2%rdg + 2 ºF )
|
|
32 ºF ~392 ºF
|
32 ºF ~302 ºF
|
+/-(0.1%rdg + 1.6 ºF )
|
|
2 ºF
|
392 ºF ~2498 ºF
|
302 ºF ~1400 ºF
|
+/-(0.2%rdg + 3 ºF )
|
|
Power Source
|
One 9V battery. 006p or NEDA1604 or
IEC6F22
|
|
Battery Life
|
Approx. 100hr
|
|
Operating /
Storage Condition
|
0 ºC to 40 ºC (32 ºF to 104 ºF
)below 80﹪RH.
-10 ºC to 60 ºC (14 ºF to 140 ºF )
below 70﹪RH.
|
|
Dimensions
|
135(L) x 72(W) x 31(H)
|
|
Weight
|
Approx. 235g with battery
|
|
Accessories
|
Battery, Instruction Manual Holster
( option )
|
|
|
OPTIONAL TEMPERATURE PROBES K(CA) TYPE
THERMOCOUPLE |
|
Model
|
Testing Range
|
Description
|
|
TP-K01 Bead
|
-50 ºC ~200 ºC /-58 ºF ~392 ºF
|
for general condition, especially
for complex
and place hard to reach.
|
|
TP-K02 Immersion
|
-50 ºC ~1000 ºC C/-58 ºF ~1832 ºF
|
for temperature measurement of
liquid or gels.
|
|
TP-K03 Surface
|
-50 ºC ~750 ºC /-58 ºF ~1382 ºF
|
for surface measurement.
|
|
|
|
|
TES-1307 Datalogging K/J
Thermometer
|
|
|
 |
-
K/J Type thermocouple input
-
Auto ranging
-
Dual display LCD
-
8000 Record Data logging Capacity
-
Maximum / Minimum / Average reading
-
Relative reading
-
RS-232 interface (software include)
|
|
|
|
|
Measuring Range |
Type K : -190 ºC to 1333 ºC (-310 ºF to
2431 ºF)
Type J : -190 ºC to 760 ºC (-310 ºF to
1400 ºF) |
|
Accuracy |
(-190 ºC ～ -0 ºC ) ( +/- 0.5% rdg + 0.7
ºC)
(-310 ºF ～ -0 ºF ) ( +/- 0.5% rdg + 1.4
o F)
( 0 ºC ～ 1000 ºC) ( +/- 0.1% rdg + 0.5
ºC)
( 0 ºF ～ 1000 ºF) ( +/- 0.1% rdg + 1.0
ºF)
( 1000 ºC ～ 1333 ºC) ( +/- 0.2% rdg + 1
ºC)
( 1000 ºF ～ 2431 ºF) ( +/- 0.2% rdg + 2
ºF) |
|
Resolution |
-190 ºC ～ 999 ºC (0.1 ºC)
1000 ºC ～ 1333 o C ( 1 ºC)
-310 ºF ～ 999 o F (0.1 ºF)
1000 ºF ～ 2431 o F ( 1 ºF) |
|
Input Protection |
60VDC/24Vrms |
|
Power Source |
One 9V battery. 006p or NEDA1604 or
IEC6F22 |
|
Battery Life |
Approx. 50hr |
|
Operating / Storage Condition
|
0 ºC to 40 ºC (32 ºF to 104 ºF)below 80﹪RH.
-10 ºC to 60 ºC (14 ºF to 140 ºF) below
70﹪RH. |
|
Dimensions |
145(L)×68(W)×35(H)mm |
|
Weight |
Approx. 235g with battery |
|
Accessories |
Instruction manual, Battery, Carry case,
Software,
RS-232 cable, 9 Pin to 25 Pin gender
changer. |
|
|
※OPTIONAL TEMPERATURE PROBES K(CA) TYPE
THERMOCOUPLE |
|
Model
|
Testing Range
|
Description
|
|
TP-K01 Bead
|
-50ºC~200ºC/-58ºF~392ºF
|
for general condition, especially
for complex and place hard to reach.
|
|
TP-K02 Immersion
|
-50ºC~1000ºC/-58ºF~1832ºF
|
for temperature measurement of
liuqid or gels.
|
|
TP-K03 Surface
|
-50ºC~750ºC/-58ºF~1382ºF
|
for surface measurement.
|
|
|
|
TES-1310/1320 Thermometer
|
|
|
 |
|
|
|
|
|
|
Measuring Range
|
-50 ºC to
1300 ºC; -50 ºF to 1999 ºF |
|
Sensor |
K Type
thermocouple |
|
Input |
Single(1310), Dual (1320) |
|
Resolution |
50 ºC to
199.9 ºC...0.1 ºC
-50 ºF to 199.9 ºF ...0.1 ºF
(Others-1 ºC/1ºF ) |
|
Accuracy |
50 ºC to
199.9ºC...0.2% rdg + 1 ºC
-50 ºF to 199.9 ºF ...0.2% rdg + 1 ºF
-50 ºC to 1000 ºC... 0.3% rdg + 1 ºC
-50 ºF to 1999 ºF . ..0.3% rdg + 2ºF
1000 ºC to 1300 ºC..0.5% rdg + 1 ºC
(apply to mainframe only at 23ºC±5 ºC)
|
|
Function |
H Data Hold
& Display ºC/ ºF selection
0.1 o /1 o resolution selection
T1 & T2 dual points display
T1 - T2 differential
measurement
3-1/2 digit LCD |
|
Overrange |
1------
|
|
Low Battery
|
BT
|
|
Input Protection
|
60V DC or 24
Vrms AC maximum input
voltage on any combination of input
Connector. |
|
Sampling Rate
|
2.5
times/sec. |
|
Operating Condition
|
0 ºC to 50
ºC (32 ºF to 122 ºF ),
0 to 90% R.H. (0 to 35 ºC) |
|
Power Source
|
one 9V
battery |
|
Size |
135mm(L)x72mm(W)x31mm(H) |
|
Weight |
157g
|
|
Accessories
|
Battery &
Instruction Manual |
|
* OPTIONAL TEMPERATURE PROBES
|
Model Range
B(Type K(CA) THERMOCOUPLE)
TP-K01 Bead -50ºC to 200 ºC/-58 ºF to
392 ºF
General Purpose
TP-K02 Immersion -50 ºC to 1000 ºC/-58
ºF to 1832 ºF
Liquid or gels.
TP-K03 Surface -50 ºC to 750 ºC/-58ºF to
1382 ºF |
|
|
|
|
TES-1311/1312A Thermometer
|
|
|
 |
-
Type "K" Thermocouple Input
-
Switchable Resolution 0.1º
/ 1.0 º
-
WithºC& ºF switching
-
Max / MIN Function
-
Data Hold Function
-
Room Temperature Compensated
-
T1 & T2 dual points display
-
T1 - T2 differential measurement
-
Flip-up stand
-
Backlight LCD display
|
|
|
|
|
Model |
TES-1311/1312A |
|
Measuring Rang |
- 50 ºC ~ 1350 ºC , - 58 ºF ~ 1999 ºF |
|
Sensor |
K Type Thermocouple |
|
Input |
Single Channel (TES-1311) / Dual Channel
(TES-1312A) |
|
Resolution |
- 50 ºC ~ 199.9 ºC.....0.1 ºC , - 50 o F
~ 199.9 ºF.....0.1 ºF
(Others 1 ºC/1 ºF) |
|
Accuracy |
TES-1311 :
- 50 ºC ~ 1350 ºC... +/- (0.1%rdg + 1
ºC)
- 50 ºF ~ 1999 ºF... +/- (0.1%rdg + 2
ºF)
TES-1312A :
- 50 ºC ~ 1000 ºC... +/- (0.3%rdg + 1
ºC)
- 50 ºF ~ 1832 ºF... +/- (0.3%rdg + 2
ºF)
1000 ºC ~ 1300 ºC... +/- (0.5%rdg + 1
ºC)
1832 ºF ~ 1999 ºF... +/- (0.5%rdg + 2
ºF) |
|
Temperature Coefficient
|
Less that 0.1 times the applicable
accuracy
specification per ºC ( ºF) |
|
Input Protection |
60V DC or 24 Vrms AC maximum input
voltage on
any Combination of input Connector
|
|
Sampling Rate |
2.5 times/sec |
|
Operating / Storage Conditions
|
0 ºC ~ 40 ºC< 80%RH , -10 ºC ~ 60 ºC<
70%RH |
|
Power Source |
6 pcs AAA size Battery |
|
Size |
135 mm(L) x 72 mm(W) x 31 mm(H)
|
|
Weight |
235g |
|
Accessories |
Battery, Instruction, Manual
|
|
|
|
|
TES-1313/1314
K.J.T.E.R.S.N. Thermometer
|
|
|
 |
-
Highly accurate thermometer with thermocouple K,
J, E, T, R, S, N type.
-
Dual input function T1/T2 temperature display.
(1314)
-
Warning beeper with HI/LO setting.
-
MAX/MIN with TIME, MAX–MIN AVG, HOLD function.
-
ºC / ºF / K User-Selective.
-
Back-Light LCD display.
|
|
|
|
|
Measuring Range
|
K - Type : -200ºC to +1372ºC (-328ºF to
+2501ºF)
J - Type : -210ºC to +1200ºC (-346ºF to
+2192ºF)
E - Type : -150ºC to +1000ºC (-238ºF to
+1832ºF)
T - Type : -250ºC to +400ºC (-418ºF to
+752ºF)
R and S - Type : 0ºC to +1767ºC (+32ºF
to +3212ºF)
N - Type : -200ºC to +1300ºC (-328ºF to
+2372ºF) |
|
Display Resolution
|
0.1ºC / ºF / K <2000°
1.0ºC / ºF / K <=2000° |
|
Measurement Accuracy (According
to ITS-90) |
K, J, E, T and N-Type : ±[0.05% of
reading +0.3ºC (0.6ºF)]
[below-100ºC (-148ºF) : add 0.15 % of
reading for K-, J-, E-, and N-Type ; and
0.45% of reading for T-Type]
R-and S-Type : ±[0.05% of reading +
0.4ºC (0.8ºF)] |
|
Temperature Coefficient
|
0.01% of reading + 0.03ºC per ºC (0.05
ºF per ºF) outside the specified +18ºC
to 28ºC (+64ºF to +82ºF) range
[LCD ranging : below –100ºC (-148ºF) :
add 0.04% of reading for K-, J-, E, and
N- Type; and 0.08% of reading for T-
Type] |
|
Maximum Differential Common Mode
Voltage |
1V (Maximum voltage difference between
T1 and T2) |
|
Input Protection
|
30V maximum input voltage on any
Combination of input Connector
|
|
Sampling Rate
|
1 time/sec |
|
Operating/Storage Conditions
|
0 ºC ~ 40 ºC<80% RH
–10 ºC ~ 60 ºC<70% RH |
|
Power Source |
6 pcs size AAA Battery |
|
Battery Life
|
Approx. 300hours. (not including
backlight and beeper) |
|
Size |
152(L) ×72(W) ×37(H)mm |
|
Weight |
Approx. 300g |
|
Accessories
|
Instruction manual, Battery |
|
|
|
|
TES-1315/1316
K.J.E.T.R.S.N. Data-Logger
Thermometer
|
|
|
 |
-
Highly accurate thermometer with thermocouple K,
J, E, T, R, S, N type.
-
Dual input function T1/T2 temperature display.
(1316)
-
7500 DataLogging capacity.
-
Warning beeper with HI/LO setting.
-
MAX/MIN with TIME, MAX-MIN AVG, HOLD function.
-
ºC / ºF / K User-Selective.
-
Back-Light LCD display.
|
|
|
|
|
Measuring Range |
K - Type : -200ºC to +1372ºC (-328ºF to
+2501ºF)
J - Type : -210ºC to +1200ºC (-346ºF to
+2192ºF)
E - Type : -150ºC to +1000ºC (-238ºF to
+1832ºF)
T - Type : -250ºC to +400ºC (-418ºF to
+752ºF)
R and S - Type : 0ºC to +1767ºC (+32ºF
to +3212ºF)
N - Type : -200ºC to +1300ºC (-328ºF to
+2372ºF) |
|
Display Resolution |
0.1ºC / ºF / K < 2000°
1.0ºC / ºF / K <=2000° |
Measurement Accuracy
(According to ITS-90) |
K, J, E, T, and N-Type : ± [0.05% of
reading +0.3ºC (0.6ºF)]
[below -100ºC (-148ºF) : add 0.15 % of
reading for K-, J-, E-, and N-Type ; and
0.45% of reading for T-Type]
R-and S-Type : ± [0.05% of reading +
0.4ºC (0.8ºF)] |
|
Temperature Coefficient |
0.01% of reading + 0.03ºC per ºC (0.05
ºF per ºF) outside the specified +18ºC
to 28ºC (+64ºF to +82ºF) range
[LCD ranging : below -100ºC (-148ºF) :
add 0.04% of reading for K-, J-, E, and
N- Type; and 0.08% of reading for T-
Type] |
Maximum Differential
Common Mode Voltage |
1V (Maximum voltage difference between
T1 and T2) |
|
Input Protection |
30V maximum input voltage on any
Combination of input Connector
|
|
Sampling Rate |
1 time/sec |
|
Operating/Storage Conditions
|
0ºC ~ 40ºC < 80% RH ,
-10ºC ~ 60ºC < 70%RH |
|
Power Source |
6 pcs size AAA Battery |
|
Battery Life |
Approx. 300hours. (not including
backlight and beeper) |
|
Size |
152(L) ×72(W) ×37(H)mm |
|
Weight |
Approx. 300g |
|
Accessories |
1. Instruction manual, Battery
2. Software for WINDOWS, RS-232 Cable,
9 pin to 25 pin Gender changer.
|
|
|
|
|
|
|
TES-1319A K type Thermometer
|
|
|
 |
|
* Type "K" Thermocouple
Input.
* Switchable Resolution 0.1° / 1°.
* With ºC & ºF switching.
* Max / MIN Function.
* Data Hold Function.
* Flip-up stand.
|
|
|
|
|
Measuring Rang
|
- 50ºC ~ 1350ºC , -58ºF ~ 1999ºF |
|
Sensor |
K Type Thermocouple |
|
Input |
Single Channel |
|
Resolution |
- 50ºC ~ 199.9ºC.....0.1ºC , - 50ºF
~ 199.9ºF.....0.1ºF
(Others 1ºC/ 1ºF) |
|
Accuracy |
- 50ºC ~ 199.9ºC... +/- (0.3%rdg + 1ºC)
- 50ºF ~ 199.9ºF... +/- (0.3%rdg + 2ºF)
- 50ºC ~ 1000ºC... +/- (0.5%rdg + 1ºC)
- 50ºF ~ 1999ºF... +/- (0.5%rdg + 2ºF)
1001ºC ~ 1300ºC... +/- (0.75%rdg + 1ºC) |
|
Temperature Coefficient
|
Less that 0.1 times the applicable
accuracy
specification per ºC (ºF) |
|
Input Protection
|
60V DC or 24 Vrms AC maximum input
voltage on any
Combination of input Connector
|
|
Sampling Rate
|
2.5 times / sec |
|
Operating / Storage Conditions
|
0ºC ~ 40ºC<80%RH , - 10ºC ~ 60ºC<
70%RH |
|
Power Source
|
6 pcs AAA size Battery |
|
Size |
135mm(L) x 72mm(W) x 31mm(H)
|
|
Weight |
235g |
|
Accessories
|
Battery, Instruction, Manual
|
|
|
|
|
|
|
|
|

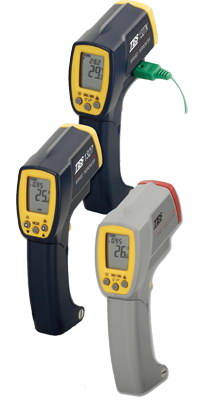

TES-1326S/
1327/ 1327K
Infrared Thermometer
|
|
 |
-
0.1 ºC/0.2
ºF
Resolution
-
-35 ºC ~ 500ºC
(-31 ºF ~ 932 ºF )
-
Built-in
Laser Targeting / Backlight LCD display
-
MAX / MIN
function
-
Data memory
and read function
-
Dual
thermometer and Dual display (1327K)
-
Audible and
visible alarm (1327/1327K)
-
Emissivity
adjustable (1327/1327K)
|
|
|
|
|
Display |
Backlight LCD display
|
|
Measurement Range
|
-35
ºC ~ 500ºC (-31 ºF ~ 932 ºF)
|
|
Resolution |
0.1
ºC / 0.2 ºF |
|
Accuracy |
± 2%
reading or ± 2 ºC |
|
Spectral Response
|
6 ~
14μm |
|
Field of View
|
12:1 optics ratio with a 1" min
target |
|
Emissivity |
0.17~1.00 (1326S: fixed 0.95)
|
|
Sighting |
Laser marker < 1mw |
|
|
K-TYPE THERMOMETER (for 1327K):
|
|
Measurement Range
|
-150
ºC~1350ºC(-238 ºF~1999ºF)
|
|
Resolution |
0.1
ºC / 1ºC, 0.1ºF / 1ºF |
|
|
Data memory capacity
|
50
sets (Direct reading from LCD
display) (1326S/1327)
99
sets (Direct reading from LCD
display) (1327K) |
|
Auto power off
|
approx. 15 sec |
|
Battery Life
|
Approx. 100 hours (laser pointer
and backlight aren't on use)
(Alkaline) |
|
Power Source
|
One
9V cell(
ANSI/NEDA-1604A,IEC-6LR61)
|
|
Operating / Storage Condition
|
0
ºC~50ºC (32 ºF~122ºF) below 80%RH
-10ºC~60ºC (14ºF~140ºF) below 70%RH |
|
Dimensions |
172mm*118mm*46mm |
|
Weight |
220g
|
|
Accessories
|
Instruction manual, Battery
|
|
|
