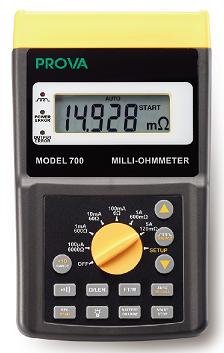

PROVA 700  Milli-Ohmmeter

　

Features:

■ Best resolution 1μΩ.  Accuracy 0.05%.

■ 5A (120 mΩ) max. test current.

■ Manual or Auto range.  (There are 6 ranges of current measurement, and furthermore 3 ranges in each current range.)

■ Measurement of resistive and inductive materials (Two terminal measurement; Four terminal Kelvin measurement).

■ Programmable Hi-Lo alarm with memory of 20 data.

■ Auto-judgments of Hi (readings higher than Hi-Limit), Lo (readings lower than Lo-Limit) and Pass (readings between Hi-Lo Limits).  Alarm (beeper) for Hi and Lo.

■ Readings Hold function.

■ Cable length measurement.  The length unit can be selected between Meter (M) and Feet (FT).

■ Resistance measurement results excluding cable resistances.

■ Memory of 3,000 measurement data.

■ Large LCD (5-digit) with backlight (users can choose to disable it).

■ Rechargeable lithium battery and AC adaptor.

■ Low battery (voltage) alarm.

■ Low power consumption.

■ Communicate with PC via RS232C (to USB bridge) cable.

Specifications:

Power Source: 1.2V AA rechargeable battery x 82500mAh

Battery Recharging Time: 10 hours

LCD Display: 4 5/6 Digit LCD + Backlight

AC Adaptor: AC 110V or 220V input, DC 12V / 1~3A output

Dimension: 257(L) x 155(W) x 57(H) mm  10.1" (L) x 6.1" (W) x 2.2" (H)

Weight: 1160g / 40.9oz (Batteries included)

Operation Environment: 0ºC ~ 50ºC, 85% RH

Storage Environment: -20ºC ~ 60ºC, 75% RH

Standard Accessories: User Manual x 1

                                  Rechargeable batteries x 8

                                  AC adaptor x 1

                                  RS232C (to USB Bridge) Cable x 1

                                  Software CD x 1

                                  Software Manual x 1

                                  Kelvin Clips x 1 set

　

Option: 4-wire Test Leads

■ Application: various low-resistance (cables) measurement; contact resistance measurement, …etc.

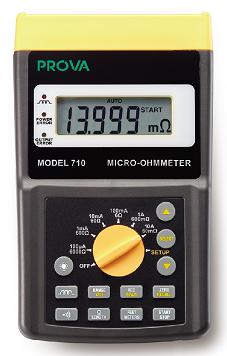

PROVA 710 Micro-Ohmmeter

　

Features:

■ 10A (60mΩ) max. test current

■ Best resolution 1μΩ

■ Basic accuracy 0.25%

■ Four terminal Kelvin measurement

■ Manual or Auto Range

■ Measurement of resistive and inductive materials

■ Programmable Hi-Lo alarm with memory of 20 data

■ Readings Hold function

■ Cable length measurement (Meter or Feet)

■ Memory of 3,000 measurement data

■ Large LCD (5-digit) with backlight

■ Rechargeable lithium battery and AC adaptor

■ Low battery (voltage) alarm

■ Low power consumption

■ Communicate with PC via RS232C (to USB bridge) cable.

■ Built-in calendar clock

■ Built-in battery charging circuit

Specifications:

Power Source: Rechargeable Lithium Battery, 3400mAh (11.1V)

Battery Recharging Time: 10 hours

Battery Charging: AC 110V or 220V input, DC 15V / 1~3A output

                          Please note the polarity of the DC output

LCD Display: 4 5/6 Digit LCD + Backlight

Dimension: 257(L) x 155(W) x 57(H) mm

Weight: 1160g / 40.0oz (Batteries included)

Operation Environment: -10ºC ~ 50ºC, 85% RH

Storage Environment: -20ºC ~ 60ºC, 75% RH

Standard Accessories: RS232C (to USB Bridge) Cable x 1

                                  Rechargeable Lithium Battery x 1

                                  AC adaptor x 1

                                  Kelvin Clips x 1 set

                                  User Manual x 1

                                  Software CD x 1

                                  Software Manual x 1

Option: 4-wire Test Leads

■ Application: Coil resistance of electric motor; Contact resistance of switch and relay; Resistance of bus bar, breaker, fuse, inductance and shunt; etc.
