TES-1390/1392 EMF Tester ElectroMagnetic Field Tester

The E MF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths.
Display micro Tesla & milli Gauss in the same tester.
Data hold, Peak hold function
On-line computer (1392) Data logging (1392) function.

Display	3-1/2 digits. Max. indication 1999
Range	200 / 2000 milli Gauss 200 micro Tesla
Resolution	0.1 / 1 milli Gauss 0.01 / 0.1 micro Tesla
Number of Axis	Single axis
Band Width	30 Hz to 300 Hz
Accuracy	+/- (3% + 3d) at 50Hz / 60Hz
Over-Input	Display shows "OL"
Sampling Time	Approx. 0.4 second
Battery	4 pcs size AAA (Alkaline Battery)
Battery Life	Approx. 60 hours
Operating Temp and Humidity	0 ºC to 40 ºC (32ºF to 104ºF) below 80%RH
Storage Temp and Humidity	-10 ºC to 60 ºC below 70%RH
Weight	Approx. 165g
Dimension	111(L) x 64(W) x 34(H) mm
Accessories	Operation Manual, 4 pcs size AAA (Alkaline Battery), RS-232 interface / software (1392)
Datalogging Capacity(TES-1392)	16000 Point Data logging

TES-92 ElectroSmog Meter


50 MHz to 3.5 GHz frequency range. For isotropic measurements of electromagnetic fields. Non-directional (isotropic ) measurement with three-channel measurement probe. High dynamic range due to three-channel digital results processing. Configurable alarm threshold and memory function. Easy to use

High frequency (RF) electromagnetic wave field strength measurement. Mobil phone base station antenna radiation power density measurement. Wireless communication applications (CW , TDMA , GSM , DECT).	Wireless LAN (Wi-Fi) detection, installation. Spy camera, wireless bug finder. Cellular/Cordless phone radiation safety level. Microwave oven leakage detection. Personal living environment EMF safety. RF power measurement for transmitters.

ELECTRICAL SPECIFICATIONS

Sensor type	Electric field (E)
Frequency range	50MHz to 3.5 GHz
Directional characteristic	Isotropic, 3-dimensional
Measurement range (CW signal>50MHz)	38mV/m to 11V/m
Absolute error(@1V/m and 50MHz)	± 1.0dB
Frequency response (taking into account typ. CAL factor)	± 1.0dB (50MHz to 1.9 GHz) , ±2.4dB(1.9GHz to 35GHz)
Isotropy deviation	Type. ±1.0dB f>50 MHz
Overload limit	4.2W/m2 (40 V/m)
Temperature response(0 to 50 ºC)	± 1.5dB
Note	Unless otherwise stated, all specifications hold under the following assumptions: Sinusoidal signals; device in far-field of a source; probe head pointing toward source; ambient temperature +23 ºC±3 ºC; relative air humidity 25% to 75%.

GENERAL SPECIFICATIONS

Measurement method	Digital, triaxial measurement
Directional characteristic	Isotropic, triaxial
Measurement range selection	One continuous range
Display resolution	0.1mV/m, 0.1 μA/m, 0.1 μW/m², 0.001 μW/cm²
Setting time	Typically 1s (0 to 90% of meas. value)
Display refresh rate	Typically 400mS
Display type	LCD 4 digit
Audible alarm	Buzzer
Measurement units	mV/m, V/m, μA/m, mA/m, μW/m², mW/m², μW/cm²
Measurement display value	Instantaneous measured value, maximum value or average value since power-on.
Measurement average time (in per-set steps)	4s to 15 minutes
Measurement alarm function	Adjustable threshold with ON/OFF
Measurement calibration factor CAL	Adjustable
Manual data memory and read storage	99 sets (only recall by meter)
Battery	9V
Battery life	>15 hours
Accessory	9V battery, carrying case & manual

TES-593 EMF Meter/ ElectroSmog Meter


10 MHz to 8.0 GHz frequency range. For isotropic measurements of electromagnetic fields. Non-directional (isotropic ) measurement with three-channel measurement probe. High dynamic range due to three-channel digital results processing. Configurable alarm threshold and memory function. Easy to use
High frequency (RF) electromagnetic wave field strength measurement. Mobil phone base station antenna radiation power density measurement. Wireless communication applications (CW , TDMA , GSM , DECT).	Wireless LAN (Wi-Fi) detection, installation. Spy camera, wireless bug finder. Cellular/Cordless phone radiation safety level. Microwave oven leakage detection. Personal living environment EMF safety. RF power measurement for transmitters.

ELECTRICAL SPECIFICATIONS

Sensor type	Electric field (E)
Frequency range	10MHz to 8.0 GHz
Directional characteristic	Isotropic, 3-dimensional
Measurement range (CW signal>50MHz)	38mV/m to 11V/m
Absolute error(@1V/m and 50MHz)	± 1.0dB
Frequency response (taking into account typ. CAL factor)	± 1.0dB (50MHz to 1.9 GHz) , ±2.4dB(1.9GHz to 35GHz)
Isotropy deviation	Type. ±1.0dB f>50 MHz
Overload limit	4.2W/m2 (40 V/m)
Temperature response(0 to 50 )	± 1.5dB
Note	Unless otherwise stated, all specifications hold under the following assumptions: Sinusoidal signals; device in far-field of a source; probe head pointing toward source; ambient temperature +23 ±3 ;relative air humidity 25% to 75%.

GENERAL SPECIFICATIONS

Measurement method	Digital , triaxial measurement
Directional characteristic	Isotropic, triaxial
Measurement range selection	One continuous range
Display resolution	0.1mV/m, 0.1 μA/m, 0.1 μW/m², 0.001 μW/cm²
Setting time	Typically 1s ( 0 to 90% of meas. value)
Display refresh rate	Typically 400mS
Display type	LCD 4 digit
Audible alarm	Buzzer
Measurement units	mV/m , V/m , μA/m , mA/m , μW/m² , mW/m² , μW/cm²
Measurement display value	Instantaneous measured value, maximum value or average value since power-on.
Measurement average time (in per-set steps)	4s to 15 minutes
Measurement alarm function	Adjustable threshold with ON/OFF
Measurement calibration factor CAL	Adjustable
Manual data memory and read storage	99 sets ( only recall by meter )
Battery	9V
Battery life	>15 hours
Accessory	9V battery, carrying case & manual

TES-1393/TES-1394S ElectroMagnetic Field Tester (W/USB)

The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50Hz/60Hz.
Display micro Tesla & milli Gauss in the same tester.
Data hold, Peak hold function.
USB Optical inter face. (1394S)
999 Datalogging capacity

This EMF tester is specifically designed to determine the magnitude of electromagnetic filed radiation generated by power lines, computer's monitor, TV sets, video machinery and many other similar devices.

Display	3-1/2 digits. Max. indication 1999
Range	20/200/2000 milli Gauss 2/20/200 micro Tesla
Resolution	0.01/0.1/1 milli Gauss 0.001/0.01/0.1 micro Tesla
Number of Axis	Three axis
Band Width	30 Hz to 2000 Hz
Accuracy	±(3%+3d) at 50Hz or 60HZ, ±(5%+3d) at 40Hz to 200HZ, -3dB at 30Hz to 2000HZ
Over-Input	Display shows “”
Data logger	999 reading
Sampling Time	Approx. 0.5 second
Battery	6 pcs size AAA 1.5V
Battery Life	Approx. 100 hours
Operating Temp and Humidity	0ºC to 50ºC (32ºFto 122ºF) below 80%RH
Storage Temp and Humidity	-10ºC to 60ºC below 70%RH
Weight	Approx. 165g
Dimension	154(L)x72 (W)x35(H) mm
Accessories Included	Operation Manual, 6 pcs size AAA, [Software for windows, USB Cable (1394S)].

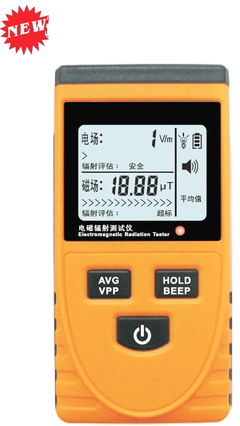

SR1820 Electromagnetic Radiation Tester

Unit	Electric Field: V/m; Magnetic Field: μT
Precision	Electric Field: 1Vm; Magnetic Field: 0.01μT
Range	Electric Field: 1v/m-1999V/m; Magnetic Field: 0.01μT-19.99μT
Alarm Threshold	Electric Field: 40V/m; Magnetic Field: 0.4μT
Reading Display	3-1/2 Digital LCD
Frequency Range	5HZ—3500MHZ
Sampling Time	About 0.4 Second
Measuring Mode	Dual Mode
Overload Alert	1 Appears On LCD
Sound And Light Alarm	YES
Data Hold	YES
Backlight	YES
Auto Power Off	YES
Average And Peak Reading	YES
Low Battery Alert	YES
Operating Temperature	0ºC~50ºC
Operating Humidity	Below RH 80%
Operating Voltage	9V
Power	6F22 9V Battery
Size	63.631125.8mm
Weight	146g

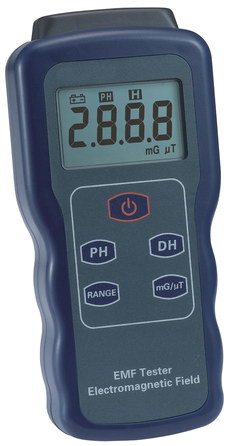

SR1828 Field Intensity Meter

The meter can inspect particular objects or devices radiate low frequency electromagnetic waves. It can use for power wire, computer monitor, TV, audio and visual, electromagnetic oven oven or analogous electrical installation.

Measuring range:
0.1-400mG, 1-4000mG
0.01-40uT, 0.1-400uT
Accuracy: ±(3%rdg+3digits) 50Hz/60Hz
Proper frequency: 30Hz-400Hz
Exceed measuring range: LCD will display "OL"
Sampling time: 0.5 second
Power: one 9V battery (model 6F22)

Operating environment:
Temperature: 0-50ºC (32-122°F)
Relative humidity: ≤80%RH
Dimensions: 138L*71W*35H(mm)

　

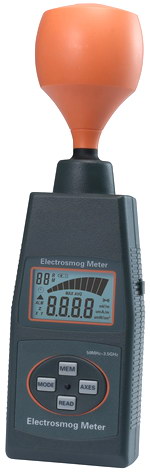

SR1829 Field Intensity Meter

1.Metrical ways:digit display,measuring with three axes
2.Characteristic of directivity:all-aspect,three axes
3.Resolutin displayed:0.1mV/m,0.1uA/m,0.1uW/M2
4.Reaction time: about 1 second(the measurement value is from 0 to 90%)
5.Refresh rate displayed:about 0.5 second
6.Display format:LCD,4 digits
7.Alarm:buzzer
8.Units:mV/m,V/m,uA/m,mA/m,uW/m2，mW/m2,uW/cm2
9.Displayed value:the instantaneous measurement value,the MAX measurement value,average measurement value and the maximum averaging value Warning function:you can adjust the setting value and you also can open the function or close it.
10.Manual memory and reading data content:99 groups
11.Power:4×1.5V AA battery
12.Operating environment: (Temperature: 0-50ºC（32-122°F）
13.Relative humidity: ≤80%RH
14.Dimensions and weight: 261L×73W×38H(mm)

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com)
