Solar Power Meter

¡¡

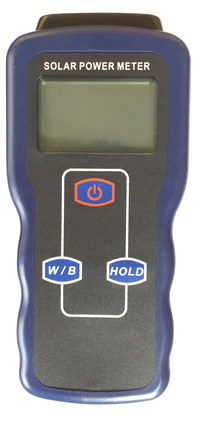

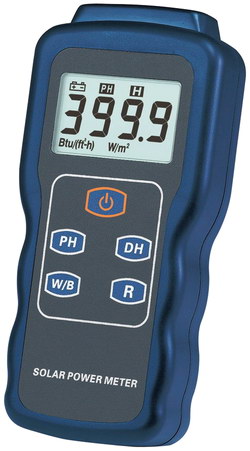

SR1206 Solar Power Meter
Overview
Thank you for selecting our product. Before using this meter, please carefully read this Manual. It will instruct you on correct operation methods and simple examination and handling essentials so you can benefit from its advantages.
This meter is a precision instrument for measuring light intensity. It is used in solar radiation measurement, solar research, physical and optical experiments, meteorology, and agriculture. It can also be used to measure glass light intensity to verify glass properties. For example: Measurement of light intensity through vehicle windows.
Features
* Selectable from two units: W/m² and Btu
* 4 1/2 digital display
* Data retention function
* Wide measure range without adjustment
Specifications:
* Resolution: 0.1W/m², 0.1 Btu/(ft²-h)

* Error range: ¡À 10W/m² [¡À3 Btu/(ft²-h)] or ¡À5% of the measured value

* Temperature error: ¡À0.38W/m²/ºC [ ¡À0.12 Btu/(ft²-h)/ºC] deviation at 25ºC

* Display: 4 1/2 LCD display, maximum displayed numerical value 19999, over load ¡°OL¡±

* Drift: <¡À3% /year

* Range: 0.1-1999.9 W/m², 0.1-1999 Btu/(ft²-h) wave length range: 340nm--1100nm, Incidence Angle normal direction less than ¡À45 degree

* Sampling time: 0.25s/time

* Operation temperature and humidity: 0¡ãC to 40¡ãC, <80%RH

* Storage temperature and humidity: -10¡ãC to 50¡ãC, <70%RH

* Dimensions and weight: 132(L) x 60(W) x 38 (H)mm

* Weight: approx. 150g

* Battery needed: 9V battery

* Battery operation life: Approx. 100 hours

TES-1333/TES-1333R Solar Power Meter

FEATURES
-Wide spectral range.
-Excellent long term stability.
-Cosine corrected.
-Automatic transmission measurements.
-Select either power or transmission.
-Solar energy power or transmission.
-Current time setting function.
-User calibration factor setting function.
-End-mount light sensor.
-Select either W/m2 or Btu / (ft2*h) units
-Data Hold / MAX / AVG modes.
-Data Memory and Read function. (99 sets.)
-Auto Data memory and RS232 interface to PC. (TES-1333R)

APPLICATIONS
-Meteorology
-agriculture
-solar radiation measurement
-solar power research
-physics and optical laboratories
-solar transmission measurement
-identify high performance windows

SPECIFICATION:

¡¡

Display

3-1/2 digits.Max.indication1999

Range

2000W/m2, 634Btu/(ft 2 * h)

Resolution

1W/m2, 1Btu/(ft2*h)

Spectral response

400-1100nm

Accuracy

Typically within ¡À 10W/m2[ ¡À3 Btu / (ft2*h) ] or ¡À5%, whichever is greater in sunlight; Additional temperature induced error ¡À0.38W/m2 / ºC [ ¡À0.12 Btu / (ft2*h)/ ºC] from 25ºC

Angular accuracy

Cosine corrected <5% for angles <60º

Drift

<¡À2% / per year

Calibration

User recalibration available

Over-input

Display shows ""

Sampling Time

Approx. 0.4 second

Manu data memory and read

99 sets

Auto data memory

32000 sets (TES-1333R)

Battery

4pcs size AAA

Battery Life

Approx. 100 hours

Operating temp and humidity

0 ºC to 50 ºC below 80%RH

Storage temp and Humidity

-10 ºC to 60 ºC below 70% RH

Weight

Approx. 165g

Dimension

111(L)*64(W)*34(H)mm

Accessories

Carrying Case, Operation Manual, 4 pcs size AAA, RS232 cable (for TES-1333R), CD software (For TES-1333R)

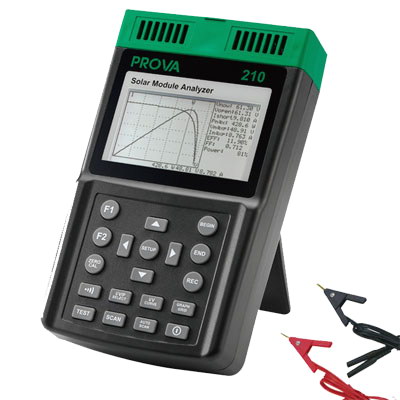

PROVA 200 Series Solar Module Analyzer

  • I-V Curve Test for Solar Cell.

  • Maximum Solar Power (Pmax) Search by Auto-scan

  • 60V, 6A (PROVA 200A)
    60V, 12A (PROVA 210)
    85V,8.5A (PROVA 218)

  • Maximum Voltage (Vmaxp) at Pmax

  • Maximum Current (Imaxp) at Pmax

  • Voltage at open circuit (Vopen)

  • Current at short circuit (Ishort)

  • I-V curve with cursor

  • Optional printer (model: 300XP) to hardcopy I-V curve

  • Calculation of Efficiency (%)

  • Manual single point test

¡¡

¡¡

Electrical Specifications (23ºC¡À5ºC, Four-wire Measurement)

DC Voltage Measurement:
¡¡

Range (60V / 6A)

Resolution

Accuracy

0-6V

0.001V

¡À1% ¡À (1% of Vopen ¡À 9mV)

6-10V

0.001V

¡À1% ¡À (1% of Vopen ¡À 0.09V)

10-60V

0.01V

¡À1% ¡À (1% of Vopen ¡À 0.09V)

DC Current Measurement:
¡¡

Range (60V / 6A)

Resolution

Accuracy

0-0.6A

0.1mA

¡À1% ¡À (1% of Ishort ¡À 0.9mA)

0.6-1A

0.1mA

¡À1% ¡À (1% of Ishort ¡À 9mA)

1-6A

1mA

¡À1% ¡À (1% of Ishort ¡À 9mA)

DC Current Simulation:
¡¡

Range (60V / 6A)

Resolution

Accuracy

0-1A

0.1mA

¡À1% ¡À 0.9mA

1-6A

1mA

¡À1% ¡À 9mA

General Specifications:

¡¡

Battery Type Rechargeable Lithium Battery, 3400mAh
Battery Life 400 times of linear scan from 60V to 0V and 0A to 12A
Data Logging Memory Size 99 records (PROVA 210)
AC Adaptor AC 110V or 220V input 200: DC 12V / 1-3A output
210: DC 15V / 1-3A output
Dimension 257 (L) x 155 (W) x 57 (H) mm
Weight 1160 g / 40.0 oz (Batteries included)
Operation Environment 0ºC - 50ºC, 85%RH
Temperature Coefficient 0.1% of full scale / ºC (< 18ºC or >28ºC)
Storage Environment -20ºC - 60ºC 75% RH
Accessories User manual x 1, AC adaptor x 1
Optical USB Cable x 1
Software CD x 1, Software Manual x 1
Kelvin Clips (6A max) x 1 set (PROVA 200A)
Kelvin Clips (12A max) x 1 set (PROVA 210)
Rechargeable lithium battery x 1

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
